2A482-K01ABaseus K01A Wireless Tri-Mode Keyboard

Baseus K01A Wireless Tri-Mode Keyboard User Manual Before using the product, thoroughly read this manual. Keep the manual for future reference. 1. Content Keyboard×1 User manual×1 Warranty card×1 2.4G USB receiver×1 2. Specifications Name: Baseus K01A Wireless Tri-Mode Keyboard Model No.: K01A Operating Voltage: 3V Operating Current: 2mA Compatible System: Windows, Apple OS, Linux, Harmony OS, Android 3. Connection Instructions 2.4G Connection Mode 1. Install two AAA batteries, and press the power button on the right upper corner, the keyboard will enter the 2.4G connection mode. 2. Take out the USB receiver and connect it to the computer, and wait for the computer to install the driver, then you can use the keyboard. 3. If step 1 and step 2 fail to pair, please press and hold "esc" and "+" at the same time to enter 2.4G forced pairing, during when the LED flashes green, and repeat the step 2 above. BT Connection Mode 1. Press the BT1 button on the keyboard and the indicator flashes slowly, entering the BT1 mode. 2. Press and hold the BT1 button for 3s and the indicator flashes quickly, entering the BT1 searching mode. Turn on wireless on your computer, and select “Baseus K01A-BT3.0” to connect if your operating system is Win 7 or earlier, or select “Baseus K01A-BT5.0” to connect if your operating system is Win 8 or above. Function Description: Note: The multifunction key is to test the built-in software, due to different codecs, other APPs may be different. 4. Attention Indicator flashes red, meaning the battery is low, please change the batteries. When the keyboard shuts down itself or stops working, it means the battery is to low to maintain operation, please change the batteries immediately. Please remove the batteries if you decide to not use the keyboard for a long time. Actual battery life may vary depending on your personal use habit or use environment. Warning: Keep the product away from fire sources, and DO NOT attempt to personally disassemble or modify the product, please contact customer service for help if you have any problems with the FCC NOTE： This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Attestation Statements (2023.3.16) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for 2A482 (Shenzhen Baseus Technology Co., Ltd.), the undersigned, hereby authorize (Oasis- Compliance) to act as our designated U.S. agent for service of process, (Shenzhen Baseus Technology Co., Ltd.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (Oasis-Compliance) accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: Shenzhen Baseus Technology Co., Ltd. Contact Name: Zhang Mao Address: 2nd Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd, Gangtou Community, Bantian Street, Longgang District, Shenzhen. Telephone No: +86-18818848769 Email: [email protected] Signature [name] U.S. Agent Information: Company Name: Oasis-Compliance Address: 3313 Verdi Dr,San Jose,CA 95111 FRN:0033464157 Contact Name:James He Telephone No: (202) 602-8330 Email: [email protected] Signature [name]

(Shenzhen Baseus Technology Co., Ltd.) 2023.04.06 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for 2A482-K01A [Shenzhen Baseus Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Zhang Mao (Shenzhen Baseus Technology Co., Ltd.) 2023.04.06 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for2A482-K01A [Shenzhen Baseus Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Zhang Mao

Shenzhen Baseus Technology Co., Ltd. 2023.4.6 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Baseus K01A Wireless Tri-Mode Keyboard Trademark: Baseus MODEL : K01A FCC ID: 2A482-K01A To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Zhang Mao / Certified Engineer Contact information / address: 2nd Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd,Gangtou Community, Bantian Street, Longgang District, Shenzhen.

Shenzhen Baseus Technology Co., Ltd. 2023.4.6 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: Baseus K01A Wireless Tri-Mode Keyboard Trademark: Baseus MODEL : K01A FCC ID: 2A482-K01A To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Zhang Mao / Certified Engineer Contact information / address: 2nd Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd,Gangtou Community, Bantian Street, Longgang District, Shenzhen.

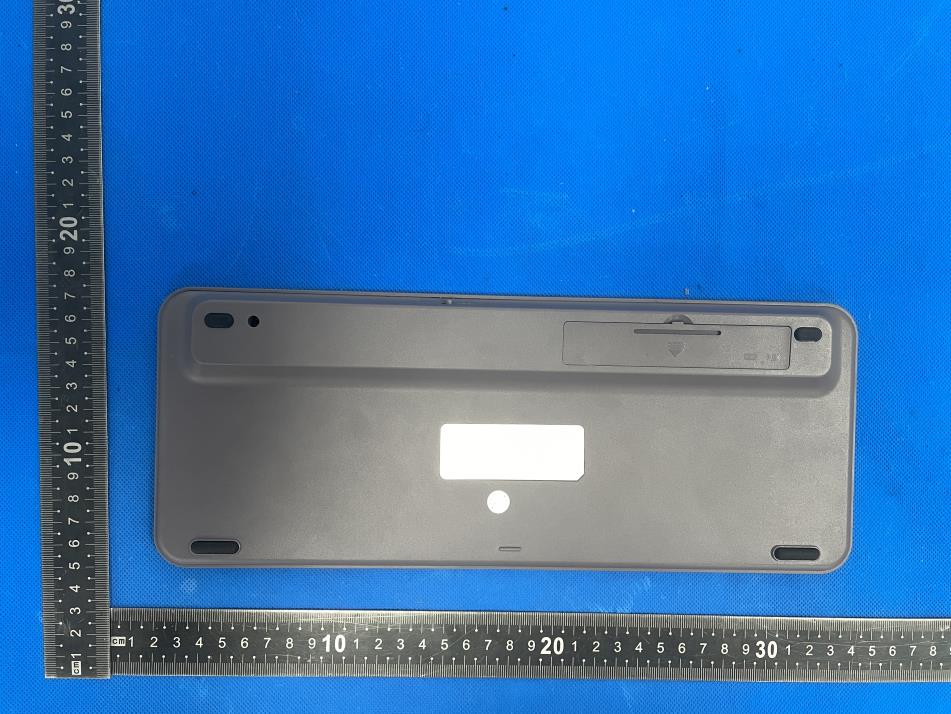

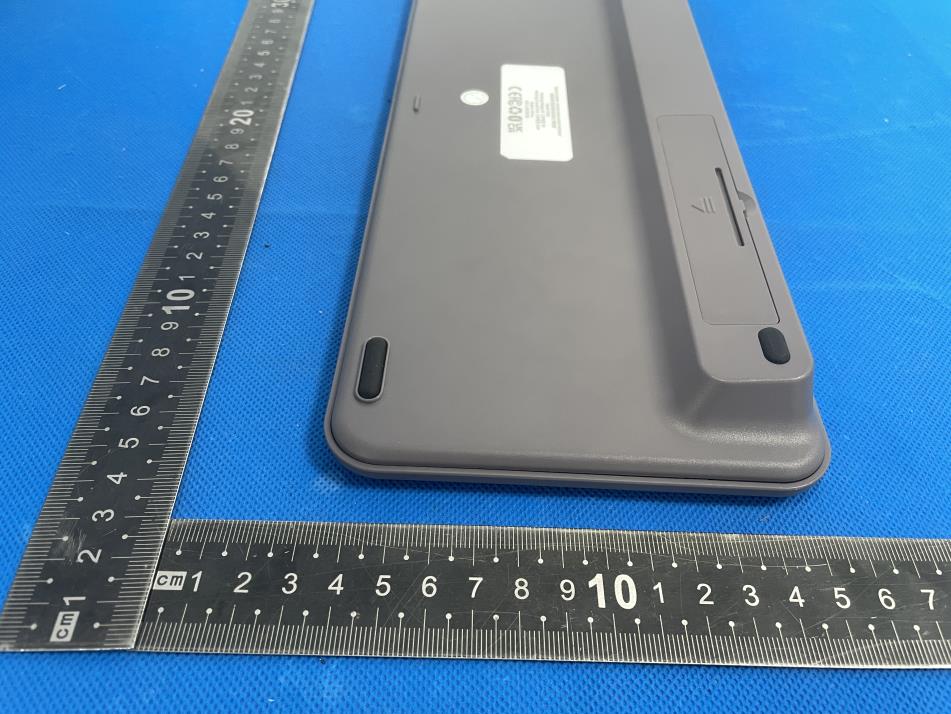

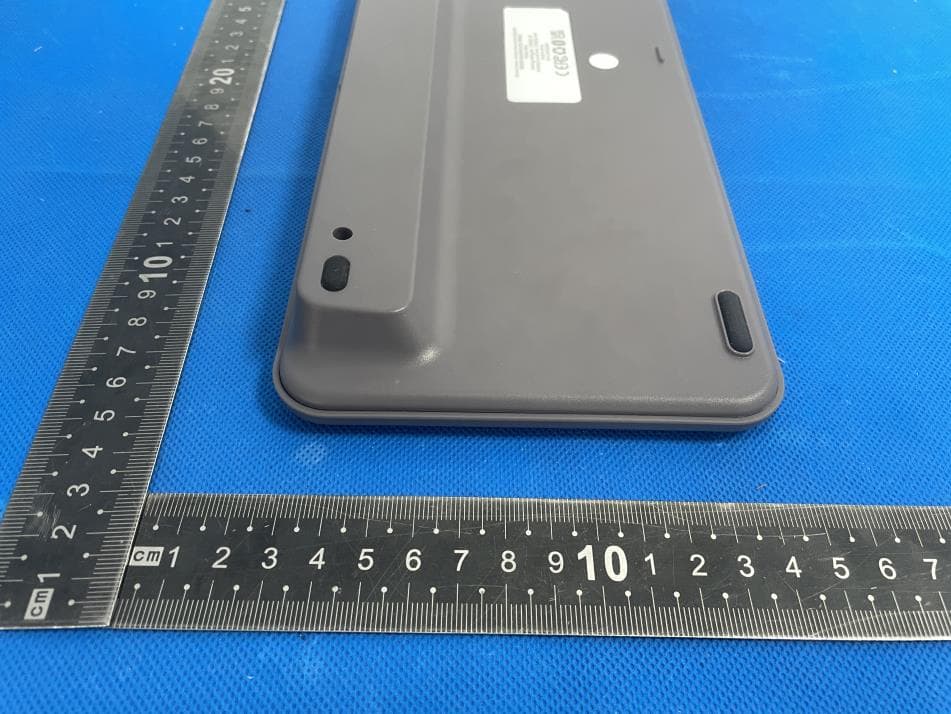

External Photos

Size:20*20mm FCC ID: 2A482-K01A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photos Antenna

FCC ID: 2A482-K01A RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison Modulation Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR GFSK 2.402 -2.74 -3±1 -2 0.63 5 0.20 3.0 GFSK 2.403 2.34 2±1 3 2 5 0.62 3.0 Conclusion: For the max result : 0.62W/Kg ≤ FCC Limit 3.0 for 1g SAR. The Product unsupported at the same time to Transmitting.

Antenna Specification Specifications Summary I TEMSPEC. Center Frequency 2402 MHz 2441 MHz 2480 MHz 2.34dBi 2.07dBi 1.45dBi MAX. GAIN2.34 dBi PolarizationHorizontal Azimuth Beam Pattern Omni-directional Impedance50 AntennaLength3.1cm Antenna Photo & Length (mm) Test Address 16 Tzu Chiang Road, HsinchuIndustrial District Hsinchu Hsien 303, Ta iwan Test Date2009-04-14 Test Instrument vector network analyzer - R&S ZVB20 Test company name : Advanced Ceramic X Corp. www. acxc.com.tw manufacturer： Dongguan Huaxing Express Electronics Co.,LTD address:No.5,Liangzhou Sanheng Road,Daojiao Town,Dongguan City,Guangdong Province 1. Mainante nna : 240 2 MH z 1.1 Horizonta l Frequency(MHZ):24 02AntennaPolarity:Horiz ontal MaximumValue(dBi):2. 34 Average Gain(dBi):-2 .48 Mi ni mum Gain(dBi):-55.18 1.2 Vertical Frequency(MHZ):24 02AntennaPolarity:Vertical MaximumValue(dBi):-4. 51 Average Gain(dBi):-8 .98 Mi ni mum Gain(dBi):-6 2. 3 2. Mainante nna : 244 1 MH z 2.1 Horizonta l Frequency(MHZ):24 41AntennaPolarity:Horiz ontal MaximumValue (dBi):2.07 AverageGain(dBi):-2.54 Mi ni mum Gain(dBi):-66 .98 2.2 Vertical Frequency(MHZ):24 41AntennaPolarity:Vertical MaximumValue(dBi):-4. 29 Average Gain(dBi):-8.81 Mi ni mum Gain(dBi):-51.4 2. Mainante nna : 248 0 MHz 2.1 Horizonta l Frequency(MHZ):2480AntennaPolarity:Horiz ontal MaximumValue(dBi):1.45 Average Gain(dBi):-3.34 Mi ni mum Gain(dBi):-53.4 2.2 Vertical Frequency(MHZ):2480AntennaPolarity:Vertical MaximumValue(dBi):-4. 95 Average Gain(dBi):-9.06 Mi ni mum Gain(dBi):-6 0. 00

No.：BCTC/RF-EMC-005 Page: 1 of 42 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2303979119-1E Applicant: Shenzhen Baseus Technology Co., Ltd. Product Name: Baseus K01A Wireless Tri-Mode Keyboard Model/Type Ref.: K01A Tested Date: 2023-03-01 to 2023-03-09 Issued Date: 2023-03-09 Report No.: BCTC2303979119-1E No.：BCTC/RF-EMC-005 Page: 2 of 42 Edition：A.5 FCC ID: 2A482-K01A The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Baseus K01A Wireless Tri-Mode Keyboard Trademark: Baseus Model/Type Ref.: K01A Prepared For: Shenzhen Baseus Technology Co., Ltd. Address: 2nd Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd,Gangtou Community, Bantian Street, Longgang District, Shenzhen Manufacturer: Shenzhen Baseus Technology Co., Ltd. Address: 2nd Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd,Gangtou Community, Bantian Street, Longgang District, Shenzhen Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China. Sample Received Date: 2023-03-01 Sample tested Date: 2023-03-01 to 2023-03-09 Issue Date: 2023-03-09 Report No.: BCTC2303979119-1E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2303979119-1E No.：BCTC/RF-EMC-005 Page: 3 of 42 Edition：A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ............................................................................................................. 9 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test Procedure ................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 7. Radiated Emissions ............................................................................................. 15 7.1 Block Diagram Of Test Setup .............................................................................. 15 7.2 Limit .................................................................................................................... 16 7.3 Test Procedure ................................................................................................... 17 7.4 EUT Operating Conditions .................................................................................. 18 7.5 Test Result .......................................................................................................... 18 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 22 8.1 Block Diagram Of Test Setup .............................................................................. 22 8.2 Limit .................................................................................................................... 22 8.3 Test Procedure ................................................................................................... 23 8.4 EUT operating Conditions ................................................................................... 23 8.5 Test Result .......................................................................................................... 24 9. Power Spectral Density Test ............................................................................... 25 9.1 Block Diagram Of Test Setup .............................................................................. 25 9.2 Limit .................................................................................................................... 25 9.3 Test Procedure ................................................................................................... 25 9.4 EUT Operating Conditions .................................................................................. 25 9.5 Test Result ....................................................................................................…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page: 1 of 40 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2303979119-2E Applicant: Shenzhen Baseus Technology Co., Ltd. Product Name: Baseus K01A Wireless Tri-Mode Keyboard Model/Type Ref.: K01A Tested Date: 2023-03-01 to 2023-03-09 Issued Date: 2023-03-09 Report No.: BCTC2303979119-2E No.：BCTC/RF-EMC-005 Page: 2 of 40 Edition：A.5 FCC ID: 2A482-K01A The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Baseus K01A Wireless Tri-Mode Keyboard Trademark: Baseus Model/Type Ref.: K01A Prepared For: Shenzhen Baseus Technology Co., Ltd. Address: 2nd Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd,Gangtou Community, Bantian Street, Longgang District, Shenzhen Manufacturer: Shenzhen Baseus Technology Co., Ltd. Address: 2nd Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd,Gangtou Community, Bantian Street, Longgang District, Shenzhen Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China. Sample Received Date: 2023-03-01 Sample tested Date: 2023-03-01 to 2023-03-09 Issue Date: 2023-03-09 Report No.: BCTC2303979119-2E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is 2.4G radio test report. Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2303979119-2E No.：BCTC/RF-EMC-005 Page: 3 of 40 Edition：A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 11 5. Test Facility And Test Instrument Used ............................................................... 12 5.1 Test Facility ......................................................................................................... 12 5.2 Test Instrument Used .......................................................................................... 12 6. Conducted Emissions .......................................................................................... 14 6.1 Block Diagram Of Test Setup .............................................................................. 14 6.2 Limit .................................................................................................................... 14 6.3 Test Procedure ................................................................................................... 14 6.4 EUT Operating Conditions .................................................................................. 14 6.5 Test Result .......................................................................................................... 15 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test Procedure ................................................................................................... 18 7.4 EUT Operating Conditions .................................................................................. 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test Procedure ................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Power Spectral Density Test ............................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test Procedure ................................................................................................... 26 9.4 EUT Operating Conditions .................................................................................. 26 …

Text truncated - open the document above for the full version.

Report No.: BCTC2303979119-1E No.：BCTC/RF-EMC-005 Page: 41 of 42 Edition：A.5 15.EUT Test Setup Photographs Radiated Measurement Photos
