2A482-PM122Baseus Open-Ear TWS Earbuds

(Shenzhen Baseus Technology Co., Ltd.) (2024.7.11) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2A482-PM122) [Shenzhen Baseus Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Tiffany Luo (Shenzhen Baseus Technology Co., Ltd.) (2024.7.11) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2A482-PM122) [Shenzhen Baseus Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Tiffany Luo

AttestationStatements (2024/7/11) TO:FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046,USA RE:AttestationStatementsPart2.911(d)(7)requestfor(FCCID:2A482-PM122) (ShenzhenBaseusTechnologyCo.,Ltd.),theundersigned,herebyauthorizeOasis Compliance,Inc.toactasourdesignatedU.S.agentforserviceofprocess,(Shenzhen BaseusTechnologyCo.,Ltd.)acceptstomaintainanagentfornolessthanoneyear afterthegranteehasterminatedallmarketingandimportationortheconclusionofany Commission-relatedproceedinginvolvingtheequipment. OasisCompliance,Inc.acceptstheresponsibilitytoactasdesignatedU.S.agentfor serviceofprocess. ApplicantInformation： CompanyName:ShenzhenBaseusTechnologyCo.,Ltd. Address:2ndFloor,BuildingB,BaseusIntelligencePark,No.2008,XuegangRd,Gangtou Community,BantianStreet,LonggangDistrict,Shenzhen,China ContactName:TiffanyLuo FRN:0032035966 TelephoneNo:+86-13480668369 Email:[email protected] Signature [TiffanyLuo] U.S.AgentInformation: CompanyName:OasisCompliance,Inc. Address:3313VerdiDr,SanJose,CA95111,UnitedStates FRN:0033464157 ContactName:JamesHe TelephoneNo:(202)602-8330 Email:[email protected] Signature [JamesHe]

Shenzhen Baseus Technology Co., Ltd. 2024.7.11 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Tiffany Luo / Certified Engineer Contact information / address: 2nd Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China.

Shenzhen Baseus Technology Co., Ltd. 2024.7.11 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Baseus Open-Ear TWS Earbuds Trademark: baseus MODEL: PM122 FCC ID: 2A482-PM122 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Tiffany Luo / Certified Engineer Contact information / address: 2nd Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China.

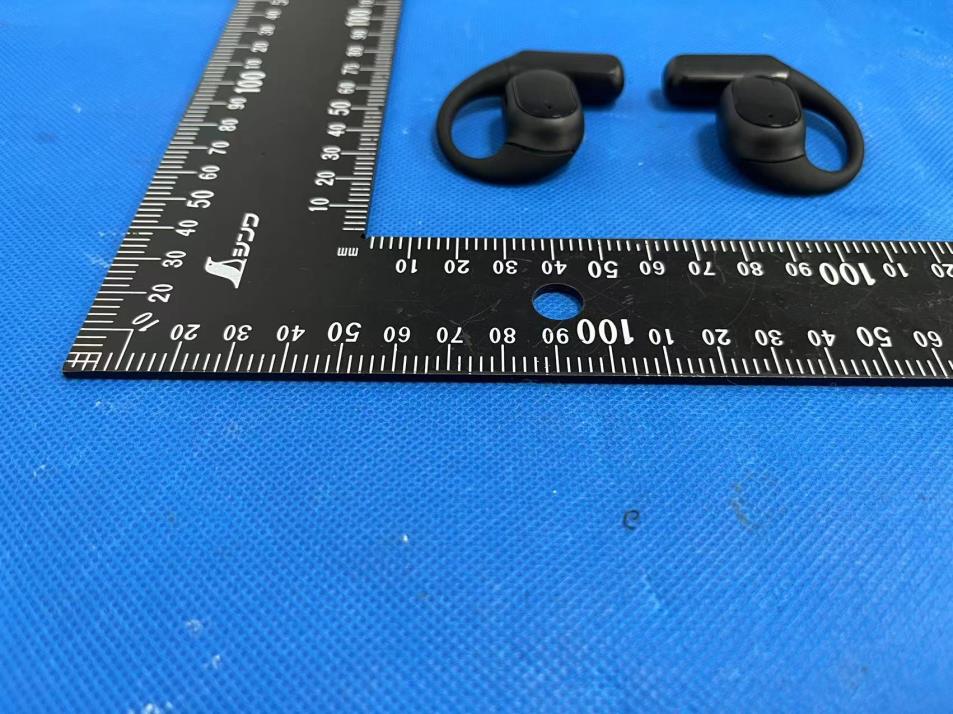

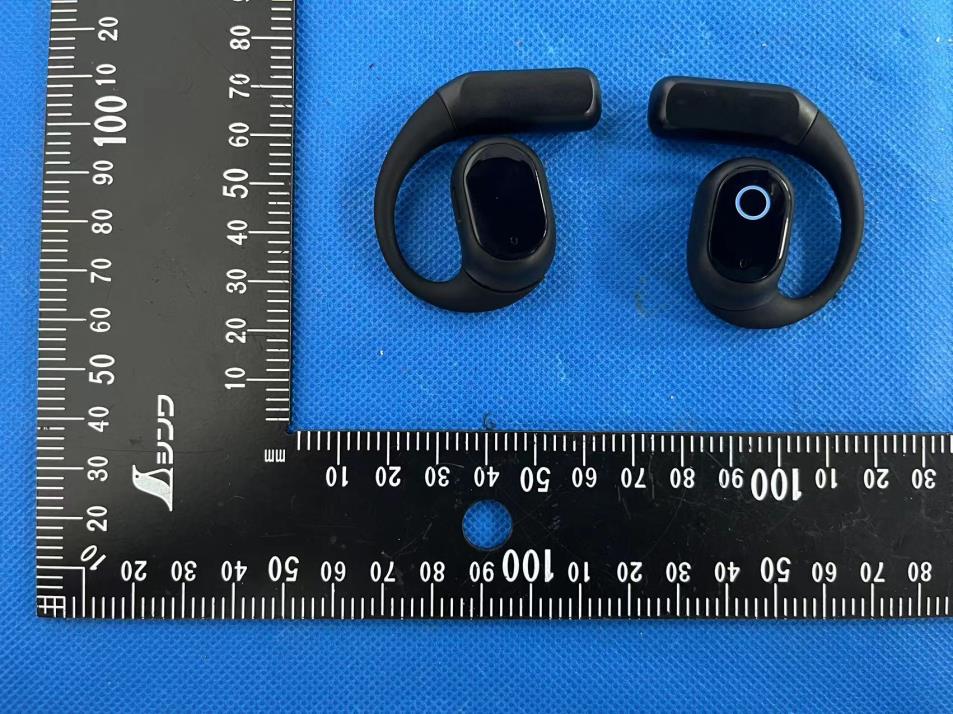

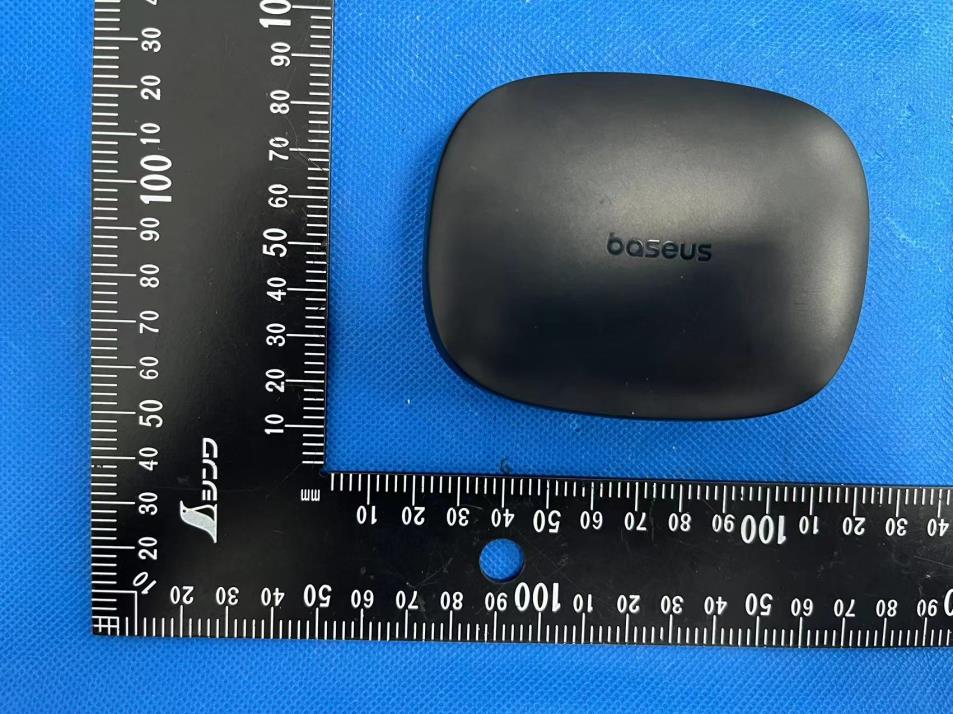

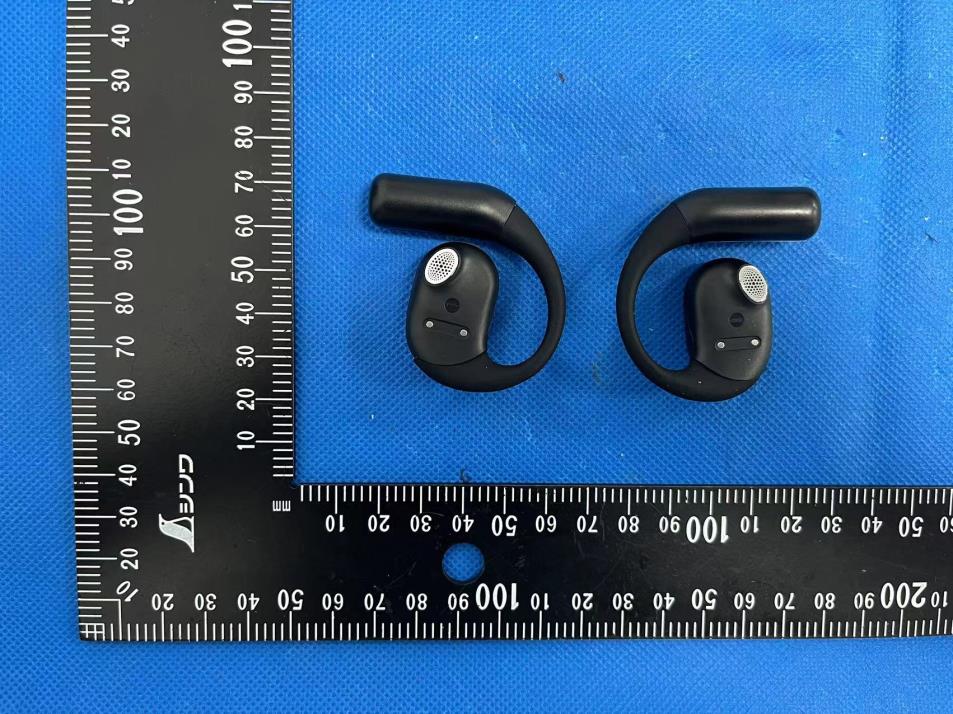

External Photos

Label & label location 5mm*10mm FCC ID: 2A482-PM122

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2A482-PM122 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT Frequency Maximum Conducted Output Power(PK) Conducted Output Power Limit (MHz) (dBm) dBm GFSK 2402 -0.03 21 2441 2.78 21 2480 3.88 21 π/4 DQPSK 2402 0.01 21 2441 2.81 21 2480 3.9 21 8DPSK 2402 -0.07 21 2441 2.77 21 2480 3.82 21 max possible output power (PK,conducted)：4±1dBm 5dBm=3.16mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.402=0.979≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.441=0.987≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.48=0.995≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required. BLE Frequency Maximum Conducted Output Power(PK) Conducted Output Power Limit (MHz) (dBm) dBm GFSK 1Mbps 2402 3.65 30 2440 6.43 30 2480 7.75 30 GFSK 2Mbps 2402 3.41 30 2440 6.39 30 2480 7.64 30 max possible output power (PK,conducted)：8±1dBm 9dBm=7.94mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 7.94/5*√2.402=2.46≤3.0 2440MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 7.94/5*√2.44=2.48≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 7.94/5*√2.48=2.50≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

AntennaSampleDatasheet customer： ShenzhenYuanhang electronicTechnologyCo., LTD entryname：PM122 Materialcategory：BTantenna AntennaType Monopole AntennaMaterial FPC edition：A0 Date：2024.6.11 Antennamanufacturer:HongjiWirelessCommunication(Shenzhen)Co.,LTD http://www.honant.com.cn Address:12/F,WestBlockB,Building8,HuaqiangCreativeIndustryPark, SightseeingRoad,GuangmingDistrict,Shenzhen Contents 1：Antennatestequipment.................................................1 2：Passivetestreport...........................................................3 3：Structuraldrawing...........................................................5 4：Antennadiagram.............................................................6 1 1 ： Antennatestequipment Listofmeters：Agilent5071B； 1.1TheprinciplediagramoftheETSanochoicchamber 样机 网络分析仪 同轴电缆 支撑架 Picture1.Antennastatictestconnectionmethod 2 1.2PicturesoftheETSanochoicchamber InsidetheETSanochoicchamber TestMachine 3 2 ： Passivetest report 2.1：antennaS11 parameters 2.2：Passiveefficiencyof antenna 2400-2500MHz Freq(MHz)Gain(dBi)Efficiency(db)Efficiency(%) 2400 -0.01-6.6321.71 2410 0.23-6.5522.12 2420 0.44-6.4922.45 2430 0.61-6.4622.6 2440 0.74-6.4522.62 2450 0.65-6.4322.74 2460 0.44-6.4622.61 2470 0.32-6.4822.48 2480 0-6.4422.71 2490 -0.34-6.5222.27 2500 -1.07 -6.820.88 4 2.3：PassivepatternofBTantenna 2400MHz 2450MHz 2500MHz 5 3 ： Structuraldrawing A 4 G F E D C A 342 G F 5 6 D C B A 1563 4 B 1 2 E 6 4 ： Antennadiagram

No.：BCTC/RF-EMC-005 Page: 1 of 83 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2406675434-1E Applicant: Shenzhen Baseus Technology Co., Ltd. Product Name: Baseus Open-Ear TWS Earbuds Test Model: PM122 Tested Date: 2024-06-05 to 2024-06-12 Issued Date: 2024-06-12 Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 2 of 83 Edition：B.2 FCC ID: 2A482-PM122 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Baseus Open-Ear TWS Earbuds Trademark: baseus Model/Type Reference: PM122 Prepared For: Shenzhen Baseus Technology Co., Ltd. Address: 2 nd Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China. Manufacturer: Shenzhen Baseus Technology Co., Ltd. Address: 2 nd Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China. Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-06-05 Sample tested Date: 2024-06-05 to 2024-06-12 Issue Date: 2024-06-12 Report No.: BCTC2406675434-1E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Shanshan. Zhang / Project Handler Zero Zhou/Reviewer Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 3 of 83 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test procedure .................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Spurious RF Conducted Emissions ..................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test procedure ..................................................................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 46 of 83 Edition：B.2 Band Edge(Hopping) NVNT 3-DH1 2402MHz Hopping Band Edge(Hopping) NVNT 3-DH1 2402MHz Hopping Emission Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 47 of 83 Edition：B.2 Band Edge(Hopping) NVNT 3-DH1 2480MHz Hopping Band Edge(Hopping) NVNT 3-DH1 2480MHz Hopping Emission Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 48 of 83 Edition：B.2 10. 20 dB Bandwidth 10.1 Block Diagram Of Test Setup 10.2 Limit N/A 10.3 Test procedure 1. Set RBW = 30kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. 10.4 Test Result Condition Mode Frequency (MHz) -20 dB Bandwidth (MHz) Verdict NVNT 1-DH1 2402 0.929 Pass NVNT 1-DH1 2441 1.012 Pass NVNT 1-DH1 2480 0.879 Pass NVNT 2-DH1 2402 1.19 Pass NVNT 2-DH1 2441 1.174 Pass NVNT 2-DH1 2480 1.165 Pass NVNT 3-DH1 2402 1.116 Pass NVNT 3-DH1 2441 1.14 Pass NVNT 3-DH1 2480 1.175 Pass Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 49 of 83 Edition：B.2 Test Graphs -20dB Bandwidth NVNT 1-DH1 2402MHz -20dB Bandwidth NVNT 1-DH1 2441MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 50 of 83 Edition：B.2 -20dB Bandwidth NVNT 1-DH1 2480MHz -20dB Bandwidth NVNT 2-DH1 2402MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 51 of 83 Edition：B.2 -20dB Bandwidth NVNT 2-DH1 2441MHz -20dB Bandwidth NVNT 2-DH1 2480MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 52 of 83 Edition：B.2 -20dB Bandwidth NVNT 3-DH1 2402MHz -20dB Bandwidth NVNT 3-DH1 2441MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 53 of 83 Edition：B.2 -20dB Bandwidth NVNT 3-DH1 2480MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 54 of 83 Edition：B.2 11. Maximum Peak Output Power 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm 2400-2483.5 PASS 11.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 2MHz. VBW = 6MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. 11.4 Test Result Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 -0.03 21 Pass NVNT 1-DH1 2441 2.78 21 Pass NVNT 1-DH1 2480 3.88 21 Pass NVNT 2-DH1 2402 0.01 21 Pass NVNT 2-DH1 2441 2.81 21 Pass NVNT 2-DH1 2480 3.9 21 Pass NVNT 3-DH1 2402 -0.07 21 Pass NVNT 3-DH1 2441 2.77 21 Pass NVNT 3-DH1 2480 3.82 21 Pass Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 55 of 83 Edition：B.2 Test Graphs Power NVNT 1-DH1 2402MHz Power NVNT 1-DH1 2441MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 56 of 83 Edition：B.2 Power NVNT 1-DH1 2480MHz Power NVNT 2-DH1 2402MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 57 of 83 Edition：B.2 Power NVNT 2-DH1 2441MHz Power NVNT 2-DH1 2480MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 58 of 83 Edition：B.2 Power NVNT 3-DH1 2402MHz Power NVNT 3-DH1 2441MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 59 of 83 Edition：B.2 Power NVNT 3-DH1 2480MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 60 of 83 Edition：B.2 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH1 2402.012 2403.01 0.998 0.619 Pass NVNT 1-DH1 2441.01 2442.01 1 0.675 Pass NVNT 1-DH1 2479.012 2480.014 1.002 0.586 Pass NVNT 2-DH1 2402.01 2403.012 1.002 0.793 Pass NVNT 2-DH1 2441.01 2442.01 1 0.783 Pass NVNT 2-DH1 2479.012 2480.01 0.998 0.777 Pass NVNT 3-DH1 2402.012 2403.012 1 0.744 Pass NVNT 3-DH1 2441.01 2442.01 1 0.76 Pass NVNT 3-DH1 2479.008 2480.014 1.006 0.783 Pass Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 61 of 83 Edition：B.2 Test Graphs CFS NVNT 1-DH1 2402MHz CFS NVNT 1-DH1 2441MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 62 of 83 Edition：B.2 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 63 of 83 Edition：B.2 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 64 of 83 Edition：B.2 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 65 of 83 Edition：B.2 CFS NVNT 3-DH1 2480MHz Report No.: BCTC2406675434-1E No.：BCTC/RF-EMC-005 Page: 66 of 83 Edition：B.2 13. Number Of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band …

Text truncated - open the document above for the full version.

Conducted Emissions Photo Radiated Measurement Photos
