2A482-PPCXM06Power Bank

User Manual Before using the product, thoroughly read this manual. Keep the manual for future reference. 1. Warnings Improper use of the product may lead to battery malfunction or severe overheating, and may even cause fire or explosion. To avoid any damage to you and your property, please follow the instructions below when you use and store the product. 1. This is NOT a toy! Please place this product in areas that are not easily accessible by children. Do not allow children to operate this product, or accidents may occur. 2. Please charge this product with a charger approved by the local safety standards in case of danger or damage. 3. DO NOT apply pressure, and avoid collisions. The battery and circuit may be damaged if this product falls from a great height, experiences intense shocks, or is immersed in liquid; if so, please avoid using this product. 4. If this product suffers from deformation, leakage, or radical decline in performance, please stop using this product. 5. Please DO NOT charge any device or recharge this product in places that may affect its heat dissipation, such as pants pockets, enclosed bags, beds, or couches. And ensure this product is not under any cover when operating. When charging other devices for prolonged periods, DO NOT stack any device on top of this product, or it might affect its heat dissipation. 6. This product CAN NOT be disassembled, applied pressure, pierced, short-circuited, immersed in liquid, disposed of in a fire, or exposed to a high temperature or heat source with a temperature greater than 140°F(60°C). 7. DO NOT place this product in areas with extremely high temperatures. Such as under direct sunlight or in a vehicle with a very high interior temperature. 8. This product contains lithium batteries, DO NOT disassemble it! Or danger or battery damage may occur. 2. Attention 1、Please fully charge this device before using it for the first time. 2、The power banks have conversion efficiency, so the battery capacity of power bank is not equal to the rechargeable capacity. 3、Please choose an appropriate charger for recharging this product and suitable cables when charging other devices. 4、Please ensure some supervision is in progress when recharging this product, DO NOT charge this product without any care. 5、Please remove the cable when done recharging this product or finished charging for any other device to preserve the product integrity. 6、If the indication does not light up after pressing the power button, please recharge this product. 7、Please preserve this product with a battery percentage between 25%-50% for long-term storage. Place this product in a cool and dry environment. To slow down battery aging, avoid storing this product in an empty or full charge for long-term storage. 8、Please DO NOT dismantle the product by yourself. Improper use or placement may compromise the service life or damage the product, to which our company will not bear any legal responsibilities nor offer any guarantee. Please understand. 9、There mustn’t be any metal objects or materials (like iron plates, rings, metal phone case, etc) between the back of the charging phone and the charging area during wireless charging. 10、During wireless charging, if disconnection or serious overheating occurs, it may be that the receiving coil of the charging phone is not completely aligned with the wireless charging coil, or if there is metal object in the phone case. Please try to cool down the phone first, remove the protecting case, and then align it to the correct position. 3. Specifications Brand: Baseus Name: Power Bank Model No.: PPCXM06 Battery: Polymer lithium battery Power Capacity: 6000mAh / 23.1Wh Rated Capacity: 3500mAh (5V/2.4A) Energy Conversion Rate: ≥75% Type-C Input: 5V/3A; 9V/2A; Type-C Output: 5V/2.4A; 9V/2.22A; 12V/1.5A; Wireless Output: 5W/7.5W/10W/15W Total Output: 5V/2.4A Product Size: 98.4×63.9×16.2mm Product Weight: About 146g 4、Content Power bank *1 User manual * 1 Warranty card *1 Charging cable *1 5、Product Schematic Design Wireless charging indicator Battery level display Wireless charging area Designed by Baseus \ Made in China 6、Product Description This product is a portable charging device that can provide wired and wireless charging for mobile phones, tablets, -book readers, game machines and other digital products. The product combines wired charging and wireless charging ， supports iP20W PD fast charging, Type-C dual-way fast charging, 15W wireless fast charging, etc. It has built-in FOD, overcharge, over-discharge, temperature protection and other safety protection circuit. 7、Use Environment Working Temperature: Non-tropical areas, 0°C to 35 °C Storage ambient temperature: 0 °C to 40 °C 8、Icon Description: The 5-year icon refers to the "valid environment-friendly use period", not the product quality assurance period. Electronic products contain toxic and harmful substances such as lead, mercury and cadmium. The overdue use of these products may lead to leakage or mutation of these toxic and harmful substances, cause environment pollution or serious damage to people and property. The term of "environment- friendly use period" means that all electronic products shall be used within this validity period. We are free of any responsibility against safety issues caused by using the product beyond its safe service life. 9、Operation Instructions When charging wirelessly: This product has an auto-wake function for wireless charging, just place your phone onto it, and it will automatically start charging. But for some phones, due to compatibility issues, the wireless charging function needs to be activated by pressing the button. Press it once, the battery indicator will light up and the wireless charging is turned on, and you can place your device on. If there's no load connected for the wireless charging in 30s, the product will automatically shut off the wireless charging function. 10、 Wireless Charging Tips Place your phone onto the wireless chargin…

Text truncated - open the document above for the full version.

Shenzhen Baseus Technology Co., Ltd. Agent Authorization Company: Shenzhen Baseus Technology Co., Ltd. Address: 2nd Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd, Gangtou Community, Bantian Street, Longgang District, Shenzhen Product Name: Power Bank Model Number(s): PPCXM06 Product Description: Power Bank We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023/01/04 Name: Zhang Mao Title: Certified Engineer Company: Shenzhen Worgo Technology Limited

Shenzhen Baseus Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023/01/04 Subject; Request for Confidentiality FCC ID: 2A482-PPCXM06 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Zhang Mao Title: Certified Engineer

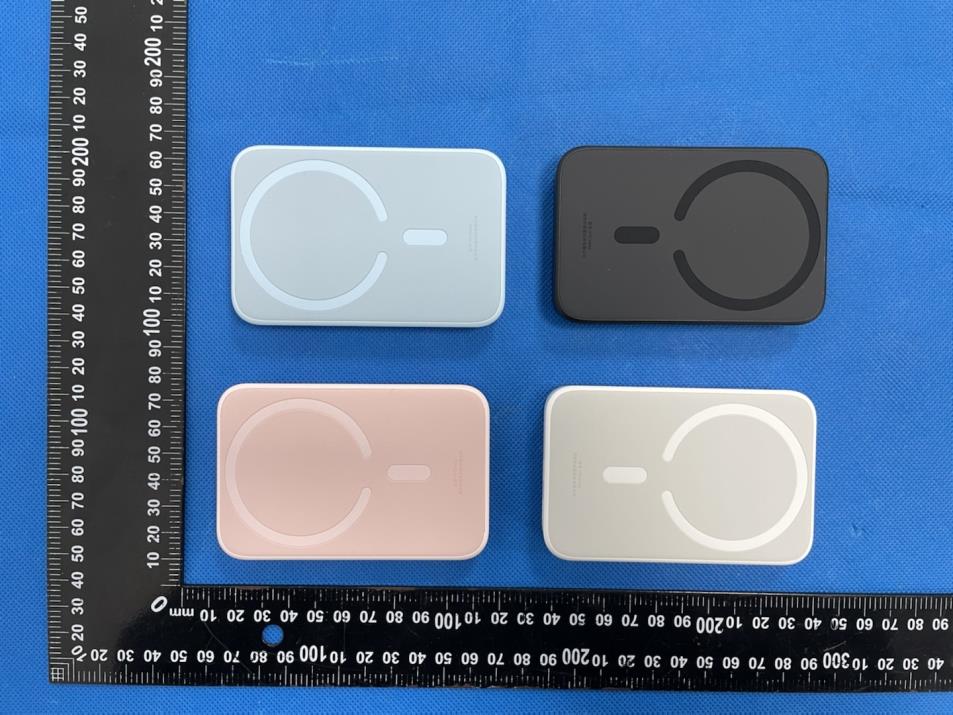

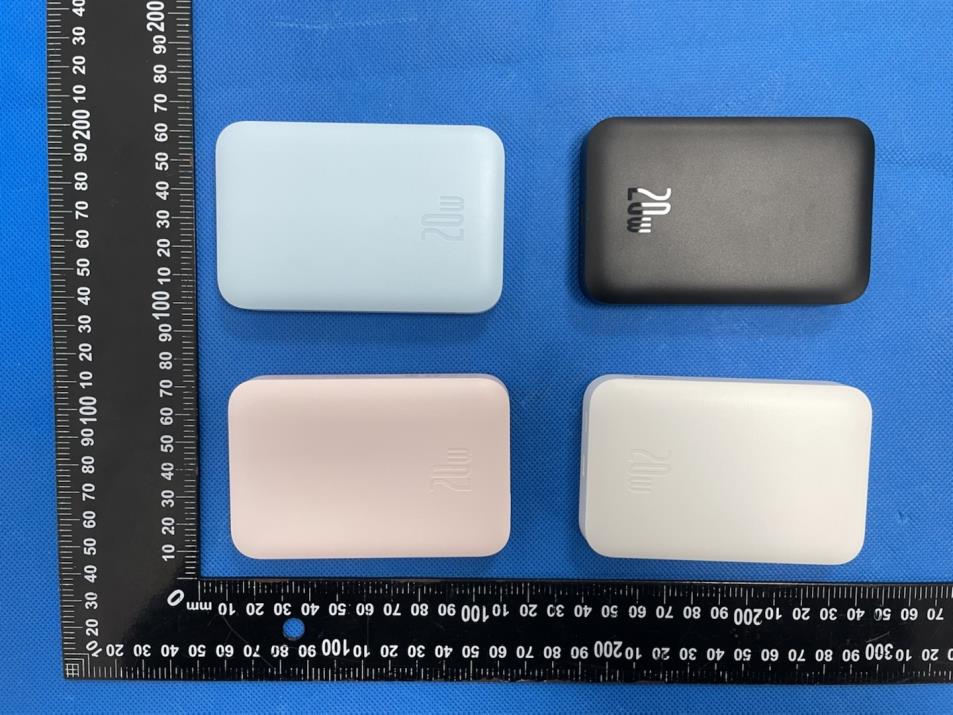

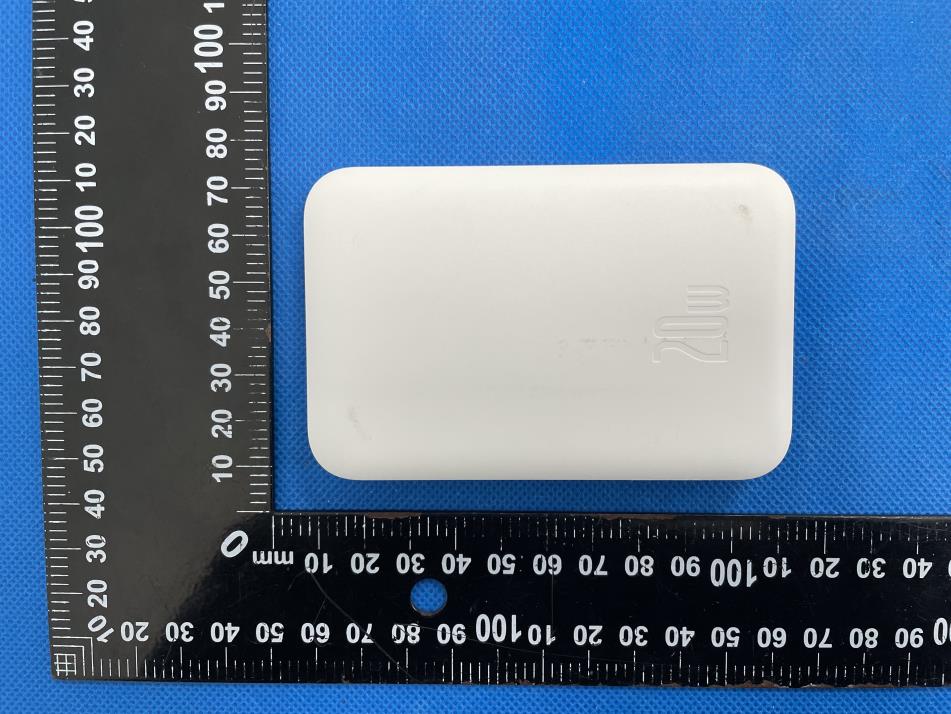

External Photos

Size:20*20mm FCC ID: 2A482-PPCXM06 Label location

Internal Photos Antenna

No.：BCTC/RF-EMC-005 Page 1 of 27 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2212104009-1E Applicant: Shenzhen Baseus Technology Co., Ltd. Product Name: Power Bank Model/Type Ref.: PPCXM06 Tested Date: 2022-12-14 to 2022-12-21 Issued Date: 2022-12-21 Report No.: BCTC2212104009-1E No.：BCTC/RF-EMC-005 Page 2 of 27 Edition：A.5 FCC ID: 2A482-PPCXM06 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Power Bank Trademark: Baseus Model/Type Ref.: PPCXM06 Prepared For: Shenzhen Baseus Technology Co., Ltd. Address: 2nd Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd, Gangtou Community, Bantian Street, Longgang District, Shenzhen. Manufacturer: Shenzhen Baseus Technology Co., Ltd. Address: 2nd Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd, Gangtou Community, Bantian Street, Longgang District, Shenzhen. Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2022-12-14 Sample tested Date: 2022-12-14 to 2022-12-21 Issue Date: 2022-12-21 Report No.: BCTC2212104009-1E Test Standards: FCC Part15.209 ANSI C63.10-2013 Test Results: PASS Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2212104009-1E No.：BCTC/RF-EMC-005 Page 3 of 27 Edition：A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Test Summary ....................................................................................................... 5 3. Measurement Uncertainty ..................................................................................... 6 4. Product Information And Test Setup ..................................................................... 7 4.1 Product Information ............................................................................................... 7 4.2 Support Equipment ............................................................................................... 7 4.3 Test Setup Configuration ...................................................................................... 8 4.4 Test Mode ............................................................................................................. 9 5. Test Facility And Test Instrument Used ............................................................... 10 5.1 Test Facility ......................................................................................................... 10 5.2 Test Instrument Used .......................................................................................... 10 6. Conducted Emissions .......................................................................................... 12 6.1 Block Diagram Of Test Setup .............................................................................. 12 6.2 Limit .................................................................................................................... 12 6.3 Test Procedure ................................................................................................... 12 6.4 EUT Operating Conditions .................................................................................. 12 6.5 Test Result .......................................................................................................... 13 7. Radiated Emissions ............................................................................................. 15 7.1 Block Diagram Of Test Setup .............................................................................. 15 7.2 Limit .................................................................................................................... 16 7.3 Test Procedure ................................................................................................... 16 7.4 Test Result .......................................................................................................... 17 8. Bandwidth Test .................................................................................................... 21 9. Antenna Requirements ........................................................................................ 23 10. EUT Photographs ................................................................................................ 24 11. EUT Test Setup Photographs.............................................................................. 25 (Note: N/A Means Not Applicable) Report No.: BCTC2212104009-1E No.：BCTC/RF-EMC-005 Page 4 of 27 Edition：A.5 1. Version Report No. Issue Date Description Approved BCTC2212104009-1E 2022-12-21 Original Valid Report No.: BCTC2212104009-1E No.：BCTC/RF-EMC-005 Page 5 of 27 Edition：A.5 2. Test Summary The Product has been tested according to the following specifications: No. Test Parameter Clause No Results 1 Conducted Emission 15.207 PASS 2 Radiated Emission 15.209 PASS 3 20dB Bandwidth 15.215 PASS 4 Antenna Requirement 15.203 PASS Report No.: BCTC2212104009-1E No.：BCTC/RF-EMC-005 Page 6 of 27 Edition：A.5 3. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the Product as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. No. Item Uncertainty 1 3m chamber Radiated spurious emission(9kHz-30MHz) U=3.7dB 2 3m chamber Radiated spurious emission(30MHz-1GHz) U=4.3dB 3 3m chamber Radiated spurious emission(1GHz-18GHz) U=4.5dB 4 3m ch…
