2A4FR-MW-6-NWiFi Module

Notice: Please read this manual carefully before using products. Due to product upgrade and other factors, the content of this manual might change from time to time. Please take actual product as standard and get latest manual from sales. Unless otherwise agreed herein, this manual will only be used as guidance. Any statement, information or suggestion in this manual will not take any form of responsibility. Without written permission, any content of this document (partly or entirely) cannot be extracted, copied or transmitted in any form by any company or individual. iPhone: Search "SOLARMAN Smart" or "SOLARMAN Business" Model： WiFi Module Quick Guide MW-6-N in APP Store. Android: Search "SOLARMAN Smart" or "SOLARMAN Business" in Google Play. Download APP Warning: Please remove logger after power off. ! SOLARMAN Smart for end userSOLARMAN Business for O&M provider and installer �. Registration Click "Register" to create new account. You can use email to register. Register with Email Angola Email Address By clicking "Next", l confirm that l have read and agree to the Terms of Use and Privacy Policy Next �. Create a home �.� Click "Start" to create your home on SOLARMAN Smart. If you have already created a home, you will not see the following page. And if you wish to create another home, please click "+" in the upper-right corner and select "Add Home". Start Start setting up my home Home Menu Report Device �.� Enter Home Details Please enter detailed home information according to your actual situation. System will create a unique home for you. In order to calculate plant data precisely, please enter ● Home Name, ● Home Type, ● Grid Type, ● Home Location, ● Other information. You can click the right icon to switch between �D Plan and Satellite Map. Solar Panels Is your home using solar panels for electricity generation? No solar panels installed Next Yes, for self-consumption and feed-in to the grid Yes, only for feed-in to the grid Yes, only for self-consumption �. Add a Logger �.� Select a home �）Go to "Home" , select a home according to your actual situation in the upper-left corner, then click "+" in the upper-right corner, select "Add device". �）Go to "Device" , click "Start" to add a logger to the target home. Start Qq + Add the first device in your home to start the smart energy journey. lf there is no network in the current area, you can also use Local Connection. Start Home Menu Report Device �.� Enter Logger SN Users can enter logger SN manually or click icon to scan SN. Scan QR Code Add the first device in your home to start the smart energy journey. If there is no network in the current area, you can also use Local Connection. Device management Home Menu Report Device �. WiFi Connection Configuration Scan the logger, then connect the logger to the same WiFi network as the mobile phone. Click "Set Up" and wait for the configuration to complete. If "Set Up Later" is selected, you can go to the device page later to configure the device. Device added successfully! 5G frequency band is not supported. Please connect to 2.4G frequency band. Logger SN: 3509851996 IGEN_GUEST IGENTech_Guest Password Required Set Up LaterSet Up Please set up the network to use this device. Configuration successful. Confirm Logger SN: 1502630015 Logger Device management Home Menu Report Device Network Settings Edit Delete Device Warning: before you leave the site. If there is something abnormal Please make sure the WiFi Module is working properly on site, please contact customer service at the first time. If configuration failure occurs, please check the following reasons and try it again. �. Make sure WLAN is ON; �. Make sure WiFi is normal; �. Make sure wireless router does not implement the white-black list; �. Shorten the distance between the phone and device; �. Try to connect to other WiFi; �. Remove the special characters（，；‘ ’=“ ”`） in WiFi network; �. Check if the router's AP (Access Point) is operating in the �G frequency band. If you encounter following situations, please reconfigure logger network: �. Change router; �. Change WiFi password; �. Change router's SSID; �. Enterprise routers may restrict WiFi connectivity; �. Connect to a router whose AP (Access Point) operates in the �.�G frequency band. If you have any technical queries about our products, please contact us and provide the following information: �. Product model and serial number of stick logger. �. Product model and serial number of connected inverter. Thank you for your support and cooperation! Email: [email protected] Address: Block H�, China IoT International Innovation Park, No. ���, Linghu Avenue, Wuxi, Jiangsu, P. R. China FCC Caution: Any Changes or modifications not expressly approved by the party responsible for c ompliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the follo wing two conditions: (1) This device may not cause harmful interference, and (2) th is device must accept any interference received, including interference that may ca use undesired operation. FCC RF Radiation Exposure Statement: 1：This Transmitter must not be co-located or operating in conjunction with any ot her antenna or transmitter. 2. This equipment complies with RF radiation exposure limits set forth for an unco ntrolled environment. 3. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. Host product manufacturers that they need to provide a physical or e-label stating, “Contains FCC ID: 2A4FR-MW-6-N” with their finished product. Only those antennas with same type and lesser gain filed under this FCC ID can b e used with this device. The host product manufacturer is responsible for compli ance to any other FCC rules that apply to the host not covered by the modular tr ansmitter grant of certification. The final host product still requires Part Subp art B compliance testing with the mod…

Text truncated - open the document above for the full version.

Design Quality Engineer IGEN Tech Co., Ltd. Design Quality Engineer IGEN Tech Co., Ltd.

Modular Approval Declaration Letter (IGEN TECH CO.,Ltd.) 07/20/2023 (MW-6-N-302 RF Module ) FCC ID: 2A4FR-MW-6-N , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: * Please provide a detailed explanation if the answer is “No.” Item Modular requirement Yes No 1 The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; 2 The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; 3 The module must contain power supply regulation on the module; 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); 5 The module must demonstrate compliance in a stand-alone configuration; 6 The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); 7 The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; 8 The module must comply with RF exposure requirements Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Client’s signature shi chen / Design Quality Engineer IGEN TECH CO.,Ltd. Block F4, No. 200, Linghu Avenue, Wuxi, Jiangsu, P. R. China, 225400

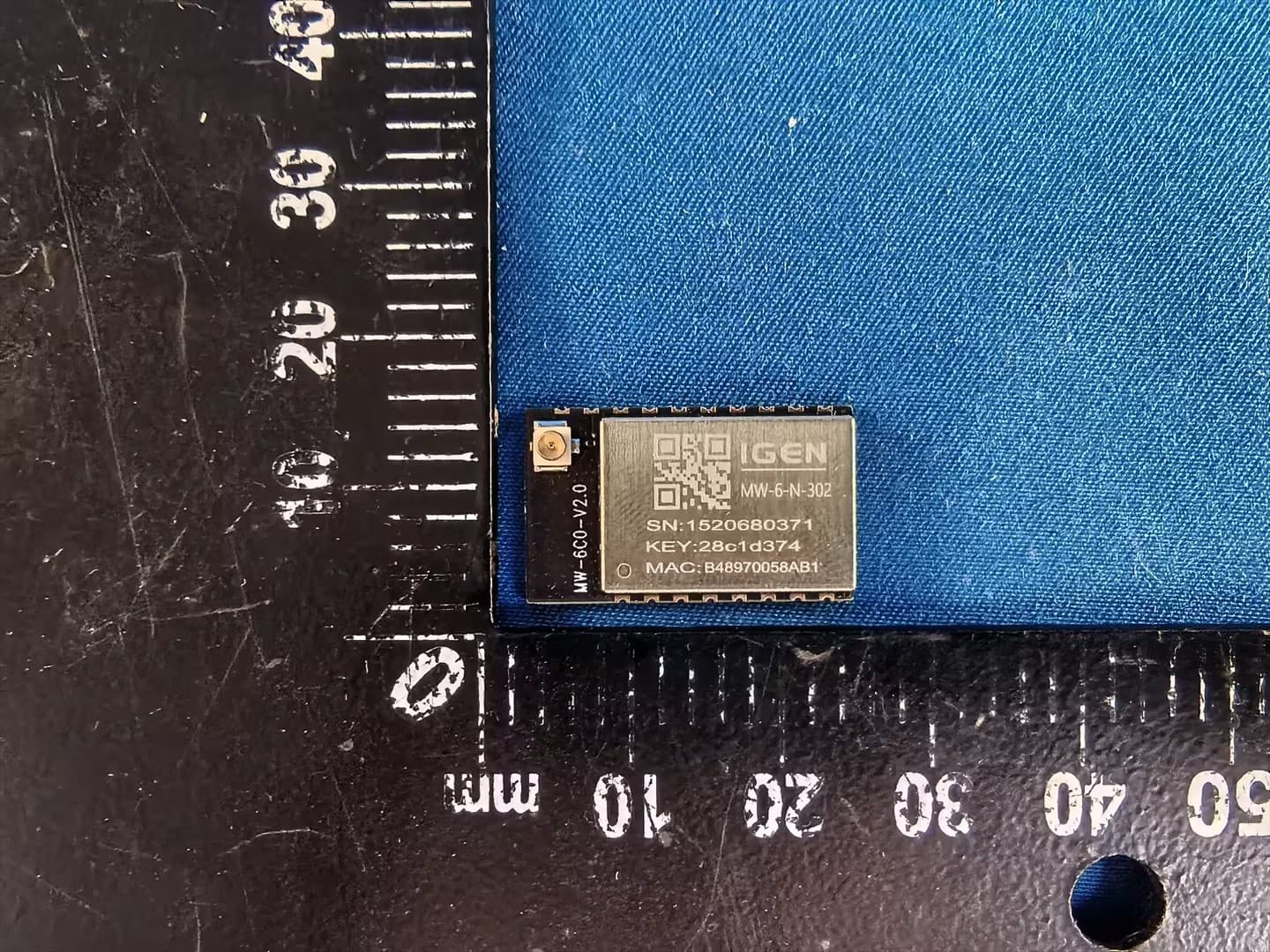

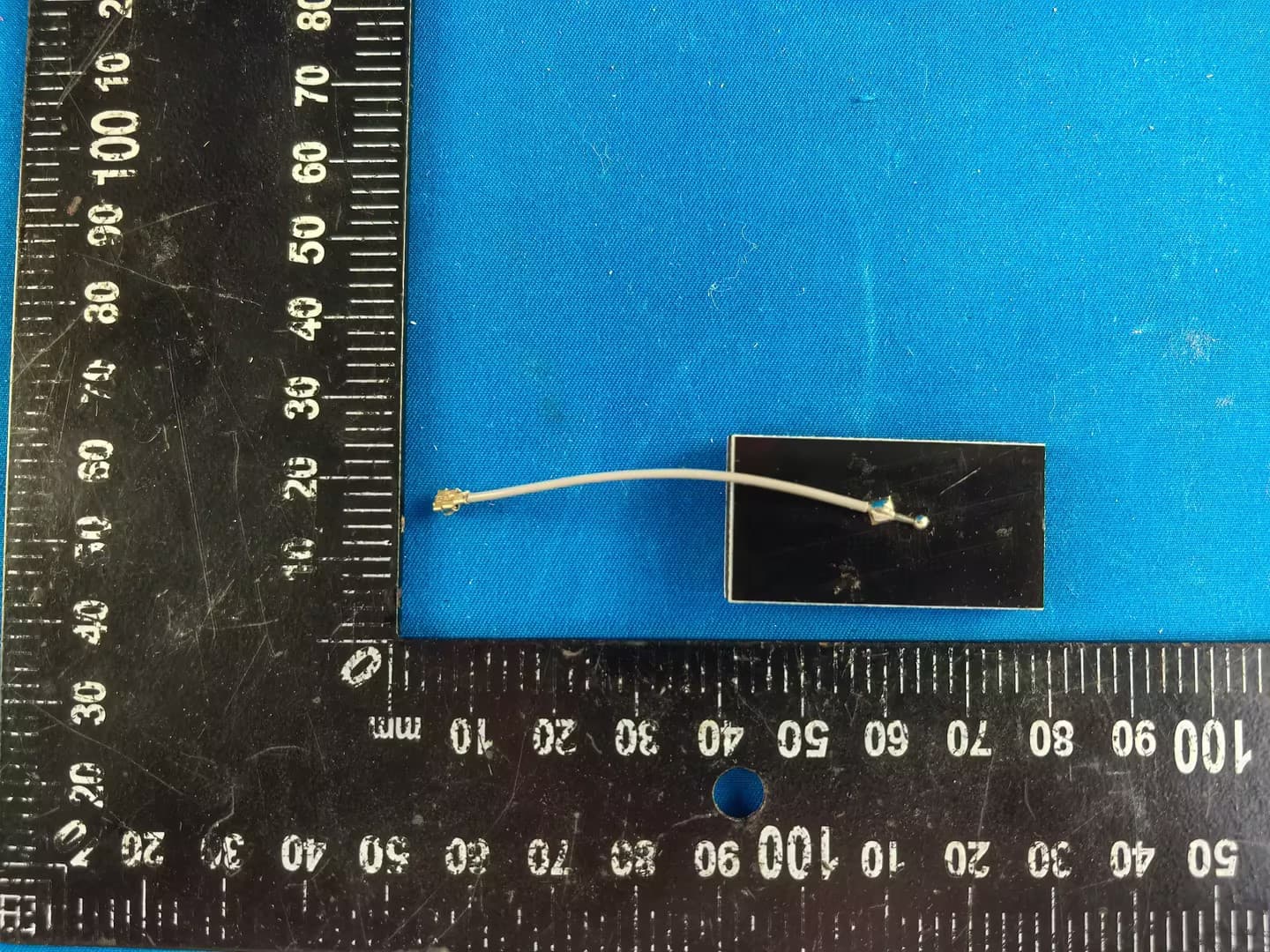

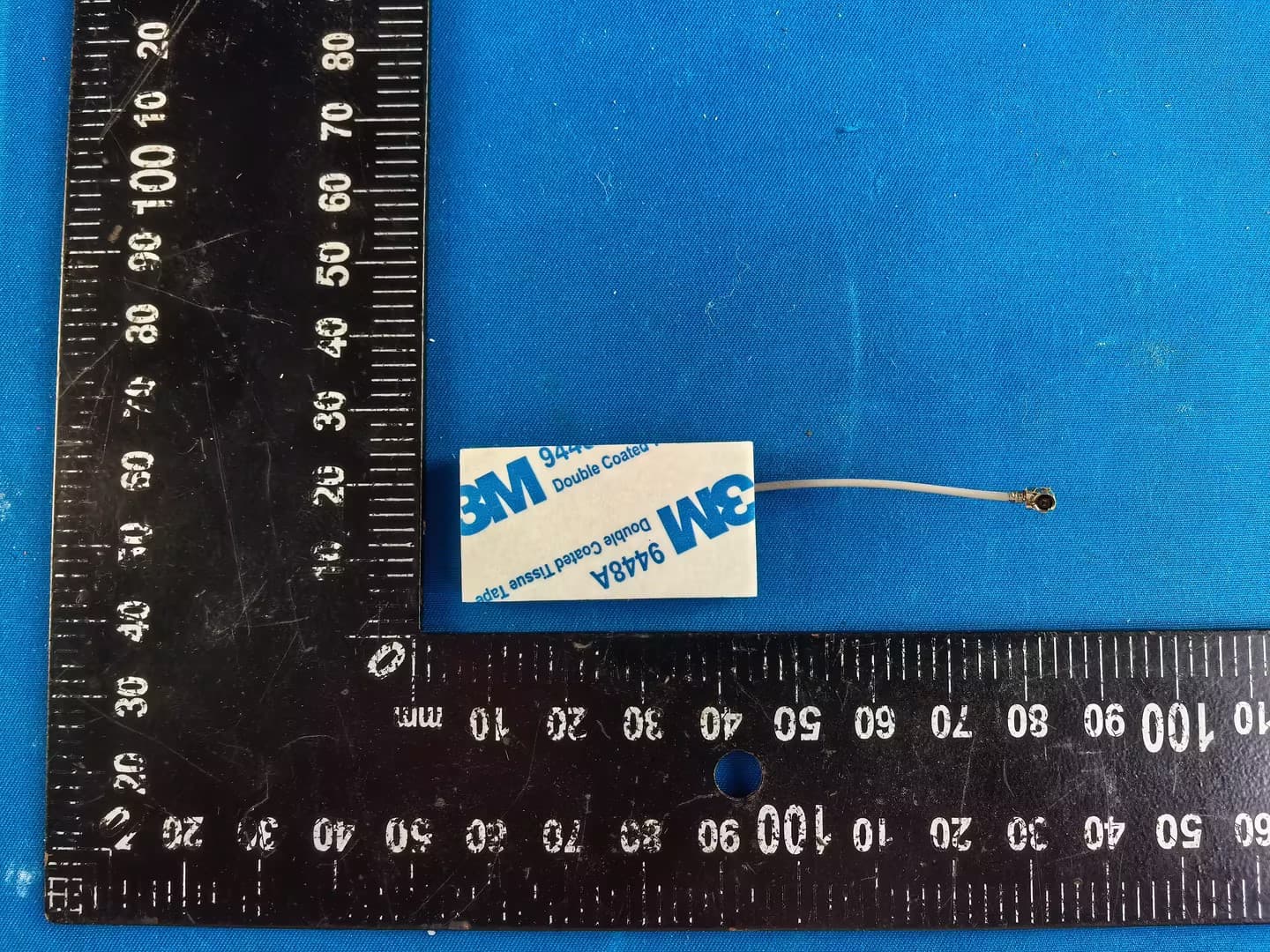

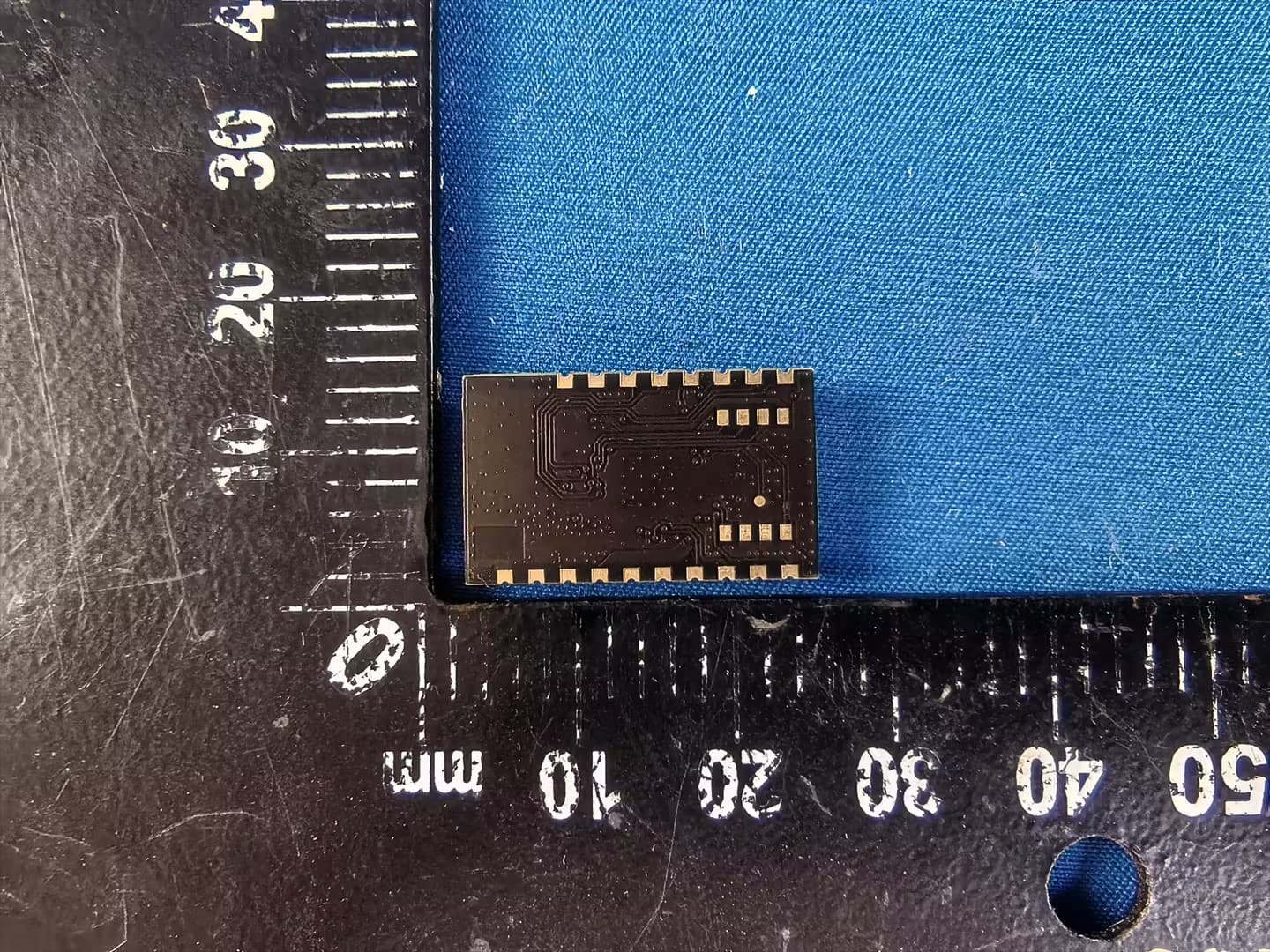

Appendix-MW-6-N-Photos Reference No.: WTH26D06185138W Page 3 of 6 2. Photographs –Constructional Details 2.1. EUT – External View Model MW-6-N FCC ID: 2A4FR-MW-6-N ANT Appendix-MW-6-N-Photos Reference No.: WTH26D06185138W Page 4 of 6 Appendix-MW-6-N-Photos Reference No.: WTH26D06185138W Page 5 of 6

Appendix-MW-6-N-Photos Reference No.: WTH26D06185138W Page 6 of 6 2.2. EUT – Internal View Model MW-6-N FCC ID: 2A4FR-MW-6-N ======End======

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 8 TEST REPORT Referen ce No. .................... : WTH26D06185138W003 FCC ID ................................ : 2A4FR-MW-6-N Applicant ............................ : IGEN Tech Co., Ltd. Address .............................. : Block F4, No. 200, Linghu Avenue, Wuxi, Jiangsu, P. R. China, 225400 Manufacturer .................... : IGEN Tech Co., Ltd. Address ............................. : Block F4, No. 200, Linghu Avenue, Wuxi, Jiangsu, P. R. China, 225400 Product ............................... : WiFi Module Model(s). ............................ : MW-6-N, MW-6-N-301, MW-6-N-302, MW-6-N-311, MW-6-N-312, MW-6-N-313, MW-6-N-361, MW-6-N-X Standards........................... : FCC 47CFR Part 2 Subpart J Section 2.1091 Date of Receipt Sample .... : 2026-06-29 Date of Test ....................... : 2026-07-01 to 2026-08-27 Date of Issue ...................... : 2026-08-27 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTH26D06185138W003 Page 2 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2. Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2. CONTENTS ............................................................................................................................................................ 2 3. REVISION HISTORY ............................................................................................................................................ 3 4. GENERAL INFORMATION .................................................................................................................................. 4 4.1. GENERAL DESCRIPTION OF E.U.T. ............................................................................................................ 4 4.2. DETAILS OF E.U.T. ..................................................................................................................................... 4 4.3. TEST FACILITY ............................................................................................................................................ 5 4.4. SUBCONTRACTED ....................................................................................................................................... 5 4.5. ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................... 5 5. TEST SUMMARY .................................................................................................................................................. 6 6. RF EXPOSURE ...................................................................................................................................................... 7 6.1. REQUIREMENTS .......................................................................................................................................... 7 6.2. THE PROCEDURES / LIMIT ........................................................................................................................... 7 6.3. MPE CALCULATION METHOD .................................................................................................................... 8 6.4. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ......................................................................... 8 Reference No.: WTH26D06185138W003 Page 3 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 3. Revision History Test Report No. Date of Receipt Sample Date of Test Date of Issue Purpose CommentApproved WTH26D06185138W003 2026-06-29 2026-07-01 to 2026-08-27 2026-08-27Original - Valid Reference No.: WTH26D06185138W003 Page 4 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4. General Information 4.1. General Description of E.U.T. Product: WiFi Module Model(s): MW-6-N, MW-6-N-301, MW-6-N-302, MW-6-N-311, MW-6-N-312, MW-6-N-313, MW-6-N-361, MW-6-N-X Model Description: Only the model names are different. Model MW-6-N was tested in the report. Test Sample No.: 1-1/1 Wi-Fi Specification: 802.11b/g/n HT20/n HT40/ax HE20 Bluetooth Version: V5.0 Hardware Version: MW-6-N Software Version: V1.4.0B 4.2. Details of E.U.T. Operation Frequency: LE: 2402-2480MHz, 40 Channels in total 2.4G Wi-Fi: 802.11b/g/n HT20/ax HE20: 2412~2462MHz 802.11n HT40: 2422~2452MHz Max. RF output power: LE 1M: 7.40dBm, LE 2M: 7.51dBm 2.4G Wi-Fi: 15.00dBm Modulation Technology: LE: GFSK 2.4G Wi-Fi: DSSS, OFDM, OFDMA Antenna installation: FPC Antenna Antenna Gain: 3.97dBi Note: #: The antenna gain is provided by the applicant, and the applicant should be responsible for its authenticity, WALTEK lab has not verified the authenticity of its information. Ratings: DC 2.7~3.6V Reference No.: WTH26D06185138W003 Page 5 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4.3. Test Facility The test facility has a test site registered with the following organizations: ISED CAB identifier: CN0013. Test Firm Registration No.: 7760A. Waltek Testing Group Co., Ltd. Has been registered and fully described in a report filed with the Industry Canada. The acceptance letter from the Industry Canada is maintained in our files. Registration number 7760A, October 15, 2016. FCC Designation No.: CN1201. Test Firm Registration No.: 523476. Waltek Testing Group Co., Ltd. EMC Laboratory has bee…

Text truncated - open the document above for the full version.

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 45 TEST REPORT Referen ce No. .................... : WTH26D06185138W001 FCC ID ................................ : 2A4FR-MW-6-N Applicant ............................ : IGEN Tech Co., Ltd. Address .............................. : Block F4, No. 200, Linghu Avenue, Wuxi, Jiangsu, P. R. China, 225400 Manufacturer .................... : IGEN Tech Co., Ltd. Address ............................. : Block F4, No. 200, Linghu Avenue, Wuxi, Jiangsu, P. R. China, 225400 Product ............................... : WiFi Module Model(s). ............................ : MW-6-N, MW-6-N-301, MW-6-N-302, MW-6-N-311, MW-6-N-312, MW-6-N-313, MW-6-N-361, MW-6-N-X Standards........................... : FCC 47CFR Part 15.247 Date of Receipt sample .... : 2026-06-29 Date of Test ....................... : 2026-07-01 to 2026-08-26 Date of Issue ...................... : 2026-08-26 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTH26D06185138W001 Page 2 of 45 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................... 2 3 REVISION HISTORY ................................................................................................................................. 4 4 GENERAL INFORMATION ....................................................................................................................... 5 4.1 General Description of E.U.T. ....................................................................................................... 5 4.2 Details of E.U.T. ............................................................................................................................ 5 4.3 Channel List .................................................................................................................................. 5 4.4 Test Facility ................................................................................................................................... 6 4.5 Subcontracted ............................................................................................................................... 6 4.6 Abnormalities from Standard Conditions ...................................................................................... 6 4.7 Test Mode ..................................................................................................................................... 6 5 TEST SUMMARY ...................................................................................................................................... 7 6 EQUIPMENT USED DURING TEST ......................................................................................................... 8 6.1 Equipments List ............................................................................................................................ 8 6.2 Description of Support Units ......................................................................................................... 9 6.3 Measurement Uncertainty ............................................................................................................ 9 6.4 Test Equipment Calibration .......................................................................................................... 9 7 CONDUCTED EMISSION ....................................................................................................................... 10 7.1 E.U.T. Operation ......................................................................................................................... 10 7.2 EUT Setup .................................................................................................................................. 10 7.3 Measurement Description ........................................................................................................... 10 7.4 Conducted Emission Test Result ............................................................................................... 11 8 RADIATED EMISSIONS ......................................................................................................................... 13 8.1 EUT Operation ............................................................................................................................ 13 8.2 Test Setup .................................................................................................................................. 14 8.3 Spectrum Analyzer Setup ........................................................................................................... 15 8.4 Test Procedure ........................................................................................................................... 16 8.5 Corrected Amplitude & Margin Calculation ................................................................................ 16 8.6 Summary of Test Results ........................................................................................................... 17 9 CONDUCTED SPURIOUS EMISSIONS ................................................................................................. 20 9.1 Test Proce…

Text truncated - open the document above for the full version.

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 73 TEST REPORT Referen ce No. .................... : WTH26D06185138W002 FCC ID ................................ : 2A4FR-MW-6-N Applicant ............................ : IGEN Tech Co., Ltd. Address .............................. : Block F4, No. 200, Linghu Avenue, Wuxi, Jiangsu, P. R. China, 225400 Manufacturer .................... : IGEN Tech Co., Ltd. Address .............................. : Block F4, No. 200, Linghu Avenue, Wuxi, Jiangsu, P. R. China, 225400 Product ............................... : WiFi Module Model(s). ............................ : MW-6-N, MW-6-N-301, MW-6-N-302, MW-6-N-311, MW-6-N-312, MW-6-N-313, MW-6-N-361, MW-6-N-X Standards........................... : FCC 47CFR Part 15.247 Date of Receipt Sample .... : 2026-06-29 Date of Test ....................... : 2026-07-01 to 2026-08-27 Date of Issue ...................... : 2026-08-27 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTH26D06185138W002 Page 2 of 73 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................... 2 3 REVISION HISTORY ................................................................................................................................. 4 4 GENERAL INFORMATION ....................................................................................................................... 5 4.1 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................... 5 4.2 DETAILS OF E.U.T. .............................................................................................................................. 5 4.3 CHANNEL LIST ..................................................................................................................................... 5 4.4 TEST FACILITY .................................................................................................................................... 6 4.5 SUBCONTRACTED ................................................................................................................................ 6 4.6 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................... 6 4.7 TEST MODE ........................................................................................................................................ 7 5 TEST SUMMARY ...................................................................................................................................... 8 6 EQUIPMENT USED DURING TEST ......................................................................................................... 9 6.1 EQUIPMENTS LIST ............................................................................................................................... 9 6.2 DESCRIPTION OF SUPPORT UNITS ...................................................................................................... 10 6.3 MEASUREMENT UNCERTAINTY ........................................................................................................... 10 6.4 TEST EQUIPMENT CALIBRATION ......................................................................................................... 10 7 DUTY CYCLE .......................................................................................................................................... 11 8 CONDUCTED EMISSION ....................................................................................................................... 14 8.1 E.U.T. OPERATION ............................................................................................................................ 14 8.2 EUT SETUP ...................................................................................................................................... 14 8.3 MEASUREMENT DESCRIPTION ............................................................................................................ 14 8.4 CONDUCTED EMISSION TEST RESULT ................................................................................................ 15 9 RADIATED EMISSIONS ......................................................................................................................... 17 9.1 EUT OPERATION ............................................................................................................................... 17 9.2 TEST SETUP ..................................................................................................................................... 18 9.3 SPECTRUM ANALYZER SETUP ............................................................................................................ 19 9.4 TEST PROCEDURE ............................................................................................................................. 20 9.5 CORRECTED AMPLITUDE & MARGIN CALCULATION .............................................................................. 20 9.6 SUMMARY OF TEST RESULTS ............................................................................…

Text truncated - open the document above for the full version.

材料规格承认书 Product Specification Report 代理商： 制造商 ： DONGGUAN HUANGJIE COMMUNICATION TECHNOLOGY CO., LTD. IGEN料号： IGEN规格型号： 供应商料号： 3N0401GY-003 供应商规格型号： WIFI 1.13 灰色线 P1PCB P2 一代端子 L=61MM 品名： 内置天线 生效日期： 2022年 2 月 09日 IGEN确认: 供应商签字盖章在下面方格 确认 审核 测试报告 ———————————————————————— 页次 东莞市皇捷通讯科技有限公司 目 录 6 6线材规格书 ————————————————————————————7-9 5端子规格书 ———————————————————————————— DONGGUAN HUANGJIE COMMUNICATION TECHNOLOGY CO., LTD. CONTENTS 序号内容提要 3工程图 ———————————————————————————3 44-5 1封面 ——————————————————————————1 2目录 ————————————————————————————2 1 3 I P X 1 BACDEFGH 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 BACDEFGH P/N: SHEET: SCALE: REVISION: TITLE: mm 1:1 ENG/DATE:CHE/DATE:APP/DATE:FILE NAME: 东莞市皇捷通讯科技有限公司 REVISION DESCRIPTION DATE DRAFTER X.XXX ±0.01 X.XX ±0.50 LINEAR: ±3.00 X.X ±1.00 X.XXX° ±1.00° X.XX° ±2.00° ANGLE:X° ±15.00° X.X° ±5.00° COMPLIANCE WITH THE REQUIREMENT: █ RoHS ; □HF; □SONY SS-00259; □OTHERS *NO USING ESTRICTED AND BANNED SUBSTANCE HJ-Tech GENERAL TOLERANCE: X UNIT: A0 首次发行 21.01.04 S.He XIU HE/20.08.10 成品图 3N0401GY-003 A0 1/1 内置天线：WIFI 1.13灰色线 P1PCB P2一代端子 L=61MM 技术要求： 1 方向要求: 一端打端子，端子开口方向朝下。 2 电气特性：特性阻抗：50 ；适用频率范围：2.4-2.5GHz； 测试方法：使用矢量网络分析仪100%比对波形测试。 3 拔出力测试：最小1.30kgf。 测试方法：沿电缆中心轴,以25±3毫米/分钟的速度,垂直将1.30kg砝码提离桌面即为合格,反之不合格。 4 尺寸检验： [*] 为FAI检测项目； * 为重点检测项目； ■ 为CPK管制项目。 5 外观检验：目视全检。产品表面不得有刮伤、破损和脏污；镀层色泽光亮均匀，不得有氧化。6 包装规范：25PCS/扎，2扎/包，即50PCS/包。 7 环保要求：产品及其使用之物料皆需要符合RoHS要求。 *[8] 1.50±0.20 镀锡 *[7] 2.50±0.20 *[6] 3.00±0.20 镀锡 *[11] 1.30±0.20 *[10] 1.00±0.20 *[9] 1.00±0.20 *[5] 61.00±0.20 裁 线 图 P1 端 焊接 PCB P2 端 铆接 MHF-1-PLUG 4 2MH081 EVA泡棉,双面背胶，L38*W20*T4.0mm 1 --- 3 2LM10P113210 MHF I PLUG FOR OD1.13 CABLE 1 --- 2 2C5M11312GY1 OD1.13灰色双锡线-50 OHM 1 --- 1 2YP133 PCB 单面板，FR-4，L：38.0*W：20.0*T：1.0mm 1 --- NO PART NUMBER PART NAME & DESCRIPTION Q'TY REMARKS 2 H377 3 38.00 20.00 61.0±2 每批次需做成品首件确认 4 1 网络分析仪测试 DONGGUAN HUANGJIE COMMUNICATION TECHNOLOGY CO., LTD. 东莞市皇捷通讯科技有限公司 …

Text truncated - open the document above for the full version.
