2A4FRMW-4Module

产品规格书 www.igen-tech.com 无锡英臻科技有限公司 1 Product Specification Report Supplier Name： IGEN Tech Co., Ltd. Supplier Part No.： 51-0340-004 Customer Name： Ningbo Deye Technology Group Co., Ltd. Customer Part No.： 30080519000003（318010038） Product Name： BT/WiFi Module Product Type： MW-4 WiFi Firmware Version： WEB Version： Inverter Type： Inverter Protocol： Effective Date： Customer Approval Supplier Approval Confirmed By Approved By 产品规格书 Introduction By collecting operating data and power generation of inverter, Module can run a long-term and efficientmonitoring of PV system. Module can connect to single inverter via Uart TTL interface, which enables to collectall the data of PV system from the inverter. Meanwhile, remote monitoring cloud platform (SOLARMAN Portal)provides powerful data support for the logger. Module sends the data to the monitoring platform via WiFi. The real-time status and historical data can be displayed with graphs, enabling intuitive and clear understanding of PV system. Furthermore, customized alerts can notify users of any malfunction or defect immediately via SMS and E-mail, which realizes the management of PV system at anytime and anywhere, also simplifies the maintenance significantly. Product Parameter Wireless Parameter Certification FCC/CE/RoHS WiFi Standard 802.11b/g/n WiFi Frequency 2.412GHz-2.462GHz WiFi Transmitting Power 802.11b: +15.0dBm (@11Mbps) 802.11g: +15.0dBm (@54Mbps) 802.11n: +13.0dBm@HT20, MCS7) WiFi Sensitivity 802.11b: -98dBm (@1Mbps) 802.11b: -91dBm (@11Mbps) 802.11g: -93dBm (@6Mbps) 802.11g: -77dBm (@54Mbps) 802.11n: -93dBm (@MCS0) 802.11n: -73dBm (@MCS7) BLE Standard BLE5.0 BLE Frequency 2.402GHz-2.480GHz BLE Transmitting Power Max 2.0dBm BLE Sensitivity -97 dBm Antenna Option ■ External：I-PEX connector  Embedded：3.0dBi Onboard antenna Hardware Parameter Data Interface UART TTL（3.3V） Working Voltage 3.0~3.6V Working Current Peak(100 ms/ 1ms)：<350mA Avg(STA, Networking standby)：45mA Avg(STA, 1KB/s)：60mA Avg(AP)：70mA Standby: 310uA（Reset Pin-down） Button RESET Current Version Note Updated Time Updated By 1.0 First Draft (General scenario for Deye) 2021.12.03 产品规格书 nReload Flash 8MByte Hardware Watchdog Supported（Onboard） Working Temperature -40°C-+85°C Storage Temperature -45°C-+95°C Storage Humidity < 80% RH Size 41.50*25mm *1.2mm (±0.2mm) Software Parameter Wireless Network Type STA/AP Security Mechanism WEP/WPA-PSK/WPA2-PSK/WPA3-SAE Encryption Type WEP64/WEP128/TKIP/AES Firmware Upgrade Local wireless/Remote upgrade Network Protocol IPv4,TCP/UDP/HTTP/TLS 1.2 Configuration AT+Instruction set, Web page SmartBLELink BLE Networking Android/iOS Pin Definition 产品规格书 Picture Pin Description Network Name Type Details 1 GND GND Power Ground 2 VCC 3.3V 3.3V Power Recommended power range: 3.3V±5% 3 UART sending&receiving data UART-TXD 0 3.3V com serial 0 output, GPIO16 available 4 UART sending&receiving data UART-RXD I 3.3V com serial 0 input, GPIO7 available 5 GPIO14 GPIO14 IPU/O GPIO14 (suspended when not using, DAC/ADC available) 6 GPIO12 GPIO12 I/O GPIO12 (suspended when not using, PWM2/ADC available) 7 Reset RESET I，PU Low level reset, reset time >300ms. Low effective hardware reset input pin contains reset circuit. Resistance cannot be pulled in case the abnormal situation occurs. Reset input pin, integrated with reset circuit.Resistance cannot be added, in case of startup failure. 8 WiFi Status nLink IPU/O Wi-Fi connected, output “0”m or output “1”. GPIO5, PWM5 available Power：44K; When using PWM function, additional 1K resistance is required. 9 Startup Status nReady O “0” – start; “1” – fail; suspended when not using; GPIO4, PWM4 available 10 Restore factory setting nReload IPU Input low level “0”>3s and be high; restore factory setting GPIO3, PWM3 available 11 NC NC Not used 12 NC NC 13 NC NC 14 NC NC 产品规格书 4.1Front View 4.2 Back View Size Tolerance:±0.3 (mm) 产品规格书 Firmware Upgrade Contact IGEN Tech Co., Ltd. Add: Block F4, China IoT International Innovation Park, No. 200, Linghu Avenue, Wuxi, Jiangsu, P. R. China Tel: +86-400-181-0512 Email: [email protected] Website: www.solarman.cn Direct Transmission Domain Name： access1.solarmanpv.com（solarman 3.0） IP： 47.102.152.71（solarman 3.0） Port No.： 10000（solarman 3.0） APN： —— FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, incl uding interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursua nt to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inte rference in a residential installation. This equipment generates uses and can radiate radio frequency energy a nd, if not installed and used in accordance with the instructions, may cause harmful interference to radio com munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turn ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help important announcement Important Note: Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance …

Text truncated - open the document above for the full version.

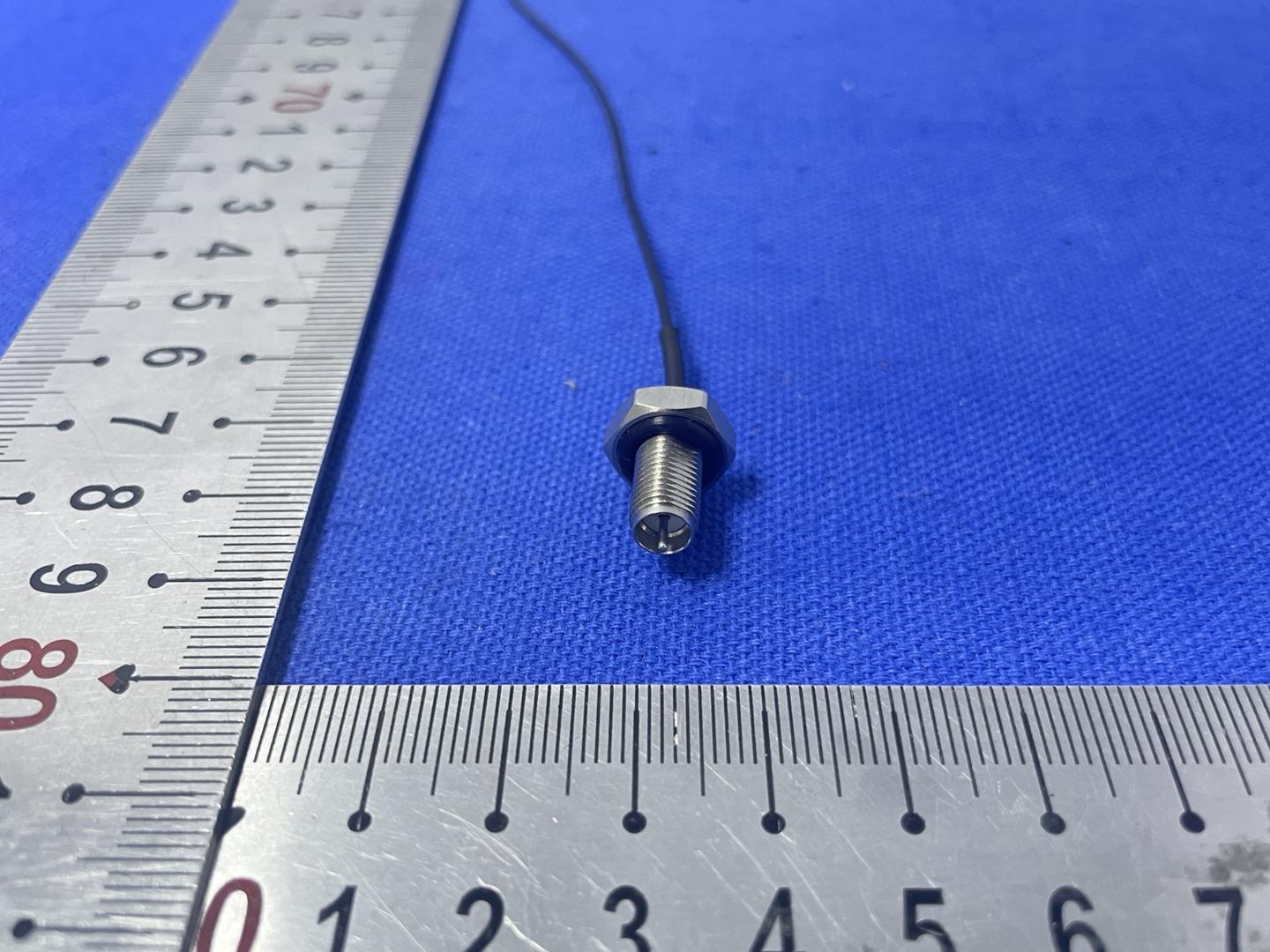

Page 1 of 4 FCC ID: 2A4FRMW-4 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity External Photos of the EUT Fig. 1 Fig. 2 Antenna Page 2 of 4 FCC ID: 2A4FRMW-4 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 4 FCC ID: 2A4FRMW-4 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 4 FCC ID: 2A4FRMW-4 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8

Page 1 of 1 FCC ID: 2A4FRMW-4 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity LABEL AND LOCATION (Size: L1.5cm x 1.0cm) Label Location Module Model: MW-4 FCC ID: 2A4FRMW-4

Page 1 of 2 FCC ID: 2A4FRMW-4 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 2 FCC ID: 2A4FRMW-4 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3

Page 1 of 5 FCC ID: 2A4FRMW-4 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC RF Exposure Evaluation 1. Product Information FCC ID 2A4FRMW-4 Product name Module Model number MW-4 Power supply Input: DC 5V Modulation Type IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) GFSK for Bluetooth V5.0(DTS) Antenna Type External Antenna Antenna Gain 3.0dBi(Max.) Hardware version MW-4 Software version / FCC Operation frequency 2412MHz-2462MHz 2402MHz ~ 2480MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Page 2 of 5 FCC ID: 2A4FRMW-4 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information External Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna External Antenna 2400MHz-2500MHz 3.0dBi WIFI Antenna Page 3 of 5 FCC ID: 2A4FRMW-4 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 6. Conducted Power <2.4GWLAN Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) IEEE 802.11b 1 2412 14.55 6 2437 14.93 11 2462 14.75 IEEE 802.11g 1 2412 13.07 6 2437 14.08 11 2462 13.78 IEEE 802.11n HT20 1 2412 11.68 6 2437 12.78 11 2462 11.63 IEEE 802.11n HT40 3 2422 11.9 6 2437 11.37 9 2452 11.33 < BT LE Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) GFSK 0 2402 -0.18 19 2440 1.16 39 2480 -0.18 Page 4 of 5 FCC ID: 2A4FRMW-4 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 7. Manufacturing Tolerance <2.4G WIFI> 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 14.0 14.0 14.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 13.0…

Text truncated - open the document above for the full version.

Page 1 of 55 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Module Test Model: MW-4 Environmental Conditions Temperature: 23.5°C Relative Humidity: 52.2% ATM Pressure: 100.0 kPa Test Engineer: Ling Zhu Supervised by: Li Huan Page 2 of 55 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 8.037 0.5 Pass NVNT b 2437 Ant1 7.05 0.5 Pass NVNT b 2462 Ant1 8.052 0.5 Pass NVNT g 2412 Ant1 16.085 0.5 Pass NVNT g 2437 Ant1 16.18 0.5 Pass NVNT g 2462 Ant1 16.431 0.5 Pass NVNT n20 2412 Ant1 17.205 0.5 Pass NVNT n20 2437 Ant1 16.14 0.5 Pass NVNT n20 2462 Ant1 17.612 0.5 Pass NVNT n40 2422 Ant1 21.057 0.5 Pass NVNT n40 2437 Ant1 36.033 0.5 Pass NVNT n40 2452 Ant1 32.586 0.5 Pass Page 3 of 55 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 Page 4 of 55 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 Page 5 of 55 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 Page 6 of 55 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 Page 7 of 55 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT n20 2462MHz Ant1 -6dB Bandwidth NVNT n40 2422MHz Ant1 Page 8 of 55 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT n40 2437MHz Ant1 -6dB Bandwidth NVNT n40 2452MHz Ant1 Page 9 of 55 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.2 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Total Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 14.55 30 Pass NVNT b 2437 Ant1 14.93 30 Pass NVNT b 2462 Ant1 14.75 30 Pass NVNT g 2412 Ant1 13.07 30 Pass NVNT g 2437 Ant1 14.08 30 Pass NVNT g 2462 Ant1 13.78 30 Pass NVNT n20 2412 Ant1 11.68 30 Pass NVNT n20 2437 Ant1 12.78 30 Pass NVNT n20 2462 Ant1 11.63 30 Pass NVNT n40 2422 Ant1 11.9 30 Pass NVNT n40 2437 Ant1 11.37 30 Pass NVNT n40 2452 Ant1 11.33 30 Pass Page 10 of 55 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.3 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Total PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 -11.54 8 Pass NVNT b 2437 Ant1 -11.39 8 Pass NVNT b 2462 Ant1 -10.41 8 Pass NVNT g 2412 Ant1 -15.78 8 Pass NVNT g 2437 Ant1 -15.39 8 Pass NVNT g 2462 Ant1 -15.38 8 Pass NVNT n20 2412 Ant1 -15.19 8 Pass NVNT n20 2437 Ant1 -14.3 8 Pass NVNT n20 2462 Ant1 -18.81 8 Pass NVNT n40 2422 Ant1 -18.93 8 Pass NVNT n40 2437 Ant1 -19.35 8 Pass NVNT n40 2452 Ant1 -19.92 8 Pass Page 11 of 55 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: w…

Text truncated - open the document above for the full version.

Page 1 of 23 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix B RF Test Data for BT LE (Conducted Measurement) Product Name: Module Test Model: MW-4 Environmental Conditions Temperature: 23.5°C Relative Humidity: 52.2% ATM Pressure: 100.0 kPa Test Engineer: Ling Zhu Supervised by: Li Huan Page 2 of 23 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity B.1 DTS Bandwidth Test Result Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant1 0.657 >=0.5 Pass NVNT BLE 1M 2440 Ant1 0.661 >=0.5 Pass NVNT BLE 1M 2480 Ant1 0.664 >=0.5 Pass Page 3 of 23 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs -6dB Bandwidth NVNT BLE 1M 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant1 Page 4 of 23 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT BLE 1M 2480MHz Ant1 Page 5 of 23 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity B.2 Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 -0.18 ≤30 PASS 2440 1.16 ≤30 PASS 2480 -0.18 ≤30 PASS Page 6 of 23 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs Power NVNT BLE 1M 2402MHz Ant1 Power NVNT BLE 1M 2440MHz Ant1 Page 7 of 23 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Power NVNT BLE 1M 2480MHz Ant1 Page 8 of 23 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity B.3 Maximum power spectral density TestMode Antenna Channel Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -14.97 ≤8.00 PASS 2440 -13.78 ≤8.00 PASS 2480 -14.97 ≤8.00 PASS Page 9 of 23 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs PSD NVNT BLE 1M 2402MHz Ant1 PSD NVNT BLE 1M 2440MHz Ant1 Page 10 of 23 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity PSD NVNT BLE 1M 2480MHz Ant1 Page 11 of 23 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity B.4 Band edge measurements Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -56.23 -20 Pass NVNT BLE 1M 2480 Ant1 -57.16 -20 Pass Page 12 of 23 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs Band Edge NVNT BLE 1M 2402MHz Ant1 Ref Band Edge NVNT BLE 1M 2402MHz Ant1 Emission Page 13 of 23 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Band Edge NVN…

Text truncated - open the document above for the full version.

Page 1 of 37 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT For IGEN TECH CO.,Ltd. Module Test Model: MW-4 Prepared for : IGEN TECH CO.,Ltd. Address : Block F4, No. 200, Linghu Avenue, Wuxi, Jiangsu, P. R. China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 17, 2022 Number of tested samples : 2 Sample number : 220217123A-1, 220217123A-2 Serial number : Prototype Date of Test : May 17, 2022 ~ June 30, 2022 Date of Report : June 30, 2022 Page 2 of 37 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS220217123AEA Date of Issue .................................. : June 30, 2022 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : IGEN TECH CO.,Ltd. Address .......................................... : Block F4, No. 200, Linghu Avenue, Wuxi, Jiangsu, P. R. China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Module Trade Mark ..................................... : N/A Test Model ...................................... : MW-4 Ratings ........................................... : Input: DC 5V Result ............................................ : Positive Compiled by: Supervised by: Approved by: Vera Deng/ Administrator Jin Wang/ Technique principal Gavin Liang/ Manager Page 3 of 37 FCC ID: 2A4FRMW-4 Report No.: LCS220217123AEA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Indu…
