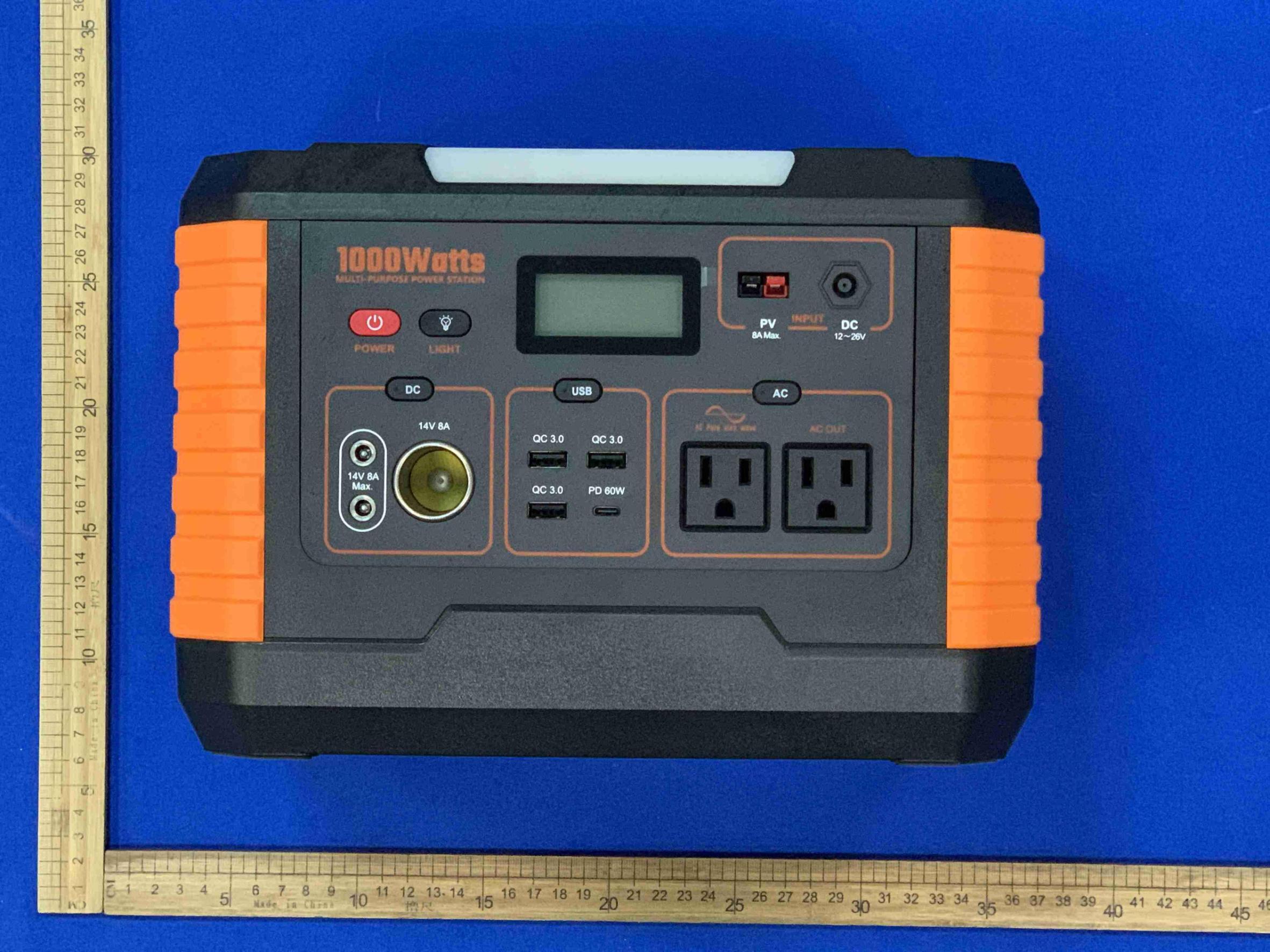

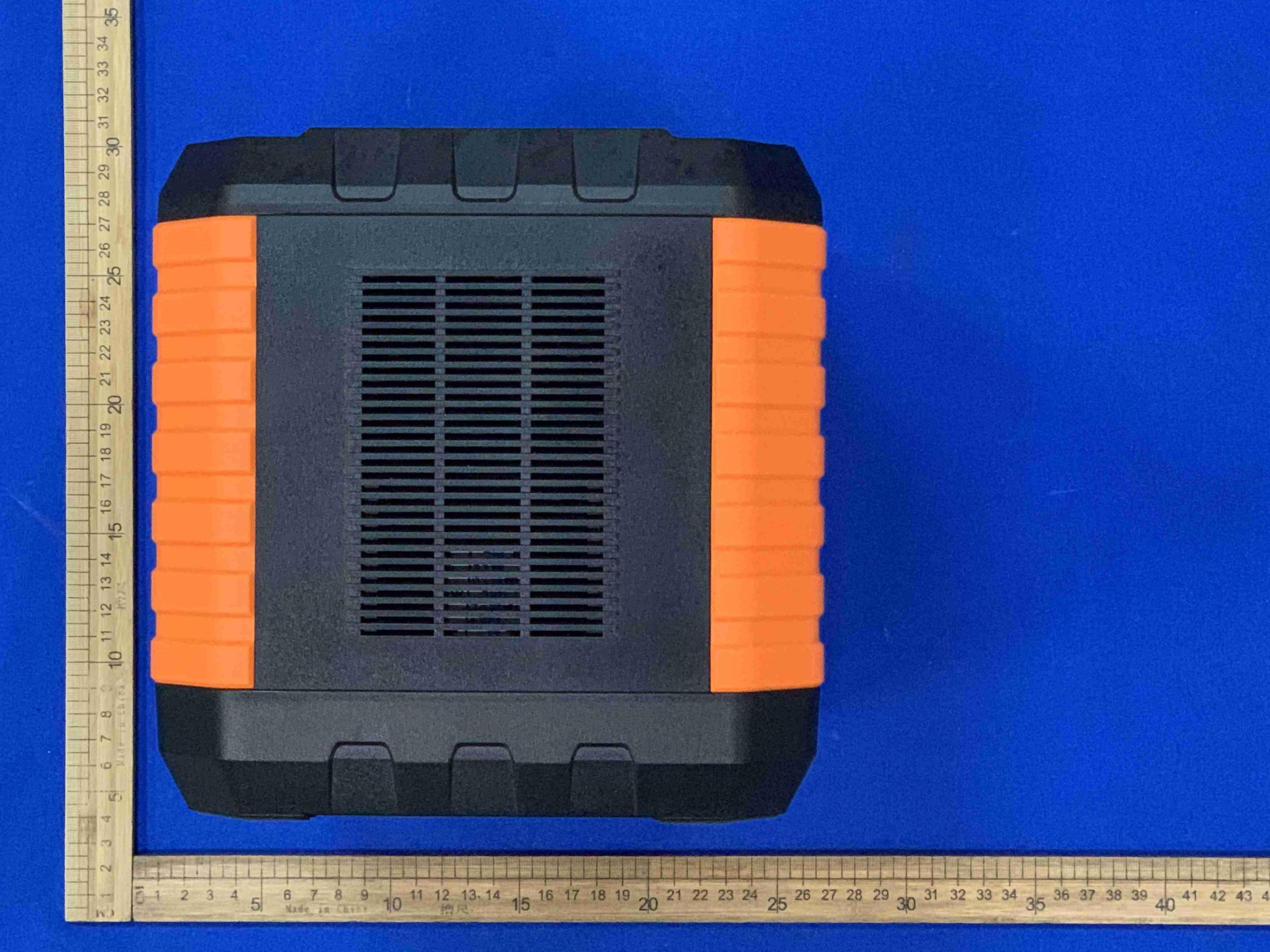

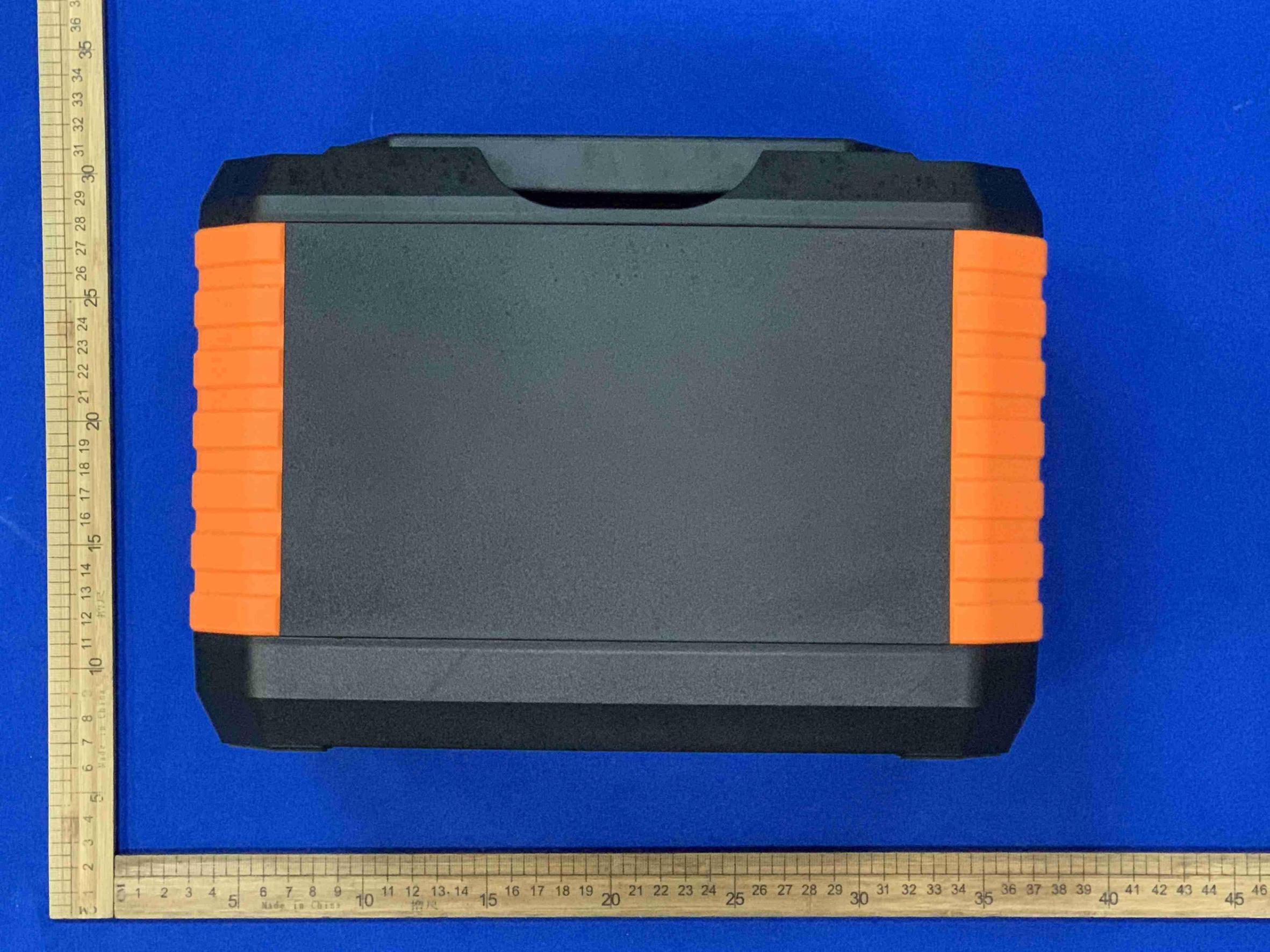

制作要求 此页不印刷 成品尺寸：142x210mm 展开尺寸：284x210mm 钉装：骑马钉 材质：铜版纸 版本：MP1000M V1.0.01 USER MANUAL MP1000 To make sure your personal safety, property security and user experience, please read this manual carefully before operating,and retain it for future reference. Before using your new Power Station MP1000, plug it into a suitable power outlet until it is fully charged.Then you can start your exciting journey with it. CHARGE FIRST! Thank you for purchasing MP1000 portable power station. 8A Max. 1 GENERAL SPECIFICATIONS 1 General specifications General Specs Weight (net weight) Weight (including accessories) Product size Rated capacity Recharging input voltage Input Recharging input power 999Wh 12-26V ≈8.5kg ≈9.5kg 290mm*202mm*202mm 1000W 3.7V/270000mAh 1100±80W 110V±10V/60HZ pure sine wave QC3.0/18W PD60W 14V/8A 14V/4A 10W 14 to 113°F (-10 to 45°C) 32 to 104°F (0 to 40°C) Rated Output Power Standard capacity of cells Overload protection Power AC Output Voltage Output waveform USB output Output Type-C Cigarette Lighter Socket Output DC 55*2.5 output Wireless charger discharging Temperature Recharging Temperature Output Battery 150W AC/DC Adapter Solar Charge Input 150W MAX ,AC 100-240V (50Hz/60Hz) ,DC 24V ,6.25A 12-26V ,DC 8A MAX DC 12V ,8A MAX Car Charger Safety instructions Read the following instructions to ensure safety before using. Improper use may result in fire, property damage or personal injury. 2 Product use: Product Recharging: Product Storage and Transportation: • Keep the product out of the reach of children. If any children accidentally swallow parts, please go to a doctor immediately. If a low-battery warning appears, charge the battery before store it. Store the product in dry environments. DO NOT place the product where it may contact with water. Make sure no small metal objects can fall on or around the product while in storage. Never transport a product with a battery power level higher than 30%. • • • • Product Maintenance: • Never store the product in environments below -20°C or above 45°C. • Battery life may be reduced if not used for a long time. • Fully charge and discharge the battery at least once every 3 months to maintain battery health. • use any inappropriate power cords. • place the unit close to or in a fire on expose it to heat. Keep out of direct sunlight. • charge, use or store the unit in a bathroom or in an area exposed to rain or moisture. Do not drop the unit into the water. If the battery in the unit comes into contact with water, it may cause chemical decomposition of the battery. This may cause the battery to catch fire or explode. • Never use or charge swollen, leaky, or damaged batteries. If your battery is abnormal, contact us to get support. • Never install or remove a battery from the unit when it is turned on. • use the batteries in strong electrostatic or electromagnetic environments. Otherwise, the battery control board may malfunction and cause a serious accident. • Never disassemble or pierce the product in any way. Otherwise, it may leak, catch on fire, or explode. • use the product if it was involved in a crash or a heavy bump. • If the product falls into the water during use,take the product out immediately and put it in a safe and open area. Keep a safe distance from it until it is completely dry. Never use it again and dispose it properly as described in the Battery Disposal section below. If the product catches fire, it is recommended to use fire extinguishing equipment in the following order: water or water mist, sand, fire blanket, dry powder, carbon dioxide fire extinguisher. • allow pins, wires or other metal pieces to insert to the device case, outlets or controls. Metal pieces may short circuit the product. • Avoid collision. DO NOT place heavy objects on the machine. • Use and store the unit only in a clean and dry environment. Do not use and store in dusty and wet environment. • If there is dirt on any plug or outlet surface, use a dry cloth to clean it. Otherwise, it will cause abrasion and result in energy loss or inability to charge. • DO NOT put the machine in a microwave oven or in a pressurized container. DO NOT DO NOT DO NOT DO NOT DO NOT DO NOT • DO NOT charge the unit via power supply systems that operate outside of AC100-240V. • DO NOT charge the unit via solar panel that operate voltage outside of DC12-26V. • Always use approved attachment charging cables. we take no responsibility for any damage caused by using other brand charging cable. • When charging, please place the product on the ground with no flammable or combustible materials around. To prevent accidents, never leave the machine unattended during charging. • DO NOT charge a product immediately after a long heavy load, because the product's temperature may be too high. DO NOT charge a product until it cools down to room temperature. • Only charge, use the unit within an ambient temperature of 0 to 40 °C (32~104°F). The ideal charging temperature range is 71ºF to 82ºF(22°C to 28°C). 8A Max. 8A Max. AC OUTPUT 1 2 3 4 Cigarette lighter output LCD screen display DC 5525 output USB-C output 6 7 8 9 1000W rated AC output Anti-collision strip DC input PV input 12 11 10 SOS mode & LED light Folding handle Air Intake vent with cooling fan 5 USB-A output 13 Wireless charger Note: No user-serviceable parts inside. recommended to fully charge the MP1000 before use. Feature details Button feature 3 A:MP330 power ON/OFF button B:SOS mode & LED light button C:DC output power ON/OFF button D:USB output power ON/OFF button E: AC output power ON/OFF button A 1312 10 8 7 6 5 4 3 2 1 9 C D E 11 B Function buttons 4 Button A: MP1000 power ON/OFF Button A is the master switch. Press button A toturn on the power orto shut down the output(s)when not in use. Button B: SOS mode & LED light Function is available no matter the button “POWER ON/OFF ” is activatedor not as the following steps : Firstly, press button B to turn on the LED lightinto the LED light mode. Secondly, double clickitto…

Text truncated - open the document above for the full version.

ShenZhenIntelligentEnergyCo.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2022-03-23 Subject;RequestforConfidentiality FCCID:2A4UPMP1000MV1000 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:ZhuJiQuan Title:Manager

ShenZhenIntelligentEnergyCo.,Ltd LetterofAuthorization Company:ShenZhenIntelligentEnergyCo.,Ltd Address:No.3Building,Floor2,LilinIndustrialArea,GuanguangRoad, ShenzhenCity,China ProductName:PortablePowerStation ModelNumber:MP1000 Trademark:N/A FCCIdentifier:2A4UPMP1000MV1000 WeauthorizeMiCOMLabsInc,575BoulderCourt,Pleasanton,California94566, USA,toactonourbehalfonallmattersconcerningtheabovenamedequipment. AnyindividualwithinMiCOMLabsisauthorizedtoactonourbehalfandtake actionontheapplication. WedeclarethatMiCOMLabsInc,575BoulderCourt,Pleasanton,California 94566,USA,isallowedtoforwardallinformationrelatedtotheapprovalproject totheFederalCommunicationCommissionandtodiscussanyissues concerningtheapprovalapplication.AnyandallactscarriedoutbyMiCOMLabs onourbehalfshallhavethesameeffectasactsofourown. Name:ZhuJiQuanDate:23.03.2022 Signatureofapplicant:

ShenZhen Intelligent Energy Co., Ltd Company: ShenZhen Intelligent Energy Co., Ltd Address: No.3 Building, Floor 2, Lilin Industrial Area, Guanguang Road, Shenzhen City, China The EUT does comply with item 5.2 of KDB 680106 D01v03 as follows table Requirements of KDB 680106 D01 Yes/No Description (1) Power transfer frequency is less than 1 MHz Yes The EUT frequency range is: 112kHz- 205kHz (2) Output power from each primary coil is less than or equal to 15 watts. Yes The output power is less than 15W (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. Yes EUT has only one coil (4) Client device is placed directly in contact with the transmitter. Yes EUT can be directly charged (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes EUT is a mobile device (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Yes Fulfil requirements Name:Zhu Ji Quan Date: 23.03.2022 Signature of applicant:

1. Do not short-circuit the unit. To avoid short-circuiting, keep the unit away from all metal objects (e.g.coins, hair-pins, keys, etc. ) . 2. Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from high temperatures. Do not expose the unit to direct sunlight. 3.Keep away from high humidity, dusty places. 4.Do not disassemble or reassemble this unit. 5. Do not drop,place heavy objects on, or allow strong impact to this unit. 6. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 7. Children should be supervised to ensure that they do not play with the appliance. 8. The unit may become hot when charging. This is normal. Use caution when handling. 9.Use the unit properly to avoid electronic shock. 10.The product is only used for emergency power station, it can not replace the standard DC or AC power of household appliances or digital products. 11.Do not overcharge the internal battery.See lnstruction Manual. 1. Ne court-circuitez pas l'appareil. Pour éviter tout court-circuit, éloignez l'appareil de tout objet mé tallique (par exemple, pièces de monnaie, épingles à cheveux, clés, etc.). 2. Ne chauffez pas l'appareil et ne le jetez pas dans le feu, l'eau ou d'autres liquides.Tenir à l'écart des températures élevées. N'exposez pas l'appareil à la lumière directe du soleil. 3. Tenir à l'écart des endroits humides et poussiéreux. 4. Ne démontez pas et ne réassemblez pas cet appareil. 5. Ne laissez pas tomber, ne placez pas d'objets lourds dessus et ne laissez pas de chocs violents sur cet appareil. 6. Cet appareil n'est pas destiné à être utilisé par des personnes(y compris des enfants) ayant des capacités physiques, sensorielles ou mentales réduites, ou un manque d'expérience et de connaissances, à moins qu'elles n'aient reçu une supervision ou des instructions concernant 7. l'utilisation de l'appareil par une personne responsable de leur sécurité. 8. Les enfants doivent être surveillés pour s'assurer qu'ils ne jouent pas avec l'appareil. 9. L'appareil peut devenir chaud pendant la charge. C'est normal. Soyez prudent lors de la manipulation. 10.Utilisez l'appareil correctement pour éviter les chocs électroniques.Le produit n'est utilisé que pour la centrale électrique de secours, il ne peut pas remplacer l'alimentation CC ou CA standard des appareils ménagers ou des produits numériques. 11.Ne pas surcharger la batterie interne. Consulter le manuel d’utilisation. AVERTISSEMENT! WARNING! FCC ID : 2A4UPMP1000MV1000 Label Label positions

ANT

ShenzhenCTATestingTechnologyCo.,Ltd. Room106,Building1,YibaolaiIndustrialPark,QiaotouCommunity,Fuhai Street,Bao’anDistrict,Shenzhen,China ShenzhenCTATestingTechnologyCo.,Ltd. RFExposureEvaluation FCCID:2A4UPMP1000MV1000 MeasuringStandard FCCPart1(1.1310)andPart2(2.1091) KDB680106D01RFExposureWirelessChargingBaseAppv03 TestConfiguration ThetestdistanceisfromthecenteroftheprobetotheedgeoftheEUT. ThetestdistanceofPositionEonthefrontsideis20cm,thetestdistanceofPositionA,B,C,Dis15cmusing theequipmentlistabovefordeterminingcompliancewiththeMPErequirementsofFCCPart1.1310. TheRFpowerdensitywasmeasuredatUndermaximumloadtest. ThetestdistanceofPositionEonthefrontsideis20cm,thetestdistanceofPositionA,B,C,Dis15cm,the fieldprobeswerepositionedatthelocationwherethereismaximumfieldstrength.ThemaximumE-fieldand H-fieldisreportedbelow. Thisdeviceusesawirelesschargingcircuitforpowertransferoperatingatthefrequencyof112KHz-205kHz. Thus,the300kHzlimitswereused:E-fieldLimit=614(V/m);H-fieldlimit=1.63(A/m). TESTSetup ShenzhenCTATestingTechnologyCo.,Ltd. Room106,Building1,YibaolaiIndustrialPark,QiaotouCommunity,Fuhai Street,Bao’anDistrict,Shenzhen,China ShenzhenCTATestingTechnologyCo.,Ltd. TESTLimits MeasurementUncertainty Thedataandresultsreferencedinthisdocumentaretrueandaccurate.Thereaderiscautionedthattheremaybe errorswithinthecalibrationlimitsoftheequipmentandfacilities.Themeasurementuncertaintywascalculatedfor allmeasurementslistedinthistestreportacc.toTR-100028-01”ElectromagneticcompatibilityandRadiospectrum Matters(ERM);Uncertaintiesinthemeasurementofmobileradioequipmentcharacteristics;Part1”and TR-100028-02“ElectromagneticcompatibilityandRadiospectrumMatters(ERM);Uncertaintiesinthemeasurement ofmobileradioequipmentcharacteristics;Part2“andisdocumentedintheKSIGNTestingCo.,Ltd.qualitysystem acc.toDINENISO/IEC17025.Furthermore,componentandprocessvariabilityofdevicessimilartothattested mayresultinadditionaldeviation.Themanufacturerhasthesoleresponsibilityofcontinuedcomplianceofthe device.BelowisthebestmeasurementcapabilityforKSIGNTestingCo.,Ltd. TestItemsMeasurementUncertaintyNotes Allemissions,radiated(<30M)(9kHz-30MHz)2.20dB(1) Note(1):Thisuncertaintyrepresentsanexpandeduncertaintyexpressedatapproximatelythe95%confidence levelusingacoveragefactorofk=1.96. ShenzhenCTATestingTechnologyCo.,Ltd. Room106,Building1,YibaolaiIndustrialPark,QiaotouCommunity,Fuhai Street,Bao’anDistrict,Shenzhen,China ShenzhenCTATestingTechnologyCo.,Ltd. MeasuringDeviceandTestEquipment DescriptionManufacturerModelS/N Cal.Until ProbeFHP(1kHz-400kHz) NardaSafetyTest SolutionsGmbH EHP-50FJ-0015June10,2022 BroadbandFieldMeterNardaNBM-550Q201455Sep10,2022 PHONE1HUAWEIP40N/AN/A TESTMODE MODETESTMODEDESCRIPTION 1Wirelesschargingmode(Fullload) 2Wirelesschargingmode(Halfload) 3Wirelesschargingmode(Nullload) ShenzhenCTATestingTechnologyCo.,Ltd. Room106,Building1,YibaolaiIndustrialPark,QiaotouCommunity,Fuhai Street,Bao’anDistrict,Shenzhen,China ShenzhenCTATestingTechnologyCo.,Ltd. TESTRESULT PassedNotApplicable EUTPortablePowerStationModelName.:MP1000 Pressure:1010hPaTestDate:2022-03-20 TestVoltage:Output:10W(Max) E-FieldStrengthat15cmsurroundingtheEUTand20cmabovethetopsurfaceoftheEUT EUT Side Frequency Range (kHz) Probe A (V/m) Probe B (V/m) Probe C (V/m) Probe D (V/m) Probe E (V/m) Limits (V/m) Full load 112~2050.950.930.920.903.17 614 Half load 112~2050.880.820.840.833.10 Null load 112~2050.860.770.790.803.08 H-FieldStrengthat15cmsurroundingtheEUTand20cmabovethetopsurfaceoftheEUT EUT Side Frequency Range (kHz) Probe A (A/m) Probe B (A/m) Probe C (A/m) Probe D (A/m) Probe E (A/m) Limits (A/m) Full load 112~2050.550.570.540.530.71 1.63 Half load 112~2050.490.530.520.520.67 Null load 112~2050.470.510.440.460.65 Remark:ThedevicemeetsthemobileRFexposurelimitata15cmseparationdistanceasspecified in§2.1091oftheFCCRules Note:H-FieldStrengthlessthan50%oftheapplicableMPElimit. ShenzhenCTATestingTechnologyCo.,Ltd. Room106,Building1,YibaolaiIndustrialPark,QiaotouCommunity,Fuhai Street,Bao’anDistrict,Shenzhen,China ShenzhenCTATestingTechnologyCo.,Ltd. PHOTOGRAPHSOFTESTSETUP PositionE PositionA ShenzhenCTATestingTechnologyCo.,Ltd. Room106,Building1,YibaolaiIndustrialPark,QiaotouCommunity,Fuhai Street,Bao’anDistrict,Shenzhen,China ShenzhenCTATestingTechnologyCo.,Ltd. PositionB PositionC ShenzhenCTATestingTechnologyCo.,Ltd. Room106,Building1,YibaolaiIndustrialPark,QiaotouCommunity,Fuhai Street,Bao’anDistrict,Shenzhen,China ShenzhenCTATestingTechnologyCo.,Ltd. PositionD **********************EndofReport**********************

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT Report Reference No. ..................... : FCC ID. ............................................ : CTA22030901901 2A4UPMP1000MV1000 Compiled by ( position+printed name+signature) .. : File administrators Kevin Liu Supervised by ( position+printed name+signature) .. : Project Engineer Kevin Liu Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Mar. 22, 2022 Representative Laboratory Name .: Shenzhen CTA Testing Technology Co., Ltd. Address ................................................. : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : ShenZhen Intelligent Energy Co., Ltd Address ............................................ : No.3 Building, Floor 2, Lilin Industrial Area, Guanguang Road, Shenzhen City, China Test specification ...........................: Standard ........................................... : FCC Rules and Regulations Part 15 Subpart C (Section 15.209), ANSI C63.10: 2013 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Portable Power Station Trade Mark ....................................... : N/A Manufacturer .................................... : ShenZhen Intelligent Energy Co.,Ltd (Dongguan) Branch Model/Type reference....................... : MP1000 Listed Models .................................. : N/A Modulation Type ............................... : ASK Operation Frequency ........................ : From 112KHz~205KHz Rating ............................................... : Input:AC 110-240V 50/60Hz Output: Wireless Charging: 10W(Max) Result................................................ : PASS Report No.: CTA22030901901 Page 2 of 24 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Portable Power Station Model /Type : MP1000 Listed Models : N/A Model Declaration : N/A Applicant : ShenZhen Intelligent Energy Co., Ltd Address : No.3 Building, Floor 2, Lilin Industrial Area, Guanguang Road, Shenzhen City, China Manufacturer : ShenZhen Intelligent Energy Co.,Ltd (Dongguan) Branch Address : Building 1, Zone7, No.1 Longxi Road, Tangxia Town, Dongguan City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA22030901901 Page 3 of 24 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ........................................................................ 4 2 S U M M A R Y ................................................................................... 5 2.1 General Remarks .......................................................................................................................................... 5 2.2 Product Description ..................................................................................................................................... 5 2.3 Description of the test mode ....................................................................................................................... 5 2.4 Special Accessories ..................................................................................................................................... 5 2.5 Modifications ................................................................................................................................................ 5 3 T E S T E N V I R O N M E N T .................................................................... 6 3.1 Address of the test laboratory .................................................................................................................... 6 3.2 Test Facility ................................................................................................................................................... 6 3.3 Environmental conditions ........................................................................................................................... 6 3.4 Summary of measurement results ............................................................................................................. 7 3.5 Statement of the measurement uncertainty .............................................................................................. 7 3.6 Equipments Used during the Test .............................................................................................................. 8 4 T E S T C O N D I T I O N S A N D R E S U L T S ................................................... 9 4.1 AC Power Conducted Emission ...............................…
