2A56X-GT3MAXGT3 MAX

InstructionManual Thankyouforchoosingoursmartwatch.Youcanfullyunderstandthefunctionsand operationmethodsoftheequipmentbyreadingthismanual.Thisdeviceisnotamedical device,andthemeasurementdataandresultsareforreferenceonly,notasabasisfor diagnosisandtreatment.Thecompanyreservestherighttomodifythecontentsofthis manualwithoutpriornotice. Productconfiguration:onebox,onemanual,onehost. ThisproductsupportsIP68waterproof,supportswearingintherain,washinghands, cannotbeworninhotshowersorsaunas,andcannotresistwatervapor.Ifwaterentersdue tonotusedaccordingtotheinstructions,ourcompanywillnotprovidefreewarranty. KeyDescription: Rotatethebuttonontheupperside:Youcanzoominandoutthesmartstylemenu andswitchthedialupanddown.Clicktoenterthemainmenu,anddouble-clicktoswitch themenustyleafterenteringthemenu. Bottomkey:longpresstoswitchthemachine,thenshortpresstoturnoffthescreen,short presstoturnonthescreenwhenthescreenisoff. TouchInstructions:Taptoenter,swiperighttogoback.Onthestandbyinterface,swipe downtoenterthestatusbar,swipeuptoenterthemessagenotification,swiperightto enterthemainmenu,swipelefttoentercommonfunctions,andswipetothelast+sign interface,clicktoentertoselectcommonfunctionsandsettheorderbeforeandafter. Charginginstructions:Thisproductusesawirelesscharger,whichsupportsmobile phonechargerswithin5VandcomputerUSBinterfaces.Puttingthewatchontheconcave sideofthechargingseatwillautomaticallyabsorbandcharge.Ittakesabout3hourstofully charge. Theconnectionbetweenthewatchandthemobilephone:First,themobilephoneneedsto downloadtheAPP"MActivePro"tothemobilephoneandinstallit.Therearetwoways. ScantheQRcodebelowonyourmobilebrowsertodownload,orsearchfor"MActivePro"in theappmarkettodownload. Duringtheinstallationprocess,youwillbepromptedtoagreetothepermission.Clickto agreetoallofthem.Aftercompletion,open"MActivePro"andturnontheBluetoothof yourmobilephone.ClickDevices-clicktoaddadeviceatthetop,searchfor"GT3MAX" andclickconnect.TurnontheGPStofindtheBluetoothnameofthewatch. Howtosetnotificationforincomingmail:Open"MActivePro"-Device-MessageReminder, selectthecorrespondingsoftware,andselectOpen. WhatshouldIdoifIcan'treceiveanotification? 1.Firstofall,thenotificationfunctionofthewatchisonlytosynchronizethenotification functionofthemobilephone,suchasincomingcallsandQQWeChatreminders.Ifyour mobilephonedoesnotreceivethenotification,thewatchwillnotreceiveiteither.Youneed tosetthenotificationfunctiononthemobilephoneandfindthecorrespondingnotification. APP,turnAllowNotificationson. 2.Resetthewatchtofactorysettings,entertheBluetoothsettingsofthemobilephone,and seeiftheconnecteddevicehas"GT3MAX".Ifso,pleasecancelthepairing,turnoffthe Bluetoothofthemobilephone,andthenturnitonagaintoreconnect. 3.Delete"MActivePro"anddownloaditagain,remembertoagreetoallthepermissions whenpromptedduringtheinstallationprocess,andthenreconnect. ●Firmwareupgrade:WhentheBluetoothconnectionisnormal,enter"MActivePro",enter Device-FirmwareUpgrade-Update,iftheupgradefails,youcanre-operate. Mainfunctionintroduction: ●Call:ClicktheBluetooth3.0iconinthedrop-downmenu,andthephonewillenter Settings-Bluetooth-Searchfor"watchcall"topairit.Bluetooth3.0canbeclickedtoclose andenterlowpowerconsumptionmode,whichcanprolongtheusetime. ●Phonebook:AfterconnectingtothemobileApp,youcanadd100frequentlyused contactsfromtheApptothephonebookofthewatch. ●Languagetimeanddate:WhenthewatchisconnectedtothemobileAPP,thetimeand dateofthemobilephonewillbesynchronized.Pleaseselectthelanguageofthewatch whenitisturnedonforthefirsttime. ●Standbyinterface:Thereareatotalofmultiplestandbyinterfacestochoosefrom.Inthe standbyinterface,pressandholdthescreenfor3secondstoswitchtheinterface.Youcan downloadthewatchfacethroughtheAPP,andyoucanalsosetyourfavoritephotoor pictureasthewatchfacebackground. ●Message:Swipeuponthestandbyinterfacetoenterthemessagenotification,and swipedowntoexit,whichcansynchronizethenotificationfunctiononthemobilephone, suchasincomingletterssuchasQQWeChat.notification. ●Stepcount,mileage,andcalories:Displaythesteps,mileage,andcalorieconsumptionof theday.Thedatawillbesavedat12o'clockeverynightandresetto0again. ●Sports:Clicktoentermulti-sportmode,selectamode,clicktostart,swiperighttoenter thepauseinterface.Eachexercisedataincludesexercisetime,calorieconsumptionand heartrate. ●Health: Heartrate:startmonitoringimmediatelyafterentering,scanthechangesofcapillarieson thesurfaceoftheskinwithgreenlight,andgettheheartratevalue,swiperighttoexit, normalheartrateisgenerally60-90beats/min,professionalathleteswillbelowerthan60, andordinarypeoplearethehighestHeartrateis220-age.Long-termexercisecanenhance cardiopulmonaryfunction. Bloodpressure:EnterthehomepageoftheAPP,enterthecalibrationvalueintheupper rightcornerofthebloodpressureinterface,andstartmonitoringimmediatelyafterentering. Whenmonitoring,pleaselayyourhandflat,andthedatawillbedisplayedafterabouttens ofseconds.Generallyspeaking,theolderyouare,thehigherthebloodpressure,andthe loweritisforwomenthanformen. ECG:Startmonitoringimmediatelyafterentering,usingthecombinationofopticalheart rateandECGtechnology,ittakesabouttensofsecondstogetthedata,themeasurementis completed,andtheECGissavedonthemobilephone"MActivePro". Bloodoxygen:monitoringstartsimmediatelyafterentering,thatis,thebloodoxygen concentrationintheblood,whichisanimportantphysiologicalparameterofbreathingand circulation.Thenormalarterialoxygensaturationis95-100%. Women'sHealth:Manageyourownmenstrualcycle,predictandremindinadvance. ●Sleepmonitoring:Thisfunctionwillbeautomaticallyturnedoninthebackgroundfrom 22.00everynightto8:00thenextmorning.ByconnectingtothemobileAPP,youcanview thedetaileddataofsleepquality. ●Passwordlock:Thepasswordlockwilltakeeffect5secondsafterthescreenisoff. Enteringa4-digitpasswordwillautomaticallyturnonthepasswordfunction.Turnoffthe switchwhenunlocked,andyoucanenteranewpassword.Ifyouforgettheoriginal password,enter1819directlyunlocked. ●Stopwatch:Clickinthelowerrightcornertostart,andthenclicktopause.Clickthe lowerleftcornertoviewthesplittiming,clickinthemiddletov…

Text truncated - open the document above for the full version.

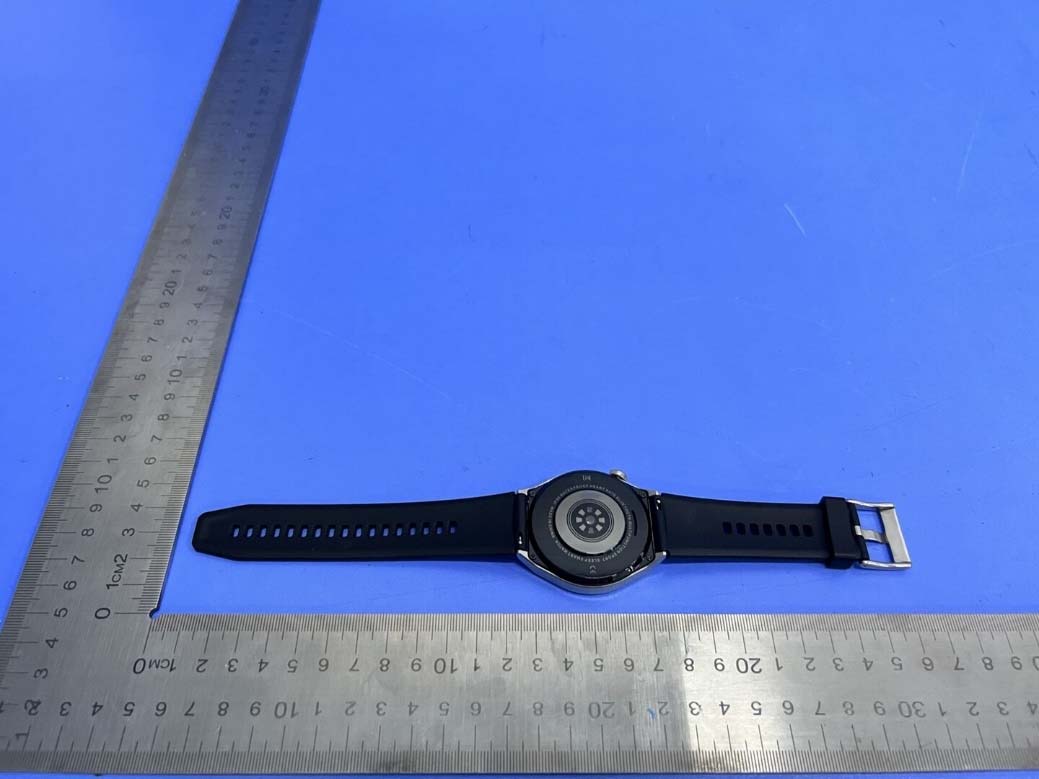

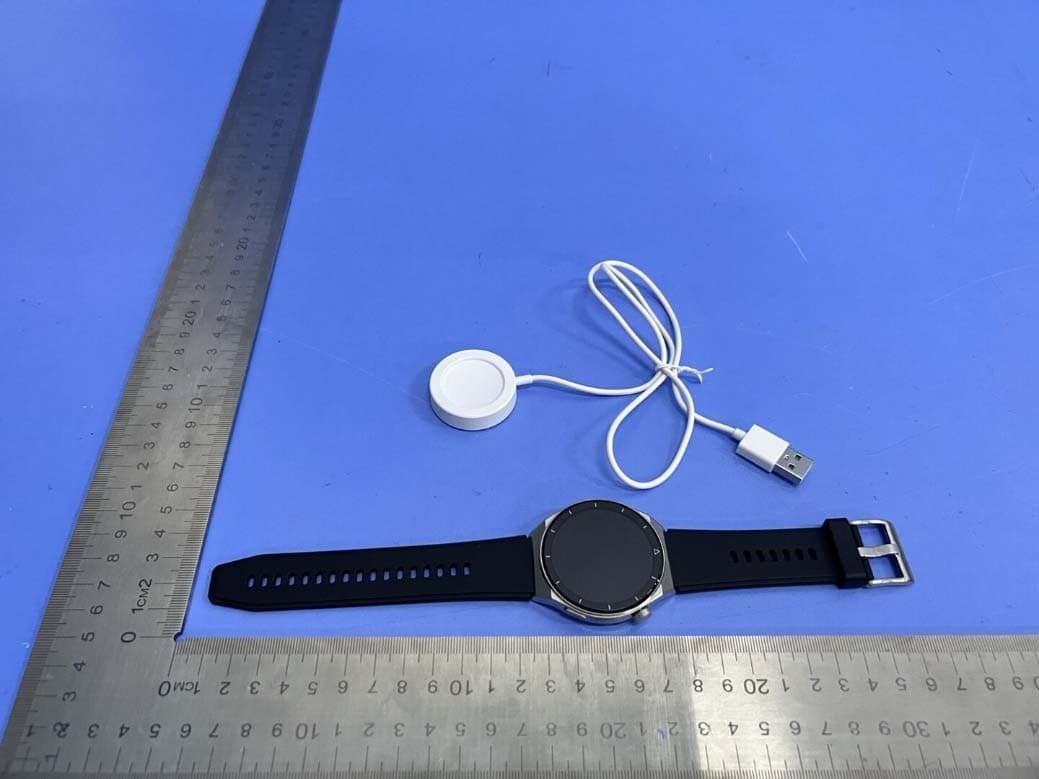

FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of Adapter FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Photo 3 Appearance of EUT

FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 AppendixI Label FCC ID: 2A56X-GT3MAX Model: GT3MAX FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Appendix II Label Location

FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 4 Internal of EUT Photo 5 Internal of EUT FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Photo 6 Appearance of PCB & Battery Photo 7 Appearance of Battery Coil RX FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Photo 8 Appearance of PCB Photo 9 Appearance of PCB BT Antenna BLE Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-5 Page:1 of 4 TB-RF-074-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2A56X-GT3MAX 1. Client Information Applicant : NJY Technology Co.,Limited Address : 5 Songpingshan Road, #201 JiaDa R&D Building Lobby B Shenzhen, 518057 China Manufacturer : NJY Technology Co., Limited Address : 5 Songpingshan Road, #201 JiaDa R&D Building Lobby B Shenzhen, 518057 China 2. General Description of EUT EUT Name : GT3 MAX Model(s) No. : GT3 MAX Model Different : ---- Product Description : Operation Frequency: Bluetooth 5.1: 2402MHz~2480MHz Bluetooth 5.1(BLE): 2402MHz~2480MHz Number of Channel: Bluetooth 5.1: 79 channels Bluetooth 5.1(BLE):40 channels Antenna Gain: 0.5 dBi Wire Antenna Modulation Type: GFSK, Pi/4-DQPSK, 8-DPSK(3Mbps) Bluetooth LE:1/2Mbps Bit Rate of Transmitter: 1/2/3Mbps Power Supply : Input: DC 5V, 100mA DC 3.7V by 270mAh Rechargeable Li-ion battery Software Version : NJY-N03-1.0.4 Hardware Version : M01_MB_V1.1 Remark: The antenna gain provided by the applicant, the adapter and verified for the RF conduction test and adapter provided by TOBY test lab. Note: More test information about the EUT please refer the RF Test Report. Report No.: TBR-C-202208-0162-5 Page: 2 of 4 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v06. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR 2. Summary simultaneous transmission for SAR Exclusion The SAR exemption limits outlined in clause 4.3.2(b) of KDB 447498 have been derived based on an approximate SAR value of 0.4 W/kg using half-wave dipole antennas Footnote 1. As such, when simultaneous transmitter SAR evaluations include transmitters that have been exempt from routine SAR evaluation, the SAR must be estimating based on the ratio between the maximum tune-up tolerance limit of the transmitter that has been exempt and the exemption limit at the specific distance and frequency for that transmitter. This ratio must be multiplied by 0.4 W/kg(2.0 W/kg for controlled use and 1.0 W/kg for limb worn devices) in order to calculate the estimated SAR level. The estimate SAR value is calculated based the following equation: (maximum power level including tune-up tolerance for transmitter A / maximum power level of exemption at the same frequency and distance) * 0.4W/kg The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. Report No.: TBR-C-202208-0162-5 Page: 3 of 4 TB-RF-074-1.0 3. Calculation: Test separation: 5mm Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 -0.221 0±1 1 1.259 0.390 3.0 2.441 0.249 0±1 1 1.259 0.393 3.0 2.480 0.56 1±1 2 1.585 0.499 3.0 Bluetooth Mode (Pi/4-DQPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 0.662 1±1 2 1.585 0.491 3.0 2.441 1.087 1±1 2 1.585 0.495 3.0 2.480 1.375 1±1 2 1.585 0.499 3.0 Bluetooth Mode (8-DQPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 1.285 1±1 2 1.585 0.491 3.0 2.440 1.679 2±1 3 1.995 0.623 3.0 2.480 1.951 2±1 3 1.995 0.628 3.0 Bluetooth LE Mode(1Mbps) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 7.173 7±1 8 6.310 1.956 3.0 2.440 7.206 7±1 8 6.310 1.971 3.0 2.480 7.139 7±1 8 6.310 1.987 3.0 Bluetooth LE Mode(2Mbps) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 7.19 7±1 8 6.310 1.956 3.0 2.440 7.22 7±1 8 6.310 1.971 3.0 2.480 7.142 7±1 8 6.310 1.987 3.0 Report No.: TBR-C-202208-0162-5 Page: 4 of 4 TB-RF-074-1.0 Simultaneous Transmission for SAR Exclusion Simultaneous Transmission for SAR Exclusion Total Calculation Value Limit Bluetooth Mode BLE Mode 0.067 0.267 0.20875 1.0 Note: The sample support one BT modular and BLE modular, they supports difference antenna, need consider ∑ of (the highest measured or estimated SAR BT +SAR BLE )/1.6 = (0.067+0.267)/1.6 = 0.20875 < 1.0; Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. -----END OF REPORT-----

深圳市鑫恒阳科技有限公司 Shenzhen Xin heng yang communication Technology Co.,Ltd Project test report 项目名称：GT3 MAX 时间：2022.08.20 Overciew Client name NJY Project GT3 MAX NO. ITEMS DETAILS 1 Frequency band BT 2 Model Bluetooth callinh watch 3 Antenna type Wire Antnena 4 Antenna Material Bluetooth cable 0.6*25mm 5 The whole Process Zinc alloy middle frame+ABS battery cover 0.6*25mm

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 1 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 RF Test Data for Bluetooth LE (Conducted Measurements) General Description of EUT Product Name: GT3 MAX Test Model: GT3 MAX Sample ID: 202208-0162-4-2# Environmental Conditions Temperature: 25°C Relative Humidity: 55% Test Voltage: DC 3.7V Test Engineer: Huang jian ping Note: For a more detailed features description, please refer to the report TBR-C-202208-0162-6 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 2 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Contents 1. Duty Cycle ............................................................................................................................................................................................... 3 2. Maximum Conducted Output Power ..................................................................................................................................................... 7 3. -6dB Bandwidth ..................................................................................................................................................................................... 11 4. Occupied Channel Bandwidth ............................................................................................................................................................. 15 5. Maximum Power Spectral Density Level ............................................................................................................................................ 19 6. Band Edge ............................................................................................................................................................................................. 23 7. Conducted RF Spurious Emission ...................................................................................................................................................... 28 8. Restrict Band ......................................................................................................................................................................................... 35 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 3 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 1. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1Mbps 2402 Ant1 100 0 0 NVNT BLE 1Mbps 2440 Ant1 100 0 0 NVNT BLE 1Mbps 2480 Ant1 100 0 0 NVNT BLE 2Mbps 2402 Ant1 100 0 0 NVNT BLE 2Mbps 2440 Ant1 100 0 0 NVNT BLE 2Mbps 2480 Ant1 100 0 0 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 4 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Test Graphs Duty Cycle NVNT BLE 1Mbps 2402MHz Ant1 Duty Cycle NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 5 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Duty Cycle NVNT BLE 1Mbps 2480MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 6 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Duty Cycle NVNT BLE 2Mbps 2440MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 7 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 2. Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1Mbps 2402 Ant1 7.173 30 Pass NVNT BLE 1Mbps 2440 Ant1 7.206 30 Pass NVNT BLE 1Mbps 2480 Ant1 7.139 30 Pass NVNT BLE 2Mbps 2402 Ant1 7.19 30 Pass NVNT BLE 2Mbps 2440 Ant1 7.22 30 Pass NVNT BLE 2Mbps 2480 Ant1 7.142 30 Pass Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 8 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Test Graphs Power NVNT BLE 1Mbps 2402MHz Ant1 Power NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 9 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Power NVNT BLE 1Mbps 2480MHz Ant1 Power NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 10 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Power NVNT BLE 2Mbps 2440MHz Ant1 Power NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 11 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 3. -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1Mbps 2402 Ant1 0.68 0.5 Pass NVNT BLE 1Mbps 2440 Ant1 0.65 0.5 Pass NVNT BLE 1Mbps 2480 Ant1 0.68 0.5 Pass NVNT BLE 2Mbps 2402 Ant1 1.3 0.5 Pass NVNT BLE 2Mbps 2440 Ant1 1.35 0.5 Pass NVNT BLE 2Mbps 2480 Ant1 1.38 0.5 Pass Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 12 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Test Graphs -6dB Bandwidth NVNT BLE 1Mbps 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 13 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 -6dB Bandwidth NVNT BLE 1Mbps 2480MHz Ant1 -6dB Bandwidth NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 14 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 -6dB Bandwidth NVNT BLE 2Mbps 2440MHz Ant1 -6dB Bandwidth NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 15 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 4. Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1Mbps 2402 Ant1 1.046 NVNT BLE 1Mbps 2440 Ant1 1.041 NVNT BLE 1Mbps 2480 Ant1 1.041 NVNT BLE 2Mbps 2402 Ant1 2.076 NVNT BLE 2Mbps 2440 Ant1 2.094 NVNT BLE 2Mbps 2480 Ant1 2.09 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 16 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Test Graphs OBW NVNT BLE 1Mbps 2402MHz Ant1 OBW NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202208-0162-6 Page: 17 of 40 FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 OBW…

Text truncated - open the document above for the full version.

FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (30MHz~1GHz) Photo of Setup for Radiated Emission (Above 1 GHz) FCC ID: 2A56X-GT3MAX TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
