2A56X-UITRAPROUltra Pro

Instruction Manual Thank you for choosing our smartwatch. You can fully understand the functions and operation methods of the equipment by reading this manual. This device is not a medical device, and the measurement data and results are for reference only, not as a basis for diagnosis and treatment. The company reserves the right to modify the contents of this manual without prior notice. Product configuration: one box, one manual, one host. This product supports IP68 waterproof, supports wearing in the rain, washing hands, cannot be worn in hot showers or saunas, and cannot resist water vapor. If water enters due to not used according to the instructions, our company will not provide free warranty. Key Description: Rotate the button on the upper side: You can zoom in and out the smart style menu and switch the dial up and down. Click to enter the main menu, and double-click to switch the menu style after entering the menu. Bottom key: long press to switch the machine, then short press to turn off the screen, short press to turn on the screen when the screen is off. Touch Instructions: Tap to enter, swipe right to go back. On the standby interface, swipe down to enter the status bar, swipe up to enter the message notification, swipe right to enter the main menu, swipe left to enter common functions, and swipe to the last + sign interface, click to enter to select common functions and set the order before and after. Charging instructions: This product uses a wireless charger, which supports mobile phone chargers within 5V and computer USB interfaces. Putting the watch on the concave side of the charging seat will automatically absorb and charge. It takes about 3 hours to fully charge. The connection between the watch and the mobile phone: First, the mobile phone needs to download the APP "MActivePro" to the mobile phone and install it. There are two ways. Scan the QR code below on your mobile browser to download, or search for "MActivePro" in the app market to download. During the installation process, you will be prompted to agree to the permission. Click to agree to all of them. After completion, open "MActivePro" and turn on the Bluetooth of your mobile phone. Click Devices - click to add a device at the top, search for "Ultra Pro" and click connect. Turn on the GPS to find the Bluetooth name of the watch. How to set notification for incoming mail: Open "MActivePro" - Device - Message Reminder, select the corresponding software, and select Open. What should I do if I can't receive a notification? 1. First of all, the notification function of the watch is only to synchronize the notification function of the mobile phone, such as incoming calls and QQ WeChat reminders. If your mobile phone does not receive the notification, the watch will not receive it either. You need to set the notification function on the mobile phone and find the corresponding notification. APP, turn Allow Notifications on. 2. Reset the watch to factory settings, enter the Bluetooth settings of the mobile phone, and see if the connected device has "Ultra Pro". If so, please cancel the pairing, turn off the Bluetooth of the mobile phone, and then turn it on again to reconnect. 3. Delete "MActivePro" and download it again, remember to agree to all the permissions when prompted during the installation process, and then reconnect. ● Firmware upgrade: When the Bluetooth connection is normal, enter "MActivePro", enter Device - Firmware Upgrade - Update, if the upgrade fails, you can re-operate. Main function introduction: ● Call: Click the Bluetooth 3.0 icon in the drop-down menu, and the phone will enter Settings-Bluetooth-Search for "watch call" to pair it. Bluetooth 3.0 can be clicked to close and enter low power consumption mode, which can prolong the use time. ● Phonebook: After connecting to the mobile App, you can add 100 frequently used contacts from the App to the phonebook of the watch. ● Language time and date: When the watch is connected to the mobile APP, the time and date of the mobile phone will be synchronized. Please select the language of the watch when it is turned on for the first time. ● Standby interface: There are a total of multiple standby interfaces to choose from. In the standby interface, press and hold the screen for 3 seconds to switch the interface. You can download the watch face through the APP, and you can also set your favorite photo or picture as the watch face background. ● Message: Swipe up on the standby interface to enter the message notification, and swipe down to exit, which can synchronize the notification function on the mobile phone, such as incoming letters such as QQ WeChat. notification. ● Step count, mileage, and calories: Display the steps, mileage, and calorie consumption of the day. The data will be saved at 12 o'clock every night and reset to 0 again. ● Sports: Click to enter multi-sport mode, select a mode, click to start, swipe right to enter the pause interface. Each exercise data includes exercise time, calorie consumption and heart rate. ● Health: Heart rate: start monitoring immediately after entering, scan the changes of capillaries on the surface of the skin with green light, and get the heart rate value, swipe right to exit, normal heart rate is generally 60-90 beats/min, professional athletes will be lower than 60, and ordinary people are the highest Heart rate is 220-age. Long-term exercise can enhance cardiopulmonary function. Blood pressure: Enter the home page of the APP, enter the calibration value in the upper right corner of the blood pressure interface, and start monitoring immediately after entering. When monitoring, please lay your hand flat, and the data will be displayed after about tens of seconds. Generally speaking, the older you are, the higher the blood pressure, and the lower it is for women than for men. ECG: Start monitoring immediately after entering, using the combination of optical heart rate and ECG technology, it takes about tens of s…

Text truncated - open the document above for the full version.

Sincerely, Name/Title： wei Ximing/N/A Company: NJY Technology Co.,Limited Address: 5 Songpingshan Road,#201 JiaDa R&D Building Lobby B, Shenzhen, China Phone: (86) 755 8693 2662 Fax: (86) 755 8693 2662 E-Mail: [email protected]

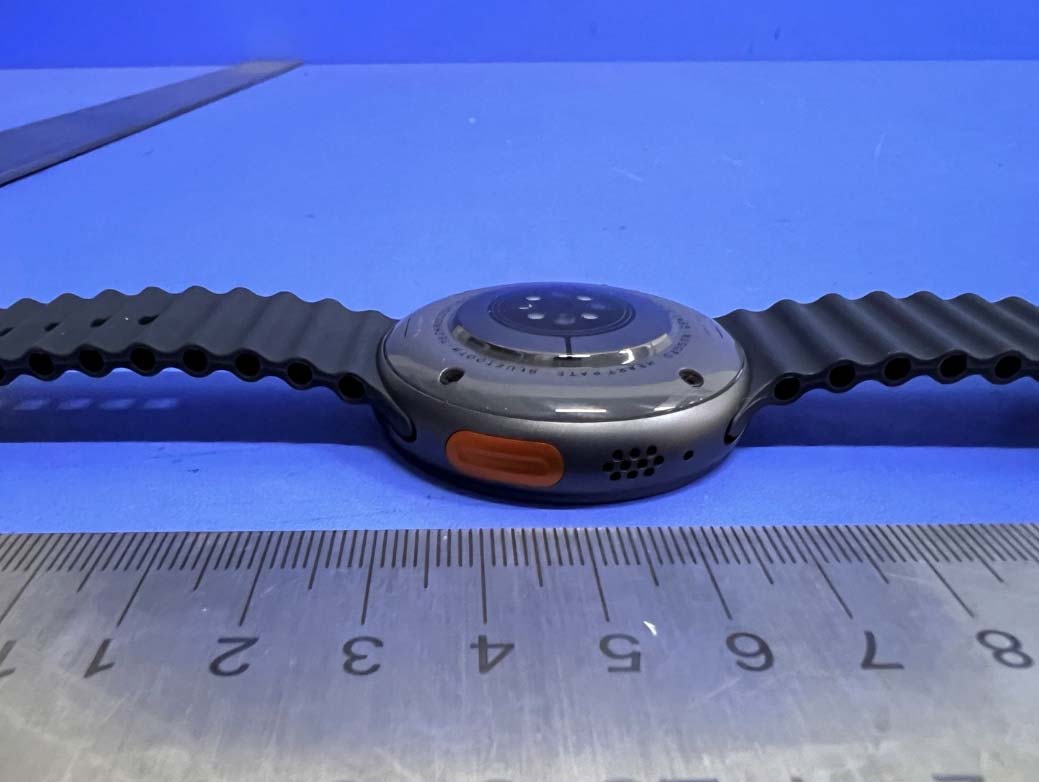

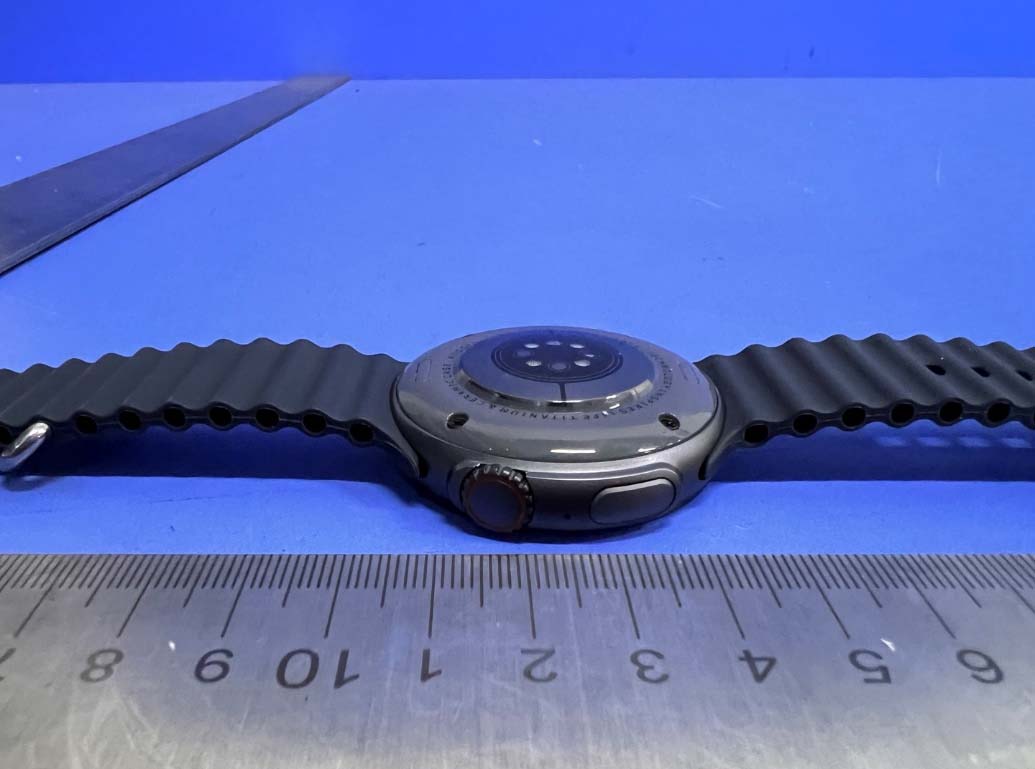

FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID:2A56X-A04 FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 AppendixI Label FCC ID: 2A56X-UITRAPRO Model: Ultra Pro FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 Appendix II Label Location

FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Internal of EUT FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 Photo 7 Battery parameters Photo 8 Appearance of PCB BT Antenna BT Antenna FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 Photo 9 Appearance of PCB BLE Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202212-0219-1 Page: 1 of 4 TB-RF-074-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2A56X-UITRAPRO 1. Client Information Applicant : NJY Technology Co., Limited Address : 5 Songpingshan Road, #201 JiaDa R&D Building Lobby B Shenzhen, 518057 China Manufacturer : NJY Technology Co., Limited Address : 5 Songpingshan Road, #201 JiaDa R&D Building Lobby B Shenzhen, 518057 China 2. General Description of EUT EUT Name : Ultra Pro Model(s) No. : Ultra Pro Product Description : Operation Frequency: Bluetooth 5.1: 2402MHz~2480MHz Bluetooth 5.1(BLE): 2402MHz~2480MHz Number of Channel: Bluetooth 5.1: 79 channels Bluetooth 5.1(BLE):40 channels Antenna Gain: 0.5 dBi Wire Antenna Modulation Type: GFSK, Pi/4-DQPSK, 8-DPSK(3Mbps) Bluetooth LE:1/2Mbps Bit Rate of Transmitter: 1/2/3Mbps Power Supply : Input: DC 5V, 0.5A DC 3.7V by 330mAh Rechargeable Li-ion battery Software Version : NJY-N3Q-1.0.8 Hardware Version : N02_MB_V1.2 Remark: The antenna gain provided by the applicant, the adapter and verified for the RF conduction test and adapter provided by TOBY test lab. Note: More test information about the EUT please refer the RF Test Report. Report No.: TBR-C-202212-0219-1 Page: 2 of 4 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v06. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR 2. Summary simultaneous transmission for SAR Exclusion The SAR exemption limits outlined in clause 4.3.2(b) of KDB 447498 have been derived based on an approximate SAR value of 0.4 W/kg using half-wave dipole antennas Footnote 1. As such, when simultaneous transmitter SAR evaluations include transmitters that have been exempt from routine SAR evaluation, the SAR must be estimating based on the ratio between the maximum tune-up tolerance limit of the transmitter that has been exempt and the exemption limit at the specific distance and frequency for that transmitter. This ratio must be multiplied by 0.4 W/kg(2.0 W/kg for controlled use and 1.0 W/kg for limb worn devices) in order to calculate the estimated SAR level. The estimate SAR value is calculated based the following equation: (maximum power level including tune-up tolerance for transmitter A / maximum power level of exemption at the same frequency and distance) * 0.4W/kg The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. Report No.: TBR-C-202212-0219-1 Page: 3 of 4 TB-RF-074-1.0 3. Calculation: Test separation: 5mm Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 -1.409 -1±1 0 1.000 0.310 3.0 2.441 -1.955 -2±1 -1 0.794 0.248 3.0 2.480 -2.84 -3±1 -2 0.631 0.199 3.0 Bluetooth Mode (Pi/4-DQPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 -0.645 -1±1 0 1.000 0.310 3.0 2.441 -1.238 -1±1 0 1.000 0.312 3.0 2.480 -2.123 -2±1 -1 0.794 0.250 3.0 Bluetooth Mode (8-DQPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 -0.107 0±1 1 1.259 0.390 3.0 2.440 -0.724 -1±1 0 1.000 0.312 3.0 2.480 -1.621 -2±1 -1 0.794 0.250 3.0 Bluetooth LE Mode(1Mbps) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 -1.252 -1±1 0 1.000 0.310 3.0 2.440 -1.701 -2±1 -1 0.794 0.248 3.0 2.480 -2.8 -3±1 -2 0.631 0.199 3.0 Bluetooth LE Mode(2Mbps) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 -1.28 -1±1 0 1.000 0.310 3.0 2.440 -1.593 -2±1 -1 0.794 0.248 3.0 2.480 -2.666 -3±1 -2 0.631 0.199 3.0 Report No.: TBR-C-202212-0219-1 Page: 4 of 4 TB-RF-074-1.0 Simultaneous Transmission for SAR Exclusion Simultaneous Transmission for SAR Exclusion Total Calculation Value Limit Bluetooth Mode BLE Mode 0.530 0.422 0.595 1.0 Note: The sample support one BT modular and BLE modular, they supports difference antenna, need consider ∑ of (the highest measured or estimated SAR BT +SAR BLE )/1.6 = (0.530 +0.422)/1.6 = 0.595 < 1.0; Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. -----END OF REPORT-----

深圳市鑫恒阳科技有限公司 ShenzhenXinhengyangcommunicationTechnologyCo.,Ltd Projecttestreport 项目名称： UItraPro 时间： 2022.10.15 Overview Antennapassive

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202212-0219-51 Page: 1 of 69 FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 RF Test Data for Bluetooth(BDR+EDR) (Conducted Measurements) General Description of EUT Product Name: Ultra Pro Test Model: Ultra Pro Sample ID: 202212-0219-1-2# Environmental Conditions Temperature: 25°C Relative Humidity: 55% Test Voltage: DC 3.7V Test Engineer: Huang jian ping Note: For a more detailed features description, please refer to the report TBR-C-202212-0219-51 The report only show the worst case data. Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202212-0219-51 Page: 2 of 69 FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 Contents 1. Duty Cycle ............................................................................................................................................................................................... 3 2. Maximum Conducted Output Power ..................................................................................................................................................... 9 3. -20dB Bandwidth ................................................................................................................................................................................... 15 4. Occupied Channel Bandwidth ............................................................................................................................................................. 21 5. Band Edge ............................................................................................................................................................................................. 27 6. Band Edge(Hopping) ............................................................................................................................................................................ 34 7. Conducted RF Spurious Emission ...................................................................................................................................................... 41 8. Restrict Band ......................................................................................................................................................................................... 51 9. Carrier Frequencies Separation .......................................................................................................................................................... 58 10. Number of Hopping Channel ............................................................................................................................................................. 61 11. Dwell Time ........................................................................................................................................................................................... 64 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202212-0219-51 Page: 3 of 69 FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 1. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT 1-DH1 2402 Ant1 30.4 5.17 2.63 NVNT 1-DH1 2441 Ant1 30.4 5.17 2.63 NVNT 1-DH1 2480 Ant1 30.4 5.17 2.63 NVNT 2-DH1 2402 Ant1 31.2 5.06 2.56 NVNT 2-DH1 2441 Ant1 30.4 5.17 2.63 NVNT 2-DH1 2480 Ant1 30.4 5.17 2.63 NVNT 3-DH1 2402 Ant1 31.2 5.06 2.56 NVNT 3-DH1 2441 Ant1 31.2 5.06 2.56 NVNT 3-DH1 2480 Ant1 31.2 5.06 2.56 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202212-0219-51 Page: 4 of 69 FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 Test Graphs Duty Cycle NVNT 1-DH1 2402MHz Ant1 Duty Cycle NVNT 1-DH1 2441MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202212-0219-51 Page: 5 of 69 FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 Duty Cycle NVNT 1-DH1 2480MHz Ant1 Duty Cycle NVNT 2-DH1 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202212-0219-51 Page: 6 of 69 FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 Duty Cycle NVNT 2-DH1 2441MHz Ant1 Duty Cycle NVNT 2-DH1 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202212-0219-51 Page: 7 of 69 FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 Duty Cycle NVNT 3-DH1 2402MHz Ant1 Duty Cycle NVNT 3-DH1 2441MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202212-0219-51 Page: 8 of 69 FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 Duty Cycle NVNT 3-DH1 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202212-0219-51 Page: 9 of 69 FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 2. Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 Ant1 -1.409 21 Pass NVNT 1-DH1 2441 Ant1 -1.955 21 Pass NVNT 1-DH1 2480 Ant1 -2.84 21 Pass NVNT 2-DH1 2402 Ant1 -0.645 21 Pass NVNT 2-DH1 2441 Ant1 -1.238 21 Pass NVNT 2-DH1 2480 Ant1 -2.123 21 Pass NVNT 3-DH1 2402 Ant1 …

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202212-0219-51 Page: 1 of 49 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Radio Test Report FCC ID: 2A56X-UITRAPRO Report No. : TBR-C-202212-0219-51 Applicant : NJY Technology Co., Limited Equipment Under Test (EUT) EUT Name : Ultra Pro Model No. : Ultra Pro Series Model No. : ---- Brand Name : ---- Sample ID : 202212-0219-1-1#&202212-0219-1-2# Receipt Date : 2022-12-26 Test Date : 2022-12-26 to 2023-01-05 Issue Date : 2023-01-29 Standards : FCC Part 15 Subpart C 15.247 Test Method : ANSI C63.10: 2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202212-0219-51 Page: 2 of 49 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 6 1.1 Client Information ................................................................................................................. 6 1.2 General Description of EUT (Equipment Under Test) ................................................... 6 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 8 1.4 Description of Support Units .............................................................................................. 8 1.5 Description of Test Mode .................................................................................................... 9 1.6 Description of Test Software Setting .............................................................................. 10 1.7 Measurement Uncertainty ................................................................................................ 10 1.8 Test Facility ......................................................................................................................... 11 2. TEST SUMMARY ..................................................................................................................... 12 3. TEST SOFTWARE ................................................................................................................... 12 4. TEST EQUIPMENT .................................................................................................................. 13 5. CONDUCTED EMISSION ....................................................................................................... 15 5.1 Test Standard and Limit .................................................................................................... 15 5.2 Test Setup ........................................................................................................................... 15 5.3 Test Procedure ................................................................................................................... 15 5.4 Deviation From Test Standard ......................................................................................... 16 5.5 EUT Operating Mode ........................................................................................................ 16 5.6 Test Data ............................................................................................................................. 16 6. RADIATED AND CONDUCTED UNWANTED EMISSIONS ............................................ 17 6.1 Test Standard and Limit .................................................................................................... 17 6.2 Test Setup ........................................................................................................................... 19 6.3 Test Procedure ................................................................................................................... 20 6.4 Deviation From Test Standard ......................................................................................... 21 6.5 EUT Operating Mode ........................................................................................................ 21 6.6 Test Data ............................................................................................................................. 21 7. EMISSIONS IN RESTRICTED BANDS ............................................................................... 22 7.1 Test Standard and Limit .................................................................................................... 22 7.2 Test Setup ........................................................................................................................... 22 7.3 Test Procedure ................................................................................................................... 23 7.4 Deviation From Test Standard ......................................................................................... 25 Report No.: TBR-C-202212-0219-51 Page: 3 of 49 TB-RF-074-1.0 7.5 EUT Operating Mode ........................................................................................................ 25 7.6 Test Data ............................................................................................................................. 25 8. 99% OCCUPIED AND 20DB BANDWIDTH ........................................................................ 26 8.1 Test Standard and Limit ...............................................................…

Text truncated - open the document above for the full version.

FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (30MHz~1GHz) Photo of Setup for Radiated Emission (Above 1 GHz) FCC ID: 2A56X-UITRAPRO TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
