2A583-N2BOX0801RFID BOX Multifunction System

Brillian Network & Automation Integrated System Co., Ltd. RFID BOX Multifunction System Operation Manual Ver 1.0 Version N2 BOX-08-01 The reproduction of any part of this user manual, in any from (by photocopying, microfilming or any other process) or the processing and distribution of the contents by electronic means is prohibited without the expressed written consent of Brillian. It is prohibited to copy the software or use it for other purposes. it is expressly prohibited to distribute copies of the software to third parties. Violators will be held liable for damage. Manufacturer and publisher Brillian Network & Automation Integrated System Co.,Ltd Add: No.41, Keyi St., Zhunan Township, Miaoli County 350, Taiwan, R.O.C. Tel: 886-37-580708 Fax: 886-37-580728 Email：[email protected] Website：http://www.brillian.com.tw I Brillian Network & Automation Integrated System Co., Ltd. Contents 1 Brief introduction of equipment ................................................................................................ - 1 - 2 Description of safety rule of N2 BOX-08-01 .............................................................................. - 2 - 3 Description of starting steps ..................................................................................................... - 3 - 4 Description of stopping steps .................................................................................................... - 3 - 5 Facility Requirement&SPEC .................................................................................................... - 4 - 6 FCC Rules .............................................................................................................................. - 4 - 7 N2 BOX-08-01 ........................................................................................................................ - 5 - 8 N2 BOX-08-01 Hardware ........................................................................................................ - 6 - 8.1 Hardware Method ....................................................................................................... - 6 - 9 N2 BOX-08-01 Operation Description .................................................................................... - 6 - 10 Periodical Maintenance ............................................................................................................ - 7 - - 1 - Brillian Network & Automation Integrated System Co., Ltd. 1 Brief introduction of equipment Brillian Material Handling Solution(BMHS) We provide a FAB semi-automatic material handling solution. Through a material storage devices, integrating the BMHS system and database, product locations and determine the transmission route, optimal throughput and increase productivity. eRack management collects all eRack status information, exchanges information on behalf of all eRacks and MES. Provides admin search queries, work order inquiries, statistical analysis, etc. The eRack shelf can read the RFID tag on the foup by RFID antenna, transfer the carrierID data to the background for unified management, and then receive the foup information from the background to the operator. Feature of Product • The BMHS system centrally monitoring shelfs of N2 BOX-08-01. • Integrate MES and BMHS real time management systems to control all products in the factory. • Significantly improve productivity. • Flexible system’s configuration and higher utilization rate. • Provide various statistical data to facilitate analysis and decision-making. • RFID Reader helps to confirm whether the products and sites are correct before assisting production, which greatly reduce errors. - 2 - Brillian Network & Automation Integrated System Co., Ltd. 2 Description of safety rule of N2 BOX-08-01 2.1 Instruction for use。 2.1.1 This manual is only written for Purge System Module。 2.1.2 Non-qualified or non-professional personnel are not allowed to operate or maintain the machine。 2.1.3 “Operator” should read carefully the software operation in advance。 2.1.4 “Maintainer”, in addition to getting familiar with software operation, should read carefully the maintenance manual and circuit diagram。 2.1.5 Before careful reading of operation manual or before thorough understanding of machine function, it is not allowed to operate the machine singly, and it needs an experienced guy standing beside for instruction。 2.2 Instruction for transport When transporting or moving a machine, it is suggested to use a cart for the transport, please also wear steel shoes for personal safety. The cart should be able to carry a load of more than 100Kg 2.3 For scarping of equipment or disposal of waste, please follow the local regulations 2.4 Instruction for illuminance in the work area: Please follow the lighting environment provided by the plant of the client send. 2.5 The machine is not suitable to work in explosive circumstances 2.6 Before ex-factory, the level of noise should be less than 80dB (A). 2.7 About “Warnings and Cautions” - 3 - Brillian Network & Automation Integrated System Co., Ltd. 1. When power is supplied, non-professional personnel should not operate it to avoid electric shock hazard. 2. Before checking, maintenance and repair, please turn off the power. 3 Description of starting steps 3.1 Turn on breaker power. 3.2 Facility department is suggested to be AC 100~230V 4 Description of stopping steps 4.1 Please use externally connected screen or remote control program to confirm all the ports Purge program are all in idle states. 4.2 After log in into the program, please select Quit to end the program. 4.3 Turn off breaker power. 4.4 Install lock for breaker and lock it. 4.5 Close the gas source switch at the facility end. - 4 - Brillian Network & Automation Integrated System Co., Ltd. 5 Facility Requirement&SPEC Product Name RFID BOX Multifunction System Model Type N2 BOX-08-01 Rating 100~230VAC, 50/60Hz, 1ɸ+PE Length X Width X Height(mm) 2175 X 1160 X 710 Weight 130kg Bre…

Text truncated - open the document above for the full version.

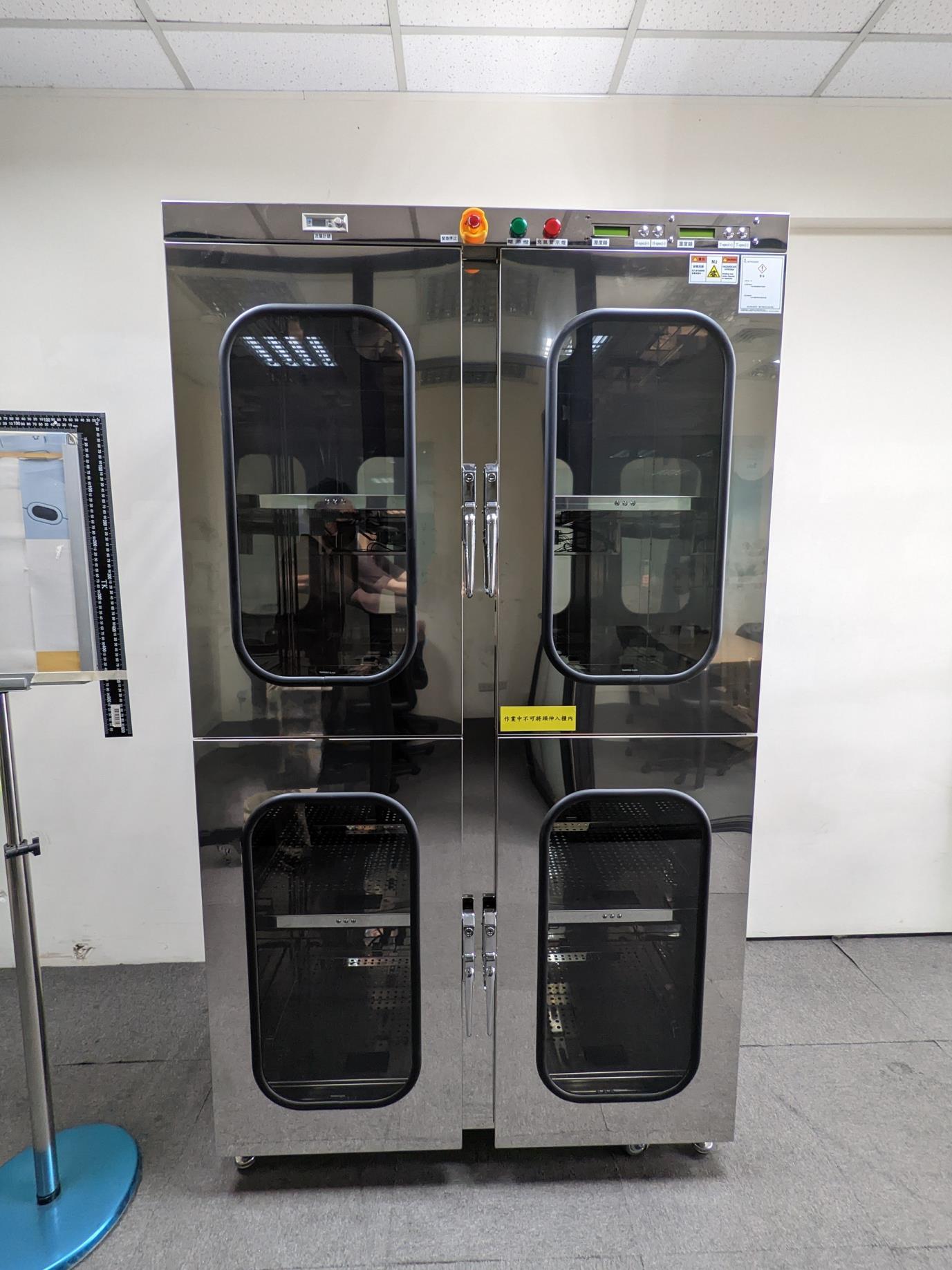

External photo of EUT External photo of EUT External photo of EUT External photo of EUT External photo of EUT

Model No：RFID BOX Multifunction System Input：AC100-240V 50/60 Hz FCC ID：2A583-N2BOX0801 www.brillain.com.tw BrillianNetwork&Automation Made in Taiwan 50mm 36mm

Internal photo of EUT Internal photo of EUT Internal photo of EUT Internal photo of EUT

Brillian Network & Automation Integrated System Co., Ltd TEST REPORT Model: N2 BOX-08-01 REPORT NUMBER 220900434THC-001 ISSUE DATE Oct. 31, 2022 PAGES 17 DOCUMENT CONTROL NUMBER GFT-OP-10h (28-Nov-2018) © 2020 Intertek Report No.: 220900434THC-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. GFT-OP-10h (28-Nov-2018) Page 1 of 17 Test Report 0597 Radio Spectrum TEST REPORT Applicant: Brillian Network & Automation Integrated System Co., Ltd No. 41, Keyi St., Zhunan Township, Miaoli County 350402, Taiwan Product: RFID BOX Multifunction System Model No.: N2 BOX-08-01 FCC ID: 2A583-N2BOX0801 Test Method/ Standard: 47 CFR FCC Part 15.209 Test By: Intertek Testing Services Taiwan Ltd., Hsinchu Laboratory No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan Zero Chen Engineer Rico Deng Reviewer Report No.: 220900434THC-001 GFT-OP-10h (28-Nov-2018) Page 2 of 17 TEST REPORT Revision History Report No. Issue Date Revision Summary 220900434THC-001 Oct. 31, 2022 Original report Report No.: 220900434THC-001 GFT-OP-10h (28-Nov-2018) Page 3 of 17 TEST REPORT Table of Contents Summary of Test Data ................................................................................................................ 4 1. General Information ............................................................................................................... 5 1.1 Identification of the EUT .................................................................................................. 5 1.2 Antenna description ......................................................................................................... 5 2. Test specifications ................................................................................................................... 6 2.1 Test standard .................................................................................................................... 6 2.2 Operation mode ............................................................................................................... 6 3. Radiated emission test FCC 15.209 ........................................................................................ 7 3.1 Operating environment .................................................................................................... 7 3.2 Test setup & procedure .................................................................................................... 7 3.3 Radiated emission limit .................................................................................................... 9 3.3.1 General radiated emission limit .................................................................................... 9 3.4 Radiated emission test data FCC 15.209 .......................................................................... 9 3.4.1 Measurement results: Fundamental emission.............................................................. 9 3.4.2 Measurement results: Frequencies equal to or less than 1 GHz ................................ 10 4. Conducted emission FCC 15.207 .......................................................................................... 12 4.1 Measuring instrument setting ........................................................................................ 12 4.2 Test Procedure ................................................................................................................ 12 4.3 Test Diagram ................................................................................................................... 13 4.4 Limit ................................................................................................................................ 13 4.5 Test Results ..................................................................................................................... 14 Appendix A: Test equipment list ............................................................................................... 16 Appendix B: Measurement Uncertainty ................................................................................... 17 Report No.: 220900434THC-001 GFT-OP-10h (28-Nov-2018) Page 4 of 17 TEST REPORT Summary of Test Data Test Requirement Applicable Rule Result Radiated Emission test 15.209 Pass Conducted Emission test 15.207 Pass Antenna Requirement 15.203 Pass Note: Please note that the test results with statement of conformity, the decision rules which are based on: Safety Testing: the specification, standard or IEC Guide 115. Other Testing: the specification, standard and not taking into account the measurement uncertainty. Report No.: 220900434THC-001 GFT-OP-10h (28-Nov-2018) Page 5 of 17 TEST REPORT 1. General Information 1.1 Identification of the EUT Product: RFID BOX Multifunction System Model No.: N2 BOX-08-01 Operating Frequency: 134 kHz Rated Power: 110Vac Power Cord: 3C × 18AWG × 5m unshielded cable Sample receiving date: 2022/09/27 Sample condition: Workable Test Date(s): 2022/10/05 ~ 2022/10/18 1.2 Antenna description Antenna Type : Dipole antenna Connector Type : PH Report No.: 220900434THC-001 GFT-OP-10h (28-Nov-2018) Page 6 o…

Text truncated - open the document above for the full version.

Conducted Emission Test set-up photo

Radiated Emission Test set-up photo 9kHz~30MHz Radiated Emission Test set-up photo 30MHz~1GHz
