Wireless Karaoke Bluetooth Speaker User Manual Thank you for your choose this product, Your recognition has always been our driving force. 1: Instruction: Before using this product pls carefully read the instruction first, to avoid any confused. 1): Firstly please press the swich on/off button of this product. Then open your smart devices to connect the Bluetooth name”RSSIDOL H08”, successfully connected you will hearing the “Connected” voice prompt for paring. 2): After connected the bluetooth, you can play any music on your smart devices anytime anywhere then. 2: How to using: Follows picture for the product buttons instruction. 1: Volume down/Previous song button. 1) Long press will be change to previous song. 2) Short press will be volume down. 2: Volume up/Next song button. 1) Long press will be change to next song. 2) Short press will be volume up。 3: Switch On/Off button. 1) Long press of 3 second for Switch on/off. 2) Short press for Play/Pause. Short press for answer/hang up calls for phone. 3) Dual press for connect/disconnect previous connected smart devices. 4) Long press 1 second for reject coming calls. 5) Long press 8 second to get reset speaker. 4: Mode button. 1) Short press for mode change(Bluetooth, FM mode, TF card, USB mode). 2) Dual press for clear pairing devices. 3) Triple press for awake Google/Siri. 4) Long press for swich on/off orginal sound. 5：Lights button. 1) Long press for switch on/off RGB light. 2) Short press for switching different RGB lights effect. 6: Type-c port/DC 5V charging port. 1) Plug in USB-C cable to get charging. 7: LED light indicator. 1) There is red light on when you plug into charging, the red light will be off once full charged. 8: TF card slot. 9: USB slot. 10: AUX/3.5mm port 1: Switch On/Off button. 1) Long press of 3 second for Switch on/off. 2) Short press for reverb volume mode, mic volume mode, speaker volume mode, the user can increase of decrease the volume accordingly. 3) Dual press for Play/Pause. 2: Volume up/Next song button. 1) Long press will be change to next song. 2) Short press will be volume up (reverb, microphone, speaker mode). 3: Volume down/Previous song button. 1) Long press will be change to previous song. 2) Short press will be volume down (reverb, microphone, speaker mode). 4: Microphone button. 1) Short press for magic sound effect(There is totally 4 difference sound options) 2) Long press for original sound on/off. 5: LED light indicator. 1) There is red light on when you plug into charging, the red light will be off once full charged. FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) The device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement： Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. Thank you for your reading, hope you have a nice experience!

ShenzhenHengchuangIntelligentElectronic TechnologyCo.,Ltd 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:ShenzhenHengchuangIntelligentElectronicTechnologyCo.,Ltd Address:15A061,BuildingC,No.3LangjingRoad,XinshiCommunity,DalangStreet,Longhua District,ShenzhenCity,GuangdongChina518109 ProductName:Bluetoothspeaker(microphone) FCCID:2A5AQ-HCZNSPKMIC Model(s):H08,H01,H02,H03,H04,H05,H06,H07,H09,H10,H201,H202,EL230/H204,H205,H206,H207, H208,H209,210 2.911(d)(5)(i)EquipmentType We,[ShenzhenHengchuangIntelligentElectronicTechnologyCo.,Ltd](“theapplicant”)certify thattheequipmentforwhichauthorizationissoughtthroughcertificationisnot: Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules. Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Date:2024/09/0Name:5 TitleandCompanyname:SalesManager/ShenzhenHengchuangIntelligentElectronicTechnology Co.,Ltd NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ShenzhenHengchuangIntelligentElectronic TechnologyCo.,Ltd 2.911(d)(5)(ii)ApplicantAttestationv1.2 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:ShenzhenHengchuangIntelligentElectronicTechnologyCo.,Ltd Address:15A061,BuildingC,No.3LangjingRoad,XinshiCommunity,DalangStreet,Longhua District,ShenzhenCity,GuangdongChina518109 ProductName:Bluetoothspeaker(microphone) FCCID:2A5AQ-HCZNSPKMIC Model(s):H08,H01,H02,H03,H04,H05,H06,H07,H09,H10,H201,H202,EL230/H204,H205,H206,H207, H208,H209,210 2.911(d)(5)(ii)Applicantfiling We,[ShenzhenHengchuangIntelligentElectronicTechnologyCo.,Ltd](“theapplicant”)certify that,asofthedateofthefilingoftheapplication,theapplicantisnotidentified NOTE1 onthe“Covered List” NOTE2 ,establishedpursuantto §1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Date:2024/09/0Name:5 TitleandCompanyname:SalesManager/ShenzhenHengchuangIntelligentElectronicTechnology Co.,Ltd NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the ShenzhenHengchuangIntelligentElectronic TechnologyCo.,Ltd 2.911(d)(5)(ii)ApplicantAttestationv1.2

Declarationonmodeldifference WetheundersignedherebyconfirmthatanyofoThefollowingmodelsofunitsweproduceare identicalinelectrical,mechanicalandphysicalstructure;Thedifferenceisonlyinthemodelname,we finallyhaveH08astestmodel. ProductionnameTradenameModelno. Bluetoothspeaker (microphone) N/A H08,H01,H02,H03,H04,H05,H06,H07,H09,H10,H201,H2 02,EL230/H204,H205,H206,H207,H208,H209,210 Signature:Date:2024/09/05 Name:DuncanDeng Title:SalesManager Company:ShenzhenHengchuangIntelligentElectronicTechnologyCo.,Ltd

ShenzhenHengchuangIntelligentElectronic TechnologyCo.,Ltd 2024/09/05 EurofinsElectricalandElectronicTestingNA,Inc. 914W.PatapscoAvenue Baltimore,MD21230 USA RE:CONFIDENTIALITYREQUESTFOR ProductName:Bluetoothspeaker(microphone) FCCID:2A5AQ-HCZNSPKMIC Model(s):H08,H01,H02,H03,H04,H05,H06,H07,H09,H10,H201,H202,EL230/H204,H205, H206,H207,H208,H209,210 ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe -BlockDiagram -Schematics -OperationalDescription requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublic review. Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesematerialsmaybeharmfultothe applicantandprovideunjustifiedbenefitstoitscompetitors. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Client’ssignature: Client’sname/title:DuncanDeng/SalesManager Contactinformation/address:15A061,BuildingC,No.3LangjingRoad,Xinshi Community,DalangStreet,LonghuaDistrict,ShenzhenCity,GuangdongChina518109

ShenzhenHengchuangIntelligentElectronic TechnologyCo.,Ltd 2024/09/05 EurofinsElectricalandElectronicTestingNA,Inc. 914W.PatapscoAvenue Baltimore,MD21230 USA RE:LETTEROFAGENTAUTHORIZATION ProductName:Bluetoothspeaker(microphone) FCCID:2A5AQ-HCZNSPKMIC Model(s):H08,H01,H02,H03,H04,H05,H06,H07,H09,H10,H201,H202,EL230/H204,H205, H206,H207,H208,H209,210 ToWhomItMayConcern: We,theundersigned,herebyauthorizeShenzhenBCTCTestingCo.,Ltdtoactonourbehalfinall mattersrelatingtoapplicationforequipmentauthorization,includingthesigningofalldocuments relatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Client’ssignature: Client’sname/title:DuncanDeng/SalesManager Contactinformation/address:15A061,BuildingC,No.3LangjingRoad,Xinshi Community,DalangStreet,LonghuaDistrict,ShenzhenCity,GuangdongChina518109

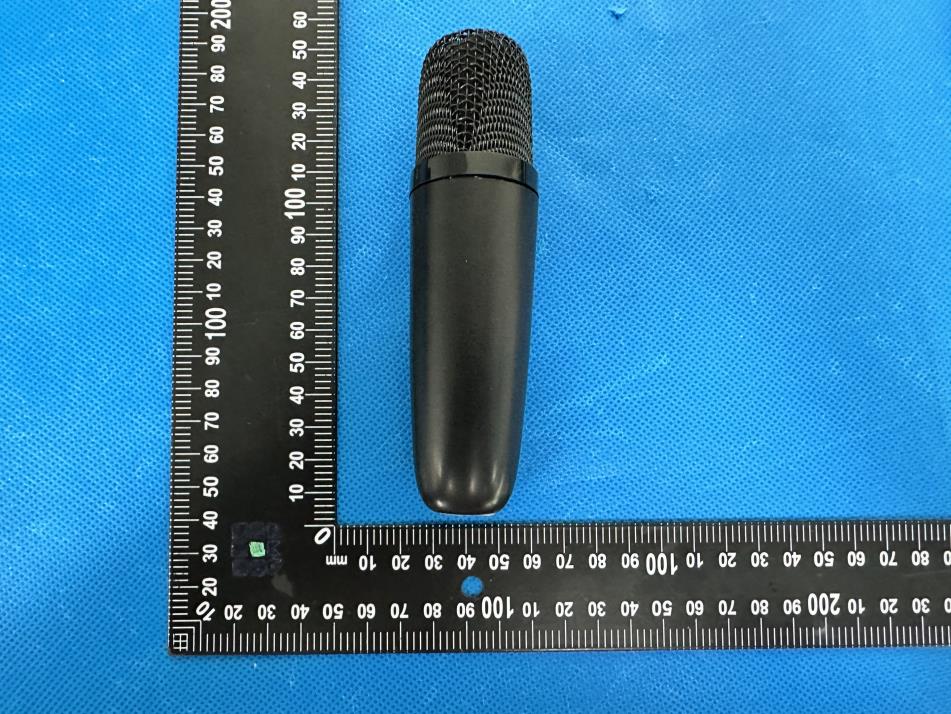

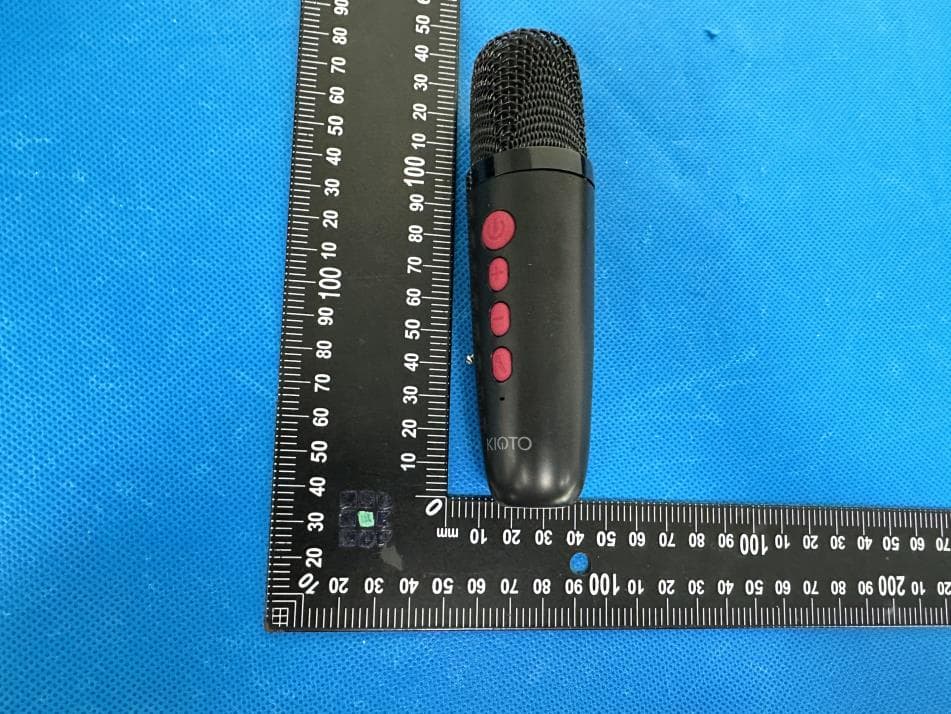

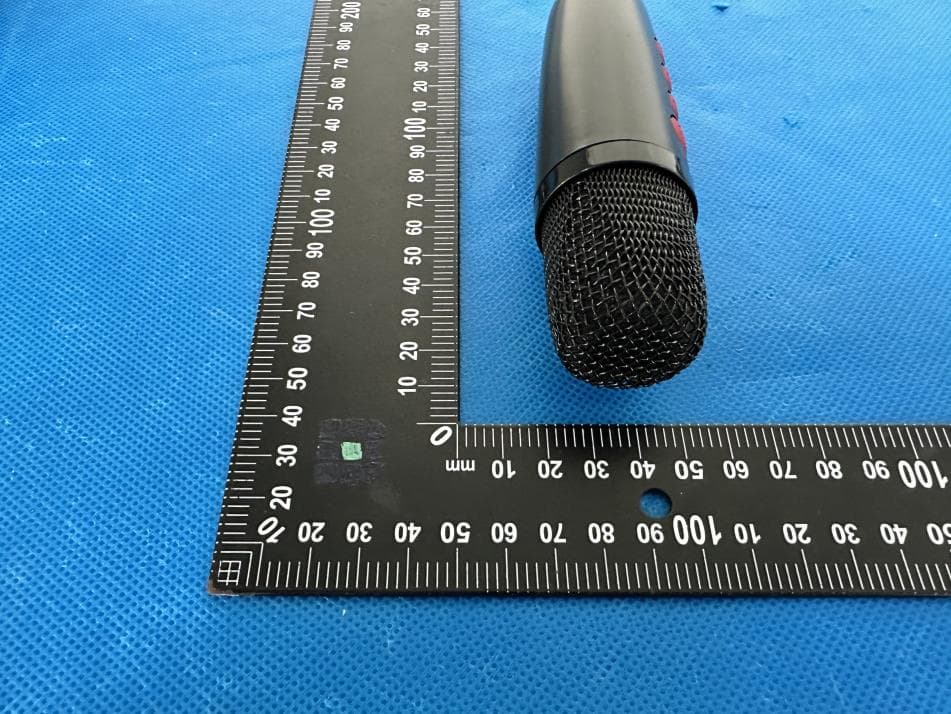

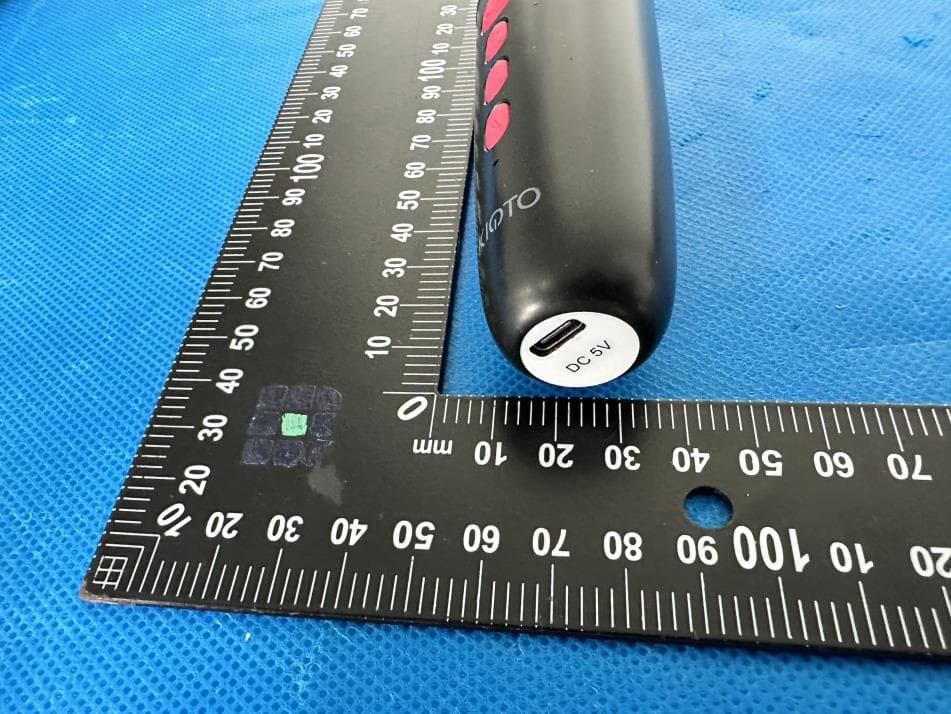

External Photos

Size:40*40mm Model : H08 FCC ID: 2A5AQ-HCZNSPKMIC Label location

Internal Photos ANT

FCC ID:2A5AQ-HCZNSPKMIC RF exposure evaluation According to§15.247(i), §1.1307 (b) and KDB447498, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The SAR-based exemption formula of §1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). F is in GHz, d is the separation distance (cm), and ERP20cm is per Formula (B.1). When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate Antenna gain:1.9 dBi Conducted Transmit Power Max: = -2.38dBm = 0.58 mW EIRP=-2.38dBm+1.9dBi=-0.48dBm ERP=-0.48-2.15dB= -2.63dBm The maximun ERP power specified is -2.63dBm = 0.55mW The source- based time-averaging conducted output power =0.55 * Duty factor mW (where Duty Factor≤1) = 0.55mW The SAR Exclusion Threshold Level: 푃 th (mW) = ERP 20cm * (푑/20cm) 푥 (X= ) = 2.72 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing.

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.9 (Avg Gain XY-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to ch ange without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -0.51.9 -3.61.1 -3.06 0.2 % Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane
