2A5AQ-Q53Wireless RGB BT Speaker

WirelessRGBBTSpeaker UserManual Thankyouforyourchoosethisproduct,Yourrecognitionhasalwaysbeenourdrivingforce. 1:Instruction: Beforeusingthisproductplscarefullyreadtheinstructionfirst,toavoidanyconfused. 1:Firstlypleasepresstheswichon/offbuttonofthisproduct.Thenopenyoursmartdevicesto connectthebluetoothname”Q53”,successfullyconnectedyouwillhearingthe“Dingdong”voice promptforparing. 2:Afterconnectedthebluetooth,youcanplayanymusiconyoursmartdevicesanytimeanywhere then. 2:Howtousing: Followspicturefortheproductbuttonsinstruction. 1:SwitchOn/Offbutton.Longpressof3secondforSwitchon/off.ShortpressforPause/Play function. 2:Volumedown/Previoussongbutton.Longpresswillbechangetoprevioussong.Shortpresswillbe volumedown. 3:Volumeup/Nextsongbutton.Longpresswillbechangetonextsong.Shortpresswillbevolume up. 4:Modeswitch/RGBlightsswitch.Longpressformodeswitch(TFcardmode,therewillbeaTFcard inserttheunit),ShortpressforchangeRGBlightsmode.Dualpressforconnect/disconnectTWS function 5:Type-cChargingport,theuserconnectthechargingcableforgetchargingiftheunitbatteryislow. 6:TFcardslot,insertTFcardforplaymusic(Remark:ThereisrequiredmusicinsideoftheTFcard) FCCCaution: Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions:(1)Thedevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethatmaycauseundesiredoperation. FCCStatement： Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould voidtheuser'sauthoritytooperatetheequipment. ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewith theinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturning theequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneor moreofthefollowingmeasures: --Reorientorrelocatethereceivingantenna. --Increasetheseparationbetweentheequipmentandreceiver. --Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. --Consultthedealeroranexperiencedradio/TVtechnicianforhelp Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo conditions(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled environment. Thankyouforyourreading,hopeyouhaveaniceexperience!

Shenzhen Hengchuang Intelligent Electronic Technology Co.,Ltd Model Difference 2022/11/16 EUT NAME: Wireless RGB BT Speaker FCC ID: 2A5AQ-Q53 MODEL : Q53, IBT64, ISB103 All the model are the same circuit and RF module, except model names. Sincerely Client’s signature Client’s name / title : Duncan Deng / Sales Manager Contact information / address: No. 304, Staircase 1, No.125, Touyangtai New Village, Chiling Town, Gaofeng Community, Dalang Street, Longhua District, Shenzhen

Shenzhen Hengchuang Intelligent Electronic Technology Co.,Ltd 2022.11.16 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Wireless RGB BT Speaker Trademark: HENCEKT MODEL : Q53，IBT64, ISB103 FCC ID: 2A5AQ-Q53 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Duncan Deng / Sales Manager Contact information / address: No. 304, Staircase 1, No.125, Touyangtai New Village, Chiling Town, Gaofeng Community, Dalang Street, Longhua District, Shenzhen

Shenzhen Hengchuang Intelligent Electronic Technology Co.,Ltd 2022.11.16 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: Wireless RGB BT Speaker Trademark: HENCEKT MODEL : Q53，IBT64, ISB103 FCC ID: 2A5AQ-Q53 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Duncan Deng / Sales Manager Contact information / address: No. 304, Staircase 1, No.125, Touyangtai New Village, Chiling Town, Gaofeng Community, Dalang Street, Longhua District, Shenzhen

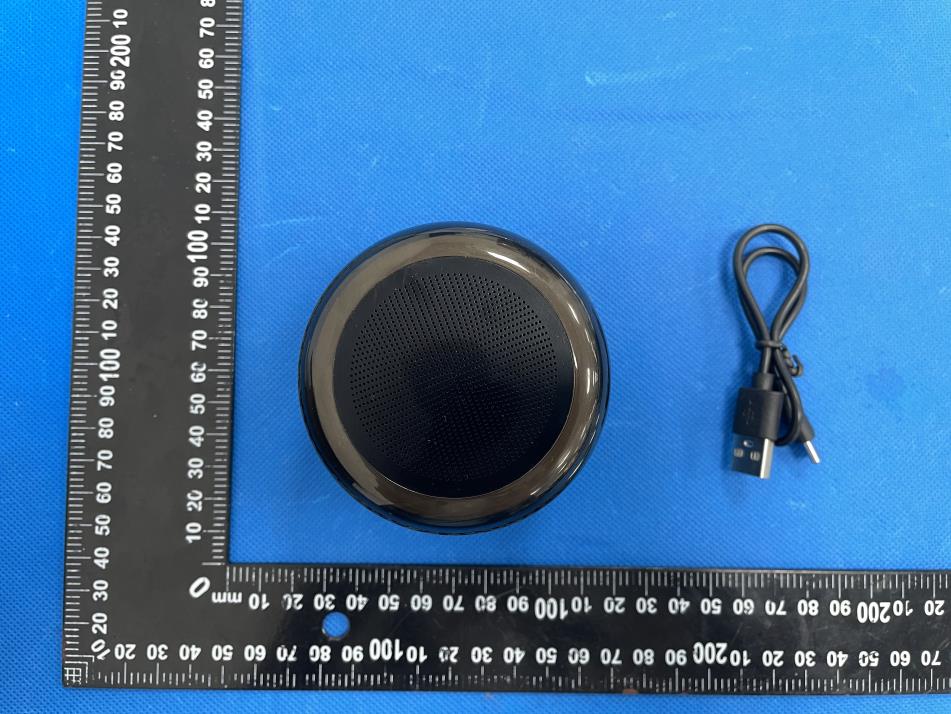

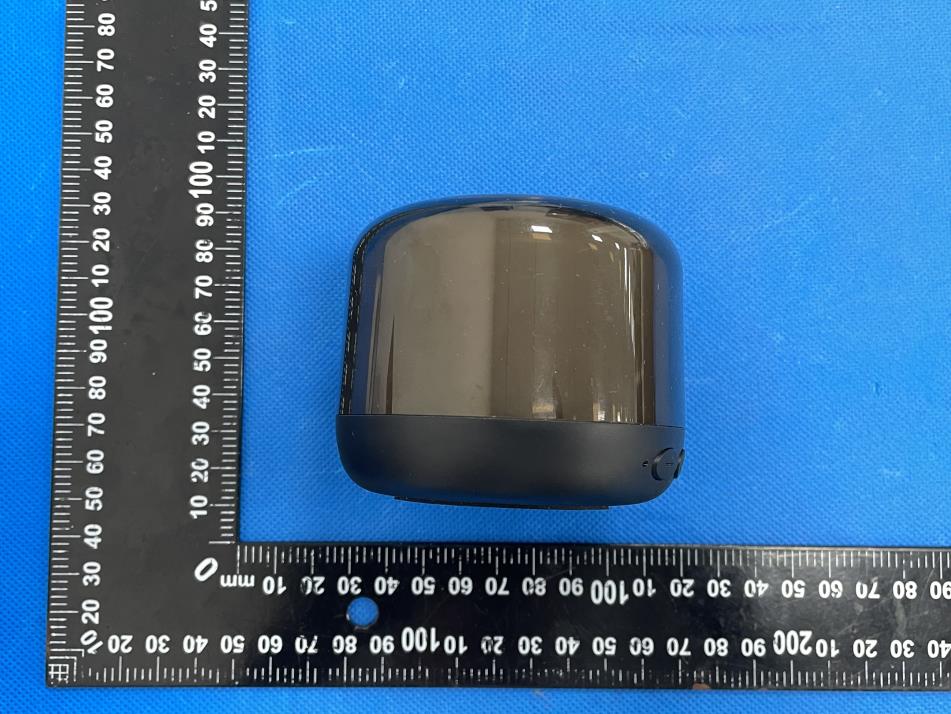

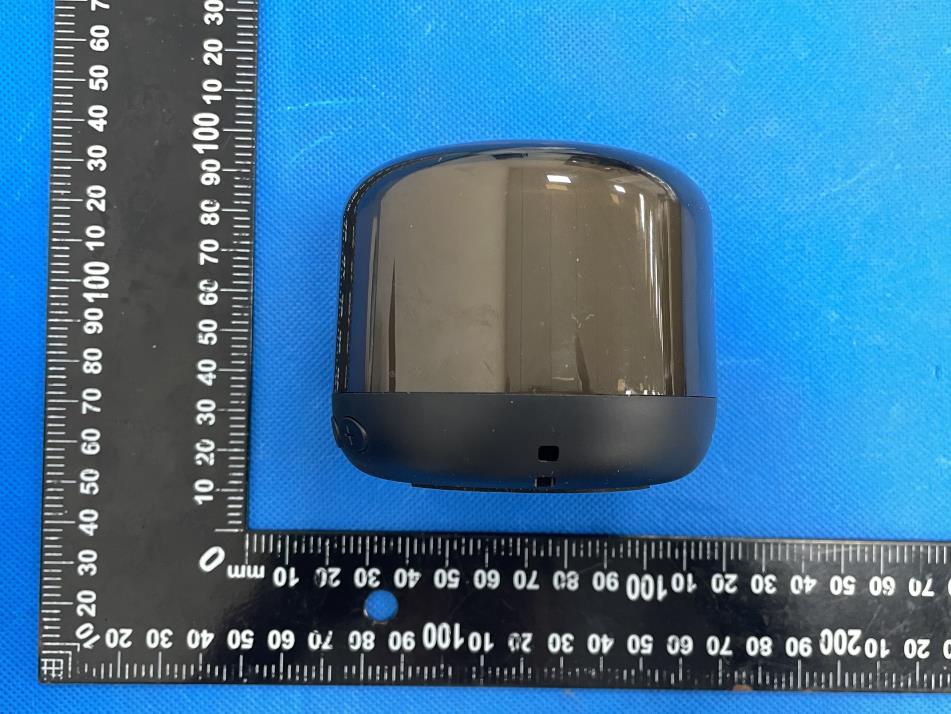

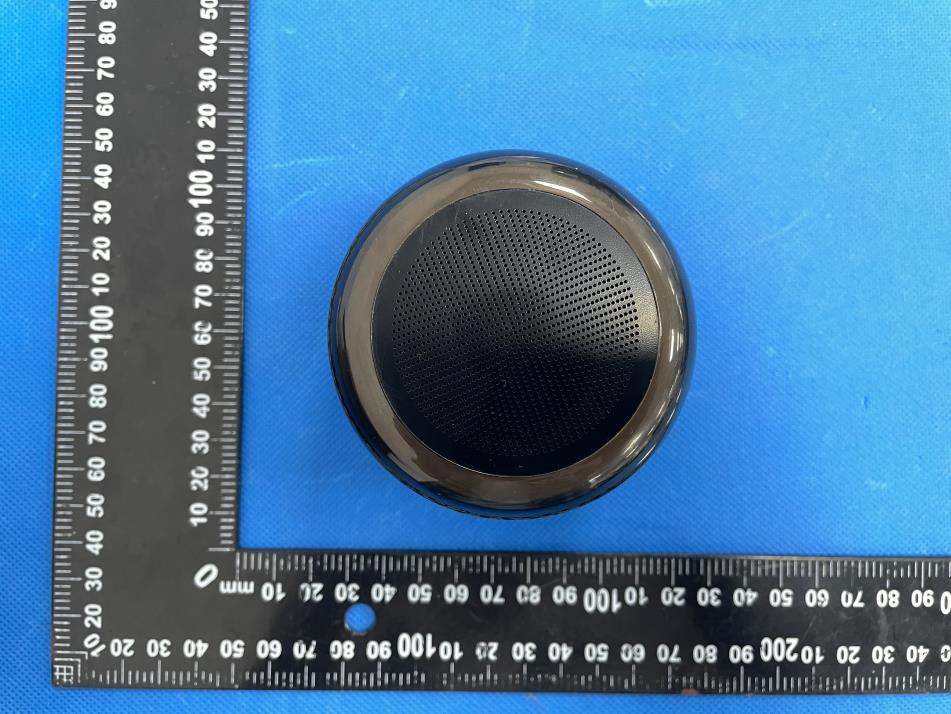

External Photos

Size:40*20mm Wireless RGB BT Speaker FCC ID: 2A5AQ-Q53 Label location

Internal Photos Antenna

FCC ID: 2A5AQ-Q53 RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison  GFSK Modulation Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR 8DPSK 2.480 3.07 3±1 4 2.51 5 0.79 3.0 Conclusion: For the max result : 0.79W/Kg ≤ FCC Limit 3.0 for 1g SAR. The Product unsupported at the same time to Transmitting.

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

No.：BCTC/RF-EMC-007 Page: 1 of 80 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2211718647E Applicant: Shenzhen Hengchuang Intelligent Electronic Technology Co.,Ltd Product Name: Wireless RGB BT Speaker Model/Type reference: Q53 Tested Date: 2022-11-07 to 2022-11-10 Issued Date: 2022-11-10 Report No.: BCTC2211718647E No.：BCTC/RF-EMC-007 Page: 2 of 80 Edition：A.5 FCC ID: 2A5AQ-Q53 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Wireless RGB BT Speaker Trademark: HENCEKT Model/Type Reference: Q53 IBT64, ISB103 Prepared For: Shenzhen Hengchuang Intelligent Electronic Technology Co.,Ltd Address: No. 304, Staircase 1, No.125, Touyangtai New Village, Chiling Town, Gaofeng Community, Dalang Street, Longhua District, Shenzhen Manufacturer: Shenzhen Hengchuang Intelligent Electronic Technology Co.,Ltd Address: No. 304, Staircase 1, No.125, Touyangtai New Village, Chiling Town, Gaofeng Community, Dalang Street, Longhua District, Shenzhen Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2022-11-07 Sample tested Date: 2022-11-07 to 2022-11-10 Issue Date: 2022-11-10 Report No.: BCTC2211718647E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2211718647E No.：BCTC/RF-EMC-007 Page: 3 of 80 Edition：A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test procedure .................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Spurious RF Conducted Emissions ..................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test procedure ....................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2211718647E No.：BCTC/RF-EMC-007 Page: 78 of 80 Edition：A.5 17. EUT Test Setup Photographs Conducted Measurement Photo Radiated Measurement Photos Report No.: BCTC2211718647E No.：BCTC/RF-EMC-007 Page: 79 of 80 Edition：A.5
