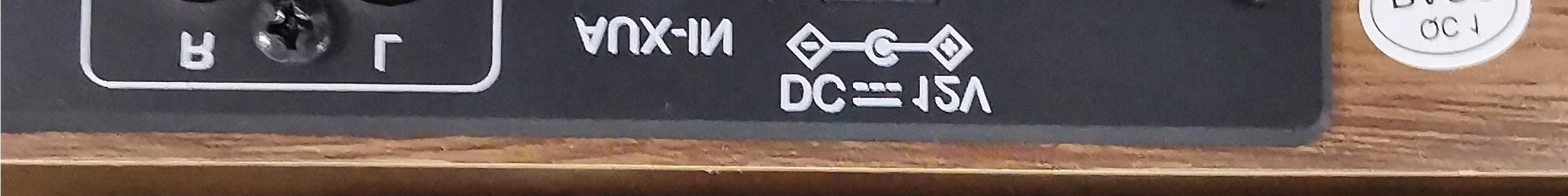

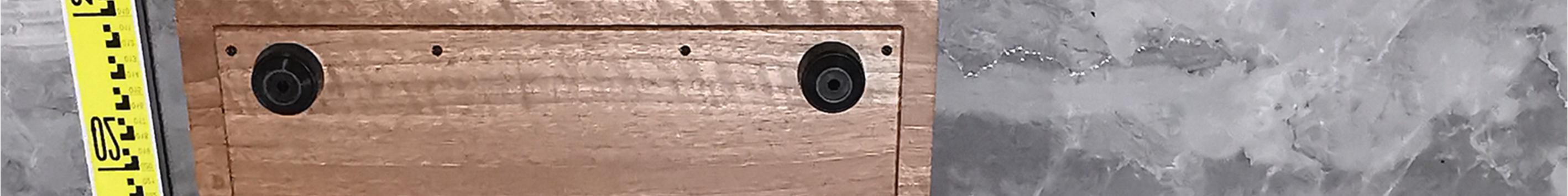

Reference No.: WTD23X02013928W Page 2 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTD23X02013928W Page 3 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTD23X02013928W Page 4 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTD23X02013928W Page 5 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7

Reference No.: WTD23X02013928W Page 1 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2A5MD-AR-PH68

Reference No.: WTD23X02013928W Page 6 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTD23X02013928W Page 7 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT Housing and Board View 3 Solder Board-Component View 1 Reference No.: WTD23X02013928W Page 8 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTD23X02013928W Page 9 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 4 Solder Board-Component View 5

Reference No.: WTD23X02013928W Page 10 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 6 Antenna View

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: HiFun Design and Trading, Inc Address of applicant: 4575 Webb Bridge Rd #4193, Alpharetta, GA, US Manufacturer: Shenzhen Bovi Electrical Appliance Co., Ltd. Address of manufacturer: 401 -501, No.32, Fulong Road, Gushu Community, Xixiang Subdistrict, Bao' an District, Shenzhen City, Guangdong Prov. General Description of EUT: Product Name: CASSINI TURNTABLE Trade Name / Model No.: AR-PH68 Adding Model(s): AR-PH68-DWT, AR-PH68-BLK, AR-PH68-WT, AR-PH68-ESP, AR-PH68-RED, AR-PH68-GOD, AR-PH68-SIL Rated Voltage: DC 12V Battery Capacity: / Adapter Model: MODEL: GKYZD0200120US INPUT: AC100-240V~50/60Hz 0.8A MAX OUTPUT: DC12V 2000mA FCC ID: 2A5MD-AR-PH68 Equipment Type: Mobile device Technical Characteristics of EUT: Bluetooth Bluetooth Version: V5.1(BR/EDR mode) Frequency Range: 2402-2480MHz RF Output Power: 1.99dBm (Conducted) Data Rate: 1Mbps, 2Mbps, 3Mbps Modulation: GFSK, π/4 DQPSK, 8DPSK Quantity of Channels: 79 Channel Separation: 1MHz Type of Antenna: PCB Antenna Antenna Gain: -0.85dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time-Averaged Power ERP (MHz) (dBm) (dBi) (%) (dBm) (dBm) Bluetooth 2402 1.99 -0.85 100 2.00 -1.00 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 2402 C 20.00 -1.00 0.79 768.00 0.01 Pass Note: 1. Time-Averaged Power=Output Power * Duty Cycle; ERP= Time-Averaged Power+ Antenna gain-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Simultaneous Ratio Limit Result Pass/Fail -- -- -- -- -- -- Result: Pass

ANTE NNA SPECI FICA TION Summary ITEMANT SPEC Model Name2.4G ANT Antenna platePCB antenna Center Frequency HorizontalVertical 2400MHz2450MHz2500MHz2400MHz2450MHz2500MHz -1.66-0.850-6.16-3.65-2.21 MAX. Gain0 PolarizationHorizontal and Vertical Impedance50 Ohm ManufactureSHENZHENSHIXINZHONGXIN TECHNOLOGY.CO.,L TD Antenna Photo & Length (mm) THE FIRST, SECOND AND THIRD FLOORS OF BUILDING A1, EAST RING INDUSTRIAL ZONE, NO. 293, NANPU ROAD, SHANGLIAO COMMUNITY, XINQIAO STREET, BAO'AN DISTRICT, SHENZHEN, CHINA Address Horizontal:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-40Scale:5/div FrequencyGain(dBi) (MHz)Max.MinAvg. 2400-1.66179-30.2813-8.78713 2450-0.847811-38.7595-7.87812 2500-0.000000-23.6329-6.99139 Vertical:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-30Scale:5/div FrequencyGain(dBi) (MHz)Max.MinAvg. 2400-6.1623-23.1425-12.5295 2450-3.6534-26.2866-10.6699 2500-2.21101-29.4381-9.58526

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 64 TEST REPORT Reference No. .................... : WTD23X02013928W FCC ID ................................ : 2A5MD-AR-PH68 Applicant ........................... : HiFun Design and Trading, Inc Address.............................. : 4575 Webb Bridge Rd #4193, Alpharetta, GA, US Manufacturer ..................... : Shenzhen Bovi Electrical Appliance Co., Ltd. Address.............................. : 401 -501, No.32, Fulong Road, Gushu Community, Xixiang Subdistrict, Bao' an District, Shenzhen City, Guangdong Prov. Product Name ................... : CASSINI TURNTABLE Model No... ......................... : AR-PH68 Standards .......................... : FCC Part 15.247 Date of Receipt sample .... : 2023-02-06 Date of Test........................ : 2023-02-06 to 2023-02-20 Date of Issue ..................... : 2023-02-20 Test Report Form No. ....... : WTX_Part 15_247W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Jack Huang Silin Chen Reference No.: WTD23X02013928W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 64 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .........................................................................5 1.2 TEST STANDARDS .................................................................................................................................................6 1.3 TEST METHODOLOGY ...........................................................................................................................................6 1.4 TEST FACILITY ......................................................................................................................................................6 1.5 EUT SETUP AND TEST MODE ..............................................................................................................................7 1.6 MEASUREMENT UNCERTAINTY .............................................................................................................................9 1.7 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................. 10 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 13 3. ANTENNA REQUIREMENT ................................................................................................................................. 14 3.1 STANDARD APPLICABLE ..................................................................................................................................... 14 3.2 EVALUATION INFORMATION ................................................................................................................................ 14 4. FREQUENCY HOPPING SYSTEM REQUIREMENTS .................................................................................... 15 4.1 STANDARD APPLICABLE ..................................................................................................................................... 15 4.2 FREQUENCY HOPPING SYSTEM ......................................................................................................................... 15 4.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ............................................................................... 16 5. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION .................................................... 17 5.1 STANDARD APPLICABLE ..................................................................................................................................... 17 5.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 17 5.3 TEST PROCEDURE .............................................................................................................................................. 17 5.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 18 6. DWELL TIME OF HOPPING CHANNEL ........................................................................................................... 19 6.1 STANDARD APPLICABLE ..................................................................................................................................... 19 6.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 19 6.3 TEST PROCEDURE .............................................................................................................................................. 19 6.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 20 7. 20DB BANDWIDTH ............................................................................................................................................... 21 7.1 STANDARD APPLICABLE .....................................................................................................................…

Text truncated - open the document above for the full version.

Reference No.: WTD23X02013928W Page 11 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Reference No.: WTD23X02013928W Page 12 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTD23X02013928W Page 13 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
