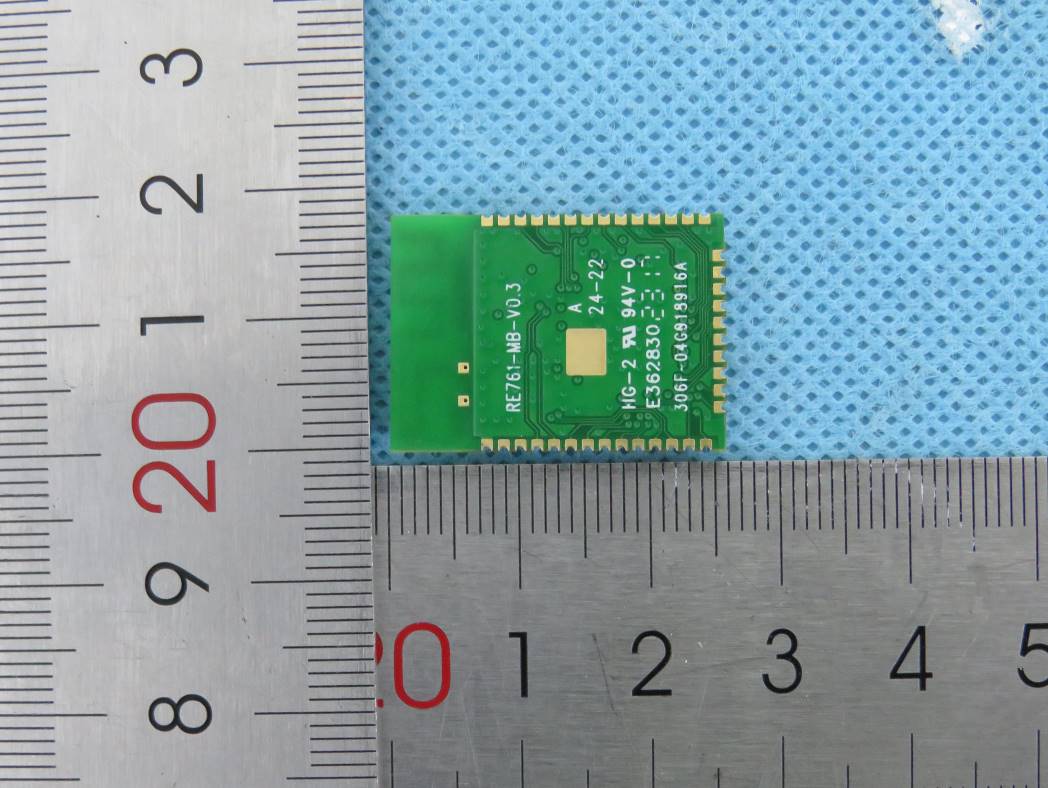

2A5QJ-IFINEXISiFi IoT Module

Specifications of iFi Nexis WIFI Version： V0.3 Effective date： 2023-05-31 Specifications of iFi Nexis WIFI module 2 Version update Date Version update content 2023-05-31 V0.3 Initial document Specifications of iFi Nexis WIFI module 3 Table of contents 1. Product Introduction ............................................................................................... 4 2. Product Features ..................................................................................................... 4 3. Application field ........................................................................................................ 4 4. Functional block diagram .......................................................................................... 5 5. Size of package and definition of connection ............................................................ 5 6. Audio input and output .............................................................................................. 9 7. Electrical parameters ................................................................................................ 10 8. RF performance ....................................................................................................... 11 9. Antenna Design Considerations ............................................................................... 14 10. Production recommended furnace temperature curve ........................................... 15 11. Method of Packaging and shipping ........................................................................ 15 Specifications of iFi Nexis WIFI module 4 1. Product Introduction Introduction iFi Nexis wireless WIFI module is a new WIFI SOC SV32WB06 chip design. It also integrated on-chip MCU, core frequency is 480MHz, built-in 512KB SRAM & 128K ROM. Work on 2.4GHz frequency band, support Wi-Fi standard 802.11b/g/n; supply voltage is 3.3V/5V. 2. Product Features 2.1 WLAN Features  Andes Technology D10F processor (Core freq: 480MHz)，128K ROM & 512KB SRAM for instructions and data, optional plug-in 32/64/128Mbit SPI Flash；  Recommended working voltage:3.3V-5.25V；IO voltage：3.3V；  Interface:3*UART,8*ADC,8*PWM,2*I2C,1*SDIO,27*GPIO reusable；  Support Wi-Fi standard: 802.11 b/g/n；  Support: H20/H40；  Support: STA/AP dual mode  Support WEP、WPA/WPA2 safe mode  Support wireless upgrade（OTA）；  Support PCB onboard antenna，high compatibility & high performance； 3. Application field  Smart Home/Home Appliances  Smart socket/smart light  Intelligent Building  Industrial wireless control  Wireless webcam Specifications of iFi Nexis WIFI module 5 4. Functional block diagram 5. Size of package and definition of connection 5.1 Dimensions Size (mm)：18mm*25.5mm*3.2mm，PCB thickness: 0.8mm, size of deviation less than 0.1mm Specifications of iFi Nexis WIFI module 6 Specifications of iFi Nexis WIFI module 7 5.2 Recommended package 5.3 Definition on each pin Pin# Name ALT1 ALT2 ALT3 ALT4 ALT5 ALT6 ALT7 1 GND 2 VBAT 3 LDO_EN 4 GPIO02 GPIO02 ADC2 SPISLV0 SCLK SPIMASO SCLK 5 GPIO04 GPIO04 I2C0 SCL 6 GPIO05 GPIO05 SPISLV0 CSN SPIMASO CSN 7 GPIO06 GPIO06 I2C0 SDA PSRAM SPI CSN 8 GPIO13 GPIO13 9 GPIO14 GPIO14 PDMTXO DOUT0 PDMRX0 CLK I250 WS 10 GPIO15 GPIO15 PDMTXO DOUT1 PDMRX0 DIN I2S0 SDI 11 GPIO16 GPIO16 PDMRX1 CLK I2S0 SDO 12 GPIO23 GPIO23 UART2 TXD I2C1 SCL Specifications of iFi Nexis WIFI module 8 13 GPIO20 GPIO20 SD CLK DATASPISLAVE SCLK SPISLV1 MISO SPIMAS1 MISO 14 GPIO17 GPIO17 SD DATA2 UART2 NCTS PDMRX1 DIN I2S0 SCK 15 GND 16 GPIO18 GPIO18 SD DATA3 DATASPISLAVE CSN SPISLV1 CSN SPIMAS1 CSN 17 GPIO25 GPIO25 WIFI TX RTC RC32K EXT UART2 TXD 18 GPIO26 GPIO26 BT IN PROCESS 12S0 MCLK UART2 RXD SPIMAS2 CSN 19 GPIO28 GPIO28 I2S0 MCLK 20 GND 21 GND 22 GND 23 GPIO19 GPIO19 SD CMD DATASPISLAVE MOSI SPISLV1 MOSI SPIMAS1 MOSI 24 GPIO21 GPIO21 SD DATAO DATASPISLAVE MISO SPISLV1 SCLK SPIMAS1_SCLK 25 GPIO24 GPIO24 UART2 RXD 12C1 SDA 26 GPIO22 GPIO22 SD DATA1 UART2 NRTS I2S0 MCLK 27 RXD2 GPIO36 ADC6 12C0 SCL UART2 RXD SPIMAS2 CSN BT IN PROCESS BT SW 28 TXD2 GPIO37 ADC7 12C0 SDA UART2 TXD BT PTI3 WIFI TX SW 29 GPIO27 GPIO27 UART1 NCTS PDMRXO CLK 12S1 Ws 30 GPIO29 GPIO29 ADC3 UART1 NRTS PDMRXO DIN UART1 RXD 12S1 SDI 31 GPIO30 GPIO30 ADC4 UART1 RXD PDMRX1 CLK PDMTXO DOUTO 12S1 SDO 32 GPIO31 GPIO31 ADC5 UART1 TXD PDMRXI DIN PDMTXO DOUT1 12S1 SCK 33 GPIO32 GPIO32 BT PTI3 SPIMAS2 SCLK 34 RXD0 GPIO00 ADC0 BT SW UART0 RXD SPISLV0_MOS SPIMASO MOSI 35 TXD0 GPIO01 ADC1 WIF_TX SW UART0 TXD SPISLV0 MISO SPIMASO MISO 36 GPIO33 GPIO33 SPIMAS2 MOSI UART1 TXD WIFTX 37 GPIO35 GPIO35 SPIMAS2 MISO 38 GND Note: 1.LDO_EN pin can be turned on normally when it is suspended in the air，pull down to reset， don’t pull up，otherwise it may not turn on。 2.GPIO13 internal pull down，normal startup when suspended，connect 3.3V then enter the burning mode，other features are not recommended。 3.SPI Flash interface SPI_HOLD、SPI_WP、SPI_CS、SPI_CLK、SPI_SDO、SPI_SDI，that GPIO07~12， provide flash use only Burning interface，Not recommended for other functions。 4. Burning interface RXD0/TXD0。 5.All GPIO ports can be used as PWM，but only choose up to 8。 Specifications of iFi Nexis WIFI module 9 6. Audio input and output 6.1 MIC input The module supports digital mic input，the pins can be selected that according to the actual application。 GPIO ALT3 ALT4 Notice GPIO14 PDMRX0_CLK GPIO15 PDMRX0_DIN GPIO16 PDMRX1_CLK GPIO17 PDMRX1_DIN GPIO27 PDMRX0_CLK GPIO29 PDMRX0_DIN GPIO30 PDMRX1_CLK GPIO31 PDMRX1_DIN The reference circuit is as follows： The module is based on 12bit ADC interface, support analog MIC input，Applications that require no changes for audio input, can use this scheme, and the reference circuit is as follows： Specifications of iFi Nexis WIFI module 10 6.2 Audio output The module chip supports PDM audio output that can be ellipsis DAC code，Directly connected to PA amplifier output through RC filter circuit。The pin can be selected that according to the actual application, and it supports two-channel stereo output GPIO ALT3 ALT4 Notice…

Text truncated - open the document above for the full version.
