2A5QJGOPODTWS DAC Amp

1. LED Bluetooth LED Status o Wireless Bluetooth (Connected) Blue (ashing) Wireless Bluetooth (Awaiting connection) Blue/Red (ashing) Wireless Bluetooth (Pairing) Blue/Green (ashing) Factory Reset Red (long highlight) Charging 2. Touch control area - Volume control (turn) - Play/Pause/Answer the call (a short click) - Skip forward (two short clicks) - Skip back (three short clicks) - Wake up voice assistant (long press ≥1.5s) - Pairing (Press the left and right touch area together for ≥ 2s) - Factory Reset (long press ≥15s) 4. USB-C (5V) battery charge input For charging only. Use a 5V/2A and above Qi certied charger or 5V/1A and above Type-C charger. 5. LED for Battery Status LED Status 4/4 > 75% 3/4 > 50% 2/4 > 25% 1/4 ≤ 25% *Battery LED will ash when it is charging and will go out when it is fully charged. 1 2 33 1 2 4 5 Specications Bluetooth version Bluetooth 5.2 TM Codecs AAC, SBC, aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, LHDC/HWA Codec) Chipset: Qualcomm QCC 5100 Series Auto impedance detection: 16Ω/32Ω/64Ω/300Ω DNR: ≥129dB (A) SNR: 32Ω ≥129dB (A) / 300Ω ≥132dB (A) THD + N: ≤0.002% (1kHz/32Ω) Output Noise: <1uV Frequency response: 10-43kHz(-3dB) LDAC Channel separation: ≥90dB (1kHz/32Ω) Battery: Ear hood 180mAh + Charging box 1500mAh Working hours Ear hood ~7h + Charging box ~30h Charging time Ear hood ~1.5h + Charging box ~2h Power System: 5V/2A and above Qi certied charger 5V/1A and above Type-C charger Dimensions: Ear hood 43.5 x 16.4 x 9.5 mm (1.7" x 0.6" x 0.4") Charging box 116 x 76 x 38.5 mm (4.6" x 3" x 1.5") Net weight: Ear hood 12g (0.42 oz) Charging box 126g (4.44 oz) Limited Warranty: 12 months* *12 months typical or as permitted/required by local reseller laws. **Specications are subject to change without notice. FCC COMPLIANCE STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this unit not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

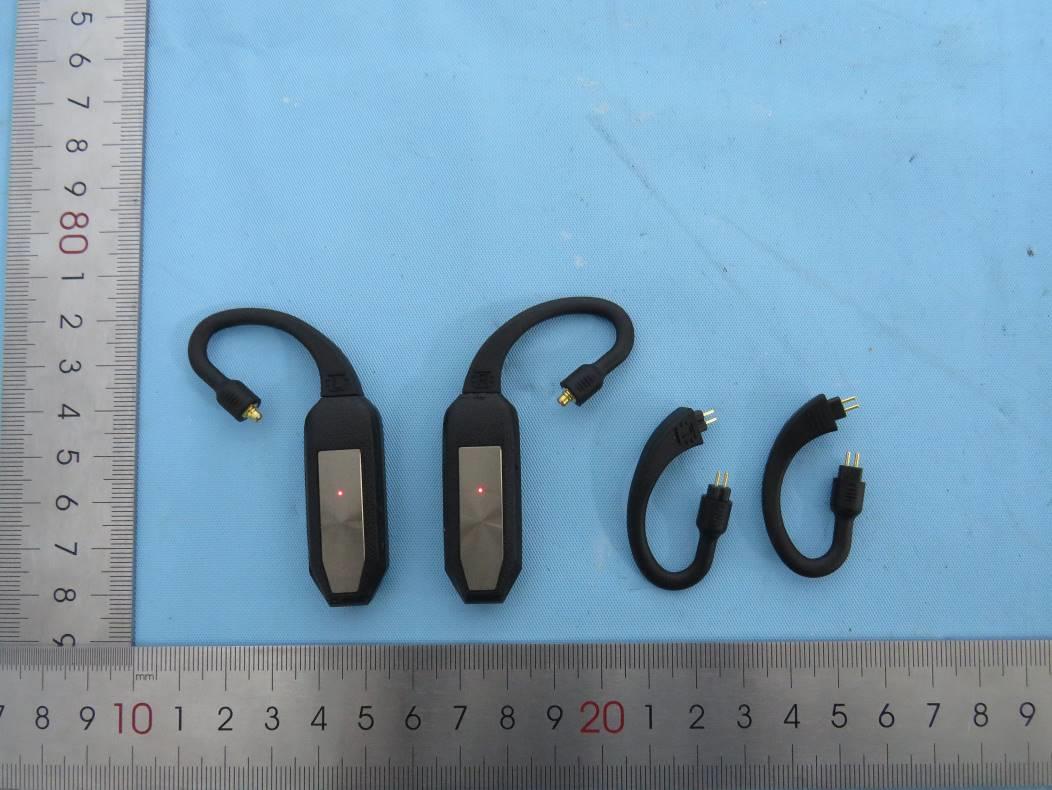

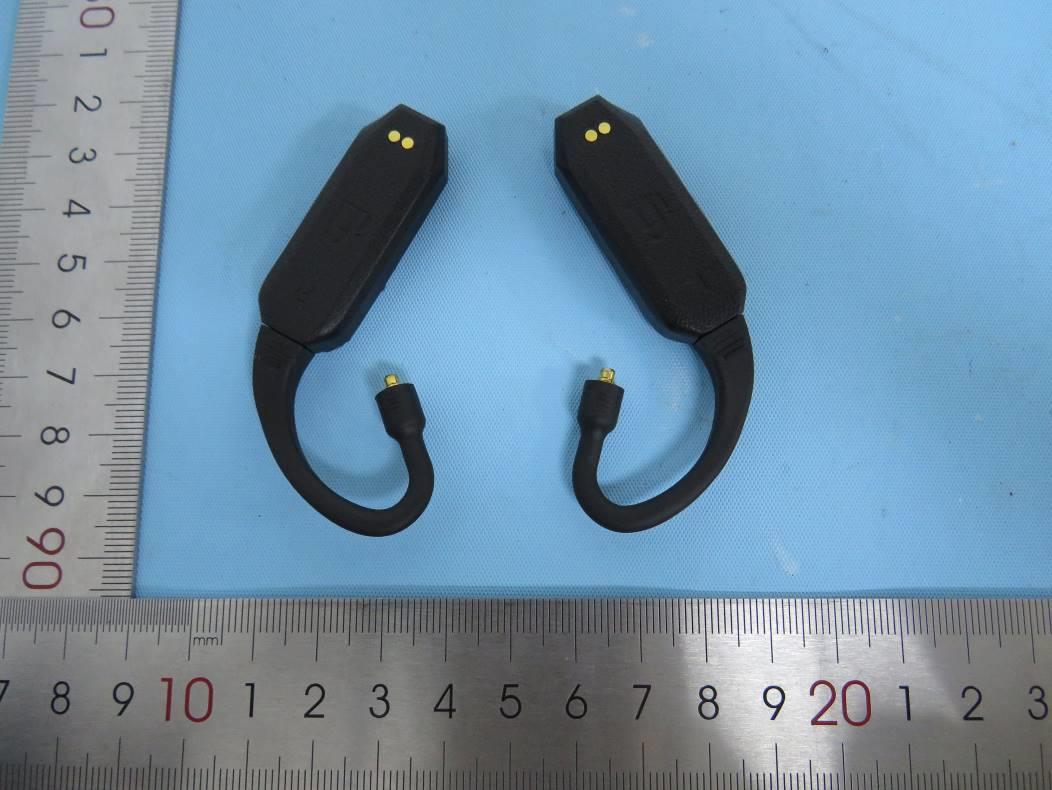

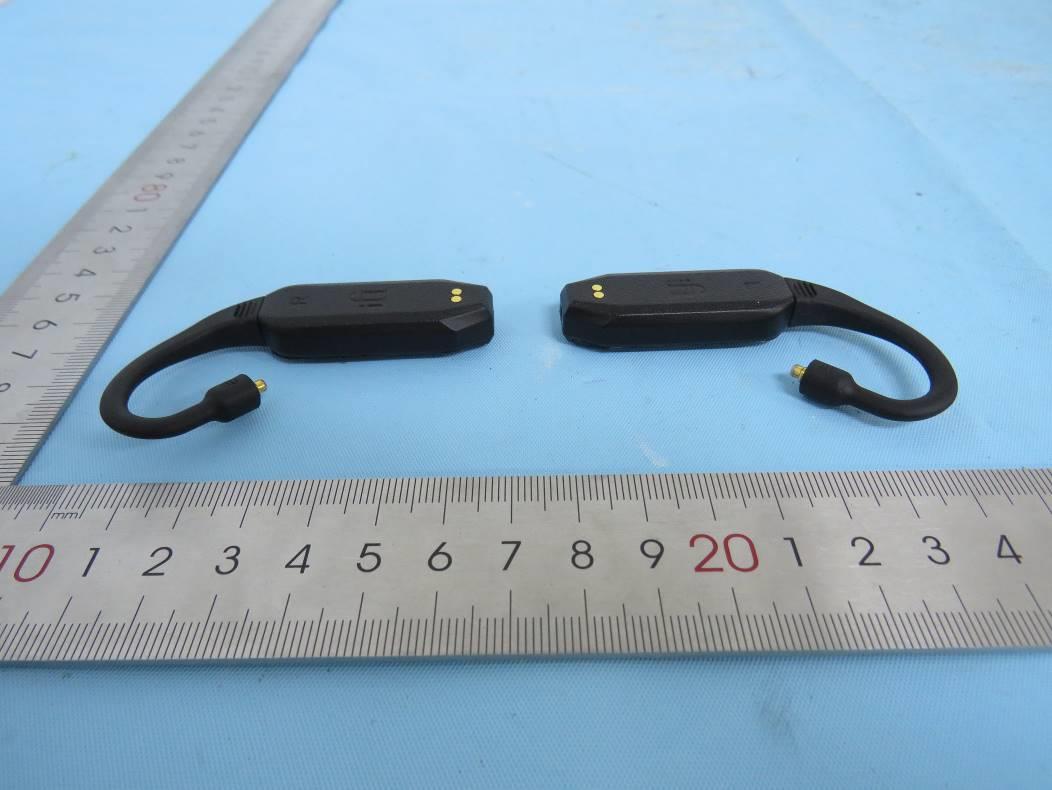

FCC ID: 2A5QJGOPOD External photos FCC ID: 2A5QJGOPOD FCC ID: 2A5QJGOPOD FCC ID: 2A5QJGOPOD FCC ID: 2A5QJGOPOD

Label & location 220-JP5799 220-JP5799

FCC ID: 2A5QJGOPOD Internal photos FCC ID: 2A5QJGOPOD Internal photos FCC ID: 2A5QJGOPOD R F Antenna FCC ID: 2A5QJGOPOD R F Antenna FCC ID: 2A5QJGOPOD RF Chip

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2208391F-1 FCC ID: 2A5QJGOPOD RF EXPOSURE EVALUATION EUT Specification EUT TWS DAC Amp Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others(Bluetooth: 2.402GHz ~ 2.480GHz) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power -0.298dBm (0.93mW) Antenna gain 0dBi Evaluation applied MPE Evaluation SAR Evaluation Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v06, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2208391F-1 FCC ID: 2A5QJGOPOD Measurement Result Channel Channel Frequency (MHz) Max Output power (dBm) Max Output power (mW) Calculati on Value (Note 1) Threshold Value GFSK Low 2402 -0.880 0.82 0.2542 3.0 Middle 2441 -3.083 0.49 0.1531 3.0 High 2480 -1.896 0.65 0.2047 3.0 π/4-DQPSK Low 2402 -0.616 0.87 0.2697 3.0 Middle 2441 -2.234 0.60 0.1875 3.0 High 2480 -1.088 0.78 0.2457 3.0 8DPSK Low 2402 -0.298 0.93 0.2883 3.0 Middle 2441 -1.923 0.64 0.2000 3.0 High 2480 -0.752 0.84 0.2646 3.0 Note 1: Calculation Value =[(max. power of channel, mW)/(min. test separation distance, mm)] ·[√f(GHz)]. Fox example: 0.93/5*√2.402=0.1736 ≤ 3.0 According to KDB447498 D01 V06, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required.

Report No.: NTC2208391FV00 Page 2 of 48 Table of Contents 1. Summary of Test Result ........................................................................................................................... 4 2. General Description of EUT ...................................................................................................................... 5 3. Test Channels and Modes Detail ............................................................................................................... 8 4. Configuration of EUT ................................................................................................................................ 8 5. Modification of EUT .................................................................................................................................. 8 6. Description of Support Device ................................................................................................................... 9 7. Test Facility and Location ....................................................................................................................... 10 8. Applicable Standards and References ..................................................................................................... 11 9. Deviations and Abnormalities from Standard Conditions ........................................................................... 11 10. Test Conditions .................................................................................................................................... 12 11. Measurement Uncertainty ..................................................................................................................... 13 12. Sample Calculations ............................................................................................................................. 14 13. Test Items and Results ......................................................................................................................... 15 13.1 Conducted Emissions Measurement .................................................................................................... 15 13.2 Radiated Spurious Emissions and Restricted Bands Measurement ....................................................... 17 13.3 Channel Separation test ...................................................................................................................... 24 13.4 20dB Bandwidth ................................................................................................................................. 28 13.5 Hopping Channel Number ................................................................................................................... 32 13.6 Time of Occupancy (Dwell Time) ......................................................................................................... 34 13.7 Maximum Peak Output Power ............................................................................................................. 38 13.8 Band Edge Conducted Spurious Emission Measurement ...................................................................... 42 13.9 Antenna Requirement ......................................................................................................................... 43 14. Test Equipment List .............................................................................................................................. 48 Report No.: NTC2208391FV00 Page 3 of 48 Revision History Report Number Description Issued Date NTC2208391FV00 Initial Issue 2022-11-01 Report No.: NTC2208391FV00 Page 4 of 48 1. Summary of Test Result FCC Rules Description of Test Result Remarks §15.247(a)(1) Channel Separation test PASS --- §15.247(a)(1) 20dB Bandwidth PASS --- §15.247(a)(1)(iii) Hopping Channel Number PASS --- §15.247(a)(1)(iii) Time of Occupancy (Dwell Time) PASS --- §15.247(b) Max Peak output Power test PASS --- §15.247(d) Band edge test PASS --- §15.207 (a) AC Power Conducted Emission N/A --- §15.247(d),§15.209, §15.205 Radiated Emission PASS --- §15.203 Antenna Requirement PASS --- §15.247(d) Conducted Spurious Emission PASS --- Note: AC Power Conducted Emission is not applicable due to the EUT only can be powered by battery. Report No.: NTC2208391FV00 Page 5 of 48 2. General Description of EUT Product Information Product Name: TWS DAC Amp Main Model Name: GO pod Additional Model Name: N/A Model Difference: N/A S/N: 2208-4328 Brand Name iFi Hardware Version: V01 Software Version: V01 Rating: DC 5V 2A come from Charging box or DC 3.8V li-ion battery for each unit Test Voltage: DC 3.8V Typical Arrangement: Tabletop I/O Port: Refer to the user manual Accessories Information Adapter: N/A Cable: N/A Other: N/A Report No.: NTC2208391FV00 Page 6 of 48 Additional Information Note: N/A Remark: All the information above are provided by the manufacturer. More detailed feature of the EUT please refers to the user manual. Technical Specification Bluetooth Version: V5.2 Frequency Range: 2402-2480MHz Modulation Type: GFSK, π/4-DQPSK, 8DPSK Number of Channel: 79 (refer to following channel list for details) Channel Space: 1MHz Antenna Type: PIFA Antenna Antenna Gain: 0 dBi (Declared by the manufacturer) Note: This report only replies to BDR +EDR feature of the EUT. Report No.: NTC2208391FV00 Page 7 of 48 Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 20 2422 40 2442 60 2462 1 2403 21 2423 41 2443 61 2463 2 2404 22 2424 42 2444 62 2464 3 2405 23 2425 43 2445 63 2465 4 2406 24 2426 44 2446 64 2466 5 2407 25 2427 45 2447 65 2467 6 2408 26 2428 46 2448 66 2468 7 2409 27 2429 47 2449 67 2469 8 2410 28 2430 48 2450 68 2470 9 2411 29 2431 49 2451 69 2471 10 2412 30 2432 50 2452 70 2472 11 2413 31 2433 51 2453 71 2473 12 2414 32 2434 52 2454 72 2474 13 2415 33 2435 53 2455 73 2475 14 2416 34 2436 54 2456 74 2476 15 2417 35 2437 55 2457 75 2477 16 2418 36 2438 56 2458 76 2478 17 2419 37…

Text truncated - open the document above for the full version.

Page 1 of 5 Abbingdon Global Limited Specification for approval Customer: Abbingdon Global Limited Antenna model number: GOGOPOD101 Antenna type: PIFA Antenna Date: 2021.05.09 Page 2 of 5 1. Product Overview & Dimension Page 3 of 5 2. Test Result 2.1 VSWR Frequency (MHz) 2400 2450 2500 VSWR 1.513 1.068 1.464 Page 4 of 5 2. Test Result 2.2 Gain & Efficiency Frequency (MHz) Efficiency (%) Average Gain (dB) Peak Gain (dBi) 2400 4.96 -3.00 -1.18 2450 4.00 -3.90 -0.57 2500 4.75 -3.42 0.00 Page 5 of 5 2. Test Result Horizontal Vertical

FCC ID: 2A5QJGOPOD Test Photo Radiated emission (Below 30MHz) Radiated emission (30-1000MHz) FCC ID: 2A5QJGOPOD Radiated emission (Above 1000MHz)
