2A66I-D01short video remote controller & Self-timer

Double-click:Video swipe right Long press for one second and let go:Lock screen Double -click:Video swipe left Be careful: 1.Make sure the IOS software of Apple mobile phone is above 14.8 2.If you still can't control the video after the t ouch function is turned on, p lease restart the phone About 1 hours About 1.5 hours In the Power on state, press and hold the key for about 5 seconds, the red light will be on D01 Short press the middle buttom to focus any 2 seconds one 1 2 1.Support the original camera and various beauty cameras to take photos and record videos 2.For TikTok short videos , long p ress the button to adjust the v olume of background music, so p hotographing and video r ecording are not supported Be careful: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction.

Shenzhen Lingan Wireless Technology Co., Ltd. 5th Floor, Building C, Baoyuan Huafeng Economic Building, Xixiang Avenue, Xixiang Street, Bao’an District, Shenzhen, China Date: 2022/6/7 FCC ID: 2A66I-D01 Dear Sir/Madam, We, Shenzhen Lingan Wireless Technology Co., Ltd., Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: short video remote controller & Self-timer Model no.: D01, D01 Pro Sincerely, Name/Title： Jianbing Su / General Manager Company: Shenzhen Lingan Wireless Technology Co., Ltd. Address: 5th Floor, Building C, Baoyuan Huafeng Economic Building, Xixiang Avenue, Xixiang Street, Bao’an District, Shenzhen, China Phone: +86 13590857949 Fax: +86 0755-29419423 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2022/6/7 Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A66I-D01 D01 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Jianbing Su / General Manager Company: Shenzhen Lingan Wireless Technology Co., Ltd. Address: 5th Floor, Building C, Baoyuan Huafeng Economic Building, Xixiang Avenue, Xixiang Street, Bao’an District, Shenzhen, China Phone: +86 13590857949 Fax: +86 0755-29419423 E-Mail: [email protected]

Shenzhen Lingan Wireless Technology Co., Ltd. 5th Floor, Building C, Baoyuan Huafeng Economic Building, Xixiang Avenue, Xixiang Street, Bao’an District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2022/6/7 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A66I-D01 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Jianbing Su / General Manager Company: Shenzhen Lingan Wireless Technology Co., Ltd. Address: 5th Floor, Building C, Baoyuan Huafeng Economic Building, Xixiang Avenue, Xixiang Street, Bao’an District, Shenzhen, China Phone: +86 13590857949 Fax: +86 0755-29419423 E-Mail: [email protected]

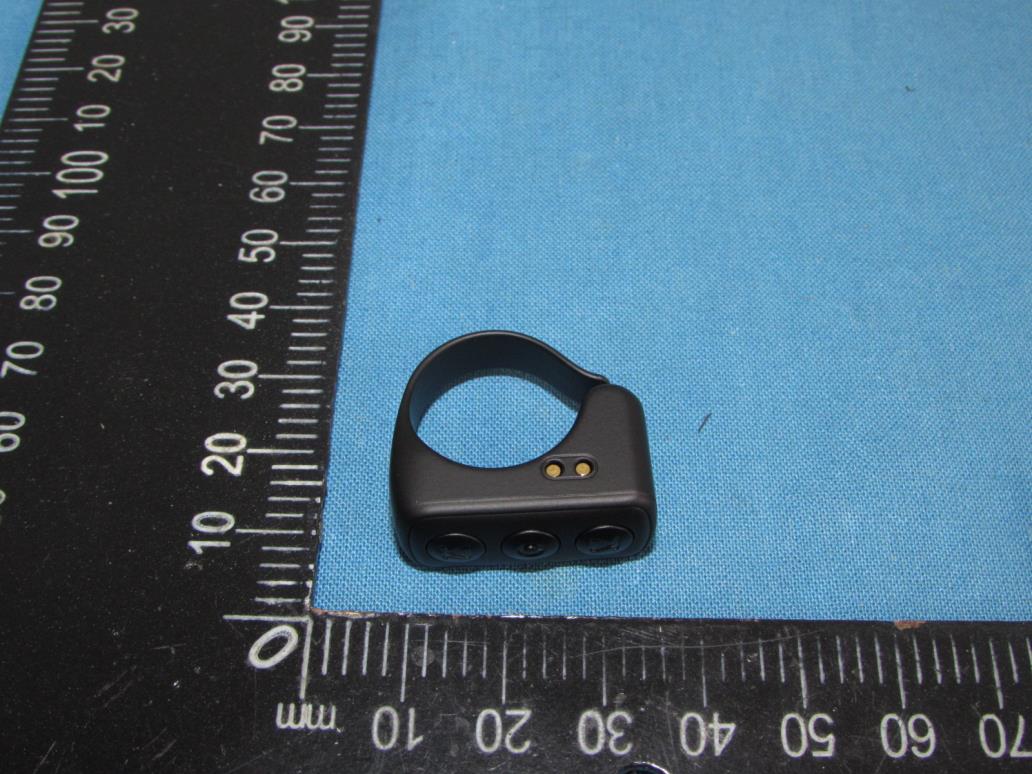

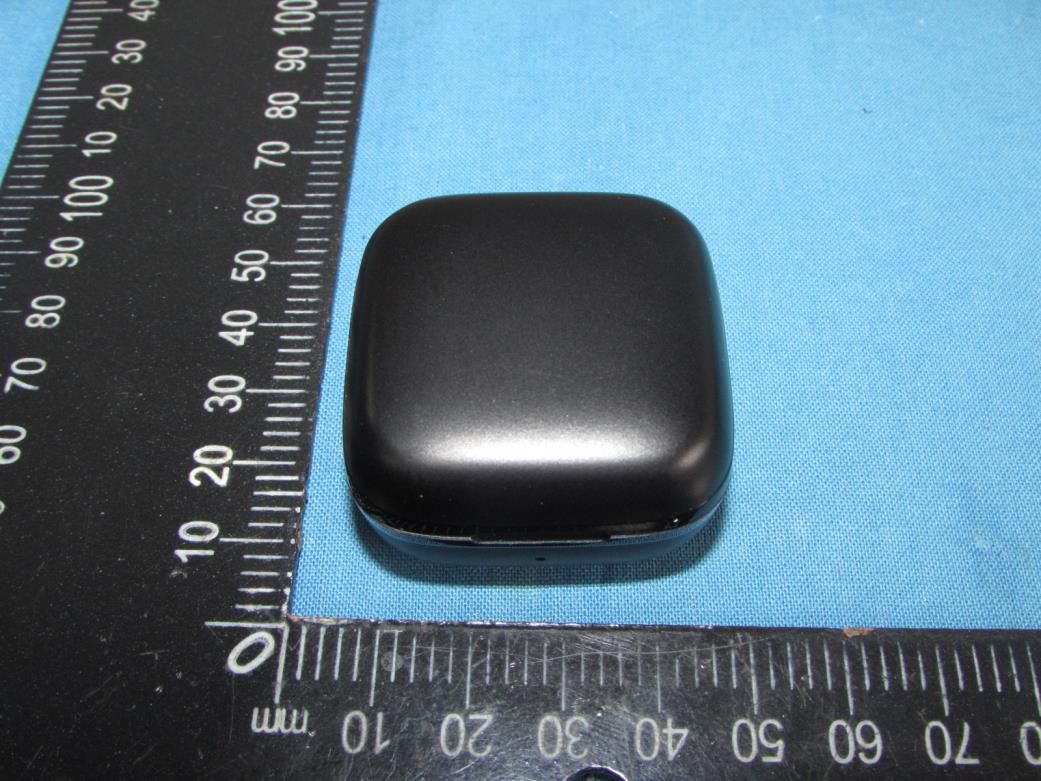

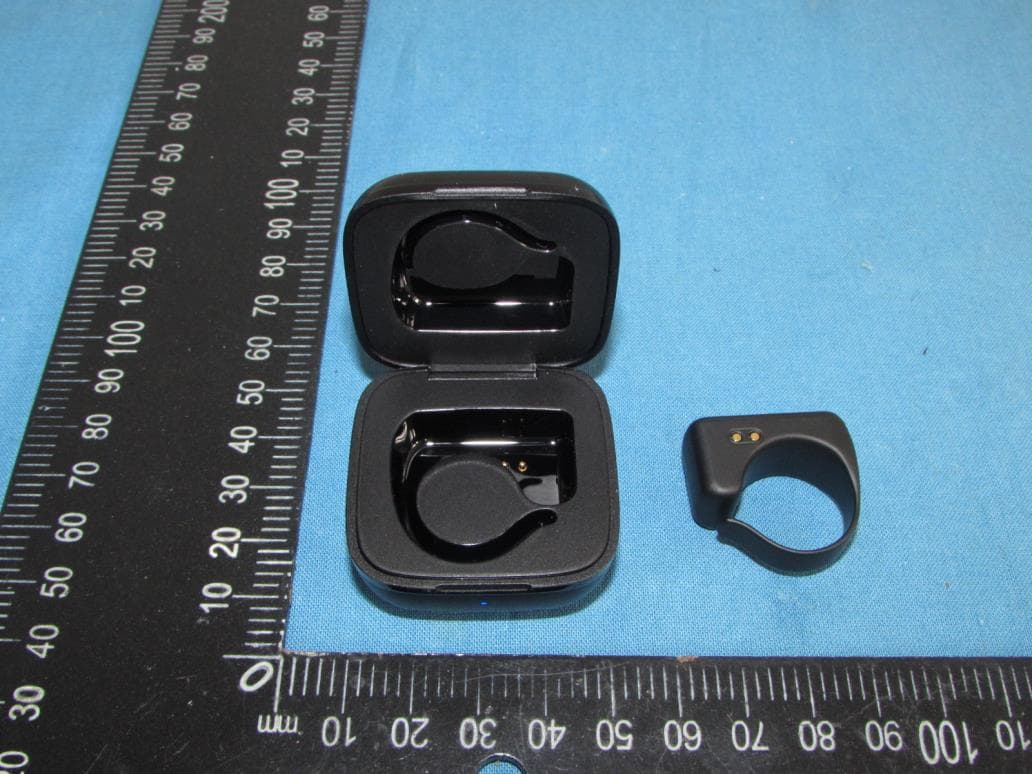

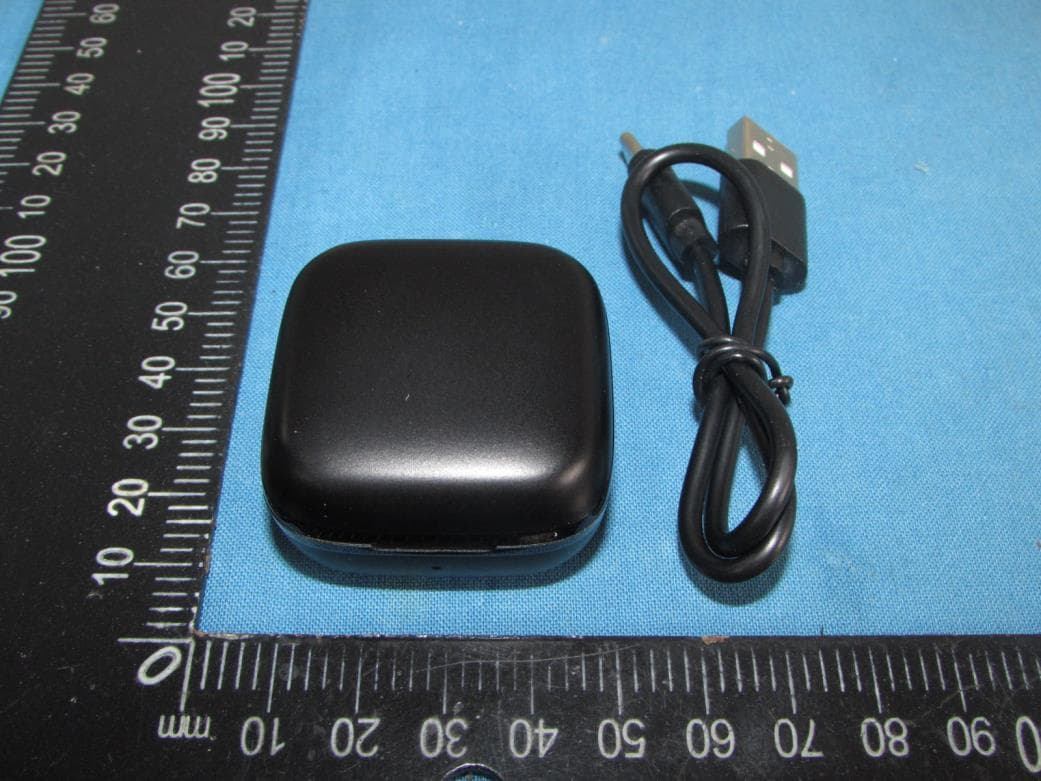

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9 Fig.10

Label Location: FCC ID: 2A66I-D01

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK(1Mbps) 00 2402 1.48 19 2440 2.34 39 2480 3.20 Manufacturing tolerance GFSK (1Mbps Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1.0 2.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK(1Mbps) 2402 2.0 2.0 1.58 3 2440 3.0 3.0 2.00 3 2480 4.0 4.0 2.51 3 The antenna gain of the EUT for BT is 0dBi(Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 1 of 21 RF Test Data for BT(BLE) (Conducted Measurement) Product Name: short video remote controller & Self-timer Trade Mark: Test Model: D01 FCC ID: 2A66I-D01 Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.620 2401.708 2402.328 0.5 PASS 2440 0.664 2439.684 2440.348 0.5 PASS 2480 0.644 2479.696 2480.340 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 2 of 21 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 3 of 21 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0375 2401.506 2402.544 --- --- 2440 1.0537 2439.498 2440.552 --- --- 2480 1.0434 2479.506 2480.550 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 4 of 21 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 5 of 21 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 1.48 ≤30 PASS 2440 2.34 ≤30 PASS 2480 3.2 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 6 of 21 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 7 of 21 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 8 of 21 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -14.28 ≤8.00 PASS 2440 -13.68 ≤8.00 PASS 2480 -11.59 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 9 of 21 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 10 of 21 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 11 of 21 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 1.15 -49.56 ≤-18.85 PASS High 2480 2.99 -49.58 ≤-17.01 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 12 of 21 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 13 of 21 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 1.07 1.07 --- PASS 30~1000 1.07 -61.75 ≤-18.93 PASS 1000~26500 1.07 -51.4 ≤-18.93 PASS 2440 Reference 1.28 1.28 --- PASS 30~1000 1.28 -61.77 ≤-18.72 PASS 1000~26500 1.28 -51.83 ≤-18.72 PASS 2480 Reference 2.31 2.31 --- PASS 30~1000 2.31 -60.72 ≤-17.69 PASS 1000~26500 2.31 -51.4 ≤-17.69 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 14 of 21 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 15 of 21 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 16 of 21 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 17 of 21 Appendix G: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/T[kHz] BLE_1M Ant1 2402 0.41 0.62 66.13 2.44 2440 0.42 0.63 66.67 2.38 2480 0.42 0.63 66.67 2.38 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 18 of 21 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 19 of 21 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Channel Detector Freq. [MHz] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -48.94 ≤-41.20 PASS AV 2341.475 -48.26 ≤-41.20 PASS AV 2390.000 -48.78 ≤-41.20 PASS Peak 2310.000 -41.22 ≤-21.20 PASS Peak 2337.590 -39.44 ≤-21.20 PASS Peak 2390.000 -41.92 ≤-21.20 PASS High 2480 AV 2483.500 -46.71 ≤-41.20 PASS AV 2483.520 -46.71 ≤-41.20 PASS AV 2500.000 -48.03 ≤-41.20 PASS Peak 2483.500 -41.4 ≤-21.20 PASS Peak 2484.560 -38.54 ≤-21.20 PASS Peak 2500.000 -40.75 ≤-21.20 PASS Note： 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 20 of 21 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Report No.: TZ220503282-E Page 21 of 21 BLE_1M_Ant1_High_2480_Peak

Report No.: TZ220503282-E Page 1 of 34 FCC TEST REPORT Test report On Behalf of Shenzhen Lingan Wireless Technology Co., Ltd. For short video remote controller & Self-timer Model No.: D01, D01 Pro FCC ID: 2A66I-D01 Prepared for : Shenzhen Lingan Wireless Technology Co., Ltd. 5th Floor, Building C, Baoyuan Huafeng Economic Building, Xixiang Avenue, Xixiang Street, Bao’an District, Shenzhen, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2022/5/27~2022/6/6 Date of Report: 2022/6/7 Report Number: TZ220503282-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ220503282-E Page 2 of 34 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Lingan Wireless Technology Co., Ltd. Address .................................. : 5th Floor, Building C, Baoyuan Huafeng Economic Building, Xixiang Avenue, Xixiang Street, Bao’an District, Shenzhen, China Manufacture's Name ............ : Shenzhen Lingan Wireless Technology Co., Ltd. Address .................................. : 5th Floor, Building C, Baoyuan Huafeng Economic Building, Xixiang Avenue, Xixiang Street, Bao’an District, Shenzhen, China Product description Trade Mark: Product name ........................... : short video remote controller & Self-timer Model and/or type reference : D01, D01 Pro Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2022/5/27~ 2022/6/6 Date of Issue .......................................... : 2022/6/7 Test Result .............................................. : Pass Testing Engineer : (Anna Hu) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ220503282-E Page 3 of 34 Revision History Revision Issue Date Revisions Revised By 000 2022/6/7 Initial Issue Andy Zhang Report No.: TZ220503282-E Page 4 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 5 1.3 EUT CONFIGURATION .......................................................................................................................................... 6 1.4. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.5. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.6. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.7. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.8. DESCRIPTION OF TEST MODES .......................................................................................................................... 7 1.9. FREQUENCY OF CHANNELS ................................................................................................................................ 7 2. TEST METHODOLOGY ......................................................................................................................................... 8 2.1. EUT CONFIGURATION......................................................................................................................................... 8 2.2. EUT EXERCISE ................................................................................................................................................... 8 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...................................................................................................................... 9 3.1. JUSTIFICATION..................................................................................................................................................... 9 3.2. EUT EXERCISE SOFTWARE ................................................................................................................................ 9 3.3. SPECIAL ACCESSORIES ...................................................................................................................................... 9 3.4. BLOCK DIAGRAM/SCHEMATICS........................................................................................................................... 9 3.5. EQUIPMENT MODIFICATIONS .............................................................................................................................. 9 3.6. TEST SETUP ........................................................................................................................................................ 9 4. SUMMARY OF TEST RESULTS ....................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A66I-D01 Conducted Emission
