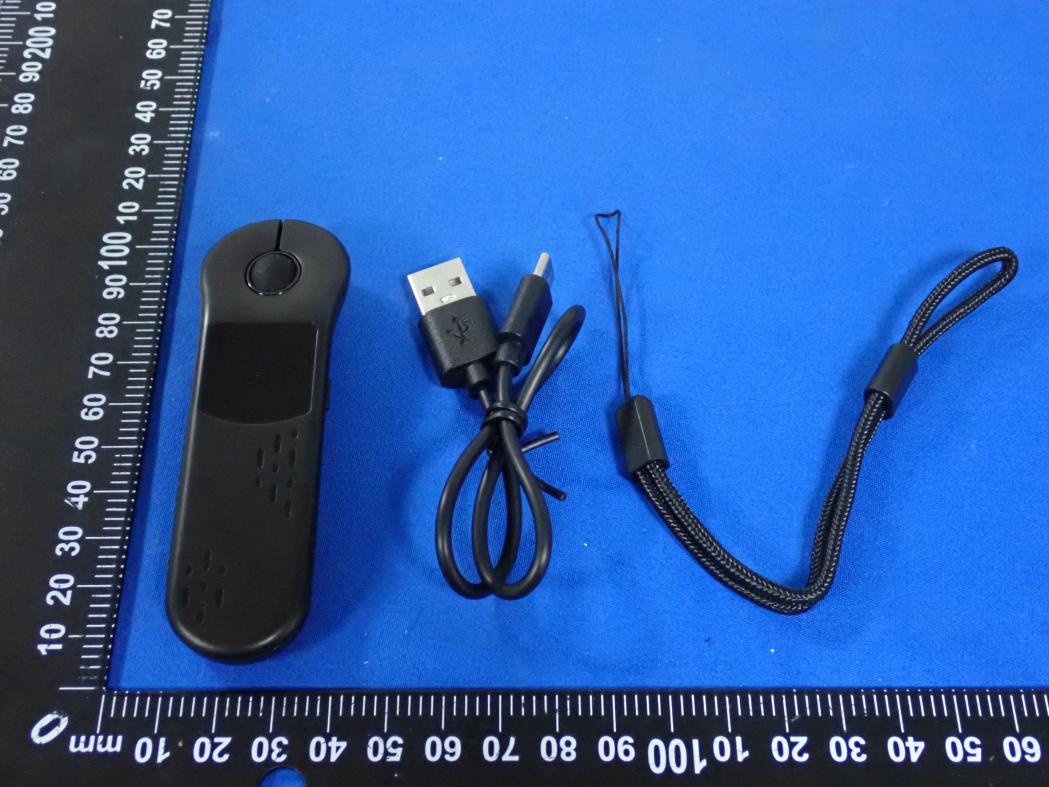

Report No.: TZ0128251101PH02 Page 1 of 4 External Photographs of EUT External Photo 1 External Photo 2 Report No.: TZ0128251101PH02 Page 2 of 4 External Photo 3 External Photo 4 Report No.: TZ0128251101PH02 Page 3 of 4 External Photo 5 External Photo 6 Report No.: TZ0128251101PH02 Page 4 of 4 External Photo 7

Label Location FCC ID: 2A66I-D13

FCC ID: 2A66I-D13 Page 1 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). FCC ID: 2A66I-D13 Page 2 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Results RF Exposure at Separation distance (cm): 0.5 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Antenna Gain [dBi] Max of ERP and Conducted Power including Tune Up SAR- based exemption threshold Pth [mW] Target Power [dBm] Tolerance ±[dB] [dBm] [mW] BLE_1M Ant1 2402 0.24 -0.5 1 0 0.5 1.12 2.79 BLE_1M Ant1 2440 0.82 0.5 1 0 1.5 1.41 2.75 BLE_1M Ant1 2480 0.81 0.5 1 0 1.5 1.41 2.72 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The Maximum Erp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Test Report For Antenna1 Tested Products. • Antenna1: integrated antenna. • Frequency = 2.402GHz. • Frequency = 2.441GHz. • Frequency = 2.480GHz. Antenna1 Photo & Length (mm) Radiation pattern: Antenna 1. XZ Plane at f = 2.402GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. YZ Plane at f = 2.402GHz 135 90 0 -5 45 -10 -15 -20 -25 -30 135 90 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. XY Plane at f = 2.402GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. XZ Plane at f = 2.441GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. YZ Plane at f = 2.441GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. XY Plane at f = 2.441GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. XZ Plane at f = 2.480GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. YZ Plane at f = 2.480GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. XY Plane at f = 2.480GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Return Lo s s (dB ) Return Loss: Antenna 1 -2 -4 -6 -8 -10 -12 -14 -16 2 2.2 2.4 2.6 2.8 3 Frequency (GHz) BW(-10dB) 13.48% Measurements summary Frequency (GHz) Plane Return Loss (dB) Polarization Gain max. (dBi) θ for Gain max. φ for Gain max. Antenna 1 2.402 XZ -10.90Vertical -7.8290 2.402 XZ -10.90Horizontal -0.786 182 2.402 YZ -10.90Vertical -1.21 226 2.402 YZ -10.90Horizontal -7.7510 2.402 XY -10.90Vertical -15.420 2.402 XY -10.90Horizontal -0.93 180 2.441 XZ -12.20Vertical -7.36318 2.441 XZ -12.20Horizontal -1.32 180 2.441 YZ -12.20Vertical -0.981 204 2.441 YZ -12.20Horizontal -8.2324 2.441 XY -12.20Vertical -14.1-14 2.441 XY -12.20Horizontal 1.74 180 2.48 XZ -13.80Vertical -7.95312 2.48 XZ -13.80Horizontal -1.81 186 2.48 YZ -13.80Vertical -0.204 214 2.48 YZ -13.80Horizontal -8.388 2.48 XY -13.80Vertical -15.812 2.48 XY -13.80Horizontal 0.0 180

Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 1 of 23 Appendix Test Data for BLE (Conducted Measurement) Product Name: Multifunctional Ring Mouse Trade Mark: Qring Test Model: D13 FCC ID: 2A66I-D13 Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: DTS Bandwidth Test Result Test Mode Antenna Frequency [MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict BLE_1M Ant1 2402 0.676 2401.668 2402.344 0.5 PASS BLE_1M Ant1 2440 0.672 2439.680 2440.352 0.5 PASS BLE_1M Ant1 2480 0.684 2479.656 2480.340 0.5 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 2 of 23 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 3 of 23 BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 4 of 23 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict BLE_1M Ant1 2402 1.0318 2401.4947 2402.5265 --- --- BLE_1M Ant1 2440 1.0243 2439.4952 2440.5195 --- --- BLE_1M Ant1 2480 1.0276 2479.4923 2480.5199 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 5 of 23 Test Graphs BLE_1M-Ant1-2402 BLE_1M-Ant1-2440 Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 6 of 23 BLE_1M-Ant1-2480 Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 7 of 23 Appendix C: Maximum peak conducted output power Test Result Peak Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict BLE_1M Ant1 2402 0.24 ≤30 PASS BLE_1M Ant1 2440 0.82 ≤30 PASS BLE_1M Ant1 2480 0.81 ≤30 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 8 of 23 Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 9 of 23 BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 10 of 23 Appendix D: Maximum peak power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3kHz] Limit [dBm/3kHz] Verdict BLE_1M Ant1 2402 -15.21 ≤8.00 PASS BLE_1M Ant1 2440 -14.89 ≤8.00 PASS BLE_1M Ant1 2480 -15.80 ≤8.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 11 of 23 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 12 of 23 BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 13 of 23 Appendix E: Band edge measurements Test Result Test Mode Antenna Ch. Name Frequency [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 0.07 -49.57 ≤-19.94 PASS BLE_1M Ant1 High 2480 -0.16 -47.79 ≤-20.16 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 14 of 23 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 15 of 23 Appendix F: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq. Range [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 2402 0~Reference -0.20 -0.20 --- PASS BLE_1M Ant1 2402 30~1000 -0.20 -50.52 ≤-20.2 PASS BLE_1M Ant1 2402 1000~26500 -0.20 -27.32 ≤-20.2 PASS BLE_1M Ant1 2440 0~Reference -0.51 -0.51 --- PASS BLE_1M Ant1 2440 30~1000 -0.51 -52.3 ≤-20.51 PASS BLE_1M Ant1 2440 1000~26500 -0.51 -26.94 ≤-20.51 PASS BLE_1M Ant1 2480 0~Reference -0.30 -0.30 --- PASS BLE_1M Ant1 2480 30~1000 -0.30 -51.73 ≤-20.3 PASS BLE_1M Ant1 2480 1000~26500 -0.30 -27.06 ≤-20.3 PASS Note: offset(dB) in Reference test plots = cable loss(dB) + attenuator factor(dB); For spurious emissions plots from 30MHz to 26.5GHz, the cable loss and attenuator factors have been set in the 'Input Correction' of the Spectrum Analyzer during the test. Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 16 of 23 Test Graphs BLE_1M-Ant1-2402-0~Reference-PASS BLE_1M-Ant1-2402-30~1000-PASS Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 17 of 23 BLE_1M-Ant1-2402-1000~26500-PASS BLE_1M-Ant1-2440-0~Reference-PASS Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 18 of 23 BLE_1M-Ant1-2440-30~1000-PASS BLE_1M-Ant1-2440-1000~26500-PASS Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 19 of 23 BLE_1M-Ant1-2480-0~Reference-PASS BLE_1M-Ant1-2480-30~1000-PASS Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 20 of 23 BLE_1M-Ant1-2480-1000~26500-PASS Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 21 of 23 Appendix G: Duty Cycle Test Result Test Mode Antenna Frequency [MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor [dB] BLE_1M Ant1 2402 2.13 2.50 85.20 0.70 BLE_1M Ant1 2440 2.14 2.50 85.60 0.68 BLE_1M Ant1 2480 2.14 2.50 85.60 0.68 Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 22 of 23 Test Graphs NTNV-BLE_1M-Ant1-2402 NTNV-BLE_1M-Ant1-2440 Appendix Test Data of the Report No.: TZ0128251101FRF02 Page 23 of 23 NTNV-BLE_1M-Ant1-2480

Report No.: TZ0128251101FRF02 Page 1 of 33 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0128251101FRF02 Product Name : Multifunctional Ring Mouse Model/Type reference : D13, D13Pro, D16, D16Pro FCC ID : 2A66I-D13 Prepared for : Shenzhen Lingan Wireless Technology Co., Ltd. 5th Floor, Building C, Baoyuan Huafeng Economic Building, Xixiang Avenue, Xixiang Street, Bao’an District, Shenzhen, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10-2020 Date of Test : 2025-11-19 ~ 2025-11-24 Date of Issue : 2025-11-25 Prepared by : Lena Wen Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0128251101FRF02 Page 2 of 33 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2025-11-25 Valid Initial release Report No.: TZ0128251101FRF02 Page 3 of 33 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ........................................................ 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 6 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 7 2. T E S T M E T H O D O L O G Y ............................................................ 8 2.1. EUT Configuration .................................................................................................................. 8 2.2. EUT Exercise ........................................................................................................................... 8 2.3. Test Sample ............................................................................................................................. 8 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 9 3.1. Justification ............................................................................................................................. 9 3.2. EUT Exercise Software ........................................................................................................... 9 3.3. Special Accessories ............................................................................................................... 9 3.4. Block Diagram/Schematics .................................................................................................... 9 3.5. Equipment Modifications ....................................................................................................... 9 3.6. Test Setup ................................................................................................................................ 9 4. S U M M A R Y O F T E S T R E S U L T S ................................................ 10 5. T E S T R E S U L T ..................................................................... 11 5.1. On Time and Duty Cycle ....................................................................................................... 11 5.2. Maximum Peak Conducted Output Power Measurement ................................................. 12 5.3. Power Spectral Density Measurement ................................................................................ 13 5.4. 6 dB Spectrum Bandwidth and Occupied Channel Bandwidth Measurement ............... 14 5.5. Radiated Emissions Measurement ...................................................................................... 15 5.6. Conducted Spurious Emissions and Band Edges Test .................................................... 24 5.8. Band-edge measurements for radiated emissions ........................................................... 28 5.9. Antenna Requirements ......................................................................................................... 31 6. L I S T O F M E A S U R I N G E Q U I P M E N T .......................................... 32 7. T E S T S E T U P P H O T O G R A P H S O F E U T ...................................... 33 8. E X T E R I O R P H O T O G R A P H S O F E U T ......................................... 33 9. I N T E R I O R P H O T O G R A P H S O F E U T .......................................... 33 Report No.: TZ0128251101FRF02 Page 4 of 33 1. G E N E R A L I N F O R M A T I O N 1.1. Client Information Applicant : Shenzhen Li…
