2A68F-LP1-PLUSLaserPecker LP1 Plus

               ! "            "                  "#       "$                      %!  " %$    " %      &'(( )&*)+, -.'(/01**2)+)31)4'43()56)47)(&)+43+7'89:*)&2(7&73(;'42)16, .30*7'(<=(>&23(?)/'4@'+7A&3*7'(/*'*27/+)B7&)('*)5617&7*1>3664'B)+C>@3(0;3&*04)4     "      ! "D E     FG    FHG         "    I     "      HJ   "

Shenzhen Hingin Technology Co.,Ltd Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong, 518000 China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/01/04 U.S. Agent Designation Shenzhen Hingin Technology Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A68F-LP1-PLUS): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Hingin Technology Co.,Ltd Shenzhen Hingin Technology Co.,Ltd with the FRN [0032487654] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Chang jian Zhao Manager Shenzhen Hingin Technology Co.,Ltd Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

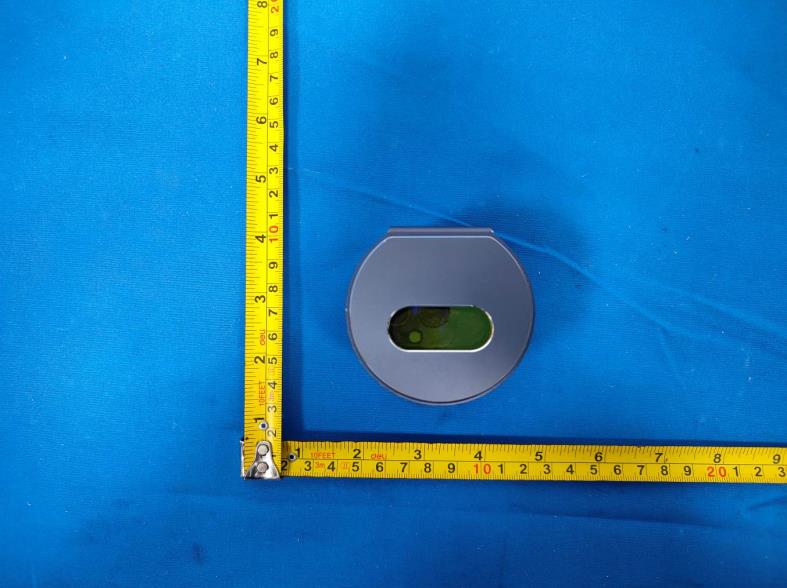

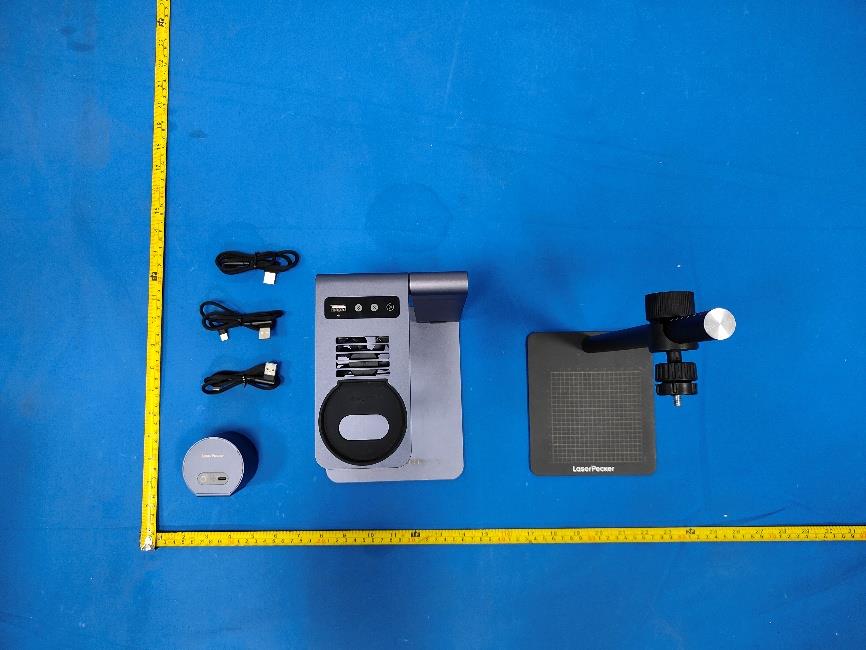

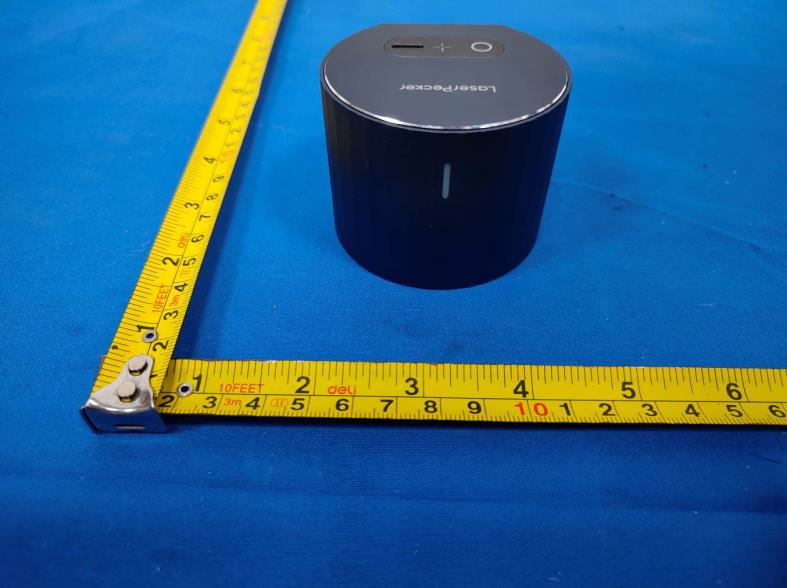

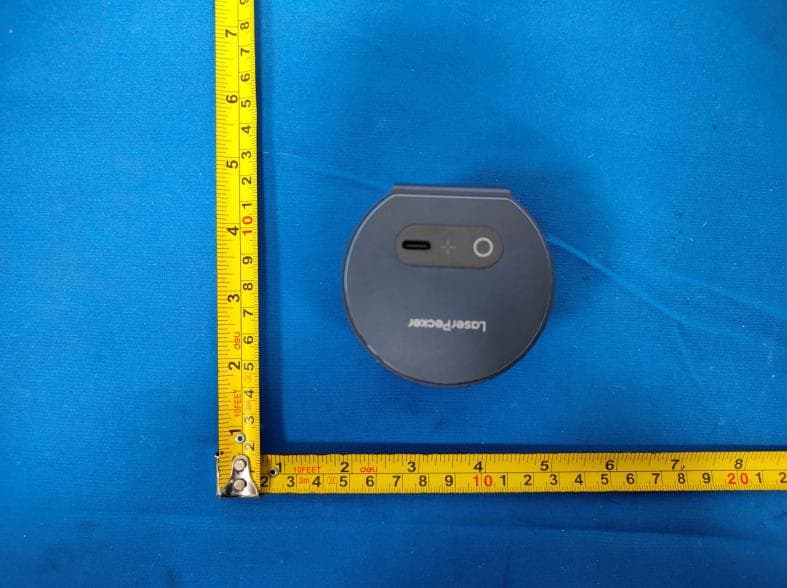

FCC ID:2A68F-LP1-PLUS External Photos of the EUT Automated Stand Stand FCC ID:2A68F-LP1-PLUS FCC ID:2A68F-LP1-PLUS

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2A68F-LP1-PLUS

FCC ID:2A68F-LP1-PLUS Internal Photos of the EUT FCC ID:2A68F-LP1-PLUS FCC ID:2A68F-LP1-PLUS FCC ID:2A68F-LP1-PLUS ANT FCC ID:2A68F-LP1-PLUS FCC ID:2A68F-LP1-PLUS

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. .................... : FCC ID. ........................................... : CTA25120901402 2A68F-LP1-PLUS Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 15, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Hingin Technology Co.,Ltd Address ........................................... : Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong, 518000 China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : LaserPecker LP1 Plus Trade Mark ....................................... : LaserPecker Manufacturer .................................... : Shenzhen Hingin Technology Co.,Ltd Model/Type reference ...................... : LP1-PLUS Listed Models ................................... : N/A Ratings ............................................. : Input: 5V2A Result ............................................... : PASS Report No.: CTA25120901402 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : LaserPecker LP1 Plus Model /Type : LP1-PLUS Listed Models : N/A Applicant : Shenzhen Hingin Technology Co.,Ltd Address : Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong, 518000 China Manufacturer : Shenzhen Hingin Technology Co.,Ltd Address : Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong, 518000 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120901402 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25120901402 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an D…

Text truncated - open the document above for the full version.

深圳市飞易通科技有限公司 www.feasycom.com Bluetooth antenna of PCB on-board specification 1，Index Item Content Page Remark 1 Index 1 2 Spec Drawing 2 3 Specification 2 4 Antenna On Test Board 3 5 Return Loss 3 6 Radiation Pattern 3 Document Type: 2.4GHZ coil antenna Document Version: V1.0 Release Date: Aug. 23，2017 Feasycom Technology Co.,Ltd. Telephone: 86-755-27924639 www.feasycom.com Room 508, Building A, Fenghuang Zhigu, No.50, Tiezai Road, Xixiang Street, Baoan District, Shenzhen 深圳市飞易通科技有限公司 www.feasycom.com 2，Spec Drawing 3，Specification Product Number: 2.4GHZ coil antenna Sample Photo: A. Electrical Characteristics Frequency 2400 ~ 2500 MHz S.W.R. <=2.0 Gain 2.0 dBi Efficiency ~ 50% Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Gold-plated copper C. Environmental Operation Temperature - 40°C ~ + 85°C Storage Temperature - 40°C ~ + 105°C 1mm+/-0.05 x4 1mm+/-0.05 x4 0.45mm+/-0.05 2mm+/-0.1 2mm+/-0.05 2.8mm+/-0.05 1.5mm+/-0.5 Ground copper 深圳市飞易通科技有限公司 www.feasycom.com 4，Antenna On Test Board 5, Return Loss 6，Radiation Pattern Radiation Pattern and Gain were dependent on measurement board design. The specification of coil antenna was measur ed based on the PCB size and installation position as shown in the below figure Test Board. FR4 Thickness 0.8mm 深圳市飞易通科技有限公司 www.feasycom.com Vertical Horizontal Y - Z Plane Average Gain=1.19 dBi Peak Gain = 2 dBi Average Gain = 0.75 dBi Peak Gain= -1.33 dBi Average Gain=-8.7 dBi X - Z Plane Average Gain=-2.91d Bi Peak Gain= -3.71 dBi Average Gain= -8.76dBi Peak Gain= -0.29 dBi Average Gain= -4.19dBi 深圳市飞易通科技有限公司 www.feasycom.com X - Y Plane Average Gain=-0.95 dBi Peak Gain= 0.77 dBi Average Gain= -5.86dBi Peak Gain= 1.35 dBi Average Gain= -2.62 dBi

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA25120901401 2A68F-LP1-PLUS Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Dec. 15, 2025 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Shenzhen Hingin Technology Co.,Ltd Address ...........................................: Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong, 518000 China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : LaserPecker LP1 Plus Trade Mark ......................................: LaserPecker Manufacturer ...................................: Shenzhen Hingin Technology Co.,Ltd Model/Type reference .....................: LP1-PLUS Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: Input: 5V2A Result ..............................................: PASS Report No.: CTA25120901401 Page 2 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : LaserPecker LP1 Plus Model /Type : LP1-PLUS Listed Models : N/A Applicant : Shenzhen Hingin Technology Co.,Ltd Address : Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong, 518000 China Manufacturer : Shenzhen Hingin Technology Co.,Ltd Address : Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong, 518000 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120901401 Page 3 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement results .............................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2A68F-LP1-PLUS Company : Shenzhen Hingin Technology Co.,Ltd EUT : LaserPecker LP1 Plus Model Number : LP1-PLUS Report No. : CTA25120901401 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.640 2401.696 2402.336 0.5 PASS 2440 0.656 2439.688 2440.344 0.5 PASS 2480 0.644 2479.696 2480.340 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0106 2401.5140 2402.5246 --- --- 2440 1.0045 2439.5170 2440.5215 --- --- 2480 1.0041 2479.5178 2480.5219 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -0.12 ≤30 PASS 2440 -0.47 ≤30 PASS 2480 -0.49 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -15.76 ≤8.00 PASS 2440 -15.94 ≤8.00 PASS 2480 -16.73 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -0.16 -51.63 ≤-20.16 PASS High 2480 -1.59 -52.37 ≤-21.59 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -0.41 -0.41 --- PASS 30~1000 -0.41 -68 ≤-20.41 PASS 1000~26500 -0.41 -42.13 ≤-20.41 PASS 2440 Reference -2.48 -2.48 --- PASS 30~1000 -2.48 -68.3 ≤-22.48 PASS 1000~26500 -2.48 -42.39 ≤-22.48 PASS 2480 Reference -2.03 -2.03 --- PASS 30~1000 -2.03 -65.34 ≤-22.03 PASS 1000~26500 -2.03 -41.87 ≤-22.03 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21

FCC ID:2A68F-LP1-PLUS Test Setup Photos of the EUT FCC ID:2A68F-LP1-PLUS
