Shenzhen Hingin Technology Co.,Ltd Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong, 518000 China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/12/26 U.S. Agent Designation Shenzhen Hingin Technology Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A68F-LP5-SG): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Hingin Technology Co.,Ltd Shenzhen Hingin Technology Co.,Ltd with the FRN [0032487654] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Chang jian Zhao Manager Shenzhen Hingin Technology Co.,Ltd Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

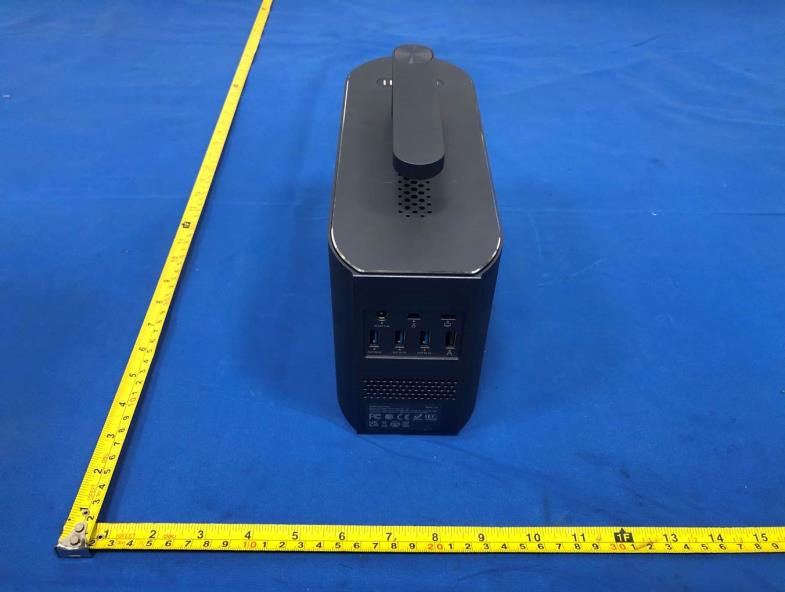

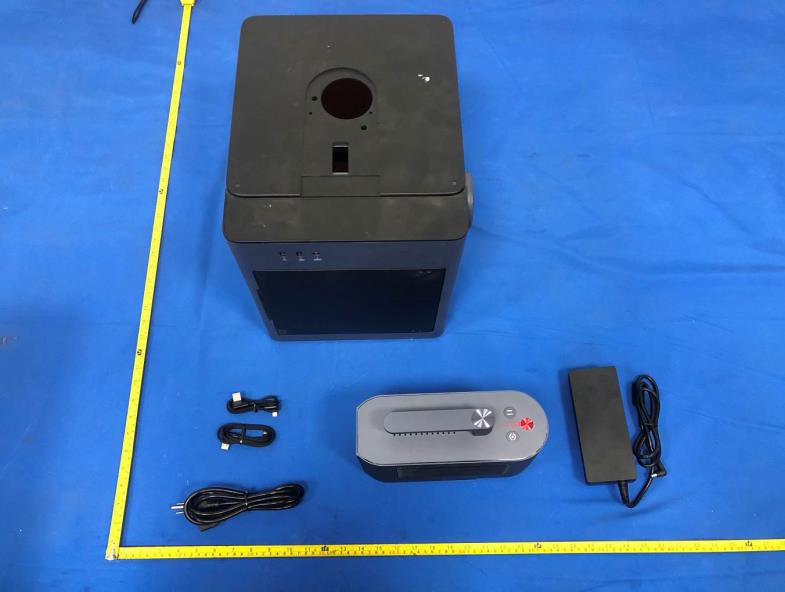

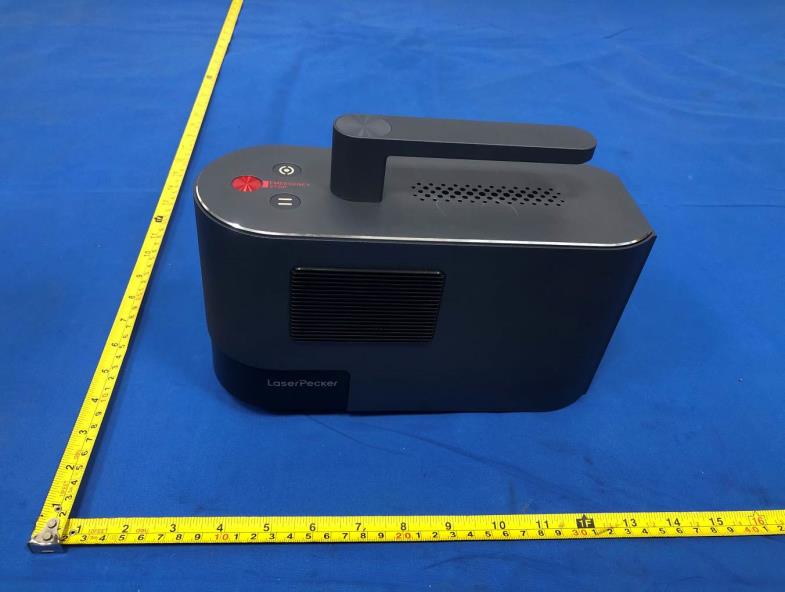

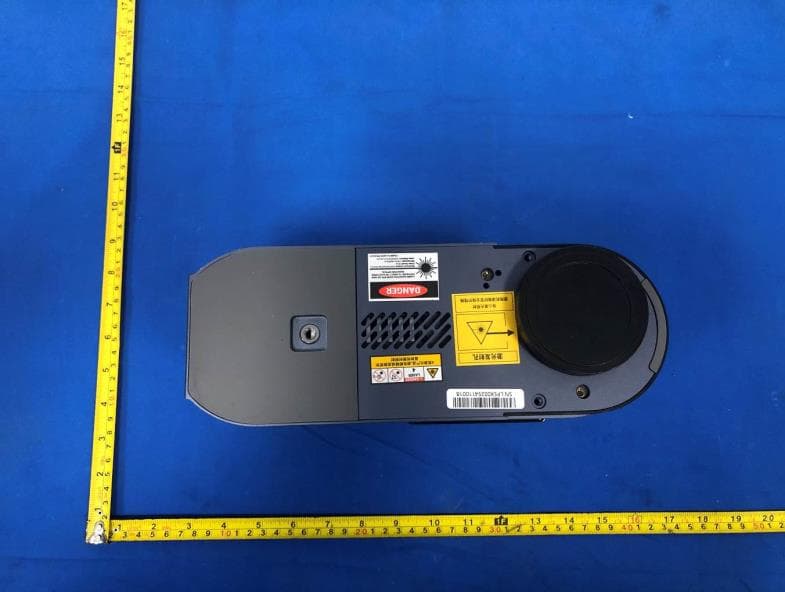

FCC ID:2A68F-LP5-SG External Photos of the EUT FCC ID:2A68F-LP5-SG FCC ID:2A68F-LP5-SG

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2A68F-LP5-SG This device complies with Part 15 of the FCC Rule Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

FCC ID:2A68F-LP5-SG Internal Photos of the EUT FCC ID:2A68F-LP5-SG FCC ID:2A68F-LP5-SG ANT FCC ID:2A68F-LP5-SG FCC ID:2A68F-LP5-SG FCC ID:2A68F-LP5-SG FCC ID:2A68F-LP5-SG FCC ID:2A68F-LP5-SG FCC ID:2A68F-LP5-SG FCC ID:2A68F-LP5-SG FCC ID:2A68F-LP5-SG

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. .................... : FCC ID. ........................................... : CTA25120901902 2A68F-LP5-SG Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 16, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Hingin Technology Co.,Ltd Address ........................................... : Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong, 518000 China Standard .......................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : LaserPecker LP5 Safeguard Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Hingin Technology Co.,Ltd Model/Type reference ...................... : LP5-SG Listed Models ................................... : N/A Rating ............................................... : Input: 24V7.5A Result ............................................... : PASS Report No.: CTA25120901902 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : LaserPecker LP5 Safeguard Model /Type : LP5-SG Listed Models : N/A Applicant : Shenzhen Hingin Technology Co.,Ltd Address : Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong, 518000 China Manufacturer : Shenzhen Hingin Technology Co.,Ltd Address : Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong, 518000 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120901902 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25120901902 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an Dis…

Text truncated - open the document above for the full version.

图纸版本号（无图纸时无需填写）： V01 嗨兴科技样品承认书 供应商名称：东莞市一佳电子通讯科技有限公司 产品名称: WIFI Antenna L=245mm MHF 物料料号：YJL01.207.001.301A 物料描述：WiFi天线，1代IPEX，O.D.1.13线材，材质PCB 承认书版次：A0版 产品研发部批准品质研发/工程 陈国强杨智郑浩楠 供应商承认栏 （此处需盖章，每份承认书需盖骑缝章） 深圳市嗨兴科技 承认栏 品质 供应商地址：东莞市长安镇沙头社区木鱼路59号元富工业区 电话：0769-82586086 传真：0769-82586086 Add: No. 59, Muyu Road, Shatou Community, Chang'an Town, Dongguan City, Yuanfu Industrial Zone 承认书项目表 NO . 内容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1 承认书封面 11 承认书封面 2 承认书项目表 12 3 工程成品图 13 4 包装图 14 5 产品规格书 95 ~ 13 6 工艺流程图 914 ~ 22 7 可靠性测试报告 223 ~ 24 8 样品检测报告 125 9 全尺寸测量报告 1269 全尺寸测量报告 126 10 环保申明 127 11 RoHS报告 13728 ~ 164 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 12N/AN/AN/A 13--- 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz qy Impedance50 Ohm Nominal V.S.W.R2.0 Max Gain 46dBi Gain 4.6 dBi RadiationOmni-directional PolarizationLinear Physical Properties Connector 1代IPEX Cable TypeO.D.1.13mm Cable Length245mm Cable ColorBlack add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% Antenna Performance TestAntenna Performance Te s t Agilent g E5071C S ParameterParameter Test // 2.4G Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Antenna Passive TestAntenna Passive Te s t Z Y X X Z Y add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Passive Test For 2.4G Antenna FreqEffiEffiGain (MHz)(%)(dB)(dBi) 240053.2 -2.7 4.3 241053.1 -2.8 4.5 242051.1 -2.9 4.3 243050.0 -3.0 4.5 244049.1 -3.1 4.3 245050.0 -3.0 4.5 246047.2 -3.3 4.2 247047.0 -3.3 4.6 248043.6 -3.6 4.1 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 249043.6 -3.6 4.2 250040.4 -3.9 3.4 Radiation Pattern For 2.4G Antenna (2450MHz) add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For 2.4G Antenna Phi 0° Phi 90° Theta 90° add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 eta 90 Active Test For WIFI Antenna BandChannel Data Rate TRPData Rate TIS WIFI 2.4G 802.11b 1 11Mbps 16.0 11Mbps -83.5 7 16.0 -83.0 13 15.8 -84.0 1 16.8 -70.2 WIFI 2.4G 802.11g 54Mbps54Mbps 7 16.6 -70.5 13 16.3 -71.0 WIFI 2.4G 802.11n 1 65Mbps 13.5 65Mbps -67.6 7 13 5-67 1 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 802.11n7 13.5 67.1 13 13.5 -66.5 Device 2.4G Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 2.4G Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA25120901901 2A68F-LP5-SG Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 16, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Hingin Technology Co.,Ltd Address ............................................ : Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong, 518000 China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : LaserPecker LP5 Safeguard Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Hingin Technology Co.,Ltd Model/Type reference ...................... : LP5-SG Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: 24V7.5A Result ............................................... : PASS Report No.: CTA25120901901 Page 2 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : LaserPecker LP5 Safeguard Model /Type : LP5-SG Listed Models : N/A Applicant : Shenzhen Hingin Technology Co.,Ltd Address : Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong, 518000 China Manufacturer : Shenzhen Hingin Technology Co.,Ltd Address : Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong, 518000 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120901901 Page 3 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions ......................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2A68F-LP5-SG Company : Shenzhen Hingin Technology Co.,Ltd EUT : LaserPecker LP5 Safeguard Model Number : LP5-SG Report No. : CTA25120901901 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.240 2431.920 2442.160 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant1 2412 15.440 2404.400 2419.840 0.5 PASS 2437 15.840 2429.160 2445.000 0.5 PASS 2462 15.960 2454.080 2470.040 0.5 PASS 11N20SISO Ant1 2412 17.280 2403.440 2420.720 0.5 PASS 2437 17.320 2428.320 2445.640 0.5 PASS 2462 17.360 2453.400 2470.760 0.5 PASS 11N40SISO Ant1 2422 35.840 2404.160 2440.000 0.5 PASS 2437 35.680 2419.240 2454.920 0.5 PASS 2452 35.520 2434.400 2469.920 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.367 2405.3627 2418.7297 --- --- 2437 13.363 2430.3508 2443.7138 --- --- 2462 13.377 2455.3291 2468.7061 --- --- 11G Ant1 2412 16.741 2403.7035 2420.4445 --- --- 2437 16.732 2428.7080 2445.4400 --- --- 2462 16.786 2453.6484 2470.4344 --- --- 11N20SISO Ant1 2412 17.808 2403.1435 2420.9515 --- --- 2437 17.803 2428.1287 2445.9317 --- --- 2462 17.784 2453.1195 2470.9035 --- --- 11N40SISO Ant1 2422 36.066 2404.0722 2440.1382 --- --- 2437 36.027 2419.1076 2455.1346 --- --- 2452 36.062 2434.0483 2470.1103 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 13.68 ≤30.00 PASS 2437 13.74 ≤30.00 PASS 2462 13.88 ≤30.00 PASS 11G Ant1 2412 12.61 ≤30.00 PASS 2437 12.86 ≤30.00 PASS 2462 13.06 ≤30.00 PASS 11N20SISO Ant1 2412 12.58 ≤30.00 PASS 2437 12.76 ≤30.00 PASS 2462 12.97 ≤30.00 PASS 11N40SISO Ant1 2422 12.86 ≤30.00 PASS 2437 13.35 ≤30.00 PASS 2452 13.14 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.47 ≤8.00 PASS 2437 -12.61 ≤8.00 PASS 2462 -12.12 ≤8.00 PASS 11G Ant1 2412 -17.73 ≤8.00 PASS 2437 -17.42 ≤8.00 PASS 2462 -18.41 ≤8.00 PASS 11N20SISO Ant1 2412 -18.36 ≤8.00 PASS 2437 -18.22 ≤8.00 PASS 2462 -17.81 ≤8.00 PASS 11N40SISO Ant1 2422 -20.66 ≤8.00 PASS 2437 -20.95 ≤8.00 PASS 2452 -20.27 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 1.26 -47.86 ≤-18.74 PASS High 2462 2.04 -56.08 ≤-17.96 PASS 11G Ant1 Low 2412 -2.84 -32.71 ≤-22.84 PASS High 2462 -2.50 -56.76 ≤-22.5 PASS 11N20SIS O Ant1 Low 2412 -3.00 -34.08 ≤-23 PASS High 2462 -2.73 -57.2 ≤-22.73 PASS 11N40SIS O Ant1 Low 2422 -6.27 -34.3 ≤-26.27 PASS High 2452 -5.91 -58.17 ≤-25.91 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 0.31 0.31 --- PASS 30~1000 0.31 -67.88 ≤-19.69 PASS 1000~26500 0.31 -55.49 ≤-19.69 PASS 2437 Reference 0.09 0.09 --- PASS 30~1000 0.09 -67.08 ≤-19.91 PASS 1000~26500 0.09 -54.35 ≤-19.91 PASS 2462 Reference 0.82 0.82 --- PASS 30~1000 0.82 -67.46 ≤-19.18 PASS 1000~26500 0.82 -55.38 ≤-19.18 PASS 11G Ant1 2412 Reference -3.75 -3.75 --- PASS 30~1000 -3.75 -68.36 ≤-23.75 PASS 1000~26500 -3.75 -55.02 ≤-23.75 PASS 2437 Reference -2.71 -2.71 --- PASS 30~1000 -2.71 -67.45 ≤-22.71 PASS 1000~26500 -2.71 -55.33 ≤-22.71 PASS 2462 Reference -2.84 -2.84 --- PASS 30~1000 -2.84 -67.94 ≤-22.84 PASS 1000~26500 -2.84 -54.8 ≤-22.84 PASS 11N20SISO Ant1 2412 Reference -2.95 -2.95 --- PASS 30~1000 -2.95 -67.57 ≤-22.95 PASS 1000~26500 -2.95 -55.01 ≤-22.95 PASS 2437 Reference -3.06 -3.06 --- PASS 30~1000 -3.06 -68.67 ≤-23.06 PASS 1000~26500 -3.06 -54.92 ≤-23.06 PASS 2462 Reference -4.44 -4.44 --- PASS 30~1000 -4.44 -68.05 ≤-24.44 PASS 1000~26500 -4.44 -54.61 ≤-24.44 PASS 11N40SISO Ant1 2422 Reference -6.64 -6.64 --- PASS 30~1000 -6.64 -68.18 ≤-26.64 PASS 1000~26500 -6.64 -55.08 ≤-26.64 PASS 2437 Reference -5.92 -5.92 --- PASS 30~1000 -5.92 -43.1 ≤-25.92 PASS 1000~26500 -5.92 -54.91 ≤-25.92 PASS 2452 Reference -5.96 -5.96 --- PASS 30~1000 -5.96 -67.79 ≤-25.96 PASS 1000~26500 -5.96 -54.78 ≤-25.96 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference

31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11G Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N20SISO Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N40SISO Ant1 2422 20.00 20.00 100.00 2437 20.00 20.00 100.00 2452 20.00 20.00 100.00 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452
