2A6IU-WX33Fast car wireless charger

Power on Indicator light is blue Charging Indicator light is green FOD Indicator light breathing Over voltage Indicator light breathing Material PC+ ABS+Aluminum Alloy(Clamp Arms) Input 5V/2A,9V/2A,9V/2.22A(QC2.0/3.0/AFC) Output 5W,7.5W,10W,15W MAX Charging Efficiency 83%MAX Support 4.7~6.7 inch Qi-enabled phone Frequency 105-205KHZ 15W Fast Charging Universal Automatically Clamping Wireless Car Charger ● To ensure a fast charging experience, use a QC2.0/QC3.0 or 18W+ USB Car Charger Adapter. ● Simply press and hold either side of the button for 6S to extinguish the ambient light. ● Press and hold either side of the button again for 6s to reactivate the ambient light. Type C input 1 Incorrect indication Wrap-around ambient light Buttons to release/close arm clamps Model: F150 2 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The FCC certification of this device refers to RF exposure testing performed in typical operating conditions, where a person is no closer than 20 centimeters from the device surface at all times, except for non-repetitive patterns with transient time intervals in the order of a second. Only in the stated conditions, the device is shown to fully comply with the FCC RF Exposure requirements of KDB 447498.

- Shenzhen Gaoyi Electronic Co.,Ltd - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/17/2024 U.S. Agent Designation Shenzhen Gaoyi Electronic Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A6IU-WX33): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Shenzhen Gaoyi Electronic Co.,Ltd. Shenzhen Gaoyi Electronic Co.,Ltd with the FRN 0032279515 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Micheal Lee Manager Shenzhen Gaoyi Electronic Co.,Ltd Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

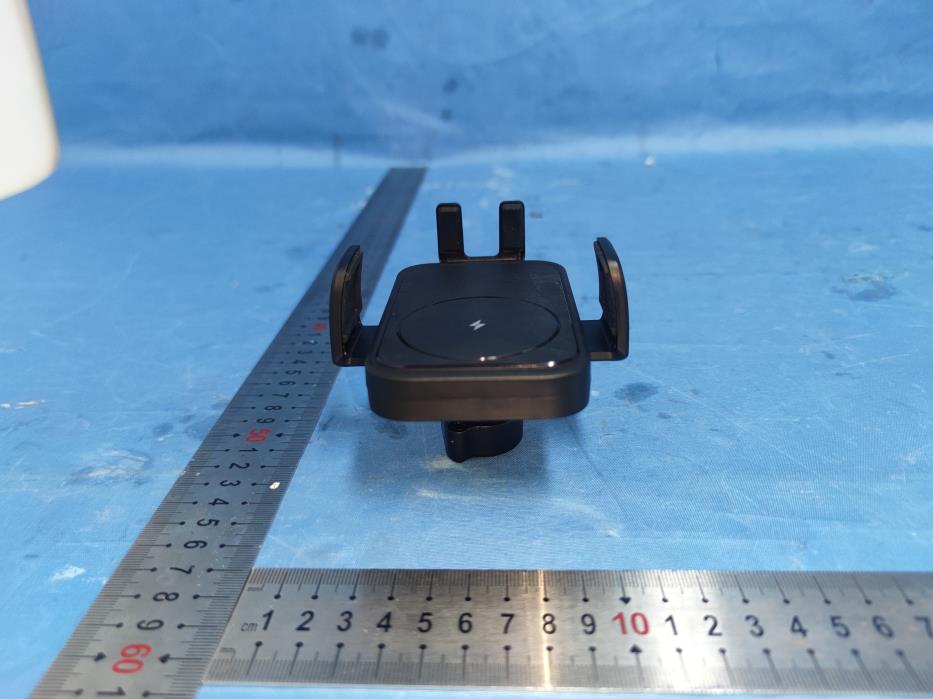

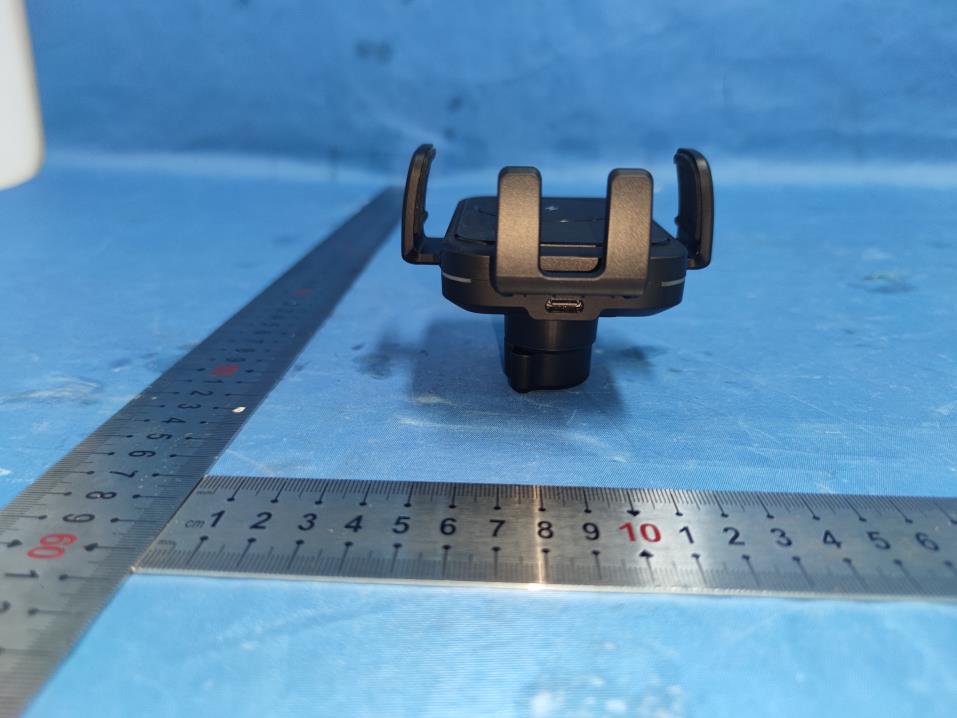

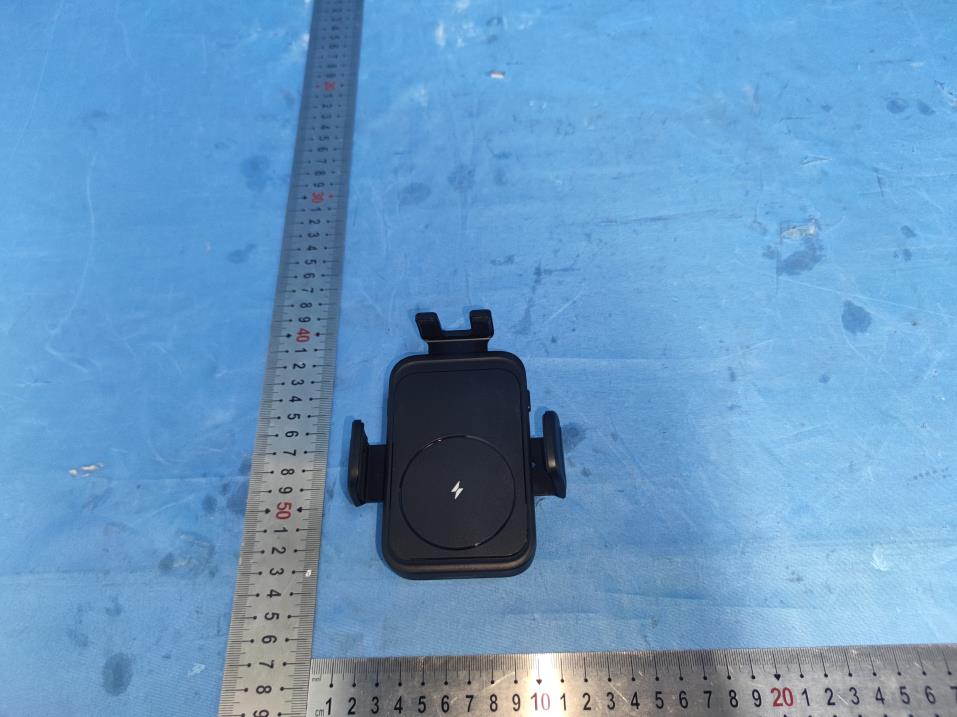

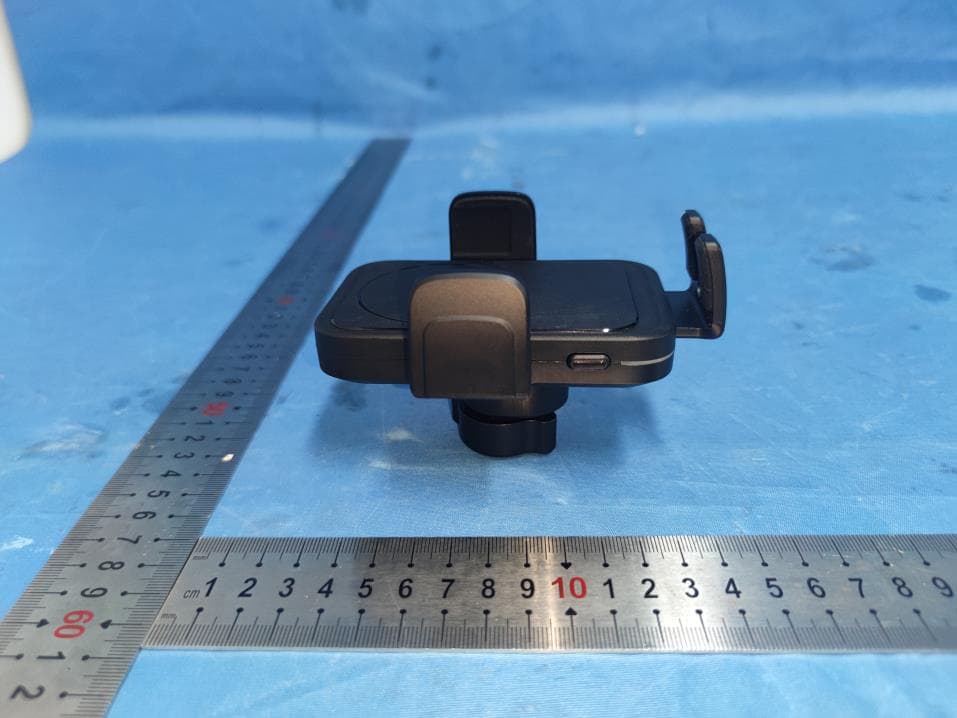

Page 1 of 3 FCC ID: 2A6IU-WX33 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 3 FCC ID: 2A6IU-WX33 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 3 FCC ID: 2A6IU-WX33 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 ---The End---

Label Size: L40mm * W25mm 1. The label is silk-screen on the sample Fast car wireless charger Model Name: WX33 FCC ID: 2A6IU-WX33 L W

Page 1 of 5 FCC ID: 2A6IU-WX33 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 phone Coil Page 2 of 5 FCC ID: 2A6IU-WX33 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 5 FCC ID: 2A6IU-WX33 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 5 FCC ID: 2A6IU-WX33 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Page 5 of 5 FCC ID: 2A6IU-WX33 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 ------End------

Page 1 of 14 Report No.: AiTSZ-240703001W3 RF Exposure Evaluation Client Information: Applicant: Shenzhen Gaoyi Electronic Co.,Ltd Applicant add.: Room 701 7th Floor, Building F, Huafeng Industrial Zone, Hangcheng Road Xixiang Town, Bao An District, Shenzhen,China Manufacturer: Dongguan Gaoyi Electronic Co.,Ltd Manufacturer add.: No.4, Changsheng Street, Tianmei Village, Huangjiang Town, DongguanCity, Guangdong Province, China Product Information: Product Name: Fast car wireless charger Model No.: N/A Brand Name: WX33 Test samples.: AiTSZ-240703001-1 FCC ID: 2A6IU-WX33 Applicable standards: FCC CFR 47 PART 1, § 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: July 03, 2024 Date of Test: July 03, 2024 ~ July 09, 2024 Date of Issue: July 09, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 14 Report No.: AiTSZ-240703001W3 1 CONTENTS COVER PAGE Page 1 CONTENTS 2 2 TEST FACILITY 4 2.1 Deviation from standard 4 2.2 Abnormalities from standard conditions 4 2.3 Test Location 4 3 GENERAL INFORMATION 5 4 TEST METHODOLOGY 6 4.1 Measuring Standard 6 4.2 Requirements 6 4.3 Limits 6 4.4 Test Setup 7 4.5 Test Procedure 7 5 Equipment Approval Considerations 8 5.1 Description of the test mode 9 5.2 Peripheral List 9 5.3 Test Instruments list 9 5.4 Duty Cycle 10 5.5 Test Result 11 1.1 Test Setup photo 12 Page 3 of 14 Report No.: AiTSZ-240703001W3 Revision History Revision Issue Date Revisions Revised By 00 July 09, 2024 Initial Issue Sean She Page 4 of 14 Report No.: AiTSZ-240703001W3 2 TEST FACILITY The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. 2.1 Deviation from standard None 2.2 Abnormalities from standard conditions None 2.3 Test Location Guangdong Asia Hongke Test Technology Limited Address: B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Page 5 of 14 Report No.: AiTSZ-240703001W3 3 GENERAL INFORMATION EUT Name: Fast car wireless charger Model No: WX33 Serial Model: WX33PRO,WX33-A,WX33-B,WX33-C,WX33-D,WX33-S,WX33PRO-S Test sample(s) ID: AiTSZ-240703001-1 Sample(s) Status: Engineer sample Operation frequency: 113kHz-205kHz Modulation Technology: ASK Antenna Type: Loop coil Antenna Antenna gain: 0dBi Hardware version.: N/A Software version.: N/A Power supply: Input: QC2.0/QC3.0/AFC Model different: Output: 5W,7.5W,10W,15W Note: For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 6 of 14 Report No.: AiTSZ-240703001W3 4 TEST METHODOLOGY 4.1 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: KDB 680106 D01 Wireless Power Transfer v04. 4.2 Requirements According to the item 3 of KDB 680106 D01v04: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Mobile Device and Portable Device Configurations (2) Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz (3) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the top surface. 4.3 Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 7 of 14 Report No.: AiTSZ-240703001W3 4.4 Test Setup 4.5 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E,F) were completed. 4) The…

Text truncated - open the document above for the full version.

Page 1 of 24 Report No.: AiTSZ-240703001W2 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. FCC TEST REPORT Client Information: Applicant: Shenzhen Gaoyi Electronic Co.,Ltd Applicant add.: Room 701 7th Floor, Building F, Huafeng Industrial Zone, Hangcheng Road Xixiang Town, Bao An District, Shenzhen,China Manufacturer: Dongguan Gaoyi Electronic Co.,Ltd Manufacturer add.: No.4, Changsheng Street, Tianmei Village, Huangjiang Town, DongguanCity, Guangdong Province, China Product Information: Product Name: Fast car wireless charger Brand Name: N/A Model No.: WX33 FCC ID: 2A6IU-WX33 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: July 03, 2024 Date of Test: July 03, 2024 ~ July 09, 2024 Date of Issue: July 09, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 24 Report No.: AiTSZ-240703001W2 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ........................................................................................................................................................... 2 2 TEST SUMMARY .................................................................................................................................................. 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................. 5 2.2 MEASUREMENT UNCERTAINTY ............................................................................................................................ 5 3 TEST FACILITY ..................................................................................................................................................... 6 3.1 DEVIATION FROM STANDARD ............................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................... 6 3.3 TEST LOCATION ................................................................................................................................................. 6 4 GENERAL INFORMATION ................................................................................................................................... 7 4.1 EUT TEST MODE ............................................................................................................................................... 8 4.2 DESCRIPTION OF TEST SETUP............................................................................................................................. 8 4.3 PERIPHERAL LIST ............................................................................................................................................... 9 4.4 EUT PERIPHERAL LIST ....................................................................................................................................... 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ..................................................................................................... 10 6 CONDUCTED EMISSION TEST ......................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT ................................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ........................................................................................... 11 6.3 TEST PROCEDURE ...................................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD ......................................................................................................... 11 6.5 TEST SETUP ................................................................................................................................................. 12 6.6 EUT OPERATING CONDITIONS .................................................................................................................. 12 6.7 TEST RESULT .................................................................................................................................................. 13 7 RADIATED EMISSION MEASUREMENT .......................................................................................................... 15 7.1 RADIATED EMISSION LIMITS .............................................................................................................................. 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ..................................................................................................... 16 7.3 TEST PROCEDURE ........................................…

Text truncated - open the document above for the full version.

承 认 书 SPECIFICATION FOR APPROVAL 客户名称（CUSTO M 高 易 电 子 有 限 公 司 客户料号（CUSTOMER P/N）： 品名（ DESCRIPTION) : DATE:2024-5-20 规格（SPECIFICATION) ：A11开L槽+背胶引线长40mm REV.NO.:A0 鸿日昇威科技承认签核、盖章 部 门确认/日期 审核/日期 批准/日期 品质 董晚红 2024-5-20 吕惠 2024-5-20 韦函满 2024-5-20 工程 何伟华 2024-5-20 韦立红 2024-5-20 韦立红 2024-5-20 备注： 高易电子有限公司承认签核、盖章 章) 开发工 程 采购 品质 备注： 深 圳 市 鸿 日 昇 威 科 技 有 限 公 司 HRSW ELECTRONICS CO.,LTD ADD ：深圳市龙华新区观澜环观中路 48 号 1 栋 2 楼 TEL：+86-755-23461055 FAX：+86-0755-28015170 page:1/3 section Confirmation/Date Audit/Date Approval/Date quality project (Seal of company) remark section Confirmation/Date Audit/Date Approval/Date (Seal of company) SPECIFICATION FOR APPROVAL 1.MECHANICAL DIMENSION (UNIT:mm) 2.SCHEMATICS: ABC D2EHI 50±1.020.5±0.50.8±0.140±34±22.8MAX5±0.5 3.WINDING： STE P START-FINISHWIRE TYPETURNSTAPE REMAR K N1S-F丝包线⌀0.08*105mm 2UEW10TS (Ref) 4.ELECTRICAL SPECIFICATION: ITEMLDCRLHI-POT TES T CON S-F 100KHz,0.25V AT 25°C 100KHz,0.25V SPEC6.3uH±10% 60mΩ Max3.8uH±15% 5.BILF OF MATERIAL： NO.ITEMMATERIAL SPECIFICATIONMANUFACTURER SGS NO. 1 NANJINGJINNINGCO,LTD 2QIAODO 3 ⌀50*TAIYI CO.,LTD 4LIANCHENG CO.,LTD 5CUDAK CO.,LTD 6⌀49*0.1CUDAK CO.,LTD HRSW ELECTRONICS CO.,LTD PART NO TITLE DRAWN BYCHECKED BY APPROVED BY 何伟华韦立红韦立红 page:2/3 1. The coil is attached to the magnetic disc, the magnetic disc size is 50±1mm, and the L-slot is opened. 2. Wrap tape 1-2Ts around the coil outlet position; 3. Glue the bottom of the magnetic separator Coil and diskette Individual coil Silk covered thread 0.08*105 strands Acetone silk-covered wire 0.08*105 strands Lead-free tin strip Lead-free tin strip Magnetic sheet Manganese zinc hard disk with L slot glue Yellow gum 9999 8mm wide high temperature adhesive paper Rubber backing High-temperature adhesive paper A11 L slot + adhesive lead length 40mm Q value SPECIFICATION FOR APPROVAL 6.SAMPLE TEST DATA 6.1DIMENSION TEST(UNIT:mm) TEST ITEMABCDEHI SPEC 41±1.0 20.5±0.50.80±0.140±3 4±22.8Max5±0.5 14120.650.86403.50 2.35 5.01 241.5920.630.87414.00 2.46 4.99 3 41.5920.650.8539.83.98 2.36 5.02 441.6720.0550.8340.023.79 2.38 4.98 541.8520.450.8440.014.02 2.28 4.99 6 7 8 9 10 MAX41.85 20.65 0.87 41.00 4.02 2.46 5.02 MIN41.00 20.65 0.83 39.80 3.50 2.28 4.98 AVERAGE41.54 20.49 0.85 40.17 3.86 2.37 4.998 6.2ELECTRICAL TEST TEST ITEM LDCRIDC QHI-POT S-FS-F TEST COND100KHz/0.25vAT 25°C SPEC 6.3uH ±10% 60mΩ(Max) 16.31 42.00 26.35 45.00 36.34 43.00 46.41 43.50 56.38 43.60 6 7 8 9 10 MAX6.41 45.00 MIN6.31 42.00 AVERAGE6.36 43.42 HRSW ELECTRONICS CO.,LTD PART NO TITLE m DRAWN BYCHECKED BYAPPROVED BY 何伟华韦立红韦立红 page:3/3 A11 L slot + adhesive lead length 40mm SPECIFICATION FOR APPROVAL 6.SAMPLE TEST DATA HI-POT A11开L槽+背胶引线长40mm APPROVED BY 韦立红 page:3/3

Page 1 of 2 FCC ID: 2A6IU-WX33 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID: 2A6IU-WX33 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Radiation (30MHz-1000MHz) ------End------
