2A6IU-X24Car Wireless Fast Charger

Wireless Specifications •Input: DC 5V2A, 9V2.22A •Output: DC 5V/1A, 7.5V/1A, 9V/1.12A, 9V/1.66A (5W, 7.5W, 10W, 15W) •Transmission distance≤5mm •Charging efficiency: 75% Max X24+DB49+M7+C81C 15W MAGNETIC WIRELESS CAR CHARGER MOUNT Work MagSafe Compatible Devices R *Up to 7.5W wireless charging for iOS devices. Compatible with official MagSafe case or Magnetic case. Wireless Features • A circle of powerful magnets works perfectly with the iPhone 12 and later, to make your phone safer. • It can be safely connected to your car's air vent thanks to the super durable adjustable hook with an anti-fall system. • Perfect match with iphone 12 and later or Qi-enabled phones at up to 15W. Note ● Only for iPhone 12 or later Series (MagSafe Case Friendly) ● Please use case with official MagSafe or thirdpart case ,Not applicable to other phone cases. Universal Wireless Charging Car Mount Type C input 1m type-C charging cable 1 2 ● With iOS 16, charging is put on hold when your iPhone becomes too hot or too cold to charge.When the following screenshot occurs. To resume charging your iPhone as quickly as possible, move it to a cooler or warmer location, or if your iPhone is in use, put it to sleep. ● If a temperature warning screen appears. To resume use of your device as quickly as possible, turn it off, move it to a cooler environment (away from direct sunlight), and allow it to cool down. PD30W 2 Car Charger Features • Material: ABS+PC • Input: DC 12-24V ⎓3A • Total Output:30W max • Type C Output:5V ⎓3A 9V⎓3A 12V⎓2.5A PPS:3.3-11V ⎓3A • Smart IC for auto-voltage detection Extend from 115mm to 165mm Adjustable Height 210° FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The FCC certification of this device refers to RF exposure testing performed in typical operating conditions, where a person is no closer than 20 centimeters from the device surface at all times, except for non-repetitive patterns with transient time intervals in the order of a second. Only in the stated conditions, the device is shown to fully comply with the FCC RF Exposure requirements of KDB 447498.

- Shenzhen Gaoyi Electronic Co.,Ltd - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/14/2024 U.S. Agent Designation Shenzhen Gaoyi Electronic Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A6IU-X24): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Shenzhen Gaoyi Electronic Co.,Ltd. Shenzhen Gaoyi Electronic Co.,Ltd with the FRN 0032279515 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Micheal Lee Manager Shenzhen Gaoyi Electronic Co.,Ltd Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

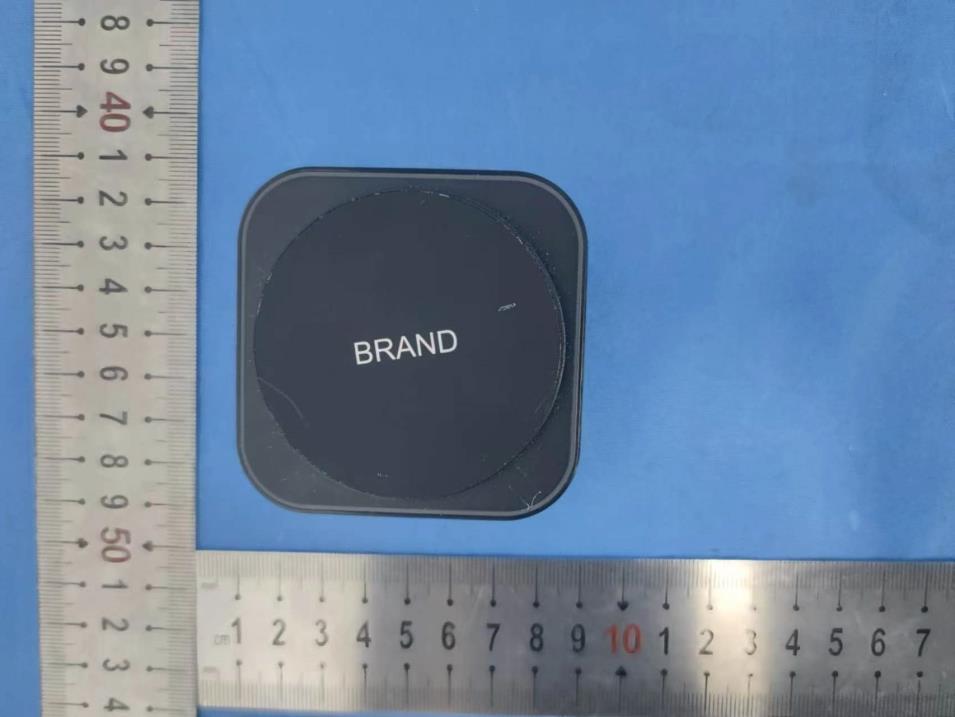

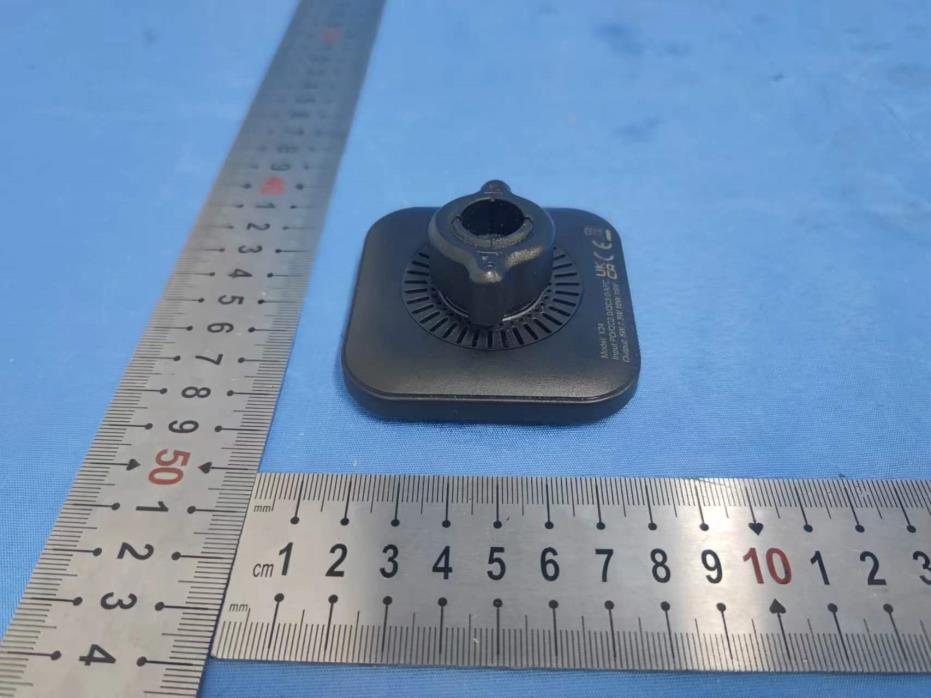

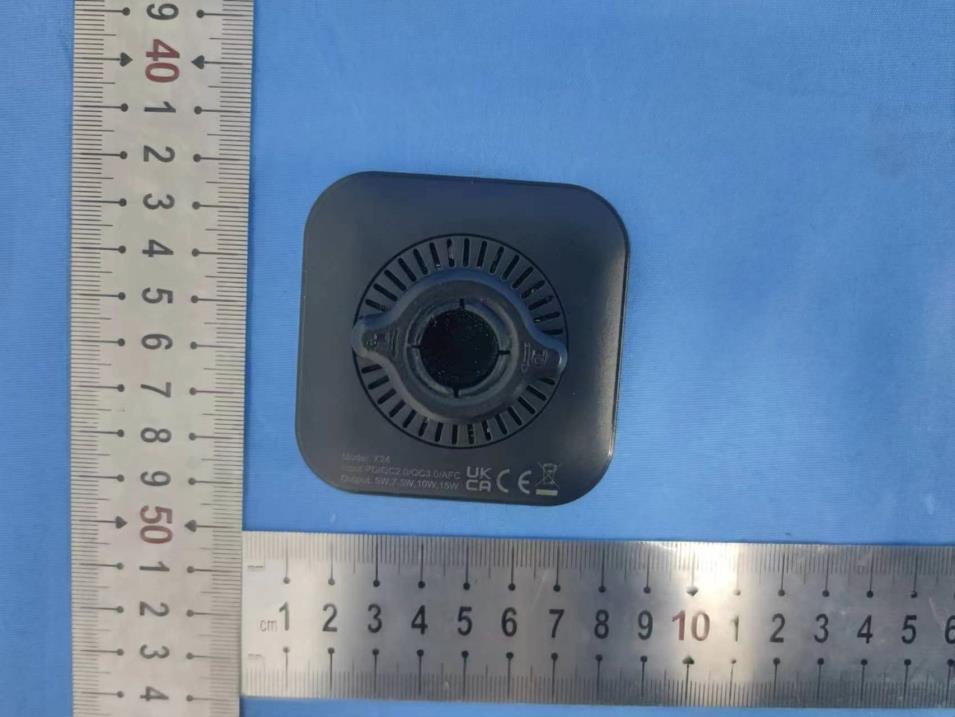

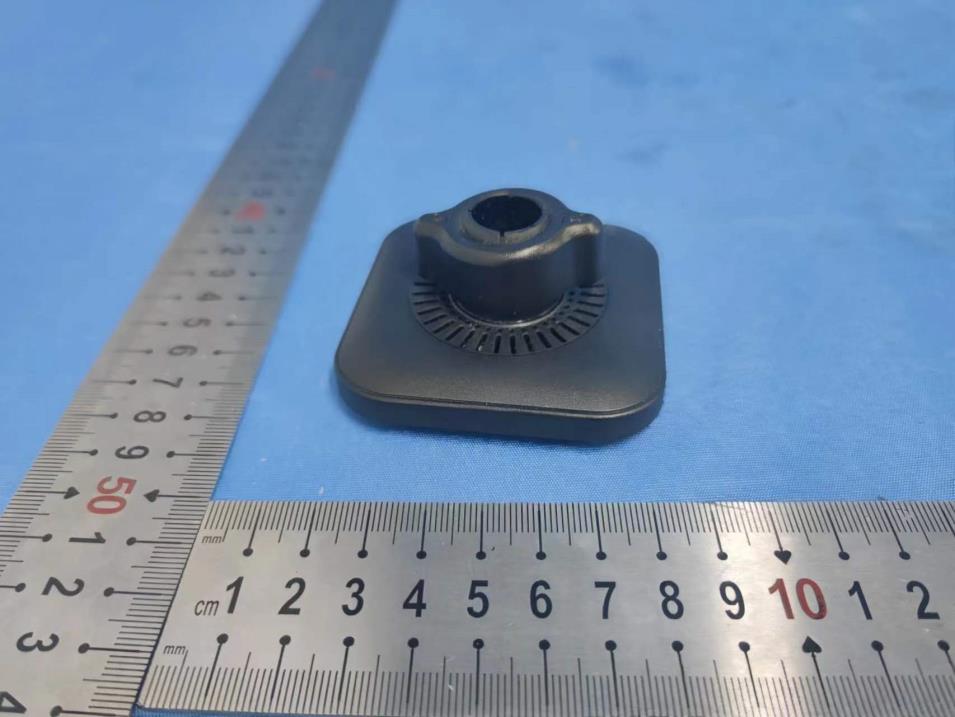

Page 1 of 3 FCC ID: 2A6IU-X24 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 3 FCC ID: 2A6IU-X24 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 3 FCC ID: 2A6IU-X24 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 ---The End---

Label Size: L55mm * W15mm 1. The label is silk-screen on the sample Car Wireless Fast Charger Model Name: X24 FCC ID: 2A6IU-X24 L W

Page 1 of 5 FCC ID: 2A6IU-X24 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Phone Coil Page 2 of 5 FCC ID: 2A6IU-X24 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 5 FCC ID: 2A6IU-X24 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 5 FCC ID: 2A6IU-X24 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Page 5 of 5 FCC ID: 2A6IU-X24 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 ------End------

Page 1 of 14 Report No.: AITSZ24052703W2 RF Exposure Evaluation Client Information: Applicant: Shenzhen Gaoyi Electronic Co.,Ltd Applicant add.: Room 701 7th Floor, Building F, Huafeng Industrial Zone, Hangcheng Road Xixiang Town, Bao An District, Shenzhen,China Manufacturer: Dongguan Gaoyi Electronic Co.,Ltd Manufacturer add.: No.4, Changsheng Street, Tianmei Village, Huangjiang Town, DongguanCity, Guangdong Province, China Product Information: Product Name: Car Wireless Fast Charger Model No.: X24 Brand Name: N/A FCC ID: 2A6IU-X24 Applicable standards: FCC CFR 47 PART 1, § 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: May 27, 2024 Date of Test: May 27, 2024 ~ Jun. 07, 2024 Date of Issue: Jun. 07, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 14 Report No.: AITSZ24052703W2 1 CONTENTS COVER PAGE Page 1 CONTENTS 2 2 TEST FACILITY 4 2.1 Deviation from standard 4 2.2 Abnormalities from standard conditions 4 2.3 Test Location 4 3 GENERAL INFORMATION 5 4 TEST METHODOLOGY 6 4.1 Measuring Standard 6 4.2 Requirements 6 4.3 Limits 6 4.4 Test Setup 7 4.5 Test Procedure 7 5 Equipment Approval Considerations 8 5.1 Description of the test mode 9 5.2 Peripheral List 9 5.3 Test Instruments list 9 5.4 Duty Cycle: 10 5.5 Test Result 11 1.1 Test Setup photo 12 Page 3 of 14 Report No.: AITSZ24052703W2 Revision History Revision Issue Date Revisions Revised By 00 Jun. 07, 2024 Initial Issue Sean She Page 4 of 14 Report No.: AITSZ24052703W2 2 TEST FACILITY The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. 2.1 Deviation from standard None 2.2 Abnormalities from standard conditions None 2.3 Test Location Guangdong Asia Hongke Test Technology Limited Address: B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Page 5 of 14 Report No.: AITSZ24052703W2 3 GENERAL INFORMATION EUT Name: Car Wireless Fast Charger Model No: X24 Serial Model: X24PRO,X24PRO-Q,X24-QI2,STG-7068-KB Test sample(s) ID: AITSZ24052703001 Sample(s) Status: Engineer sample Operation frequency: 115kHz-205kHz Modulation Technology: ASK Antenna Type: Loop coil Antenna Antenna gain: 0dBi Hardware version.: N/A Software version.: N/A Power supply: Input: DC5V2A,9V2.22A Output:DC5V/1A,7.5V/1A,9V/1.12A,9V/1.66A 5W,7.5W,10W,15W Model different: Different model names Note: For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 6 of 14 Report No.: AITSZ24052703W2 4 TEST METHODOLOGY 4.1 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: KDB 680106 D01 Wireless Power Transfer v04. 4.2 Requirements According to the item 3 of KDB 680106 D01v04: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Mobile Device and Portable Device Configurations (2) Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz (3) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the top surface. 4.3 Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 7 of 14 Report No.: AITSZ24052703W2 4.4 Test Setup 4.5 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E,F) were completed. 4) The EUT was measur…

Text truncated - open the document above for the full version.

Page 1 of 24 Report No.: AITSZ24052703W1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. FCC TEST REPORT Client Information: Applicant: Shenzhen Gaoyi Electronic Co.,Ltd Applicant add.: Room 701 7th Floor, Building F, Huafeng Industrial Zone, Hangcheng Road Xixiang Town, Bao An District, Shenzhen,China Manufacturer: Dongguan Gaoyi Electronic Co.,Ltd Manufacturer add.: No.4, Changsheng Street, Tianmei Village, Huangjiang Town, DongguanCity, Guangdong Province, China Product Information: Product Name: Car Wireless Fast Charger Brand Name: N/A Model No.: X24 FCC ID: 2A6IU-X24 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: May 27, 2024 Date of Test: May 27, 2024 ~ Jun. 07, 2024 Date of Issue: Jun. 07, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 24 Report No.: AITSZ24052703W1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS .................................................................................................................................................... 2 2 TEST SUMMARY ............................................................................................................................................ 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ......................................................................................... 5 2.2 MEASUREMENT UNCERTAINTY ...................................................................................................................... 5 3 TEST FACILITY .............................................................................................................................................. 6 3.1 DEVIATION FROM STANDARD ......................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS ............................................................................................... 6 3.3 TEST LOCATION .......................................................................................................................................... 6 4 GENERAL INFORMATION ............................................................................................................................. 7 4.1 EUT TEST MODE ........................................................................................................................................ 8 4.2 DESCRIPTION OF TEST SETUP ....................................................................................................................... 8 4.3 PERIPHERAL LIST ........................................................................................................................................ 9 4.4 EUT PERIPHERAL LIST ................................................................................................................................ 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ................................................................................................. 10 6 CONDUCTED EMISSION TEST.................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT............................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ....................................................................................... 11 6.3 TEST PROCEDURE ............................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD .................................................................................................... 11 6.5 TEST SETUP .......................................................................................................................................... 12 6.6 EUT OPERATING CONDITIONS ............................................................................................................ 12 6.7 TEST RESULT ........................................................................................................................................... 13 7 RADIATED EMISSION MEASUREMENT ..................................................................................................... 15 7.1 RADIATED EMISSION LIMITS ........................................................................................................................ 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ................................................................................................ 16 7.3 TEST PROCEDURE ..................................................................................................................................... 16 7.4 DEVIATION FROM TEST STANDARD .........................…

Text truncated - open the document above for the full version.

深圳市银龙腾飞电子有限公司 客户/Client 料号/NO 高易电子 产品型号 ModelNO丝包线圈 43.5*5.3*1.0H-6.3UH 客户料号 工程编号 2023-12--6 本公司工程部/ 修改内容/认可日期/ 编制/Prepared 审核/Checked认可/Approved 客户认可回签 工程 认可/QC 认可日期 一、线圈工艺/ NO 绕组 线规 匝数 绕线方向 备注 1N12UEW-B-0.08*105P10TSCCW 2 日期/Date Shenzhen silver dragon Tengfei Electronics Co., LTD Silk covered coil Silk covered coil Project number Project number Engineering Department of our compan Modify content date The customer accepts the countersign /ENGINEERING / date Coil technology winding Number of turns Winding direction remark Wire gauge 深圳市银龙腾飞电子有限公司 二．电气性能/FEATURES: 1.测试条件(Testconditions)：25°C,65%RH@1KHz/0.25V 1.1电感量(Inductance) 1.11L0A(单独线圈)=5.0uH±10% 1.12L0A(线圈+磁片)=6.3uH±10% 1.2Q值=70MIN 1.3直流电阻(DCR)：55mΩMAX 1.4工作温度(OperatingTemperature)：-25°C~85°C 2.测试仪器(Testinstrument)：L:创达1068+1310;DCR:502BC;SIZE:Callipers 3.材料清单 NO 项目材料 1WIRE￠0.08*105p2UEW-1.1mm 2FERRITE 43.5*5.3*1.0H 3GLUE 白胶 4SOLDERXCD-907B 5 Adhesive 普通背胶 6 Hightemperatureadhesive 7 8 三．电路图/CIRCUITDIAGRAM 单位 ： MM Shenzhen silver dragon Tengfei Electronics Co., LTD Individual coil Coil + diskette Q value /Bill of materials /item /Materials Single hole double slot ferrite hard magnetic White glue Common adhesive unit 深圳市银龙腾飞电子有限公司 四．外形图/OUTSIDEDIAGRA 标准 AB C DEFIT STD43.5 20.5± 0.5 5.30 ± 0.225 ± 22.5 ± 1 42.±0.5 1.0 ±0.2 2.6Max 五．包装 /PACKAGE Shenzhen silver dragon Tengfei Electronics Co., LTD 单位 ： MM unit 深圳市银龙腾飞电子有限公司 1440 Shenzhen silver dragon Tengfei Electronics Co., LTD 深圳市银龙腾飞电子有限公司 6.1.1建议贮存条件：温度-25°C ~ 85°C，湿度70%(Max.) Recommendedkeepingconditions:-25°C ~ 85°C,70%RH(Max.) 6.1.2贮存期限：自生产之日起六个月内 Storagelife:Withinthelimitsofsixmonthsfrombeingproduced. 使用条件限制：温度=-25°C ~ 85°C,湿度≤90% Useconditionlimit:T=-25°C ~ 85°C,RH≤90%. Shenzhen silver dragon Tengfei Electronics Co., LTD

Page 1 of 2 FCC ID: 2A6IU-X24 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID: 2A6IU-X24 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Radiation (30MHz-1000MHz) ------End------
