2A6IU-X23PROCar Wireless Fast Charger

- Shenzhen Gaoyi Electronic Co.,Ltd - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/19/2024 U.S. Agent Designation Shenzhen Gaoyi Electronic Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A6IU-X23PRO): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Shenzhen Gaoyi Electronic Co.,Ltd. Shenzhen Gaoyi Electronic Co.,Ltd with the FRN 0032279515 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature [Name] [Title] Shenzhen Gaoyi Electronic Co.,Ltd Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

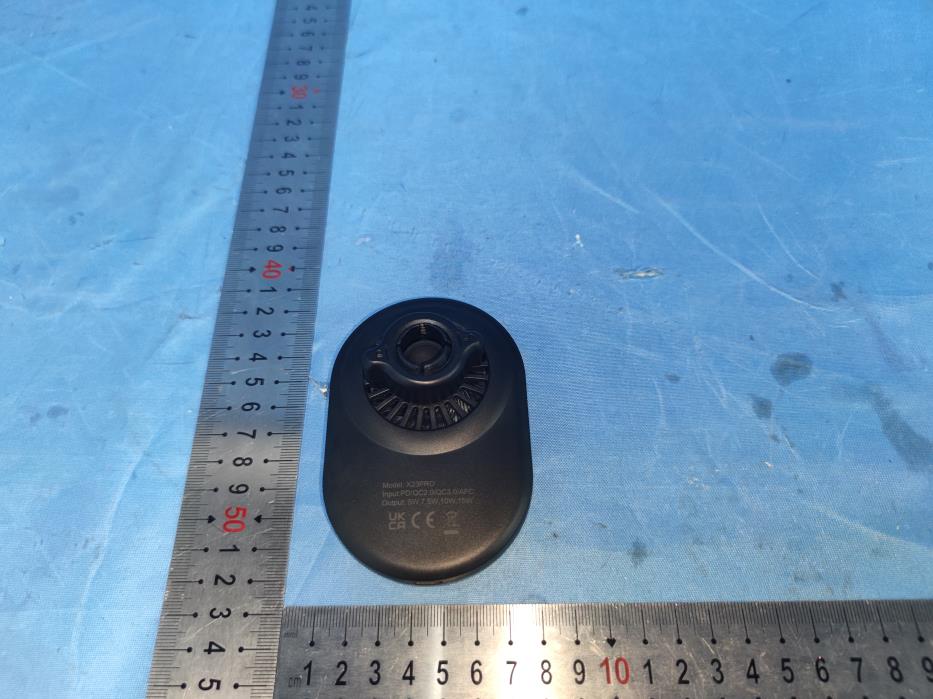

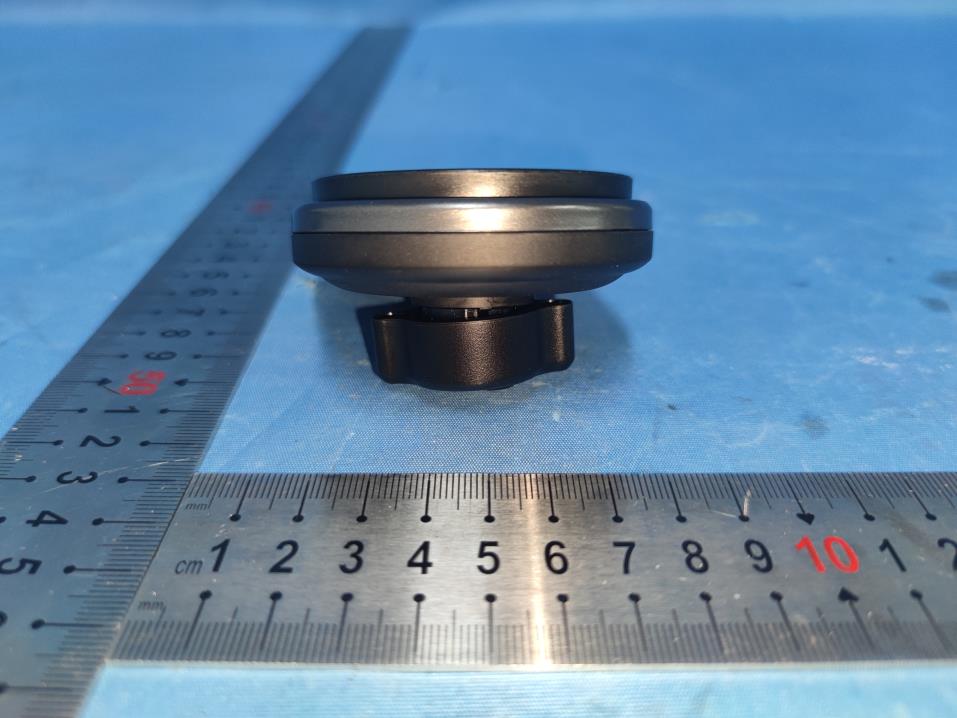

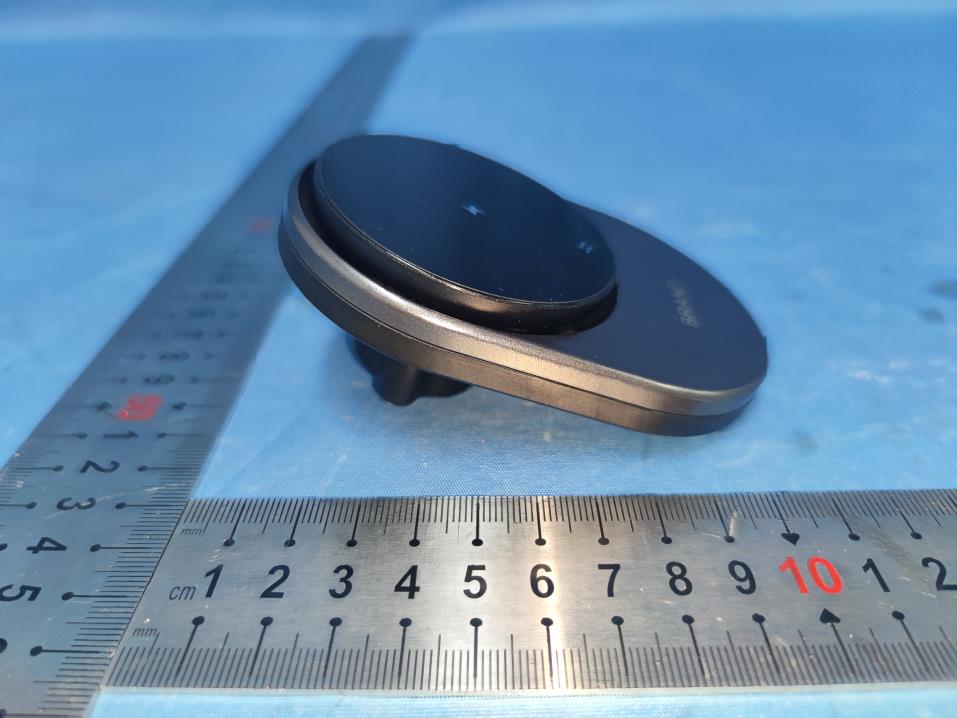

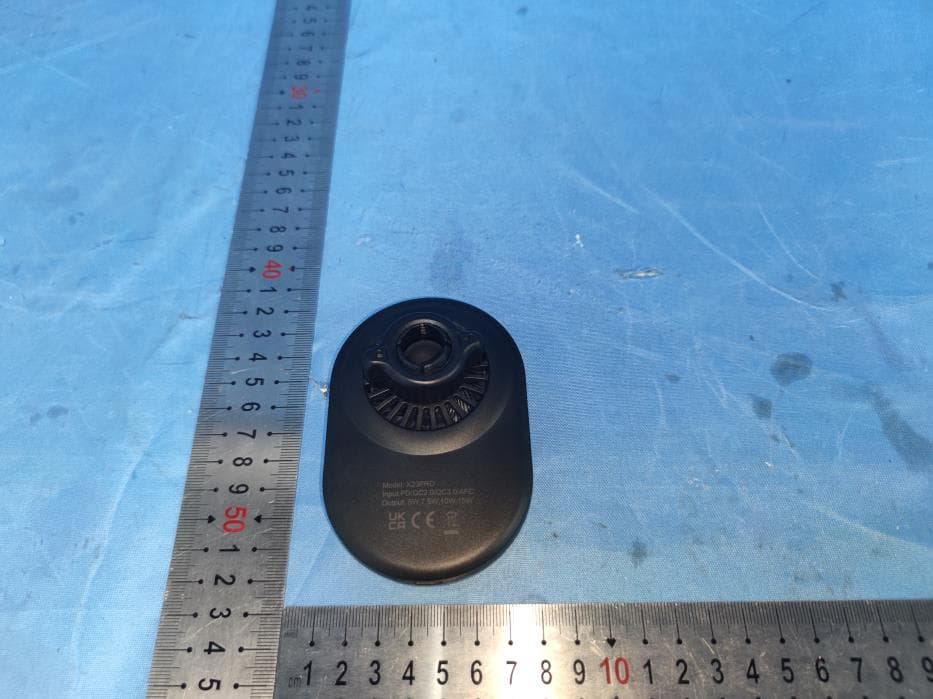

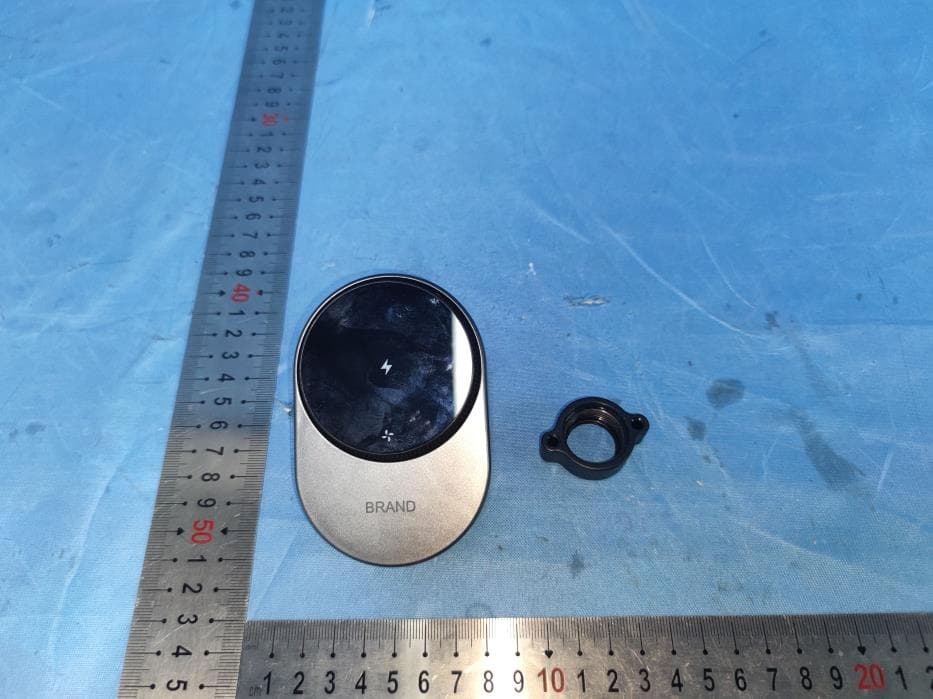

Page 1 of 4 FCC ID: 2A6IU-X23PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 4 FCC ID: 2A6IU-X23PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2A6IU-X23PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2A6IU-X23PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 ---The End---

Label Size: L35mm * W20mm 1. The label is silk-screen on the sample Car Wireless Fast Charger Model Name: X23PRO FCC ID: 2A6IU-X23PRO L W

Page 1 of 5 FCC ID: 2A6IU-X23PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 5 FCC ID: 2A6IU-X23PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Coil Antenna Page 3 of 5 FCC ID: 2A6IU-X23PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 5 FCC ID: 2A6IU-X23PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Page 5 of 5 FCC ID: 2A6IU-X23PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 ------End------

Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : Car Wireless Fast Charger Brand Name : N/A Model : X23PRO Series Model : X23S-W, X23, X23C, X23A T, X23P, X23PRO-A, X23PRO-B, X23PRO-Q, X23C, X23PRO-S, X23R FCC ID : 2A6IU-X23PRO Applicant : Shenzhen Gaoyi Electronic Co.,Ltd Address : Room 701 7th Floor, Building F, Huafeng Industrial Zone, Hangcheng Road Xixiang Town, Bao An District, Shenzhen,China Manufacturer : Dongguan Gaoyi Electronic Co.,Ltd Address : No.4, Changsheng Street, Tianmei Village, Huangjiang Town, DongguanCity, Guangdong Province, China Standard(s) : FCC CFR 47 PART 1, § 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Date of Receipt : July 31, 2024 Date of Test : July 31, 2024 ~ Aug.07, 2024 Issued Date : Aug.07, 2024 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Leon.yi Sean She Page 2 of 12 Report No.: AiTSZ-240731002W2 Report Revise Record Report Version Issued Date Notes M1 Aug.07, 2024 Initial Release Page 3 of 12 Report No.: AiTSZ-240731002W2 Contents 1 GENGENERAL INFORMATION ................................................................................................................................ 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2.1 DESCRIPTION OF THE TEST MODE ..................................................................................................................................... 6 2.2 SPECIAL ACCESSORIES ................................................................................................................................................... 6 2.3 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 6 3 TEST CONDITIONS AND RESULTS ........................................................................................................................... 7 3.1 APPLICABLE STANDARD .................................................................................................................................................. 7 3.2 LIMIT ......................................................................................................................................................................... 7 3.3 TEST SETUP ................................................................................................................................................................. 7 3.4 MEASUREMENT PROCEDURE .......................................................................................................................................... 8 3.5 TEST RESULT OF E AND H FIELD STRENGTH ........................................................................................................................ 8 3.6 EQUIPMENT APPROVAL CONSIDERATIONS ......................................................................................................................... 9 3.7 CONCLUSION ............................................................................................................................................................... 9 4 TEST SETUP PHOTOGRAPHS OF EUT .................................................................................................................... 10 Page 4 of 12 Report No.: AiTSZ-240731002W2 1 GENGENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: Car Wireless Fast Charger Model/Type reference: X23PRO Serial Model: X23S-W,X23,X23C,X23A T,X23P,X23PRO-A,X23PRO-B,X23PRO-Q, X23C,X23PRO-S,X23R Power Supply: Input:PD/QC2.0/0C3.0/AFC Output: 5W,7.5W,10W,15W Hardware version: N/A Software version: N/A Sample(s) Status: AiTSZ-240731002-01(Normal sample) AiTSZ-240731002-02(Engineer sample) Wireless Charger: Operation frequency: 115kHz-205kHz Modulation Technology: ASK Antenna Type: Loop coil Antenna Antenna gain: 0dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 5 of 12 Report No.: AiTSZ-240731002W2 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park…

Text truncated - open the document above for the full version.

深圳市银龙腾飞电子有限公司 客户/Client 料号/NO 高易电子 产品型号 Model NO Hot air coil 44*5.3*0.8H-6.8UH 客户料号 工程编号 E.L.X.XQ00000027 2024-1-26 本公司工程部/For 修改内容/ 认可日期/ 编制/Prepared 审核/Checked 认可/Approved 客户认可回签 工程 认可/QC 认可日期 一、 线圈工艺/ Coil technology NO winding guage number of turns direction of winding remark 1 N1 2UEW-B-0.08*105P 10TS CCW 2 日期/Date 深圳市银龙腾飞电子有限公司 二． 电气性能/FEATURES: 1.测试条件 (Test conditions) ：25°C,65%RH@1KHz/0.25V 1.1 电感量 ( Inductance) 1.11 L0A (Individual coil) =5.0uH ± 10% 1.12 L0A(Coil + diskette)=6.8uH ± 10% 1.2 Q value =70MIN 1.3 直流电阻 ( DCR) ： 55mΩ MAX 1.4 工作温度(Operating Temperature)： -25°C ~85°C 2.测试仪器(Test instrument) ：L:创达 1068+1310;DCR:502BC;SIZE:Callipers 3.材料清单bill of materials NO project materials 1 WIRE ￠0.08*105p 2UEW-0.08mm 2 FERRITE 44*5.3*0.8H Single hole double slot ferrite hard magnetic 3 GLUE white glues 4 SOLDER XCD-907B 5 Adhesive Common adhesive 6 High temperature adhesive 7 FERRITE 19.5*1MM center column 8 三 ．电路图/CIRCUIT DIAGRAM 单位： MM 深圳市银龙腾飞电子有限公司 四．外形图/OUTSIDE DIAGRA 标准 A B C D E F I T STD 44 20 5.30 19 3±1 43±1 1.0±0.5 3 Max 单位： MM 天线增益Antenna gain: Operation frequency: 113kHz-205kHz Antenna Type: Loop coil Antenna Antenna gain: 0dBi 深圳市银龙腾飞电子有限公司 6.1.1 建议贮存条件：温度-25°C~ 85°C ，湿度 70% (Max.) Recommended keeping conditions: -25°C ~85°C , 70%RH (Max.) 6.1.2 贮存期限： 自生产之日起六个月内 Storage life : Within the limits of six months from being produced. 使用条件限制：温度=-25°C~ 85°C , 湿度≤ 90% Use condition limit: T=-25°C~85°C , RH≤ 90%.

Page 1 of 2 FCC ID: 2A6IU-X23PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID: 2A6IU-X23PRO Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Radiation (30MHz-1000MHz) ------End------
