2A6KA-AB216Vlogging Tripod

Dongguan OSM Digital Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Dongguan OSM Digital Co., Ltd Address: 501, Building 2, No.6 Tiansha Road, Keyuan City, Tangxia Town, Dong guan City, China Product Name: Vlogging Tripod FCC ID: 2A6KA-AB216 Model(s): Oth-AB216, Oth-AB216B, Oth-AB216Max, Oth-AB216Max+, Oth-AB403E, Oth-AB202, Oth-AB202B, Oth-AB202C, AB202D, AB202E, AB202F, AB202G, Oth-AB202Max, Oth-AB202PRO 2.911(d)(5)(i) Equipment Type We, [Dongguan OSM Digital Co., Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Anmy cheng Date: 2023/05/08 Title and Company name: Manager / Dongguan OSM Digital Co., Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Dongguan OSM Digital Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Dongguan OSM Digital Co., Ltd Address: 501, Building 2, No.6 Tiansha Road, Keyuan City, Tangxia Town, Dong guan City, China Product Name: Vlogging Tripod FCC ID: 2A6KA-AB216 Model(s): Oth-AB216, Oth-AB216B, Oth-AB216Max, Oth-AB216Max+, Oth-AB403E, Oth-AB202, Oth-AB202B, Oth-AB202C, AB202D, AB202E, AB202F, AB202G, Oth-AB202Max, Oth-AB202PRO 2.911(d)(5)(ii) Applicant filing We, [Dongguan OSM Digital Co., Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Anmy cheng Date: 2023/05/08 Title and Company name: Manager / Dongguan OSM Digital Co., Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Dongguan OSM Digital Co., Ltd Agent Authorization Company: Dongguan OSM Digital Co., Ltd Address: 501, Building 2, No.6 Tiansha Road, Keyuan City, Tangxia Town, Dong guan City, China Product Name: Vlogging Tripod Model Number(s): Oth-AB216, Oth-AB216B, Oth-AB216Max, Oth-AB216Max+, Oth-AB403E, Oth-AB202, Oth-AB202B, Oth-AB202C, AB202D, AB202E, AB202F, AB202G, Oth-AB202Max, Oth-AB202PRO We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023/05/08 Name: Anmy cheng Title: Manager Company: Dongguan OSM Digital Co., Ltd

Dongguan OSM Digital Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023/05/08 Subject; Request for Confidentiality FCC ID: 2A6KA-AB216 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Anmy cheng Title: Manager

Dongguan OSM Digital Co., Ltd Model Difference 2023-05-08 EUT NAME: Vlogging Tripod FCC ID: 2A6KA-AB216 MODEL : Oth-AB216, Oth-AB216B, Oth-AB216Max, Oth-AB216Max+, Oth- AB403E, Oth-AB202, Oth-AB202B, Oth-AB202C, AB202D, AB202E, AB202F, AB202G, Oth-AB202Max, Oth-AB202PRO All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : Anmy cheng / Manager Contact information / address: 501, Building 2, No.6 Tiansha Road, Keyuan City, Tangxia Town, Dong guan City, China

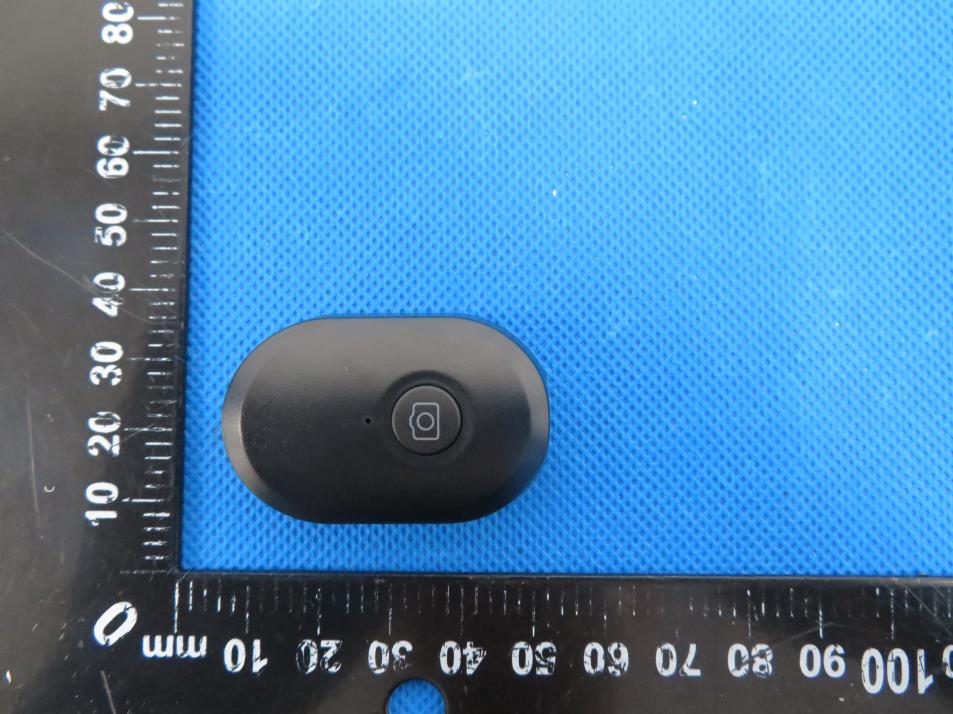

External Photos

Label & label location Size:20*10mm Vlogging Tripod FCC ID: 2A6KA-AB216 Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2A6KA-AB216 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE Frequency Maximum Conducted Output Power(PK) Conducted Output Power Limit (MHz) (dBm) dBm GFSK 2402 -2.27 30 2440 -2.24 30 2480 -2.22 30 max possible output power (PK,conducted)：-2±1dBm 0dBi logarithmic terms convert to numeric result is nearly 1 -1dBm=0.79mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=0.79/5*√2.402=0.245≤3.0 2440MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.79/5*√2.440=0.247≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.79/5*√2.48=0.249≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

1 Antenna describe 1.Antennadescribe; Antenna plate Monoploe antenna Make name/model name AB216 Antenna gain 0dBi Frequency range 2.402GHZ—2.480GHZ Connector type Direct Manufacturer information SHENZHENSHI XINXINZHILIAN TECHNOLOG.CO,LTD Address: No. 5, Xinqiao Jinyuan Road 2, Xinqiao Community, Xinqiao Street, Bao 'an District, Shenzhen 2.External view drawing; Picture of antenna 2 3 4

No.：BCTC/RF-EMC-005 Page: 1 of 43 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2304220658E Applicant: Dongguan OSM Digital Co., Ltd Product Name: Vlogging Tripod Model/Type Ref.: Oth-AB216 Tested Date: 2023-04-06 to 2023-04-20 Issued Date: 2023-04-20 Report No.: BCTC2304220658E No.：BCTC/RF-EMC-005 Page: 2 of 43 Edition：A.5 FCC ID: 2A6KA-AB216 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Vlogging Tripod Trademark: SEAJIC Model/Type Ref.: Oth-AB216 Oth-AB216B, Oth-AB216Max, Oth-AB216Max+, Oth-AB403E, Oth-AB202, Oth-AB202B, Oth-AB202C, AB202D, AB202E, AB202F, AB202G, Oth-AB202Max, Oth-AB202PRO Prepared For: Dongguan OSM Digital Co., Ltd Address: 501, Building 2, No.6 Tiansha Road, Keyuan City, Tangxia Town, Dong guan City, China Manufacturer: Dongguan OSM Digital Co., Ltd Address: 501, Building 2, No.6 Tiansha Road, Keyuan City, Tangxia Town, Dong guan City, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-04-06 Sample tested Date: 2023-04-06 to 2023-04-20 Issue Date: 2023-04-20 Report No.: BCTC2304220658E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2304220658E No.：BCTC/RF-EMC-005 Page: 3 of 43 Edition：A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ............................................................................................................. 9 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test Procedure ................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test Procedure ................................................................................................... 18 7.4 EUT Operating Conditions .................................................................................. 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test Procedure ................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Power Spectral Density Test ............................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test Procedure ................................................................................................... 26 9.4 EUT Operating Conditions .................................................................................. 26 9.5 T…

Text truncated - open the document above for the full version.

Report No.: BCTC2304220658E No.：BCTC/RF-EMC-005 Page: 41 of 43 Edition：A.5 15. EUT Test Setup Photographs Conducted Emissions Photo Report No.: BCTC2304220658E No.：BCTC/RF-EMC-005 Page: 42 of 43 Edition：A.5 Radiated Measurement Photos
