2A6T2-X98HSmart TV BOX

Connection Interface Package Contents The Screen CastingMulti-screen Interaction Installation Steps Key Features Smart Phone Tablet PC TV Router How to use: After your device ( s ) and TV Box are connected to the same network, the logo will show up in the related applications of your device ( s ). Click the and share the photos, music and videos on T V. Device x1 Allwinner H618 CPU: Quad-core ARM Cortex A53 processor GPU: Mali G31, supports OpenGL ES 1.0 / 2.0 / 3.2 , Vulkan 1.1, OpenCL 2.0. 100M Ethernet, 802.11b/g/n/ac/ax 2.4G/5G WiFi6 BT 5.X. Power Adapter x1HD Cable x1 Connect the TV Box with the power supply . Connect the TV Box to the TV with an HD cable or AV cable. For a wired connection, plug in Ethernet cable from the TV Box to your modem or router. For wireless, choose your Wi-Fi network and input the Wi-Fi password. Introduction: The TV Box lets you play photos, music and videos from smart phone or tablet computer on TV. Preparation: Make sure your device ( s ) and TV Box are connected to the same network. Supports video decoding up to 4K 60fpsSupports multi-formats: H265 Main10 L5.1 up to 4K 60fps and 6K 30fps. Remote Control x1 Android 12.0 OS,OTA upgrade support. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. The equipment complies with FCC Radiation exposure limit set forth for uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

FCC Software Configuration Control Declaration Rev1.1 SHENZHEN AMEDIA TECHNOLOGY CO., LTD FCC Software Configuration Control Declaration Date: Nov. 25, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Smart TV BOX / X98H Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Date: 2022-11-25 Name: bo yang Title: manager Signature of applicant

SHENZHEN AMEDIA TECHNOLOGY CO., LTD Agent Authorization Company: SHENZHEN AMEDIA TECHNOLOGY CO., LTD Address: Room 201, Building 2, Stech Park, Gaofeng community, Dalang Street, Longhua District, Shenzhen, China Product Name: Smart TV BOX Model Number(s): X98H Product Description:Smart TV BOX We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Date: Nov. 25, 2022 Signature: Name: bo yang Title: manager Company: SHENZHEN AMEDIA TECHNOLOGY CO., LTD

SHENZHEN AMEDIA TECHNOLOGY CO., LTD Date: Nov. 25, 2022 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: 2A6T2-X98H To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: bo yang Title: manager Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC Software Security Requirements for UNII devices

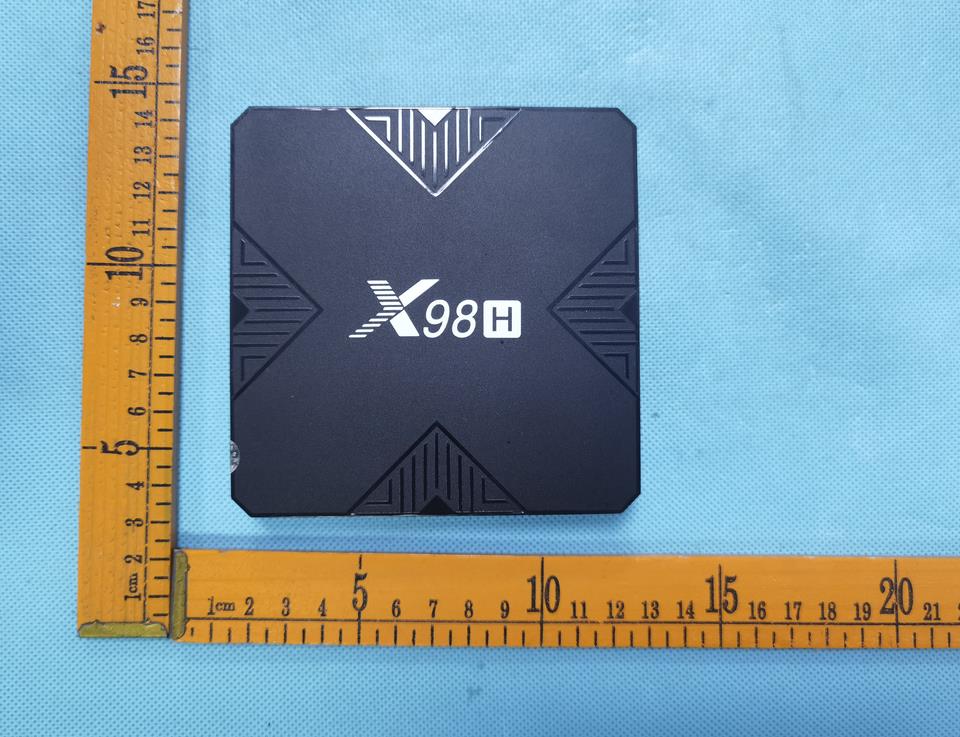

Project No.: ZKT-221114L8449-01 FCC ID: 2A6T2-X98H External photos Project No.: ZKT-221114L8449-01 FCC ID: 2A6T2-X98H Project No.: ZKT-221114L8449-01 FCC ID: 2A6T2-X98H Project No.: ZKT-221114L8449-01 FCC ID: 2A6T2-X98H

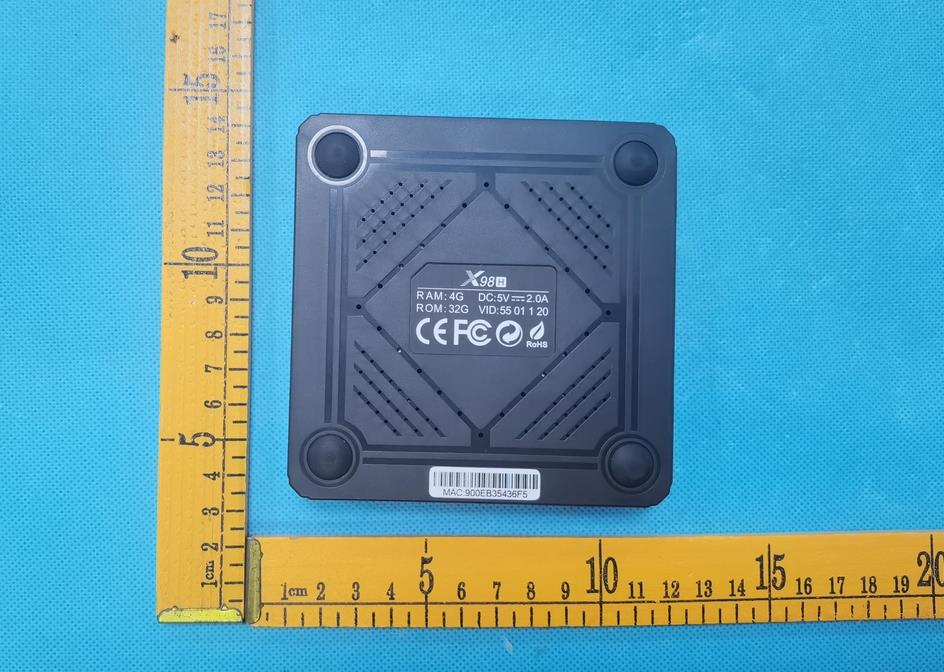

Project No.: ZKT-221114L8449-01 FCC ID: 2A6T2-X98H Label place SIZE: 39*20mm X98H RAM: 4G DC:5.0V 2.0A ROM: 32G VID: 55 01 1 20 FCC ID: 2A6T2-X98H

FCC ID: 2A6T2-X98H RF Exposure Evaluation According to KDB447498D01 General RF Exposure Guidance v06 4.3.1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Result of RF Exposure Evaluation 2.4G-W IFI/BT ANT1: 2.83dBi; 5G-W IFI ANT1: 3.03Bi; Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.0 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Measurement Data The Max Conducted Peak Output Power data refer to report Report No.: ZKT-221114L8449-01 & ZKT-221114L8449-02 & ZKT-221114L8449-03 & ZKT-221114L8449-04 BT/BLE-worst mode and channel: Test channel Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power Calculated value (dBm) (mW) (BT) 8-DPSK Lowest channel 0.69 1±1 2 1.585 0.00060 (BLE)GFSK Lowest channel 0.66 1±1 2 1.585 0.00060 Limit: 1.0 EUT RF Exposure Evaluation simultaneous transmission operations According to 865664D02 2.2 d) 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits : Simultaneous transmission mode The sum of the ratios SUM Limit BT+ BLE 0.00060+0.00060 0.0012 1.0 conclusion : 0.00089<1.0, So there is no sar requirement 2.4GW IFI worst mode and channel: Test channel Antenna Output Power (dBm) Tune up tolerance (dBm) 802.11b –2412MHz 15.84 16±1 802.11b –2437MHz 15.84 16±1 802.11b –2462MHz 15.71 16±1 Test worst case Maximum tune-up Power (dBm) Maximum tune-up Power (mW) Calculated value (mW/cm2) Limit (mW/cm2) 17 50.119 0.0191 1.0 Remark: 1)The Max Conducted Peak Output Power data refer to report Report No.: ZKT-221114L8449-03 2) Pd = (Pout*G)/(4* Pi * R 2 )=( 50.119*1.92)/(4*3.1415*20*20)= 0.0191, G=10 gain/10 =1.92 5GW IFI- worst mode and channel: U-NII-1 Mode Test channel Antenna Output Power (dBm) Tune up tolerance(dBm) Max Tune up (dBm) 802.11a-5180MHz 6.50 7±1 8 802.11a-5200MHz 6.39 7±1 8 802.11a-5240MHz 6.46 7±1 8 U-NII-3 Mode Test channel Antenna Output Power (dBm) Tune up tolerance(dBm) Max Tune up (dBm) 802.11ax(HE20)-5745MHz 4.59 5±1 6 802.11ax(HE20)-5785MHz 4.57 5±1 6 802.11ax(HE20)-5825MHz 4.24 5±1 6 Test worst case Maximum tune-up Power (dbm) Maximum tune-up Power (mW) Calculated value (mW/cm2) Limit (mW/cm2) 8 6.310 0.0025 1.0 Remark: 1)The Max Conducted Peak Output Power data refer to report Report No.: ZKT-221114L8449-04 2) Pd = (Pout*G)/(4* Pi * R 2 )=( 6.310 *2.01)/(4*3.1415*20*20)= 0.0025, G=10 gain/10 =2.01 EUT RF Exposure Evaluation simultaneous transmission operations According to 865664D02 2.2 d) 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits : Simultaneous transmission mode The sum of the ratios SUM Limit BT+2.4G W IFI + 5G W IFI 0.0012+0.0191+0.0025 0.0228 1.0 conclusion : 0.0228 < 1.0, So there is no sar requirement NOTE:1. EUT wifi-5G module & wifi-2.4G module is more than 20cm away from the human body. 2.The sum of the ratios(2.4GW IFI + 5G W IFI+BT) is less than the limit value of 1.0, so there is no sar requirement.

Project No.: ZKT-221114L8449-04 Page 1 of 108 FCC TEST REPORT FCC ID: 2A6T2-X98H Report Number............................... : ZKT-221114L8449-04 Date of Test................................................. : Nov. 02, 2022 -- Nov. 22, 2022 Date of issue .................................... : Nov. 22, 2022 Total number of pages ..................... : 108 Test Result ....................................... : PASS Testing Laboratory. ....................... : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : SHENZHEN AMEDIA TECHNOLOGY CO., LTD Address .......................................... : Room 201, Building 2, Stech Park, Gaofeng community, Dalang Street, Longhua District, Shenzhen, China Manufacturer's name ................... : SHENZHEN AMEDIA TECHNOLOGY CO., LTD Address .......................................... : Room 201, Building 2, Stech Park, Gaofeng community, Dalang Street, Longhua District, Shenzhen, China Test specification: Standard .......................................... : FCC CFR Title 47 Part 15 Subpart E Section 15.407 ANSI C63.10:2013 Test procedure................................. : KDB 789033 D02 V01r02 Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-110_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF ................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : Smart TV BOX Trademark ...................................... : / Model/Type reference ...................... : X98H Ratings ............................................ : DC 5V 2A from adapter Project No.: ZKT-221114L8449-04 Page 2 of 108 Testing procedure and testing location: Testing Laboratory .................................. : Shenzhen ZKT Technology Co., Ltd. Address ..................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature) .................... : Joe Liu Reviewer (name + signature)..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-221114L8449-04 Page 3 of 108 Table of Contents Page 1. VERSION 5 2. SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3. GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 3.3 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 3.4 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 4. EMC EMISSION TEST 11 4.1 CONDUCTED EMISSION MEASUREMENT 11 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 11 4.1.2 TEST PROCEDURE 11 4.1.3 DEVIATION FROM TEST STANDARD 11 4.1.4 TEST SETUP 12 4.1.5 EUT OPERATING CONDITIONS 12 4.1.6 TEST RESULT 13 4.2 RADIATED EMISSION MEASUREMENT 15 4.2.1 RADIATED EMISSION LIMITS 15 4.2.2 TEST PROCEDURE 16 4.2.3 DEVIATION FROM TEST STANDARD 16 4.2.4 TEST SETUP 17 4.2.5 EUT OPERATING CONDITIONS 17 4.2.6 TEST RESULTS 18 5.POWER SPECTRAL DENSITY TEST 40 5.1 APPLIED PROCEDURES / LIMIT 40 5.2 TEST PROCEDURE 40 5.3 DEVIATION FROM STANDARD 40 5.4 TEST SETUP 40 5.5 EUT OPERATION CONDITIONS 41 5.6 TEST RESULT 41 6. -26 DB & 6DBM EMISSION BANDWIDTH 42 6.1 APPLIED PROCEDURES / LIMIT 42 6.2 TEST PROCEDURE 42 6.3 DEVIATION FROM STANDARD 42 6.4 TEST SETUP 42 6.5 EUT OPERATION CONDITIONS 42 6.6 TEST RESULT 42 Project No.: ZKT-221114L8449-04 Page 4 of 108 7. OUTPUT POWER TEST 43 7.1 APPLIED PROCEDURES/LIMIT 43 7.2 DEVIATION FROM STANDARD 43 7.3 TEST SETUP 43 7.4 EUT OPERATION CONDITIONS 43 8. OUT OF BAND EDGE EMISSION 44 8.1 TEST PROCEDURE 44 8.2 DEVIATION FROM STANDARD 44 8.3 TEST SETUP 44 8.4 EUT OPERATION CONDITIONS 44 8.5 TEST RESULTS 44 9. FREQUENCY STABILITY MEASUREMENT 45 9.4 TEST RESULT 45 10.ANTENNA REQUIREMENT 46 11. APPENDIX1 47 POWER SPECTRAL DENSITY 47 -26 DB EMISSION BANDWIDTH 67 6DBM EMISSION BANDWIDTH 77 OUTPUT POWER 87 BAND EDGE EMISSION 88 FREQUENCY STABILITY 103 12. TEST SETUP PHOTO 107 13. EUT CONSTRUCTIONAL DETAILS 108 Project No.: ZKT-221114L8449-04 Page 5 of 108 1. VERSION Report No. Version Description Approved ZKT-221114L8449-04 Rev.01 Initial issue of report Nov. 22, 2022 Project No.: ZKT-221114L8449-04 Page 6 of 108 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Result Remark 15.203/15.247 (c) Antenna requirement PASS 15.207 AC Power Line Conducted Emission PASS 15.407 (a) (b) Spurious Radiated Emissions and Band Edge PASS 15.407 (e) /15.403(i) 6 dB bandwidth, 26dB Emission Bandwidth& 99% Occupied Bandwidth PASS 15.407 (a) Power Spectral Density PASS 15.407 (a)(1)(2)(3) Maximum conducted output power PASS 15.407 (g) Frequency Stability PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Project No.: ZKT-221114L8449-04 Page 7 of 108 2.1 TEST FACILITY Shenzhen ZKT Technology Co., Ltd. Add. : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China FCC Test Firm Registration Number: 692225 Designation Number: CN1299 IC Registered No.: 27033 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %。 Project No.: …

Text truncated - open the document above for the full version.

Project No.: ZKT-221114L8449-04 Page 47 of 108 11. APPENDIX1 POWER SPECTRAL DENSITY Condition Antenna Modulation Frequency (MHz) PSD(dBm) limit(dBm) Result NVNT ANT1 802.11a 5180.00 -4.103 17 Pass NVNT ANT1 802.11a 5200.00 -4.610 17 Pass NVNT ANT1 802.11a 5240.00 -3.775 17 Pass NVNT ANT1 802.11n(HT20) 5180.00 -4.417 17 Pass NVNT ANT1 802.11n(HT20) 5200.00 -4.618 17 Pass NVNT ANT1 802.11n(HT20) 5240.00 -4.088 17 Pass NVNT ANT1 802.11ac(VHT20) 5180.00 -8.944 17 Pass NVNT ANT1 802.11ac(VHT20) 5200.00 -8.326 17 Pass NVNT ANT1 802.11ac(VHT20) 5240.00 -8.357 17 Pass NVNT ANT1 802.11ax(HE20) 5180.00 -1.921 17 Pass NVNT ANT1 802.11ax(HE20) 5200.00 -1.352 17 Pass NVNT ANT1 802.11ax(HE20) 5240.00 -1.733 17 Pass NVNT ANT1 802.11n(HT40) 5190.00 -7.463 17 Pass NVNT ANT1 802.11n(HT40) 5230.00 -7.590 17 Pass NVNT ANT1 802.11ac(VHT40) 5190.00 -10.627 17 Pass NVNT ANT1 802.11ac(VHT40) 5230.00 -11.174 17 Pass NVNT ANT1 802.11ax(HE40) 5190.00 -5.783 17 Pass NVNT ANT1 802.11ax(HE40) 5230.00 -5.341 17 Pass Power_Spectral_Density_5_2GWiFi_802_11a_5180_20M Power_Spectral_Density_5_2GWiFi_802_11a_5200_20M Project No.: ZKT-221114L8449-04 Page 48 of 108 Power_Spectral_Density_5_2GWiFi_802_11a_5240_20M Power_Spectral_Density_5_2GWiFi_802_11n(HT20)_5180_20M Project No.: ZKT-221114L8449-04 Page 49 of 108 Power_Spectral_Density_5_2GWiFi_802_11n(HT20)_5200_20M Power_Spectral_Density_5_2GWiFi_802_11n(HT20)_5240_20M Project No.: ZKT-221114L8449-04 Page 50 of 108 Power_Spectral_Density_5_2GWiFi_802_11ac(VHT20)_5180_20M Power_Spectral_Density_5_2GWiFi_802_11ac(VHT20)_5200_20M Project No.: ZKT-221114L8449-04 Page 51 of 108 Power_Spectral_Density_5_2GWiFi_802_11ac(VHT20)_5240_20M Power_Spectral_Density_5_2GWiFi_802_11ax(HE20)_5180_20M Project No.: ZKT-221114L8449-04 Page 52 of 108 Power_Spectral_Density_5_2GWiFi_802_11ax(HE20)_5200_20M Power_Spectral_Density_5_2GWiFi_802_11ax(HE20)_5240_20M Project No.: ZKT-221114L8449-04 Page 53 of 108 Power_Spectral_Density_5_2GWiFi_802_11n(HT40)_5190_40M Power_Spectral_Density_5_2GWiFi_802_11n(HT40)_5230_40M Project No.: ZKT-221114L8449-04 Page 54 of 108 Power_Spectral_Density_5_2GWiFi_802_11ac(VHT40)_5190_40M Power_Spectral_Density_5_2GWiFi_802_11ac(VHT40)_5230_40M Project No.: ZKT-221114L8449-04 Page 55 of 108 Power_Spectral_Density_5_2GWiFi_802_11ax(HE40)_5190_40M Power_Spectral_Density_5_2GWiFi_802_11ax(HE40)_5230_40M Project No.: ZKT-221114L8449-04 Page 56 of 108 Project No.: ZKT-221114L8449-04 Page 57 of 108 Condition Antenna Modulation Frequency (MHz) PSD_SA (dBm/510KHz) PSD (dBm/500KHz limit(dBm) Result NVNT ANT1 802.11a 5745.00 -9.293 -9.379 30 Pass NVNT ANT1 802.11a 5785.00 -8.355 -8.441 30 Pass NVNT ANT1 802.11a 5825.00 -8.877 -8.963 30 Pass NVNT ANT1 802.11n(HT20) 5745.00 -9.065 -9.151 30 Pass NVNT ANT1 802.11n(HT20) 5785.00 -9.745 -9.831 30 Pass NVNT ANT1 802.11n(HT20) 5825.00 -10.243 -10.329 30 Pass NVNT ANT1 802.11ac(VHT20) 5745.00 -12.097 -12.183 30 Pass NVNT ANT1 802.11ac(VHT20) 5785.00 -11.661 -11.747 30 Pass NVNT ANT1 802.11ac(VHT20) 5825.00 -11.918 -12.004 30 Pass NVNT ANT1 802.11ax(HE20) 5745.00 -8.062 -8.148 30 Pass NVNT ANT1 802.11ax(HE20) 5785.00 -7.630 -7.716 30 Pass NVNT ANT1 802.11ax(HE20) 5825.00 -7.929 -8.015 30 Pass NVNT ANT1 802.11n(HT40) 5755.00 -13.035 -13.121 30 Pass NVNT ANT1 802.11n(HT40) 5795.00 -13.227 -13.313 30 Pass NVNT ANT1 802.11ac(VHT40) 5755.00 -11.666 -11.752 30 Pass NVNT ANT1 802.11ac(VHT40) 5795.00 -11.253 -11.339 30 Pass NVNT ANT1 802.11ax(HE40) 5755.00 -7.807 -7.893 30 Pass NVNT ANT1 802.11ax(HE40) 5795.00 -8.360 -8.446 30 Pass Power_Spectral_Density_5_8GWiFi_802_11a_5745_20M Power_Spectral_Density_5_8GWiFi_802_11a_5785_20M Project No.: ZKT-221114L8449-04 Page 58 of 108 Power_Spectral_Density_5_8GWiFi_802_11a_5825_20M Power_Spectral_Density_5_8GWiFi_802_11n(HT20)_5745_20M Project No.: ZKT-221114L8449-04 Page 59 of 108 Power_Spectral_Density_5_8GWiFi_802_11n(HT20)_5785_20M Power_Spectral_Density_5_8GWiFi_802_11n(HT20)_5825_20M Project No.: ZKT-221114L8449-04 Page 60 of 108 Power_Spectral_Density_5_8GWiFi_802_11ac(VHT20)_5745_20M Power_Spectral_Density_5_8GWiFi_802_11ac(VHT20)_5785_20M Project No.: ZKT-221114L8449-04 Page 61 of 108 Power_Spectral_Density_5_8GWiFi_802_11ac(VHT20)_5825_20M Power_Spectral_Density_5_8GWiFi_802_11ax(HE20)_5745_20M Project No.: ZKT-221114L8449-04 Page 62 of 108 Power_Spectral_Density_5_8GWiFi_802_11ax(HE20)_5785_20M Power_Spectral_Density_5_8GWiFi_802_11ax(HE20)_5825_20M Project No.: ZKT-221114L8449-04 Page 63 of 108 Power_Spectral_Density_5_8GWiFi_802_11n(HT40)_5755_40M Power_Spectral_Density_5_8GWiFi_802_11n(HT40)_5795_40M Project No.: ZKT-221114L8449-04 Page 64 of 108 Power_Spectral_Density_5_8GWiFi_802_11ac(VHT40)_5755_40M Power_Spectral_Density_5_8GWiFi_802_11ac(VHT40)_5795_40M Project No.: ZKT-221114L8449-04 Page 65 of 108 Power_Spectral_Density_5_8GWiFi_802_11ax(HE40)_5755_40M Power_Spectral_Density_5_8GWiFi_802_11ax(HE40)_5795_40M Project No.: ZKT-221114L8449-04 Page 66 of 108 Project No.: ZKT-221114L8449-04 Page 67 of 108 -26 DB EMISSION BANDWIDTH Condition Antenna Modulation Frequency(MHz) -26dB_Emission_Bandwidth(MHz) Occupied Bandwidth(MHz) NVNT ANT1 802.11a 5180.00 25.81 16.82 NVNT ANT1 802.11a 5200.00 24.87 16.80 NVNT ANT1 802.11a 5240.00 24.51 16.83 NVNT ANT1 802.11n(HT20) 5180.00 27.08 18.12 NVNT ANT1 802.11n(HT20) 5200.00 29.26 18.09 NVNT ANT1 802.11n(HT20) 5240.00 28.42 18.09 NVNT ANT1 802.11ac(VHT20) 5180.00 36.39 18.77 NVNT ANT1 802.11ac(VHT20) 5200.00 35.80 18.51 NVNT ANT1 802.11ac(VHT20) 5240.00 35.71 18.63 NVNT ANT1 802.11ax(HE20) 5180.00 25.74 19.27 NVNT ANT1 802.11ax(HE20) 5200.00 28.88 19.31 NVNT ANT1 802.11ax(HE20) 5240.00 26.06 19.23 NVNT ANT1 802.11n(HT40) 5190.00 37.48 36.97 NVNT ANT1 802.11n(HT40) 5230.00 37.97 37.02 NVNT ANT1 802.11ac(VHT40) 5190.00 38.25 37.50 NVNT ANT1 802.11ac(VHT40) 5230.00 38.60 37.51 NVNT ANT1 802.11ax(HE40) 5190.00 42.76 38.14 NVNT ANT1 802.11ax(HE40) 5230.00 42.89 38.11 -26dB_and_99%_Emission_Bandwidth_5_2GWiFi_NVNT_ANT1_802_11a_5180_20M -26dB_and_99%_Emiss…

Text truncated - open the document above for the full version.

TEL：+86 0755-23073599FAX：+86 0755-23097189E-mail:[email protected] Shenzhen yunding communication electronics co., ltd SHENZHEN 客户 : 品 名 规 格 DESCRIPTION: 料号 PART NO.： 客 户 料 号 CUS PART NO. ： 日期 D A T E： 工 程 ENGINEERING DEPARTMENT 品 保 Q C DEPARTMENT 业 务 SALES DEPARTMENT 吴淑仪刘丽王洪涛 客户承认签章 工 程 ENGINEERING DEPARTMENT 品 保 Q C DEPARTMENT 采 购 PURCHASING DEPARTMENT 联系电话：0755 23073599 15017941162 ж 承认书一式三份，惠蒙贵司承认签章 ж Approval in duplicate, please signed by your company. 承認書 BM805 Shrapnel antenna-WIFI2.4/5G 2020.4.15 APPRO VAL SHENZHEN AMEDIA TECHNOLOGY CO., LTD TEL：+86 0755-23073599FAX：+86 0755-23097189E-mail:[email protected] 1. 测试项目与设备 测试项目设备 1. S11参数 （S-parameter） 1.回波损耗 （Return Loss） 2.电压驻波比（VSWR） 网络分析仪: Agilent E5071B HP 8753D 2.有源测试 （Active） 1.发射功率 （TRP） 2.接收灵敏度（TIS） 1.暗室：ETS 7x4x3 m (3D) Chamber ETS 5x3x3 m (3D) Chamber 2.综合测试仪: Agilent 8960 E5515B ×2 StarPoint SP6011 3.无源测试 （Passive） 1.天线增益 （Gain）2.天线效 率 （Efficiency） 1.暗室：ETS 7x4x3 m (3D) Chamber ETS 5x3x3 m (3D) Chamber 2.网络分析仪：Agilent E5071B HP 8753D 2.Matching circuit -WIFI antenna: TEL：+86 0755-23073599FAX：+86 0755-23097189E-mail:[email protected] 地址： 深圳市宝安区宝安大道 4315 号文浩商务大厦 A602 3. Antenna structure diagram: TEL：+86 0755-23073599FAX：+86 0755-23097189E-mail:[email protected] 深圳市云顶通讯电子有限公司 SHENZHEN 4.Network test chart: SWR TEL：+86 0755-23073599FAX：+86 0755-23097189E-mail:[email protected] SHENZHEN 5. Antenna efficiency and gain TEL：+86 0755-23073599FAX：+86 0755-23097189E-mail:[email protected] 地址： 深圳市宝安区宝安大道 4315 号文浩商务大厦 A602 电 性 能 指 标 Electrical Specifications 频率范围 2400~2500/5100~5800MHz Frequency Range 2400~2500/5100~5800MHz 电压驻波比 ≤2.0 VSWR ≤2.0 输入阻抗 50 ΩInput Impedance50 Ω 增益 2.83 DBI/3.03DBIGain3 DBI/3.03DBI 最大输入功率 50WMaximum Input Power50W 机 械 指 标 Mechanical Specifications 工作温度 -40°C~+85°C Working Temperature -40°C~+85°C 工作湿度 20~80%Working Humidity20~80%

Project No.: ZKT-221114L8449-01 FCC ID: 2A6T2-X98H Project No.: ZKT-221114L8449-01 FCC ID: 2A6T2-X98H
