2A6X2-135

TrellisWare Technologies

TSM Shadow High Power Radio (HPR) - Base Station

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Jul 02, 2026
Application Purpose: Original Equipment
Equipment Note: TSM Shadow High Power Radio (HPR) - Base Station
Frequency Range: 1391.00000000 - 1394.00000000
Company: TrellisWare Technologies
Country: United States

Documents & Files

Select a file to view

Attestation Statements

Cover Letter(s)

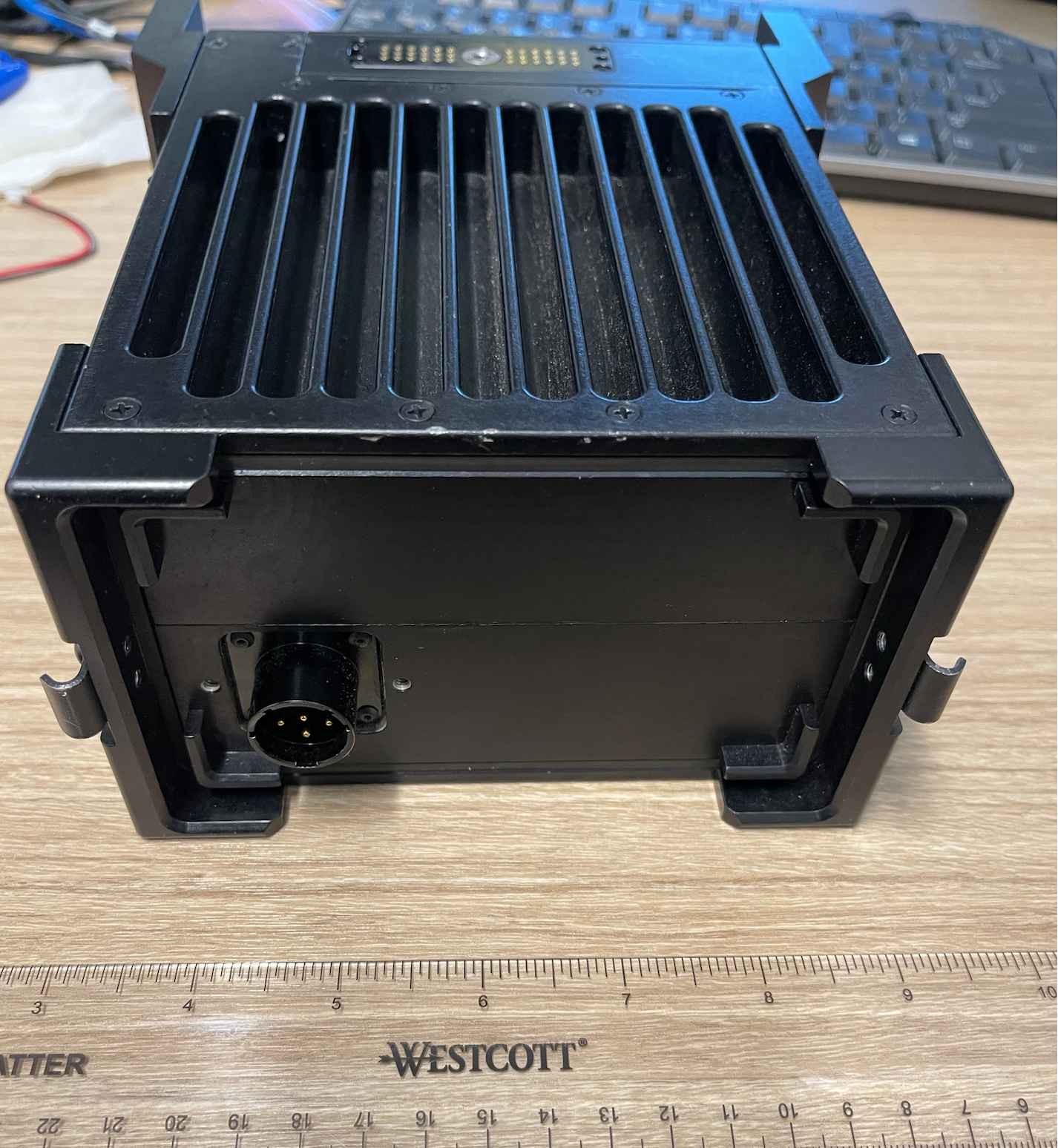

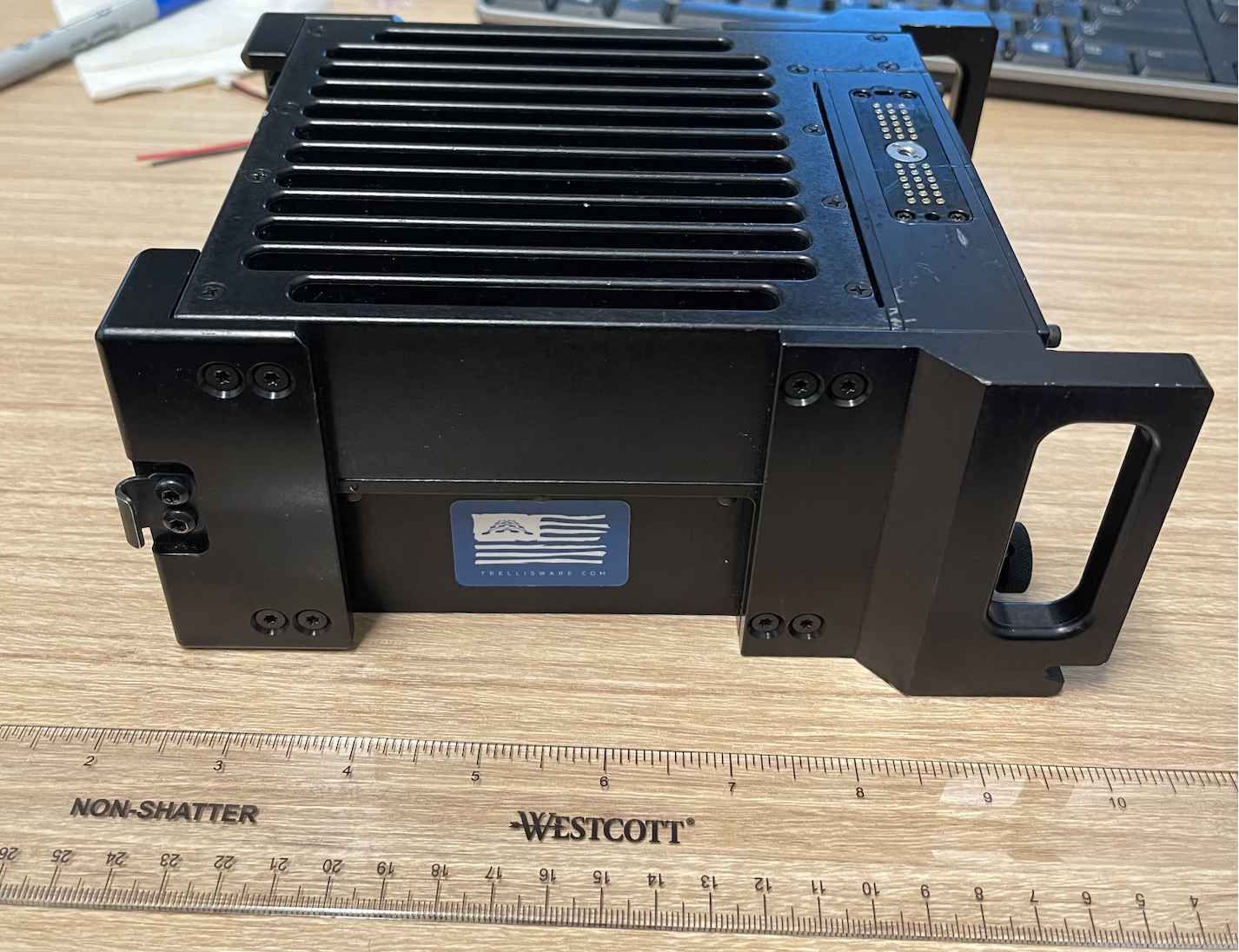

External Photos

ID Label/Location Info

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Mike Rudeen

[email protected]Fax: 8584324839

Technical Contact

TrellisWare Technologies IncJonathan Penner

[email protected]

10641 Scripps Summit Ct #100 · San Diego, California, 92131 · United States

Test Firm

Nemko USA, Inc.James Cunningham

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	27	1.39 GHz - 1.39 GHz	16.41 W	50K0G1D	8.87ppm
2	27	1.39 GHz - 1.39 GHz	11.42 W	1M20G1D	8.87ppm
3	27	1.39 GHz - 1.39 GHz	14.92 W	3M60G1D	8.87ppm
4	27	1.43 GHz - 1.43 GHz	13.15 W	50K0G1D	7.39ppm
5	27	1.43 GHz - 1.43 GHz	12.3 W	1M20G1D	7.39ppm

Confidentiality

Long Term

Grant Notes

Output power listed is average conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 67 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
