2A7DX-MP90Mini PC

DOKE COMMUNICATION (HK) LIMITED

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jul 29, 2024
Application Purpose: Original Equipment
Date of Application: Jul 29, 2024
Equipment Note: Mini PC
Frequency Range: 2412.00000000 - 2462.00000000
Company: DOKE COMMUNICATION (HK) LIMITED
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

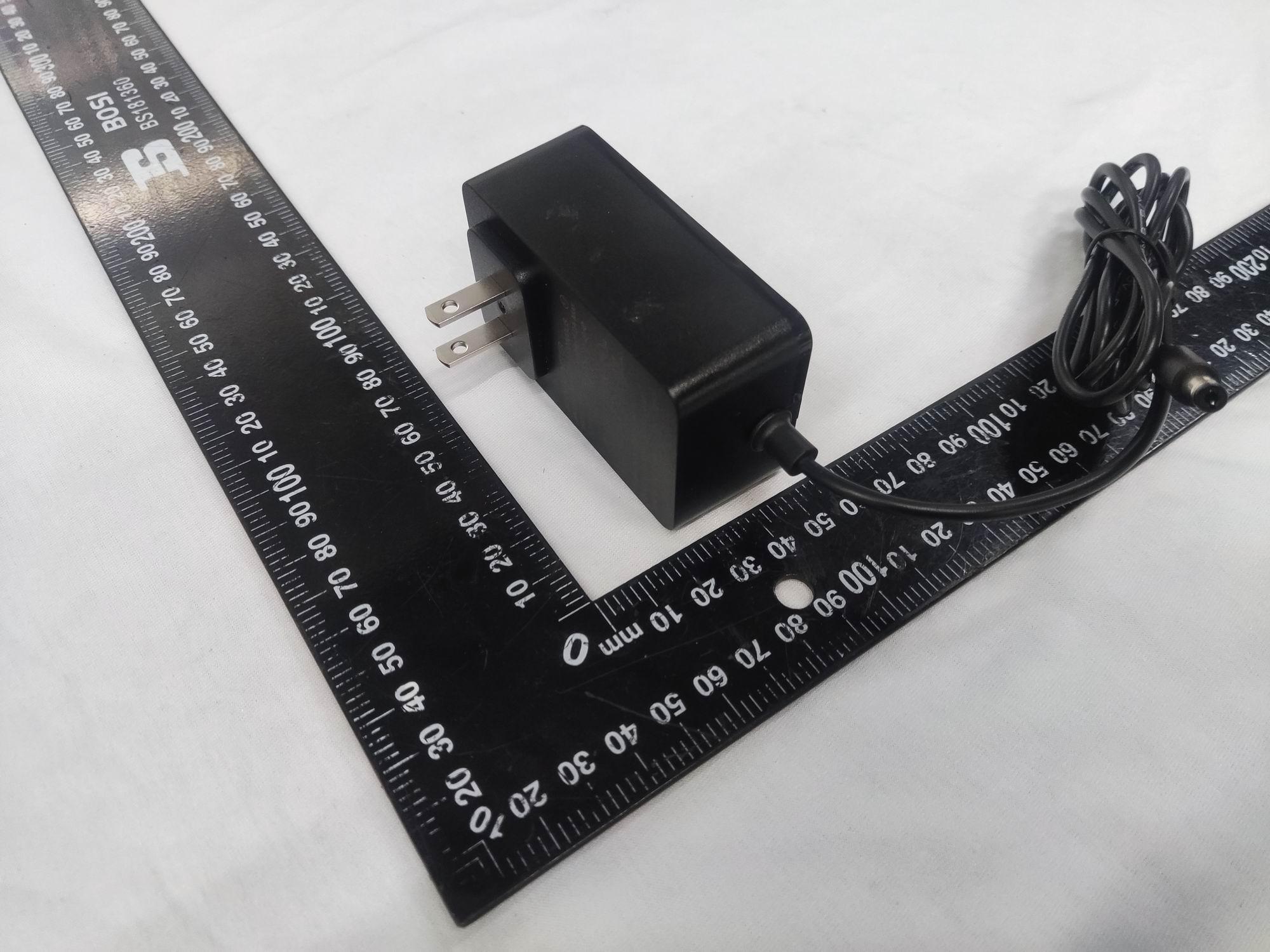

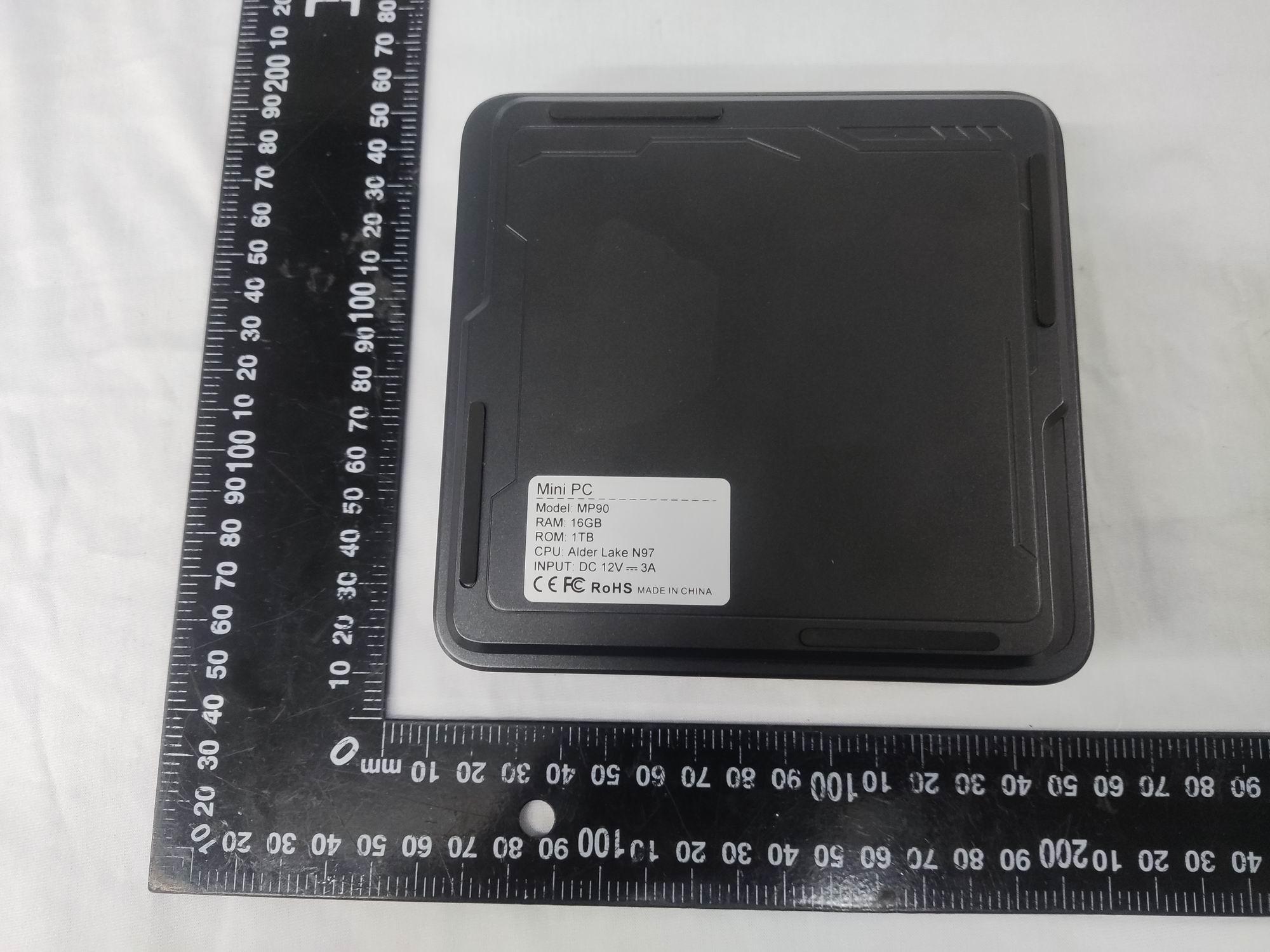

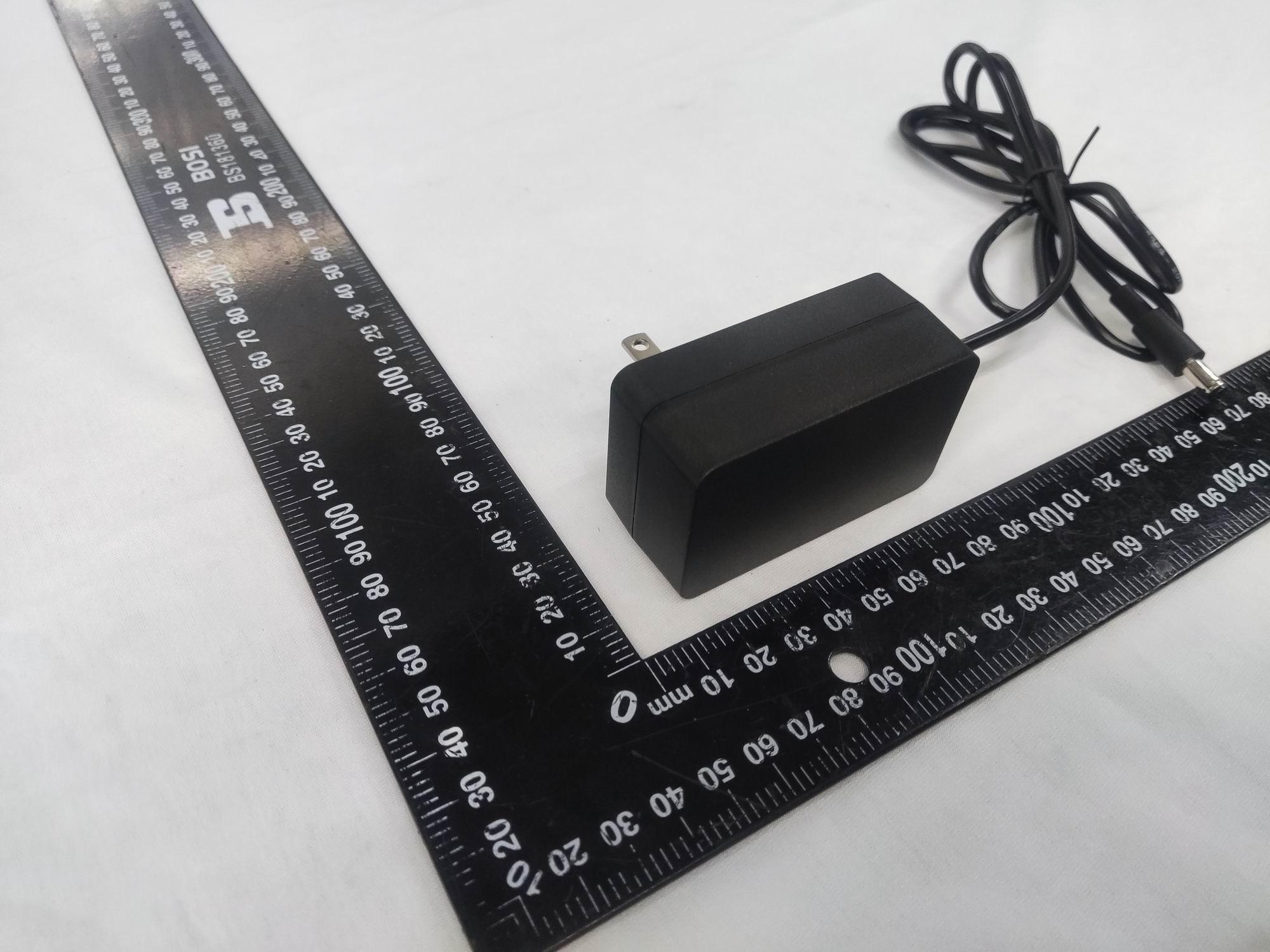

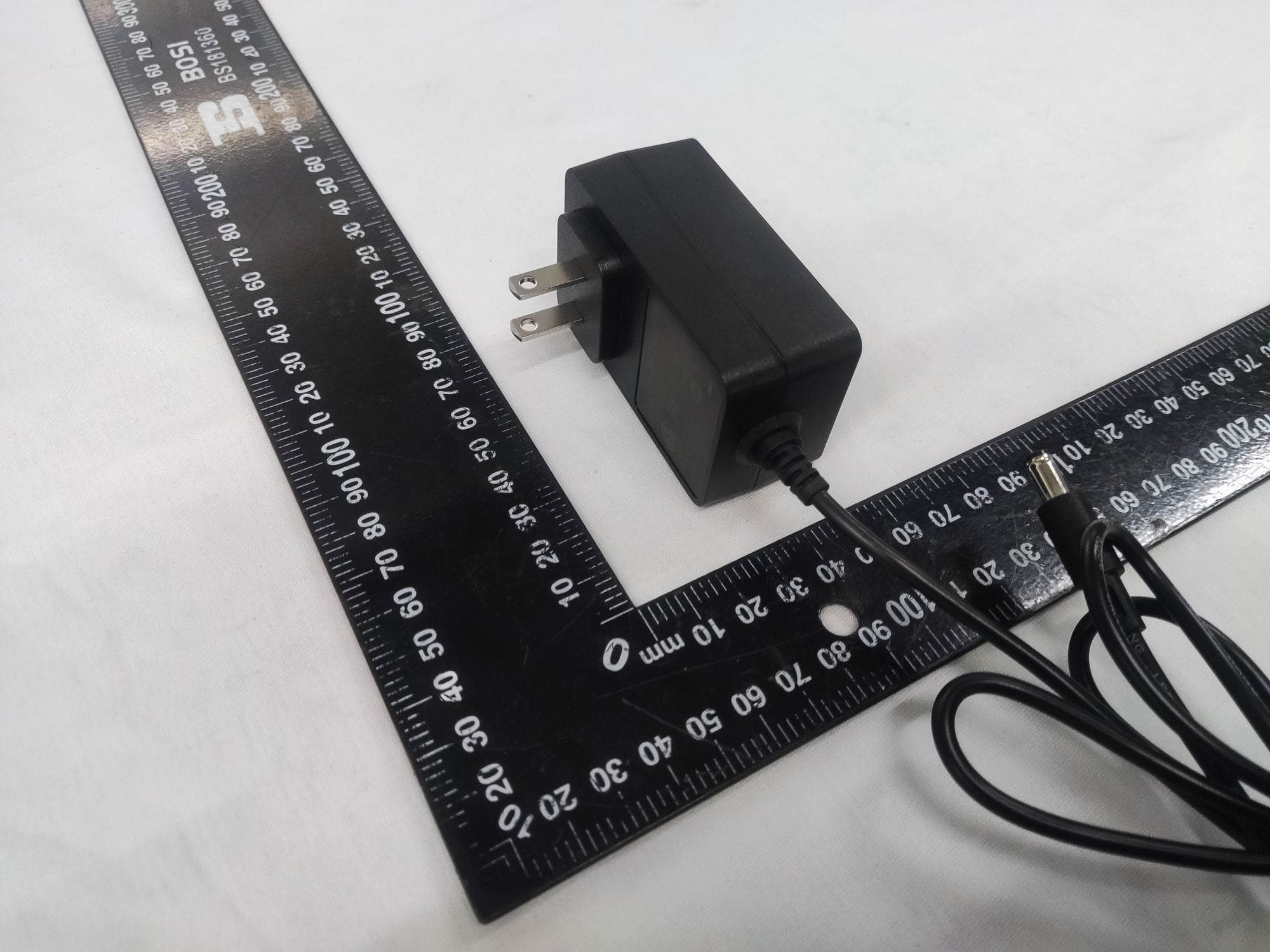

External Photos

Page1of9 FCCID:2A7DX-MP90 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. ExternalPhotos Photo1 Photo2 Page2of9 FCCID:2A7DX-MP90 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of9 FCCID:2A7DX-MP90 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4of9 FCCID:2A7DX-MP90 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 Photo8 Page5of9 FCCID:2A7DX-MP90 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo9 Photo10 Page6of9 FCCID:2A7DX-MP90 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo11 Photo12 Page7of9 FCCID:2A7DX-MP90 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo13 Photo14 Page8of9 FCCID:2A7DX-MP90 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo15 Photo16 Page9of9 FCCID:2A7DX-MP90 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo17 ------End------

ID Label/Location Info

INPUTDC 12V 3.0A ModelMP90 CPU Intel Alder Lake N97 RAM16GB ROM512GB S/N:5468634634644164131S/N:5468634634644164131 S/N:5468634634644164131S/N:5468634634644164131 ColorGrey R 219-249159 FCC ID: 2A7DX-MP90 R 219-249159 FCC ID: 2A7DX-MP90 INPUTDC 12V 3.0A ModelMP90 CPU Intel Alder Lake N97 RAM16GB ROM512GB ColorBlue INPUTDC 12V 3.0A ModelMP90 CPU Intel Alder Lake N97 RAM16GB ROM1TB ColorGrey R 219-249159 FCC ID: 2A7DX-MP90 R 219-249159 FCC ID: 2A7DX-MP90 INPUTDC 12V 3.0A ModelMP90 CPU Intel Alder Lake N97 RAM16GB ROM1TB ColorBlue

Internal Photos

Page 1 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Internal Photos Photo 1 Photo 2 Page 2 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 BT+5GWIFI Antenna 2 2.4GWIFI Antenna 1 Page 5 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 Page 7 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 13 Photo 14 Page 8 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 15 Photo 16 Page 9 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 17 Photo 18 Page 10 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 19 Photo 20 Page 11 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 21 Photo 22 Page 12 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 23 Photo 24 Page 13 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 25 Photo 26 Page 14 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 27 Photo 28 Page 15 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 29 Photo 30 Page 16 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 31 Photo 32 Page 17 of 17 FCC ID: 2A7DX-MP90 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 33 ------End------

RF Exposure Info

RFExposureevaluation FCCID:2A7DX-MP90 Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:PortableDevice 1.Reference Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbe operatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergy levelinexcessoftheCommission’sguidelines. Accordingto§1.1310and§2.1091RFexposureiscalculated. KDB447498D01:MobileandPortableDevicesRFExposureProceduresandEquipment AuthorizationPolicies 2.Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 3.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 4.AntennaInformation EUTcanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Antenna ModelNo. ofantenna: Typeofantenna:Gainoftheantenna(Max.)Frequencyrange: WIFI-BT/FPCantenna Antenna1:3.59dBiFor2.4G Antenna2:4.28dBiFor2.4G Antenna2:6.02dBifor5150~5250MHz; Antenna2:3.97dBifor5.725GHz-5.875GHz; 5.ManufacturingTolerance AN2: BR_EDR(Conducted) Frequency (MHz) BR_EDR_GFSK 240224412480 Target(dBm)6.06.06.0 Tolerance ± (dB) 1.01.01.0 Frequency (MHz) BR_EDR_π/4-DQPSK 240224412480 Target(dBm)6.07.06.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) BR_EDR_8-DPSK 240224412480 Target(dBm)8.08.07.0 Tolerance±(dB)1.01.01.0 AN2: BLE(Conducted) Frequency (MHz) GFSK 240224402480 Target(dBm)4.04.06.0 Tolerance±(dB)1.01.01.0 AN1:WIFI(Conducted) Frequency (MHz) 11b(Peak) 241224372462 Target(dBm)13.013.013.0 Tolerance ± (dB) 1.01.01.0 Frequency (MHz) 11g(Peak) 241224372462 Target(dBm)13.012.012.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) 11n(HT20)(Peak) 241224372462 Target(dBm)12.012.011.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) 11n(HT40)(Peak) 242224372452 Target(dBm)12.012.012.0 Tolerance ± (dB) 1.01.01.0 AN2: 5.2GWIFI(Conducted) Frequency (MHz) IEEE802.11a(AV) 518052005240 Target(dBm)11.011.013.0 Tolerance ± (dB) 1.01.01.0 Frequency (MHz) IEEE802.11n20(AV) 518052005240 Target(dBm)10.07.012.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) IEEE802.11n40(AV) 51905230 Target(dBm)12.013.0 Tolerance±(dB)1.01.0 Frequency (MHz) IEEE802.11ac20(AV) 518052005240 Target(dBm)11.011.012.0 Tolerance ± (dB) 1.01.01.0 Frequency (MHz) IEEE802.11ac40(AV) 51905230 Target(dBm)12.013.0 Tolerance±(dB)1.01.0 Frequency (MHz) IEEE802.11ac80(AV) 5210 Target(dBm)12.0 Tolerance±(dB)1.0 AN2: 5.8GWIFI(Conducted) Frequency (MHz) IEEE802.11a(AV) 574557855825 Target(dBm)12.012.012.0 Tolerance ± (dB) 1.01.01.0 Frequency (MHz) IEEE802.11n20(AV) 574557855825 Target(dBm)11.011.011.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) IEEE802.11n40(AV) 57555795 Target(dBm)12.012.0 Tolerance±(dB)1.01.0 Frequency (MHz) IEEE802.11ac20(AV) 574557855825 Target(dBm)11.011.011.0 Tolerance ± (dB) 1.01.01.0 Frequency (MHz) IEEE802.11ac40(AV) 57555795 Target(dBm)12.012.0 Tolerance±(dB)1.01.0 Frequency (MHz) IEEE802.11ac80(AV) 5775 Target(dBm)11.0 Tolerance±(dB)1.0 6.StandaloneMPEResult AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast 20cmfromanybodypartoftheuserornearbypersons;fromthemaximumEUTRFoutput power,theminimumseparationdistance,r=20cm,aswellasthegainoftheusedantennais refertosection4,theRFpowerdensitycanbeobtained. ANT1 ModulationType OutputpowerAntenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBmmW 2.4GWIFI14.025.1193.592.286 0.01142 1.0000 ANT2 ModulationType OutputpowerAntenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBmmW BT9.07.9434.282.6790.004231.0000 5.2GWIFI14.025.1196.023.9990.019991.0000 5.8GWIFI13.019.9533.972.4950.009901.0000 Remark: 1.Outputpower(Peak)includingturn-uptolerance; 2.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer. Max.SimultaneousMPEResult ANT1 MPE(Ratio) ANT2 MPE(Ratio) simultaneousMPE (Ratio) MPE Limits (Ratio) 0.011420.019990.031411.0000 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolled RFExposureofmobiledevice. ----------------THEENDOFREPORT---------------

Test Report

Page1of49ReportNo.:AIT24041507FW3 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TESTREPORT ClientInformation: Applicant:DOKECOMMUNICATION(HK)LIMITED Applicantadd.:19HMAXGRANDPLAZANO3TAIYAUSTREETSANPOKONGKLCHINA Manufacturer:ShenzhenDOKEElectronicCo.,Ltd Manufactureradd.: 801,Building3,7thIndustrialZone,YulvCommunity,YutangRoad, GuangmingDistrict,Shenzhen,China ProductInformation: ProductName:MiniPC ModelNo.:MP90 BrandName:Blackview FCCID:2A7DX-MP90 Applicablestandards : FCCCFRTitle47Part15SubpartCSection15.247 PreparedBy: DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang,Huangjiang,Dongguan, Guangdong,China Tel.:+86-769-82020499Fax.:+86-769-82020495 DateofReceipt:Apr.15,2024DateofTest:Apr.15,2024~June26,2024 DateofIssue:June27,2024TestResult:Pass ThisdevicedescribedabovehasbeentestedbyDongguanYaxu(AiT)TechnologyLimitedandthe testresultsshowthattheequipmentundertest(EUT)isincompliancewiththeFCC/ISED requirements.Anditisapplicableonlytothetestedsampleidentifiedinthereport. Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalof DongguanYaxu(AiT)TechnologyLimited,thisdocumentmaybealteredorrevisedby DongguanYaxu(AiT)TechnologyLimited,personalonly,andshallbenotedintherevisionof thedocument.Thistestreportmustnotbeusedbytheclienttoclaimproductendorsement. Reviewedby:Approvedby: EmiyaLinSimbaHuang Page2of49ReportNo.:AIT24041507FW3 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 1Contents Page COVERPAGE 1CONTENTS......................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................5 2.1StatementoftheMeasurementUncertainty................................................................................5 2.2MeasurementUncertainty............................................................................................................5 3TESTFACILITY..............................................................................................................................................................6 3.1Deviationfromstandard...............................................................................................................6 3.2Abnormalitiesfromstandardconditions.......................................................................................6 3.3TestLocation.................................................................................................................................6 4GENERALINFORMATION...........................................................................................................................................7 4.1Testfrequencies............................................................................................................................8 4.2EUTPeripheralList.......................................................................................................................9 4.3TestPeripheralList.......................................................................................................................9 4.4TESTMETHODOLOGY.............................................................................................................10 4.5DescriptionofTestModes..........................................................................................................11 5EQUIPMENTUSEDDURINGTEST.........................................................................................................................12 6TESTRESULTSANDMEASUREMENTDATA.....................................................................................................14 6.1Antennarequirement..................................................................................................................14 6.1.1Standardrequirement:.......................................................................................................14 6.1.2EUTAntenna:.....................................................................................................................14 6.2OnTimeandDutyCycle............................................................................................................15 6.2.1Standardrequirement:.......................................................................................................15 6.2.2MeasuringInstrumentsandSetting:..................................................................................15 6.2.3TestProcedures.................................................................................................................15 6.2.4TestSetupLayout...............................................................................................................15 6.2.5EUTOperationduringTest.................................................................................................15 6.2.6Testresult...........................................................................................................................15 6.3MaximumConductedOutputPeakPowerMeasurement.........................................................16 6.3.1Standardrequirement:.......................................................................................................16 6.3.2MeasuringInstruments:......................................................................................................16 6.3.3TestProcedures:................................................................................................................16 6.3.4TestSetupLayout...............................................................................................................16 6.3.5EUTOperationduringTest.................................................................................................16 6.3.6Test…

Text truncated - open the document above for the full version.

Test Report

DK 084- Antenna Test Report Date： 2024.4.30 CONTENTS Project Overview 01 Test Environment 02 Passive Report 05 Active Report 06 Matching Circuit 03 Environmental Treatment 04 Conclusion 07 3 最近工作和生活都有些懈怠，事情比较多比较杂，搅在一起让人丧失了动力 PART WO 看完了关于如何做科学研究的几本书，只是觉得像喝了几碗鸡汤，然并卵罢了 All for customers Project Overview Antenna design spectrum: WIFI 2.4/5.8G Type of antenna: PIFA Repor version: Date Content V1.0 2024.4.30 Antenna test report 4 最近工作和生活都有些懈怠，事情比较多比较杂，搅在一起让人丧失了动力 PART WO 看完了关于如何做科学研究的几本书，只是觉得像喝了几碗鸡汤，然并卵罢了 All for customers Test Environment Darkroom system ：MVG SG24LT（Satmio） 5 最近工作和生活都有些懈怠，事情比较多比较杂，搅在一起让人丧失了动力 PART WO All for customers Matching Circuit main antenna design Element Value E1(0201): / E2(0201): / E3(0201): / Note: The matching circuit has not changed. 6 最近工作和生活都有些懈怠，事情比较多比较杂，搅在一起让人丧失了动力这段时间，追完了一部剧叫琅琊榜，看了几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科学研究的几本书，只是觉得像喝了几碗鸡汤，然并卵罢了 All for customers Figure: The red box is grounded with conductive cloth. Environmental treatment 1# 2# 7 这段时间，追完了一部剧叫琅琊榜，看了几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科学研究的几本书，只是觉得像喝了几碗鸡汤，然并卵罢了 All for customers Passive Report Measuring instrument ：Agilent Technologies E5071B 300kHz-8.5GHz ENA Series Network Analyzer Darkroom system ：MVG SG24LT（Satmio） WIFI passive Efficiency, Gain 1# Frequency Efficiency Efficiency. dB Gain.dB 2400 63% -2.0137 3.490373 2410 63% -2.03941 3.585664 2420 64% -1.96827 3.5369 2430 64% -1.91489 3.314021 2440 63% -2.01742 2.927531 2450 63% -2.01822 3.035577 2460 65% -1.85945 2.967651 2470 66% -1.82596 2.641949 2480 64% -1.93578 2.311828 2490 65% -1.90297 2.342364 2500 67% -1.71498 2.392985 8 PART WO 看完了关于如何做科学研究的几本书，只是觉得像喝了几碗鸡汤，然并卵罢了 All for customers Passive Report Measuring instrument ：Agilent Technologies E5071B 300kHz-8.5GHz ENA Series Network Analyzer Darkroom system ：MVG SG24LT（Satmio） 2.4G Passive pattern 9 这段时间，追完了一部剧叫琅琊榜，看了几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科学研究的几本书，只是觉得像喝了几碗鸡汤，然并卵罢了 All for customers Passive Report Measuring instrument ：Agilent Technologies E5071B 300kHz-8.5GHz ENA Series Network Analyzer Darkroom system ：MVG SG24LT（Satmio） WIFI passive Efficiency, Gain Frequency Efficiency Efficiency. dB Gain.dB Frequency Efficiency Efficiency. dB Gain.dB 2400 65% -1.8536 4.0062 5150 66% -1.77945 5.737716 2410 65% -1.90195 4.253729 5200 67% -1.76084 5.557453 2420 65% -1.86791 4.276728 5250 72% -1.43233 5.613328 2430 66% -1.79051 4.088811 5300 68% -1.6574 6.016239 2440 65% -1.8562 3.75106 5350 75% -1.25361 6.252327 2450 65% -1.86889 3.962361 5400 68% -1.64807 6.560473 2460 68% -1.6812 4.006777 5450 59% -2.27232 5.446543 2470 69% -1.61879 3.754597 5500 51% -2.9 4.510936 2480 67% -1.73521 3.555033 5550 51% -2.93061 3.71406 2490 67% -1.72801 3.715827 5600 53% -2.7367 3.537267 2500 70% -1.53821 3.842194 5650 50% -2.97991 3.698015 5700 46% -3.34777 3.96846 5750 45% -3.47482 3.495505 5800 38% -4.22314 2.710887 5850 36% -4.44204 2.033834 2# 10 PART WO 看完了关于如何做科学研究的几本书，只是觉得像喝了几碗鸡汤，然并卵罢了 All for customers Passive Report 2.4G 11 PART WO All for customers Passive Report 5G 12 最近工作和生活都有些懈怠，事情比较多比较杂，搅在一起让人丧失了动力这段时间，追完了一部剧叫琅琊榜，看了几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科学研究的几本书，只是觉得像喝了几碗鸡汤，然并卵罢了 All for customers Active Report OTA 13 最近工作和生活都有些懈怠，事情比较多比较杂，搅在一起让人丧失了动力这段时间，追完了一部剧叫琅琊榜，看了几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科学研究的几本书，只是觉得像喝了几碗鸡汤，然并卵罢了 All for customers Conclusion 1. This report is the sample antenna test results 。 2. If you have any questions, please call. THANK YOU If you have any questions, please contact us Daily service hours ： Monday to Saturday 9:00-18:00 Switchboard Hotline ：0755-36615535 Fax：0755-82916227 website ：www.mayaant.com Confidentiality requirements Shenzhen Maya communication equipment Co., Ltd. has owned the information provided by the proprietary technology and is not allowed to disclose it to any person or company without the prior written consent of Shenzhen Maya communication equipment Co., Ltd.

Test Report

Page1of12FCCID:2A7DX-MP90 ConductedPeakOutputPower TestResult ModeChannel PeakOutput Power (dBm) PeakOutput Power (mW) Limit (dBm) Result LE 04.1542.630PASS 193.8772.4430PASS 392.3881.7330PASS Page2of12FCCID:2A7DX-MP90 TestGraphs PeakOutputPower LE_Channel0 PeakOutputPower LE_Channel19 PeakOutputPower LE_Channel39 Page3of12FCCID:2A7DX-MP90 99%Bandwidth TestResult ModeChannel99%BW(MHz) LE01.0408 LE191.0497 LE391.0508 Page4of12FCCID:2A7DX-MP90 TestGraphs LE_Channel0LE_Channel19 LE_Channel39 Page5of12FCCID:2A7DX-MP90 6dBBandwidth TestResult ModeChannel CenterFrequency (MHz) 6dBBandwidth (MHz) Limit (MHz) Result LE 024020.7296 0.5 PASS 1924400.7202PASS 3924800.7153PASS Page6of12FCCID:2A7DX-MP90 TestGraphs LE_Channel0LE_Channel19 LE_Channel39 Page7of12FCCID:2A7DX-MP90 ConductedOutOfBandEmission TestResult ModeChannel OOBEmission Frequency (MHz) OOBEmission Level (dBm) Limit (dBm) OverLimit (dB) Result LE 0 2400.00-56.664-16.56-40.104PASS 2399.00-55.148-16.56-38.588PASS 4803.10-64.678-16.56-48.118PASS 7205.30-62.990-16.56-46.430PASS 9610.00-65.993-16.56-49.433PASS 24548.7-50.438-16.56-33.878PASS 19 4881.17-64.296-16.81-47.486PASS 7318.93-63.261-16.81-46.451PASS 9759.80-67.228-16.81-50.418PASS 24991.3-50.919-16.81-34.109PASS 39 2483.50-62.513-18.28-44.233PASS 4959.83-62.380-18.28-44.100PASS 7439.41-64.536-18.28-46.256PASS 9919.62-65.885-18.28-47.605PASS 24739.7-51.258-18.28-32.978PASS Page8of12FCCID:2A7DX-MP90 TestGraphs In-BandReferenceLevel LE_Channel0 OutOfBandEmission LE_Channel0 SpuriousEmission LE_Channel0 In-BandReferenceLevel LE_Channel19 SpuriousEmissions LE_Channel19 In-BandReferenceLevel LE_Channel39 OutOfBandEmission LE_Channel39 SpuriousEmission LE_Channel39 Page9of12FCCID:2A7DX-MP90 DutyCycle TestResult ModeChannelOnTime(ms)Period(ms)DutyCycle(%) DutyCycle (linear) DutyCycle Factor(dB) LE 00.3930.62562.910.62912.0128 190.3930.62562.910.62912.0128 390.3930.62562.910.62912.0128 Page10of12FCCID:2A7DX-MP90 TestGraphs LE LE LE Page11of12FCCID:2A7DX-MP90 PowerSpectralDensity TestResult ModeChannelPSD(dBm/3kHz)Limit(dBm/3kHz)Result LE0-11.3418PASS LE19-11.3818PASS LE39-11.5028PASS Page12of12FCCID:2A7DX-MP90 TestGraphs LE_Channel0LE_Channel19 LE_Channel39

Test Report

Page 1 of 20 FCCID:2A7DX-MP90 ConductedPeakOutputPower TestResult Conductedpeakoutputpower ModeChannel Ant.1 (dBm) Limit (dBm) Result IEEE 802.11b 113.7530PASS 613.3930PASS 1112.5130PASS IEEE 802.11g 113.0330PASS 612.6130PASS 1111.8030PASS IEEE 802.11n_20 112.5530PASS 612.0630PASS 1111.2130PASS IEEE 802.11n_40 312.2430PASS 611.9130PASS 911.8830PASS Page 2 of 20 FCCID:2A7DX-MP90 99%Bandwidth TestResult ModeChannelAnt.99%BW(MHz) IEEE802.11b 1 0 15.003 615.001 1115.005 IEEE802.11g 116.684 616.707 1116.692 IEEE802.11n_20 117.731 617.765 1117.712 IEEE802.11n_40 336.139 636.130 936.193 Page 3 of 20 FCCID:2A7DX-MP90 TestGraphs IEEE802.11b_Channel1_20MHz_Antenna1IEEE802.11b_Channel6_20MHz_Antenna1 IEEE802.11b_Channel11_20MHz_Antenna1IEEE802.11g_Channel1_20MHz_Antenna1 IEEE802.11g_Channel6_20MHz_Antenna1IEEE802.11g_Channel11_20MHz_Antenna1 IEEE802.11n_Channel1_20MHz_Antenna1IEEE802.11n_Channel6_20MHz_Antenna1 Page 4 of 20 FCCID:2A7DX-MP90 IEEE802.11n_Channel11_20MHz_Antenna1IEEE802.11n_Channel3_40MHz_Antenna1 IEEE802.11n_Channel6_40MHz_Antenna1IEEE802.11n_Channel9_40MHz_Antenna1 Page 5 of 20 FCCID:2A7DX-MP90 6dBBandwidth TestResult ModeChannelAnt. Center Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Result IEEE802.11b 1 0 241210.09 0.5 PASS 6243710.06PASS 11246210.08PASS IEEE802.11g 1241216.31PASS 6243716.32PASS 11246216.30PASS IEEE 802.11n_20 1241217.29PASS 6243717.08PASS 11246217.03PASS IEEE 802.11n_40 3242235.64PASS 6243735.65PASS 9245235.46PASS Page 6 of 20 FCCID:2A7DX-MP90 TestGraphs IEEE802.11b_Channel1_20MHz_Antenna1IEEE802.11b_Channel6_20MHz_Antenna1 IEEE802.11b_Channel11_20MHz_Antenna1IEEE802.11g_Channel1_20MHz_Antenna1 IEEE802.11g_Channel6_20MHz_Antenna1IEEE802.11g_Channel11_20MHz_Antenna1 IEEE802.11n_Channel1_20MHz_Antenna1IEEE802.11n_Channel6_20MHz_Antenna1 Page 7 of 20 FCCID:2A7DX-MP90 IEEE802.11n_Channel11_20MHz_Antenna1IEEE802.11n_Channel3_40MHz_Antenna1 IEEE802.11n_Channel6_40MHz_Antenna1IEEE802.11n_Channel9_40MHz_Antenna1 Page 8 of 20 FCCID:2A7DX-MP90 ConductedOutOfBandEmission TestResult ModeChannelAnt. OOB Emission Frequency (MHz) OOB Emission Level (dBm) Limit (dBm) Over Limit (dB) Result IEEE 802.11b 1 0 2400.00-42.055-17.97-24.085PASS 4823.74-47.361-17.97-29.392PASS 7229.03-52.329-17.97-34.359PASS 9652.43-54.871-17.97-36.901PASS 24544.9-41.030-17.97-23.060PASS 6 4874.30-49.048-18.39-30.658PASS 7310.19-52.160-18.39-33.770PASS 9744.20-54.944-18.39-36.554PASS 24933.8-41.336-18.39-22.946PASS 11 2483.50-54.309-19.22-35.089PASS 4924.24-51.585-19.22-32.365PASS 7396.96-51.997-19.22-32.777PASS 9837.21-53.958-19.22-34.738PASS 24868.3-41.505-19.22-22.285PASS IEEE 802.11g 1 2400.00-42.261-24.56-17.701PASS 4823.74-53.360-24.56-28.800PASS 7255.25-52.214-24.56-27.654PASS 9639.32-55.141-24.56-30.581PASS 24963.2-40.643-24.56-16.083PASS 6 4874.30-54.076-25.0-29.076PASS 7330.16-51.912-25.0-26.912PASS 9763.55-54.667-25.0-29.667PASS 24240.3-41.317-25.0-16.317PASS 11 2483.50-54.642-25.56-29.082PASS 4924.87-52.950-25.56-27.390PASS 7372.61-51.699-25.56-26.139PASS 9856.56-54.902-25.56-29.342PASS 24550.5-40.777-25.56-15.217PASS IEEE 802.11n_20 1 2400.00-42.485-25.03-17.455PASS 4823.74-52.370-25.03-27.340PASS 7237.15-53.160-25.03-28.130PASS 9628.71-54.352-25.03-29.322PASS 24627.9-40.772-25.03-15.742PASS 6 4869.31-54.368-25.29-29.078PASS 7326.42-52.114-25.29-26.824PASS 9747.32-54.858-25.29-29.568PASS 24541.2-41.322-25.29-16.032PASS 11 2483.50-55.065-26.35-28.715PASS 4931.73-54.254-26.35-27.904PASS 7398.83-51.538-26.35-25.188PASS 9843.46-54.302-26.35-27.952PASS 24896.4-41.226-26.35-14.876PASS IEEE 802.11n_40 3 2400.00-45.456-28.28-17.176PASS 4854.32-53.684-28.28-25.404PASS 7233.40-52.478-28.28-24.198PASS 9706.12-54.455-28.28-26.175PASS 24979.4-41.255-28.28-12.975PASS 6 4899.90-53.233-28.6-24.633PASS 7345.14-52.229-28.6-23.629PASS 9751.69-54.600-28.6-26.000PASS 24903.2-41.532-28.6-12.932PASS 9 2483.50-53.346-28.42-24.926PASS 4879.30-53.786-28.42-25.366PASS Page 9 of 20 FCCID:2A7DX-MP90 7318.93-52.078-28.42-23.658PASS 9811.62-54.467-28.42-26.047PASS 24903.2-41.121-28.42-12.701PASS Page 10 of 20 FCCID:2A7DX-MP90 TestGraphs In-BandReferenceLevel IEEE802.11b_Channel1_20MHz_Antenna1 OutOfBandEmission IEEE802.11b_Channel1_20MHz_Antenna1 SpuriousEmission IEEE802.11b_Channel1_20MHz_Antenna1 In-BandReferenceLevel IEEE802.11b_Channel6_20MHz_Antenna1 SpuriousEmissions IEEE802.11b_Channel6_20MHz_Antenna1 In-BandReferenceLevel IEEE802.11b_Channel11_20MHz_Antenna1 OutOfBandEmission IEEE802.11b_Channel11_20MHz_Antenna1 SpuriousEmission IEEE802.11b_Channel11_20MHz_Antenna1 Page 11 of 20 FCCID:2A7DX-MP90 In-BandReferenceLevel IEEE802.11g_Channel1_20MHz_Antenna1 OutOfBandEmission IEEE802.11g_Channel1_20MHz_Antenna1 SpuriousEmission IEEE802.11g_Channel1_20MHz_Antenna1 In-BandReferenceLevel IEEE802.11g_Channel6_20MHz_Antenna1 SpuriousEmissions IEEE802.11g_Channel6_20MHz_Antenna1 In-BandReferenceLevel IEEE802.11g_Channel11_20MHz_Antenna1 OutOfBandEmission IEEE802.11g_Channel11_20MHz_Antenna1 SpuriousEmission IEEE802.11g_Channel11_20MHz_Antenna1 Page 12 of 20 FCCID:2A7DX-MP90 In-BandReferenceLevel IEEE802.11n_Channel1_20MHz_Antenna1 OutOfBandEmission IEEE802.11n_Channel1_20MHz_Antenna1 SpuriousEmission IEEE802.11n_Channel1_20MHz_Antenna1 In-BandReferenceLevel IEEE802.11n_Channel6_20MHz_Antenna1 SpuriousEmissions IEEE802.11n_Channel6_20MHz_Antenna1 In-BandReferenceLevel IEEE802.11n_Channel11_20MHz_Antenna1 OutOfBandEmission IEEE802.11n_Channel11_20MHz_Antenna1 SpuriousEmission IEEE802.11n_Channel11_20MHz_Antenna1

Test Report

Page 13 of 20 FCCID:2A7DX-MP90 In-BandReferenceLevel IEEE802.11n_Channel3_40MHz_Antenna1 OutOfBandEmission IEEE802.11n_Channel3_40MHz_Antenna1 SpuriousEmission IEEE802.11n_Channel3_40MHz_Antenna1 In-BandReferenceLevel IEEE802.11n_Channel6_40MHz_Antenna1 SpuriousEmissions IEEE802.11n_Channel6_40MHz_Antenna1 In-BandReferenceLevel IEEE802.11n_Channel9_40MHz_Antenna1 OutOfBandEmission IEEE802.11n_Channel9_40MHz_Antenna1 SpuriousEmission IEEE802.11n_Channel9_40MHz_Antenna1 Page 14 of 20 FCCID:2A7DX-MP90 DutyCycle TestResult Mode Data rates ChannelAntenna On Time (ms) Period (ms) Duty Cycle (%) Duty Cycle (linear) Duty Cycle Factor (dB) IEEE 802.11b 1 1 1 8.1969.19889.110.89110.5007 68.1959.19789.110.89110.5007 118.1969.19889.110.89110.5007 IEEE 802.11g 11.3662.36657.730.57732.386 61.3652.36557.720.57722.3867 111.3662.36657.730.57732.386 IEEE 802.11n_20 MCS0 11.2772.27756.080.56082.5119 61.2802.27956.190.56192.5034 111.2772.27756.080.56082.511…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Lynne Chen(manager)

[email protected]18825230528Fax: 0755-6668278

Test Firm

Dongguan Yaxu (AiT) Technology LimitedCoin Tang

[email protected]+86 0769-82020499-21

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.41 GHz - 2.46 GHz	23.70 mW

Confidentiality

Long Term

Grant Notes

Output Power listed is peak conducted. This device supports 802.11b, 802.11g and 802.11n with a 20 MHz and 40 MHz bandwidth mode. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
