2A7DX-TAB10WIFITablet

6 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: ( 1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21 Information to the user. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.105 Information for the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,if not installed and used in accordance with theinstructions, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connecting the equipment to a socket on a circuit different from that to which the receiver is connected. -Contact with the provider or a radio TV technician for help. Specific absorption rate (SAR): This7DEOHW meets the government's requirements for exposure to radio waves. The guidelines are based on standards developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a margin of safety designed to ensure the safety of all people regardless of their age or health. The FCC Statement of Exposure to RF and the SAR limit for the United States (FCC) is 1.6 W/kg average for each gram of tissue. This device was tested for typical operations of use on the body, with the back of the7DEOHWat 0mm from the body. To maintain compliance with FCCRF exposure requirements, use accessories that maintain a distance of 0mm between the user'sbody and the back of the7DEOHW. The use of belt clips, covers and similar accessories mustnotcontain metallic components in their assembly. The use of accessories that do not meet theserequirements may not meet FCC RF exposure requirements and should be avoided. Functioning in the body This device was tested for typical operations of use in the body. To comply with RF exposure requirements, a minimum separation distance of 0mm must be maintained between the user's body and the telephone, including the antenna. Third-party accessories such as belt clips. covers and similar accessories used with this device should not contain metallic components, accessories that do not meet these RF exposure requirements and should be avoided from use on the body. Use only the supplied antenna or an approved antenna.

Rev 1/26/2023 (DOKE COMMUNICATION (HK) LIMITED) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 8/23/2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2A7DX-TAB10WIFI [DOKE COMMUNICATION (HK) LIMITED] (“the applicant”) certifies that the equipment for which authorization is sought is not“covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicantsignature) (Applicant printed name) Lynne Chen Rev 1/26/2023 (DOKE COMMUNICATION (HK) LIMITED) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 8/23/2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2A7DX-TAB10WIFI [DOKE COMMUNICATION (HK) LIMITED] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Lynne Chen

THREE STONES MEDIA LLC U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 8/23/2023 Ref: Attestation Statement – Part2.911(d)(7) filing FCC ID：2A7DX-TAB10WIFI DOKE COMMUNICATION (HK) LIMITED (“the applicant”) certifies that, as of the date of the filing of the application, THREE STONES MEDIA LLC(“the agent”) is our designated U.S. agent for service of process for the abovereference FCC ID. The applicant accepts to maintain an agent for service of process in the United States forno less than one year after either the grantee has permanently terminated all marketing and importation of theapplicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicialproceeding involving the equipment, whichever is later. The applicant further acknowledges it is ourresponsibility to inform the FCC whenever the agent information changes. THREE STONES MEDIA LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: THREE STONES MEDIA LLC FRN: 0033401761 GC: 2A99E Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Signature: Contact Person: Sijie Zhang Tel: +1 267 909 3692 Email: [email protected] Applicant Company Name: DOKE COMMUNICATION (HK) LIMITED Address: RM 1902 EASEY COMM BLDG 253-261 HENNESSY ROAD WANCHAI HK CHINA Signature: Contact Person: Lynne Chen Tel: 18825230528 Email: [email protected]

DOKE COMMUNICATION (HK) LIMITED Agent Authorization Letter (2023-08-23) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Lynne Chen / Manager Date/City: 2023-08-23 / HONG KONG Phone: 18825230528 Fax: N/A E-mail: [email protected]

DOKE COMMUNICATION (HK) LIMITED Long Term Confidentiality Request Letter (2023-08-23) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: Tablet Model No.: Tab 10 WIFI FCC ID: 2A7DX-TAB10WIFI To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the  Schematic Diagram  Block Diagram  Operational Description  FCC Software Security Requirements for UNII devices  Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Lynne Chen / Manager Date/City: 23/08/2023 / HONG KONG Phone: 18825230528 Fax: N/A E-mail: [email protected]

DOKE COMMUNICATION (HK) LIMITED Short Term Confidentiality Request Letter (2023-08-23) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For Product: Tablet Model No.: Tab 10 WIFI FCC ID: 2A7DX-TAB10WIFI To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, <DOKE COMMUNICATION (HK) LIMITED>. requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. Test setup photos Internal photos External Photo User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which <DOKE COMMUNICATION (HK) LIMITED> considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, <DOKE COMMUNICATION (HK) LIMITED> feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Lynne Chen / Manager Date/City: 23/08/2023 / HONG KONG Phone: 18825230528 Fax: N/A E-mail: [email protected]

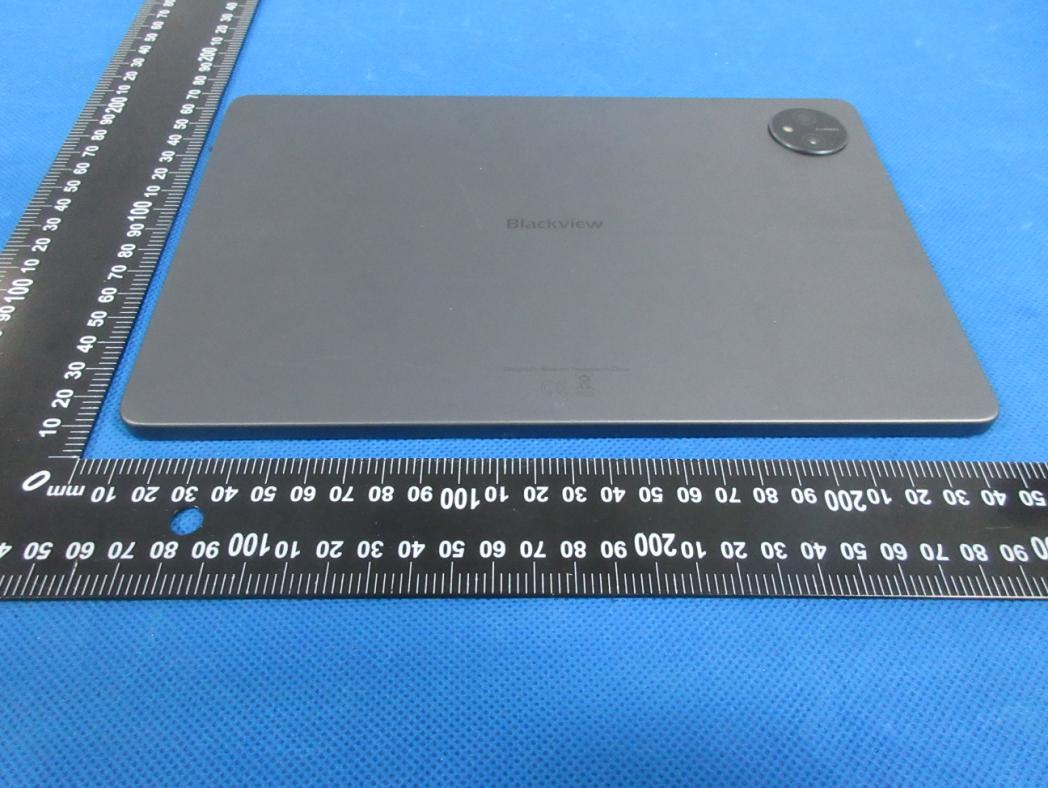

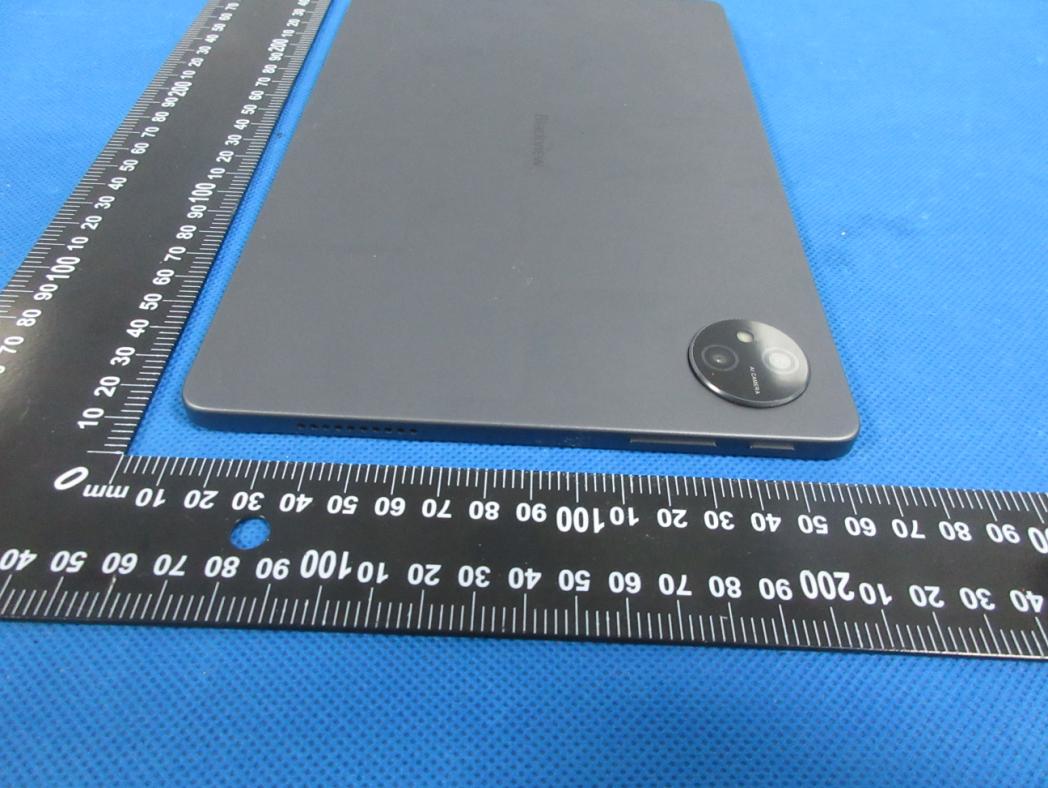

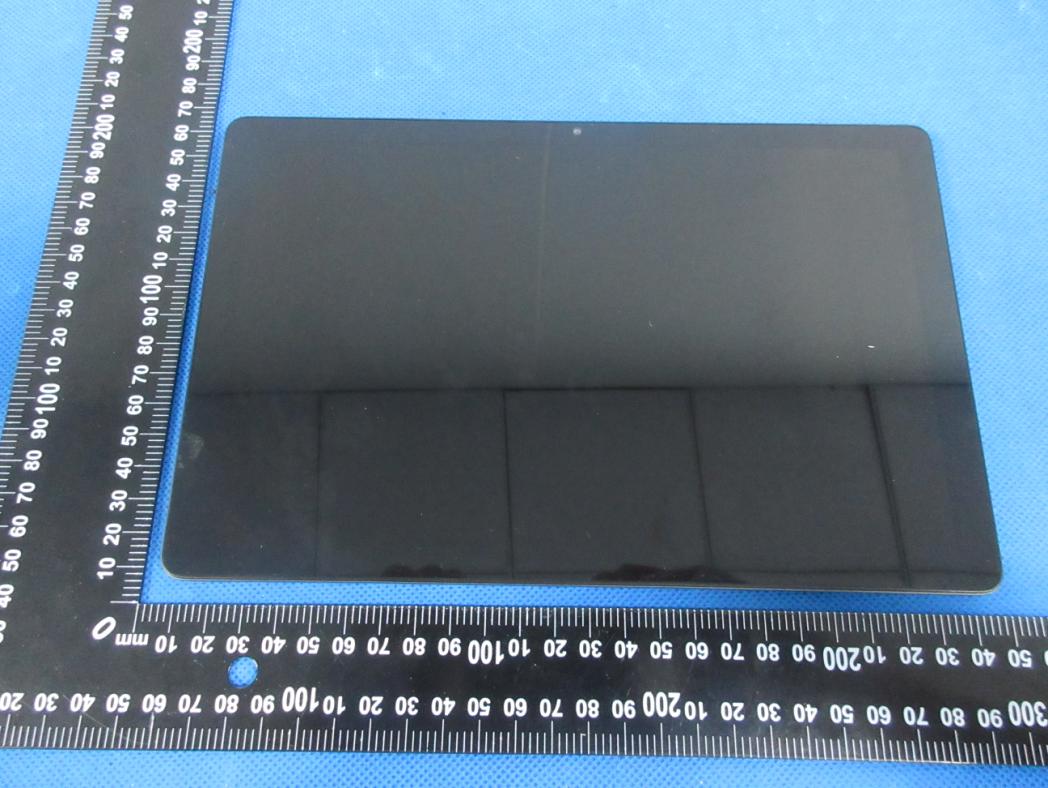

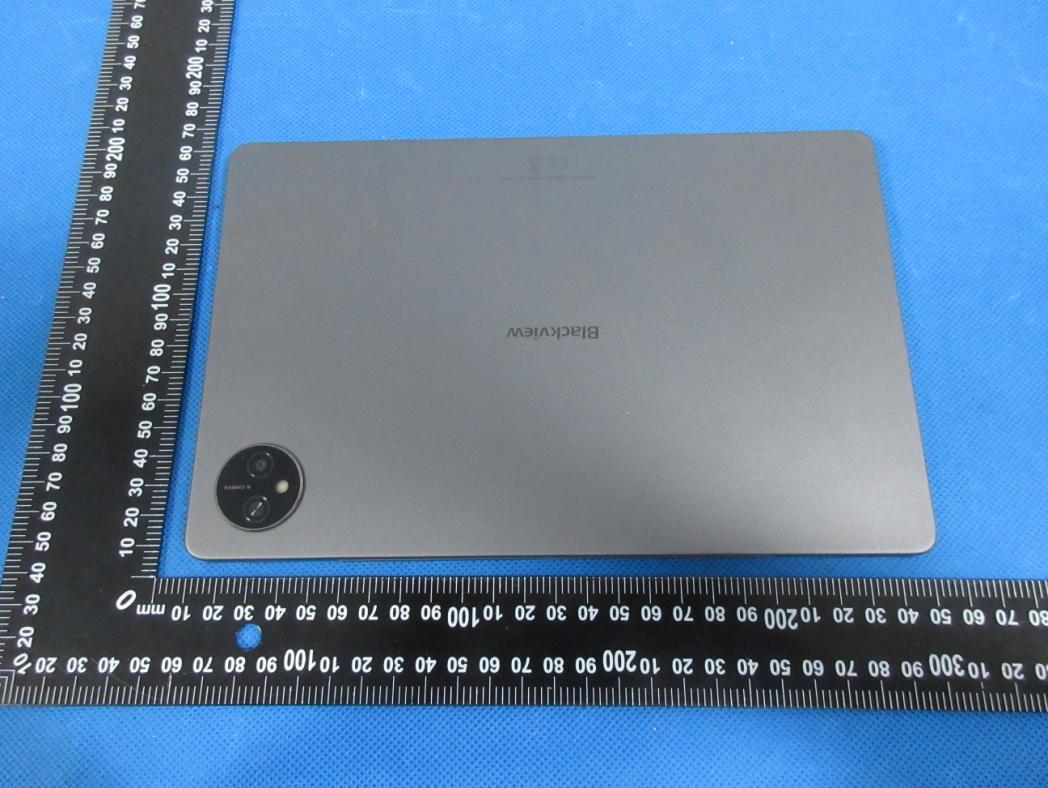

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 WIFI 5G ANT WIFI 2.4G ANT

Page 1 of 83 Report No.: S23072607102001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Tablet Trademark： BLackview Model Name： Tab 10 WIFI Family Model： N/A FCC ID： 2A7DX-TAB10WIFI Report No.： S23072607102001 Prepared for DOKE COMMUNICATION (HK) LIMITED RM 1902 EASEY COMM BLDG 253-261 HENNESSY ROAD WANCHAI HK CHINA Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 83 Report No.: S23072607102001 TEST RESULT CERTIFICATION Applicant’s name .................. : DOKE COMMUNICATION (HK) LIMITED Address .................................. : RM 1902 EASEY COMM BLDG 253-261 HENNESSY ROAD WANCHAI HK CHINA Manufacturer's Name ........... : Shenzhen DOKE Electronic Co., Ltd Address .................................. : 801, Building3, 7th Industrial Zone, Yulv Community, Yutang Road, Guangming District, Shenzhen, China. Product description Product name ......................... : Tablet Trademark ............................ : BLackview Model Name ......................... : Tab 10 WIFI Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number .............................. S230726071002 Date of Test Date (s) of performance of tests ............. : Aug. 10, 2023 ~ Aug. 16, 2023 Date of Issue .......................................... : Aug. 22, 2023 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Jack Li) Approved By (Lab Manager) : (Alex Li) Page 3 of 83 Report No.: S23072607102001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Aug. 22, 2023 Jack Li Page 4 of 83 Report No.: S23072607102001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty .............................................................. 25 6. RF Exposure Positions .........................…

Text truncated - open the document above for the full version.

DK065wifi- Antenna Test Report CONTENTS Project Overview Test Environment Passive Report Active Report Matching Circuit Environmental Treatment Conclusion 3 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Project Overview Main antenna design spectrum: WIFI 2.4/5.8G Type of antenna: PIFA Repor version:DateContent V5.02023.08.16Antenna test report 4 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Test Environment Darkroom system ：MVG SG24LT（Satmio） 5 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO Matching Circuit main antenna design ElementValue E1(0201):/ E2(0201):/ E3(0201):/ Note: The matching circuit has not changed. 6 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 这段时间，追完了一 部剧叫琅琊榜，看了 几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Figure: The motherboard is grounded with a conductive sponge. Environmental treatment 7 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 这段时间，追完了一 部剧叫琅琊榜，看了 几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 As shown, the red box position paste conductive foam, the motherboard shield cover paste, conductive sponge so that the screen to ground Environmental treatment 8 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 这段时间，追完了一 部剧叫琅琊榜，看了 几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 As shown, the 2.4 G antenna is grounded by a conductive cloth, and the 2.4 g coaxial line is arranged as shown Environmental treatment 9 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 这段时间，追完了一 部剧叫琅琊榜，看了 几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Passive Report Measuring instrument ：Agilent Technologies E5071B 300kHz-8.5GHz ENA Series Network Analyzer Darkroom system ：MVG SG24LT（Satmio） WIFI passive Efficiency, Gain 10 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 这段时间，追完了一 部剧叫琅琊榜，看了 几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Passive Report Measuring instrument ：Agilent Technologies E5071B 300kHz-8.5GHz ENA Series Network Analyzer Darkroom system ：MVG SG24LT（Satmio） 2.4G Passive pattern 11 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 这段时间，追完了一 部剧叫琅琊榜，看了 几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Passive Report Measuring instrument ：Agilent Technologies E5071B 300kHz-8.5GHz ENA Series Network Analyzer Darkroom system ：MVG SG24LT（Satmio） 5.8G Passive pattern 有源报告 12 PART WO Active Report BANDWiFi_11n_20M_MCS7WiFi 5.8_11a_54M WIFI CHANNAL LMHLMH TRP7.878.238.4911.211.3311.08 TIS-----65.12-----71.44 BANDWiFi_11b_CCK_11MWiFi_11g_OFDM_54M WIFI CHANNAL LMHLMH TRP10.8911.1211.549.289.4410.33 TIS-----81.45-----69.25 BANDWiFi 5.8_11ac WIFI CHANNAL LMH TRP10.4510.6610.34 TIS-----65.14 13 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 这段时间，追完了一 部剧叫琅琊榜，看了 几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Conclusion 1. This report is the sample antenna test results 。 2. If you have any questions, please call. THANK YOU If you have any questions, please contact us Daily service hours ： Monday to Saturday 9:00-18:00 Switchboard Hotline ：0755-36615535 Fax：0755-82916227 website ：www.mayaant.com Confidentiality requirements Shenzhen Maya communication equipment Co., Ltd. has owned the information provided by the proprietary technology and is not allowed to disclose it to any person or company without the prior written consent of Shenzhen Maya communication equipment Co., Ltd.

Report No.: S23072607101001 Version.1.3 Page 1 of 95 RADIO TEST REPORT FCC ID: 2A7DX-TAB10WIFI Product: Tablet Trade Mark: BLackview Model No.: Tab 10 WIFI Family Model: N/A Report No.: S23072607101001 Issue Date: Aug 18, 2023 Prepared for DOKE COMMUNICATION (HK) LIMITED RM 1902 EASEY COMM BLDG 253-261 HENNESSY ROAD WANCHAI HK CHINA Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S23072607101001 Version.1.3 Page 2 of 95 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 25 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 26 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 27 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 29 7.7 PEAK OUTPUT POWER .............................................................................................................................. 30 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 32 7.10 ANTENNA APPLICATION .......................................................................................................................... 33 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS ......................................... 34 8 TEST RESULTS ................................................................................................................................................... 35 8.1 DWELL TIME ................................................................................................................................................... 35 8.2 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 45 8.3 -20DB BANDWIDTH ........................................................................................................................................ 51 8.4 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 57 8.5 CARRIER FREQUENCIES SEPARATION .............................................................................................................. 63 8.6 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 69 8.7 BAND EDGE .................................................................................................................................................... 72 8.8 BAND EDGE(HOPPING) ................................................................................................................................... 79 8.9 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 86 Report No.: S23072607101001 Version.1.3 Page 3 of 95 1 TEST RESULT CERTIFICATION Applicant’s name ........................ : DOKE COMMUNICATION (HK) LIMITED Address ....................................... : RM 1902 EASEY COMM BLDG 253-261 HENNESSY ROAD WANCHAI HK CHINA Manufacturer's Name ................. : Shenzhen DOKE Electronic Co., Ltd Address ....................................... : 801, Building…

Text truncated - open the document above for the full version.

Report No.: S23072607101001 Version.1.3 Page 76 of 95 Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission Report No.: S23072607101001 Version.1.3 Page 77 of 95 Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission Report No.: S23072607101001 Version.1.3 Page 78 of 95 Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission Report No.: S23072607101001 Version.1.3 Page 79 of 95 8.8 BAND EDGE(HOPPING) Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 Hopping -62.79 -20 Pass NVNT 1-DH5 2480 Ant1 Hopping -64.99 -20 Pass NVNT 2-DH5 2402 Ant1 Hopping -62.75 -20 Pass NVNT 2-DH5 2480 Ant1 Hopping -64.04 -20 Pass NVNT 3-DH5 2402 Ant1 Hopping -63.03 -20 Pass NVNT 3-DH5 2480 Ant1 Hopping -65.33 -20 Pass Report No.: S23072607101001 Version.1.3 Page 80 of 95 Test Graphs Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission Report No.: S23072607101001 Version.1.3 Page 81 of 95 Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Emission Report No.: S23072607101001 Version.1.3 Page 82 of 95 Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Emission Report No.: S23072607101001 Version.1.3 Page 83 of 95 Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Emission Report No.: S23072607101001 Version.1.3 Page 84 of 95 Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Emission Report No.: S23072607101001 Version.1.3 Page 85 of 95 Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Emission Report No.: S23072607101001 Version.1.3 Page 86 of 95 8.9 CONDUCTED RF SPURIOUS EMISSION Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 -53.85 -20 Pass NVNT 1-DH5 2441 Ant1 -52.87 -20 Pass NVNT 1-DH5 2480 Ant1 -54.01 -20 Pass NVNT 2-DH5 2402 Ant1 -53.4 -20 Pass NVNT 2-DH5 2441 Ant1 -49.38 -20 Pass NVNT 2-DH5 2480 Ant1 -50.15 -20 Pass NVNT 3-DH5 2402 Ant1 -63.03 -20 Pass NVNT 3-DH5 2441 Ant1 -51.99 -20 Pass NVNT 3-DH5 2480 Ant1 -53.82 -20 Pass Report No.: S23072607101001 Version.1.3 Page 87 of 95 Test Graphs Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Emission Report No.: S23072607101001 Version.1.3 Page 88 of 95 Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Emission Report No.: S23072607101001 Version.1.3 Page 89 of 95 Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Emission Report No.: S23072607101001 Version.1.3 Page 90 of 95 Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Emission Report No.: S23072607101001 Version.1.3 Page 91 of 95 Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Emission Report No.: S23072607101001 Version.1.3 Page 92 of 95 Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Emission Report No.: S23072607101001 Version.1.3 Page 93 of 95 Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Emission Report No.: S23072607101001 Version.1.3 Page 94 of 95 Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Emission Report No.: S23072607101001 Version.1.3 Page 95 of 95 Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Emission END OF REPORT

Radiated Measurement Photos Conducted Measurement Photos

Test Positions Front Side (Separation distance of 0mm) Back Side (Separation distance of 0mm) N/A Top Side (Separation distance of 0mm) N/A
