2A7VPC7401ASmart Floor Lamp

Thank you for choosing the C7401-A. In order to optimize the user experience, please read this manual carefully before operation, and keep this manual properly for future use. Download Free APP: Smart Life Download on the GET IT ON Google Play App Store Model:C7401-A Warning: 1. This product is not a toy. To avoid fire, burns, personal injury or electric shock, please install out of the reach of children. 2. In order to ensure the normal operation of the lamp, please use the voltage indicated on the package. 3. Please do not modify the lamps during the warranty period. 4. Do not install near gas or electric heaters, fires, candles or any dangerous objects. 5. Before installation, please check whether the lamps and various parts are in good condition. 6. Be sure to cut off the power before installation. 7. Do not expose the lamp to corrosive conditions. 8. If the power cord is damaged, please cut off the power immediately and stop using it. Technical Specification: 1641.9mm 5.38ft 199.5mm 0.65ft Connection method: 2.4G Wifi&Bluetooth Control method: APP/Voice/Button/ Remote control Adapter input voltage:100-240VAC Adapter output voltage: 12VDC/2A Rated working voltage: DC12V Rated power: 15W Lamp color: RGBCW C2200K W6500K Memory function:yes Working temperature:-20~+40 Work with Amazon Alexa and Google Assistant. Ӆ194.3mm 0.63ft Packing list: 1. RGBCW Smart Floor Lamp * 1 2. Remote control * 1 3. Screw package * 1 4. Installation tools * 1 5. C014 controller/12V2A power supply * 1 6. Copy of the manual * 1 7. After sales service card * 1 Installation Method: A 1 2 C B D Manual of Controller: Put the wire clip on the wire buckle 34 6 534 Button Instruction: Mode key :Scene mode conversion. Speed key :Scene mode speed adjustment. Switch : Short press is on/off. When the device is on, long press in 5 seconds is reset to pairing mode. Light will blink in Red. M s Custom mode You can DIY your favorite color scene Collection mode Long press the icon to collect your favorite dynamic scenes, or long press the icon to delete the dynamic scenes you don't need Select a scene list to select different scene types Set name for DIY mode to reserve. It supports gradient, jump, breathing, flashing, flowing water, rainbow and other modes DIY. Slide the slider to adjust the brightness of the lamp Click "+" to add your favorite color Intact:set the lamp to one color Section:divide the light into multiple segments and set them to different colors Switching between local microphone mode and mobile music mode Different music scenes and sensitivity modulation Add color with one click Add color individually Erase Color Add points Color light and white light adjustment Swipe the brightness bar to adjust the light brightness in the current static mode color adjustment You can move the color dial clockwise or counterclockwise to adjust your preferred color to the white circle, which can be adjusted left or right to adjust the color fullness C7401-A APP Intelligent operation introduction: APP Download. Search the Smart Life from Google Play or App Store. You can also scan the QR code from below. 1.Download the APP and Log In with existing account or Sign Up the new account. Pairing Instruction: iOS App Store Android Google Play 4.Enter the Wi-Fi password and click Next. Make sure the Wi-Fi is 2.4GHz not the 5GHz. Because the Wi-Fi chip is 2.4GHz. Wait about twenty seconds and the device will be added completely. 2.Turn on the power of the device, turn on the Bluetooth and Wi-Fi of the mobile phone, and make sure that the mobile phone is in the 2.4G network state. Press and hold the key for about 3-5 seconds until the light bar is in the red flashing state. 3.Tap Add Device or the plus icon (+) in the top-right corner on the Home page to go to the device adding page. C7401C7401 C7401 6.Click the edit icon in the upper right corner to show more gameplay. 5.Then the device can be found in home page. Now you can play it with your imagination. Modify device name Linkage with other equipment Share control with family Linkage with other devices to achieve one-click execution and automation C7401 1. Please make sure to perform network pairing in 2.4G wifi or hotspot mode; 2. If the connection is too fast or the network cannot be connected, please reconnect to a strong signal location; EŽƟĐĞ͗ C7401-A 2. This warranty does not include: (1) Malfunction or damage caused by improper use, repair or modification. (2) Failure or damage due to falling. (3) Failure or damage caused by fire, earthquake, flood, lightning and other natural disasters. 1. Unable to connect to your Wi-Fi network. (1). Please ensure that the correct Wi Fi password is entered during use. (2). Ensure that the connection is 2.4G wifi and that the device currently does not support 5G wifi, (3). Check if there are any issues with your internet connection. If the Wi Fi signal is too weak, please move to a place with a strong signal or reset the wireless router and try again. 2. The installer is not working properly. (1)Then close all applications running in the background and reopen the Smart Life APP. (2) Uninstall and reinstall the Smart Life app and repeat. 3. The smart string light is not responding. (1) Check whether the smart string light is turned off. If yes, turn them on and wait until the smart light strip reconnects to The wireless network works automatically. (2) Check if there is any problem with your internet connection. If neces- sary, reset the wireless router and try again. ůƵĞƚŽŽƚŚĐŽŶƚƌŽůƐƚĞƉƐ Note: The device has already joined my app normally (2.4GWIFI+Blue- tooth is required for the first connection),Bluetooth control is generally used for devices with poor WIFI signals or disconnected network connections; 1. Turn off the phone's WiFi; 2. Turn on Bluetooth and open the device on the APP; Then the device can be controlled through Bluetooth; 'ƵĂƌĂŶƚĞĞ͗ 1. During the warranty period, we provide services including refunds or free replacement f…

Text truncated - open the document above for the full version.

(Shenzhen Jindian Zhiguang Lighting Co.,Ltd) (Aug. 19, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2A7VPC7401A) [Shenzhen Jindian Zhiguang Lighting Co.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Chenzhou Pan (Shenzhen Jindian Zhiguang Lighting Co.,Ltd) (Aug. 19, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2A7VPC7401A) [Shenzhen Jindian Zhiguang Lighting Co.,Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Chenzhou Pan

Shenzhen Jindian Zhiguang Lighting Co.,Ltd Model Difference Data：2023.08.19 Product description: Smart Floor Lamp Model name: C7401-A, C7401-B, C7401-C, C7401-D, C7402-A, C7402-B, C7402-C, C7402-D, C7403-A, C7403-B, C7403-C, C7403-D, C7404-A, C7404-B, C7404-C, C7404-D, C7405-A, C7405-B, C7405-C, C7405-D Trade Name:N/A FCC ID: 2A7VPC7401A All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : Chenzhou Pan（Manager） Contact information / address：D402, Shengyang Industrial Zone, No.3, Shunv Road, Longhua District, Shenzhen

Shenzhen Jindian Zhiguang Lighting Co.,Ltd (2023.08.19) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Smart Floor Lamp / C7401-A, C7401-B, C7401- C, C7401-D, C7402-A, C7402-B, C7402-C, C7402-D, C7403-A, C7403-B, C7403-C, C7403-D, C7404-A, C7404-B, C7404-C, C7404-D, C7405-A, C7405-B, C7405-C, C7405-D / FCC ID: 2A7VPC7401A) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Chenzhou Pan Title: Manager

Shenzhen Jindian Zhiguang Lighting Co.,Ltd (2023.08.19) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Chenzhou Pan Title: Manager

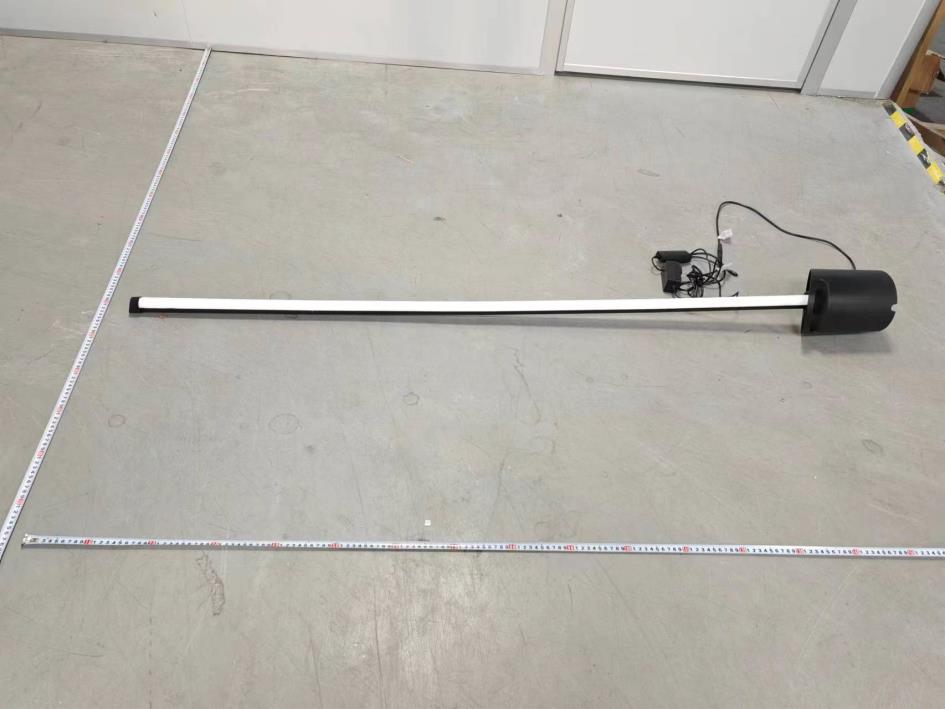

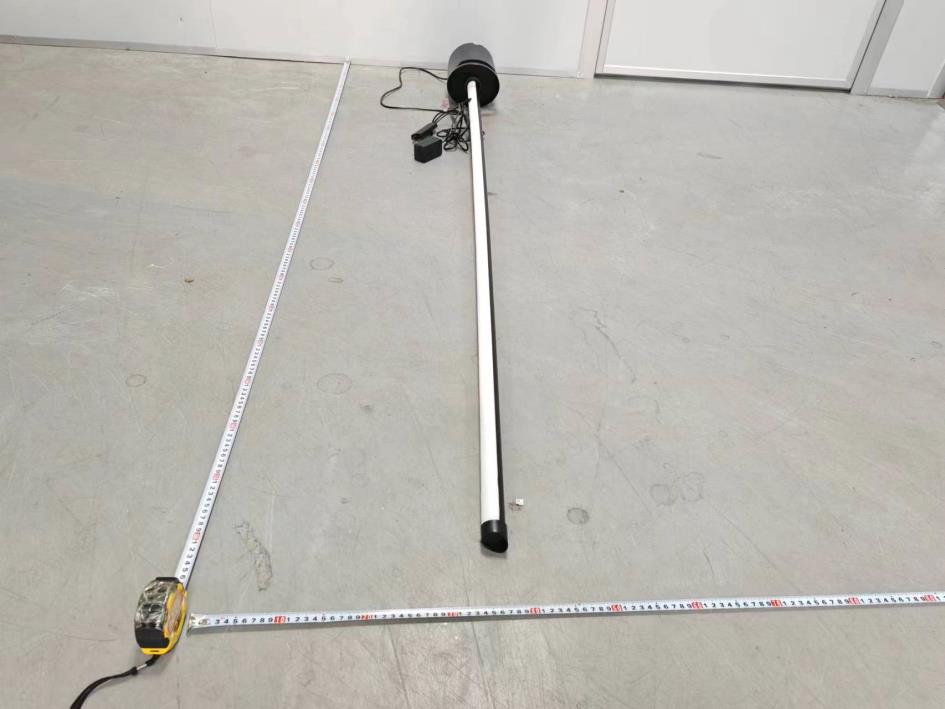

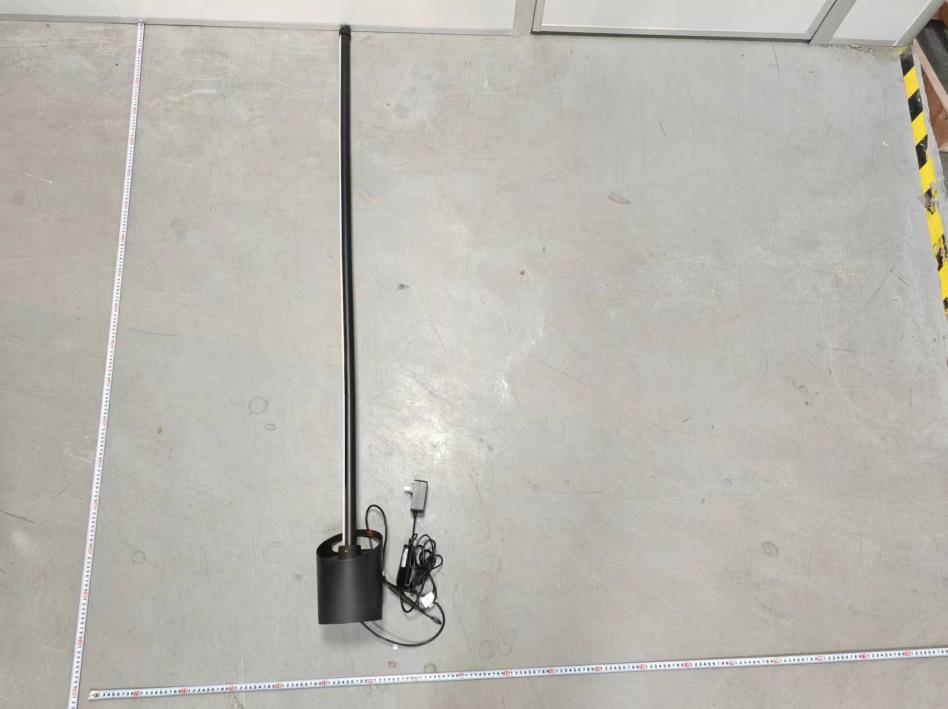

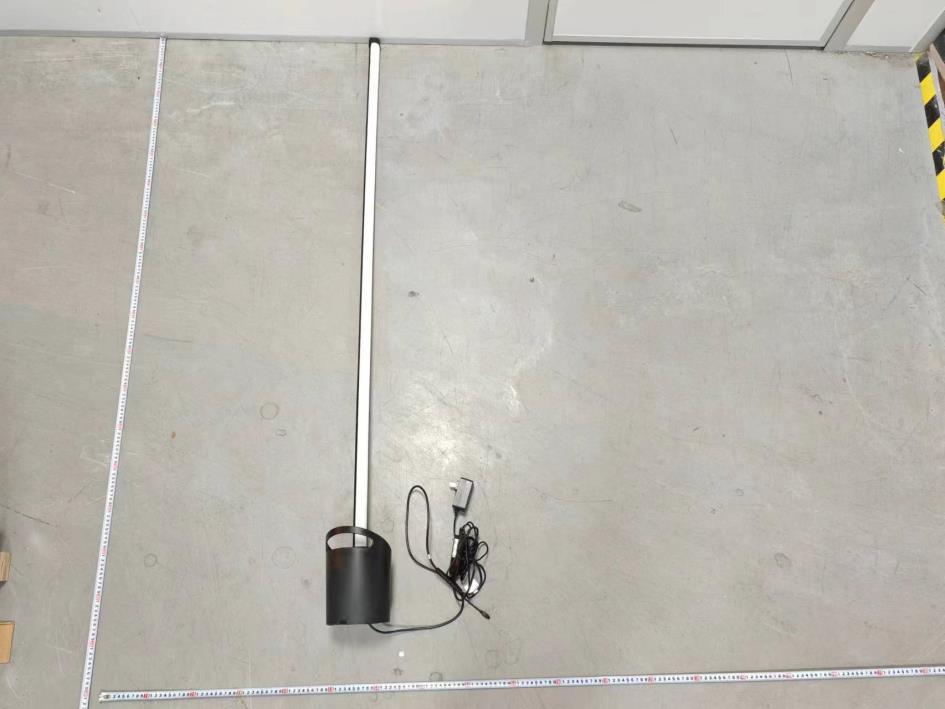

External Photos

FCC ID LABEL: Label Location:

Internal Photos ANT

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2A7VPC7401A Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Modes& Channel Freq. (MHz) Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result 2.4G WIFI 802.11g &2462 20±1 21 125.892 5 1.6634 (2.21dBi) 0.0417 1 Pass BLE GFSK&M CH 5±1 6 3.9811 1.6634 (2.21dBi) 0.00132 1 Pass
