2A7VPC7801ASmart Night Lights

Thank you for choosing the C7801-A. In order to optimize the user experience, please read this manual carefully before operation, and keep this manual properly for future use. Download Free APP: Smart Life Download on the GET IT ON Google Play App Store Model:C7801-A Warning: 1. This product is not a toy. To avoid fire, burns, personal injury or electric shock, please install out of the reach of children. 2. In order to ensure the normal operation of the lamp, please use the voltage indicated on the package. 3. Please do not modify the lamps during the warranty period. 4. Do not install near gas or electric heaters, fires, candles or any dangerous objects. 5. Before installation, please check whether the lamps and various parts are in good condition. 6. Be sure to cut off the power before installation. 7. Do not expose the lamp to corrosive conditions. 8. If the power cord is damaged, please cut off the power immediately and stop using it. 1. Please use a 5V adapter to charge the lamp, as excessive voltage can damage the lamp 2. The battery has a continuous rated working time of 5 hours EŽƟĐĞ͗ Technical Specification: Connection method: 2.4G Wifi&Bluetooth Control method: APP/Voice/Button Rated working voltage: DC5V/1A Rated power: 3W Lamp color: RGBCW Memory function:yes Working temperature:-20~+40 Work with Amazon Alexa and Google Assistant. Packing list: 1. RGBCW Smart Night Lights * 1 2. Type-c data line * 1 3. Copy of the manual * 1 APP Intelligent operation introduction: Set name for DIY mode to reserve. It supports gradient, jump, breathing, flashing, flowing water, rainbow and other modes DIY. Slide the slider to adjust the brightness of the lamp Click "+" to add your favorite color Intact:set the lamp to one color Section:divide the light into multiple segments and set them to different colors Color adjustment Click+to add the selected content Color; Click "Delete" to delete the selected color Multiple music modes and music effects Color light and white light adjustment Custom mode You can DIY your favorite color scene Collection mode Long press the icon to collect your favorite dynamic scenes, or long press the icon to delete the dynamic scenes you don't need C7801 APP Download. Search the Smart Life from Google Play or App Store. You can also scan the QR code from below. 1.Download the APP and Log In with existing account or Sign Up the new account. Pairing Instruction: Timer: Set the device off in given time. Schedule: Set the device on or off in specified time. Click ... from other page to enter to device page. Click pen icon to rename the device. iOS App Store Android Google Play Share the device to other people for controlling.Create a group to control multiple devices. C7801 2.Turn on the power of the device, turn on the Bluetooth and Wi-Fi of the mobile phone, and make sure that the mobile phone is in the 2.4G network state. Press and hold the key for about 3-5 seconds until the light bar is in the red flashing state. 3.Tap Add Device or the plus icon (+) in the top-right corner on the Home page to go to the device adding page. 4.Enter the Wi-Fi password and click Next. Make sure the Wi-Fi is 2.4GHz not the 5GHz. Because the Wi-Fi chip is 2.4GHz. Wait about twenty seconds and the device will be added completely. C7801 C7801 C7801 1. Please be sure to pair under 2.4G network 2. If the network fails to connect after timeout, please repeat the above steps to reconnect at a place with strong network signal 6.Click the edit icon in the upper right corner to show more gameplay. 5.Then the device can be found in home page. Now you can play it with your imagination. EŽƟĐĞ͗ Modify device name Linkage with other equipment Share control with family Linkage with other devices to achieve one-click execution and automation C7801 C7801 2. This warranty does not include: (1) Malfunction or damage caused by improper use, repair or modification. (2) Failure or damage due to falling. (3) Failure or damage caused by fire, earthquake, flood, lightning and other natural disasters. (4) Malfunction or damage when used other than for its intended purpose. (5) Failure or damage caused by third-party products. (6) Failure or damage to the product caused by human factors. 1. Unable to connect to your Wi-Fi network. Please make sure to enter the correct Wi-Fi password during use. Wi-Fi settings. Check your internet connection for problems. If the Wi-Fi signal is too weak, please reset your wireless router and try again. 2. The installer is not working properly. (1)Then close all applications running in the background and reopen the Smart Life APP. (2) Uninstall and reinstall the Smart Life app and repeat. 3. The smart light strip is not responding. (1) Check whether the smart string light is turned off. If yes, turn them on and wait until the smart light strip reconnects to The wireless network works automatically. (2) Check if there is any problem with your internet connection. If neces- sary, reset the wireless router and try again. ^ƚĞƉĨŽƌůƵĞƚŽŽƚŚĐŽŶƚƌŽů͗ Note: The Bluetooth control is for the device that disconnected from router. 1. Open the Bluetooth and use the Bluetooth for pairing. 2. Make sure the router is power off and close the phone Wi-Fi. Keep the 4G/5G internet and Bluetooth open. Wait about 3-5 mins. 3. After that, the device can be controlled by Bluetooth. Even though the 4G/5G network of phone is off. ŽŵŵŽŶƉƌŽďůĞŵƐĂŶĚƐŽůƵƟŽŶƐ͗ 'ƵĂƌĂŶƚĞĞ͗ 1. During the warranty period, we provide services including refunds or free replacement for those who use the device for its intended purpose. —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. EŽƚĞ͗ The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for…

Text truncated - open the document above for the full version.

(Shenzhen Jindian Zhiguang Lighting Co.,Ltd) (Aug. 19, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2A7VPC7801A) [Shenzhen Jindian Zhiguang Lighting Co.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Chenzhou Pan (Shenzhen Jindian Zhiguang Lighting Co.,Ltd) (Aug. 19, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2A7VPC7801A) [Shenzhen Jindian Zhiguang Lighting Co.,Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Chenzhou Pan

Shenzhen Jindian Zhiguang Lighting Co.,Ltd Model Difference Data：2023.08.19 Product description: Smart Night Lights Model name: C7801-A, C7107-A, C7107-B, C7107-C, C7107-D, C7801-B, C7801-C, C7801-D, C7802-A, C7802-B, C7802-C, C7802-D, C7803-A, C7803-B, C7803-C, C7803-D, C7804-A, C7804-B, C7804-C, C7804-D, C7805-A, C7805-B, C7805-C, C7805-D, C7806-A, C7806-B, C7806-C, C7806-D, C7807-A, C7807-B, C7807-C, C7807-D Trade Name:N/A FCC ID: 2A7VPC7801A All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : Chenzhou Pan（Manager） Contact information / address：D402, Shengyang Industrial Zone, No.3, Shunv Road, Longhua District, Shenzhen

Shenzhen Jindian Zhiguang Lighting Co.,Ltd (2023.08.19) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Smart Night Lights / C7801-A, C7107-A, C7107-B, C7107-C, C7107-D, C7801-B, C7801-C, C7801-D, C7802-A, C7802-B, C7802-C, C7802-D, C7803-A, C7803-B, C7803-C, C7803-D, C7804-A, C7804-B, C7804-C, C7804-D, C7805-A, C7805-B, C7805-C, C7805-D, C7806-A, C7806-B, C7806-C, C7806-D, C7807-A, C7807-B, C7807-C, C7807-D / FCC ID: 2A7VPC7801A) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Chenzhou Pan Title: Manager

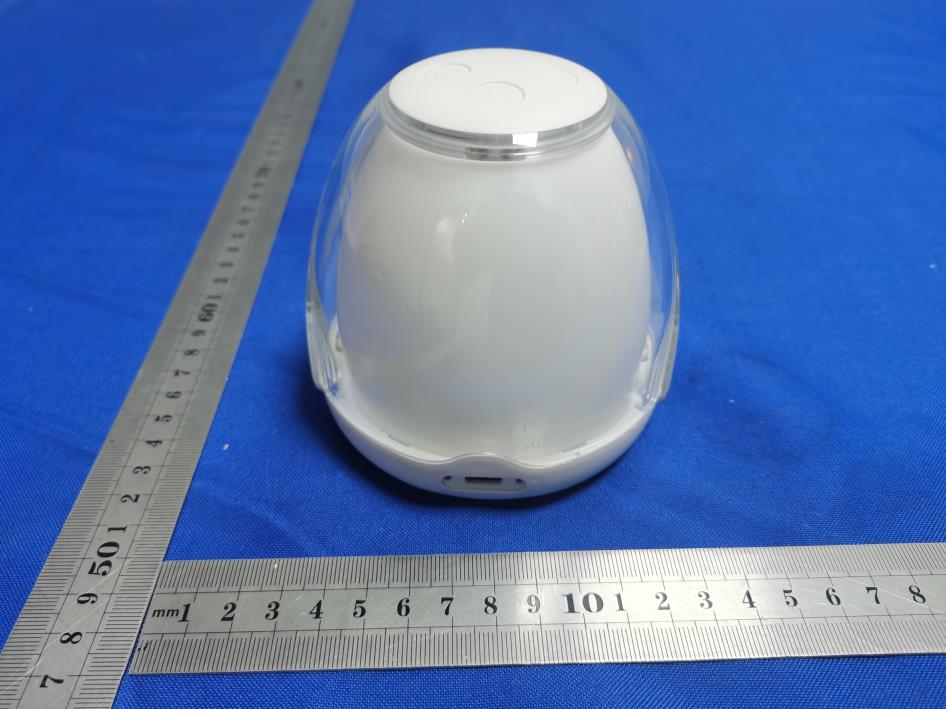

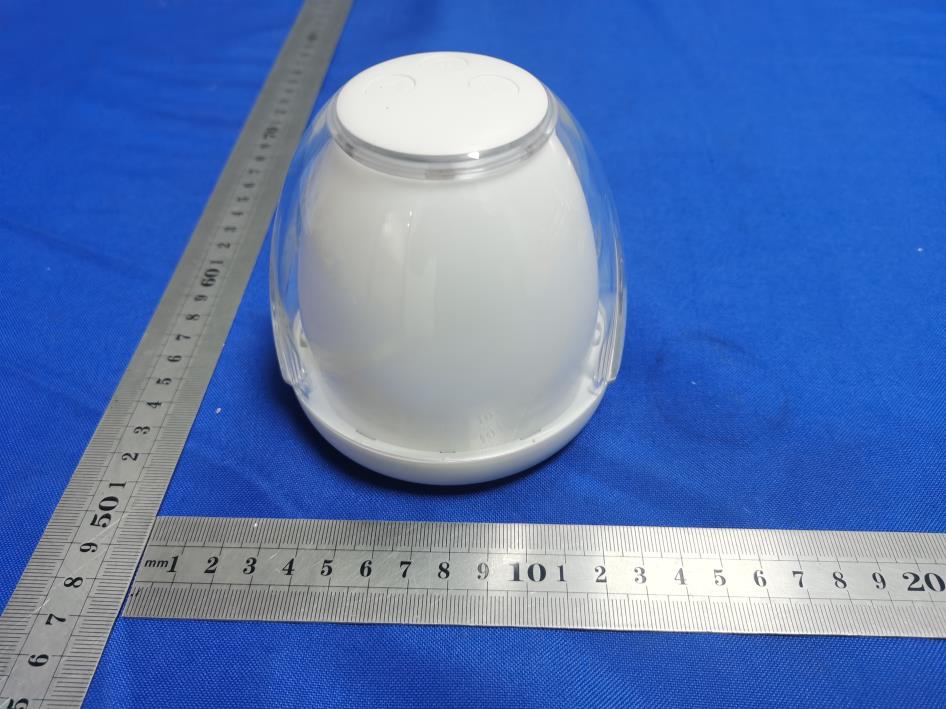

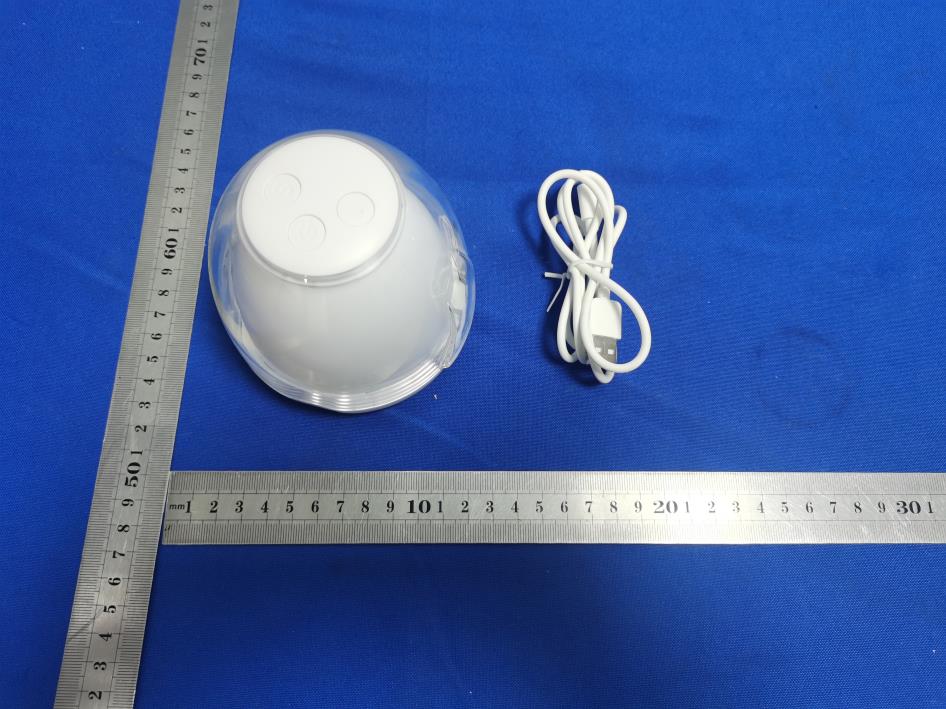

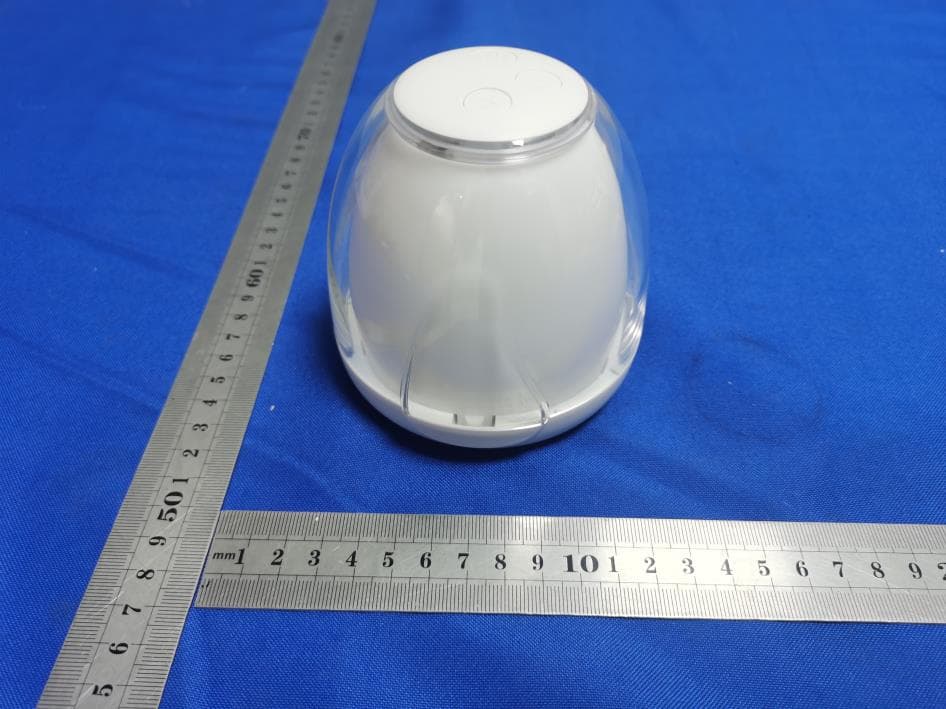

External Photos

FCC ID LABEL: Label Location:

Internal Photos ANT

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2A7VPC7801A Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Modes& Channel Freq. (MHz) Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result 2.4G WIFI 802.11g &2462 20±1 21 125.892 5 1.6634 (2.21dBi) 0.0417 1 Pass BLE GFSK&M CH 5±1 6 3.9811 1.6634 (2.21dBi) 0.00132 1 Pass

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230621027RFX Report Tel: 4008-707-283Web: http://www.ctb-lab.net Page 1 of 62 TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director N ote: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Smart Night Lights FCC ID: 2A7VPC7801A Trademark: N/A Model Number: C7801-A, C7107-A, C7107-B, C7107-C, C7107-D, C7801-B, C7801-C, C7801-D, C7802-A, C7802-B, C7802-C, C7802-D, C7803-A, C7803-B, C7803-C, C7803-D, C7804-A, C7804-B, C7804-C, C7804-D, C7805-A, C7805-B, C7805-C, C7805-D, C7806-A, C7806-B, C7806-C, C7806-D, C7807-A, C7807-B, C7807-C, C7807-D Prepared For: Shenzhen Jindian Zhiguang Lighting Co.,Ltd Address: D402, Shengyang Industrial Zone, No.3, Shunv Road, Longhua District, Shenzhen Manufacturer: Shenzhen Jindian Zhiguang Lighting Co.,Ltd Address: D402, Shengyang Industrial Zone, No.3, Shunv Road, Longhua District, Shenzhen Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Jun. 05, 2023 Sample tested Date: Jun. 05, 2023 to Aug. 10, 2023 Issue Date: Aug. 10, 2023 Report No.: CTB230621027RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is WIFI-2.4GHz band radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230621027RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 62 TABLE OF CONTENT Test Report Declaration Page 1. VERSION .......................................................................... 3 2. TEST SUMMARY ................................................................... 4 3. MEASUREMENT UNCERTAINTY ..................................................... 5 4. PRODUCT INFORMATION AND TEST SETUP .......................................... 6 4.1 Product Information .................................................................... 6 4.2 Test Setup Configuration ............................................................... 6 4.3 Support Equipment .................................................................... 6 4.4 Channel List .......................................................................... 7 4.5 Test Mode ............................................................................ 7 4.6 Test Environment ...................................................................... 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................... 8 5.1 Test Facility ........................................................................... 8 5.2 Test Instrument Used .................................................................. 8 6. AC POWER LINE CONDUCTED EMISSION ............................................ 10 6.1 Block Diagram Of Test Setup .......................................................... 10 6.2 Limit ................................................................................ 10 6.3 Test procedure ....................................................................... 10 6.4 Test Result .......................................................................... 12 7. RADIATED SPURIOUS EMISSION ................................................... 14 7.1 Block Diagram Of Test Setup .......................................................... 14 7.2 Limit ................................................................................ 14 7.3 Test procedure ....................................................................... 15 7.4 Test Result .......................................................................... 16 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS .......................... 38 8.1 Block Diagram Of Test Setup .......................................................... 38 8.2 Limit ................................................................................ 38 8.3 Test procedure ....................................................................... 38 8.4 Test Result .......................................................................... 39 9. COUDUCTED OUTPUT POWER ..................................................... 46 9.1 Block Diagram Of Test Setup .......................................................... 46 9.2 Limit ................................................................................ 46 9.3 Test procedure ....................................................................... 46 9.4 Test Result .......................................................................... 47 10. 6DB OCCUPIED BANDWIDTH ....................................................... 48 10.1 Block Diagram Of Test Setup ......................................................... 48 10.2 Limit ............................................................................... 48 10.3 Test procedure ...................................................................... 48 10.4 Test Result ......................................................................... 49 11. POWER SPECTRAL DENSITY ...................................................... 54 11.1 Block Diagram Of Test Setup ......................................................... 54 11.2 Limit ............................................................................... 54 11.3 Test procedure ...................................................................... 54 11.4 Test Result…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230621028RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 35 TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Smart Night Lights FCC ID: 2A7VPC7801A Trademark: N/A Model Number: C7801-A, C7107-A, C7107-B, C7107-C, C7107-D, C7801-B, C7801-C, C7801-D, C7802-A, C7802-B, C7802-C, C7802-D, C7803-A, C7803-B, C7803-C, C7803-D, C7804-A, C7804-B, C7804-C, C7804-D, C7805-A, C7805-B, C7805-C, C7805-D, C7806-A, C7806-B, C7806-C, C7806-D, C7807-A, C7807-B, C7807-C, C7807-D Prepared For: Shenzhen Jindian Zhiguang Lighting Co.,Ltd Address: D402, Shengyang Industrial Zone, No.3, Shunv Road, Longhua District, Shenzhen Manufacturer: Shenzhen Jindian Zhiguang Lighting Co.,Ltd Address: D402, Shengyang Industrial Zone, No.3, Shunv Road, Longhua District, Shenzhen Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Jun. 05, 2023 Sample tested Date: Jun. 05, 2023 to Aug. 10, 2023 Issue Date: Aug. 10, 2023 Report No.: CTB230621028RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230621028RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 35 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ........................................................................................................................................ 3 2. TEST SUMMARY ........................................................................................................................... 4 3. MEASUREMENT UNCERTAINTY ................................................................................................. 5 4. PRODUCT INFORMATION AND TEST SETUP ............................................................................ 6 4.1 Product Information .......................................................................................................................... 6 4.2 Test Setup Configuration .................................................................................................................. 6 4.3 Support Equipment........................................................................................................................... 6 4.4 Channel List ..................................................................................................................................... 7 4.5 Test Mode ........................................................................................................................................ 7 4.6 Test Environment ............................................................................................................................. 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................................................... 8 5.1 Test Facility ...................................................................................................................................... 8 5.2 Test Instrument Used ....................................................................................................................... 8 6. AC POWER LINE CONDUCTED EMISSION ................................................................................ 10 6.1 Block Diagram Of Test Setup ......................................................................................................... 10 6.2 Limit ................................................................................................................................................ 10 6.3 Test procedure ............................................................................................................................... 10 6.4 Test Result ..................................................................................................................................... 12 7. RADIATED SPURIOUS EMISSION ............................................................................................. 14 7.1 Block Diagram Of Test Setup ......................................................................................................... 14 7.2 Limit ................................................................................................................................................ 14 7.3 Test procedure ............................................................................................................................... 15 7.4 Test Result ..................................................................................................................................... 16 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............................................... 23 8.1 Block Diagram Of Test Setup ......................................................................................................... 23 8.2 Limit ................................................................................................................................................ 23 8.3 Test procedure ............................................................................................................................... 23 8.4 Test Resul…

Text truncated - open the document above for the full version.

Radiated Emission Below 1G Above 1G Conducted emissions
