2A7ZM-Q4MICIlluminato Q4 Microphone

UHF wireless microphone Instruction manual Please read this instruction manual carefully before using this product. Microphone function description 1.Volume +/- key 2.Power key: A, long press on/off; B: Short press switching frequency (598-603 MHZ ) Equipment System:Digital systems Number of Channel: 01 598MHz 02 599MHz 03 600MHz 04 601MHz 05 602MHz 06 603MHz PMN: Illuminato Q4 Microphone HVIN: Illuminato Q4 Microphone C: receiver code operation: note (it is recommended to lock receiver code in case of same frequency interference) 1) When the microphone is off, hold down the microphone power button and watch the LED off. Then connect the button twice and the LED will flash and enter the code matching mode. 2) After ensuring that the microphone enters the code matching mode, power on the receiver and turn on the receiver. If the LED light blinks quickly for four times and then goes off, the code matching is successful 3) The microphone exits the code alignment mode, press the power button once, and the LED flash will turn to steady on. If the receiver light is steady on, the code alignment is successful Receiver function description 1. Battery holder: 18650 batteries are required 2. Antenna: receives microphone signals 3. Signal indicator: When the signal is connected, it turns red 4.DC 5V power port 5. Power indicator 6. Power switch: 0N is power on; OFF is to turn off the machine. 7. 6.3mm connector: Insert the cable microphone jack into the device Electrical parameter1. Microphone: 1) Working voltage: two 3V AA dry batteries, battery life is about 8H; 2) Working current: 125mA + / -15mA; 3) Standby current: 20uA; 4) Transmission power: 8dBm (reference value 13dBm); 5) Microphone power indicator: A) Power off at 2V or below; B) The 2.2V battery enclosure blinks, indicating that the battery is low. 2. Receiver: 1) Working voltage: 3.7V 18650,1800MA lithium battery, battery life is about 8H; 2) Working current: 180mA + / -10mA; 3) Shutdown voltage: 3.2V; 4) Full of time: 6H; 5) Audio signal-to-noise ratio: 96dB, frequency response: 50HZ ~ 15KHz. FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Ь Reorient or relocate the receiving antenna. Ь Increase the separation between the equipment and receiver. Ь Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Ь Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. ISED Statement ϋEnglish: This device complies with Industry Canada licenseǦexempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, a nd (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICESǦ3(B)/NMBǦ3(B). ϋFrench: Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradi oélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement. l'appareil numlrique du ciem conforme canadien peutϋ3 (b) / nmbϋ3 (b). This device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS 102 RF exposure, users can obtain Canadian information on RF exposure and compliance. cet appareil est conforme à l'exemption des limites d'évaluation courante dans la section 2.5 du cnr - 102 et conformité avec rss 102 de l'exposition aux rf, les utilisateurs peuvent obtenir des données canadiennes sur l'exposition aux champs rf et la conformité. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator & your body. Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 0 cm entre le radiateur et votre corps.

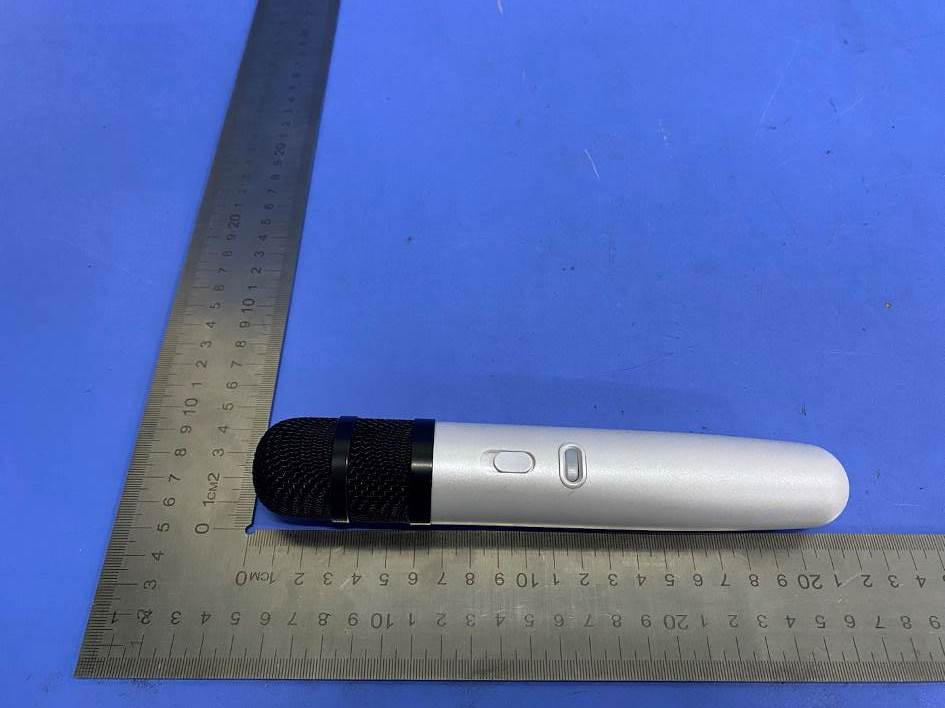

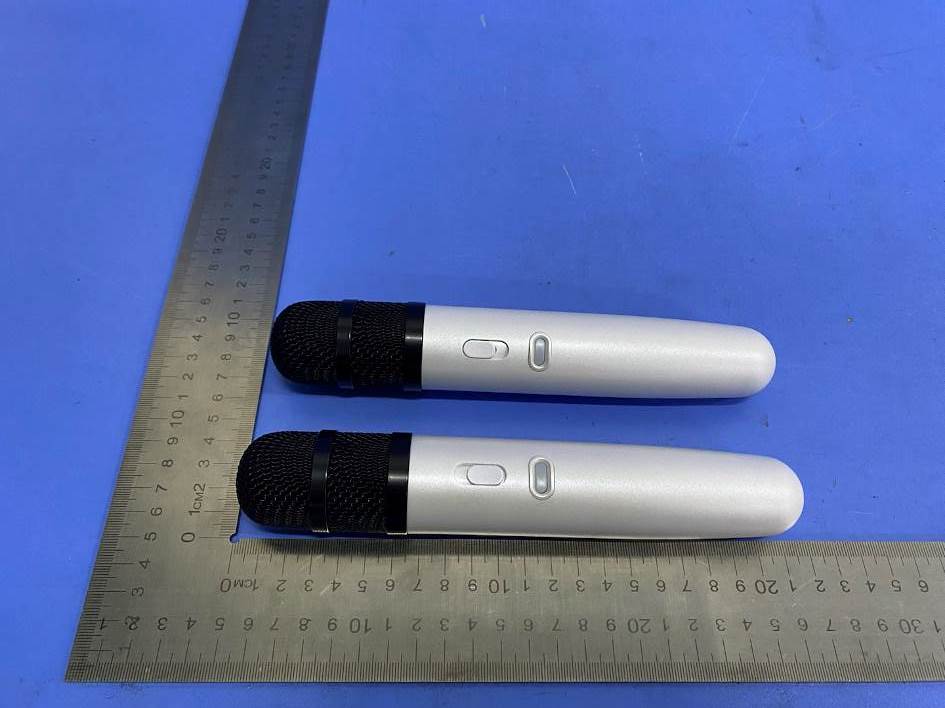

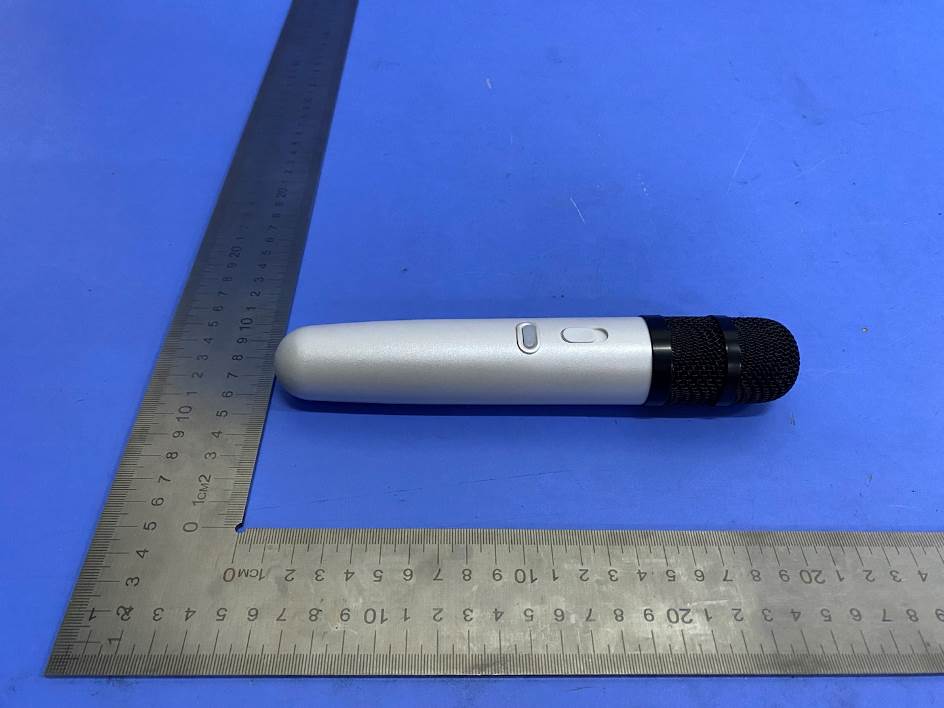

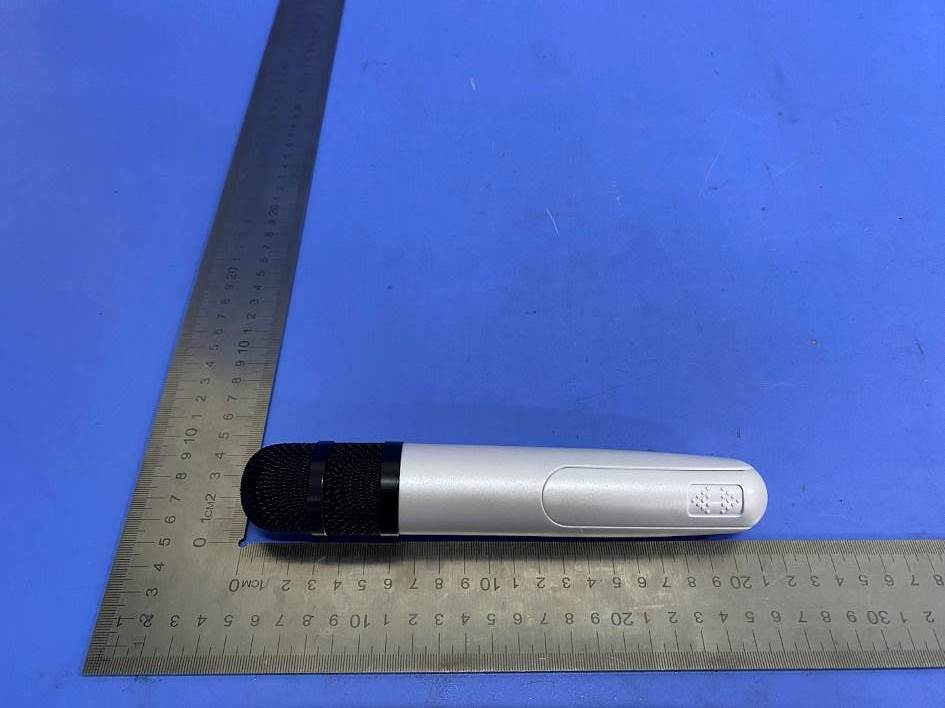

FCC ID: 2A7ZM-Q4MIC TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: 2A7ZM-Q4MIC TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID: 2A7ZM-Q4MIC TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT FCC ID: 2A7ZM-Q4MIC TB-RF-074-1.0 Photo 7 Appearance of EUT

FCC ID: 2A7ZM-Q4MIC TB-RF-074-1.0 Appendix IFCC ID Label FCC ID: 2A7ZM-Q4MIC Model No.: Illuminato Q4 Microphone FCC ID: 2A7ZM-Q4MIC TB-RF-074-1.0 Appendix II ID Label Location ID LOCATION

FCC ID: 2A7ZM-Q4MIC TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 8 Internal of EUT Photo 9 Internal of EUT FCC ID: 2A7ZM-Q4MIC TB-RF-074-1.0 Photo 10 Internal of EUT Photo 11 Internal of EUT Antenna FCC ID: 2A7ZM-Q4MIC TB-RF-074-1.0 Photo 12 Internal of PCB Photo 13 Internal of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202209-0005-34 Page: 1 of 3 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2A7ZM-Q4MIC 1. Client Information Applicant : JBU GLOBAL LLC Address : 19416 NE 26th Ave, 114B, Miami, Florida 33180, United States Manufacturer : SHENZHEN SVR TECHNOLOGY CO., LTD. Address : 706B, Haosheng Business Center, 4096 Dongbin Road, Nanshan District, Shenzhen. China. 2. General Description of EUT EUT Name : Illuminato Q4 Microphone Model(s) No. : Illuminato Q4 Microphone Model Different : ---- Brand Name : MASINGO Sample ID : RW-C-202209-0005-20-1#&RW-C-202209-0005-20-2# Product Description : Operation Frequency: 598MHz~603MHz Number of Channel: 6 Channels RF Output Power: 1.34dBi PCB Antenna Antenna Gain: Digital systems Power Supply : 1.5V AA*2 battery Software Version : V1.0 Hardware Version : V1.0 Remark: The antenna gain provided by the applicant, the adapter and verified for the RF conduction test and adapter provided by TOBY test lab. Note: More test information about the EUT please refer the RF Test Report. Report No.: TBR-C-202209-0005-34 Page: 2 of 3 TB-RF-074-1.0 The RF Exposure Evaluation for FCC: SAR Test Exclusion Calculations FCC: According to 447498 D04 Interim General RF Exposure Guidance v01. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold P th (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). P th is given by Formula (B.2). and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). The example values shown in Table B.2 are for illustration only. Table B.2—Example Power Thresholds (mW) Report No.: TBR-C-202209-0005-34 Page: 3 of 3 TB-RF-074-1.0 Calculation: Test separation: 5mm Wireless microphone Frequency (MHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mW) Limit P th (mW) 598 -0.143 0±1 1 1.259 15 600 -0.300 0±1 1 1.259 15 603 0.004 0±1 1 1.259 15 The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 D04, No SAR is required. Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1093 and the RSS-102§4 Table 4 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06, No SAR is required. -----END OF REPORT-----

JBU GLOBAL LLC Project lluminato Q4 Microphone Antenna Revision A1 Product Description PCB Antenna DATE 2022.10.1 Product Overview & Dimension Front 580-608MHZ Purpose This report is to measure the performance of BT antenna for lluminato Q4 Microphone e antenna operating frequency at 580-608MHz , All test data are showed as below. Content 1. Product Over view & Dimension 2 . Te st system 3. . Antenna Matching Network 4. Te st Result 4.1 1 S 11 Parameter 4 . 2 Te st coordinate 4 . 3 2 D Pattern 5. . Antenna Assembly & environmental processing 2. Test System Sequence Number Test Item equipment S parameter VSWR Agilent 5071C & Agilent 5062A OTA Test TRP&TIS CMW500 &CMW270 ETS&SATIMO Gain & Efficiency Gain & Efficiency ETS&SATIMO Agilent 5071C S11 SWR 598 599 600 S11 Log Mag 601 602603 S11 Smith （ R+jX ） 601 602603 E1 NC Murata E2 C=15NH/0402/Murata Murata ±0.1NH E3 C=0.5PF/0402/Murata Murata ±0.1PF Test Result Sample status & coordinates Test Result Gain & Efficiency—— 580-608MHz - ANT Frequency (MHz) Efficiency (%) Peak GAIN (dBi) 598 29.89 0.94 599 30.42 1.03 600 30.92 1.08 Frequency (MHz) Efficiency (%) Peak GAIN (dBi) 601 29.89 0.94 602 30.42 1.03 603 30.92 1.08 Test Result 2D&3D—— 580-608MHz - ANT Total(H-XY),Max=-3.94dBi,CirD=8.73 598.MHZ Total(E1-XZ).Max=-3.20dBi 598.MHZ Total(E2-XZ).Max=-4.45dBi 598MHZ H+V.Eff,29.89% Test Result Gain & Efficiency—— 580-608MHz - ANT Frequency (MHz) Efficiency (%) Peak GAIN (dBi) 598 34.65 1.34 599 34.85 1.33 600 35.16 1.19 601 34.50 1.18 602 35.81 1.24 603 35.74 1.09 Test Result 2D&3D——580 -608MHz - ANT 601.MHZ H+V,Eff.34.65% 601.MHZ Total(E1-XZ).Max=-2.05dBi Total(H-XY),Max=-2.78dBi,CirD=9.22 601.MHZ Total(E2-YZ).Max=-3.34dBi Thanks for your comment!

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202209-0005-30 Page: 1 of 40 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2A7ZM-Q4MIC Report No. : TBR-C-202209-0005-30 Applicant : JBU GLOBAL LLC Equipment Under Test (EUT) EUT Name : Illuminato Q4 Microphone Model No. : Illuminato Q4 Microphone Series Model No. : ---- Brand Name : MASINGO Sample ID : RW-C-202209-0005-20-1#&RW-C-202209-0005-20-2# Receipt Date : 2022-11-28 Test Date : 2022-11-28 to 2023-01-14 Issue Date : 2023-01-16 Standards : FCC Part 15, Subpart C (15.236) Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Wade. Lv Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202209-0005-30 Page: 2 of 40 TB-RF-074-1.1 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT.............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.4 Description of Support Units .............................................................................................. 7 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. TEST SOFTWARE ..................................................................................................................... 9 4. TEST EQUIPMENT .................................................................................................................. 10 5. CONDUCTED EMISSION TEST ........................................................................................... 11 5.1 Test Standard and Limit .................................................................................................... 11 5.2 Test Setup ........................................................................................................................... 11 5.3 Test Procedure ................................................................................................................... 12 5.4 Deviation From Test Standard ......................................................................................... 12 5.5 EUT Operating Mode ........................................................................................................ 12 5.6 Test Data ............................................................................................................................. 12 6. RF OUTPUT POWER TEST .................................................................................................. 13 6.1 Test Standard and Limit .................................................................................................... 13 6.2 Test Setup ........................................................................................................................... 13 6.3 Test Procedure ................................................................................................................... 13 6.4 Deviation From Test Standard ......................................................................................... 14 6.5 EUT Operating Condition ................................................................................................. 14 6.6 Test Data ............................................................................................................................. 14 7. BANDWIDTH TEST ................................................................................................................. 15 7.1 Test Standard and Requirement ..................................................................................... 15 7.2 Test Setup ........................................................................................................................... 15 7.2 Test Procedure ................................................................................................................... 15 7.4 Deviation From Test Standard ......................................................................................... 15 7.5 EUT Operating Condition ................................................................................................. 15 7.6 Test Data ............................................................................................................................. 15 8. EMISSION MASK TEST ......................................................................................................... 16 8.1 Test Standard ..................................................................................................................... 16 8.2 T…

Text truncated - open the document above for the full version.

FCC ID: 2A7ZM-Q4MIC TB-RF-074-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) -----END OF REPORT-----
