2A8N5S1PLUSMOBILE PHONE

RUA Trading LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Long Term Confidentiality FCC ID: 2A8N5S1PLUS Date: 2022-12-26 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Murtaza Panjwani Title: Manager

RUA Trading LLC Agent Authorization Company: RUA Trading LLC Address: 8212 NW 30th Terr, Doral, Florida 33122, United States Product Name: MOBILE PHONE Model Number(s): S1 PLUS+ Product Description: MOBILE PHONE We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature:Date: 2022-12-26 Name:MurtazaPanjwani Title:Manager Company:RUA TradingLLC

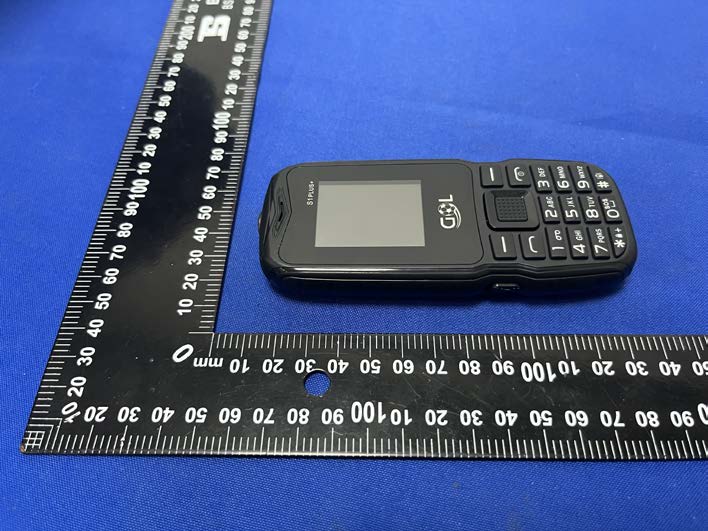

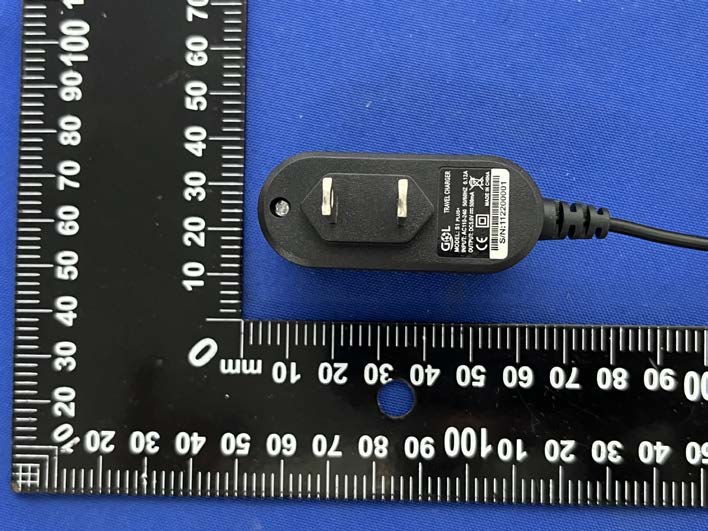

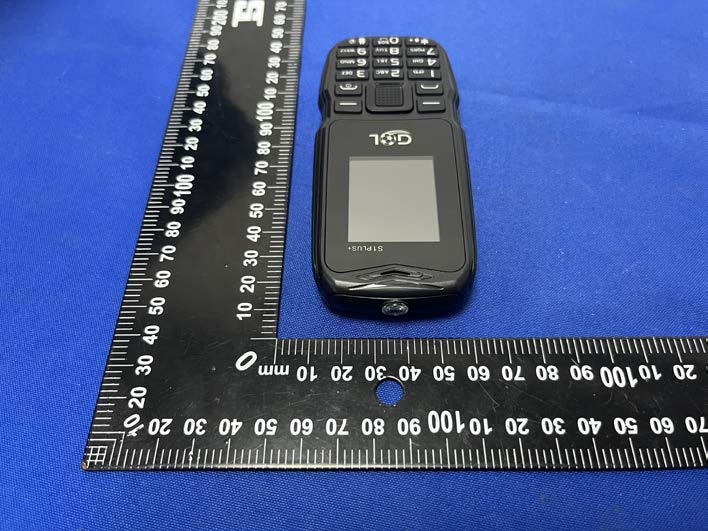

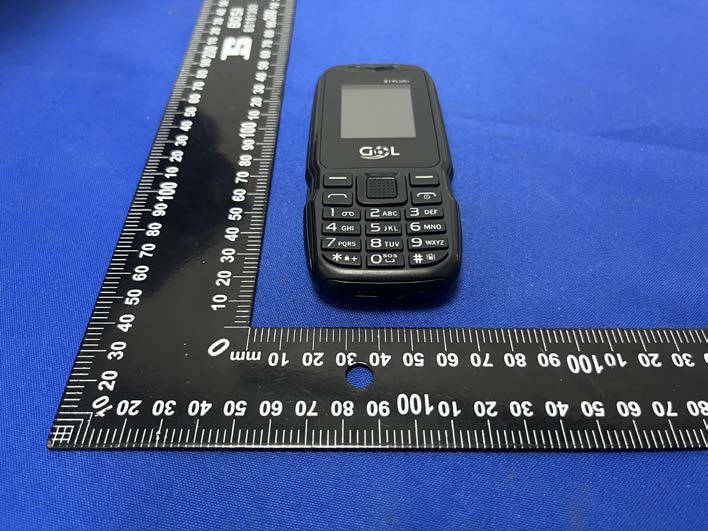

Page 1 of 4 Appendix C: Photographs of EUT Product: MOBILE PHONE Model: S1 PLUS+ External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

LabelArtworkand Location Model:S1 PLUS+ Label: Size:L*W=34*34mm Location

Page 1 of 9 Appendix C: Photographs of EUT Product: MOBILE PHONE Model: S1 PLUS+ Internal Photos Page 2 of 9 Page 3 of 9 GSM ANT Page 4 of 9 BT ANT Page 5 of 9 Page 6 of 9 Page 7 of 9 Page 8 of 9 Page 9 of 9

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com SAR TEST REPORT FCC ID. ............................ : 2A8N5S1PLUS Test Report No. ............... : TCT221205E030 Date of issue ................... : Dec. 28, 2022 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : RUA Trading LLC Address ........................... : 8212 NW 30th Terr, Doral, Florida 33122, United States Manufacturer's name ... : RUA Trading LLC Address ........................... : 8212 NW 30th Terr, Doral, Florida 33122, United States Product Name ................. : MOBILE PHONE Trade Mark ...................... : GOL Model/Type reference..... : S1 PLUS+ SAR Max. Values..............: 0.68 W/Kg (1g) for head; 0.72 W/Kg (1g) for Body-worn Date of receipt of test item ......................................... : Dec. 05, 2022 Date (s) of performance of test ................................... : Dec. 05, 2022 ~ Dec. 28, 2022 Tested by (+signature) ... : Una LI Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT221205E030 Page 2 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. General Product Information ............................................................................................................. 4 1.1. EUT description .......................................................................................................................... 4 1.2. Model(s) list ................................................................................................................................. 4 2. Test standard ....................................................................................................................................... 5 3. Facilities and Accreditations ............................................................................................................. 5 3.1. Facilities ....................................................................................................................................... 5 3.2. Location ....................................................................................................................................... 5 3.3. Environment Condition: ............................................................................................................. 5 4. Test Result Summary ......................................................................................................................... 6 5. RF Exposure Limit .............................................................................................................................. 7 6. SAR Measurement System Configuration ....................................................................................... 8 6.1. SAR Measurement Set-up .......................................................................................................... 8 6.2. E-field Probe ................................................................................................................................ 9 6.3. Phantom ....................................................................................................................................... 9 6.4. Device Holder ............................................................................................................................ 10 6.5. Data Storage and Evaluation ................................................................................................... 11 6.6. Position of the wireless device in relation to the phantom ................................................. 12 6.7. Tissue Dielectric Parameters .................................................................................................. 15 6.8. Tissue-equivalent Liquid Properties ...................................................................................... 16 6.9. System Check ........................................................................................................................... 17 7. Measurement Procedure .................................................................................................................. 18 8. Conducted Output Power ................................................................................................................. 21 9. Exposure Position Consideration ................................................................................................... 25 9.1. EUT Antenna Location ............................................................................................................. 25 9.2. Test Position Consideration .................................................................................................... 25 10. SAR Test Results Summary............................................................................................................. 26 10.1. Head 1g SAR Data .................................................................................................................... 26 10.2. Body-Worn 1g SAR Data .......................................................................................................... 27 10.3. Simultaneous Transmission Conclusion ............................................................................... 29 10.4. SAR Simultaneous Transmission Analysis ........................................................................... 31 10.5. Mea…

Text truncated - open the document above for the full version.

Report No.: TCT221205E030 Page 79 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 80 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 81 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 82 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 83 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix D: Dipole Calibration Report SID 835 Report No.: TCT221205E030 Page 84 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 85 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 86 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 87 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 88 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 89 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 90 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 91 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 92 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 93 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 94 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com SID1900 Report No.: TCT221205E030 Page 95 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 96 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 97 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 98 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 99 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 100 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 101 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 102 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 103 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 104 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221205E030 Page 105 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix E: SAR SYSTEM VALIDATION Per FCC KDB 865664 D02v01, SAR system validation status should be documented to confirm measurement accuracy. The SAR systems (including SAR probes, system components and software versions) used for this device were validated against its performance specifications prior to the SAR measurements. Reference dipoles were used with the required tissue- equivalent media for system validation, according to the procedures outlined in FCC KDB 865664 D01 v01 and IEEE 1528-2013. Since SAR probe calibrations are frequency dependent, each probe calibration point was validated at a frequency within the valid frequency range of the probe calibration point, using the system that normally operates with the probe for routine SAR measurements and according to the required tissue-equivalent media. A tabulated summary of the system validation status including the validation date(s), measurement frequencies, SAR probes and tissue dielectric parameters has been included. SAR System Validation Summary Date Freq. [MHz] Probe S/N Tissu e type COND. PERM. COND. PERM. CW Validation Mod. Validation (σ) (εr) sensitivity Probe linearity Probe isotropy Mod. type Duty factor Peak to average power ratio 11/20/2022 835 SN 25/22 EPGO3 75 Head 42.3 0.89 PASS PASS PASS GMSK PASS N/A 11/20/2022 1900 SN 25/22 EPGO3 75 Head 40.31 1.38 PASS PASS PASS GMSK PASS N/A NOTE: While the probes have been calibrated for both a CW and modulated signals, all measurements were performed using communication systems calibrated for CW signals only. Modulations in the table above represent test configurations for which the measurement system has been validated per FCC KDB Publication 865664 D01v01 for scenarios when CW probe calibrations are used with other signal types. SAR systems were validated for modulated signals with a periodic duty cycle, such as OFDM according to KDB 865664. Report No.: TCT221205E030 Page 106 of 107 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix F: The Check Data of Impedance and Return Loss The information are included in the SAR report to qualify for the three-year extended calibration interval; Impedance in head liquid Date: 05/27/2022 Freq. (MHz) Temp (°C) Dipole Impedance Re(z) Dipole Impedance Im(z) measured Target △（±5Ω） measured Target △（±5Ω） 835 22 52.30 51.60 0.7 2.30 1.70 0.6 1900 22 50.30 51.70 -1.4 4.20 4.90 -0.7 Impedance in body liquid Date: 05/31/2022 Freq. (MHz) Temp (°C) D…

Text truncated - open the document above for the full version.

Spec Summ Antenn cification mary na Photo & L An ns Ce  Azim A Length (mm ntenn ITEM Model Na enter Frequ MAX. GA Polarizati muth Beam Impedan Antenna Le m) na S M ame uency AIN 1 ion m Pattern nce ength peci IBM 2 0 2402 39 2441 78 2480 1.40dbi Hori Omni-d ifica SPEC 2.4 GHz MHz MHz MHz 1.13 1.2 1.4 izontal directional 50 Ω 25mm ation C. 3dBi 1 dBi 0 dBi Ω m n Frequency(MHZ): 2402 Antenna Polarity: Vertical Test Address 601, Building E, No. 8, North District, Shangxue Science and Technology Park, Bantian Street, Longgang District, Shenzhen, China Test Date 2022-9-14 Test Instrument vector network analyzer - R&S ZVB20 1. Main antenna : 2402 MHz 1.1 Horizontal 2. Main antenna : 2441 MHz 2.1 Horizontal 3. Main antenna : 2480 MHz

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2A8N5S1PLUS Test Report No. ............... : TCT221205E029 Date of issue ................... : Dec. 20, 2022 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory, Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : RUA Trading LLC Address ........................... : 8212 NW 30th Terr, Doral, Florida 33122, United States Manufacturer's name ... : RUA Trading LLC Address ........................... : 8212 NW 30th Terr, Doral, Florida 33122, United States Standard(s) ..................... : FCC CFR Title 47 Part 2 FCC CFR Title 47 Part22 FCC CFR Title 47 Part24 Product Name ................. : MOBILE PHONE Trade Mark ...................... : GOL Model/Type reference..... : S1 PLUS+ Rating(s).......................... : Adapter Information: Model: S1 PLUS+ Input: AC 110-240V, 50/60Hz, 0.12A Output: DC 5.0V, 500mA Rechargeable Li-ion Battery DC 3.7V Date of receipt of test item ......................................... : Dec. 05, 2022 Date (s) of performance of test ................................... : Dec. 05, 2022 - Dec. 20, 2022 Tested by (+signature) ... : Aaron MO Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT221205E029 Page 2 of 56 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 4 1.3. Operation Frequency ............................................................................................ 4 2. Test Result Summary .............................................................................. 5 3. General Information ................................................................................. 6 3.1. Test environment and mode ................................................................................. 6 3.2. Description of Support Units ................................................................................ 7 3.3. Configuration of Tested System .......................................................................... 8 3.4. Measurement Results Explanation Example ....................................................... 8 4. Facilities and Accreditations .................................................................. 9 4.1. Facilities ................................................................................................................. 9 4.2. Location ................................................................................................................. 9 4.3. Measurement Uncertainty ..................................................................................... 9 5. Test Results and Measurement Data ................................................... 10 5.1. Conducted Output Power Measurement ........................................................... 10 5.2. Peak to Average Ratio ......................................................................................... 12 5.3. 99% Occupied Bandwidth and 26dB Bandwidth Measurement ...................... 18 5.4. Band Edge and Conducted Spurious Emission Measurement ....................... 25 5.5. Effective Radiated Power and Effective Isotropic Radiated Power Measurement .............................................................................................................. 35 5.6. Field Strength of Spurious Radiation Measurement ........................................ 42 5.7. Frequency Stability Measurement ..................................................................... 50 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT221205E029 Page 3 of 56 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : MOBILE PHONE Model/Type reference........... : S1 PLUS+ Sample Number....................: TCT221205E028-0101 3G Version ............................ : WCDMA: R99 HSDPA: Release 5 HSUPA: Release 6 Tx Frequency ........................ : GSM/GPRS 850: 824.2MHz ~ 848.8MHz GSM/GPRS 1900: 1850.2MHz ~ 1909.8MHz WCDMA Band V: 826.4MHz ~ 846.6MHz WCDMA Band II: 1852.4MHz ~ 1907.6MHz Rx Frequency ....................... : GSM/GPRS 850: 869.2MHz ~ 893.8MHz GSM/GPRS 1900: 1930.2MHz ~ 1989.8MHz WCDMA Band V: 871.4MHz ~ 891.6MHz WCDMA Band II: 1932.4MHz ~ 1987.6MHz Maximum Output Power to Antenna ................. : GSM850: 32.95dBm GSM1900: 28.50dBm GPRS850: 32.96dBm GPRS1900: 28.42dBm WCDMA Band V: 22.92dBm WCDMA Band II: 22.70dBm 99% Occupied Bandwidth ............................. : GSM850: 250KGXW GSM1900: 245KGXW GPRS850: 250KGXW GPRS1900: 245KGXW WCDMA Band V: 4M10F9W WCDMA Band II: 4M10F9W Type of Modulation............... : GSM/GPRS: GMSK WCDMA/HSDPA/HSUPA: QPSK Antenna Type ........................ : Internal Antenna Antenna Gain ........................ : GSM/GPRS 850: 1.5dBi GSM/GPRS 1900: 1.5dBi WCDMA Band V: 1.4dBi WCDMA Band II: 1.5dBi Rating(s)................................ : Adapter Information: Model: S1 PLUS+ Input: AC 110-240V, 50/60H…

Text truncated - open the document above for the full version.

Report No.: TCT221205E029 Page 32 of 56 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Band: WCDMA Band V Test Mode: HSUPA Link (QPSK) Conducted Spurious Emission on Channel 4132 Conducted Spurious Emission on Channel 4182 Conducted Spurious Emission on Channel 4233 Report No.: TCT221205E029 Page 33 of 56 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Band: WCDMA Band II Test Mode: HSUPA Link (QPSK) Conducted Spurious Emission on Channel 9262 Conducted Spurious Emission on Channel 9400 Conducted Spurious Emission on Channel 9538 Report No.: TCT221205E029 Page 34 of 56 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com GSM1900(GSM) Conducted Spurious Emission for Below 1G Channel RBW (KHz) Test result (dBm) RBW (MHz) Calculate result (dBm) Limit (-13dBm) 512 100 -44.50 1 -34.50 Pass 661 100 -44.36 1 -34.36 Pass 810 100 -46.15 1 -36.15 Pass WCDMA Band II Conducted Spurious Emission for Below 1G Channel RBW (KHz) Test result (dBm) RBW (MHz) Calculate result (dBm) Limit (-13dBm) 9262 100 -44.11 1 -34.11 Pass 9400 100 -43.64 1 -33.64 Pass 9538 100 -43.12 1 -33.12 Pass Compensate 10dB is for Exchange rate of RBW Exchange rate of RBW = 10*log10(Reference bandwidth/RBW at measurement) =10[dB] where Reference bandwidth = 1 MHz Note: Measurements were conducted in all GMSK modulation (GSM/GPRS) and the worst case Mode (GSM) was submitted only. Report No.: TCT221205E029 Page 35 of 56 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 5.5. Effective Radiated Power and Effective Isotropic Radiated Power Measurement 5.5.1. Test Specification Test Requirement: FCC part 22.913(a) and FCC part 24.232(c) Test Method: FCC KDB 971168 D01v03r01 Receiver Setup: GSM/GPRS/EDGE WCDMA/HSPA SPAN 500kHz 10MHz RBW 10kHz 100kHz VBW 30kHz 300kHz Detector RMS RMS Trace Average Average Average Type Power Power Sweep Count 100 100 Limit: GSM850: 7W ERP PCS1900: 2W EIRP WCDMA Band V: 7W ERP WCDMA Band II: 2W EIRP Test Setup： From 30MHz to 1GHz Above 1GHz Test Procedure: 1. The testing follows FCC KDB 971168 D01v03r01 Section 5.8. and ANSI / TIA-603-D-2010 Section Report No.: TCT221205E029 Page 36 of 56 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2.2.17. 2. The EUT was placed on a non-conductive rotating platform 0.8 meters high in a semi-anechoic chamber. The radiated emission at the fundamental frequency was measured at 3 m with a test antenna and a spectrum analyzer with RMS detector per section 5. of KDB 971168 D01v03. 3. Key the transmitter, then rotate the EUT 360 o azimuthally and record spectrum analyzer power level (LVL) measurements at angular increments that are sufficiently small to permit resolution of all peaks. If a standard radiation test site is used, raise and lower the test antenna to obtain a maximum reading at each angular increment. 4. Replace the transmitter under test with a substitution antenna. The center of the antenna should be at the same location as the center of the antenna under test. 5. Connect the antenna to a signal generator with a known output power and record the path loss (in dB) as LOSS. If a standard radiation test site is used, raise and lower the test antenna to obtain a maximum reading. LOSS = Generator Output Power (dBm) – Analyzer reading (dBm) 6. Determine the effective radiated output power at each angular position from the readings in steps 3) and 5) using the following equation: ERP (dBm) = LVL (dBm) + LOSS (dB) 7. The maximum ERP is the maximum value determined in the preceding step. 8. Calculating ERP: ERP (dBm) = Output Power (dBm) - Losses (dB) + Antenna Gain (dBd) Antenna Gain (dBd) = Antenna Gain (dBi) - 2.15 EIRP = ERP + 2.15 Test results: PASS Report No.: TCT221205E029 Page 37 of 56 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 5.5.2. Test Instruments Radiated Emission Test Site (966) Name of Equipment Manufacturer Model Serial Number Calibration Due Universal Radio Communication Tester R&S CMU200 110188 Jul. 04, 2023 Spectrum Analyzer R&S FSQ40 200061 Jul. 03, 2023 Signal Generator HP 83623B 3614A00396 Feb. 24, 2023 Broadband Antenna Schwarzbeck VULB9163 340 Jul. 05, 2024 Horn Antenna Schwarzbeck BBHA 9120D 631 Jul. 05, 2024 Broadband Antenna Schwarzbeck VULB9163 412 Jul. 05, 2024 Horn Antenna Schwarzbeck BBHA 9120D 1201 Jul. 05, 2024 Horn Antenna Schwarzbeck BBHA 9170 00956 Apr. 10, 2023 Coaxial cable SKET RC-18G-N-M / Feb. 24, 2024 Coaxial cable SKET RC_40G-K-M / Feb. 24, 2024 Antenna Mast Keleto RE-AM / / EMI Test Software Shurple Technology EZ-EMC / / Report No.: TCT221205E029 Page 38 of 56 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 5.5.3. Test Data Test Result of ERP GSM850 (GSM) Radiated Power ERP Horizontal Polarization (Antenna Pol.) Frequency (MHz) (EUT Pol.) LVL (dBm) Correction Factor (dB) ERP (dBm) ERP (W) 824.2 H 10.21 21.66 29.72 0.94 836.6 H 10.63 21.54 30.02 1.00 848.8 H 10.86 21.46 30.17 1.04 Vertical Polarization (Antenna Pol.) Frequency (MHz) (EUT Pol.) LVL (dBm) Correction Factor (dB) ERP (dBm) ERP (W) 824.2 H 10.32 21.66 29.83 0.96 836.6 H 10.74 21.54 30.13 1.03 848.8 H 10.90 21.46 30.21 1.05 GPRS 850 (1-solt) Radiated Power ERP Horizontal Polarization (Antenna Pol.) Frequency (MHz) (EUT Pol.) LVL (dBm) Correction Factor (dB) ERP (dBm) ERP (W) 824.2 H 9.70 21.66 29.21 0.83 836.6 H 9.85 21.54 29.24 0.84 848.8 H 9.97 21.46 29.28 0.85 Vertical Polarization (Antenna Pol.) Frequency (MHz) (EUT Pol.) LVL (dBm) Correction Factor (dB) ERP (dBm) ERP (W) 824.2 H 9.86 21.66 29.37 0.86 836.6 H 9.94 21.54 29.33 0.86 848.8 H 10.05 21.46 29.36 0.86 Note: All GPRS slot have been tested, but only the worst GPRS 1-slot show in this test item. Report No.: TCT221205E029 Page 39 of 56 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com WCDMA Band V (HSUPA)…
