2A8OE-F3X26Q4G Industrial Router

Xiamen Four-Faith Communication Technology Co., Ltd.
4G Industrial Router - FCC ID 2A8OE-F3X26Q - Xiamen Four-Faith Communication Technology Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jan 09, 2023
Application Purpose
Original Equipment
Date of Application
Jan 09, 2023
Equipment Note
4G Industrial Router
Frequency Range
2412.00000000 - 2462.00000000
Company
Xiamen Four-Faith Communication Technology Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

F3X26Q 4G Industrial Router User Manual Document Version Security Classification V1.0.0 Product Series: F3X26Q Total: 91 pages F3X26Q 4G Industrial Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd Add:Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen Tel:+86 592-5907276 Fax:+86 592-5912735 Web:en.four-faith.com F3X26Q 4G Industrial Router User Manual Page 2 of 92 Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China. Website: en.four-faith.com Tel: +86-592-5907276 Fax: +86-592-5912735 Files Revised Record Date Version Remark Author 2018-7-21 V1.0.0 Initial Version Harven F3X26Q 4G Industrial Router User Manual Page 3 of 92 Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China. Website: en.four-faith.com Tel: +86-592-5907276 Fax: +86-592-5912735 Copyright Notice All contents in this file are protected by copyright laws, and all copyrights are reserved by Xiamen Four-Faith Communication Technology Co., Ltd. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher, except in the case of brief quotations embodied in critical reviews and certain other noncommercial uses permitted by copyright law. Noncommercial uses can be downloaded or printed by the individual (all files shall not be revised, and the copyright and other proprietorship notice shall be reserved). Trademark Notice Four-Faith, 四信, , , are all registered trademarks of Xiamen Four-Faith Communication Technology Co., Ltd., illegal use of the name of Four-Faith, trademarks and other marks of Four-Faith is forbidden, unless written permission is authorized in advance. FCC Statements This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. F3X26Q 4G Industrial Router User Manual Page 4 of 92 Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China. Website: en.four-faith.com Tel: +86-592-5907276 Fax: +86-592-5912735 ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. Federal Communication Commission (FCC) Radiation Exposure Statement When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements. F3X26Q 4G Industrial Router User Manual Page 5 of 92 Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China. Website: en.four-faith.com Tel: +86-592-5907276 Fax: +86-592-5912735 Product Picture Note: There may be differences between models of accessories and interfaces, actual products shall prevail. F3X26Q 4G Industrial Router User Manual Page 6 of 92 Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei, Xiamen, Fujian, China. Website: en.four-faith.com Tel: +86-592-5907276 Fax: +86-592-5912735 Contents Chapter 1 Brief Introduction of Product ....................................................................................... 8 1.1 General ................................................................................................................................ 8 1.2 Working Principle Diagram .................................................................................................. 9 1.3 Specification ........................................................................................................................ 9 Chapter 2 Installation Introduction ............................................................................................. 11 2.1 Overview ........................................................................................................................... 11 2.2 Encasement List ................................................................................................................. 11 2.3 Installation and Cable Connection .................................................................................... 11 2.4 About Power...................................................................................................................... 16 2.5LED Indicator ...................................................................................................................... 16 2.6 Reset Button ...................................................................................................................... 17 Chapter 3 Configuration and Management .............................................................................. 18 3.1 Configuration Connecti…

Text truncated - open the document above for the full version.

Cover Letter(s)

           ! !!   "  # $  %  &  '(     )*"*+,--"$- . )* "+,-+,-$+ / 0 (12 2 344 56789:;<=7;9> ' ----- /'/  ?@@A#B B?#% ?@@ B%%B?#  C  ! /D  'D(  E$+ ?F! @(  !  G @' -E" %G0    C   H     I             ! JG  C(  2   B   ! K' L    ( G2   (     2  /M   C  !  ( 2  !  (   ( (  ( !  G  2  B   ! K' L   G2 (  D  (  22 (  H   I  !(! G 2  H    (G0   ! 2 2! G2(   !(  G2( (  %  +$ 2  ' G(  2 ,** - A%  *"- (   C  ( D!  2 H   2   %  N ( O( ( P! # & ( N P ! @

Cover Letter(s)

          !"  #  $ % &     '( ()*++ "+  ,'( )*+ )*+") - . &/00  1222345678496:;<=9>3?6@:9634 %  ++++ + -%-A BBC!DDA!#ABB D##DA!#  E   -F   % F &  G")A H B &   I B%+G #I. 0     J &    KK   0  0   0D%+(A-" +  D   L #  &G) G)*0  && M& &           I J &&  0     0 0    K    & KK    &  I L NOH %  N#  & NAK   % & K   IF   & KK   0    0  &    &  KI  K I  && 0 &   &KF  &.& 0 I  0 & & K  &  H  #    #    P  ! $ &Q    PB

External Photos

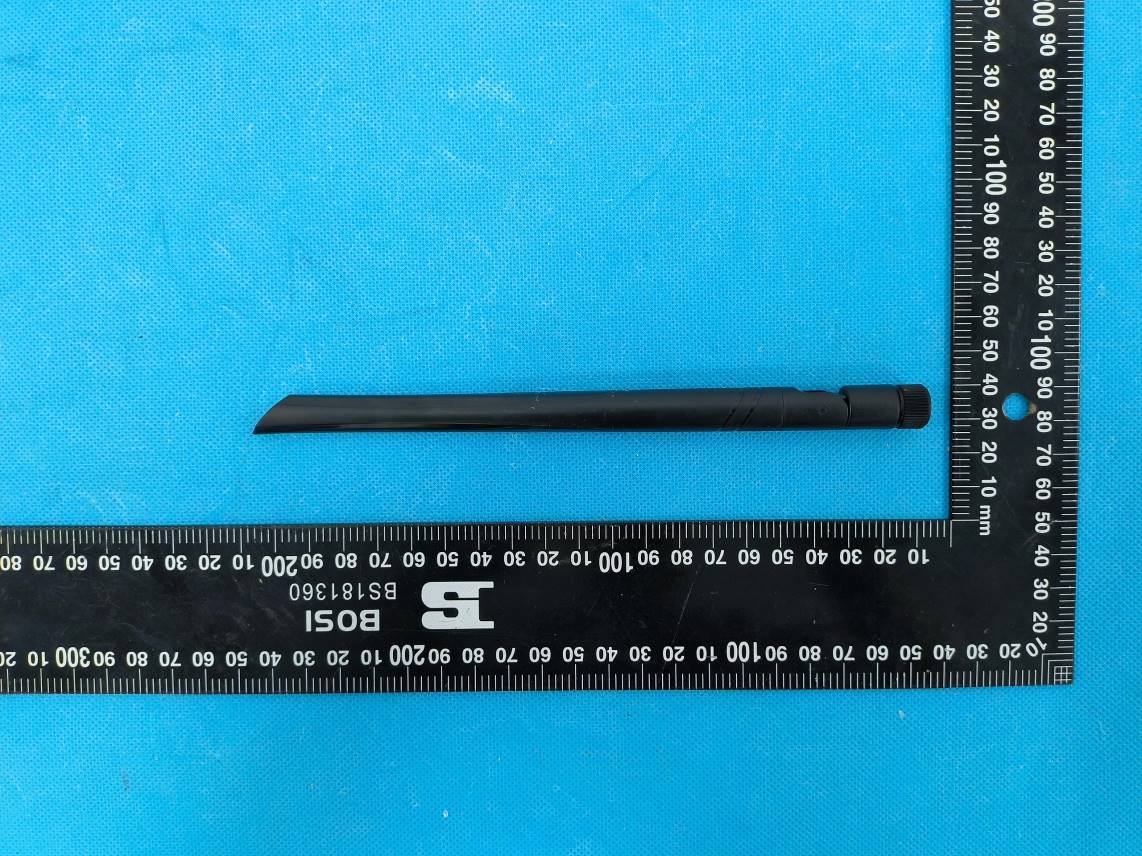

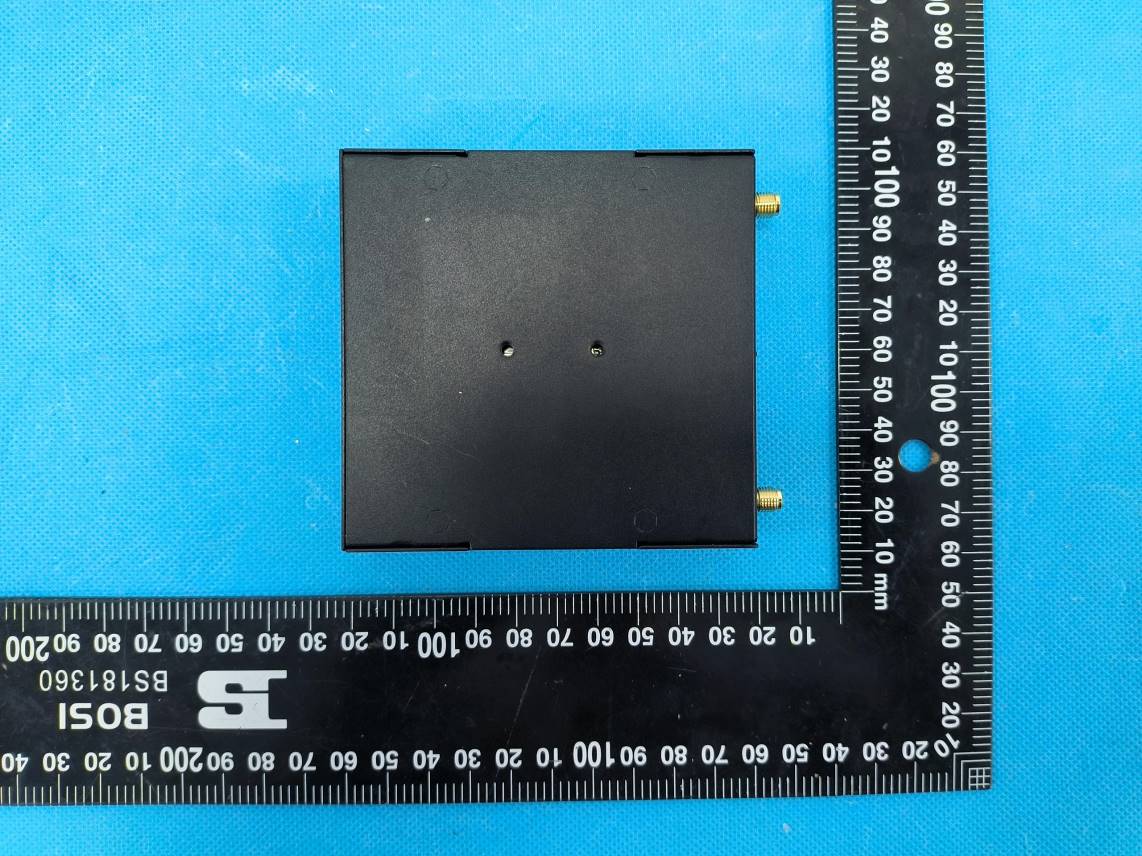

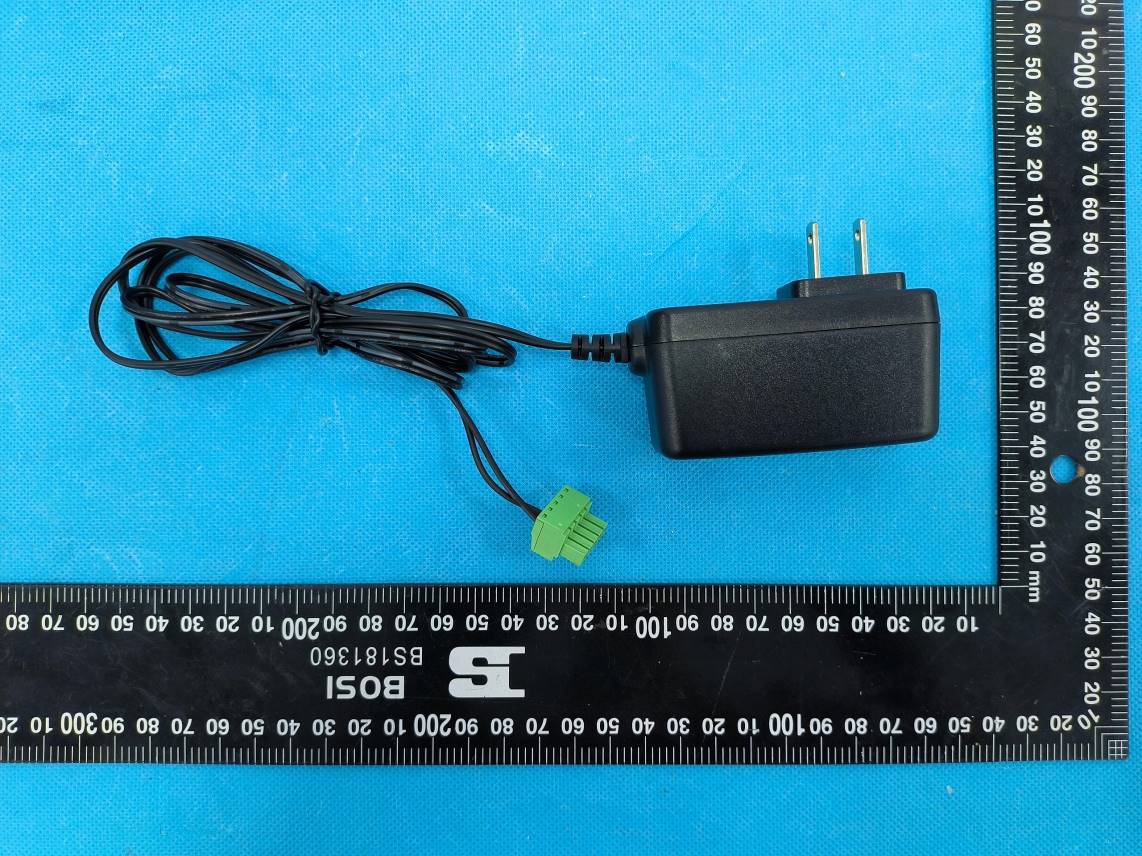

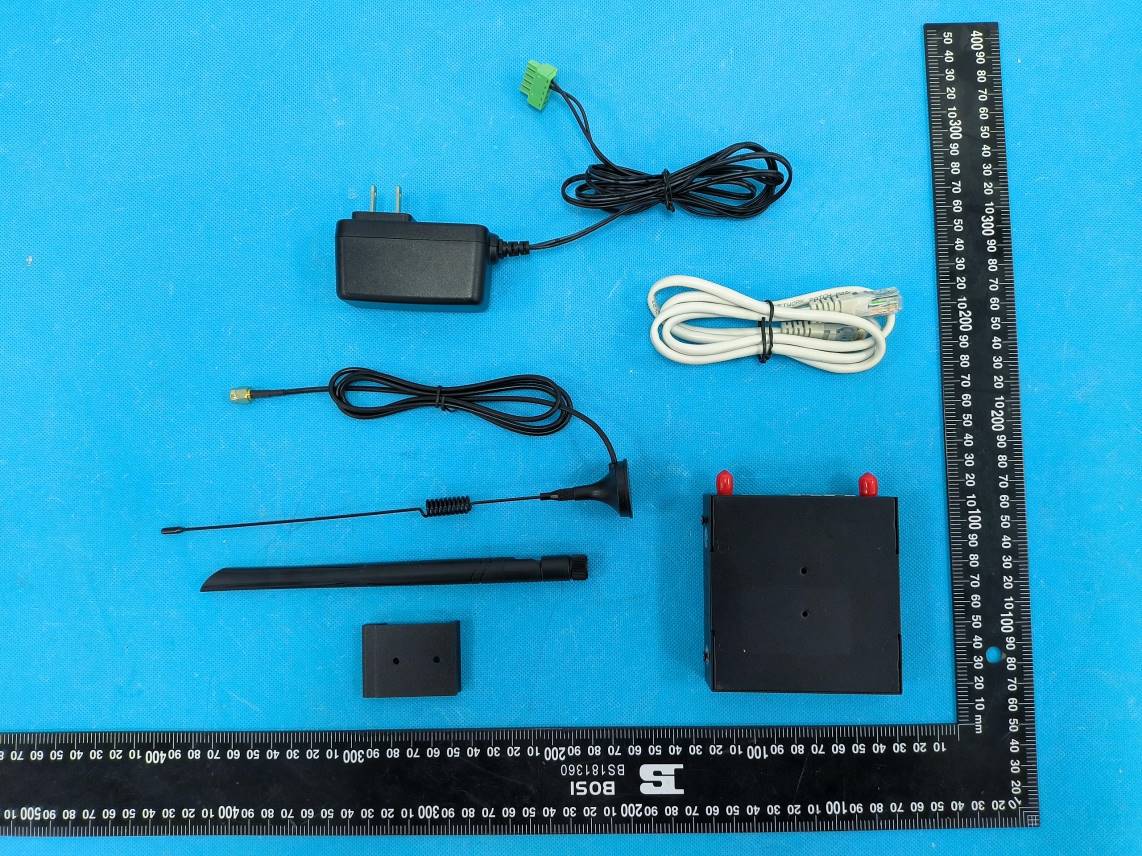

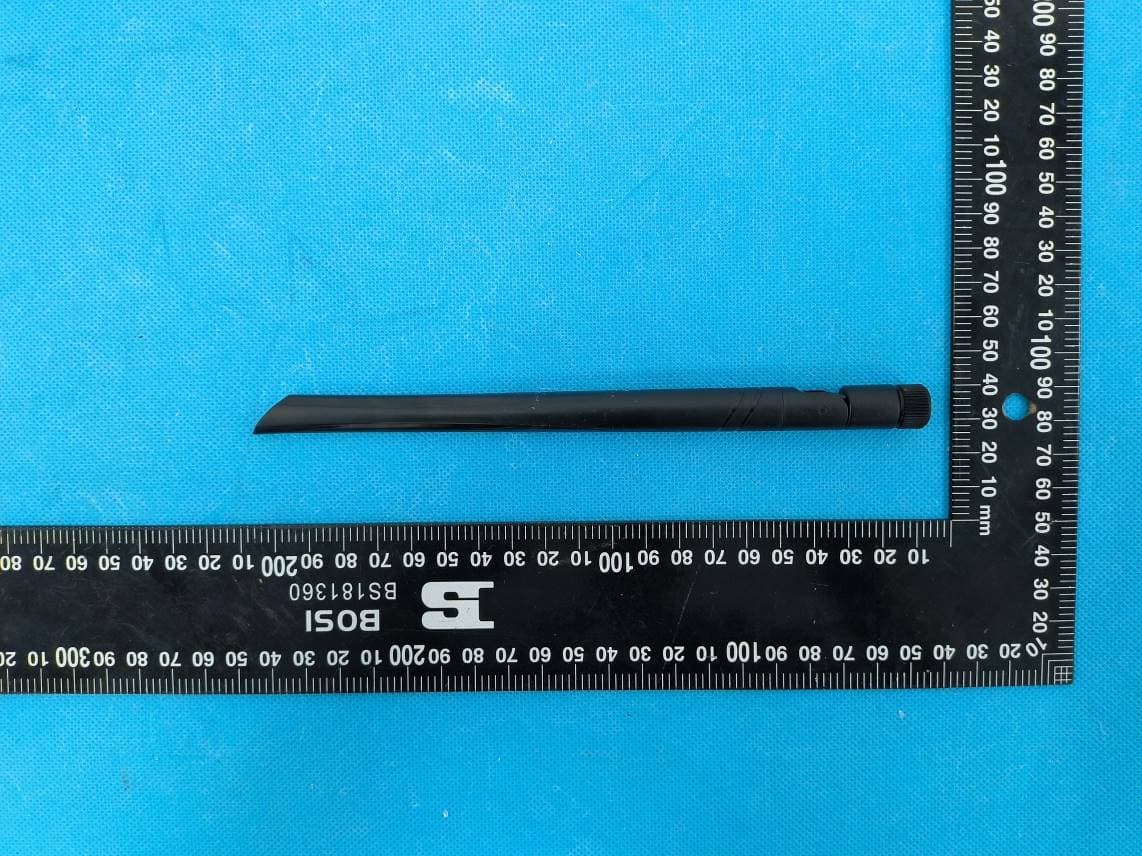

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT WiFi Port Port Port WWAN Port WiFi Antenna WWAN Antenna

ID Label/Location Info

Internal Photos

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Uncover Chip Chip Chip WWAN MODULE FCC ID: ZMONL668AM00 CHIP

RF Exposure Info

China Certification ICT Co., Ltd (Dongguan) Report No.: CR220942755-00B Page 57 of 59 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard FCC §15.247 (i) & §1.1307 Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §1.1307(b)(1) of this chapter. 1.1.2 Procedure According to §1.1307(b)(3)(ii)(B) Simultaneous Transmission with both SAR-based and MPE-Based Test Exemptions This case is described in detail in § 1.1307(b)(3)(ii)(B) and covers the situations where both SAR-based and MPE-based exemption may be considered for test exemption in fixed, mobile, or portable device exposure conditions. For these cases, a device with multiple RF sources transmitting simultaneously will be considered an RF exempt device if the condition of Formula (1) is satisfied. China Certification ICT Co., Ltd (Dongguan) Report No.: CR220942755-00B Page 58 of 59 China Certification ICT Co., Ltd (Dongguan) Report No.: CR220942755-00B Page 59 of 59 1.1.3 Measurement Result Radio Frequency (MHz) Distance (mm) P th (mW) Maximum Conducted Power including Tune- up Tolerance (dBm) Antenna Gain (dBi) The Greater of Conducted Power or ERP dBm mW WiFi 2412-2462 200 3060 21 4.74 23.59 228.56 WCDMA B2 1850-1910 200 3060 24.5 -0.54 24.5 281.84 WCDMA B4 1710-1755 200 3060 24.5 1.03 24.5 281.84 WCDMA B5 824-849 200 1681 24.5 1.27 24.5 281.84 LTE B2 1850-1910 200 3060 24 -0.54 24 251.19 LTE B4 1710-1755 200 3060 24 1.03 24 251.19 LTE B5 824-849 200 1681 24 1.27 24 251.19 LTE B12 699-716 200 1426 24 -0.38 24 251.19 LTE B13 777-787 200 1585 24 0.38 24 251.19 LTE B17 704-716 200 1436 24 -0.38 24 251.19 LTE B66 1710-1780 200 3060 24 1.03 24 251.19 LTE B71 663-698 200 1353 24 -1.50 24 251.19 Note: The devices may contain certified WWAN Module, FCC ID: ZMONL668AM00. The WWAN and WiFi can transmit simultaneously. =P WiFi / P th + P WAAN / P th =228.56/3060 + 251.19/1426 =0.25 < 1.0 Result: The device compliant the SAR-Based Exemption at 20cm distances. ===== END OF REPORT ====

Test Report

TEST REPORT Applicant: Xiamen Four-Faith Communication Technology Co., Ltd. Address: 11th Floor, A-06 Area, No.370, Chengyi Street, Jimei District, Xiamen, China. FCC ID: 2A8OE-F3X26Q Product Name: 4G Industrial Router Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR220942755-00B Date Of Issue: 2022/11/24 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR220942755-00B Page 2 of 59 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR220942755-00B Page 3 of 59 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 1. GENERAL INFORMATION .................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 5 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Test Procedure ............................................................................................................................................. 15 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 6 DB EMISSION BANDWIDTH: ............................................................................................................ 16 3.3.1 Applicable Standard ..................................................................................................................................... 16 3.3.2 EUT Setup..............................................................................…

Text truncated - open the document above for the full version.

Test Report

深圳市维力谷无线技术股份有限公司 ShenZhen VLG Wireless Technology Co,.Ltd 1 2.4G-2.5G 5DB/WIFI Antenna Specification Model: V1535-011-A-01 深圳市维力谷无线技术股份有限公司 ShenZhen VLG Wireless Technology Co,.Ltd 2 1.Product diagram No. Description Material Color Qty. 1 Blade sharp case TPEE BLACK 1PC 2 Top Fixer PC+PBT BLACK 1PC 3 Bottom fixer PC+PBT BLACK 1PC 4 SMA male head female needle CU+POM BLACK 1PC 2. Product specitication describes) Electrical Properties Frequency 2.4~2.5G/5.15~5.85G Impedance 50 0hm Nominal VSWR 2.5MAX Gain 4.74dBi Radiation Omni-directional Polarization Linear, Vertical Connector RP-SMA-J Physical Properties Antenna Material Antenna HAT : TPEE Antenna BODY: SPRING Cable Type RG-178 CABLE Operating Temp. -30 ~65°C °C Storage Temp. -30 ~75°C °C Cable Color BLACK 深圳市维力谷无线技术股份有限公司 ShenZhen VLG Wireless Technology Co,.Ltd 3 3.Radiation Report Frequency Efficiency Gain 2400 62% 4.52 2410 63% 4.61 2420 64% 4.73 2430 65% 4.73 2440 66% 4.74 2450 67% 4.68 2460 67% 4.69 2470 68% 4.69 2480 68% 4.69 2490 68% 4.69 2500 68% 4.69 5150 46% 4.69 5170 45% 4.69 5190 44% 4.12 5210 44% 4.13 5230 43% 4.12 5250 43% 4.22 5270 43% 4.23 深圳市维力谷无线技术股份有限公司 ShenZhen VLG Wireless Technology Co,.Ltd 4 Frequency Efficiency Gain 5290 44% 4.20 5310 45% 4.30 5330 45% 4.20 5350 46% 4.30 5370 46% 4.30 5390 47% 4.20 5410 46% 4.20 5430 47% 4.20 5450 48% 4.20 5470 49% 4.20 5490 50% 4.40 5510 52% 4.69 5530 53% 4.69 5550 54% 4.23 5570 56% 4.35 5590 55% 4.44 5610 55% 4.46 5630 55% 4.56 5650 55% 4.57 5670 54% 4.54 5690 53% 4.46 5710 51% 4.37 5730 51% 4.14 5750 49% 4.69 5770 48% 4.69 5790 47% 4.69 5810 46% 4.69 5830 46% 4.00 5850 47% 4.00 深圳市维力谷无线技术股份有限公司 ShenZhen VLG Wireless Technology Co,.Ltd 5 Efficiency Curve Radiation Pattern 深圳市维力谷无线技术股份有限公司 ShenZhen VLG Wireless Technology Co,.Ltd 6

Test Setup Photos

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View

Contact Information

Applicant

Jonas Yang(Product Manager)
[email protected]+8618059226320Fax: +86-592-5912735

Test Firm

CHINA CERTIFICATION ICT CO., LTD (DONGGUAN)Tanie Ou
[email protected]0086 0769 86858888

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz110.00 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The device contains an approved module (FCC ID: ZMONL668AM00) described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports 20 MHz and 40 MHz bandwidth modes.
