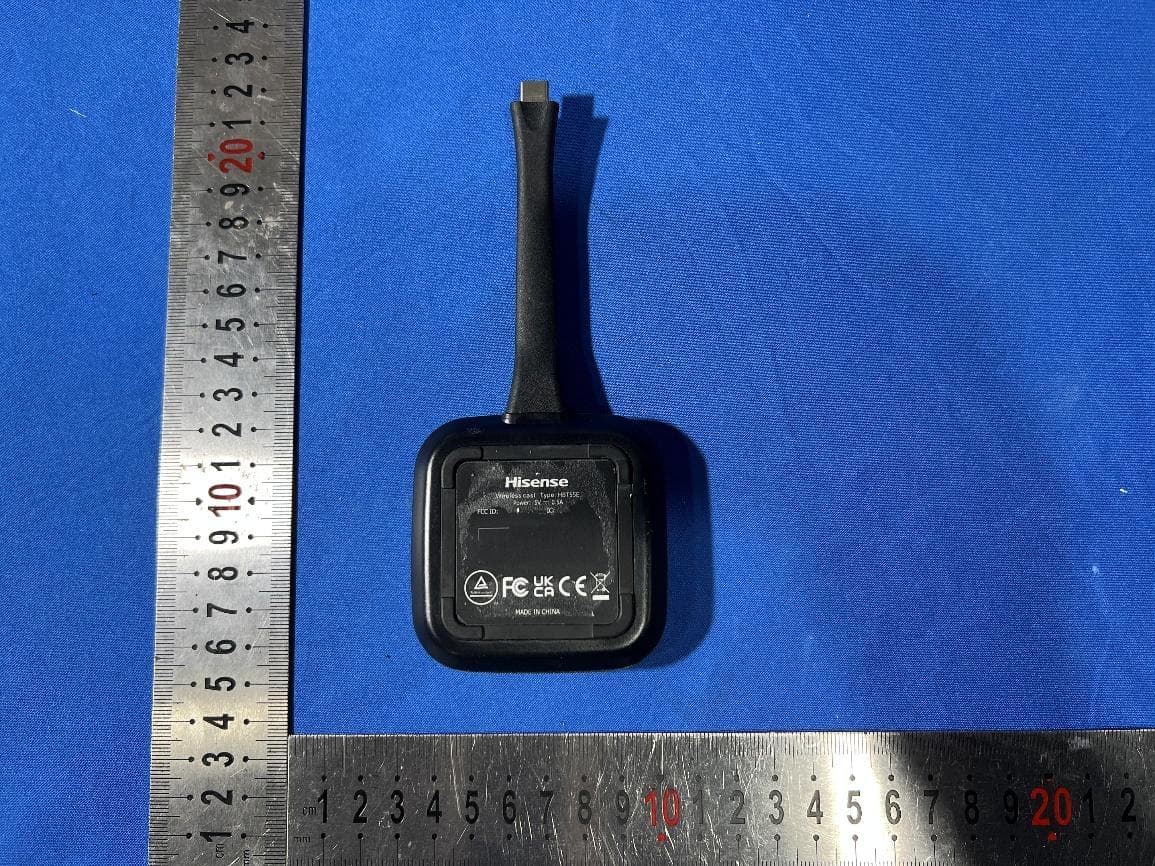

2A9IW-HBT55EWireless cast

Model HBT55E Product name Wireless Cast Interface Type-C Operating voltage 5±0.5V Transmission distance 15m Operating frequency 2.4G&5G Maximum screen transmission resolution 3840×2160@30Hz Dimension (mm) 160.9×68×15.8 Net weight (g) 72 Operating Conditions Temperature (ambient): 5°C to 35°C Relative humidity: 20% RH to 80% RH Atmospheric pressure:86 kPa to 106 kPa Storage Environment Temperature: -15°C to 45°C Humidity: not greater than 80% RH Executive standard Q/0202RSR647 FunctionNotes Touch feedback Supported, controlling computers, laptops, etc. through touch control on the large screen · One click screen transmission One-click connection or disconnection for screen transmission can be performed by using the control keys. 1The indicator light stays on after the pairing of the Wireless Screen Transmission Device is completed. At this time, one click screen transmission can be performed by clicking the control button. 2The screen transmission can be interrupted by clicking the control button in the screen transmission process; Click the control button again to restore screen transmission. · Pairing method Please pair with the wireless receiving device first and ensure that the prompt for successful pairing is received before inserting it into the computer interface for use. Pair with wireless receiving device 1Activate the wireless hotspot of the wireless receiving device. Insert the Type-C interface of the Wireless Screen Transmission Device into the Type-C interface of the wireless receiving device . 2 User Manual Wireless Cast HBT55E Dear users, Greetings! Thank you for purchasing the product of Hisense. We believe that this new product will bring you great pleasure. Please read the User Manual of this product carefully before use, and keep it properly. In case of any accident caused by your violations of the precautions and instructions in this manual, our company assumes no responsibility for it. 3When the indicator light flashes, it indicates the pairing in progress; when the indicator light stays on, it indicates the successful pairing. NOTE ·Please ensure that the wireless hotspot is enabled in the wireless receiving device. ·This product only supports specific wireless receiving devices, such as Hisense Conference All-in-one Machine, etc. ·Do not insert the Screen Transmission Device into the Type-C interface of the wireless receiving device for pairing when the wireless receiving device is in the Type-C channel, otherwise pairing will fail. Connected to computer Insert the Wireless Screen Transmission Device into the Type-C interface of the computer. When the indicator light of Wireless Screen Transmission Device flashes, it indicates that the product is connecting: When the indicator light stays on, click the control button for screen transmission. NOTE ·If using the Type-C interface, the computer's Type-C interface is needed to support the DisplayPort protocol. ·The computer needs to be Windows 10 or Mac 10.9 or above. ·The startup time will take about a few seconds after the product is inserted into the computer. · Split screen 1The large screen end of wireless screen transmission application supports up to nine split screens. 2When connected to a screen transmission signal source, it automatically displays in full screen: When multiple screen transmission signal sources are connected, screen mirroring display is conducted in the order of connection. NOTE ·The touch control of the computer is supported on the large screen end when using Wireless Screen Transmission Device for full screen/split screen transmission. ·Support split screen and full screen switching. ·You can select one sub-screen in split screen mode, and click on the full screen icon to enter the full screen interface from split screen. ·In full screen mode, you can select the signal source of Screen Transmission Device from the sidebar to control screen mirroring again, or add other devices to control screen mirroring, and you can enter split screen display from full screen in both cases. NOTE 1As a wireless device, the signal of Screen Transmission Device may be interfered and shielded. Please be careful to eliminate interference. 2This product should be placed and used in a place away from water droplets and splashes to prevent product malfunction. Type-C Interface Control key One-click connection or disconnection for screen transmission ...... 3Do not expose this product to sunlight, fire or similar overheating environments, as there is a risk of explosion. 4Please do not attempt to disassemble, dismantle, or repair the product on your own, as this may cause product damage and human injury, and void your product warranty. 5Please do not carve or scratch the surface and Type-C interface of the product by using sharp objects to avoid product damage. 6Do not place this device in areas with strong mechanical vibration, high dust and humidity. 7Please do not forcefully pull or bend the handle wire to avoid product damage. · Statement 1 In case of quality upgrade, any change of product design and specifications, no prior notice will be given. 2 The pictures and instructions are for reference only and may differ from the actual product. The actual product shall prevail. · Recycling/Licenses Certification and compliance NOTE: The following warnings only apply to products with such certification. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and…

Text truncated - open the document above for the full version.

New regulations Update Technical specifications Product Name: Ceramic Antenna Product model: ceramic antenna\HY160808 SRF08\ZN Part number: 1257868 Shenzhen Hanyang Antenna Design Co., Ltd. Address：No. 9, Taohuayuan Science and Technology Innovation Park, Tiegang Community, Xixiang Subdistrict, Bao'an District, Shenzhen City Material code 1257868 Ceramic Antenna\HY160808 SRF08\ZN Edition pages V1.00 1 Change the history VERSION RECORD Change version Change content Change people Date V1.00 First edition production Wang Haitao 2021-1- 27 Material code 1257868 Ceramic Antenna\HY160808 SRF08\ZN Edition pages V1.00 3 Material code 1257868 Engineering drawings Ceramic Antenna\HY160808 SRF08\ZN Edition pages V1.00 4 Material code 1257868 Ceramic Antenna\HY160808 SRF08\ZN Edition pages V1.00 5 ppendix: Key structural specifications and drawings; Material code 1257868 Ceramic Antenna\HY160808 SRF08\ZN Edition pages V1.00 6 2. Performance index parameter requirements 2.1 Key performance index requirements Seria l num ber project Specifications: 1 Frequency bands 2400-2500MHz/ 5150-5850 MHz 2 Directionality Omnidirectional antenna 3 Input impedance 50 Ohm Nominal 4 Echo loss -15dB(Max)2.4-2.5G; -15dB(Max)5.15G-5.85G 5 VSWR 2 6 Polarization mode Line polarization 7 gain 0.86 dBi (Max) 2.4G~2.5GHz ; 0.19dBi (Max) 5.15G-5.85GHz Horizontal gain with cable test 8 efficiency ≧40% 2.2 Test data Serial numb er Test item 2.4G~2.5G 5.15G~5.85G 1 Input impedance 50 Ohm Nominal 2 Echo loss ≧-14dBi ≧-14dBi 3 VSWR ≤1.5 ≤1.5 4 5 Average efficiency 46% 45% Cable loss ≦ 3.15dB/M ≦3.15dB/M Material code 1257868 Ceramic Antenna\HY160808 SRF08\ZN Edition pages V1.00 7 2.3 Environmental and reliability index requirements Serial numb er project Specifications: Note: 1 Operating temperature requirements -20°C~+85°C 2 Operating humidity requirements 3 Storage temperature requirements -30°C~+85°C 4 Storage humidity requirements 5 Tensile test The tensile force is 25N>Φ1.13>9.8N, and the cable will not break The clamp is fixed at the base of the antenna and pulls the cable at one end 6 Plugging and unplugging requirements 7 Salt spray test There is no abnormality or rust in appearance Saline concentration: 5%; Test temperature: 35°C; Pressure barrel temperature: 47°C; Test time: 48 hours 8 High temperature resistance \ 9 Resistant to low temperatures \ 10 Temperature cycling \ 11 Alternating dampness and heat \ 12 Environmental protection requirements Meet EU ROHS and REACH directives, meet Chinese ROHS directives, and meet lead-free requirements for coating Material code 1257868 Ceramic Antenna\HY160808 SRF08\ZN Edition pages V1.00 8 3. Dimensional test report Customer name Hisense Product Name Ceramic antenna quantity 5SET Product material: Ceramics Material color Grey Date 2021/1/27 Product Type: █ New Mold Samples □ Modified Mold Samples □ Mass Production □ Others NO Engineering drawings require dimensions Measured dimensions Judgment Note: 1 2 3 4 5 OK/NG 1 1.10±0.10 1.10 1.11 1.10 1.10 1.11 OK 2 1.90±0.10 1.90 1.91 1.92 1.95 1.90 OK 3 0.80±0.10 0.85 0.80 0.82 0.80 0.85 OK 4 5 6 7 8 Appearance: OK Performance: Qualified Overall verdict: OK □O K□NG Approval: Qin Zhike Review: Li Zhifeng Creation: Kang Fengyu Remarks: Form number: ZTX-QR-QA-016 version: A1 Material code 1257868 Ceramic Antenna\HY160808 SRF08\ZN Edition pages V1.00 8 Material code 1257868 Ceramic Antenna\HY160808 SRF08\ZN Edition pages V1.00 8 5.3 Packaging diagram 6. Environmental protection requirements The raw materials and packaging materials used in parts must comply with Hisense Q/RSAG J15.002 chemical substance restriction requirements.

Appendix Test Setup Photos RF Conducted Measurement RSE Setup for 9kHz-30MHz RSE Setup for 30MHz-1GHz RSE Setup for 1GHz-18GHz RSE Setup for 18GHz-40GHz AC Power Conducted Emission

LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 301 of 347 Radiated Emission Test Result Memo : 11AC20 5180MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Item Freq. Read Level Result Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) dB/m (dBμV/m) (dB) 1 5140.26 54.00 61.87 7.87 74.00 12.13 Peak VERTICAL 41.08 48.95 7.87 54.00 5.05 Average VERTICAL 2 5150.00 52.31 60.21 7.90 68.20 7.99 Peak VERTICAL 41.08 48.98 7.90 54.00 5.02 Average VERTICAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 302 of 347 Radiated Emission Test Result Memo : 11AC20 5180MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Item Freq. Read Level Result Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) dB/m (dBμV/m) (dB) 1 5124.48 54.45 62.27 7.82 74.00 11.73 Peak HORIZONTAL 41.21 49.03 7.82 54.00 4.97 Average HORIZONTAL 2 5150.00 53.94 61.84 7.90 68.20 6.36 Peak HORIZONTAL 42.82 50.72 7.90 54.00 3.28 Average HORIZONTAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 303 of 347 Radiated Emission Test Result Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Memo : 11AC20 5240MHz Item Freq. Read Level Result Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) dB/m (dBμV/m) (dB) 1 5350.00 54.24 62.15 7.91 74.00 11.85 Peak VERTICAL 42.76 50.67 7.91 54.00 3.33 Average VERTICAL 2 5362.29 56.05 64.05 8.00 74.00 9.95 Peak VERTICAL 42.61 50.61 8.00 54.00 3.39 Average VERTICAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 304 of 347 Radiated Emission Test Result Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Memo : 11AC20 5240MHz Item Freq. Read Level Result Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) dB/m (dBμV/m) (dB) 1 5350.00 54.96 62.87 7.91 74.00 11.13 Peak HORIZONTAL 42.61 50.52 7.91 54.00 3.48 Average HORIZONTAL 2 5357.07 56.09 64.05 7.96 74.00 9.95 Peak HORIZONTAL 42.36 50.32 7.96 54.00 3.68 Average HORIZONTAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 305 of 347 Radiated Emission Test Result Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Memo : 11AC20 5745MHz Item Freq. Read Level Result Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) dB/m (dBμV/m) (dB) 1 5643.85 54.83 63.23 8.40 68.20 4.97 Peak VERTICAL 2 5650.00 53.82 62.22 8.40 68.22 6.00 Peak VERTICAL 3 5700.00 53.57 61.99 8.42 105.22 43.23 Peak VERTICAL 4 5720.00 53.91 62.34 8.43 111.04 48.70 Peak VERTICAL 5 5725.00 56.10 64.54 8.44 - - Peak VERTICAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 306 of 347 Radiated Emission Test Result Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Memo : 11AC20 5745MHz Item Freq. Read Level Result Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) dB/m (dBμV/m) (dB) 1 5637.03 55.87 64.25 8.38 68.20 3.95 Peak HORIZONTAL 2 5650.00 54.05 62.45 8.40 68.22 5.77 Peak HORIZONTAL 3 5700.00 54.11 62.53 8.42 105.22 42.69 Peak HORIZONTAL 4 5720.00 56.12 64.55 8.43 111.04 46.49 Peak HORIZONTAL 5 5725.00 61.75 70.19 8.44 - - Peak HORIZONTAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 307 of 347 Radiated Emission Test Result Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Memo : 11AC20 5825MHz Item Freq. Read Level Result Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) dB/m (dBμV/m) (dB) 1 5850.00 54.05 62.91 8.86 122.06 59.15 Peak VERTICAL 2 5855.00 53.92 62.76 8.84 110.87 48.11 Peak VERTICAL 3 5875.00 53.94 62.70 8.76 105.13 42.43 Peak VERTICAL 4 5925.00 54.12 62.81 8.69 68.20 5.39 Peak VERTICAL 5 5946.75 55.47 64.17 8.70 68.20 4.03 Peak VERTICAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 308 of 347 Radiated Emission Test Result Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Memo : 11AC20 5825MHz Item Freq. Read Level Result Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) dB/m (dBμV/m) (dB) 1 5850.00 54.33 63.19 8.86 122.06 58.87 Peak HORIZONTAL 2 5855.00 54.22 63.06 8.84 110.87 47.8…

Text truncated - open the document above for the full version.

LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 261 of 347 Radiated Emission Test Result Memo : 11AX40 5230MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Suspected Data List Item Freq. Read Level Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) [dB/m] (dBμV/m) (dB) 1 12149.19 50.33 50.61 0.28 74.00 23.39 Peak HORIZONTAL 2 13365.19 50.06 51.32 1.26 74.00 22.68 Peak HORIZONTAL 3 14888.75 48.93 52.38 3.45 68.20 15.82 Peak HORIZONTAL 4 15902.88 47.30 51.98 4.68 74.00 22.02 Peak HORIZONTAL 5 17186.56 47.18 53.51 6.33 68.20 14.69 Peak HORIZONTAL 6 17876.50 45.93 53.08 7.15 74.00 20.92 Peak HORIZONTAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 262 of 347 Radiated Emission Test Result Memo : 11AX40 5755MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Suspected Data List Item Freq. Read Level Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) [dB/m] (dBμV/m) (dB) 1 9860.88 50.01 48.04 -1.97 68.20 20.16 Peak VERTICAL 2 11529.31 48.77 49.55 0.78 74.00 24.45 Peak VERTICAL 3 12918.69 48.30 50.41 2.11 68.20 17.79 Peak VERTICAL 4 14667.88 47.14 51.36 4.22 68.20 16.84 Peak VERTICAL 5 16300.69 45.81 51.98 6.17 68.20 16.22 Peak VERTICAL 6 17273.25 49.79 57.41 7.62 68.20 10.79 Peak VERTICAL 38.91 46.53 7.62 54.00 7.47 Average VERTICAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 263 of 347 Radiated Emission Test Result Memo : 11AX40 5755MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Suspected Data List Item Freq. Read Level Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) [dB/m] (dBμV/m) (dB) 1 9056.94 50.56 47.06 -3.50 74.00 26.94 Peak HORIZONTAL 2 9906.00 51.01 49.12 -1.89 68.20 19.08 Peak HORIZONTAL 3 12034.00 48.85 49.85 1.00 74.00 24.15 Peak HORIZONTAL 4 13428.13 47.53 49.79 2.26 68.20 18.41 Peak HORIZONTAL 5 15063.31 46.38 51.25 4.87 68.20 16.95 Peak HORIZONTAL 6 17273.25 47.78 55.40 7.62 68.20 12.80 Peak HORIZONTAL 37.07 44.69 7.62 54.00 9.31 Average HORIZONTAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 264 of 347 Radiated Emission Test Result Memo : 11AX40 5795MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Suspected Data List Item Freq. Read Level Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) [dB/m] (dBμV/m) (dB) 1 9774.19 49.77 47.58 -2.19 68.20 20.62 Peak VERTICAL 2 11590.00 47.10 47.90 0.80 74.00 26.10 Peak VERTICAL 3 13879.38 48.24 50.61 2.37 68.20 17.59 Peak VERTICAL 4 15722.38 47.01 52.27 5.26 74.00 21.73 Peak VERTICAL 5 16887.31 46.18 53.51 7.33 68.20 14.69 Peak VERTICAL 6 17381.31 50.16 57.80 7.64 68.20 10.40 Peak VERTICAL 39.33 46.97 7.64 54.00 7.03 Average VERTICAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 265 of 347 Radiated Emission Test Result Memo : 11AX40 5795MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Suspected Data List Item Freq. Read Level Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) [dB/m] (dBμV/m) (dB) 1 9471.38 51.49 48.68 -2.81 74.00 25.32 Peak HORIZONTAL 2 11249.06 48.96 49.56 0.60 74.00 24.44 Peak HORIZONTAL 3 12712.06 48.75 50.70 1.95 68.20 17.50 Peak HORIZONTAL 4 14758.13 46.10 50.31 4.21 68.20 17.89 Peak HORIZONTAL 5 16787.56 44.98 52.48 7.50 68.20 15.72 Peak HORIZONTAL 6 17381.31 47.09 54.73 7.64 68.20 13.47 Peak HORIZONTAL 37.19 44.83 7.64 54.00 9.17 Average HORIZONTAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 266 of 347 Radiated Emission Test Result Memo : 11AX80 5210MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Suspected Data List Item Freq. Read Level Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) [dB/m] (dBμV/m) (dB) 1 12339.19 49.88 50.49 0.61 74.00 23.51 Peak VERTICAL 2 14936.25 49.46 53.05 3.59 68.20 15.15 Peak VERTICAL 3 15927.81 48.35 53.12 4.77 74.00 20.38 Peak VERTICAL 4 16784.00 46.67 53.14 6.47 68.20 15.06 Peak VERTICAL 5 17476.31 46.32 53.09 6.77 68.20 15.11 Peak VERTICAL 6 17902.63 46.02 53.20 7.18 74.00 20.80 Peak VERTICAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 267 of 347 Radiated Emission Test Result Memo : 11AX80 5210MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Suspected Data List Item Freq. Read Level Level Factor Limit Line Over Limit Detector Polarization (…

Text truncated - open the document above for the full version.

LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 171 of 347 Radiated Emission Test Result Memo : 11AX20 5240MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Suspected Data List Item Freq. Read Level Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) [dB/m] (dBμV/m) (dB) 1 1029.06 65.74 48.24 -17.50 68.20 19.96 Peak HORIZONTAL 2 1300.00 57.81 43.03 -14.78 68.20 25.17 Peak HORIZONTAL 3 3735.63 54.48 44.84 -9.64 74.00 29.16 Peak HORIZONTAL 4 4998.44 55.37 47.45 -7.92 74.00 26.55 Peak HORIZONTAL 5 7241.88 52.13 46.54 -5.59 68.20 21.66 Peak HORIZONTAL 6 8399.69 51.37 46.83 -4.54 74.00 27.17 Peak HORIZONTAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 172 of 347 Radiated Emission Test Result Memo : 11AX20 5745MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Suspected Data List Item Freq. Read Level Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) [dB/m] (dBμV/m) (dB) 1 1033.75 67.78 50.16 -17.62 68.20 18.04 Peak VERTICAL 2 1117.19 63.09 45.18 -17.91 68.20 23.02 Peak VERTICAL 3 2410.00 58.84 48.41 -10.43 68.20 19.79 Peak VERTICAL 4 3679.38 60.70 50.72 -9.98 74.00 23.28 Peak VERTICAL 5 7360.94 54.73 48.88 -5.85 74.00 25.12 Peak VERTICAL 6 8267.50 53.43 48.57 -4.86 74.00 25.43 Peak VERTICAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 173 of 347 Radiated Emission Test Result Memo : 11AX20 5745MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Suspected Data List Item Freq. Read Level Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) [dB/m] (dBμV/m) (dB) 1 1032.81 68.54 50.95 -17.59 68.20 17.25 Peak HORIZONTAL 2 1438.75 63.89 48.02 -15.87 68.20 20.18 Peak HORIZONTAL 3 2410.00 59.06 48.63 -10.43 68.20 19.57 Peak HORIZONTAL 4 3679.38 58.33 48.35 -9.98 74.00 25.65 Peak HORIZONTAL 5 4374.06 55.62 46.88 -8.74 74.00 27.12 Peak HORIZONTAL 6 8467.19 53.39 49.09 -4.30 74.00 24.91 Peak HORIZONTAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 174 of 347 Radiated Emission Test Result Memo : 11AX20 5785MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Suspected Data List Item Freq. Read Level Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) [dB/m] (dBμV/m) (dB) 1 1036.56 67.88 50.19 -17.69 68.20 18.01 Peak VERTICAL 2 1118.13 68.45 50.56 -17.89 68.20 17.64 Peak VERTICAL 3 2737.19 56.92 46.53 -10.39 74.00 27.47 Peak VERTICAL 4 3674.69 56.63 46.68 -9.95 74.00 27.32 Peak VERTICAL 5 4598.13 54.92 46.10 -8.82 74.00 27.90 Peak VERTICAL 6 7841.88 53.23 48.09 -5.14 68.20 20.11 Peak VERTICAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 175 of 347 Radiated Emission Test Result Memo : 11AX20 5785MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Suspected Data List Item Freq. Read Level Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) [dB/m] (dBμV/m) (dB) 1 1026.25 63.79 46.37 -17.42 68.20 21.83 Peak HORIZONTAL 2 1441.56 63.41 47.52 -15.89 68.20 20.68 Peak HORIZONTAL 3 2087.50 58.96 47.23 -11.73 68.20 20.97 Peak HORIZONTAL 4 4213.75 55.22 46.13 -9.09 74.00 27.87 Peak HORIZONTAL 5 7480.00 52.81 47.19 -5.62 74.00 26.81 Peak HORIZONTAL 6 8403.44 52.60 48.08 -4.52 74.00 25.92 Peak HORIZONTAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 176 of 347 Radiated Emission Test Result Memo : 11AX20 5825MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Suspected Data List Item Freq. Read Level Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) [dB/m] (dBμV/m) (dB) 1 1030.00 69.19 51.66 -17.53 68.20 16.54 Peak VERTICAL 2 2039.69 58.42 46.63 -11.79 68.20 21.57 Peak VERTICAL 3 2851.56 56.66 46.39 -10.27 74.00 27.61 Peak VERTICAL 4 3910.94 56.05 46.64 -9.41 74.00 27.36 Peak VERTICAL 5 6343.75 52.99 46.49 -6.50 68.20 21.71 Peak VERTICAL 6 7261.56 53.09 47.48 -5.61 74.00 26.52 Peak VERTICAL LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 177 of 347 Radiated Emission Test Result Memo : 11AX20 5825MHz Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Suspected Data List Item Freq. Read Level Level Factor Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dBμV/m) [dB/m] (dBμV/m) (dB) 1 1028.13 65.33 47.86 -17.47 68.20 20.34 Peak HORIZONTAL 2 1060.94 62.22 44.10 -18.12 68.20 24.10 Peak HORIZONTAL 3 14…

Text truncated - open the document above for the full version.

LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 95 of 347 11AX20SISO_Ant1_5240 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 96 of 347 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5190 11AX40SISO_Ant1_5230 LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 97 of 347 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 11AX80SISO_Ant1_5210 LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 98 of 347 11AX80SISO_Ant1_5775 LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 99 of 347 7. Frequency Stability Measurement 7.1. Limit of Frequency Stability Manufacturers of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the user’s manual. 7.2. Measuring Instruments The measuring equipment is listed in the section 4 of this test report. 7.3. Test procedures (1) To ensure emission at the band edge is maintained within the authorized band, those values shall be measured by radiation emissions at upper and lower frequency points, and finally compensated by frequency deviation as procedures below. (2) The EUT was operated at the maximum output power, and connected to the spectrum analyzer, which is set to maximum hold function and peak detector. The peak value of the power envelope was measured and noted. The upper and lower frequency points were respectively measured relatively 10 dB lower than the measured peak value. (3) The frequency deviation was calculated by adding the upper frequency point and the lower frequency point divided by two. Those detailed values of frequency deviation are provided in table below. 7.4. Test setup 7.5. Test Environment Temperature 24.6°C Relative Humidity 54.1% Atmosphere Pressure 100.9kPa Test Voltage DC 5V LabSure Testing Services (Suzhou) Co., Ltd. Report No.: LS-R26061801-2F02 QR-4-106-F004 RevA0 Page 100 of 347 7.6. …

Text truncated - open the document above for the full version.
