2A9IW-HT005EWireless cast

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <12/07/2022> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b) (4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A9IW-HT005E HT005E For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos 180 days Internal Photos 180 days Block Diagram Schematics Test Setup Photos 180 days User’s Manual 180 days Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name: Yansong Li Company: Hisense Commercial Display Co., Ltd. Address: No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, P.R. China Phone: +86 15610007698 Fax: E-Mail: [email protected]

< Hisense Commercial Display Co., Ltd.> <No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, P.R. China > Date: 2022/12/07 FCC ID: 2A9IW-HT005E Model Number: HT005E To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Hisense Commercial Display Co., Ltd. declare that this EUT (FCC ID: 2A9IW-HT005E) doesn’t have Ad Hoc mode function on “on-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Yansong Li/ Certification Manager Company: Hisense Commercial Display Co., Ltd. Address: No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, P.R. China Tel: +86 15610007698 Fax: E-Mail: [email protected]

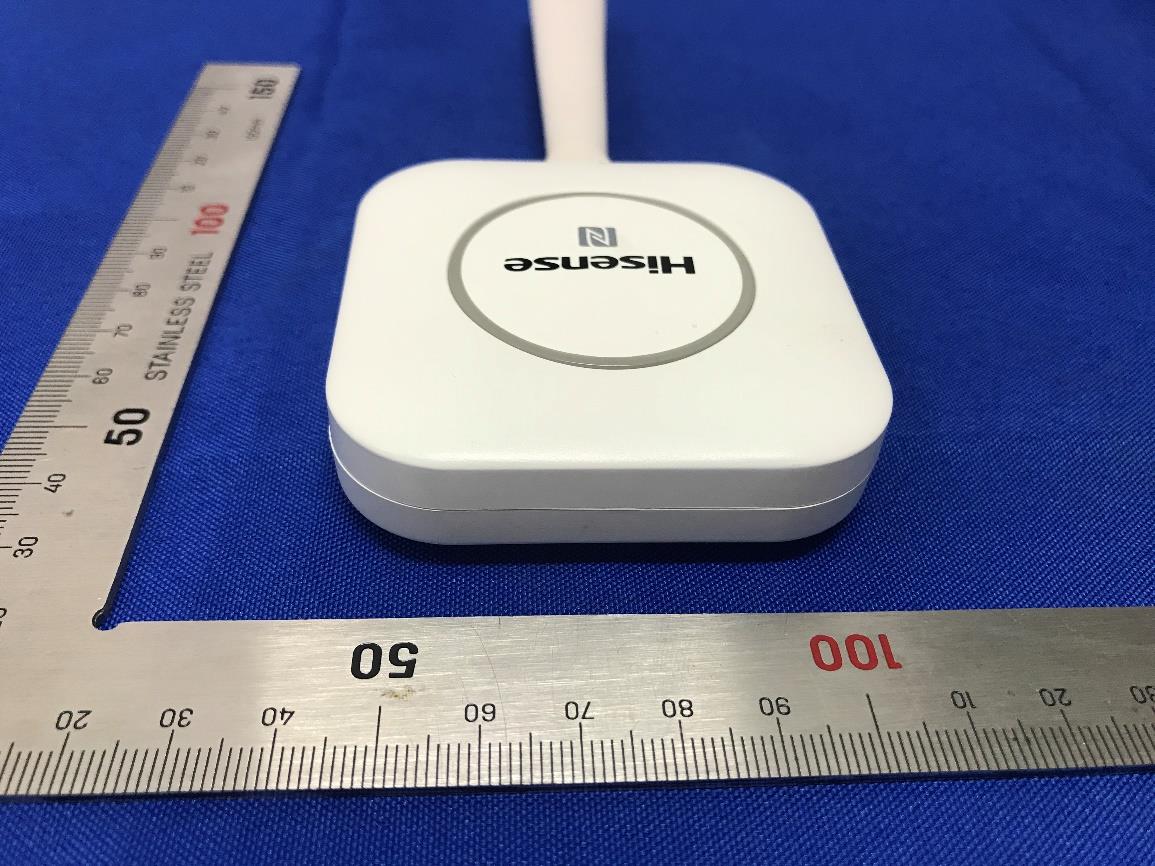

Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B22110106-2E Page 1 of 8 APPENDIXES Equipment under Test: Wireless cast Model Number: HT005E Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B22110106-2E Page 2 of 8

海信视像科技股份有限公司 ： Ver . Designer Date Change Detail Wireless cast HT005E 5V0.5A FCC ID: 2A9IW-HT005EIC: 27082-HT005E 5GHz frequency for indoor use only 214-123286 Wireless castHT005E 5V0.5A 5GHz frequency for indoor use only 214-123286 FCC ID: 2A9IW-HT005EIC: 27082-HT005E

Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B22110106-2E Page 3 of 8 Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B22110106-2E Page 4 of 8 Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B22110106-2E Page 5 of 8 Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B22110106-2E Page 6 of 8 WIFI ANTENNA Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B22110106-2E Page 7 of 8 Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B22110106-2E Page 8 of 8 END OF APPENDIXES NFC ANTENNA

Tianjin Dongdian Testing Service Co., Ltd Report No.:DDT-B22110106-2E13 QR-4-106-24 RevA0 Page 1 of 8 RF EXPOSURE REPORT Report No.: DDT-B22110106-2E13 Issued By: Tianjin Dongdian Testing Service Co., Ltd. Address: Building D-1, No. 19, Weisi Road, Microelectronics Industrial Park Development Area, Tianjin, China. Tel: +86-22-58038033, E-mail: [email protected], http://www.ddttest.com Applicant : Hisense Commercial Display Co.,Ltd. Address : No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, P.R. China Equipment under Test : Wireless cast Model No. : HT005E Trade Mark : Hisense FCC ID : 2A9IW-HT005E Manufacturer : Hisense Commercial Display Co.,Ltd. Address : No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, P.R. China Tianjin Dongdian Testing Service Co., Ltd Report No.:DDT-B22110106-2E13 QR-4-106-24 RevA0 Page 2 of 8 TABLE OF CONTENTS Test report declares......................................................................................................3 1. General information ...................................................................................................... 5 1.1. Description of Equipment .............................................................................................. 5 1.2. Assess laboratory ......................................................................................................... 6 2. RF Exposure Evaluation ............................................................................................... 7 2.1. Requirement ................................................................................................................. 7 2.2. Calculation method ....................................................................................................... 7 2.3. Estimation result ........................................................................................................... 8 Tianjin Dongdian Testing Service Co., Ltd Report No.:DDT-B22110106-2E13 QR-4-106-24 RevA0 Page 3 of 8 TEST REPORT DECLARE Standard Used: KDB447498 D01 General RF Exposure Guidance v06 We Declare: The equipment described above is assessed by Tianjin Dongdian Testing Service Co., Ltd and in the configuration assessed the equipment complied with the standards specified above. The assessed results are contained in this report and Tianjin Dongdian Testing Service Co., Ltd is assumed of full responsibility for the accuracy and completeness of these assess. After evaluation, our opinion is that the equipment In Accordance with above standard. Report No: DDT-B22110106-2E13 Date of Receipt: Nov. 02, 2022 Date of Test: Nov. 02, 2022 ~ Nov. 22, 2022 Prepared By: Approved By: ___________________ _____________________ Sunny Zhang/Engineer Leon Li/RF Manager Note: This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Tianjin Dongdian Testing Service Co., Ltd. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Applicant : Hisense Commercial Display Co.,Ltd. Address : No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, P.R. China Equipment under Test : Wireless cast Model No. : HT005E Trade mark : Hisense Manufacturer : Hisense Commercial Display Co.,Ltd. Address : No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, P.R. China Tianjin Dongdian Testing Service Co., Ltd Report No.:DDT-B22110106-2E13 QR-4-106-24 RevA0 Page 4 of 8 Revision History Rev. Revisions Issue Date Revised By --- Initial issue Nov. 22, 2022 Tianjin Dongdian Testing Service Co., Ltd Report No.:DDT-B22110106-2E13 QR-4-106-24 RevA0 Page 5 of 8 1. General information 1.1. Description of Equipment EUT* Name : Wireless cast Model Number : HT005E EUT function description : Please reference user manual of this device Power supply : DC 5V by USB Radio Technology : IEEE802.11a/b/g/n/ac Operation frequency : IEEE 802.11b/g/n(HT20): 2412MHz~2462MHz IEEE 802.11n HT40: 2422MHz~2452MHz IEEE 802.11a/ac(VHT20)/n(HT20): 5180MHz~5320MHz, 5745MHz~5825MHz IEEE 802.11a/ac(VHT40)/n(HT40): 5190MHz~5310MHz, 5755MHz~5795MHz IEEE 802.11ac(VHT80): 5210MHz~5530MHz, 5775MHz Modulation : IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n HT20, HT40: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11a: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11ac VHT20, VHT40, VHT80: OFDM (256QAM, 64QAM, 16QAM, QPSK, BPSK) Transmitter rate : IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n HT20, HT40: MCS0~MCS7 IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11ac VHT20, VHT40, VHT80: MCS0~MCS9 Antenna Type : Chip antenna, maximum PK gain: 3.0dBi for 2.4g, 3.3 dBi for 5g Exposure category : General population/uncontrolled environment Device Type : Mobile Device Maximum tune-up tolerance : 1 dB Tianjin Dongdian Testing Service Co., Ltd Report No.:DDT-B22110106-2E13 QR-4-106-24 RevA0 Page 6 of 8 1.2. Assess laboratory Tianjin Dongdian Testing Service Co., Ltd. Address: Building D-1, No. 19, Weisi Road, Microelectronics Industrial Park Development Area, Tianjin, China. Tel: +86-22-58038033, http://www.ddttest.com, Email: [email protected] NVLAP (National Voluntary Laboratory Accreditation Program) CODE: 500036-0 CNAS (China National Accreditation Service for Conformity Assessment) CODE: L13402 FCC Designation Number: CN5004; FCC Test Firm Registration Number: 368676 ISED (Innovation, Science and Economic Development Canada) Company Number: 27768 Conformity Assessment Body Identifier: CN0125 VCCI Facility Registration Number: C-20089, T-20093, R-20125, G-20122 Tianjin Dongdian Testing Service Co., Ltd Report No.:DDT-B22110106-2E13 QR-4-106-24 RevA0 Page 7 of 8 2. RF Exposure Evaluation 2.1. Requirement Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that e…

Text truncated - open the document above for the full version.

青岛海信电器股份有限公司 部品承认书 部品物料编码 部品描述 内置天线\ ACM3-5036-A1-CC-S \中性 \JK\ROH 日期 2017.02.22 拟制 DESIGN 审核 CHECKED 批准 APPROVED 供方人员签字 客户审签 审 核（电路） ● CHECKED BY 审 核（结构） CHECKED BY 审 核（认定） CHECKED BY 批 准 APPROVED BY 刘旗 ● -- 唐银尧 方德文 目录 序号 项目 页码 1 更改履历 ● 4 2 工程图 5 3 物料清单 5 4 物料技术规格 6 5 标准作业指导书SOP 6 6 包装规范 7 7 标准检验指导书SIP 7 8 样品测试报告 8 9 相关指标测试方法（附仪表清单） 9 10 制程能力指数 ● CPK 10 11 不使用有害物质保证书 11 12 附件：相关检测/认证报告 13 13 14 15 16 17 18 19 更改履历 版本 变更内容 变更人 生效日期 V1.00 初版制作 刘旗 2017-02-22 2.工程图 3.物料清单 Composition part 構成部件 Material Name. 部件材質名 Supplier 供應商 Element name composition 構成之元素名稱 Ceramic body Substrate Leatec A1203 Internal Electrode ESL Silver Overcoat OHMCOAT polymer Marking ONSTATIC Sb, Bi, Mn, Ni, Co, Cr metal oxide mixture Terminations Terminations Dupont Ag External electrode External electrode INCO Ni REDSUN Sn 4.物料技术规格： ● 5.标准作业SOP ● ： 贴片器件随PCB贴片 6.包装规格： 7. 标准检验指导书 ● SIP 无 8.样品测试报告 10. 制程能力指数 ● CPK 11.不使用有害物质保证书 ● 要求零部件所用原材料、包装材料等，必须符合海信Q/RSAG J15.002化 学物质限制要求。 12. 附件：相关检测/认证报告 海信 ACM3-5036-A1-CC-S\ACA,ACD,ACK,ACL,ACM3,ACM4 5036 TWNC00535272(R,H,DEHP,DBP,BBP,DIBP) 20160727.pdf

Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 1 of 100 FCC AND ISED CERTIFICATION TEST REPORT Report No.: DDT-B22110106-2E11 Issued By: Tianjin Dongdian Testing Service Co., Ltd. Address: Building D-1, No. 19, Weisi Road, Microelectronics Industrial Park Development Area, Tianjin, China. Tel: +86-22-58038033, E-mail: [email protected], http://www.ddttest.com Applicant : Hisense Commercial Display Co.,Ltd. Address : No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, P.R. China Equipment under Test : Wireless cast Model No. : HT005E Trade Mark : Hisense FCC ID : 2A9IW-HT005E IC : 27082-HT005E Manufacturer : Hisense Commercial Display Co.,Ltd. Address : No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, P.R. China Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 2 of 100 Table of Contents Test report declares......................................................................................................4 1. Summary of Test Results ............................................................................................. 6 2. General Test Information .............................................................................................. 7 2.1. Description of EUT ........................................................................................................ 7 2.2. Accessories of EUT ...................................................................................................... 7 2.3. Assistant equipment used for test ................................................................................. 7 2.4. Block diagram of EUT configuration for test ................................................................. 8 2.5. Deviations of test standard ........................................................................................... 8 2.6. Test environment conditions ......................................................................................... 8 2.7. Test laboratory .............................................................................................................. 9 2.8. Measurement uncertainty ............................................................................................. 9 3. Equipment Used During Test ...................................................................................... 10 4. 6dB Bandwidth and 99% Bandwidth ........................................................................... 11 4.1. Block diagram of test setup ........................................................................................ 11 4.2. Limits .......................................................................................................................... 11 4.3. Test procedure ............................................................................................................ 11 4.4. Test result ................................................................................................................... 12 4.5. original test data ......................................................................................................... 13 5. Maximum PK Conducted Output Power ..................................................................... 25 5.1. Block diagram of test setup ........................................................................................ 25 5.2. Limits .......................................................................................................................... 25 5.3. Test procedure ............................................................................................................ 25 5.4. Test result ................................................................................................................... 26 6. Power Spectral Density .............................................................................................. 27 6.1. Block diagram of test setup ........................................................................................ 27 6.2. Limits .......................................................................................................................... 27 6.3. Test procedure ............................................................................................................ 27 6.4. Test result ................................................................................................................... 28 6.5. original test data ......................................................................................................... 29 7. Band Edge Compliance (Conducted Method)............................................................. 35 7.1. Block diagram of test setup ........................................................................................ 35 7.2. Limits .......................................................................................................................... 35 7.3. Test procedure ............................................................................................................ 35 7.4. Test result ................................................................................................................... 36 7.5. original test data ......................................................................................................... 36 8. Radiated Spurious Emissions ..................................................................................... 45 8.1. Block diagram of test setup ........................................................................................ 45 Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 3 of 100 8.2. Limit ............................................................................................................................ 46 8.3. Test procedure ........................................................................…

Text truncated - open the document above for the full version.

Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 63 of 100 9. RF Conducted Spurious Emissions 9.1. Block diagram of test setup Same as section 4.1 9.2. Limits In any 100 kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power. 9.3. Test procedure (1) Connect EUT’s antenna output to spectrum analyzer by RF cable. (2) Establish a reference level by using the following procedure: Center frequency Test frequency RBW: 100 kHz VBW: 300 kHz Span Wide enough to capture the peak level of the in-band emission Detector Mode: Peak Sweep time: auto Trace mode Max hold (3) Allow the trace to stabilize, use the peak marker function to determine the maximum peak power level to establish the reference level. (4) Set the spectrum analyzer as follows: RBW: 100 kHz VBW: 300 kHz Span Encompass frequency range to be measured Number of measurement points ≥span/RBW Detector Mode: Peak Sweep time: auto Trace mode Max hold (5) Allow the trace to stabilize, use the peak marker function to determine the maximum amplitude of all unwanted emissions outside of the authorized frequency band Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 64 of 100 9.4. Test result EUT Set Mode CH or Frequency Ant1 Result (dBm) EUT Set Mode CH or Frequency Ant1 Result Result (dBm) 11b CH1 Pass 11n HT 20 CH1 Pass CH6 Pass CH6 Pass CH11 Pass CH11 Pass 11g CH1 Pass 11n HT 40 CH3 Pass CH6 Pass CH6 Pass CH11 Pass CH9 Pass 9.5. Original test data Test Graphs Tx. Spurious NVNT b 2412MHz Ant1 Ref Tx. Spurious NVNT b 2412MHz Ant1 Emission Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 65 of 100 Tx. Spurious NVNT b 2437MHz Ant1 Ref Tx. Spurious NVNT b 2437MHz Ant1 Emission Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 66 of 100 Tx. Spurious NVNT b 2462MHz Ant1 Ref Tx. Spurious NVNT b 2462MHz Ant1 Emission Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 67 of 100 Tx. Spurious NVNT g 2412MHz Ant1 Ref Tx. Spurious NVNT g 2412MHz Ant1 Emission Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 68 of 100 Tx. Spurious NVNT g 2437MHz Ant1 Ref Tx. Spurious NVNT g 2437MHz Ant1 Emission Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 69 of 100 Tx. Spurious NVNT g 2462MHz Ant1 Ref Tx. Spurious NVNT g 2462MHz Ant1 Emission Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 70 of 100 Tx. Spurious NVNT n20 2412MHz Ant1 Ref Tx. Spurious NVNT n20 2412MHz Ant1 Emission Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 71 of 100 Tx. Spurious NVNT n20 2437MHz Ant1 Ref Tx. Spurious NVNT n20 2437MHz Ant1 Emission Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 72 of 100 Tx. Spurious NVNT n20 2462MHz Ant1 Ref Tx. Spurious NVNT n20 2462MHz Ant1 Emission Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 73 of 100 Tx. Spurious NVNT n40 2422MHz Ant1 Ref Tx. Spurious NVNT n40 2422MHz Ant1 Emission Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 74 of 100 Tx. Spurious NVNT n40 2437MHz Ant1 Ref Tx. Spurious NVNT n40 2437MHz Ant1 Emission Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 75 of 100 Tx. Spurious NVNT n40 2452MHz Ant1 Ref Tx. Spurious NVNT n40 2452MHz Ant1 Emission Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 76 of 100 Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 77 of 100 10. Radiated Band Edge Compliance 10.1. Block diagram of test setup 10.2. Limit All restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 2400 MHz to 2483.5 MHz shall be at least 20dB below the fundamental emissions or comply with RSS-Gen Issue 3 clause 7.2.5 (Same as FCC 15.209) limits. 10.3. Test procedure Same with clause 8.3 except change investigated frequency range. Remark: All restriction band have been tested, and shown in report. 10.4. Test result Pass. (See below detailed test result) Note: All modes were test and the worst case was record in this report. Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 78 of 100 Radiated Emission Test Result Test Site : 10m Chamber Test Date : 11-13-2022 Tested By : Sunny EUT : Wireless cast Model Number : HT005E Power Supply : DC 5V Test Mode : Tx mode Memo : 11B 1M 2412MHz Data: 7 Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Margin = Result Level - Limit. Item Freq. Read Level Antenna Factor Cable Loss Result Level Limit Line Over Limit Detector Polarization (Mark) (MHz) (dBμV) (dB/m) dB (dBμV/m) (dBμV/m) (dB) 1 2349.63 44.78 34.59 -31.41 47.96 74.00 -26.04 Peak VERTICAL 2 2390.00 42.65 35.00 -31.70 45.95 74.00 -28.05 Peak VERTICAL Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 79 of 100 Radiated Emission Test Result Test Site : 10m Chamber Test Date : 11-13-2022 Tested By : Sunny EUT : Wireless cast Model Number : HT005E Power Supply : DC 5V Test Mode : Tx mode Memo : 11B 1M 2412MHz Data: 8 Note: 1. Result Level = Read Level + Antenna Factor + Cable loss. 2. If Peak …

Text truncated - open the document above for the full version.

Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 98 of 100 13. Test Setup Photograph Tianjin Dongdian Testing Service Co., Ltd Report No.: DDT-B22110106-2E11 QR-4-106-21 RevA0 Page 99 of 100
