3IN1 Foldable Magne�c Wireless Charger Instruc�on Manual MSL-M1088Q To ensure charging 3 devices safely and efficiently, you must use 5V/3A adapter and quick charge cable, if including 15W fast charging phones, you must use 9V/3A or 12V/2A adapter and quick charge cable (if not use the appropriate adapter and quick charge cable, the charger may not charge phone fast, or may not charge 3 devices simultaneously, or may even damage the charger.) No�ce: Product Introduc�on The 3-in-1 wireless charger,a compact charging house, powered from only one outlet, can charge 3 devices simultaneously. When charge your mobile phone, apple watches, and your Air Pods 2 or AirPods Pro or some other TWS, just put them on,wireless charging will automa�cally start.All this will make your desk clean and �dy and make your life easier. Product Appearance Wireless charge area for TWS earphone Wireless charge area for Phone Opera�on Steps l.Connect the charger to a 5V/3A,9V/3A or 12V/2A adapter through a type-C quick charge cable to switch on the power; 2.Put your phone on and charge; 3.Put the apple watch on and suck it up to charge 4.Put your earphone case on and charge. The green LED light will keep on when the wireless charging is in stand-by mode. When charging the phone wirelessly,the LED indicator light will be green breath light. When charging the smart watch wirelessly,the green LED light will keep on. When charging the TWS earphone case wirelessly,the LED indicator light will be green breath light. Note:If the LED indicator is flashing green,an unknown object is being detected between the wireless charging pad by FOD(Foreign Object Detec�on).The device will not begin to charge un�l object is removed. Product Overview LED indicator instruc�ons Made in China Product Size:62x90x13.6mm Apple: :iPhone 14, iPhone 14 Pro, iPhone 14 Pro Max, iPhone 14 Plus, iPhone 13 mini, iPhone 13, iPhone 13 Pro , iPhone 13 Pro Max, iPhone12, 12Pro, 12Pro max, SE, 11, 11 Pro, 11Pro Max, Xs, Xs Max, XR, X, 8, 8 Plus; Samsung: Galaxy S: FE 5G,205G, 20+ 5G, 20 Ultra 5G, 10, 10+, l0e, 9,9+,8, 8+,7,7 edge,6,6 edge, 6 edge+, 6 G9209, 6 Ac�ve; Galaxy Note: 20,20 Ultra SG,10, lOe,10+,9,8,7,6,5; Including other devices with wireless charging receiver.If the smart phone does not have magne�c suc�on func�on, the magne�c iron ring can be s�ck to the smart phone to achieve magne�c wireless charging func�on. Apple: iWatchS2,S3,S4,S5,S6,SE. AirPods 2, AirPods Pro Sumsung Galaxy Buds,Buds+;Huawei Freebuds 2,3; and more TWS(with wireless charging case). Input: 5V/3A,9V/3A,12V/2A Input lnterface:Type-C port Phone Output: 5W /7.5W/10W/ 15W(Max) Transmission Distance(Phone): 8mm Earbuds Output: 5W (TWS Earphone: Conversion Rate(Phone): 80% Apple AirPods 2, Pro; Sumsung Galaxy Buds,Buds+; Huawei Freebuds 2,3; and more.) Watch Output: 2W (Apple iWatchS2,S3,S4,S5,S6,SE.) Magne�c Wireless Charger* 1, Type-C quick charge cable*1,Magne�c iron ring*1 ,User manual*1 1.Please keep the charger away from water or other liquid; 2.If you need to clean the charger,please make sure it is not switched on the power; 3.Using Environment temperature remain 0-25 . Applicable Devices Product Specifica�on Accessories List A�en�on 2.SmartWatch: 1.Smart Phone: 3.TWS bluetooth earphone: 354x103mm Type-C interface input Wireless Charge area for iWatch magne�cally FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCCs RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

ShenZhen Zhongyi Technology CO., Ltd. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: AOCE Corporation Inc. FRN: 0033401381 Contact Name: Johnson.wang Address: 6547 N Academy Bivd #2266, Colorado Springs, CO,80918 United States Telephone No: +1-346-582-5234 Email: [email protected] This letter is to confirm that we (AOCE Corporation Inc.) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date:2023-07-04 Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: ShenZhen Zhongyi Technology CO., Ltd. Grantee Code: 2A9Q9 FCC ID: 2A9Q9-M1088Q Email: [email protected] Contact Name: Merry Yu Address: Room 401, No.4 Road One, Shangxue Science and Technology City, Xinxue Community, Bantian Street, Longgang District, Shenzhen, China Telephone No: 0755-89501773 Applicant Signature: Date: 2023-07-04 Signed by (Printed Name/Title): Merry Yu /Manager

ShenZhen Zhongyi Technology CO., Ltd. 2023.07.06 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2A9Q9-M1088Q [ShenZhen Zhongyi Technology CO., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Merry Yu ShenZhen Zhongyi Technology CO., Ltd. 2023.07.06 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2A9Q9-M1088Q [ShenZhen Zhongyi Technology CO., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Merry Yu

ShenZhen Zhongyi Technology CO., Ltd. 2023.07.06 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: 3in1 Foldable magnetic wireless charger Trademark: N/A MODEL : MSL-M1088Q, WC38 FCC ID : 2A9Q9-M1088Q To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Merry Yu / Manager Contact information / address: Room 401, No.4 Road One, Shangxue Science and Technology City, Xinxue Community, Bantian Street, Longgang District, Shenzhen, China

ShenZhen Zhongyi Technology CO., Ltd. 2023.07.06 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Merry Yu / Manager Contact information / address: Room 401, No.4 Road One, Shangxue Science and Technology City, Xinxue Community, Bantian Street, Longgang District, Shenzhen, China

ShenZhen Zhongyi Technology CO., Ltd. Model Difference 2023-07-06 EUT NAME: 3in1 Foldable magnetic wireless charger FCC ID: 2A9Q9-M1088Q MODEL : MSL-M1088Q, WC38 All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : Merry Yu / Manager Contact information / address: Room 401, No.4 Road One, Shangxue Science and Technology City, Xinxue Community, Bantian Street, Longgang District, Shenzhen, China

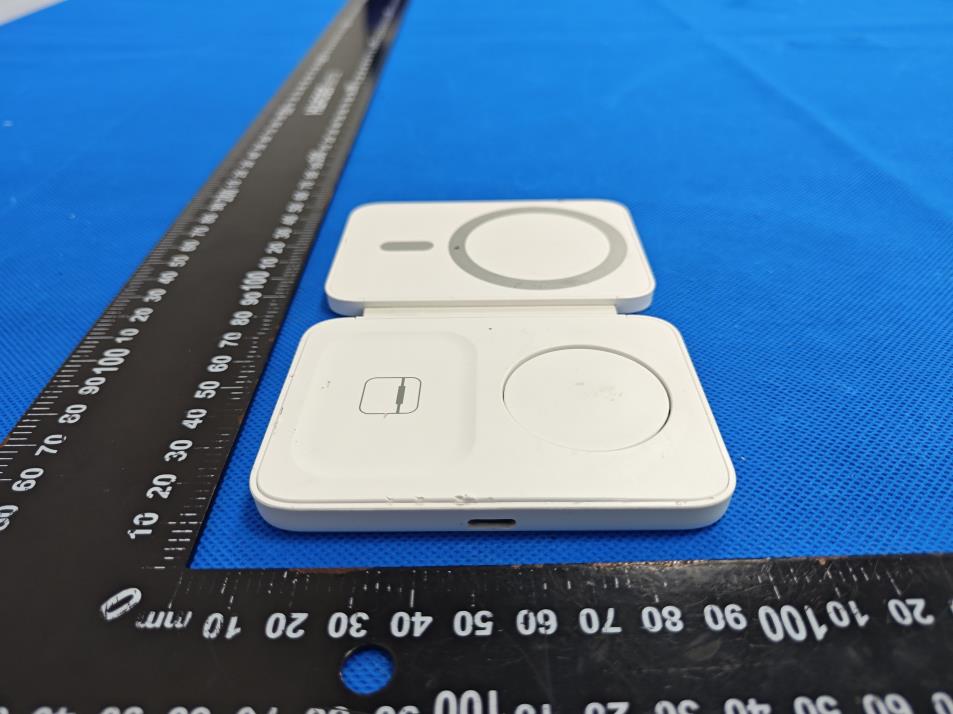

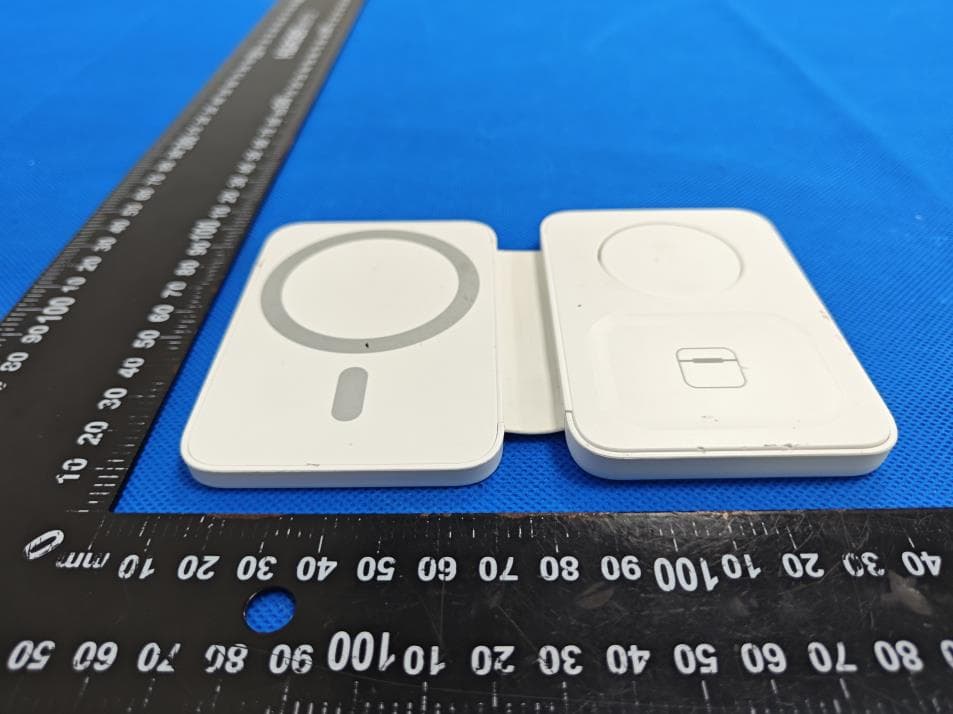

External Photos

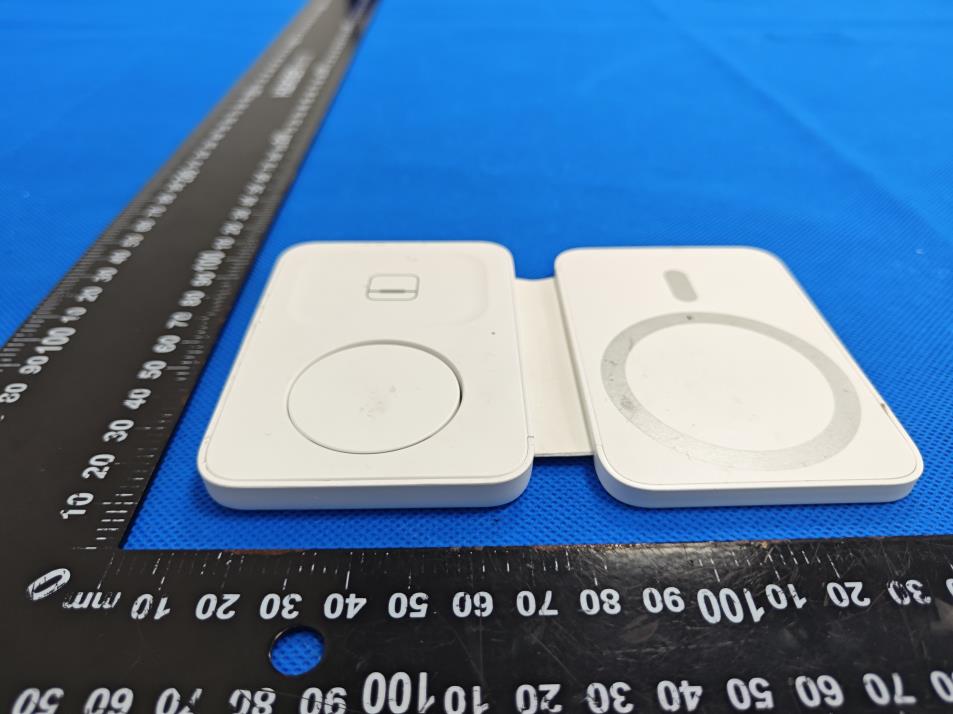

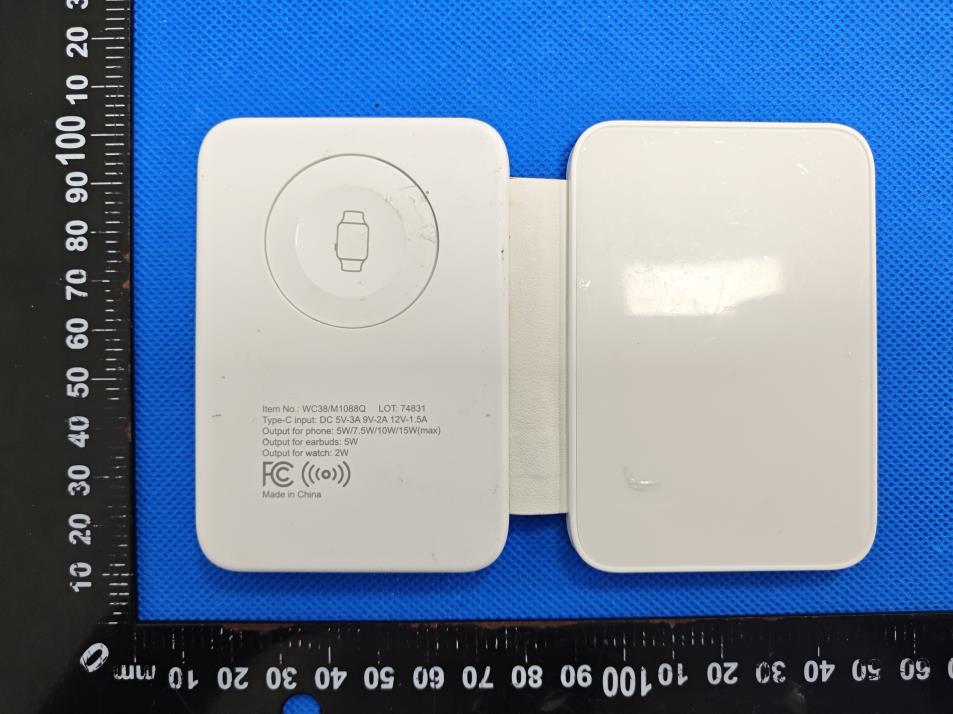

Size:34.1*17.7mm 3in1 Foldable magnetic wireless charger FCC ID: 2A9Q9-M1088Q Label location

Internal Photos Watch Antenna Phone Antenna Earphone Antenna

No.：BCTC/RF-EMC-005 Page 1 of 13 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2305526769-2E Applicant: ShenZhen Zhongyi Technology CO., Ltd. Product Name: 3in1 Foldable magnetic wireless charger Model/Type reference: MSL-M1088Q Tested Date: 2023-06-01 to 2023-06-29 Issued Date: 2023-06-29 Report No.: BCTC2305526769-2E No.：BCTC/RF-EMC-005 Page 2 of 13 Edition：B.0 FCC ID: 2A9Q9-M1088Q The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: 3in1 Foldable magnetic wireless charger Trademark: N/A Model/Type reference: MSL-M1088Q WC38 Prepared For: ShenZhen Zhongyi Technology CO., Ltd. Address: Room 401, No.4 Road One, Shangxue Science and Technology City, Xinxue Community, Bantian Street, Longgang District, Shenzhen, China Manufacturer: ShenZhen Zhongyi Technology CO., Ltd. Address: Room 401, No.4 Road One, Shangxue Science and Technology City, Xinxue Community, Bantian Street, Longgang District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-06-01 Sample tested Date: 2023-06-01 to 2023-06-29 Issue Date: 2023-06-29 Report No.: BCTC2305526769-2E Test Standards: FCC CFR 47 part1, 1.1307(b), 1.1310 Test Results: PASS Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2305526769-2E No.：BCTC/RF-EMC-005 Page 3 of 13 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Product Information ............................................................................................... 5 2.1 Product Information ............................................................................................... 5 2.2 Support Equipment ............................................................................................... 6 2.3 Test Mode ............................................................................................................. 6 3. Test Facility And Test Instrument Used ................................................................. 7 3.1 Test Facility ........................................................................................................... 7 3.2 Test Instrument Used ............................................................................................ 7 4. Method Of Measurement ....................................................................................... 8 4.1 Applicable Standard .............................................................................................. 8 4.2 Block Diagram Of Test Setup ................................................................................ 8 4.3 Limit ...................................................................................................................... 9 4.4 Test procedure ...................................................................................................... 9 4.5 Equipment Approval Considerations ................................................................... 10 4.6 E and H field Strength ......................................................................................... 11 5. Photographs Of Test Set-Up ............................................................................... 12 (Note: N/A Means Not Applicable) Report No.: BCTC2305526769-2E No.：BCTC/RF-EMC-005 Page 4 of 13 Edition：B.0 1. Version Report No. Issue Date Description Approved BCTC2305526769-2E 2023-06-29 Original Valid Report No.: BCTC2305526769-2E No.：BCTC/RF-EMC-005 Page 5 of 13 Edition：B.0 2. Product Information 2.1 Product Information Model/Type Ref.: MSL-M1088Q WC38 Model differences: All the model are the same circuit and RF module, except model names. Product Description: 3in1 Foldable magnetic wireless charger Operation Frequency: Wireless charging Output (Phone/ Earphone): 115kHz-205kHz, Wireless charging Output (Watch): 300-350kHz Modulation type: ASK Antenna installation: loop coil antenna Ratings: Type C Input: DC 5V/3A, 9V/3A, 12V/2A Wireless charging Output (Phone): 5W/7.5W/10W/15W Wireless charging Output (Earphone): 5W Wireless charging Output (Watch): 2W Hardware Version: N/A Software Version: N/A Cable of Product No. Cable Type Quantity Provider Length (m) Shielded Note 1 -- -- Applicant --- Yes/No With a ferrite ring in mid Detachable 2 -- -- BCTC -- Yes/No -- Report No.: BCTC2305526769-2E No.：BCTC/RF-EMC-005 Page 6 of 13 Edition：B.0 2.2 Support Equipment No. Device Type Brand Model Series No. Note 1. --- --- --- --- --- Notes: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 2.3 Test Mode Test Mode 1 Wireless charger 5W (Phone) + Wireless charger 5W (Earphone) + Wireless charger 2W (Watch) Test Mode 2 Wireless charger 7.5W (Phone) + Wireless charger 5W (Earphone) + Wireless charger 2W (Watch) Test Mode 3 Wireless charger 10W (Phone) + Wireless charger 5W (Earphone) + Wireless charger 2W (Watch) Test Mode 4 Wireless charger 15W (Phone) + Wireless charger 5W (Earphone) + Wireless charger 2W (Watch) Report No.: BCTC2305526769-2E No.：BCTC/RF-EMC-005 Page 7 of 13 Edition：B.0 3. Test Facility And Test Instrument Used 3.1 Test Facility All measurement facilities used to collect the measurement data are located at Shenzhen BCTC Testing Co., Ltd. Address:1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhanchen…

Text truncated - open the document above for the full version.

Page 1 of 2 承 認 書 SPECIFICATION FOR APPROVAL 客戶： CUSTOMER: 客 戶 料 號： CUST P/N: 03020800043 言之行 料 號： Y Z X P/N: YZX40 産 品 型 號： DESC: Φ40MMX5.0MM 日 期： DATE: 2023/2/28 版本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 李墨 万楼 李建波 Dongguan Yan line electr onic technology Co., LTD Add: No.8, Shima Xinwei, Tangxia Town, Dongguan City Page 2 of 2 SPECIFICATION 産 品 型 號： DESC Φ40MMX5.0MM 版本 Rev：A.0 客戶CUST: XXX 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A 38.0±1.5 B 20.5±0.5 C 1.25 Max D 35±3 E 2-5 F 40±2 G 10.0 ref H 2.1Max I 5.3 ref M 8.0 ref J 42±1 K 3.0±1 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F 24*0.08*2p 10Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F3.8uH ±20%单独线圈 100KHz/1.0V LCZ METER 1062B 2 IND. S-F6.3uH ±10%加磁片 100KHz/1.0V LCZ METER 1062B 3 DCR S-F≤120mΩ LCZ METER 502B 擬制/日期PREPARED BY/DATE審核/日期CHECKED BY/DATE

Page 1 of 2 承 認 書 SPECIFICATION FOR APPROVAL 客戶： CUSTOMER: 客 戶 料 號： CUST P/N: 3020800024 言之行 料 號： Y Z X P/N: YZX44 産 品 型 號： DESC: Φ43.5MMX5.0MM 日 期： DATE: 2023/5/2030 版本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 李墨 万楼 李建波 Dongguan Yan line electronic technology Co., LTD Add: No.8, Shima Xinwei, Tangxia Town, Dongguan City Page 2 of 2 SPECIFICATION 産 品 型 號： DESC Φ43.5MMX5.0MM 版本 Rev：A.0 客戶CUST: XXX 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A 39.0±1.5 B 20.5±0.5 C 1.25 Max D 30±3 E 2-5 F 43±2 G 10.0 ref H 1.6Max I 5.3 ref M 8.0 ref J 42±1 K 3.0±1 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F 24*0.08*2p 10Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F3.8uH ±20%单独线圈 100KHz/1.0V LCZ METER 1062B 2 IND. S-F6.4uH ±10%加磁片 100KHz/1.0V LCZ METER 1062B 3 DCR S-F≤120mΩ LCZ METER 502B 擬制/日期PREPARED BY/DATE審核/日期CHECKED BY/DATE

承 認 書 客 戶： CUSTOMER: 客 戶 料 號： CUST P/N: 言 之 行 料 號： Y Z X P/N: 3020800045 FYS043003 φ 235 SPECIFICATION FOR APPROVAL Page 1 of 2 産 品 型 號： DESC: 日期： DATE: 版 本： Version: 擬制 審核 批准 客戶承認 PREPARED BY CHECKED BY APPROVED BY CUSTOMER APPROVE 李建波 丁芳 Dongguan Yan line electronic technology Co., LTD Add: No.8, Shima Xinwei, Tangxia Town, Dongguan City SPECIFICATION 産 品 型 號： DESC 客戶CUST: φ 15x19.5-0.08x24-5mm-C 言之行料号 Y Z X P/N： 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) SZ043 FYS043003 B C D E 进锡F G H I 15±0.5 1.2 ±0.2 5±2 3ref 6 ±2 24.5 ± 1.0 2.8 Max 7.5 ±0.5 注： 二、原理图SCHEMATIC DIAGRAM: 三、绕线参数Winding Specification: 序号 端子 线径 圈数 绕线方向 NO. TERMINAL WIRE Turns Winding Direction 1 S F 2CUTF0.08G*24P 13Ts (ref) CCW 四、 电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25± 10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 项目 端子 标准 测试条件 测试仪器 NO. ITEM TERMINAL SPECIFICATION TEST FREQUENCY TEST EQUIPMENTS 1 INDUCT S-F 5.2uH±20%单独线圈 100KHZ/1V LCZ METER 1061A 2 INDUCT S-F 7.5uH±10%带磁片 100KHZ/1V LCZ METER 1061A 擬制/日期PREPARED BY/DATE 丁芳2023/05/25 審核/日期CHECKED BY/DATE 李建波2023/05/25 Page 2 of 2 A Rev：A.0 版本
