1 / 3 User manual FCC ID: 2AA551105B6105B100； For Model: SBD1105B-YQL100; SBF6105B-YQL100; 1. use Shanghai Senben Lighting Technology Incorporated Company’s SBD1105B-YQL100/SBF6105B- YQL100Maintenance-free, Energy-saving, Waterproof, Dustproof and Corrosion-proof Factory Lamp, the light source is induction lamp, and has the high Luminous Efficiency, longer lifespan etc features, the luminaire adopts the integrated structure, aluminum alloy die-casted ballast box and incoming line cover with the surface painted with polyester powder, This product is applicable for the common lighting or emergency lighting of such indoor and outdoor place with mech dust or damp such as factory ,airport,tunnel,especially power plant and its boiler unit,iron& steel plant and so on. 2. Feature 1. This product is of flame-proof and increased safety structure, O type sealing rings are adopted in the flame proof joints to make this product fulfill the dust-proof structural requirements. The flameproof electrical box, increased safety illuminant chamber and junction box are casted from aluminum alloy and painted with polyester on the outer surface. 2. The tensile strength of the aluminum alloy enclosure is no less than 120MPa and content of magnesium and titanium of the enclosure is no more than 7.5% of the total content, the enclosure is anti-corrosion. See Figure 2 for the light structure. 3. The flame proof electrical box shall subjected to specified internal explosion without any damage, the flame proof threads will provide a flame path to cooldown the enclosure in case of internal explosion. 4. Increased safety chamber is used as a reflector, it’s casted by aluminum plate with anodizing on the internal surface and polycarbonate coated on the external surface. Light with 120W and 150W illuminant has assistant reflectors. 5. The maximum surface temperature of the enclosure shall be less than 80°C without dust layer. 6. Flat toughed glass or polycarbonate prisma can be adopted as transparent plate. 7. Transparent plate and illuminant enclosure are fixed with aluminum alloy made hoop, it’s endurable and reliable with good oxidation resistance. 8. Rubber sealing rings are adopted between flame proof electrical box and increased safety chamber, these will ensure the good ingress protection performance. 9. Electromagnetic induction illuminant equipped special ballast with high steady frequency and high steady power, make the light is available to work under a wide range of voltage with long service life, it will also ease visual fatigue. 10. The light is provided with cable entries(compression nut type) with rubber sealing rings inside for user’s convenience to wiring and cable sealing. 11 10 1 3 2 4 9 8 756 1-illuminant enclosure 2-illuminant 3-assistant reflector 4-electrical box 5-junction box 6- compression nuts cable entry 7-user terminal 8- electrical box cover 9-ballast 10-transparent plate 11-hoop Figure2 2 / 3 11. Bulk type terminals make wiring reliable. 12. The light can be installed in pipe suspending type, ceiling type, wall mounting type, guard pole type and flange pole type. See Figure 2 for installation instructions. 3. Directions 1. In order to ensure the safety service of this Ex light, it shall be installed and maintained by trained personnel. Unauthorized people shall not open or disassembly the fasteners. 2. Since polyester transparent cover is adopted, there is a waning label: Warning - Potential electrostatic charge - see Instruction Manual. The installation hight shall no less than 2.5m, user shall pay attention to the electrostatic charge. Avoid ignition risks caused by normal service, maintenance and cleaning; do not touch or wipe the light in hazardous areas. Necessary replacement, wiping and touch shall be carried out in non-hazardous area. 3. Installation and maintenance procedures shall meet associate national standards, do not operate when energized. Do not open when energized in maintenance or replacement and waiting for the illuminant to cooldown. 4. There must be a designated person to in charge of the maintenance work specially. a) Special operational platform, ladder, safety belt and other necessary equipment shall be equipped to ensure personnel safety; b) Inspect the light periodically, any component damage, loss shall be fixed in time; replace the aged sealing ring or other plastic part to ensure the explosion proof performance. 5. Take care of the disassembled components to avoid loss or drop from high cause casualties. 6. Aged sealing rings shall be replaced by one of the same specifications to ensure the explosion proof performance. See Figure 12 for the detailed specifications. 7. Ensure Do not open when energized is strictly followed, cut off the power if the top cover is required to open in maintenance. 8. The internal and external earthing shall be reliable. 9. Unauthorized personnel is not allowed to disassemble the light. 10. Do not replace the components or change the structure of the qualified product at will, these activities may affect the explosion proof performance. 11. Protect the flameproof joint from damage or rust, lubricate with 204-1 anti-rust oil. 12. DO NOT OPEN WHEN ENERGIZED! 13. Check the voltage of the power, make sure that it is in the service range of the light to avoid the light being damaged by improper voltage. 3 / 3 4． Warnning： This equipment is fit fr FCC 18th regulatin. Any change and modify have not been allowed will case the equipment’s using permission failure This product may cause radio interference, can not be mounted at the place near marine Safety communications equipment, and other navigation and communications equipment operating frequency between 0.45 -30 MHz. If this happen, pls change the output and move the luminaire, and away from other electrical appliances if this is happening. Company’s name: Shanghai Senben Lighting Technology Incorporated Company Add: No.505, Shenyu Road, Malu Town, Jiading Area, Shanghai. This device com…

Text truncated - open the document above for the full version.

FCC ID: 2AA551105B6105B100 For Model: SBD1105B-YQL100 SBF6105B-YQL100

Shanghai Senben Lighting Technology Incorporated Company Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China Tel:+86-21-59900576 Fax:+86-21-59900576 Power of Attorney To Whom It May Concern Date: Jan. 03 th 2014 Unilab (Shanghai) Co., Ltd Address: No.1350, Lianxi Road, Pudong, Shanghai, China is hereby authorized by Shanghai Senben Lighting Technology Incorporated Company to represent us in all matters related to FCC ID approval and certification for the following products, manufactured or released by Shanghai Senben Lighting Technology Incorporated Company. Yours sincerely, Name: nancan Title:Manager Signature:

Unilab(Shanghai) Co.,Ltd. Report No. : UL22020131212FCC121 Page 1 of 2 Model Name:SBF6105B-YQL100 Figure 1 Figure 2 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020131212FCC121 Page 2 of 2 Figure 3

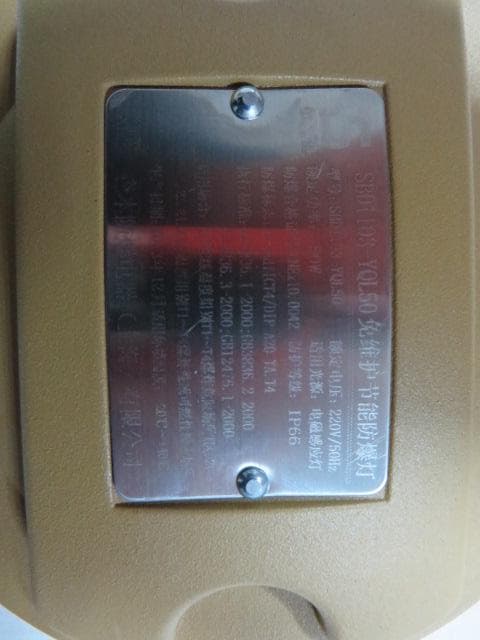

FCC ID Label Location FCC ID: 2AA551105B6105B100 For Model: SBD1105B-YQL100，SBF6105B-YQL100 FCC ID: 2AA551105B6105B100

1 / 2 LABEL FCC ID: 2AA551105B6105B100 For Model: SBD1105B‐YQL100 CAUTION: RISK OF ELECTRIC SHOCK DO NOT USE WHERE DIRECTLY NOT FOR USE IN TOTALLY ENCLOSED RECESSED FIXTURES FCC ID: 2AA551105B6105B100 SBD1105B-YQL100 Factory Lamp Voltage:100～277V 50/60Hz Light source: Induction Lamp Wattage: 100W CCT: □2700K □3500K □4000K □5000K □6500K IP Grade: IP65 Manufacturing Date: Made in China Shanghai Senben Lighting Technology Incorporated Company 2 / 2 For Model: SBF6105B‐YQL100 CAUTION: RISK OF ELECTRIC SHOCK DO NOT USE WHERE DIRECTLY NOT FOR USE IN TOTALLY ENCLOSED RECESSED FIXTURES FCC ID: 2AA551105B6105B100 SBF6105B-YQL100 Factory Lamp Voltage:100～277V 50/60Hz Light source: Induction Lamp Wattage: 100W CCT: □2700K □3500K □4000K □5000K □6500K IP Grade: IP65 Manufacturing Date: Made in China Shanghai Senben Lighting Technology Incorporated Company

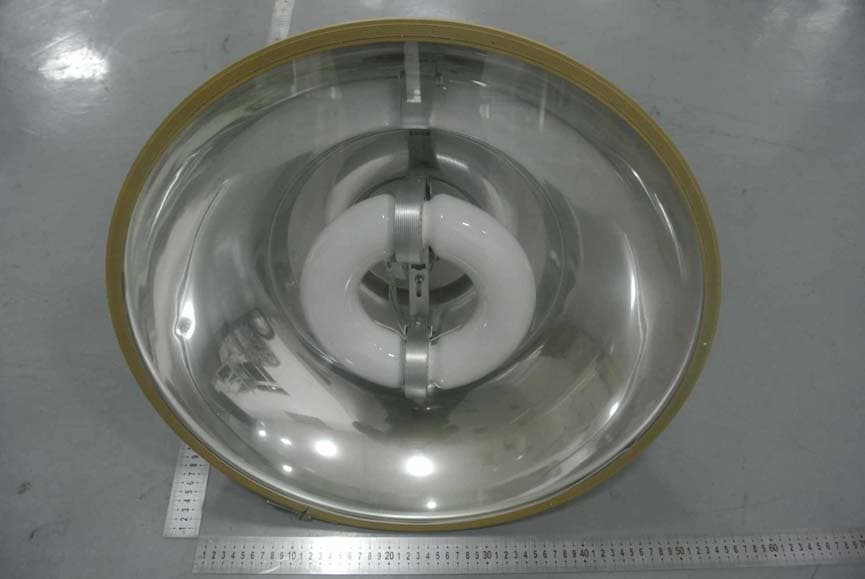

Unilab(Shanghai) Co.,Ltd. Report No. : UL22020131212FCC121 Page 1 of 6 Model Name:SBF6105B-YQL100 Figure 1 Figure 2 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020131212FCC121 Page 2 of 6 Figure 3 Figure 4 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020131212FCC121 Page 3 of 6 Figure 5 Figure 6 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020131212FCC121 Page 4 of 6 Figure 7 Figure 8 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020131212FCC121 Page 5 of 6 Figure 9 Figure 10 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020131212FCC121 Page 6 of 6 Figure 11

1 / 7 1 Factory lamp INSTRUCTION MANUAL FCC ID: 2AA551105B6105B100 For Model: SBD1105B-YQL100; SBF6105B-YQL100; Summary and usage SBF6105B –YQL100,SBD1105B-YQL100maintenance free, energy-saving, water proof, dust proof and corrosion proof factory lamp is designed and produced according to GB7000.1-2007 (Fixture's safety requirements and test), GB4208-93 (Electrical appliances shell protection test standard) etc regulations. This series luminaire's light source is induction lamp, and have the high luminous efficiency and long life-span etc characteristic. The luminaire is composed by Aluminum alloy ballast box and Aluminium plate spinning lampshade, the ballast box is sprayed by pure ployester powder, the surface of reflector in lampshade undergoes anodic oxidation treatment, the external surface adopt anodic oxidation treatment or polyester powder spraying. The luminarie had good protection and corrosion proof performance. This product is applicable for the common lighting or emergency lighting of such indoor and outdoor place with mech dust or damp such as factory ,airport,tunnel,especially power plant and its boiler unit,iron& steel plant and so on. Performance and structure: 1. This product is of flame-proof and increased safety structure, O type sealing rings are adopted in the flame proof joints to make this product fulfill the dust-proof structural requirements. The flameproof electrical box, increased safety illuminant chamber and junction box are casted from aluminum alloy and painted with polyester on the outer surface. 2. The tensile strength of the aluminum alloy enclosure is no less than 120MPa and content of magnesium and titanium of the enclosure is no more than 7.5% of the total content, the enclosure is anti-corrosion. See Figure 2 for the light structure. 3. The flame proof electrical box shall subjected to specified internal explosion without any damage, the flame proof threads will provide a flame path to cooldown the enclosure in case of internal explosion. 4. Increased safety chamber is used as a reflector, it’s casted by aluminum plate with anodizing on the internal surface and polycarbonate coated on the external surface. Light with 120W and 150W illuminant has assistant reflectors. 5. The maximum surface temperature of the enclosure shall be less than 80°C without dust layer. 6. Flat toughed glass or polycarbonate prisma can be adopted as transparent plate. 11 10 1 3 2 4 9 8 756 1-illuminant enclosure 2-illuminant 3-assistant reflector 4-electrical box 5-junction box 6-compression nuts cable entry 7-user terminal 8-electrical box cover 9-ballast 10-transparent plate 11-hoop Figure2 2 / 7 2 7. Transparent plate and illuminant enclosure are fixed with aluminum alloy made hoop, it’s endurable and reliable with good oxidation resistance. 8. Rubber sealing rings are adopted between flame proof electrical box and increased safety chamber, these will ensure the good ingress protection performance. 9. Electromagnetic induction illuminant equipped special ballast with high steady frequency and high steady power, make the light is available to work under a wide range of voltage with long service life, it will also ease visual fatigue. 10. The light is provided with cable entries(compression nut type) with rubber sealing rings inside for user’s convenience to wiring and cable sealing. 11. Bulk type terminals make wiring reliable. 12. The light can be installed in pipe suspending type, ceiling type, wall mounting type, guard pole type and flange pole type. See Figure 2 for installation instructions. Installation and maintenance 1. Check the following items before installation, the product can not be put into use if any of the followings is not satisfied: 1）Check if there is a certificate of conformity number 2）Check if the applicable area indicated in the Ex making is suitable for the intend location 3）Check if there is any crack or other defect that may damage the Ex performance 2. Check if all the accessories for the intended installation type are sufficient (see attached table) and check if the illuminant is well protected by foam, remove the transparent cover and take off the protective foam if necessary. 3. The light shall be protected from force to ensure its dust-proof and explosion proof performance are not affected. 4. Threaded joints are smeared with anti-rust oil on finished products, user shall protect the flame proof joint from damage. 5. User shall follow the installation instructions to install the light correctly.(See Figure 3 for instruction) 6. Model A is provided with water-resistant sealing ring assembly, see Figure 4 for correct installation, the procedures as followed: a) Rip the pipe into the tiny nut, gasket and sealing ring successively(see Figure 4 a); b) Screw the pipe into the top cover then screw down the tiny nut to compress the gasket and sealing ring tightly(see Figure 4 b); c) Tighten the fastening bolt on the top cover; d) Locate the sealing ring as the arrow shows in Figure 4. 7. Model D(D-guard pole type and E-flange pole type), screw the two M6 bolts on the side cover into the screw holes in the installation pole then fasten them to ensure the reliable fastening of the light(See Figure 5). 8. Only junction chamber shall be opened when wiring(the junction chamber cover is not mounted on finished products), the light is provided with cable entries(compression nut type) with rubber sealing rings inside. Three-core cable with rubber sheath with outer diameter of φ9mm～φ12.5mm are available for the sealing ring. There are several cuts in the sealing ring for user to select the proper diameter marked on the surface. User shall adopt internal compression device to fasten and seal the cable after it lead in(see Figure 6), ensure the cable can not be moved easily, additional gasket between the compression nut and the sealing ring is optional if the cable is not fastened well(see Figure 8 for lead-in cable sealing of Model D). 3 / 7 3 9. If the light…

Text truncated - open the document above for the full version.

Item No. material code Specifica tions Certificate number Rema rks 12345679 101112131415161718 FCC ID: 2AA551105B6105B100 For Model: SBD1105B-YQL100，SBD6105B-YQL100 raw material list HY.W850/00CQ-2 Page1of3 revised doc No. signature date Factory lamp(100～300V/220V/277V/300V-100W) Manufacturer SB0740-12 terminal plate Q235 1 Pic No. Name Material&Parameter QTY M5*12 GB/T93-1987 spring washer 5 stainless steel 1 GB/T818-2000 Cross recessed pan head screw stainless steel 1 GB/T845-1985 Cross recessed pan self-drilling head screw stainless steel 3 ST4.2*16 GB/T97.1-2002 plain washer 5 stainless steel 2 GB/T818-2000 Cross recessed pan head screw stainless steel 4 M3*10 GB/T97.1-2002 plain washer 4 stainless steel 3 stainless steel GB/T97.1-2002 plain washer 3 stainless steel 8 GB/T93-1987 spring washer 3 44 SB0740-10 Inner Pressure Plate Q235 1 SB0740-01 Electrical box YLD102 1 SB0740-11 ballast fixed plate Q235 1 SB0740-23 ballast 100W 1 SB0740-09 gland bush Q235 1 SB0509-5 Wire hole piece polyester 2 fixed-fixed GB/T845-1985 C ross recesse d pan self-drilling head screw 3 ST4.2*16 WK264-2 Two line double gears WAGO terminal French grey/Ex e IIC Gb 1 GB/T97.1-2002 plain washer 4 3 192021222324252627 Standardi ze Agree Item No. material code Specifica tions Certificate number Rema rks 282930313233343536 GB/T818-2000 Cross recessed pan head screw stainless steel 1 M6*12 GB/T97.1-2002 plain washer 6 stainless steel 2 GB/T93-1987 spring washer 6 stainless steel 1 M6*16 GB/T93-1987 spring washer 6 stainless steel 3 GB/T5782-2000 hexagonal head bolt stainless steel 3 GB/T818-2000 Cross recessed pan stainless steel 1 M5*12 GB/T97.1-2002 plain washer 6 stainless steel 3 GB/T97.1-2002 plain washer 5 stainless steel 1 GB/T93-1987 spring washer 5 stainless steel 1 Shanghai Senben Lighting Technology Incorporated Company Check Make form Examine HY.W850/00CQ-2 raw material list Page2of3 revised doc No. signature date Factory lamp(100～300V/220V/277V/300V-100W) Manufacturer GB/T818-2000 Cross recessed pan head screw stainless steel 2 M5*16 Pic No. Name Material&Parameter QTY GB/T71-1985 slotted cone pointed set screw stainless steel 2 M5*12 SB0740-03 Upper cover YLD102 1 ￠20*15 SB0504-16 Pressure part YLD102 1 SB0740-25 Cable sealing ring Silicon rubber RS-841 1 M3*10 GB/T93-1987 spring washer 3 stainless steel 1 GB/T818-2000 Cross recessed pan head screw stainless steel 1 WK264-1 Two line double gears WAGO terminal French grey/Ex e IIC Gb 1 Single-ended fixed GB/T97.1-2002 plain washer 3 stainless steel 1 373839404142434445464748495051 Standardi ze Agree Item No. material code Specifica tions Certificate number Rema rks 525354 SB0905-11 Electrical cavity sealing ring Silicon rubber RS- 841 1 SB0740-16 Upper cover sealing ring Silicon rubber RS-841 1 fixed-fixed SB0740-02 Electrical box cover YLD102 Aluminum Alloys 1 WK264-3 Two line four gears WAGO terminal French grey/Ex e IIC Gb 1 GB/T827-1986 nameplate rivets stainless steel 2 ￠2.5*4 SB1205-11 nameplate stainless steel 1 M5*10 GB/T93-1987 spring washer 5 stainless steel 2 GB/T5782-2000 hexagonal head bolt stainless steel 2 SB0740-18 sealing ring Silicon rubber RS-841 1 GB/T97.1-2002 plain washer 5 stainless steel 2 M5*20 GB/T93-1987 spring washer 5 stainless steel 4 GB/T818-2000 Cross recessed pan head screw stainless steel 4 GB/T71-1985 slotted cone pointed set screw stainless steel 1 M4*6 GB/T97.1-2002 plain washer 5 stainless steel 4 Make form SB1205-1 lampshade 1070A 1 Examine Check raw material list HY.W850/00CQ-2 Shanghai Senben Lighting Technology Incorporated Company Factory lamp(100～300V/220V/277V/300V-100W) Page3of3 revised doc No. signature date Manufacturer GB/T70.1-2008 Hexagon Socket Head Cap Screws stainless steel 1 M5*35 Pic No. Name Material&Parameter QTY GB/T97.1-2002 plain washer 5 stainless steel 2 GB/T93-1987 spring washer 5 stainless steel 1 5556575859606162636465 Standardi ze Agree SB1205-8 anchor ear Aluminium 1 GB/T6170-2000 hexagon nut M5 stainless steel 2 ￠2*4 SB1205-16 warning sign stainless steel 1 GB/T867-1986 snap rivet T2 3 SB0740-22 Light source 100W 1 SB1205-6 Transparent board PC 1 M4*12 SB1205-10 sealing ring Silicon rubber RS-841 1 GB/T9074.5- 2004 C ross s l ot combination pan head screws carbon steel 2 ST2.9*9.5 SB1205-07 Transparent board toughened glass GB 845-1985 C ross recesse d pan self-drilling head screw carbon steel 2 SB1205-26 washer stainless steel 1 Shanghai Senben Lighting Technology Incorporated Company Check Make form Examine

FCC ID: 2AA551105B6105B100 For Model:SBD1105B-YQL100; SBF6105B-YQL100;

Unilab(Shanghai) Co.,Ltd. Report No. : UL22020131212FCC121 Page 1 of 15 FCC TEST REPORT Product Name : FACTORY LAMP Model Name : 1:SBD1105B-YQL100; 2:SBF6105B-YQL100; Prepared for: Shanghai Senben Lighting Technology Incorporated Company Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China TEL: +86-21-59900576 FAX: +86-21-59900576 Prepared by: Unilab (Shanghai) Co., Ltd. No. 1350, Lianxi Rd. Pudong New District, Shanghai, China TEL: +86-21-50275125 FAX: +86-21-50277862 Report Number : UL22020131212FCC121 Date of Report : 2013-12-20 Date of Test : 2013-12-12~2013-12-19 Notes： The test results only relate to these samples which have been tested. Partly using this report will not be admitted unless been allowed by Unilab. Unilab is only responsible for the complete report with the reported stamp of Unilab. Unilab(Shanghai) Co.,Ltd. Report No. : UL22020131212FCC121 Page 2 of 15 Prepared by : (Technical Engineer: Flame Wang) Reviewed by : (Senior Engineer: Forest Cao) Approved by : (Supervisor: Eva Wang) Applicant: Shanghai Senben Lighting Technology Incorporated Company . Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China. Manufacturer: Shanghai Senben Lighting Technology Incorporated Company. Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China Product Name: FACTORY LAMP Brand Name: N/A Model Name: 1:SBD1105B-YQL100; 2:SBF6105B-YQL100; Operating frequency: 0.22MHz-0.28MHz Model difference: SBD1105B-YQL100 and SBF6105B-YQL100 are identical. They are marketed in different countries,so they own different modle name.The model under test is SBF6105B-YQL100 and the test results are applicable to the other. FCC ID: 2AA551105B6105B100 EUT Voltage: AC input: AC 120V/60Hz Date of Receipt: 2013-12-12 Date of Test 2013-12-12~2013-12-19 Test Standard: FCC CFR Tile 47 Part 18 Subpart C Test Result: Complied Unilab(Shanghai) Co.,Ltd. Report No. : UL22020131212FCC121 Page 3 of 15 TABLE OF CONTENTS 1. TECHNIACL SUMMARY ...................................................................................... 4 1.1 SUMMARY OF STANDARDS AND TEST RESULTS ................................ 4 1.2 TEST UNCERTAINTY ................................................................................ 4 1.3 TEST EQUIPMENT LIST ........................................................................... 4 1.4 SUPPORT EQUIPMENT ............................................................................ 4 1.5 TEST FACILITY ......................................................................................... 5 1.6 TEST SETUP CONFIGURATION .............................................................. 5 2. CONDUCTED DISTURBANCE ............................................................................. 6 2.1 TEST SETUP ............................................................................................. 6 2.2 LIMITS ........................................................................................................ 6 2.3 TEST PROCEDURE .................................................................................. 6 2.4 TEST RESULT ........................................................................................... 7 3. RADIATED DISTURBANCE ................................................................................. 9 3.1 TEST SETUP ............................................................................................. 9 3.2 LIMITS ........................................................................................................ 9 3.3 TEST PROCEDURE .................................................................................. 9 3.4 TEST RESULT ......................................................................................... 10 4. MAGNETIC FIELD EMISSION ........................................................................... 12 4.1 TEST SETUP ........................................................................................... 12 4.2 LIMITS ...................................................................................................... 12 4.3 TEST PROCEDURE ................................................................................ 12 4.4 TEST RESULT ......................................................................................... 13 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP .............................................. 15 APPENDIX 2 PHOTOGRAPHS OF EUT ............................................................. 15 Unilab(Shanghai) Co.,Ltd. Report No. : UL22020131212FCC121 Page 4 of 15 1. TECHNIACL SUMMARY 1.1 SUMMARY OF STANDARDS AND TEST RESULTS The EUT have been tested according to the applicable standards as referenced below: Test Item FCC Result Conducted disturbance FCC 18.307(c) P Radiated disturbance FCC 18.305(c) P Magnetic Field Emission FCC 18.305(b) P Note: P means pass, F means failure, N/A means not applicable 1.2 TEST UNCERTAINTY Where relevant, the following test uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test item Value (dB) Conducted disturbance 3.4 Radiated disturbance 4.2 1.3 TEST EQUIPMENT LIST Shielding Room No. 3 - Conducted disturbance Test Equipment Manufacturer Model Serial No. Due Date Receiver Agilent N9038A MY51210142 2014/09/27 LISN R&S ENV216 100069 2014/06/23 3m Semi-anechoic Chamber - Radiated disturbance Test Equipment Manufacturer Model Serial No. Due Date 3m Chamber & Accessory Equipment ETS-LINDGRENFACT-3 CT-0000336 2014/11/26 Receiver Agilent N9038A MY51210142 2014/09/27 Biconilog Antenna SCHWARZBECK VULB 9160 3316 2014/10/19 Loop Antenna Schwarzbeck FMZB1519 1519-020 2014/03/27 The measuring equipment utilized to perform the tests documented in this report has been calibrated once a year or in accordance with the manufacturer's reco…

Text truncated - open the document above for the full version.

Unilab(Shanghai) Co.,Ltd. Report No. : UL22020131212FCC121 Page 1 of 2 Model Name:SBF6105B-YQL100 CONDUCTED DISTURBANCE TEST SETUP RADIATED DISTURBANCE TEST SETUP Unilab(Shanghai) Co.,Ltd. Report No. : UL22020131212FCC121 Page 2 of 2 MAGNETIC FIELD EMISSION TEST SETUP
