2AA551112611265FACTORY LAMP

User manual FCC ID: 2AA551112611265 For Model: SBD1112-YQL65; SBF6112-YQL65; 1. use Shanghai Senben Lighting Technology Incorporated Company’s SBD1112 SBF6112 Maintenance- free, Energy-saving,Waterproof, Dustproof and Corrosion-proof Factory Lamp, the light source is induction lamp, and has the high Luminous Efficiency, longer lifespan etc features, the luminaire adopts the integrated structure, aluminum alloy die-casted ballast box and incoming line cover with the surface painted with polyester powder, This product is applicable for the common lighting or emergency lighting of such indoor and outdoor place with mech dust or damp such as factory ,airport,tunnel,especially power plant and its boiler unit,iron& steel plant and so on. 2.Electrical parameters: 1.Rated Vol.:120VAC 60Hz 2. Applicable Light Source: Induction lamp 3. Rated Power：65W 4. Protection class：IP65 (Close Type) 5. Corrosion proof class：WF2 6. Cable diameter：G3/4′′(Pendant mounting) 7. Applicable Ambient Temperature: -10°C to +50°C 8. Size: φ385×470mm 9. Weight: 5.2kgs (Close Type) 3. Directions 1. In order to ensure the safety service of this Ex light, the user should not let any unauthorized people shall open or assembly the fasteners. 2. There must be a designated person to in charge of the maintenance work specially and inspecting the light periodically. Special operational platform, ladder, safety belt and other necessary equipment shall be equipped to ensure personnel safety in the process of installation or maintenance work. 3. Any component damage or loss shall be fixed in time. It’s necessary to replace the aged sealing ring or other plastic part to ensure the explosion proof performance. In the strong corrosive environment, users should check the integrity of the Ex lamp at least once every three to six months and should replace the parts in time when severe corrosion parts are founded. 4. Take care of the disassembled components to avoid loss or drop from high cause casualties. 5. Installation and maintenance procedures shall meet associate national standards, do not operate when energized. Do not open when energized in maintenance or replacement and waiting for the illuminant to cooldown. 4． Warnning： This equipment is fit fr FCC 18th regulatin. Any change and modify have not been allowed will case the equipment’s using permission failure This product may cause radio interference, can not be mounted at the place near marine Safety communications equipment, and other navigation and communications equipment operating frequency between 0.45 -30 MHz. If this happen, pls change the output and move the luminaire, and 1 2 3 4 5 6 7 1-Enty wire cavity 2- electrical appliance cavity 3-Light source 4-Toughened glass 5-Hooping 6-Reflector 7-Control box cap Picture 1 away from other electrical appliances if this is happening. Company’s name: Shanghai Senben Lighting Technology Incorporated Company Add: No.505, Shenyu Road, Malu Town, Jiading Area, Shanghai. This device complies with Part 18 of the FCC Rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz. If this occurs, please change outlet or move the lamp far away from other appliance (a) The interference potential of device or system: “Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” (b) Simple measures that can be taken by the user to correct interference: “NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.”

Shanghai Senben Lighting Technology Incorporated Company Date: June17, 2014 Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AA551112611265 ATTESTATION FCC ID: 2AA551112611265 Product: FACTORY LAMP Model: SBD1112-YQL65, SBF6112-YQL65 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Signed Name: Nancan Position: Manager Shanghai Senben Lighting Technology Incorporated Company

Shanghai Senben Lighting Technology Incorporated Company Declaration of Authorization We Name: Shanghai Senben Lighting Technology Incorporated Company Address: Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China Declare that: Name Representative of agent: Robin Wu Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: FACTORY LAMP Type designation: SBD1112-YQL65, SBF6112-YQL65 on our behalf. Date: June 17, 2014 Name: Nan Can Signature:

Shanghai Senben Lighting Technology Incorporated Company Date: June 17, 2014 Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AA551112611265 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description 4. BOM List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------------- Signed Name: Nan Can Shanghai Senben Lighting Technology Incorporated Company

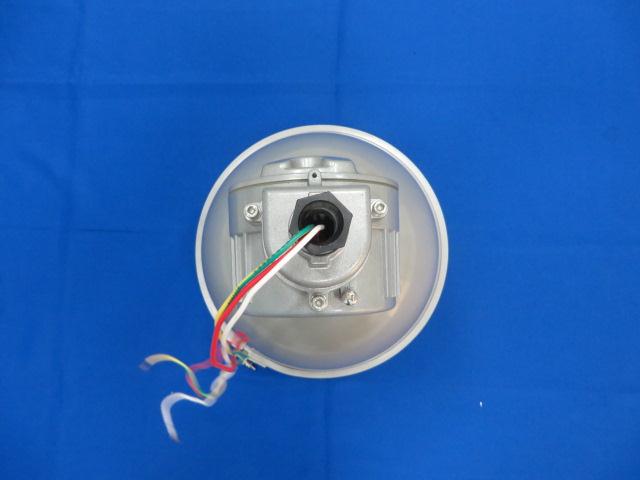

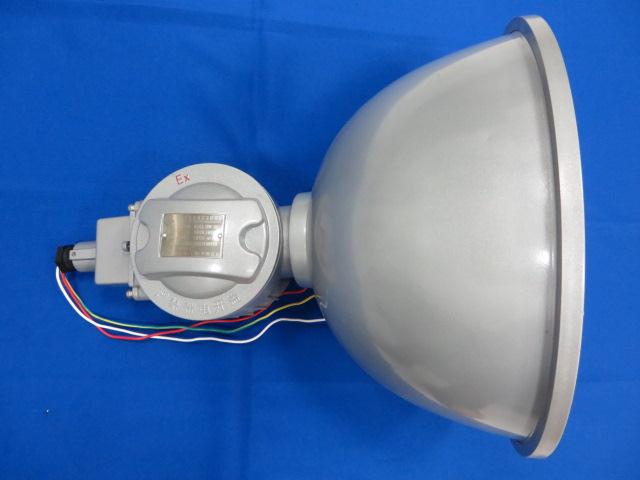

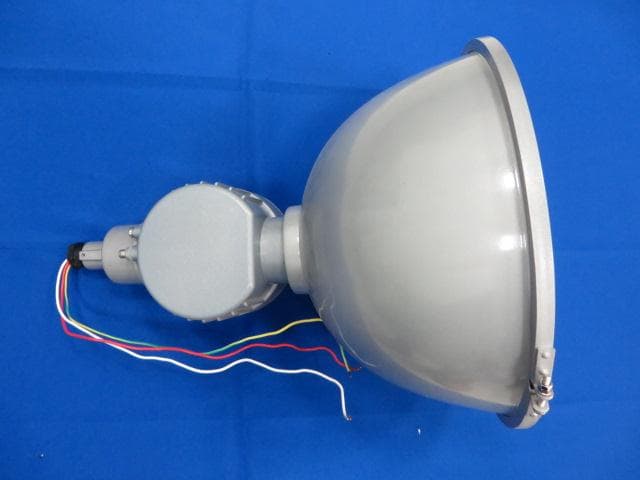

(1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo

FCC ID Label & Label Location FCC ID: 2AA551112611265 For Model: SBD1112-YQL65; SBF6112-YQL65; For Model: SBD1112-YQL65 CAUTION: RISK OF ELECTRIC SHOCK DO NOT USE WHERE DIRECTLY NOT FOR USE IN TOTALLY ENCLOSED RECESSED FIXTURES FCC ID:2AA551112611265 SBD1112-YQL65 Factory Lamp Voltage:120V 60Hz Light source: Induction Lamp Wattage: 65W CCT: □2700K □3500K □4000K □5000K □6500K IP Grade: IP65 Manufacturing Date: Made in China Shanghai Senben Lighting Technology Incorporated Company For Model: SBF6112-YQL65 CAUTION: RISK OF ELECTRIC SHOCK DO NOT USE WHERE DIRECTLY NOT FOR USE IN TOTALLY ENCLOSED RECESSED FIXTURES FCC ID:2AA551112611265 SBF6112-YQL65 Factory Lamp Voltage:120V 60Hz Light source: Induction Lamp Wattage: 65W CCT: □2700K □3500K □4000K □5000K □6500K IP Grade: IP65 Manufacturing Date: Made in China Shanghai Senben Lighting Technology Incorporated Company

(1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1406ESU02401 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 06-16-2014 Web: www.mrt-cert.com Page: 1 of 18 MEASUREMENT REPORT FCC Part 18 Subpart C: 2013 FCC ID: 2AA551112611265 Applicant: Shanghai Senben Lighting Technology Incorporated Company Product: FACTORY LAMP Model No.: SBD1112-YQL65, SBF6112-YQL65 Standards: FCC Part 18 Subpart C: 2013 MP5: 1986 Result: Complies Test Date: June 09 ~ 14, 2014 Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1406ESU02401 Page: 2 of 18 Revision History Report No. Version Description Issue Date 1406ESU02401 Rev. 01 Initial report 06-16-2014 Report No.: 1406ESU02401 Page: 3 of 18 CONTENTS Description Page 1. General Information ................................................................................................................. 4 1.1. Applicant ....................................................................................................................... 4 1.2. Manufacturer ................................................................................................................ 4 1.3. Feature of Product ........................................................................................................ 4 1.4. Testing Facility .............................................................................................................. 4 2. Test Configuration of Equipment Under Test ......................................................................... 5 2.1. Test Mode ..................................................................................................................... 5 2.2. Configuration of Tested System .................................................................................... 5 2.3. Accessories Description ............................................................................................... 6 2.4. Tested Software ............................................................................................................ 6 3. Test Summary ........................................................................................................................... 7 4. Conducted Emission ................................................................................................................ 8 4.1. Limit of Conducted Emission ........................................................................................ 8 4.2. Test Setup .................................................................................................................... 8 4.3. Test Procedure ............................................................................................................. 9 4.4. Test Result .................................................................................................................. 10 5. Radiated Emission ................................................................................................................. 12 5.1. Limit ............................................................................................................................ 12 5.2. Test Setup .................................................................................................................. 12 5.3. Test Procedure ........................................................................................................... 13 5.4. Test Result .................................................................................................................. 15 6. Measurement Uncertainty ...................................................................................................... 17 7. List of Measuring Instrument ................................................................................................ 18 Report No.: 1406ESU02401 Page: 4 of 18 1. General Information 1.1. Applicant Shanghai Senben Lighting Technology Incorporated Company Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China 1.2. Manufacturer Shanghai Senben Lighting Technology Incorporated Company Zone B, Block 2, No. 4800, Baoqian Highway, Jiading District, Shanghai City, China 1.3. Feature of Product Note: The Lights belong to Consumer equipment, so the corresponding limits are presented according to FCC Part 18 Subpart C. This test report has assessed the Model No.: SBF6112-YQL65 1.4. Testing Facility Test Site MRT Technology (Suzhou) Co., Ltd Test Site Location D8 Building, Youxin Industrial Park, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Registration No. 809388 Product Name FACTORY LAMP FCC ID 2AA551112611265 Model No. SBD1112-YQL65, SBF6112-YQL65 Model Difference The structure and power are the same, but different in appearance. Working Frequency 280kHz Working Voltage AC 120V, 60Hz Report No.: 1406ESU02401 Page: 5 of 18 2. Test Configuration of Equipment Under Test 2.1. Test Mode Final Test Mode Test Mode Mode 1: Power On 2.2. Configuration of Tested System Connection Diagram Cable Type Cable Description A Power Cable 1.5m Report No.: 1406ESU02401 Page: 6 of 18 2.3. Accessories Description The types for all equipments, plus descriptions of all cables used in the tested system (including inserted cards) are: Product Manufacturer Model No. Serial No. Power Cord N/A N/A N/A N/A N/A 2.4. Tested Software Not Applicable. Report No.: 1406ESU02401 Page: 7 of 18 3. Test Summary Normative References Test Description Test Result (Pass/Fail) FCC Part 18 Subpart C: 2013 MP5: 1986 Conducted Emission Pass FCC Part 18 Subpart C: 2013 MP5: 1986 Radiated Emission Pass Report No.: 1406ESU02401 Pa…

Text truncated - open the document above for the full version.

Test Photograph Test Mode: Mode 1: Power On Description: Front View of Conducted Emission Test Mode: Mode 1: Power On Description: Back View of Conducted Emission Test Mode: Mode 1: Power On Description: Radiated disturbance Test Setup
