2AA55HUNHE50FACTORY LAMP

User manual FCC ID: 2AA55HUNHE50 For Model: SBD1103-YQL50; SBF6103-YQL50; SBD1110-YQL50; SBF6107-YQL50; 1. use Shanghai Senben Lighting Technology Incorporated Company’s SBD1103 SBF6103/SBD1110/SBF6107 Maintenance-free, Energy-saving, Waterproof, Dustproof and Corrosion-proof Factory Lamp, the light source is induction lamp, and has the high Luminous Efficiency, longer lifespan etc features, the luminaire adopts the integrated structure, aluminum alloy die-casted ballast box and incoming line cover with the surface painted with polyester powder, This product is applicable for the common lighting or emergency lighting of such indoor and outdoor place with mech dust or damp such as factory ,airport,tunnel,especially power plant and its boiler unit,iron& steel plant and so on. 2.Electrical parameters: 1. Rated Vol.: 120VAC 60Hz 2. Illuminant: Electromagnetic induction illuminant 3. Power: 40 or 50W 4. Ex marking: Ex d e II CT4 Gb Ex tb III C T80°C Db 5. IP code: IP66 6. Corrosion-proof grade: WF2 7. Applicable cable outer diameter: φ9～12.5mm 8. Outline and installation size see Figure 1 3. Directions 1. In order to ensure the safety service of this Ex light, it shall be installed and maintained by trained personnel. Unauthorized people shall not open or disassembly the fasteners. 2. Since polyester transparent cover is adopted, there is a waning label: Warning - Potential electrostatic charge - see Instruction Manual. The installation hight shall no less than 2.5m, user shall pay attention to the electrostatic charge. Avoid ignition risks caused by normal service, maintenance and cleaning; do not touch or wipe the light in hazardous areas. Necessary replacement, wiping and touch shall be carried out in non-hazardous area. 3. Installation and maintenance procedures shall meet associate national standards, do not operate when energized. Do not open when energized in maintenance or replacement and waiting for the illuminant to cooldown. 4. There must be a designated person to in charge of the maintenance work specially. a) Special operational platform, ladder, safety belt and other necessary equipment shall be Figure1 1 Type A Type D equipped to ensure personnel safety; b) Inspect the light periodically, any component damage, loss shall be fixed in time; replace the aged sealing ring or other plastic part to ensure the explosion proof performance. 5. Take care of the disassembled components to avoid loss or drop from high cause casualties. 6. Aged sealing rings shall be replaced by one of the same specifications to ensure the explosion proof performance. See Figure 12 for the detailed specifications. 7. Ensure Do not open when energized is strictly followed, cut off the power if the top cover is required to open in maintenance. 8. The internal and external earthing shall be reliable. 9. Unauthorized personnel is not allowed to disassemble the light. 10. Do not replace the components or change the structure of the qualified product at will, these activities may affect the explosion proof performance. 11. Protect the flameproof joint from damage or rust, lubricate with 204-1 anti-rust oil. 12. DO NOT OPEN WHEN ENERGIZED! 13. Check the voltage of the power, make sure that it is in the service range of the light to avoid the light being damaged by improper voltage. 4． Warnning： This equipment is fit fr FCC 18th regulatin. Any change and modify have not been allowed will case the equipment’s using permission failure This product may cause radio interference, can not be mounted at the place near marine Safety communications equipment, and other navigation and communications equipment operating frequency between 0.45 -30 MHz. If this happen, pls change the output and move the luminaire, and away from other electrical appliances if this is happening. Company’s name: Shanghai Senben Lighting Technology Incorporated Company Add: No.505, Shenyu Road, Malu Town, Jiading Area, Shanghai. This device complies with Part 18 of the FCC Rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz. If this occurs, please change outlet or move the lamp far away from other appliance (a) The interference potential of device or system: “Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” (b) Simple measures that can be taken by the user to correct interference: “NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.”

THIS MUST BE SIGNED BY THE APPLICANT AND SHOULD BE PLACED ON APPLICANTS LETTERHEAD ONLY IF AGENT IS SUBMITTING APPLICATION 022311 – 6 Authority to Act as Agent Date: 04-17-2014 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______MRT Technology (Suzhou) Co., Ltd______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____04-17-2015____ By: ________Can Nan__________________ ________________________ (Signature 1 ) (Print name) Title: __________________________ On behalf of: _ Shanghai Senben Lighting Technology Incorporated Company__ (Company Name) Telephone: __________________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD 022311 – 6 Request for Confidentiality Date: 04-17-2014________ Subject: Confidentiality Request for: _____2AA55HUNHE50_____ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ______ Shanghai Senben Lighting Technology Incorporated Company ______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ ______Can Nan__________________ (Signature/Title 4 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

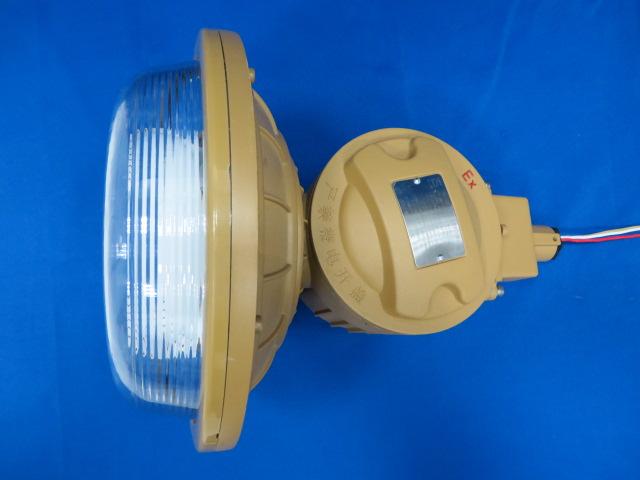

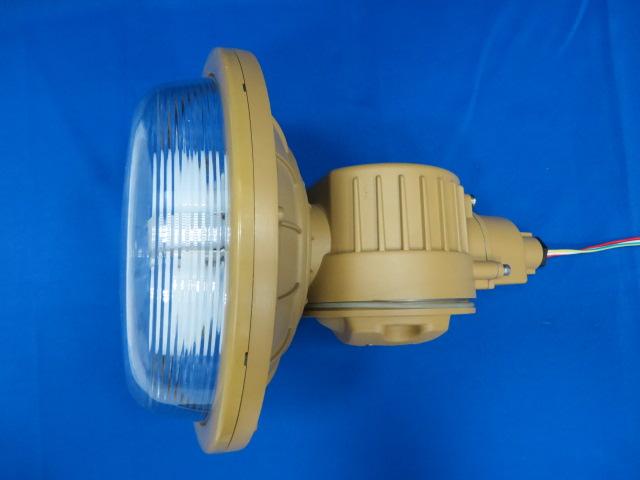

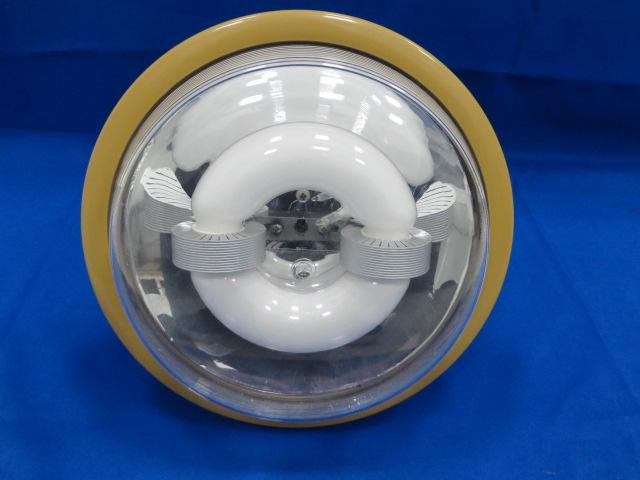

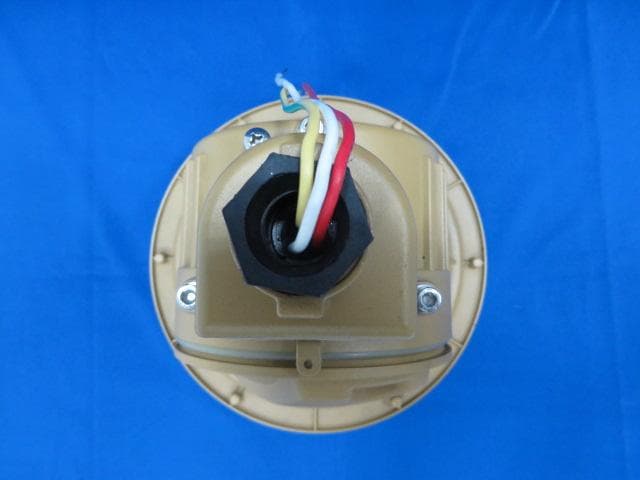

1 of 4 External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo
