2AA72-PTR5518BLUETOOTH 4.0 MODULE

Coin-size Ultra Low Power Bluetooth 4.0 Low Energy RF Module PTR5518 --Bluetooth 4.0 Module Features ¾ Complete Bluetooth low energy solution (Bluetooth 4.0)，single mode compliant，Integrated Bluetooth low energy stack/profiles. ¾ 2.4 GHz transceiver • -93 dBm sensitivity in Bluetooth® low energy mode, -96 dBm sensitivity@250kbps, • TX Power -20 to +4 dBm in 4 dB steps • 13 mA peak RX, 10.5 mA peak TX (0 dBm) • RSSI (1 dB resolution) ¾ ARM® Cortex™-M0 32 bit processor, 256 kB flash memory, 16 kB RAM. • 275 μA/MHz running from flash memory • 150 μA/MHz running from RAM • Serial Wire Debug (SWD) ¾ Ultra low current consumption , Flexible Power Management • Supply voltage range 1.8 V to 3.6 V • 2.5 μs wake-up using 16 MHz RCOSC • 0.4 μA @ 3 V OFF mode • 0.5 μA @ 3 V in OFF mode + 1 region RAM retention • 2.3 μA @ 3 V ON mode, all blocks IDLE ¾ Flexible real-time counter and Two 16 bit and one 24 bit timers with counter mode ¾ AES Coprocessor, Random Number Generator ,Watchdog Timer ,Temperature sensor ¾ Rich set of Peripheral: ADC, SPI, 2-wire , and UART. Programmable Peripheral Interconnect(PPI) ¾ Internal RC Oscillator 32.768 kHz(± 250 ppm). ¾ Configurable I/O mapping (I/O signals can use any pin, Simple layout of external application) ¾ Ultra small size(smaller than CR2032 coin battery), about 15mmx15mmx2.5mm with Antenna. COPYRIGHT ©2013 ALL RIGHTS RESERVED LANKE XUNTONG TECHNOLOGY CO.,LTD TEL: +86 755 26674742 +86 755 26675941 E-mail: [email protected] 1 Typical Applications: z - 2.4 GHz Bluetooth low energy systems z - Proprietary 2.4 GHz systems z - Sports and leisure equipment z - Mobile phone accessories z - Health Care and Medical z - Consumer Electronics, Game pads z - Human Interface Devices, Remote control z - Building environment control / monitoring z - RFID, Security Applications Pin Description of Module（Top View）: Pin No. Name Description Note 1 P0.08 I/O 2 P0.09 I/O 3 P0.12 I/O 4 SWDIO Debug and flash programming I/O 5 SWCLK Debug and flash programming I/O 6 P0.17 I/O 7 P0.18 I/O 8 P0.19 I/O 9 GND Power Ground 10 VDD Power Suply（1.9～3.6V） 11 P0.25 I/O 12 P0.26 I/O ADC IN 0 13 P0.27 I/O ADC IN 1 14 P0.28 I/O 15 P0.29 I/O COPYRIGHT ©2013 ALL RIGHTS RESERVED LANKE XUNTONG TECHNOLOGY CO.,LTD TEL: +86 755 26674742 +86 755 26675941 E-mail: [email protected] 2 Block diagram: HW debug and flash programming of Module : Pin Flash Program interface SWDIO Debug and flash programming I/O SWCLK Debug and flash programming I/O This is the hardware debug and flash programming of module, J-Link Lite support, pleas refer www.segger.com. COPYRIGHT ©2013 ALL RIGHTS RESERVED LANKE XUNTONG TECHNOLOGY CO.,LTD TEL: +86 755 26674742 +86 755 26675941 E-mail: [email protected] 3 Performance Data: Transmitter specification: Receiver specification: Radio current consumption: COPYRIGHT ©2013 ALL RIGHTS RESERVED LANKE XUNTONG TECHNOLOGY CO.,LTD TEL: +86 755 26674742 +86 755 26675941 E-mail: [email protected] 4 CPU current consumption: Power management: For more detail information, please refer nRF51822 datasheet. PCB Layout（TOP VIEW）: COPYRIGHT ©2013 ALL RIGHTS RESERVED LANKE XUNTONG TECHNOLOGY CO.,LTD TEL: +86 755 26674742 +86 755 26675941 E-mail: [email protected] 5 unit: mil PIN Description NO PIN INPUT\ OUTPUT Description 1 EN I Enabled Pins，External Pull up： Falling Edge：Module starts Broadcasting, and connect with device Raising Edge：No matter what status of the module, the module will enter into deep sleep mode. （420 nA） 2 TX O UART TX 3 RX I UART RX 4 — — Not used 5 — — Not used 6 CTS O Input signal to wake up MCU (Optional) 0：Means module’s sending data to MCU , Master’s ready to receive data from Module 1：Means no data sending to MCU, or Module data sending Finished 7 RTS I Data output request to wake up module 0：Means MCU will send data out, and Module is waiting for the data from MCU 1：Means no data sending to module, or MCU data sending finished 8 FLOW_CTR O UART Flow Control： 0：UART can send data to module 1：Module is busy, UART can’t send data to Module Note：TO Prevent UART data from losing, suggest to check the pin status before MCU sending data, waiting for a falling edge , then send data out ( wait for no longer than a broadcasting or an interval ) , see the Chart 3-1 for reference. 9 GND — Power Ground COPYRIGHT ©2013 ALL RIGHTS RESERVED LANKE XUNTONG TECHNOLOGY CO.,LTD TEL: +86 755 26674742 +86 755 26675941 E-mail: [email protected] 6 10 VCC — Power Supply’ Positive（3 ~ 3.6V） 11 CFG_MODE I Select Parameter configuration mode, interval pull up 0：Simple mode： Input level to set Baud Rate through BAUD_0、BAUD_ Input level to set Connection Interval through CNITV_0、CNITV_1 1：AT command mode： Sending AT command through UART to set Baud Rate and Connection Interval 。 12 BAUD_0 I 13 BAUD_1 I Set Baud Rate（Under Simple Mode），Internal Pull down： BAUD_0, BAUD_1： 00: 9600 01: 19200 10: 38400 11: 115200 14 CNITV_0 I 15 CNITV_1 I Set Connection Interval（Under Simple Mode），Internal Pull down： CNITV_0, CNITV_1： 00: 20ms 01: 100ms 10: 500ms 11: 1000ms Pls note that ; 1. This User Manual is a guide for OEM /Integrators , is Limited for OEM/Integrator installations Only. 2. The OEM integrator is responsible for ensuring that the end-user has no manual instruction to remove or install module 3. Separate approval is required for all other operating configurations, including portable configurations with respect to Part 2.1093 and different antenna configurations 4. The authorized antennas per Part 15.204 (including antenna specification). Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Please notice that if the FCC identification…

Text truncated - open the document above for the full version.

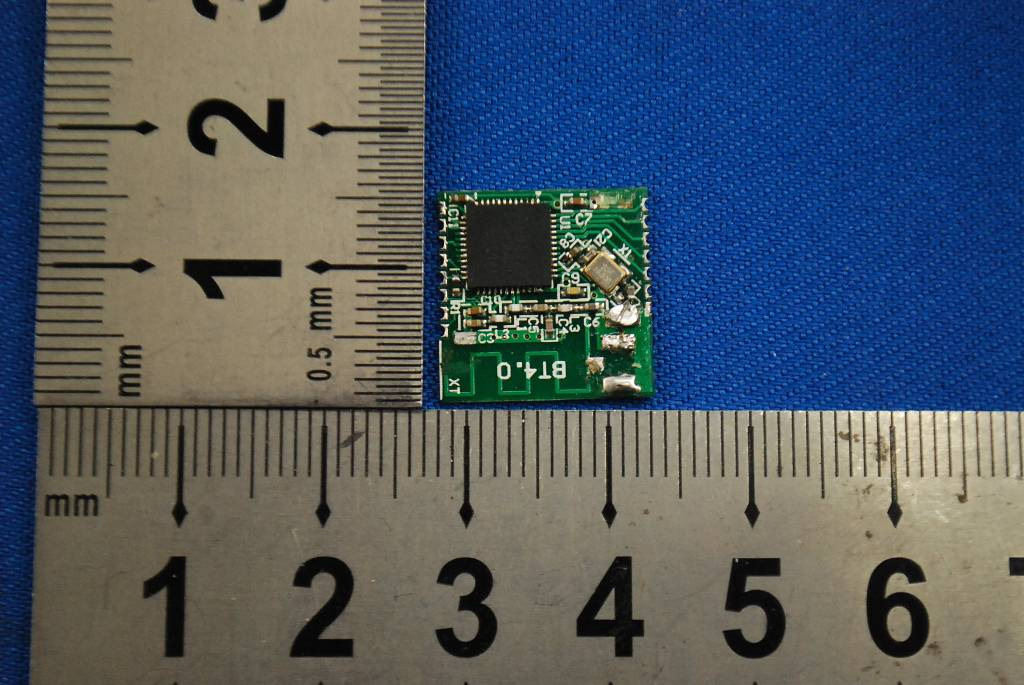

1 Photographs - EUT Constructional Details Test model No.: PTR5518 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.”

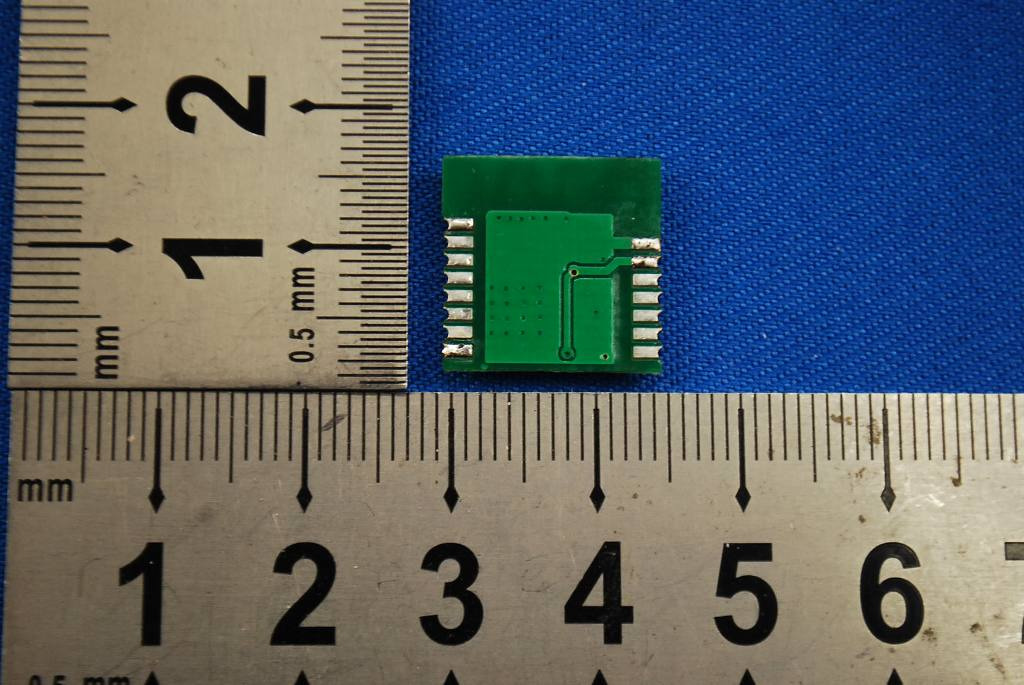

1 Photographs - EUT Constructional Details Test model No.: PTR5518 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.”

SGS-CSTC Standards Technical Services Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM130900538601 Page: 1 of 44 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1309005386RF Applicant: LANKE XUNTONG TECHNOLOGY CO.,LTD Manufacturer: LANKE XUNTONG TECHNOLOGY CO.,LTD Factory: LANKE XUNTONG TECHNOLOGY CO.,LTD Product Name: Bluetooth 4.0 module Model No.(EUT): PTR5518 FCC ID: 2AA72- PTR5518 Standards: 47 CFR Part 15, Subpart C (2012) Date of Receipt: 2013-10-09 Date of Test: 2013-10-10 to 2013-11-07 Date of Issue: 2013-11-19 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130900538601 Page: 2 of 44 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 2009 PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 (2009) PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(3) KDB558074 D01 PASS 6dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(2) KDB558074 D01 PASS Power Spectral Density 47 CFR Part 15, Subpart C Section 15.247 (e) KDB558074 D01 PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) KDB558074 D01 PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) KDB558074 D01 PASS Radiated Spurious Emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 2009 PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 2009 PASS SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130900538601 Page: 3 of 44 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup Test model No.: PTR5518 1.1 Conducted Emission 1.2 Radiated Spurious Emission
