2AA72-PTR9618PABluetooth module

COPYRIGHT ©2019ALL RIGHTS RESERVED XunTong Tech TEL: +86 755 26675941E-mail: [email protected] 1 Bluetooth 5 ready System on Module with PA Embedded Cortex™ M4F 32 bit processor The PTR9618PA ultra-low power Bluetooth Low Energy modules based on the nRF52832 from Nordic Semiconductor. The module with an ARM® Cortex™ M4F 32 bit processor, embedded 2.4GHz transceiver, and integrated antenna, provide a complete solution with no additional RF design, allowing faster time to market, while simplifying designs, reducing BOM costs, also reduce the burden of Regulatory approvals to enter the world market. Making you more quickly into the Bluetooth smart application and remove the worries. Features System on Module(SOM) base on Nordic nRF52832 Bluetooth Low Energy protocol support  Complete Bluetooth Low Energy stack/profiles solution (Bluetooth 5.0 and Higher)  ARM®Cortex™-M4F 32 bit processor, 512 kB flash memory, 64 kB RAM  31 General Purpose I/O, Configurable mapping Pins, Simple layout of external application  12-bit/200KSPS ADC  Three SPI Master/Slave (8 Mbps)  Low power comparator, Temperature sensor, Random Number Generator  Two 2-wire Master/Slave (I2C compatible)  I2S audio interface, PDM audio interface  UART (w/ CTS/RTS and DMA)  3x4-channel PWMs  20 channel CPU independent Programmable Peripheral Interconnect (PPI)  Quadrature Demodulator (QDEC)  128-bit AES HW encryption  5 x 32bit Timers, 3 x 24bit Real Timer Counters (RTC), Watchdog Timer  NFC-A tag interface for OOB pairing  Internal RC Oscillator 32.768 kHz(±250 ppm).  No external components required  Over-the-Air (OTA) firmware updates available Small size about 22.7mmx17.5mm x2mm，1.27mm pin pitch. PTR9618PA COPYRIGHT ©2019ALL RIGHTS RESERVED XunTong Tech TEL: +86 755 26675941E-mail: [email protected] 2 Typical Applications: - 2.4 GHz Bluetooth low energy systems - Sports and leisure equipment - Mobile phone accessories - Health Care and Medical - Consumer Electronics - Human Interface Devices - Building environment control / monitoring - RFID, Security Applications - Bluetooth Low Energy GateWay - iBeacons™, Eddystone™, Indoor navigation - Low-Power Sensors - Connected Appliances - Lighting Products - Fitness devices Quick Specifications: Bluetooth VersionBluetooth 5.0 and Higher SecurityAES-128 Radio Frequency2.402GHz to 2.480GHz ModulationsGFSK at 1 Mbps, 2 Mbps data rates Receiver sensitivity-103dBm (BLE mode) AntennaIPX interface Current Consumption TX only @ +20 dBm~110 mA RX only @ 1 Mbps @ 3V, DC/DC enabled~15 mA Operating conditions Power supply2.7~3.6V Operating temperature-25~+85 °C COPYRIGHT ©2019ALL RIGHTS RESERVED XunTong Tech TEL: +86 755 26675941E-mail: [email protected] 3 P in Description of Module （ Top View ） : PinNameDescriptionNote Pin1P0.23Digital I/O Pin2P0.22Digital I/O Pin3P0.21Digital I/OConfigurable as pin reset. Pin4P0.20NCReserved for control PA/LNA internal Pin5SWDCLKHW debug and flash programming I/O Pin6SWDIOHW debug and flash programming I/O COPYRIGHT ©2019ALL RIGHTS RESERVED XunTong Tech TEL: +86 755 26675941E-mail: [email protected] 4 Pin7P0.19Digital I/O Pin8P0.18Digital I/O Pin9P0.17Digital I/O Pin10P0.16Digital I/O Pin11P0.15Digital I/O Pin12P0.14Digital I/O Pin13P0.13Digital I/O Pin14P0.12Digital I/O Pin15P0.11Digital I/O Pin16P0.10Digital I/O Pin17P0.09Digital I/O Pin18P0.08Digital I/O Pin19P0.07Digital I/O Pin20P0.06Digital I/O Pin21P0.05Digital I/O Pin22P0.04Digital I/O Pin23P0.03Digital I/O Pin24P0.02Digital I/O Pin25P0.01Digital I/O/XL2 Pin26P0.00Digital I/O/XL1 Pin27P0.31Digital I/O Pin28P0.30Digital I/O Pin29P0.29Digital I/O Pin30P0.28Digital I/O Pin31P0.27Digital I/O Pin32P0.26Digital I/O Pin33P0.25Digital I/O Pin34VCCPower Supply Pin35P0.24NCReserved for control PA/LNA internal Pin36GNDGround Note 1: P0.20 and P0.24 are reserved for PA control internal，so pin4 and pin35 should be Not connect. Note 2: An internal 4.7μF bulk capacitor has been included on the module. it is good design practice to add additional bulk capacitance(e.g 10uF) as required for your application. General Purpose I/O: The general purpose I/O is organized as one port enabling access and control of the 32 available GPIO pins through one port. Each GPIO can be accessed individually with the following user configurable features: Input/output direction COPYRIGHT ©2019ALL RIGHTS RESERVED XunTong Tech TEL: +86 755 26675941E-mail: [email protected] 5 Output drive strength Internal pull-up and pull-down resistors Wake-up from high or low level triggers on all pins Trigger interrupt on all pins All pins can be used by the PPI task/event system; the maximum number of pins that can be interfaced through the PPI at the same time is limited by the number of GPIOTE channels All pins can be individually configured to carry serial interface or quadrature demodulator signals PA control: Additional logic signals are needed to control TX PA and RX LNA. On the nRF51 there was an option to use the VDD_PA pin to detect when the radio was in TX mode, but this is not an option on the nRF52, making the SoftDevice solution necessary. The S132 SoftDevice for the nRF52 has support for enable/disable switching of external Power Amplifiers (PA) and LNA using GPIO pins. On the module, P0.20 and P0.24 are reserved to control PA and LNA, so these two pins can Not be allocated to other usage. The truth table of PA/LNA control signals as bellow: PIN24 PIN20 PAstatus 10TXEN 01RXEN 00IDLE 11INVALID The following function can be used to enable PA/LNA signal with P0.20 and P0.24. Add this function to your project and call it after ble_stack_init(): static void pa_assist(uint32_t gpio_pa_pin,uint32_t gpio_lna_pin) { ret_code_t err_code; static const uint32_t gpio_toggle_ch = 0; static const uint32_t ppi_set_ch = 0; static const uint32_t ppi_clr_ch = 1; // Configure SoftDevice PA assist ble_opt_t opt; memset(&opt, 0, sizeof(ble_opt_t)); COPYRIGHT ©2019ALL RIGHTS RESERVED XunTong Tech TEL: +86 755 26675941E-mai…

Text truncated - open the document above for the full version.

Single Modular approval declaration letter We, LANKE XUNTONG TECHNOLOGY CO.,LTD apply Single modular approval for Product Name: Bluetooth module Model: PTR9618PA FCC ID: 2AA72-PTR9618PA According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must beon the module assembly; Answer:Yes;both side shielded. 2)The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer:Ye s;All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer:Ye s;A low drop out regulator is used for modular power supply regulation. 4)The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer:Ye s;Device is equipped with integral antenna. (5)The module must demonstrate compliance in a stand-alone configuration; Answer:Yes;distance between modular and all AEs are longer than 10cm,refer to setup photo. (6) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer:Ye s;The modular has a permanent fixed label, and below statement was listed in the User Manual; The host device must be labeled to display the FCC ID of the module Contains FCC ID: 2AA72-PTR9618PA (7)The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer:Ye s;The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8)The module must comply with RF exposure requirements Answer:Ye s ;Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPE Reports and Refer to modular installation manual <Signature> Name Echo Wang Title Sales Assitant Company LANKE XUNTONG TECHNOLOGY CO.,LTD

Compliance list INTEGRATION INSTRUCTIONS for 996369 D03 OEM the and 996369 D03 OEM by Sections 2.2 through 2.10. Requirement Yes N/A Comment 2.2 List of applicable FCC rules List the FCC rules that are applicable to the modular transmitter. These are the rules that specifically establish the bands of operation, the power, spurious emissions, and operating fundamental frequencies. DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart B) since that is not a condition of a module grant that is extended to a host manufacturer. See also Section 2.10 below concerning the need to notify host manufacturers that further testing is required.3 YES Refer to instruction FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 2.3 Summarize the specific operational use conditions Describe use conditions that are applicable to the modular transmitter, including for example any limits on antennas, etc. For example, if point-to-point antennas are used that require reduction in power or compensation for cable loss, then this information must be in the instructions. If the use condition limitations extend to professional users, then instructions must state that this information also extends to the host manufacturer’s instruction manual. In addition, certain information may also be needed, such as peak gain per frequency band and minimum gain, specifically for master devices in 5 GHz DFS bands. YES Refer to instruction Integral antenna with antenna gain 2.0dBi 2.4 Limited module procedures If a modular transmitter is approved as a “limited module,” then the module manufacturer is responsible for approving the host environment that the limited module is used with. The manufacturer of a limited module must describe, both in the filing and in the installation instructions, the alternative means that the limited module manufacturer uses to verify that the host meets the necessary requirements to satisfy the module limiting conditions. A limited module manufacturer has the flexibility to define its alternative method to address the conditions that limit the initial approval, such as: shielding, minimum N/A Not applicable signaling amplitude, buffered modulation/data inputs, or power supply regulation. The alternative method could include that the limited module manufacturer reviews detailed test data or host designs prior to giving the host manufacturer approval. This limited module procedure is also applicable for RF exposure evaluation when it is necessary to demonstrate compliance in a specific host. The module manufacturer must state how control of the product into which the modular transmitter will be installed will be maintained such that full compliance of the product is always ensured. For additional hosts other than the specific host originally granted with a limited module, a Class II permissive change is required on the module grant to register the additional host as a specific host also approved with the module. 2.5 Trace antenna designs For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB Publication 996369 D02 FAQ – Modules for Micro-Strip Antennas and traces. The integration information shall include for the TCB review the integration instructions for the following aspects: layout of trace design, parts list (BOM), antenna, connectors, and isolation requirements. 4 a) Information that includes permitted variances (e.g., trace boundary limits, thickness, length, width, shape(s), dielectric constant, and impedance as applicable for each type of antenna); b) Each design shall be considered a different type (e.g., antenna length in multiple(s) of frequency, the wavelength, and antenna shape (traces in phase) can affect antenna gain and must be considered); c) The parameters shall be provided in a manner permitting host manufacturers to design the printed circuit (PC) board layout; d) Appropriate parts by manufacturer and specifications; e) Test procedures for design verification; and N/A Not applicable f) Production test procedures for ensuring compliance. The module grantee shall provide a notice that any deviation(s) from the defined parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notify the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by the grantee, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. 2.6 RF exposure considerations It is essential for module grantees to clearly and explicitly state the RF exposure conditions that permit a host product manufacturer to use the module. Two types of instructions are required for RF exposure information: (1) to the host product manufacturer, to define the application conditions (mobile, portable – xx cm from a person’s body); and (2) additional text needed for the host product manufacturer to provide to end users in their end-product manuals. If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). YES Refer to instruction The modular can be installed or integrated in mobile or fix devices only. This modular cannot be installed in any portable device. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body. 2.7 Antennas A list of antennas included in the application for certification must be provided in the instructions. For modular transmitters approved as limited modules, all applicable professional installer instructions …

Text truncated - open the document above for the full version.

Jun 05 ， 2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_2AA72-PTR9618PA__ Product Name:_PTR9618PA__ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> NameEcho Wang Title SalesAssitant CompanyLANKE XUNTONG TECHNOLOGY CO.,LTD

Jun 05,2020 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 AuthoritytoActas Agent On our behalf, I appoint QianhaiBlueAsiaofTechnicalSerivices(shenzhen)Limited,No448, BulongRoad,BantianStreet,LonggangDistric (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,I acknowledgethat allresponsibilityforcomplying withthetermsandconditionsforcertification, stillresideswith LANKE XUNTONG TECHNOLOGY CO.,LTD Room 7A-B, Block B of Wanlian Building,Net Valley, No.12 of Yanshan Road,Nanshan,Shenzhen, China (ApplicantName and address) <Signature> NameEcho Wang Title Sales Assitant CompanyLANKE XUNTONG TECHNOLOGY CO.,LTD

Model No.: PTR9618PA

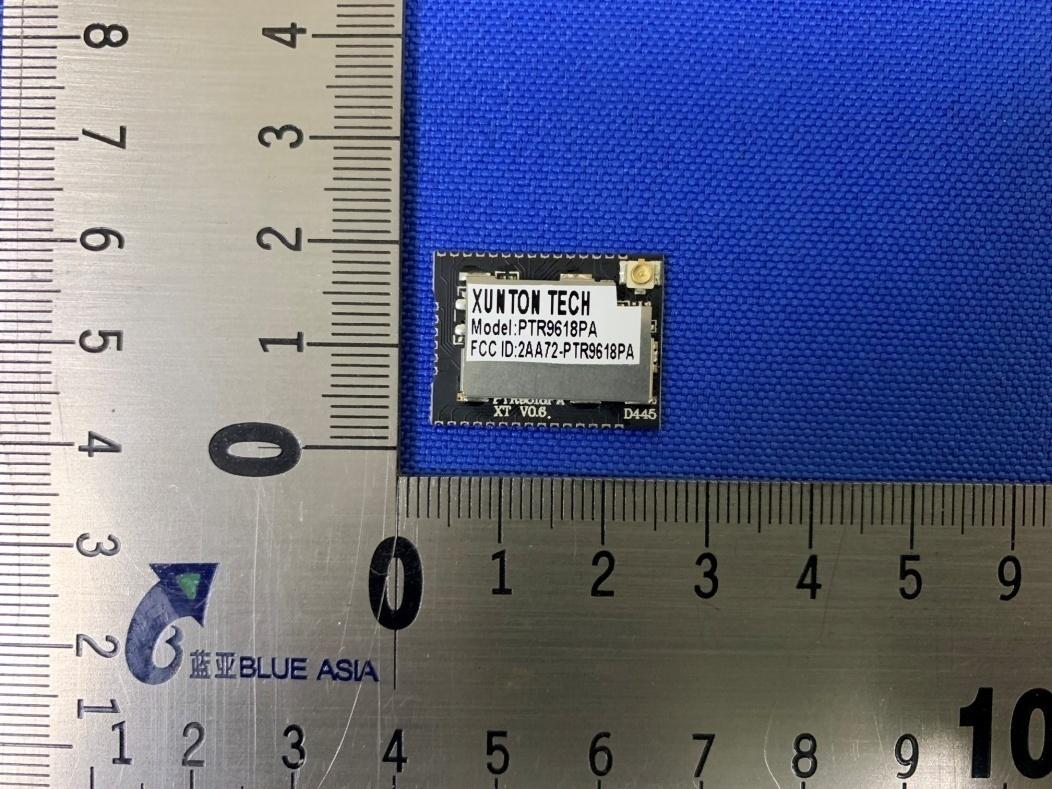

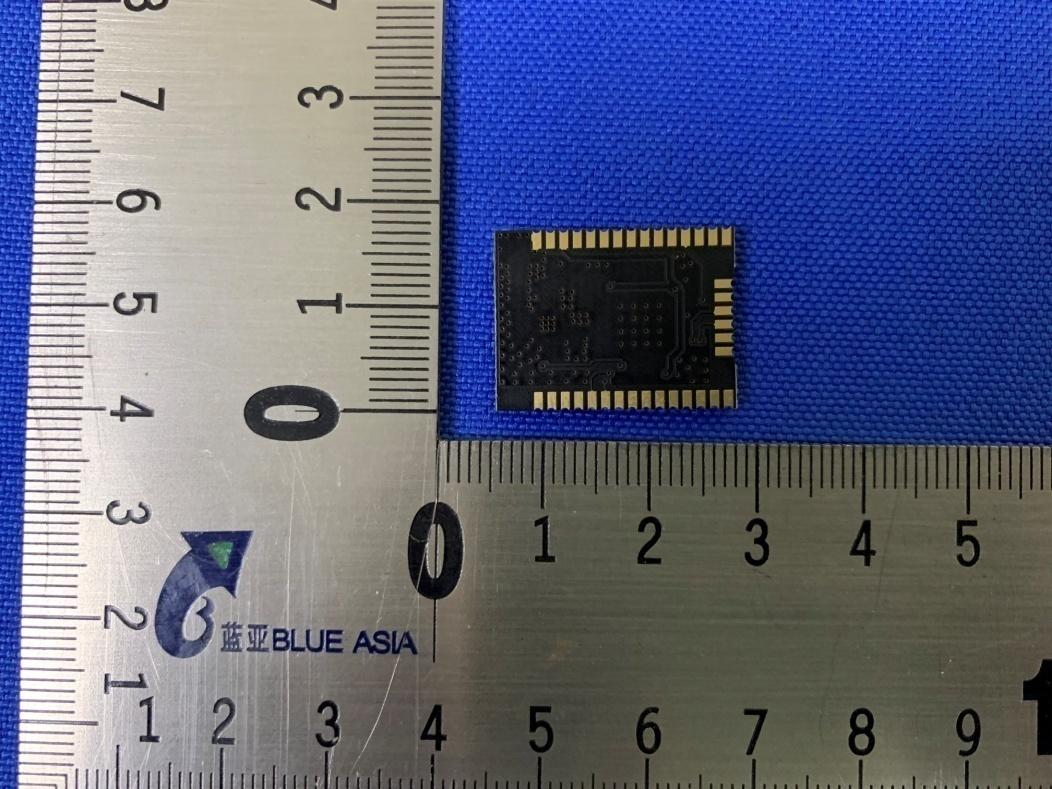

XUNTON TECH Model:PTR9618PA FCC ID:2AA72-PTR9618PA PTR9618PA 标签 标签文字： XUNTONG TECH Model:PTR9618PA FCC ID:2AA72-PTR9618PA 标签尺寸： 长17mm x 宽7mm

Page 1 of 2 Product Name: Bluetooth module Model No.：PTR9618PA FCC ID ：2AA72-PTR9618PA RF Exposure Evaluation 1.1 RF Exposure Compliance Requirement 1.1.1 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.1.2 Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3 EUT RF Exposure Evaluation Antenna Gain: 2dBi Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.585 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result Middle 2442 11.39 13.77 0.00433 1.0 PASS Note: Refer to report No. BLA-EMC-202005-A48 for EUT test Max Conducted Peak Output Power value. The distance (4th column) calculated from the Fries transmission formula is far greater than 20 cm separation Requirement Page 2 of 2

Page 1 of55 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] TEST REPORT Product Name : Bluetooth module Brand Mark : XUNTONG TECH Model No. : PTR9618PA FCC ID : 2AA72-PTR9618PA Report Number : BLA-EMC-202005-A5001 Date of Sample Receipt : 2020/5/21 Date of Test : 2020/5/26 to 2020/6/2 Date of Issue : 2020/6/2 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: LANKE XUNTONG TECHNOLOGY CO.,LTD Room7A-B,Block B of Wanlian Building,Net Valley,No. 12 of Yanshan Road, Nanshan district,Shenzhen,China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-28682673 FAX: +86-755-28682673 Compiled by: Review by: Approved by: Date: 2020/6/2 Report No.: BLA-EMC-202005-A5001 Page 2 of55 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] REPORT REVISE RECORD Version No. Date Description 00 2020/6/2 Original Report No.: BLA-EMC-202005-A5001 Page 3 of55 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 1 ANTENNA REQUIREMENT ..................................................................................................................... 13 1.1 CONCLUSION ............................................................................................................................................................ 13 2 RADIATED SPURIOUS EMISSIONS ....................................................................................................... 14 2.1 LIMITS ................................................................................................................................................................... 14 2.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 15 2.3 PROCEDURE .......................................................................................................................................................... 15 2.4 TEST DATA .............................................................................................................................................................. 17 3 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS................................................. 22 3.1 LIMITS ................................................................................................................................................................... 22 3.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 23 3.3 PROCEDURE .......................................................................................................................................................... 23 3.4 TEST DATA .............................................................................................................................................................. 25 4 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 26 4.1 LIMITS ................................................................................................................................................................... 26 4.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 26 4.3 TEST DATA .............................................................................................................................................................. 27 5 CONDUCTED BAND EDGES MEASUREMENT ..................................................................................... 28 5.1 LIMITS ................................................................................................................................................................... 28 5.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 28 5.3 TEST DATA .............…
