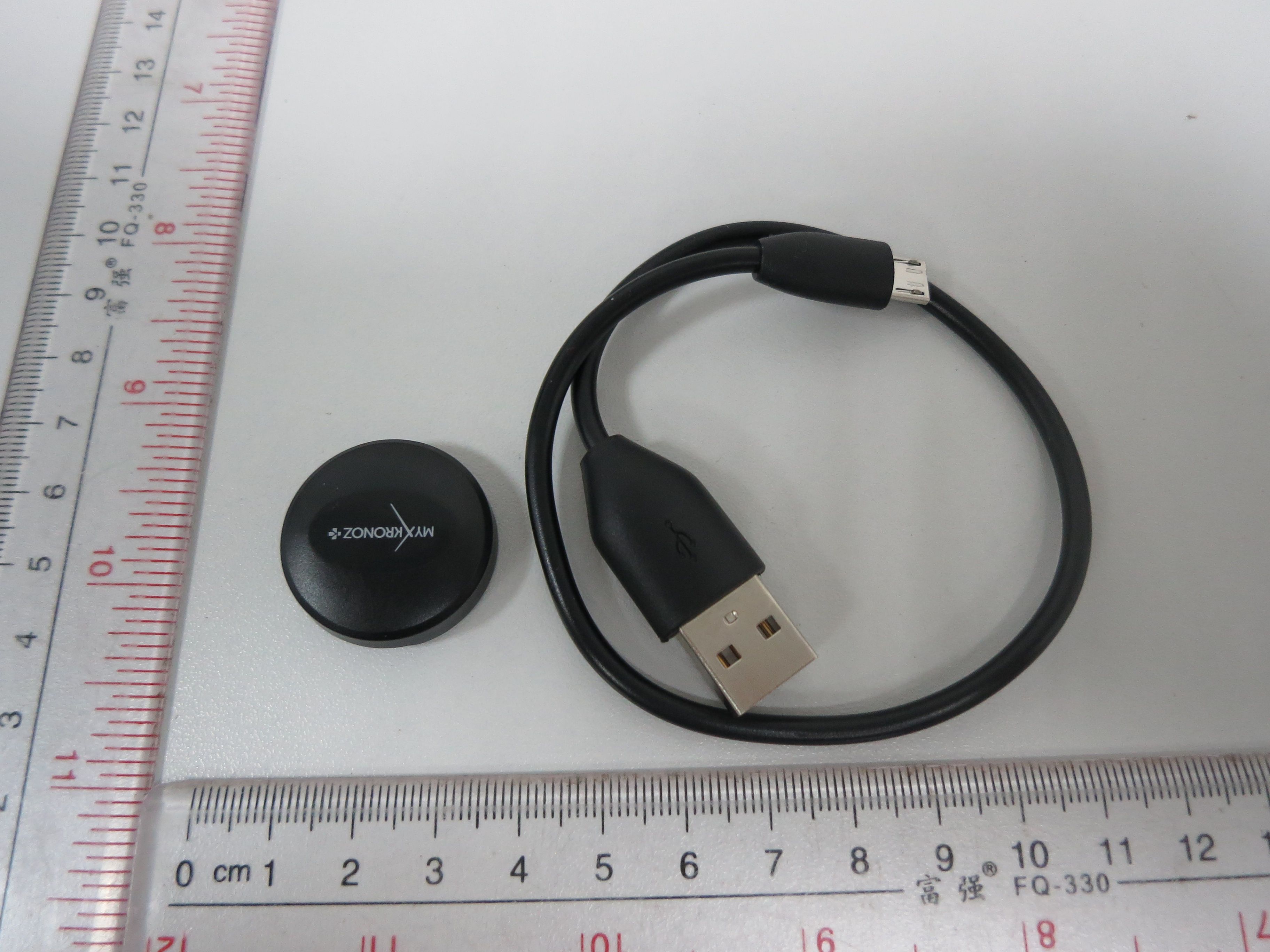

ATestLabTechnoCorp. ExternalPhotos ATestLabTechnoCorp. ATestLabTechnoCorp. ATestLabTechnoCorp.

ATestLabTechnoCorp. InternalPhotos ATestLabTechnoCorp. ATestLabTechnoCorp.

A Test Lab Techno Corp. Report Number：1511FR22 Page 1 of 74 FCC 47 CFR PART 15 SUBPART C Product Type ： Smart Watch Applicant ： Kronoz LLC Address ： Avenue Louis Casai 18 1209 Geneva Switzerland Trade Name ： MyKronoz Model Number ： ZeSplash 2 Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2013 ANSI C63.10:2013 Receive Date ： 28 Oct, 2015 Test Period ： 08 Nov, 2015 to 30 Nov, 2015 Issue Date ： 06 Dec, 2015 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 A Test Lab Techno Corp. Report Number：1511FR22 Page 2 of 74 Revision History Rev. Issue Date Revisions Revised By 00 06 Dec, 2015 Initial Issue A Test Lab Techno Corp. Report Number：1511FR22 Page 3 of 74 C e r t if i c a t i o n o f C o m p l i a n c e Issued Date: 2015/12/06 Product Type : Smart Watch Applicant : Kronoz LLC Address : Avenue Louis Casai 18 1209 Geneva Switzerland Trade Name : MyKronoz Model Number : ZeSplash 2 FCC ID : 2AA7D-ZESH2 EUT Rated Voltage : DC 3.8V Test Voltage : DC 3.8V Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2013 ANSI C63.10:2013 Test Result : Complied Test Laboratory : Site 1 : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm S Site 2: Shenzhen Academy of Metrology and Quality Inspection No.4 TongFa Road, Xili Town Nanshan District, Shenzhen, China The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2013 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247 .The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Fly Lu) (Testing Engineer) (Eric Ou Yang) A Test Lab Techno Corp. Report Number：1511FR22 Page 4 of 74 TABLE OF CONTENTS 1 General Information ....................................................................................................... 6 1.1. Summary of Test Result ......................................................................................................... 6 1.2. Measurement Uncertainty ...................................................................................................... 6 2 EUT Description ............................................................................................................. 7 3 Test Methodology .......................................................................................................... 8 3.1. Mode of Operation ................................................................................................................. 8 3.2. EUT Exercise Software .......................................................................................................... 8 3.3. Configuration of Test System Details .................................................................................... 9 3.4. Test Site Environment .......................................................................................................... 10 4 Maximum Conducted Output Power Measurement .................................................. 11 4.1. Limit ...................................................................................................................................... 11 4.2. Test Setup .............................................................................................................................. 11 4.3. Test Instruments .................................................................................................................... 11 4.4. Test Procedure ....................................................................................................................... 11 4.5. Test Result ............................................................................................................................ 12 5 Conducted Emission Measurement ........................................................................... 14 5.1. Limit ..................................................................................................................................... 14 5.2. Test Instruments ................................................................................................................... 14 5.3. Test Setup ............................................................................................................................. 14 5.4. Test Procedure ...................................................................................................................... 15 5.5. Test Result ............................................................................................................................ 16 6 Radiated Interference Measurement .......................................................................... 18 6.1. Limit ..................................................................................................................................... 18 6.2. Test Instruments ................................................................................................................... 18 6.3. Setup..................................................................................................................................... 19 6.4. Test Procedure ...................................................................................................................... 20 6.5. Test Result ............................................................................................................................ 22 7 20dB RF Bandwidth and 99 % Occupied Bandwidth Measurement ....…

Text truncated - open the document above for the full version.

A Test Lab Techno Corp. Report Number：1511FR22 Page 51 of 74 2441 A Test Lab Techno Corp. Report Number：1511FR22 Page 52 of 74 A Test Lab Techno Corp. Report Number：1511FR22 Page 53 of 74 2480 A Test Lab Techno Corp. Report Number：1511FR22 Page 54 of 74 A Test Lab Techno Corp. Report Number：1511FR22 Page 55 of 74 Mode 2/2402 Mode 2/2480 Mode 5/Hopping-2402 A Test Lab Techno Corp. Report Number：1511FR22 Page 56 of 74 Mode 5/Hopping-2480 Mode 4 2402 A Test Lab Techno Corp. Report Number：1511FR22 Page 57 of 74 A Test Lab Techno Corp. Report Number：1511FR22 Page 58 of 74 2441 A Test Lab Techno Corp. Report Number：1511FR22 Page 59 of 74 A Test Lab Techno Corp. Report Number：1511FR22 Page 60 of 74 2480 A Test Lab Techno Corp. Report Number：1511FR22 Page 61 of 74 A Test Lab Techno Corp. Report Number：1511FR22 Page 62 of 74 8DPSK Mode (Bandedge) Mode 4/2402 Mode 4/2480 A Test Lab Techno Corp. Report Number：1511FR22 Page 63 of 74 Mode 7/Hopping-2402 Mode 7/Hopping-2480 A Test Lab Techno Corp. Report Number：1511FR22 Page 64 of 74 12 Band Edges Measurement 12.1. Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power 12.2. Test Setup 12.3. Test Instruments 3 Meter Chamber Model No. Equipment Manufacturer Serial Number Cal. Date Remark 9X6X6 3m Semi-anechoic chamber Albatross Projects SB3450/01 Oct.12, 2015 1Year HF907 Horn Antenna Rohde & Schwarz 100309 May.15,2015 1 Year SCU26 Pre Amplifier Rohde & Schwarz 10020 May.15.2015 1Year SCU40 Pre Amplifier Rohde & Schwarz 10015 May.15.2015 1Year ESU40 Test Receiver Rohde & Schwarz 100263 May.15.2015 1Year --- RF cable WOKEN S02-1404-09-065 May.11.2015 1 year --- RF cable WOKEN S02-1404-09-047 May.11.2015 1 year --- RF cable WOKEN S02-1404-09-052 May.11.2015 1 year Remark: (1) Calibration period 1 year. (2) Calibration period 2 years. NOTE: N.C.R. = No Calibration Request. All the RF cables apply to 9 KHz to 40GHz. A Test Lab Techno Corp. Report Number：1511FR22 Page 65 of 74 12.4. Test Procedure Testing must be done according to this procedure. This is the only method recognized by the FCC. The emissions on the harmonics frequencies, the limits, and the margin of compliance are presented. These tests were made when the transmitter was in full radiated power. The additional test was performed to show compliance with the requirement at the band-edge frequency 2483.5 MHz and up to 2500 MHz and at 2390.0 MHz. The transmitter was configured with the worst case antenna and setup to transmit at the highest channel. Then the field strength was measured at 2483.5 MHz. The transmitter was then configured with the worst case antenna and setup to transmit at the lowest channel. Then the field strength was measured at 2390.0 MHz. For measurements the resolution bandwidth is set to 1 MHz, and then the video bandwidth is set to 1 MHz for peak measurements and 10 Hz for average measurements. Note: We tests were performed in different modulation to find the worst case. And show the worst-case here. A Test Lab Techno Corp. Report Number：1511FR22 Page 66 of 74 12.5. Test Result Note：We have test both un-hopping and hopping mode for the radiated bandedge test, and the un-hopping mode is worse case. Standard: FCC Part 15C Test Distance: 3m Test item: Radiated Emission Power: DC 3.8V Model Number: ZeSplash 2 Temp.(°C)/Hum.(%RH): 26(°C)/60%RH Mode: Mode 2 Date: 2015/11/24 Frequency: 2402 MHz Ant.Polar.: Horizontal No. Frequency Reading Correct Factor Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 2389.648 45.32 0.35 45.67 74.00 28.33 peak A Test Lab Techno Corp. Report Number：1511FR22 Page 67 of 74 Standard: FCC Part 15C Test Distance: 3m Test item: Radiated Emission Power: DC 3.8V Model Number: ZeSplash 2 Temp.(°C)/Hum.(%RH): 26(°C)/60%RH Mode: Mode 2 Date: 2015/11/24 Frequency: 2402 MHz Ant.Polar.: Vertical Level in dBμV/ μ No. Frequency Reading Correct Factor Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 2389.933 44.89 0.35 45.24 74.00 28.76 peak A Test Lab Techno Corp. Report Number：1511FR22 Page 68 of 74 Standard: FCC Part 15C Test Distance: 3m Test item: Radiated Emission Power: DC 3.8V Model Number: ZeSplash 2 Temp.(°C)/Hum.(%RH): 26(°C)/60%RH Mode: Mode 2 Date: 2015/11/24 Frequency: 2480 MHz Ant.Polar.: Horizontal Level in dBμV/ μ No. Frequency Reading Correct Factor Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 2483.540 51.44 0.46 51.90 74.00 22.10 peak A Test Lab Techno Corp. Report Number：1511FR22 Page 69 of 74 Standard: FCC Part 15C Test Distance: 3m Test item: Radiated Emission Power: DC 3.8V Model Number: ZeSplash 2 Temp.(°C)/Hum.(%RH): 26(°C)/60%RH Mode: Mode 2 Date: 2015/11/24 Frequency: 2480 MHz Ant.Polar.: Vertical Level in dBμV/ μ No. Frequency Reading Correct Factor Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 2483.535 45.07 0.46 45.53 74.00 28.47 peak A Test Lab Techno Corp. Report Number：1511FR22 Page 70 of 74 Standard: FCC Part 15C Test Distance: 3m Test item: Radiated Emission Power: DC 3.8V Model Number: ZeSplash 2 Temp.(°C)/Hum.(%RH): 26(°C)/60%RH Mode: Mode 4 Date: 2015/11/24 Frequency: 2402 MHz Ant.Polar.: Horizontal Level in dBμV/ μ No. Frequency Reading Correct Factor Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 2390.114 44.45 0.35 44.80 74.00 29.20 peak A Test Lab Techno Corp. Report Number：1511FR22 Page 71 of 74 Standard: FCC Part 15C Test Distance: 3m Test item: Radiated Emission Power: DC 3.8V Model Number: ZeSplash 2 Temp.(°C)/Hum.(%RH): 26(°C)/60%RH Mode: Mode 4 Date: 2015/11/24 Frequency: 2402 MHz Ant.Polar.: Vertical Level in dBμV/ μ No. Frequency Reading Correct Factor Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dB…
