2AA7D-ZNEOPLSmart Watch

- GET STARTED - ZeNeo+ WARNING I Connecting the charging cable improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty. Unplug the cable after ZeNeo+ is fully charged. I ZeNeo+ unit and charging dock contain strong magnets that may interfere with pacemakers, credit cards, watches and other magnet-sensitive objects. If you use a pacemaker or any other electronic medical device, please consult your physician before wearing or handling ZeNeo+. I This product is not a medical device and should not be used to diagnose or treat any medical condition. I This device is not waterproof so keep it away from all sources of heat or humidity. Do not use it near sink or other wet areas. Do not place it in water. ZeNeo+ is only splash resistant. It is protected against splashes or rain. ABOUT THIS MANUAL The features of ZeNeo+ and the contents of the user manual are subject to change. To get the latest instructions on how to use this product, please refer to the online user manual available on mykronoz.com ATTENTION I Un mauvais branchement du câble de chargement peut causer de graves dommages à l’appareil. Les dommages causés par une mauvaise utilisation ne sont pas couverts par la garantie. Débranchez le câble après une charge complète de ZeNeo+. I ZeNeo+ et son socle de charge contiennent des aimants puissants qui peuvent interférer avec les stimu lateurs cardiaques, cartes de crédit, les montres et autres objets magnétiques sensibles. Si vous utilisez un stimulateur cardiaque ou tout autre appareil médical électronique, veuillez consulter votre médecin avant de porter ou de manipuler ZeNeo+. I Ce produit n’est pas un dispositif médical et ne doit pas être utilisé pour diagnostiquer ou traiter une condition médicale. I Cet appareil n’est pas étanche, tenez-le donc éloigné de toute source de chaleur ou d’humidité. Ne l'utilisez pas près d'un évier ou d'autres zones humides. ZeNeo+ ne résiste qu'aux éclaboussures. Il est protégé contre les éclaboussures ou la pluie. À PROPOS DE CES INSTRUCTIONS Les fonctionnalités de ZeNeo+ et le contenu du manuel de l’utilisateur sont susceptibles d’être modifiés. Pour obtenir les dernières instructions sur l’utilisation de ce produit, veuillez vous référer au manuel disponible en ligne sur mykronoz.com ADVERTENCIA I Si el cable de carga se conecta de forma incorrecta, el dispositivo podría resultar gravemente dañado. La garantía no cubre los daños ocasionados por un uso incorrecto. Desconecte el cable cuando ZeNeo+ se haya cargado completamente. I La base de carga y la unidad ZeNeo+ contienen potentes imanes que pueden interferir con marcapa- sos, tarjetas de crédito, relojes y demás objetos sensibles a los imanes. Si utiliza un marcapasos o cual- quier otro dispositivo médico electrónico, consulte con su médico antes de llevar o de manipular ZeNeo+. I Este producto no es un dispositivo médico y no debe utilizarse para diagnosticar ni tratar ningún estado de salud. I Este dispositivo no es impermeable, así que manténgalo alejado de cualquier fuente de calor o humedad. No lo use cerca del fregadero u otras áreas húmedas. No lo coloque en el agua.ZeNeo+ sólo es resistente a las salpicaduras. Está protegido contra las salpicaduras o la lluvia. ACERCA DE ESTAS INSTRUCCIONES Las características de ZeNeo+ y el contenido del manual de usuario pueden ser modifi- cados. Para obtener las últimas instrucciones sobre cómo usar este producto, consulte el manual del usuario en línea disponible en mykronoz.com AVVERTENZA I Un errato collegamento del cavo di carica può causare gravi danni al dispositivo. La garanzia non copre i danni derivanti da utilizzo improprio. Scollegare il cavo quando la carica di ZeNeo+ è com- pleta. I ZeNeo+ e la culla di carica contengono potenti calamite che possono interferire con pacemaker, carte di credito, orologi e altri oggetti sensibili. Se si utilizza un pacemaker o qualsiasi altro disposi- tivo medico elettronico, si prega di consultare un medico prima di indossare o manipolare ZeNeo+. I Questo prodotto non è un dispositivo medico e non deve essere utilizzato per diagnosticare o trattare condizioni patologiche. I Questo dispositivo non è impermeabile, quindi si prega di tenere lontano da tutte fonti di calore o di umidità. Da non usare vicino a lavandini o ad altre aree bagnate. Da non immergere sotto acqua. ZeNeo+ è resistente solo agli spruzzi. È protetto contro gli spruzzi e la pioggia. INFORMAZIONI SUL ISTRUZIONI Le funzionalità di ZeNeo+ e i contenuti del manuale di istruzioni sono soggetti a modifiche. Per ottenere le istruzioni più aggiornate sull’uso del prodotto, consultare il manuale online disponibile su mykronoz.com ACHTUNG I Falls das Ladekabel nicht richtig angeschlossen wird, kann das Gerät schwer beschädigt werden. Schä- den, die durch unsachgemäßen Gebrauch verursacht werden, werden nicht durch die Garantie abge- deckt. Ziehen Sie das Kabel heraus, wenn ZeNeo+ komplett aufgeladen ist. I Das ZeNeo+-Gehäuse und die Ladestation enthalten starke Magnete, die Herzschrittmacher, Kreditkar- ten, Uhren und sonstige magnetempfindliche Gegenstände stören können. Falls Sie einen Herzschritt- macher oder andere elektromedizinische Geräte benutzen, konsultieren Sie bitte Ihren Arzt, bevor Sie ZeNeo+ tragen oder damit hantieren. I Dieses Produkt ist kein medizinisches Gerät und darf nicht zur Diagnose oder Behandlung von Krankheiten benutzt werden. I Dieses Gerät ist nicht wasserdicht, halten Sie es daher von allen Wärme- und Feuchtigkeitsquellen fern. Verwenden Sie es nicht in der Nähe von Waschbecken oder anderen Nassbereichen. Legen Sie es nicht in Wasser. ZeNeo+ ist nur spritzwassergeschützt. Dieses Gerät ist spritz- und regensicher. ÜBER DIESE ANLEITUNGEN Die Merkmale von ZeNeo+ und der Inhalt des Benutzerhandbuchs können abgeändert werden. Schauen Sie bitte, die aktuellsten Anweisungen, in Bezug auf die Nutzung dieses Produkts, im Online-Benutzerhandbuch nach, unter: mykronoz.com WAAR…

Text truncated - open the document above for the full version.

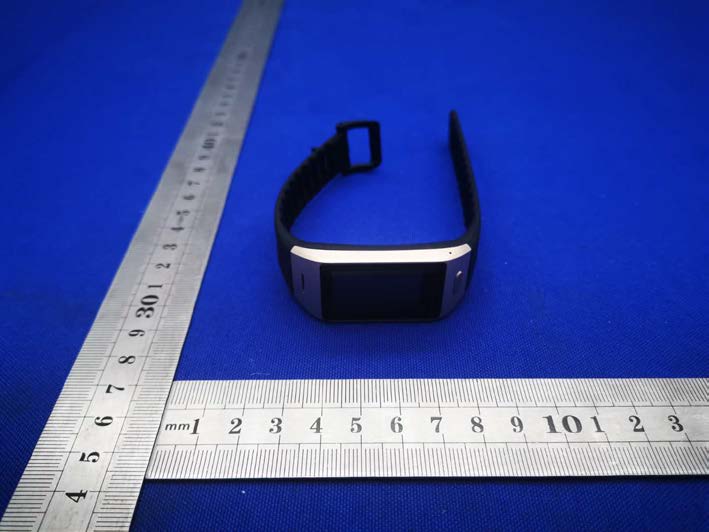

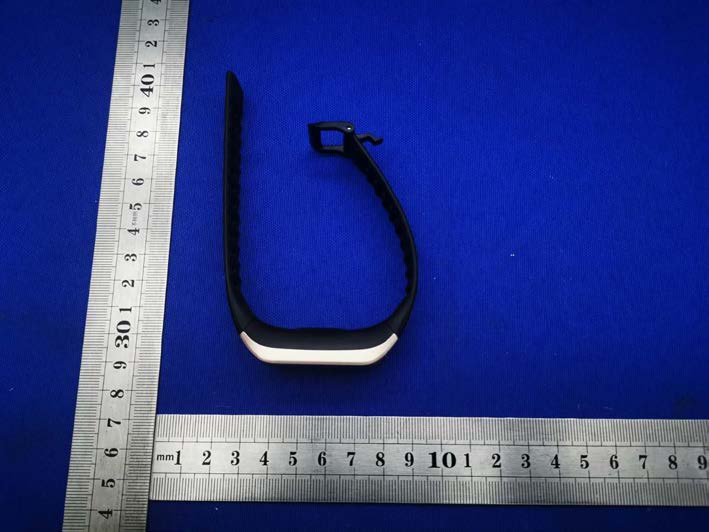

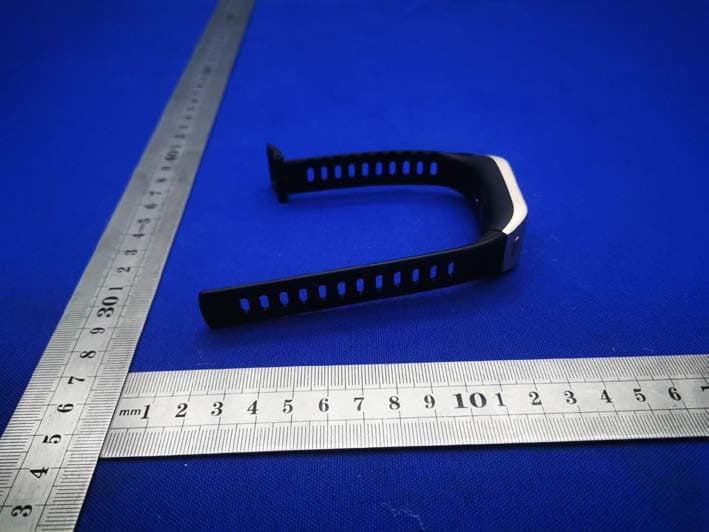

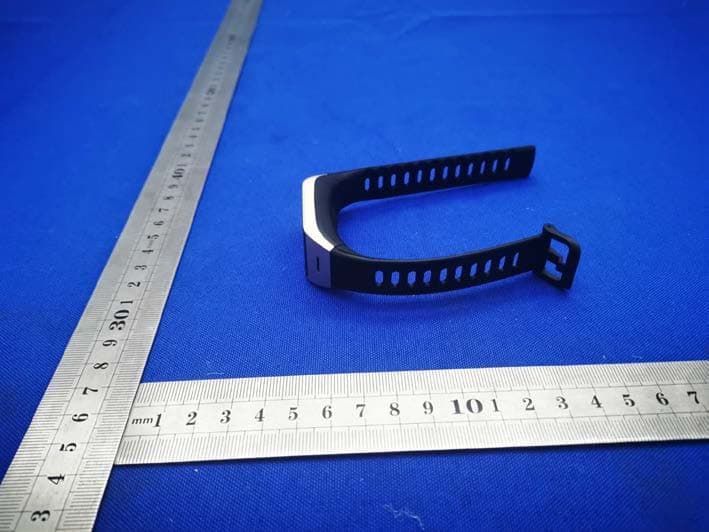

External Photos

Model: ZeNeo+ FCC ID: 2AA7D-ZNEOPL Label Location

Internal Photos ANT

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Worse case of BT is as below: [2441 MHz 3.395dBm（ 2.185mW）output power] (2.185mW /5mm) ·[√2.441(GHz)]= 0.683 <3.0 for 1-g SAR Worse case of BLE is as below: [2402 MHz 2.384dBm（1.73mW）output power] (1.73mW /5mm) ·[√2.402(GHz)]= 0.536 <3.0 for 1-g SAR Then SAR evaluation is not required

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB201031019RFX Report Tel: 4008-707-283Web: http://www.ctb-lab.com Page 1 of 36 TEST REPORT Compiled by: Reviewed by: Approved by: Arron Liu Bin Mei Rita Xiao / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Smart Watch FCC ID: 2AA7D-ZNEOPL Trade Mark: Model Number: ZeNeo+ Prepared For: KRONOZ Address: ROUTE DE VALAVRAN 96 GENTHOD, 1294 Switzerland Manufacturer: KRONOZ Address: ROUTE DE VALAVRAN 96 GENTHOD, 1294 Switzerland Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong China Sample Received Date: Oct. 26, 2020 Sample tested Date: Oct. 26, 2020 to Oct. 30, 2020 Issue Date: Oct. 30, 2020 Report No.: CTB201031019RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB201031019RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.com Page 2 of 36 TABLE OF CONTENT Test Report Declaration Page 1. VERSION............................................................ 4 2. TEST SUMMARY ..................................................... 5 3. MEASUREMENT UNCERTAINTY ....................................... 6 4. PRODUCT INFORMATION AND TEST SETUP ........................... 7 4.1 Product Information ..................................................... 7 4.2 Test Setup Configuration ................................................ 7 4.3 Support Equipment ..................................................... 7 4.4 Channel List ........................................................... 8 4.5 Test Mode ............................................................. 8 4.6 Test Environment ....................................................... 8 5. TEST FACILITY AND TEST INSTRUMENT USED ......................... 9 5.1 Test Facility ............................................................ 9 5.2 Test Instrument Used ................................................... 9 6. AC POWER LINE CONDUCTED EMISSION .............................. 11 6.1 Block Diagram Of Test Setup............................................ 11 6.2 Limit ................................................................. 11 6.3 Test procedure ........................................................ 11 6.4 Test Result ........................................................... 12 7. RADIATED SPURIOUS EMISSION ..................................... 15 7.1 Block Diagram Of Test Setup............................................ 15 7.2 Limit ................................................................. 15 7.3 Test procedure ........................................................ 16 7.4 Test Result ........................................................... 17 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............ 24 8.1 Block Diagram Of Test Setup............................................ 24 8.2 Limit ................................................................. 24 8.3 Test procedure ........................................................ 24 8.4 Test Result ........................................................... 25 9. COUDUCTED PEAK OUTPUT POWER ................................. 27 9.1 Block Diagram Of Test Setup............................................ 27 9.2 Limit ................................................................. 27 9.3 Test procedure ........................................................ 27 9.4 Test Result ........................................................... 28 10. 6DB OCCUPIED BANDWIDTH ........................................ 30 10.1 Block Diagram Of Test Setup .......................................... 30 10.2 Limit ................................................................ 30 10.3 Test procedure ....................................................... 30 10.4 Test Result .......................................................... 30 11. POWER SPECTRAL DENSITY ........................................ 32 11.1 Block Diagram Of Test Setup .......................................... 32 11.2 Limit ................................................................ 32 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB201031019RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.com Page 3 of 36 11.3 Test procedure ....................................................... 32 11.4 Test Result .......................................................... 32 12. ANTENNA REQUIREMENT ........................................... 34 13. EUT TEST SETUP PHOTOGRAPHS ................................... 35 (Note: N/A means not applicable) Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB201031019RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.com Page 4 of 36 1. VERSION Report N o. Issue Date Description Approved CTB201031019RFX Oct. 30, 2020 Original Valid Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB201031019RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.com Page 5 of 36 2. TEST SUMMARY The Product has been tested according to the following specifications: Test Item Test Requirement Test method Result AC Power Line Conducted Emission 47 CFR Part 15 Subpart C Section 15.207 ANSI C63.10-2013 PASS Radiated Spurious emissions 47 CFR Part 15 Subpart C Section 15.205/15.209 ANSI C63.10-2013 PASS Band edge and RF Conducted Spurious Emissions 47 CFR Part 15 Subpart C Section 15.247(d)/15.205(a) ANSI C63.10-2013 PASS Conducted Peak Output Power 47 CFR Part 15 Subpart C Section 15.247 (b)(3) ANSI C63.10-2013 PASS Bandwidth 47 CFR Part 15 Subpart C Section 15.247 (a)(2…

Text truncated - open the document above for the full version.

Radiated Emission Below 1G Above 1G CE
