Version 2.0 TARVOS PRO User Guide Tarvos Pro User Guide - Version 2.0 1 Attention The Tarvos Pro RFID Integrated reader described in this User Guide is a commercial product and must be installed by professional installer. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a minimum separation distance of at least 1 meter from any person and must not be co-located with any other transmitter. Site License Disclaimer Users of the Tarvos Pro RFID Integrated reader acknowledge that a site license is required when the device is configured for FCC Part 90 regulations. It is the user’s responsibility to file for the site license and submit the appropriate fees and payments to the regulating authority. United States filings require submission of FCC Form 601 with Schedule D and H. Canadian filings require submission of Industry Canada forms IC2365BB and IC2430BB. Licence d'Etat-client Avertissement Client (utilisateur final) reconnaît que le site d'une licence est requise pour chaque lecteur emplacement du système. Il incombe au client de déposer pour la licence d'exploitation et soumettre le paiement du dépôt approprié. Unis dépôts États exigent l'achèvement et la soumission du formulaire FCC 601 à l'annexe D et H. dépôts canadiennes exigent l'achèvement et la soumission de Industrie Canada Formulaires IC2365BB et IC2430BB. Changes or Modifications Changes or modifications to the RFID reader not expressly approved by STAR Systems International Ltd. could void the user’s authority to operate the Tarvos Pro RFID Integrated reader. WARNING This equipment complies with FCC Part 90 and Industry Canada.RSS-137 rules. This device complies with FCC Part 15 and Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme à FCC Partie15 de Industrie Canada RSS standard exempts de licence (s). Son tilisation est soumise à Les deux conditions suivantes: (1) cet appareil ne peut pas provoquer ’interférences et (2) cet appareil doit accepter Toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif. WARNING: Class A Devices This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense. Tarvos Pro User Guide - Version 2.0 2 Antennas This radio transmitter (Tarvos Pro RFID Integrated reader IC ID 20068-TVSPRO31000) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Model: Gain Horizontal Beamwidth 1) Avior 15 dBi 30° 2) Avior-36° 14 dBi 36° 3) Avalon 13 dBi 36° 4) Cheetah 12 dBi 42° 5) Kuma 10 dBi 55° Professional Installation The Tarvos Pro RFID Integrated Reader has integrated a 13 dBi gain, 36° beamwidth antenna and one external antenna port. Professional installation or authorized service personnel is required to configure radio parameters of the transmitter using the software for adjusting total EIRP (30W) power at local installation to ensure compliance with FCC Rules. RF Cable Option For the applications in Parking and Secure Access control, cable length is limited. Cable with attenuation of maximum 4dB will typically be used. For the applications of Electronic Toll Collection (ETC), cable length would be site orientated that could lead to extended cable length. Cable with attenuation of maximum 12dB will typically be used. Please read this before connecting the TARVOS PRO reader Download the Electrical Precaution and Wiring Connection Guide: Tarvos Pro User Guide - Version 2.0 3 Contents Attention ..................................................................................................................................... 1 User Guide ................................................................................................................................... 5 1. Introduction ...................................................................................................................... 6 1.1 Purpose and Scope ............................................................................................................................... 6 1.2 Reference Documents .......................................................................................................................... 6 1.3 Document Conventions ........................................................................................................................ 6 2. Tarvos Pro External Interfaces ........................................................................................... 7 2.1 Reader Hardware Overview .................................................................................................................. 7 2.2 Reader Physical Interface ..................................................................................................................... 8 2.3 Reader Software Interface .................................................................................................................. 12 3. High Level Reader Connectivity ..............…

Text truncated - open the document above for the full version.

Electrical Precaution and Wiring Connection Guide PLEASE READ THIS BEFORE CONNECTING THE TARVOS PRO READER Copyright©2024 STAR Systems International Cable Connection Diagram P. 1 Electrical Installation and Grounding Recommendations We strongly advise using in-line surge protectors between the PoE power supply and the readers for installations using an Ethernet cable longer than 8m in length (therefore minimizing the risk of a cable discharge event), or installation expose to a risk of lightning strikes and electrical surges. Surge protectors are essential for safeguarding your equipment by intercepting and diverting potentially harmful voltage surges from reaching your devices. This protection is vital for preventing costly damage and downtime caused by electrical disturbances. You should ensure that the grounding wires of the surge protectors are connected properly (they should be connected to the same grounding point as to where the reader’s enclosure grounding wire is connected). Regularly check if the surge protectors are still alive. If you find your reader is not powered up properly, you should check the surge protector. Try to power-cycle the surge protector (unplug the upstream and re-plug it again). 1. P. 2 Shielded foil screened twisted pair (Sc FTP)network cable should be used between the PoE power supply equipment and the in-line surge protector. Foil screened TP can prevent the network cable running outdoor from picking up any surges, and also can significantly reduce the signal noise transmitted within the network cable. It should also be grounded at the connectors end to prevent any surges or leaks picked up by the cable from transferring into the equipment/reader connected in the network. Sc FTP cable uses metal jacket which connects to the socket port with grounding. Only ground the jacket end which is connected to the surge protector’s socket. Normal UTP cable does not have foil screen protection and uses plastic jacket. 2. P. 3 Grounding of the network switch is important. The reasons are as following: a.Prevents leak from any faulty equipment connected to the network spreading across the network, and potentially damaging other equipment (reader) connected to the same network. b.Prevents any surge coming from the WAN going into the LAN. c.Prevents surges and ground currents picked up by un-screened Ethernet cables going to connected network equipment (reader). **The switch should have “ground isolation” capability ie: able to isolate any leak/surge running in the network cables to the ground to ensure it does not pass to other parts of the connected network. If you are not able to control the grounding of the network switch, or are unable to verify the network switch is properly grounded, you must install an in-line surge protector between the PoE injector and the reader. The following is an example of an ungrounded switch in the lane cabinet: As you can observe, the grounding bolt of the switch has no wire connected to it. 3. P. 4 Weatherproof Outdoor Installation If the equipment is to be installed outdoors, it is important that users to pay attention to and take all necessary measures to weatherproof the antennas and cable connections. Per the Certified Wireless Network Administrator (CWNA) Study Guide, it is stated that “Water damage is often a serious problem with cabling and connectors.” When conducting an antenna installation with cables, it is suggested to “Weatherproof the cables and connectors and secure them from movement”. If your installation of equipment is exposed to outdoor weather, it is important that you take all necessary measures to weatherproof the antennas and cable connections. In this guide we will introduce methods to weatherproof the antenna and cable connectors. Customers can evaluate which is the best method to adopt, based on their installation setup. Industry best practice suggests that antenna and cable connectors should be protected with drip loops and coax seals to prevent water seepage and damage. In this guide we will provide procedures for adopting the following methods: •making drip loops on cables •protecting connectors using cold shrink tube •protecting connectors using a combination of electrical tape and butyl rubber •protecting coaxial cable connection using a combination of silicone and electrical tape •Weatherproof Outdoor Installation P. 5 a. Cable Drip Loop By adding a small drip loop or “U” shape before the cable connection to the antenna or reader, water flowing along the cable can be directed to flow away from the connector, preventing the water from flowing onto the connector. The drip loop should be positioned lower than the antenna/reader connector to effectively direct dripping water away. P. 6 b. Cold Shrink Tube i. Tools and Equipment Cold shrink tube provides a fast and easy way for weatherproofing cable connections on the field. In addition, it can secure the cable connection from wind and vibration, preventing it from loosening up. Cold shrink tube is typically constructed with an open-ended rubber sleeve, the plastic core can then be pulled off easily by hand. Cold shrink tubes can be easily acquired from any local radio shop. If you have difficulty finding supplies of cold shrink tubes, please contact a STAR Systems sales representative. To weatherproof an antenna cable connection using a cold shrink tube, the following tools are recommended: 1.Torque wrench (15-20 lbf·in or 1.7-2.3 N·m for N-type connector) 2.Cold shrink tube P. 7 Connect the cable connector with the antenna. Tighten the connection properly with a torque wrench to ensure the correct internal seals and surface contacts are made. Align the cold shrink tube such that it seals the base of the antenna connector. Then pull the rip cord of the plastic core while holding the tube in position. ii. Procedures Run the coax cable through the cold shrink tube 1. 2. 3. P. 8 c. Tape and Butyl Rubber Using electric, vinyl or plastic tape in combination wit…

Text truncated - open the document above for the full version.

StarSystemsInternationalLimited CoveredEquipmentCertificationAttestationLetter DATE:2024.6.20 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID:2AA7KTARVOSPRO31000 StarSystemsInternationalLimited(“theapplicant”)certifiesthattheequipmentforwhich authorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. StarSystemsInternationalLimited(“theapplicant”)certifiesthat,asofthedateofthe filingoftheapplication,theapplicantisnotidentifiedontheCoveredListasanentity producing“covered”equipment. Signed: Printedname:AvaTang Title:COO CompanyName:StarSystemsInternationalLimited Date:2024.6.20

www.star- STAR Systems Interna/onal Ltd. Unit 7, 8/F, Vanta Industrial Centre, 21-33 Tai Lin Pai Road, Kwai Chung, N.T., Hong Kong +852 3691-9925 [email protected] int.net 4/15/2024 Federal Communica5ons Commission Authoriza5on and Evalua5on Division 7435 Oakland Mills Road Columbia, MD 21046 USA RE: A&esta+on Statements Part 2.911(d)(7) request for FCC ID2AA7KTARVOSPRO31000 FRN:0029829249 Star Systems Interna5onal Limited cer5fies that as of the date of the filing of the applica5on, Star Systems America, LLC is our designated U.S. agent for service of process for the above referenced FCC ID. Star Systems Interna5onal Limited accepts to maintain an agent for no less than one year aQer the grantee has terminated all marke5ng and importa5on or the conclusion of any Commission- related proceeding involving the equipment. Star Systems America, LLC accepts, as of the date of the filing of the applica5on, the obliga5on of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Informa5on: Name: Star Systems America, LLC FRN: 0024387144 Address: 9525 Forest View Street, Dallas, Texas 75243, USA Contact Person: Stephen Lockhart Tel.: +1 469-708-4004 Email: [email protected] Sincerely, Star Systems Interna5onal Star Systems America, LLC Ava Tang COO 2024.4.15 Stephen Lockhart President 2024.4.15

Unit 7, 8/F, Vanta Industrial Centre, 21-33 Tai Lin Pai Road, Kwai Chung, New Territories, Hong Kong SAR Tel: +852-3691-9925 STAR Systems International Limited 1/24/2024 Nemko North America, Inc. 303 River Road Ottawa, ON K1V 1H2 Canada REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2AA7KTARVOSPRO31000 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT LONG-TERM CONFIDENTIALITY: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Printed name: Ava Tang Title: COO

StarSystemsInternationalLimited Clickheretoentertext. 4/1/2024 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa,Ontario,Canada K1V1H2 AUTHORITYTOACTASAGENT-FCC Onourbehalf,IappointShanghaiATBLTechnologyCo.,Ltd./5-6/F.,Unit1,No8,FreeTrade OneLifeScienceandSci-TechIndustrialPark,No.160BashengRoad,Pudong,Shanghai, China/AdaWang,toactasouragentinthepreparationofthisapplicationforequipment certification.Icertifythatsubmitteddocumentsproperlydescribethedeviceorsystemforwhich equipmentcertificationissought.Ialsocertifythateachunitmanufactured,importedormarketed,as definedinFCCregulationswillhaveaffixedtoitalabelidenticaltothatsubmittedforapprovalwith thisapplication. Insigningthisletter,Applicantcertifiesthatneithertheapplicantnoranypartytotheapplicationis notsubjecttoadenialofFederalbenefits,thatincludeFCCbenefits,pursuanttoSection5301ofthe Anti-DrugAbuseActof1988,21U.S.C.§862becauseofaconvictionforpossessionordistribution ofacontrolledsubstance.See47CFR1.2002(b)forthedefinitionofa"party"forthesepurposes. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,I acknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsforcertification,as specifiedbyNemkoNorthAmericaInc.,stillresideswithus. Sincerely, Printedname:AvaTang,COO

Star Systems International Limited Unit 7, 8/F, Vanta Industrial Centre, 21-33 Tai Lin Pai Road,Kwai Chung, NT, Hong Kong T Declaration o Whom It May Concern, We, Star Systems International Limited hereby confirm that HRD31000, HRD310XY (X, Y=0-9, A-Z, a-z, blank) which different models are named for different sales regions, without a ny hardware differencesthe appearance, circuit, RF Chip, PCB, Compoent and the specifications of wireless functions are the same. In below picture, the ante nna cable wi ll be installed by the manufacturer. Antenna port 1 will be connected to external antenna, th e Antenna port 2 will be connected to the inter nal antenna. t he other antenna ports will not be us ed. T he ext ernal antenna port 1 can be co nf igured with 5 types of antenna: Avi or, Ava lon, Cheetah, Kuma or Bobcat; the internal antenna port 2 is fixed with one type of antenna: Avalon (SMA Type). (Signature) Name:Ada Wang Title: Manager Company Name: Star Systems International Limited

StarSystemsInternationalLimited Unit7,8/F,VantaIndustrialCentre,21-33 TaiLinPaiRoad,KwaiChung,NT,HongKong SeriesModelDeclaration Date:2024.06.07 To Whom It May Concern, We, Star Systems International Limited hereby confirm that HRD31000, HRD310XY(X,Y=0-9,A-Z, a-z, blank) are only different in antenna option. see below tabel. the appearance, circuit, RF Chip, PCB, Compoent and the specifications of wireless functions are the same.which are not affect the RF characteristics. ModelExternalAntenna Internal Antenna HRD31000AviorAvalonCheetahKumaBobcat Avalon(SMA Type) HRD310XY(X,Y= 0-9,A-Z,a-z, blank) AvalonCheetahKumaKuma Sincerely, ________________________ (Signature) Name:_:AvaTang____________ Title:____COO_________ CompanyName:____StarSystemsInternationalLimited

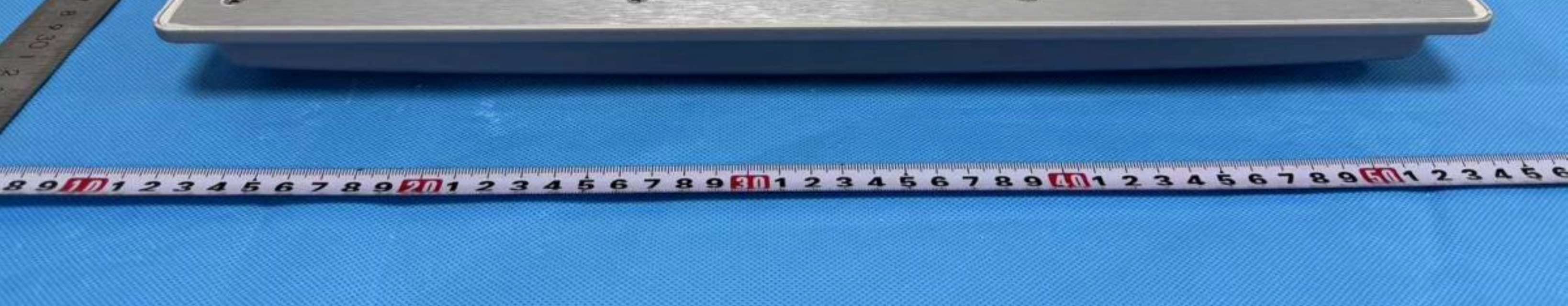

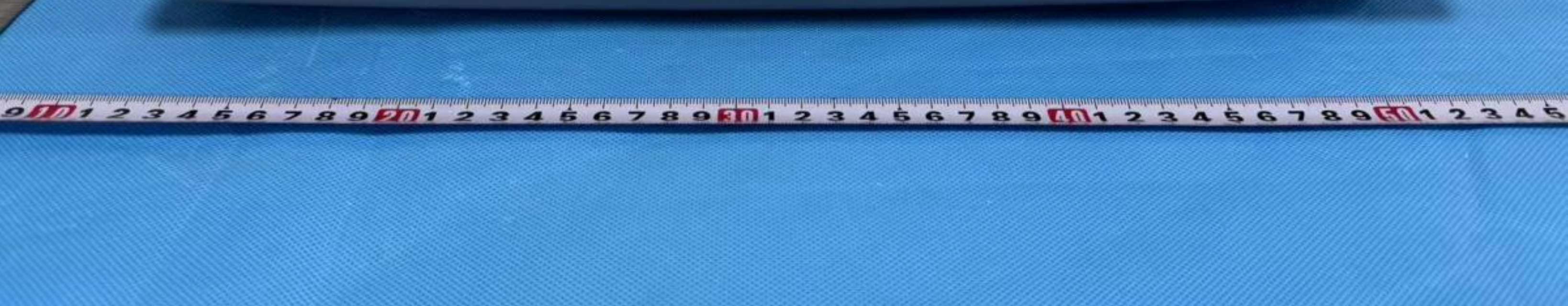

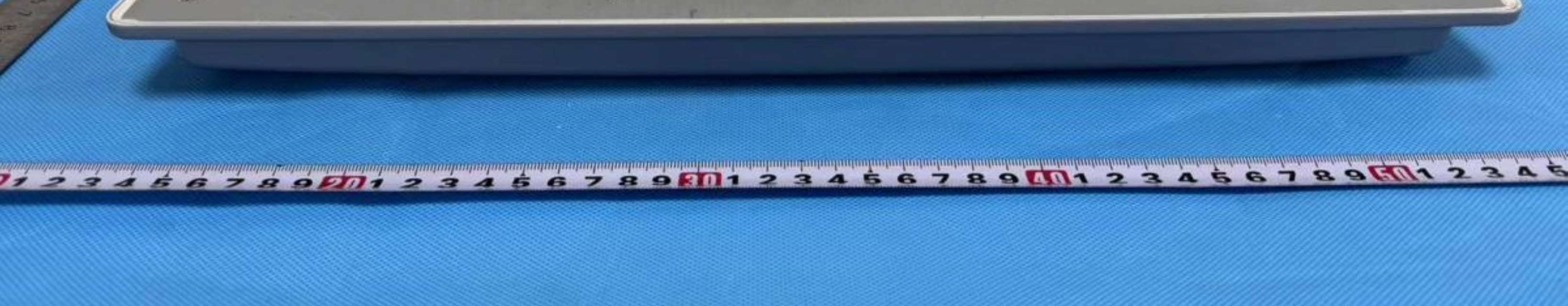

Report No.:SHATBL2404001 Page 1 of 11 EUT EXTERNAL PHOTOGRAPHS External Antennaport Report No.:SHATBL2404001 Page 2 of 11 Report No.:SHATBL2404001 Page 3 of 11 Report No.:SHATBL2404001 Page 4 of 11 Antenna:Avior Report No.:SHATBL2404001 Page 5 of 11 Antenna:Avalo Report No.:SHATBL2404001 Page 6 of 11 Antenna:Cheetah Report No.:SHATBL2404001 Page 7 of 11 Antenna:Kuma Report No.:SHATBL2404001 Page 8 of 11 Antenna:Bobcat Report No.:SHATBL2404001 Page 9 of 11 Antenna: Avalon (SMA Type)

Report No.: SHATBL2404001 Page 10 of 11 EUT INTERNAL PHOTOGRAPHS Report No.: SHATBL2404001 Page 11 of 11 Connect to External Antenna port Connect to Internal Antenna port
