2AA7L-BTS03Bluetooth Speaker

User’s Manual BTS03 Bluetooth Speaker Please read and follow these instructions before using your unit. 1. Important Don’ts • Do not place naked flames, such as lighted candles on or near the product. • Do not place objects filled with liquids, such as vases on or near the product. • Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibration. • Do not use this product with wet hands. • Do not clean this product with water or other liquids. • Do not block or cover the slots and holes in the product. • Do not push foreign objects into the slots or holes in the product. • Do not attempt to open this product yourself. There are no user serviceable parts inside. • Do not allow children access to plastic bags. Safety Instructions Before using this product, read and follow all warnings and instructions. • This product is not intended for use by young children. Young children should be properly supervised. • This product is intended for household use only and not for commercial or industrial use. • Do not expose to dripping or splashing. • No naked flame sources, such as lighted candles, should be placed on the product. • Ventilation should not be impeded by covering ventilation openings with items such as newspapers, table cloths, curtains and the like. • Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty. • Never remove the casing of this apparatus. • Never place this apparatus on the other electrical equipment. WARNING: • Never remove the casing of this apparatus. • Never place this apparatus on the other electrical equipment. Notice • If at any time in the future you should need to dispose of this product please note that: All batteries and accumulators need to be removed from this product (Removal of Waste Batteries and Accumulators). • Always bring your product to a professional to remove the built-in battery. We, suggest retaining the packaging in case for future transport of the product. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. 2. Getting Started A. Outlook and Controls: Item Description Item Description 1 Power OFF / ON 6 Button (Volume Up / Next) 2 Charging LED (Red / Green) 7 AUX In (3.5mm Jack) 3 Mode LED (Blue / Red; Bluetooth / AUX In) 8 MIC 4 Button (Volume Down / Previous) 9 Micro USB (DC In for Power & Charge) 5 (Play / Pause, Searching, hand-free function) B. About the speaker rechargeable battery: • This Bluetooth Speaker has an internal, non–user-replaceable battery. For best results, the first time you use this Bluetooth Speaker, let it charge for about 2 - 3 hours or until the charging indicator color is changed to Green from RED which show you the battery is fully charged. • For maintain the battery life and performance, if speaker isn’t used for a while, the battery might need to be recharged. Recharging the battery at least once per month. C. To recharge the built-in rechargeable battery: You can charge the Bluetooth Speaker’s battery in two ways: • Connect Bluetooth Speaker to the Computer. Or, • Use the USB power charger. (not included) D. Connection and Charging: • Connect the Bluetooth Speaker’s Micro USB connector with the Computer’s USB port through USB cable (supplied). • The charging LED turns ON in red light. (make sure that the computer is turned ON) • The charging LED will switch to green light when it’s fully changed. • Disconnect the USB cable when it is done. Charging LED Function 1. No DC power input: LED light OFF 2. In Charging: Light On in red color 3. Charge Completed: Light color from red switch to green E. Turn ON/OFF & Play from Bluetooth device: • Slide the power switch to “ON” position to turn on the Bluetooth speaker. • Voices announce “It is pairing waiting for device connecting” from speakers. And, • The mode LED indicator (Bluetooth / Aux In) will turn ON and light blue with blink every half second once, when it is searching Bluetooth devices. Power & Mode Indicator Function: Item Description Light and Mode Function Mode Light Status 1. Power in OFF Light OFF. 2. Power in ON Light ON; 2.a At Bluetooth searching mode: Blue light blinking; every half second once. 2.b At Bluetooth Paired mode: Blue light blinking; once per 3 seconds. 2.c At AUX In Mode: (3.5 mm jack plugged In) Light color switch to red color from blue. • Then, activate the Bluetooth function in your Bluetooth device (such as Mobile Phone or Personal Computer); the device will enter to Bluetooth searching mode automatically, if not, tap the relate selection to manually enter to searching mode. (refer to your device’s manual when necessary) • Your Bluetooth device sho…

Text truncated - open the document above for the full version.

DATE : July 17, 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AA7L-BTS03 Product Name: Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this July 17, 2014 By: Zhu wei Signature Printed Title: Manager On behalf of : Shenzhen BETRUE Technology Co., Ltd. Telephone: 0755-61504566

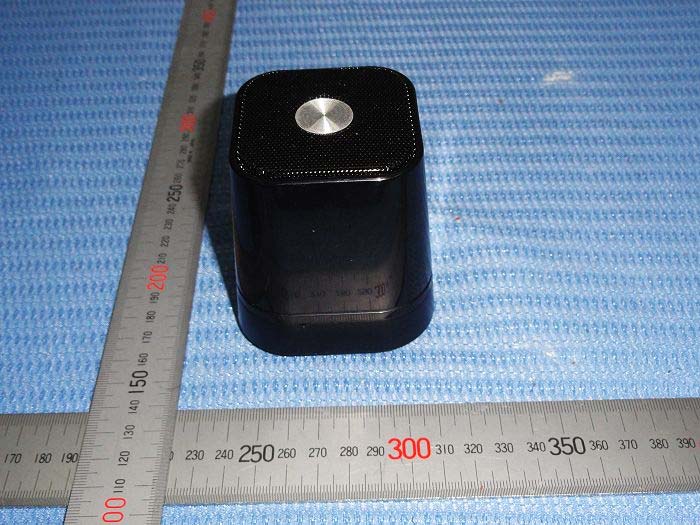

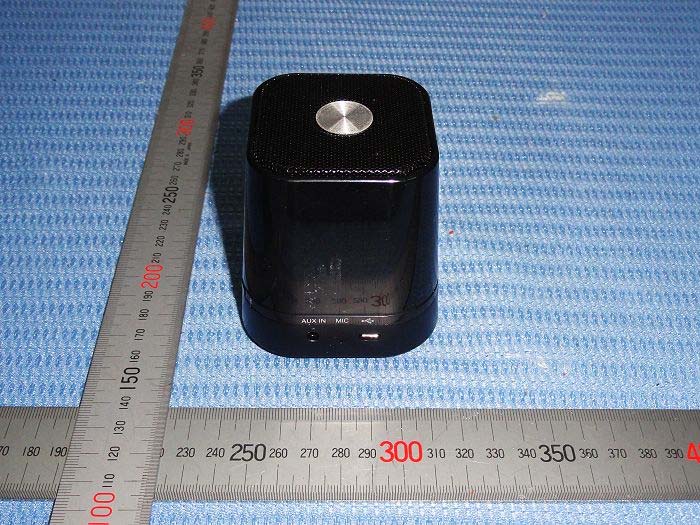

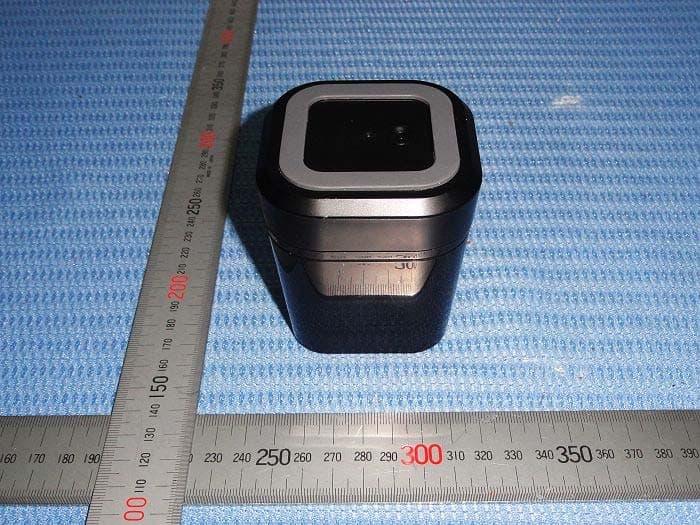

Photographs – EUT Outside view Outside view

Bluetooth Speaker Model No.: BTS03 Internal Battery: 3.7V Input: 5V FCC ID: 2AA7L-BTS03 Shenzhen BETRUE Technology Co., Ltd This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Location

Inside view Inside view Inside view

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -12.97dBm（0.05 mW） output power] (0.05mW /5mm) ·[√2.480 (GHz)]= 0.016 <3.0 for 1-g SAR Then SAR evaluation is not required
