BTS-09 User Manual V1.0_NF-BS621_130930_r0 1 User’s Menual Model Number : BTS-09 Bathroom Bluetooth Speaker Transmit music to your bathroom with the BETRUE’s Bathroom Bluetooth Speaker. Splashes proof design allows for all-round bathroom usage. The vacuum cupule design makes hanging in the bathroom wall quick and easy. BTS-09 User Manual V1.0_NF-BS621_130930_r0 2 Important Don’ts • Do not place naked flames, such as lighted candles on or near the product. • Do not place objects filled with liquids, such as vases on or near the product. • Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibration. • Do not keep or store this product in wet conditions for long period. • Do not clean this product with water or other liquids. • Do not block or cover the slots and holes in the product. • Do not push foreign objects into the slots or holes in the product. • Do not attempt to open this product yourself. There are no user serviceable parts inside. • Do not allow children access to plastic bags. Safety Instructions • Before using this product, read and follow all warnings and instructions. • This product is not intended for use by young children. Young children should be properly supervised. • This product is intended for household use only and not for commercial or industrial use. • Do not expose to dripping or splashing. • No naked flame sources, such as lighted candles, should be placed on the product. • Ventilation should not be impeded by covering ventilation openings with items such as newspapers, table cloths, curtains and the like. • Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty. We, suggests retaining the packaging in case for future transport of the product. Warning • Never remove the casing of this apparatus. • Never place this apparatus on the other electrical equipment. Notice • If at any time in the future you should need to dispose of this product please note that: All batteries and accumulators need to be removed from this product (Removal of Waste Batteries and Accumulators). • Always bring your product to a professional to remove the built-in battery. Caution for Splashproof This unit has been constructed to resist mild steam and light splashes from the shower or bath only. It should never be operated under running water and under no circumstances it should never be fully immersed in water. This unit has rubber seals to minimize the risk of moisture getting inside. However, do not immerse it in water since permanent damage to the electrical and mechanical parts will result. BTS-09 User Manual V1.0_NF-BS621_130930_r0 3 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. Outlook And Control 1 Button 7 Button 2 Mode / Charging LED 8 Speaker 3 Button 9 Cupule Lock 4 Button 10 Vacuum Cupule 5 Button 11 Mini USB socket 6 MIC Hole 12 Rubber Seal Cover BTS-09 User Manual V1.0_NF-BS621_130930_r0 4 Charging The Bluetooth Speaker 1. Open the rubber seal cover (8). 2. Connect the Bluetooth Speaker’s Mini USB socket (11) with the Computer’s USB port through USB cable. 3. The Charging LED (2) will turn ON in red light; the rechargeable battery is in charging. 4. The Charging LED (2) red light will turn OFF when the rechargeable battery is fully charged. 5. Disconnect the USB cable, and close the Rubber Seal Cover (12) when it is done. Bluetooth Speaker Pairing / Reconnecting 1. Press and hold the button (1) for 2 - 3 seconds, a tone sound then message “It is paring wait for device connecting” will announce from speaker and the Mode LED (2) will blinking in blue, the device is turned ON and goes into reconnect / searching mode for pair depend on status; 2. The Mode LED (2) blinking in blue every 2 seconds once if it is in reconnect mode. Or, the Mode LED (2) fast blinking in blue half seconds once, in search mode if for first time pairing. If not, press and hold button for 2 – 3 seconds to switch into searching mode for new device’s paring. 3. Now, turn ON the Bluetooth function on your mobile phone, search for device name “BTS09” and select it to pair. 4. If pairing is successful, a tone sound then message “Paired” will announce from speaker and the Mode LED (2) light will switch to slow blink in blue (every 4 seconds once). 5. The Bluetooth Speaker will be reconnecting automatically if your mobile phone has been paired. (Depend on the of mobile phone’s type and configuration, manual reconnection may require on some devices) 6. Press and hold the button (1) for 2 - 3 seconds, a tone sound will announce and Bluetooth speaker turned to OFF when you not use it. Note: During in searching /…

Text truncated - open the document above for the full version.

DATE : Nov 21, 2013 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AA7L-BTS09 Product Name: Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Nov 21, 2013 By: Zhu wei Signature Printed Title: Manager On behalf of : Shenzhen BETRUE Technology Co., Ltd. Telephone: 0755-61504566

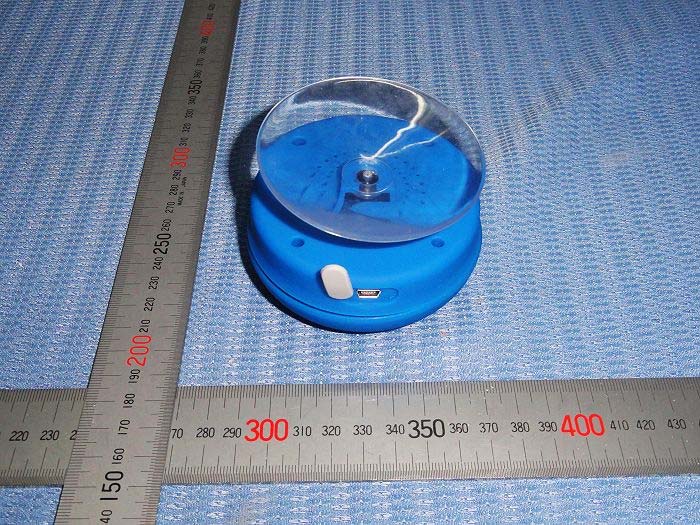

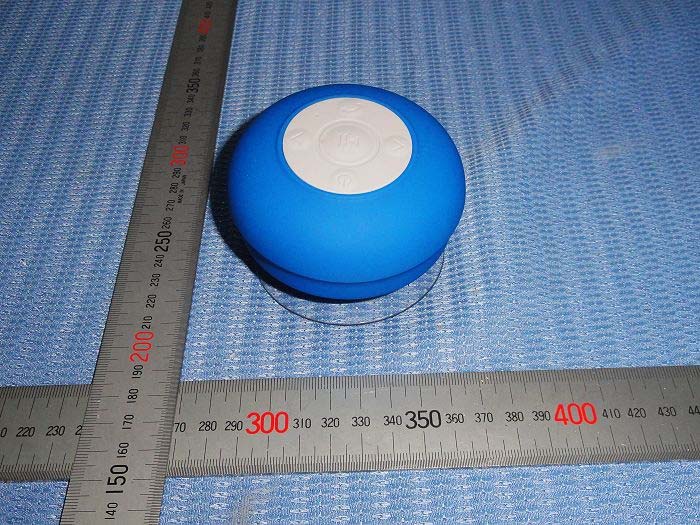

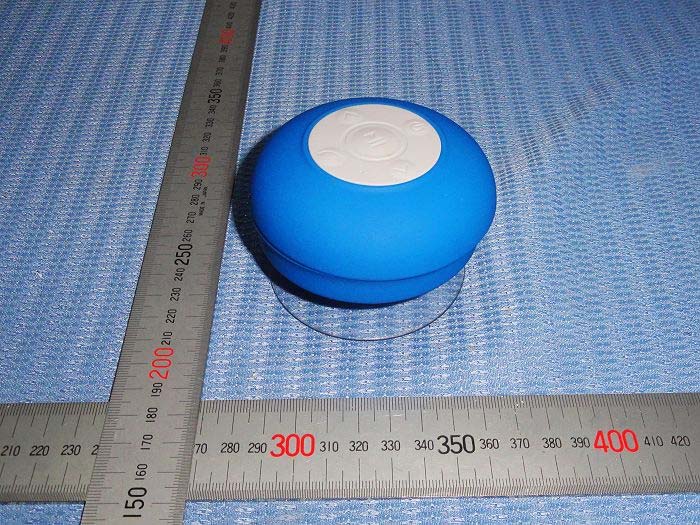

Photo for the EUT Outside View Outside View

Bluetooth Speaker Model No.: BTS09 Internal Battery: 3.7V 4.2V Input: 3.7V 4.2V FCC ID: 2AA7L-BTS09 Shenzhen BETRUE Technology Co., Ltd This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Mark Location: FCC ID Label Location

Inside View Inside View Inside View Inside View

RF Exposure evaluation According to 447498 1 D01 General RF Exposure Guidance v05r01 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [ 2480MHz 0.51 dBm(1.12mW) output power] (1.12 /5) ·[√2.480(GHz)]= 0.35 <3.0 for 1-g SAR Then SAR evaluation is not required
