BTS43 BK8000L_AUX_20150713 V1.0_r0 1 User’s Manual BTS43 Bluetooth Stereo Speaker With AUX IN (Waterproof) BTS43 BK8000L_AUX_20150713 V1.0_r0 2 A. Important Don’ts • Do not place naked flames, such as lighted candles on or near the product. • Do not place objects filled with liquids, such as vases on or near the product. • Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibration. • Do not keep or store this product in wet conditions for long period. • Do not clean this product with other liquids. • Do not block or cover the slots and holes in the product. • Do not push foreign objects into the slots or holes in the product. • Do not attempt to open this product yourself. There are no user serviceable parts inside. • Do not allow children access to plastic bags. Safety Instructions • Before using this product, read and follow all warnings and instructions. • This product is not intended for use by young children. Young children should be properly supervised. • This product is intended for household use only and not for commercial or industrial use. • No naked flame sources, such as lighted candles, should be placed on the product. • Ventilation should not be impeded by covering ventilation openings with items such as newspapers, table cloths, curtains and the like. • Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty. Warning • Never remove the casing of this apparatus. • Never place this apparatus on the other electrical equipment. Notice • If at any time in the future you should need to dispose of this product please note that: All batteries and accumulators need to be removed from this product (Removal of Waste Batteries and Accumulators). • Always bring your product to a professional to remove the built-in battery. BTS43 BK8000L_AUX_20150713 V1.0_r0 3 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. BTS43 BK8000L_AUX_20150713 V1.0_r0 4 B. Outlook and Controls Item Control 1. Rubber Seal Cover (For Waterproof Seal) 2. AUX In socket (Under Rubber Seal Cover) 3. Mini USB socket (Under Rubber Seal Cover) 4. Power Button (ON / OFF) 5. Charge LED Indicator (Red) 6. Mode LED Indicator (White for Bluetooth / Red for AUX IN) 7. Button (Volume down / Previous) 8. Button (Volume up / Next) 9. Button (Searching, Play / Pause) 10 Button ( Call Pick up/ Hang Up / last number redial) 11 MIC Hole (for Voice call) 12. Stand Foot 13. Left Speaker 14. Right Speaker 15. Hang Up Hook 9 15 1 3 2 4 6 5 13 14 10 11 7 8 12 BTS43 BK8000L_AUX_20150713 V1.0_r0 5 C. About the rechargeable Battery & Charging 1. Regarding the lithium rechargeable battery:
This Bluetooth Speaker has an internal, non–user-replaceable battery. For best results, the first time you use this Bluetooth Speaker, let it charge for about 3 ~ 4 hours or until the “Charge LED (5)” Indicator light from On to off which show you the battery is fully charged.
For maintain the battery life and performance, if speaker isn’t used for a while, the battery might need to be recharged. Charge the battery at least once every month. 2. To recharge the built-in battery:
Connect the Bluetooth Speaker’s “Mini USB socket (3)” with the Computer’s USB port through USB cable.
The “Charge LED (5)” Indicator will turn On in red, the battery is in charging.
The “Charge LED (5)” Indicator will turn Off when the rechargeable battery is fully charged.
Disconnect the USB cable when it is done. D. Power ON and Pairing 1. Press and hold the “ power (4)” button to turn On the device, a series of tones will sound from speaker. And the “Mode LED (6)” indicator is fast blinking in White, it is in Bluetooth pairing mode; 2. Then activate the Bluetooth function in your mobile device (such as Mobile Phone or Personal Computer), the device will enter to Bluetooth searching mode automatically, if not, tap the relate selection to manually enter to searching mode. (refer to your device’s manual when necessary) 3. Your mobile device should show “PBT622” in list, and then select it for pairing. Waiting for some seconds and you will see connected message as shown on your mobile device. (For some Bluetooth devices, you may need to input “0000” as pairing password) 4. If pairing is successful, A tones will sound from speaker and the “Mode LED (6)” indicator will slow blinking each 3 ~ 4 seconds once. 5. Now, you can start to music play from the mobile device by it music player program. 6. Press and hold the “ power (4)” button to turn Off the device when it is not in use. Note: for saving battery energy, the Bluetooth Speaker will turn to sleep mode when no device is i…

Text truncated - open the document above for the full version.

DATE : July 22, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AA7L-BTS43 Product Name: Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this July 22, 2015 By: Zhu wei Signature Printed Title: Manager On behalf of : Shenzhen BETRUE Technology Co., Ltd. Telephone: 0755-61504566

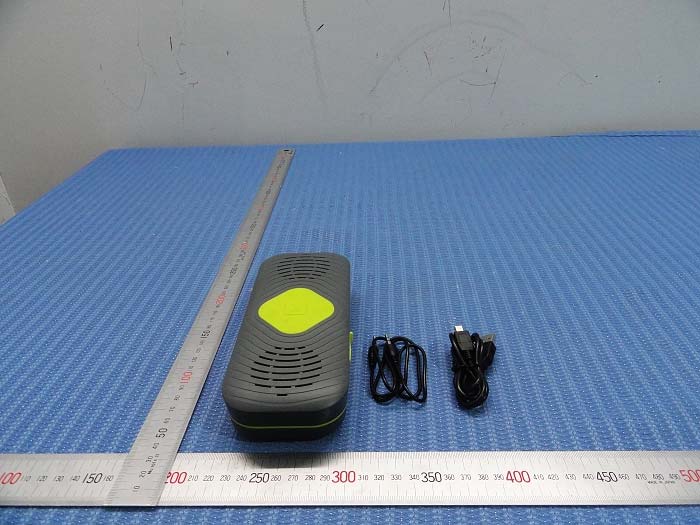

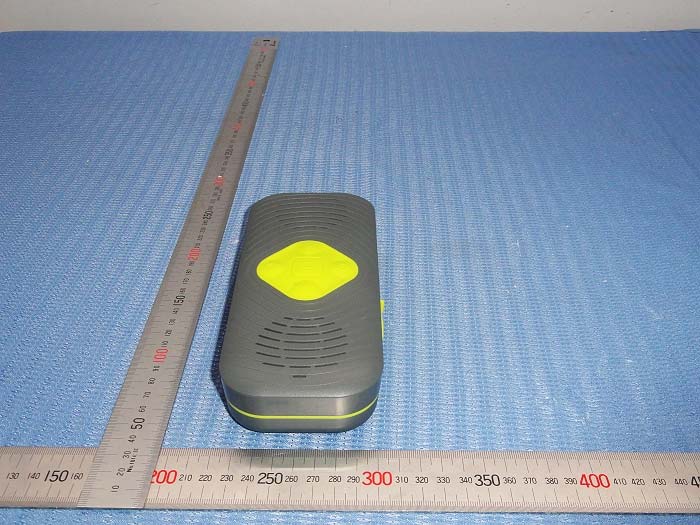

Outside view Outside view
