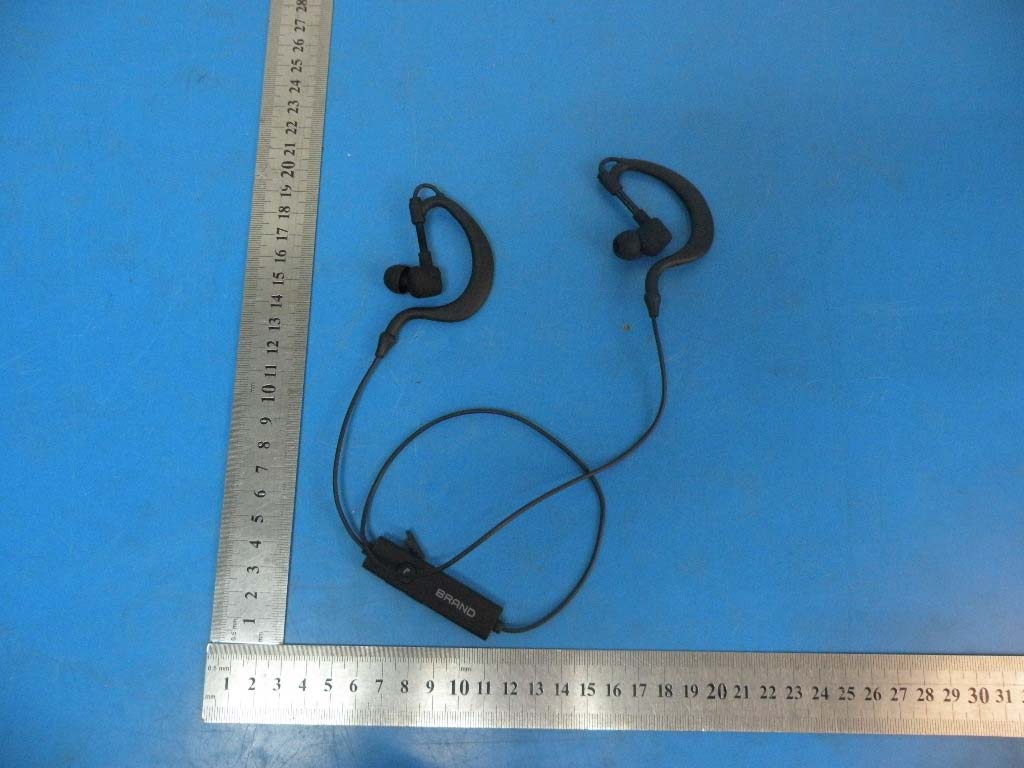

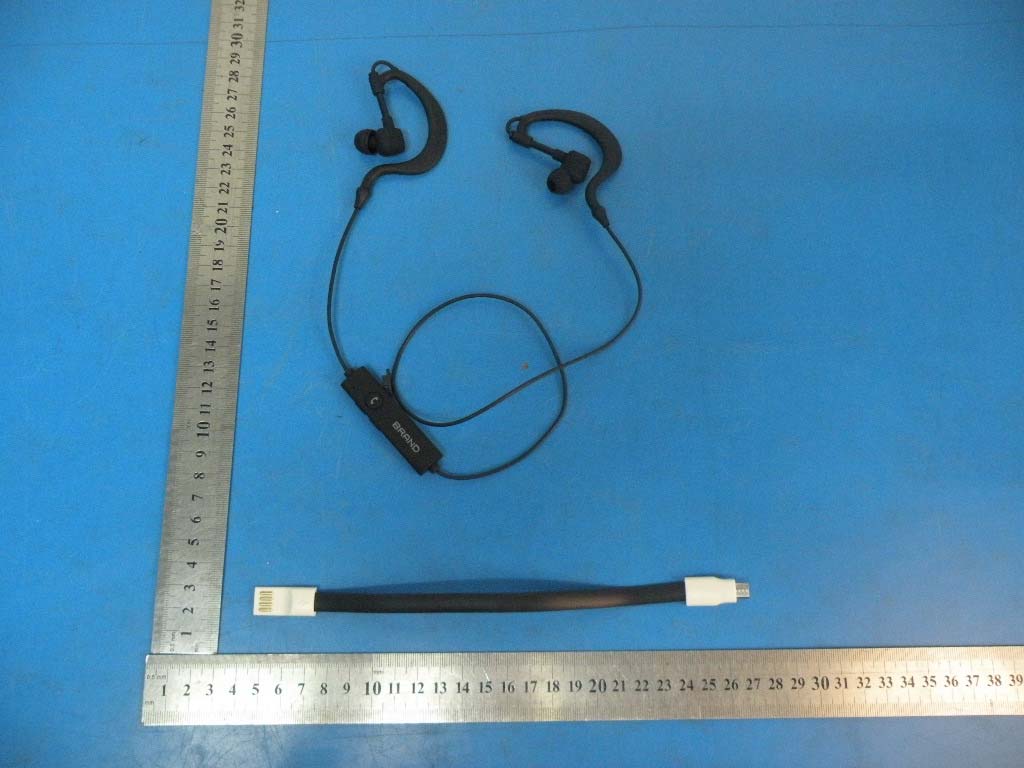

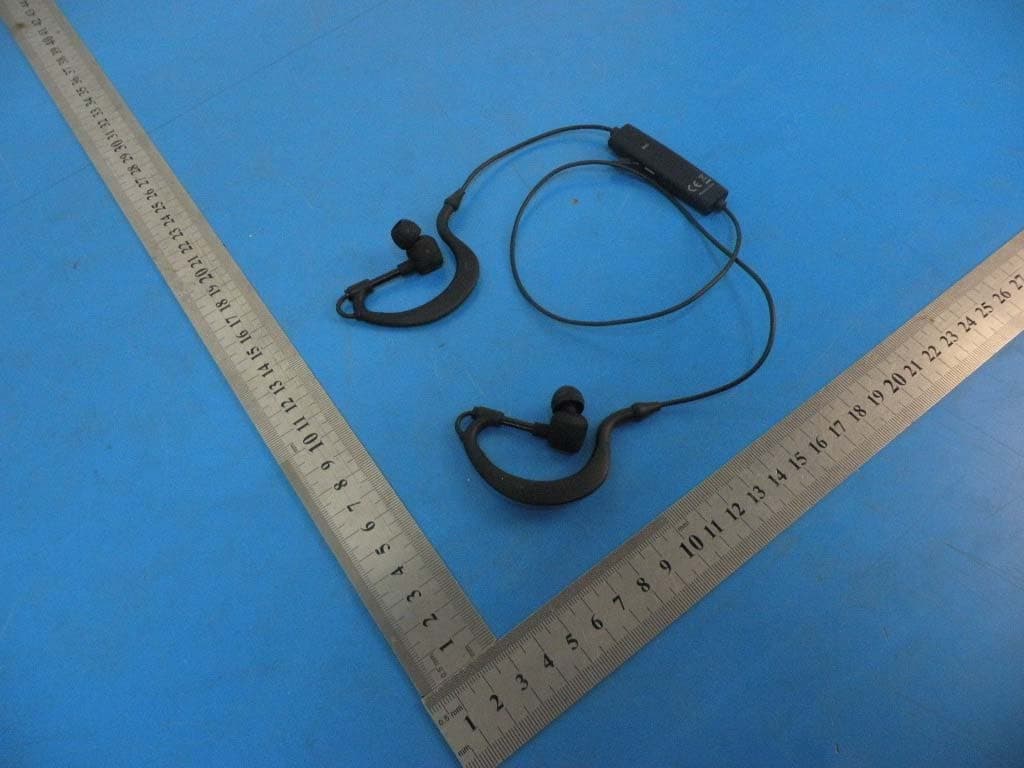

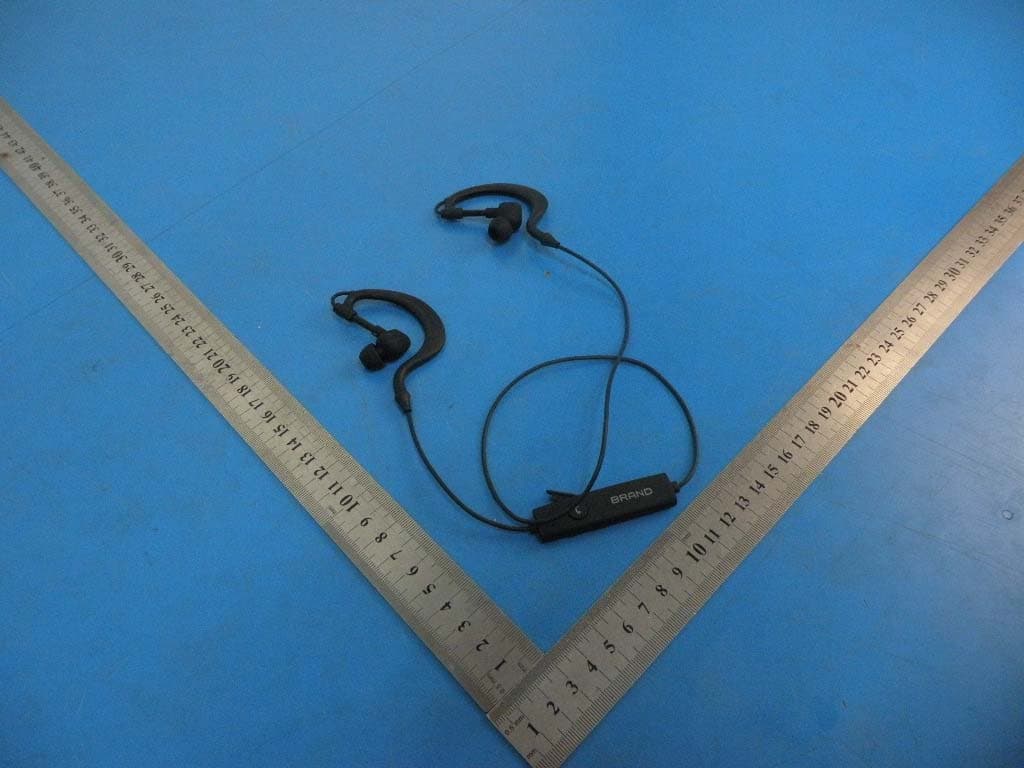

2AA7XKBJ-108NBluetooth headset

User's Manual KBJ-108N Sports Headset Bluetooth 4.0 01020304 Thank you for selecting our latest Bluetooth headset, please read this User's Manual carefully before you operate this headset, and please save this Manual for further reference. Before operating, please read all the Safety notice to make sure the safe and appropriate use. Safety Notice: Please observe the rules of the Country or Region which you are in while driving. Do not disassemble or modify the headset at any reason, otherwise, It may damage or burn the headset. If there is any quality problem, please send the headset to authorized service center for repairing. Please keep the equipment along with all the accessories out of the reach of children and pets. It will cause suffocation and serious injury. Do not put the device under the environment which the temperature is too low or too high ( Below 0ņ or over 45ņ). Extreme temperatures will cause the device deformation, reduce the charging capacity and shorten the working life. Please do not wet the device, for the liquid can cause serious damage to the device. Please do not touch the device by wet hands. It is out of the maintenance range for the damage caused by water. Please avoid closing to the eyes of children and pets when using the flash indicator of the device. Please do not operate the device in thunderstorm weather. It will damage your hearing if you listen with high volume for a long time. It is recommended that only use the lowest volume which is necessary for speaking and listening to music. 1. Guide Ŷ Headset introduction ř!Contents: Bluetooth Headset, USB Charging Cable, User's Manual USB Charging Cable: 2.Instruction Ŷ.H\)XQFWLRQ 3. How to connect with two Bluetooth mobile phones: Switch on: Press 2 seconds to switch on, the blue indicator will be in(voice prompts in English. Press 2.5 seconds, it enters into pairing mode, the red and blue indicators take turns to flash.(voice prompts in English; power will switch off automatically after 5 minutes no devices to connect . In music mode, press it 1 time to pause, and press it again to play. (when phone call comes, the music will be off. When phone call is off, the music will continue. Power switch Play/Pause Press “function key” to receive phone call, press it again to end the phone call. Press the key by twice continuously to re-dial the last phone number. Press the key for 2 seconds to reject the phone call. Receive Hang up phone call Switch off: Press 5 seconds to switch off, the red indicator flashes one time mean the device is switched off (voice prompts in English In Music Mode, press it to play next song. In Music Mode, press it to play previous song. Long press to increase volume all the time. Previous song Next Song Volume Increase Volume Decrease Long press to decrease volume all the time. Power switch / Pairing / Play / Pause / Receive / Hang up phone call Previous song Next song Volume increase USB charger port LED indicator Volume decrease Re-dial the last phone No When the headset is connected with two mobile phones, some functions of the mobile phones cannot work normally. (1) Turn on the bluetooth function of mobile phone 1. (2) Press the “ ” for 4 seconds of the bluetooth headset, switch on and enter into pairing mode, blue and red indicators take turns to flash, make connection with phone 1. (3) press the “ ” again for 2.5 seconds, the red and blue indicators take turns to flash and searching connections automatically; meanwhile, phone 1 is disconnected. (4) Turn on the bluetooth function of the mobile phone 2 and VHDUFK.%-1IURPWKHOLVWPDNHFRQQHFWLRQ ,QSXWWKH password 0000 if needed and the connection will be made). (5) Turn off the bluetooth headset and return on, the headset will connect with both mobile phones automatically. The voice “Bluetooth is connected, bluetooth is connected” will appear in English. Ŷ Battery power of bluetooth headset displayed on Iphone After connected with Iphone, the battery power of the headset will be displayed on the phone. Bluetooth 4.0 Sports Headset 06050708 6.Project Specification and Instruction - Bluetooth Version : V4.0 - Supported devices: Bluetooth mobile phones, Bluetooth speakers Bluetooth PC and other Bluetooth devices 0D[LPXPZRUNUDQJH)HHW 0HWHUV 6WDQGE\WLPH+RXUV - Talk time: 4 Hours - Music play: 3 Hours - Charging time: 1.5 Hours 4.Bluetooth Indicator Status Red indicator is on all the time when charging; Blue indicator is on instead when charged full Charging Work Status Indicator Light StatusRemark Switch on Blue indicator flash 2 times Switch off Red indicator flash 1 time Connection Phone call Play Music Battery low warning Pairing Mode Red and blue indicators take turns to flash Voice Prompts Voice Prompts Voice Prompts Voice Prompts Voice Prompts If the headset turned off due to power failure during phone calls, the call will switch to mobile phone automatically. 5.Headset Charging This headset is equipped with built-in non-detachable and rechargeable battery. Please make sure that the battery is charged full for the first time use. Ŷ&RQQHFWWKHFKDUJHUWRWKHFKDUJLQJSRUW Ŷ,QVHUWWKHFKDUJHULQWRWKHVWDQGDUGSRZHURXWOHW During the charging, indicator will turn to Red. If without charging, please plug out the travel charger first, then connect it again. Ŷ$IWHUIXOOFKDUJLQJUHGLQGLFDWRUZLOOEHRII3OHDVHSOXJRXW the travel charger from the power outlet and headset. Ŷ,WZLOOUHGXFHWKHEDWWHU\SHUIRUPDQFHDIWHUORQJWLPH repeatable charge and dis-charge. Ŷ$QGLWLVQRUPDOSKHQRPHQRQIRUDOOWKHUHFKDUJHDEOHEDWWHU\ Please do not dial or receive phone call during charging, and please plug out the charger from the headset, then receive the phone call. When the battery is low, the headset will appear the prompt and the red indicator will flash. Red indicator will flash every 60 second Blue indicator will flash 1 time every 6 seconds Blue indicator will flash 1 time every 6 seconds B…

Text truncated - open the document above for the full version.

November 12, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AA7XKBJ-108N _ Product Name: Bluetooth headset Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics Long-term confidential • Block diagram Long-term confidential • Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Ting He Position Manager Company Name Shenzhen Compoka Electronic Technology Co., Ltd Address 4/5 F, Building B, Yi Shida Industrial Park, Xintang Village, Guanlan Town, Shenzhen City, Guangdong Province, China Tel 86-755-28089215 Fax 86-755-28089215 Email [email protected]

Differences Description We Shenzhen Compoka Electronic Technology Co., Ltd state: Product name: Bluetooth headset Model: KBJ-108N,KBJ-106N,EP614 All model’s the function, software and electric circuit are the same , only with the product model named different. Signature: 2015-11-12 Signatory Name Ting He Position Manager Company Name Shenzhen Compoka Electronic Technology Co., Ltd Address 4/5 F, Building B, Yi Shida Industrial Park, Xintang Village, Guanlan Town, Shenzhen City, Guangdong Province, China Tel 86-755-28089215 Fax 86-755-28089215 Email [email protected]



Label 40mm 80mm Label FCC ID: 2AA7XKBJ‐108N Shenzhen Compoka Electronic Technology Co., Ltd Model name: Bluetooth headset Model No.: KBJ‐108N



FCCID:2AA7XKBJ108N    RFExposureevaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances İ50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] g[Ĝf(GHz)]İ3.0 for 1-g SAR and İ7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz 6.79(4.775mW) output power] (4.775mW /5mm) g[Ĝ2.480(GHz)]= 1.504 <3.0 for 1-g SAR ThenSARevaluationisnotrequired Worse case is as below: [2480MHz 6.79dBm(4.775mW) output power] 6.84dBm(4.8306mW) 4.8306mW 1.53

5HSRUW1R& TEST REPORT FCC ID: 2AA7XKBJ-108N Applicant : Shenzhen Compoka Electronic Technology Co., Ltd Address : 4/5 F, Building B, Yi Shida Industrial Park, Xintang Village,Guanlan Town,Shenzhen City,Guangdong Province, China Equipment under Test (EUT): Name : Bluetooth headset Model : KBJ-108N,KBJ-106N,EP614 Trademark : N/A Standards : FCC PART 15, SUBPART C : 2015 (Section 15.247) ANSI C63.4:2014 Report No. : C1850451 07 Date of Test : October 29, 2015 – November 11, 2015 Date of Issue : November 12, 2015 Test Result : PASS * *In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing 5HSRUW1R& )&&,'$$;.%-1                                             3DJHRI Contents 1.  General Information ..................................................................................................................... 4  1.1.Description of Device (EUT) ...............................................................................4 1.2.Accessories of device (EUT) ...............................................................................5 1.3.Test Lab information ............................................................................................5 2.  Summary of test ............................................................................................................................ 6  2.1.Summary of test result .........................................................................................6 2.2.Assistant equipment used for test .........................................................................6 2.3.Block Diagram .....................................................................................................7 2.4.Test mode .............................................................................................................7 2.5.Test Conditions .....................................................................................................8 2.6.Measurement Uncertainty (95% confidence levels, k=2) ....................................8 2.7.Test Equipment .....................................................................................................9 3.Maximum Peak Output power .................................................................................................. 10 3.1.Limit ...................................................................................................................10 3.2.Test Procedure ....................................................................................................10 3.3.Test Setup ...........................................................................................................10 3.4.Test Result ..........................................................................................................10 4.Bandwidth .................................................................................................................................... 11 4.1.Limit ................................................................................................................... 11 4.2.Test Procedure .................................................................................................... 11 4.3.Test Result .......................................................................................................... 11 5.Carrier Frequency Separation ................................................................................................... 17 5.1.Limit ...................................................................................................................17 5.2.Test Procedure ....................................................................................................17 5.3.Test Result ..........................................................................................................17 6.Number Of Hopping Channel .................................................................................................... 20 6.1.Limit ...................................................................................................................20 6.2.Test Procedure ....................................................................................................20 6.3.Test Result ..........................................................................................................20 7.Dwell Time ................................................................................................................................... 23 7.1.Test limit ............................................................................................................23 7.2.Test Procedure ....................................................................................................23 7.3.Test Results ........................................................................................................23 8.Radiated emissions ...................................................................................................................... 30 8.1.Limit ...................................................................................................................30 8.2.Block Diagram of Test setup ........…

Text truncated - open the document above for the full version.

5HSRUW1R& TEST REPORT FCC ID: 2AA7XKBJ-108N Applicant : Shenzhen Compoka Electronic Technology Co., Ltd Address : 4/5 F, Building B, Yi Shida Industrial Park, Xintang Village,Guanlan Town,Shenzhen City,Guangdong Province, China Equipment under Test (EUT): Name : Bluetooth headset Model : KBJ-108N,KBJ-106N,EP614 Trademark : N/A Standards : FCC PART 15, SUBPART C : 2015 (Section 15.247) ANSI C63.4:2014 Report No. : C1850451 06 Date of Test : October 29, 2015 – November 11, 2015 Date of Issue : November 12, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing  5HSRUW1R& )&&,'$$;.%-1                                               3DJHRI TABLE OF CONTENT Description Page 1 General Information --------------------------------------------------------------------------------------- 4  1.1Description of Device (EUT) --------------------------------------------------------------------- 4 1.2Description of Test Facility ----------------------------------------------------------------------- 5 2 EMC Equipment List ------------------------------------------------------------------------------------ 5 3 Test Procedure ------------------------------------------------------------------------------------------- 6 4Summary of Measurement ---------------------------------------------------------------------------- 7  4.1Summary of test result ---------------------------------------------------------------------------- 7 4.2Test connection ------------------------------------------------------------------------------------- 7 4.3Assistant equipment used for test ---------------------------------------------------------------- 8 4.4Test mode ------------------------------------------------------------------------------------------- 8 4.5Test Conditions ------------------------------------------------------------------------------------- 9 4.6Measurement Uncertainty (95% confidence levels, k=2)------------------------------------- 9 5Spurious Emission ---------------------------------------------------------------------------------- 10 5.1Radiation Emission ------------------------------------------------------------------------------ 10 5.1.1Radiation Emission Limits(15.209) ----------------------------------------------------------- 10 5.1.2Test Setup ----------------------------------------------------------------------------------------- 10 5.1.3Test Procedure ------------------------------------------------------------------------------------ 12 5.1.4Test Equipment Setting For emission test Result -------------------------------------------- 12 5.1.5Test Condition ------------------------------------------------------------------------------------ 13 5.1.6Test Result ---------------------------------------------------------------------------------------- 13 6POWER LINE CONDUCTED EMISSION ------------------------------------------------------- 19 6.1Conducted Emission Limits(15.207) ---------------------------------------------------------- 19 6.2Test Setup ----------------------------------------------------------------------------------------- 19 6.3Test Procedure ------------------------------------------------------------------------------------ 20 6.4Test Results --------------------------------------------------------------------------------------- 20 7Conducted Maximum Output Power ----------------------------------------------------------- 23 7.1Test limit ------------------------------------------------------------------------------------------ 23 7.2Test Procedure ------------------------------------------------------------------------------------ 23 7.3Test Setup ----------------------------------------------------------------------------------------- 23 7.4Test Results --------------------------------------------------------------------------------------- 23 8PEAK POWER SPECTRAL DENSITY ---------------------------------------------------------- 25 8.1Test limit ------------------------------------------------------------------------------------------ 25 8.2Method of measurement ------------------------------------------------------------------------ 25 8.3Test Setup ----------------------------------------------------------------------------------------- 25 8.4Test Results --------------------------------------------------------------------------------------- 26 9Bandwidth ---------------------------------------------------------------------------------------------- 29 9.1Test limit ------------------------------------------------------------------------------------------ 29 9.2Method of measurement ------------------------------------------------------------------------ 29 9.3Test Setup ----------------------------------------------------------------------------------------- 29 9.4Test Results --------------------------------------------------------------------------------------- 29 10Band Edge Check ------------------------------------------------------------------------------------ 33 10.1Test limit ------------------------------------------------------------------------------------------ 33 10.2T…

Text truncated - open the document above for the full version.

Photos of Radiated emission Photos of Conducted Emission test
