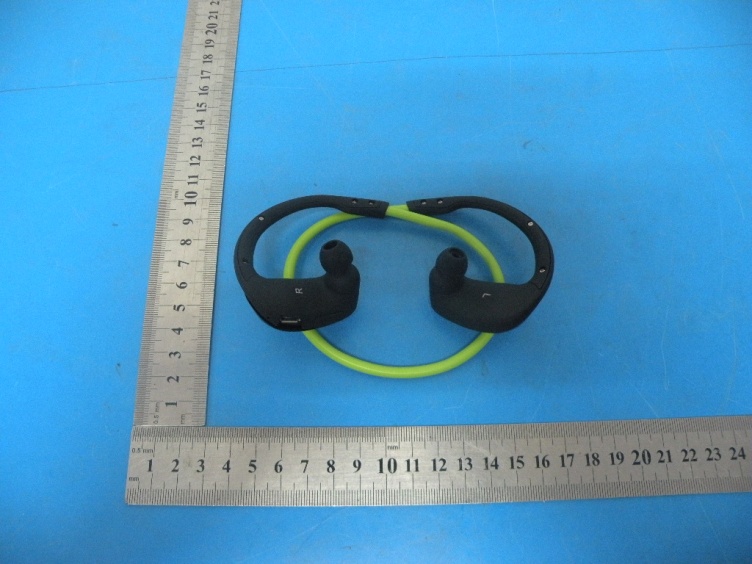

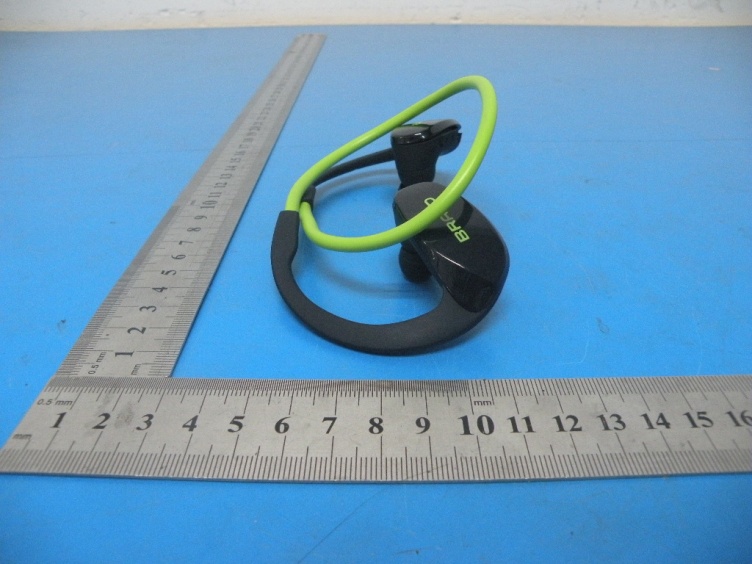

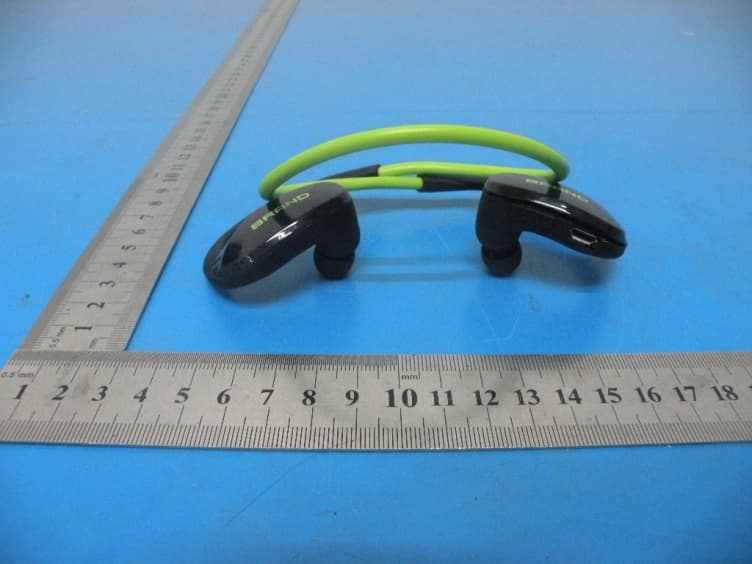

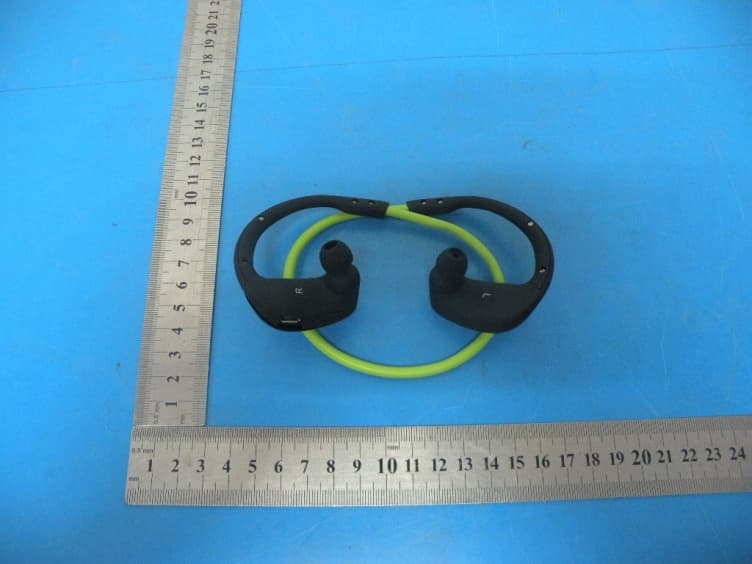

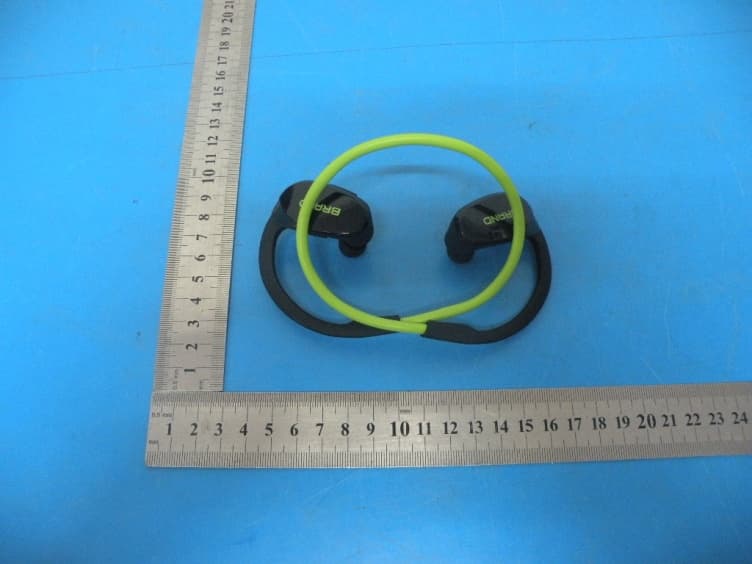

2AA7XKBJ-152NBluetooth headset

User's Manual KBJ-152N Sports Headset Bluetooth 4.0 01020304 Thank you for selecting our latest Bluetooth headset, please read this User's Manual carefully before you operate this headset, and please save this Manual for further reference. Before operating, please read all the Safety notice to make sure the safe and appropriate use. Safety Notice: Please observe the rules of the Country or Region which you are in while driving. Do not disassemble or modify the headset at any reason, otherwise, It may damage or burn the headset. If there is any quality problem, please send the headset to authorized service center for repairing. Please keep the equipment along with all the accessories out of the reach of children and pets. It will cause suffocation and serious injury. Do not put the device under the environment which the temperature is too low or too high ( Below 0°C or over 45°C). Extreme temperatures will cause the device deformation, reduce the charging capacity and shorten the working life. Please do not wet the device, for the liquid can cause serious damage to the device. Please do not touch the device by wet hands. It is out of the maintenance range for the damage caused by water. Please avoid closing to the eyes of children and pets when using the flash indicator of the device. Please do not operate the device in thunderstorm weather. It will damage your hearing if you listen with high volume for a long time. It is recommended that only use the lowest volume which is necessary for speaking and listening to music. 1.Guide ■ Headset introduction ※ Contents: Bluetooth Headset, USB Charging Cable, S/L Eartips, User's Manual USB Charging Cable: 2.Instruction ■ Key Function 3. How to connect with two Bluetooth mobile phones: Switch on: Press 2 seconds to switch on, the blue indicator will be in(voice prompts in English. Press 2.5 seconds, it enters into pairing mode, the red and blue indicators take turns to flash.(voice prompts in English; power will switch off automatically after 5 minutes no devices to connect . In music mode, press it 1 time to pause, and press it again to play. (when phone call comes, the music will be off. When phone call is off, the music will continue. Power switch Play/Pause Press “function key” to receive phone call, press it again to end the phone call. Press the key by twice continuously to re-dial the last phone number. Press the key for 2 seconds to reject the phone call. Receive Hang up phone call Switch off: Press 6 seconds to switch off, the red indicator flashes one time mean the device is switched off (voice prompts in English In Music Mode, press it to play next song. In Music Mode, press it to play previous song. Long press to increase volume all the time. Previous song Next Song Volume Increase Volume Decrease Long press to decrease volume all the time. Power switch / Pairing / Play / Pause / Receive / Hang up phone call Previous song Next song Volume increase USB charger port LED indicator Volume decrease Re-dial the last phone No When the headset is connected with two mobile phones, some functions of the mobile phones cannot work normally. (1) Turn on the bluetooth function of mobile phone 1. (2) Press the “ ” for 4 seconds of the bluetooth headset, switch on and enter into pairing mode, blue and red indicators take turns to flash, make connection with phone 1. (3) press the “ ” again for 2.5 seconds, the red and blue indicators take turns to flash and searching connections automatically; meanwhile, phone 1 is disconnected. (4) Turn on the bluetooth function of the mobile phone 2 and search KBJ-152N from the list, make connection.(Input the password 0000 if needed and the connection will be made). (5) Turn off the bluetooth headset and return on, the headset will connect with both mobile phones automatically. The voice “Bluetooth is connected, bluetooth is connected” will appear in English. ■ Battery power of bluetooth headset displayed on Iphone After connected with Iphone, the battery power of the headset will be displayed on the phone. Microphone Bluetooth 4.0 Sports Headset 06050708 7.Project Specification and Instruction - Bluetooth Version : V4.0 - Supported devices: Bluetooth mobile phones, Bluetooth speakers Bluetooth PC and other Bluetooth devices - Maximum work range: 33 Feet (10 Meters) - Standby time: 80 Hours - Talk time: 5 Hours - Music play: 4 Hours - Charging time: 2.5 Hours - Charging Voltage: DC 5V - Work Voltage: 3.7V - Frequency Response: 20Hz~20KHz The actual time may vary from mobile phone types and functions. 4.Bluetooth Indicator Status Red indicator is on all the time when charging; Blue indicator is on instead when charged full Charging Work Status Indicator Light StatusRemark Switch on Blue indicator flash 2 times Switch off Red indicator flash 1 time Connection Phone call Play Music Battery low warning Pairing Mode Red and blue indicators take turns to flash Voice Prompts Voice Prompts Voice Prompts Voice Prompts Voice Prompts If the headset turned off due to power failure during phone calls, the call will switch to mobile phone automatically. 6.Headset Charging This headset is equipped with built-in non-detachable and rechargeable battery. Please make sure that the battery is charged full for the first time use. ■ Connect the charger to the charging port. ■ Insert the charger into the standard power outlet. During the charging, indicator will turn to Red. If without charging, please plug out the travel charger first, then connect it again. ■ After full charging, red indicator will be off. Please plug out the travel charger from the power outlet and headset. ■ It will reduce the battery performance after long time / repeatable charge and dis-charge. Blue indicator will flash 1 time every 6 seconds Blue indicator will flash 1 time every 6 seconds Blue indicator will flash 1 time every 6 seconds 10:30 90% 90% KBJ-152N 5.Wearing Style: Put the hook over the ear, and make the eartips into the ear, rotate it to fit the ear c…

Text truncated - open the document above for the full version.

Differences Description We Shenzhen Compoka Electronic Technology Co., Ltd state: Product name: Bluetooth headset Model: KBJ-152N, BHS-530 All model’s the function, software and electric circuit are the same , only different in Model Name. Signature: 2015-09-09 Name Ting He Position Manager Company Name Shenzhen Compoka Electronic Technology Co., Ltd Address 4F, Building B, Yishida Industrial Park, Xintang Village, Guanlan Town, Shenzhen China Te l 86-755-28089215 Fax 86-755-28089215 Email [email protected]

September 09, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AA7XKBJ-152N Product Name: Bluetooth headset Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics Long-term confidential • Block diagram Long-term confidential • Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Ting He Position Manager Company Name Shenzhen Compoka Electronic Technology Co., Ltd Address 4F, Building B, Yishida Industrial Park, Xintang Village, Guanlan Town, Shenzhen China Tel 86‐755‐28089215 Fax 86‐755‐28089215 Email [email protected]

Label 10mm 10mm Label FCC ID: 2AA7XKBJ-152N Shenzhen Compoka Electronic Technology Co., Ltd Model name: Bluetooth headset Model No.: KBJ‐152N

FCCID:2AA7XKBJ152N    RFExposureevaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances İ50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] g[Ĝf(GHz)]İ3.0 for 1-g SAR and İ7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz 1.43dBm(1.39mW) output power] (1.39mW /5mm) g[Ĝ2.402(GHz)]= 0.431 <3.0 for 1-g SAR ThenSARevaluationisnotrequired Worse case is as below: [2402MHz 3.108dBm(2.046mW) output power] (2.046mW /5mm) 0.634

Shenzhen Certification Technology Service Co., Ltd. 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao'an District, Shenzhen 518126, P.R. China FCC ID: 2AA7XKBJ-152N Page 1 of 73 TEST REPORT FCC ID: 2AA7XKBJ-152N Applicant : Shenzhen Compoka Electronic Technology Co., Ltd Address : 4F, Building B, Yishida Industrial Park, Xintang Village, Guanlan Town, Shenzhen China Equipment Under Test (EUT): Name : Bluetooth headset Model : KBJ-152N , BHS-530 In Accordance with: FCC PART 15, SUBPART C : 2015 (Section 15.247) Report No : C1850364 01 Date of Test : September 06-October 20, 2015 Date of Issue : October 20, 2015 Test Result: PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature ___________________________ (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: C1850364 01 FCC ID: 2AA7XKBJ-152N Page 2 of 73 Contents 1.General Information ............................................................................................................... 4 1.1. Description of Device (EUT) ...............................................................................4 1.2. Accessories of device (EUT) ...............................................................................5 1.3. Test Lab information ............................................................................................5 2.Summary of test ...................................................................................................................... 6 2.1. Summary of test result .........................................................................................6 2.2. Assistant equipment used for test .........................................................................6 2.3. Block Diagram .....................................................................................................7 2.4. Test mode .............................................................................................................7 2.5. Test Conditions .....................................................................................................8 2.6. Measurement Uncertainty (95% confidence levels, k=2) ....................................8 2.7. Test Equipment .....................................................................................................9 3.Maximum Peak Output power ............................................................................................ 10 3.1. Limit ...................................................................................................................10 3.2. Test Procedure ....................................................................................................10 3.3. Test Setup ...........................................................................................................10 3.4. Test Result ..........................................................................................................10 4.Bandwidth ............................................................................................................................. 11 4.1. Limit ................................................................................................................... 11 4.2. Test Procedure .................................................................................................... 11 4.3. Test Result .......................................................................................................... 11 5.Carrier Frequency Separation ............................................................................................. 17 5.1. Limit ...................................................................................................................17 5.2. Test Procedure ....................................................................................................17 5.3. Test Result ..........................................................................................................17 6.Number Of Hopping Channel ............................................................................................. 20 6.1. Limit ...................................................................................................................20 6.2. Test Procedure ....................................................................................................20 6.3. Test Result ..........................................................................................................20 7.Dwell Time ............................................................................................................................. 23 7.1. Test limit ............................................................................................................23 7.2. Test Procedure ....................................................................................................23 7.3. Test Results ........................................................................................................23 8.Radiated emissions ................................................................................................................ 29 8.1. Limit ...................................................................................................................29 8.2. Block Diagram of Test setup ............................................…

Text truncated - open the document above for the full version.

Shenzhen Certification Technology Service Co., Ltd. 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2nd Road, Bao'an District, Shenzhen 518126, P.R. China FCC ID: 2AA7XKBJ-225N Page 1 of 40 TEST REPORT FCC ID: 2AA7XKBJ-152N Applicant : Shenzhen Compoka Electronic Technology Co., Ltd Address : 4F, Building B, Yishida Industrial Park, Xintang Village, Guanlan Town, Shenzhen China Equipment Under Test (EUT): Name : Bluetooth headset Model : KBJ-152N, BHS-530 In Accordance with: FCC PART 15, SUBPART C : 2015 (Section 15.247) Report No : C1850364 01 Date of Test : September 06-October 20, 2015 Date of Issue : October 20, 2015 Tset Result : PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: C1850364 02 FCC ID: 2AA7XKBJ-152N Page 2 of 40 TABLE OF CONTENT 1General Information ------------------------------------------------------------------------------------ 4  1.1Description of Device (EUT) --------------------------------------------------------------------- 4 1.2Description of Test Facility ----------------------------------------------------------------------- 4 2 EMC Equipment List ------------------------------------------------------------------------------------ 5 3 Test Procedure ------------------------------------------------------------------------------------------- 6 4Summary of Measurement ---------------------------------------------------------------------------- 7  4.1Summary of test result ---------------------------------------------------------------------------- 7 4.2Test connection ------------------------------------------------------------------------------------- 7 4.3Assistant equipment used for test ---------------------------------------------------------------- 8 4.4Test mode ------------------------------------------------------------------------------------------- 8 4.5Test Conditions ------------------------------------------------------------------------------------- 8 4.6Measurement Uncertainty (95% confidence levels, k=2)------------------------------------- 8 5Spurious Emission ----------------------------------------------------------------------------------- 9 5.1Radiation Emission -------------------------------------------------------------------------------- 9 5.1.1Radiation Emission Limits(15.209) ------------------------------------------------------------- 9 5.1.2Test Setup ------------------------------------------------------------------------------------------- 9 5.1.3Test Procedure ------------------------------------------------------------------------------------ 11 5.1.4Test Equipment Setting For emission test Result. ------------------------------------------- 11 5.1.5Test Condition ------------------------------------------------------------------------------------ 11 5.1.6Test Result ---------------------------------------------------------------------------------------- 11 We have scanned the 10th harmonic from 9KHz to the EUT. ------------------------------------- 11 Detailed information please see the following page. ------------------------------------------------ 11 From 9KHz to 30MHz: Conclusion: PASS ----------------------------------------------------- 11 Note: The amplitude of spurious emissions which are attenuated by more than 20dB below the permissible value has no need to be reported. ------------------------------------------------------- 11 6POWER LINE CONDUCTED EMISSION ------------------------------------------------------- 17 6.1Conducted Emission Limits(15.207) ---------------------------------------------------------- 17 6.2Test Setup ----------------------------------------------------------------------------------------- 17 6.3Test Procedure ------------------------------------------------------------------------------------ 18 6.4Test Results --------------------------------------------------------------------------------------- 18 7Conducted Maximum Output Power ----------------------------------------------------------- 21 7.1Test limit ------------------------------------------------------------------------------------------ 21 Please refer section15.247. ----------------------------------------------------------------------------- 21 7.2Test Procedure ------------------------------------------------------------------------------------ 21 7.3Test Setup ----------------------------------------------------------------------------------------- 21 7.4Test Results --------------------------------------------------------------------------------------- 21 PASS ---------------------------------------------------------------------------------------------------------- 21 Detailed information please see the Below. ---------------------------------------------------------- 21 8PEAK POWER SPECTRAL DENSITY ---------------------------------------------------------- 22 8.1Test limit ------------------------------------------------------------------------------------------ 22 8.1.1 Please refer section15.247. -------------------------------------------------------------------- 22 8.2Method of measurement ------------------------------------------------------------------------ 22 8.3Test Setup ---------------------------…

Text truncated - open the document above for the full version.

Photos of Radiated emission Photos of Conducted Emission test
