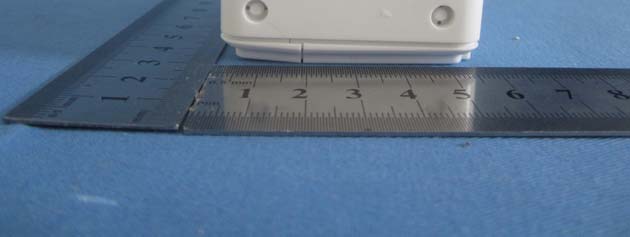

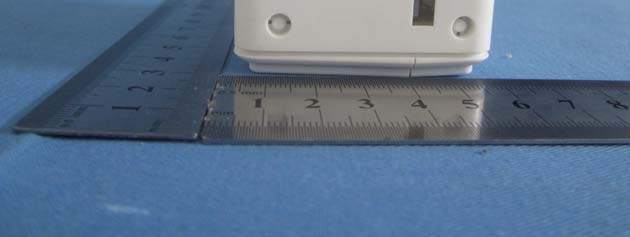

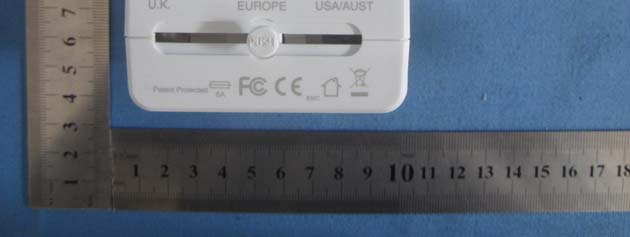

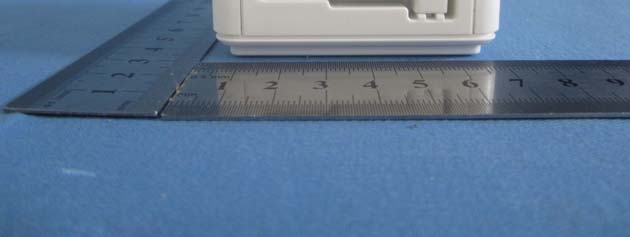

2AA8WEEC230WIFIWiFi Travel Router

Wi-Fi Standard 1 10/100Mbps WAN/LAN Port 1 Reset Button Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Dimensions ( W x D x H ) 2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm) Antenna Type On-Board Frequency 2412-2462MHz 11n: Up to 150Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) EIRP <20dBm (EIRP) 135M:-70dBm@10%PER 65M:-73dBm@10%PER 54M:-76dBm@10%PER Wireless Modes AP Mode, Router Mode ,Client Mode,Repeater Mode, Bridge Mode Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM,Wireless Statistics Wireless Security 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK WAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP DHCP Server, Client, DHCP Client List,Address Reservation Quality of Service WMM, Bandwidth Control Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS DynDns, Comexe, NO-IP VPN Pass-Through PPTP, L2TP, IPSec (ESP Head) Access Control Local Management Control, Host List, Access Schedule, Rule Management DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding Access Control Local Management Remote Management Certification CE, FCC, RoHS System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux Operating Temperature: 0~40 (32~104) Storage Temperature: -40 ~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Reception Sensitivity SOFTWARE FEATURES HARDWARE FEATURES Interface WIRELESS FEATURES Signal Rate OTHERS Environment Firewall Security Management Adapter Standard Universal Outlets USA PLUG / AUST PLUG / EUROPE PLUG / UK PLUG 6A Max. 100-240Vac 50/60Hz, Max.660W at 110Vac, 1380W at 230Vac Dimensions ( W x D x H ) Built-in 6A Fuse Type A USB Charge ：5Vdc / 2.1A 52mm X 69.5mm X 58mm FEATURES AC OUTLETS AC PLUG AC POWER RATING USB POWER RATING FUSE Single plug safety feature Built-in children safety shutter Function of multi-national plug adapter 1. Plug EEC-230 WiFi into the power socket with corresponding plugs. 2. EEC-230 WiFi do NOT convert the power voltage. Function of charging 1. Plug the 3C device to USB port on the EEC-230 WiFi for charging 3C device. Wi-Fi Standard EEC-230 byAHOKUDESIGN 1. RJ-45 to WiFi 2. Enhance the WiFi signal 3. Share internet with multiple 4. USB Charger 2.1A 5. Universal plug 6. Universal socket 7. Universal voltage (100-240Vac) 8. Suitable for different application scenarios Function of WiFi Router 1. Plug EEC-230 WiFi into the power socket with corresponding plugs. 2. It takes about 30 seconds for EEC-230 WiFi booting the system. a. Cable Connection  Connect the network cable to RJ45 port on the EEC-230 WiFi  Search the wireless device on your computer or smart phone and choose the SSID of EEC-230 WiFi by AHOKUWiFi-XXXX. (XXXX is four digital number assign by manufacturer)  Input password of “12345678” and then confirm to start to access the network. << Next page >> b. Wireless Connection  Search the wireless device on your computer or smart phone and choose the SSID of EEC-230 WiFi by AHOKUWiFi-XXXX. (XXXX is four digital number assign by manufacturer)  Input password of “12345678” then confirm.  Type the URL of “http://192.168.16.254/” on IE or other web browser.  Input the username “admin” and password “admin” under the system prompt. WiFi  System will search the available wireless SSID automaticaly.  Choose the SSID you want to connect and click “next”  Check the information of the SSID which want to connect and input password then click “next”.  Click “next” while the connecting message appears.  System will takes about 60 seconds to change the setting and reboot. Do not turn off the web browser during the setting time.  You can access the network while completed message appears. 1 10/100Mbps WAN/LAN Port 1 Reset Button Wireless Standards IEEE 802.11n/g/b Wireless Modes AP Mode, Router Mode ,Client Mode, Repeater Mode, Bridge Mode Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM,Wireless Statistics Wireless Security 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Interface HARDWARE FEATURES WIRELESS FEATURES Built-in 6A Fuse FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an e xperienced radio/TV technician for help. RF Exposure Warning Statement: The minimum operation distance between device include its antenna and the user body shall be no less than 20 cm.

AHOKU ELECTRONIC COMPANY 5F,No.88,Sec.1 Nei-Hu Road, Taipei, Taiwan, R.O.C. DATE :2013-10-29 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Hans.Hu of Global United Technology Services Co., Ltd. 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District Shenzhen Guangdong (Name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with AHOKU ELECTRONIC COMPANY. and 5F,No.88,Sec.1 Nei-Hu Road, Taipei, Taiwan, R.O.C. ( applicant name and address). Dated this / Day of 10/29/2013 / Agency agreement expiration date: 10/29/2014 By: PAUL CHANG Signature Printed Title: R&D Manager On behalf of : AHOKU ELECTRONIC COMPANY Telephone: +886-2-27991199

AHOKU ELECTRONIC COMPANY 5F,No.88,Sec.1 Nei-Hu Road, Taipei, Taiwan, R.O.C. DATE :2013-10-29 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AA8WEEC230WIFI Product Name: WiFi Travel Router Request for Long-term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, we hereby request that the following documents be held confidential long term:  Block diagram  Schematics  Operational Description These documents contain detailed system and equipment description and related information about the product which ARCHOS SA considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, Archos SA considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market Dated this / Day of 10/29/2013 / By: PAUL CHANG Signature Printed Title: R&D Manager On behalf of : AHOKU ELECTRONIC COMPANY Telephone: +886-2-27991199

label size: 20mm*3 5mm AHOKU ELECTRONIC COMPANY Product Name: WiFi Travel Router Model: EEC-230WiFi FCC ID: 2AA8WEEC230WIFI This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Label location

RF Exposure evaluation MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m2) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit(WORSE CASE IS AS BELOW) Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 1.33 39.5 0.01045 1 Compiles

Global United Technology Services Co., Ltd. Report No.: GTSE13040037401 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS International Electrical Approvals or testing done by GTS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by GTS International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” FCC REPORT Applicant: AHOKU ELECTRONIC COMPANY Address of Applicant: 5F,No.88,Sec.1 Nei-Hu Road, Taipei, Taiwan, R.O.C. Equipment Under Test (EUT) Product Name: WiFi Travel Router Model No.: EEC-230WiFi Trade Mark: Ahoku FCC ID: 2AA8WEEC230WIFI Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247:2012 Date of sample receipt: April 01, 2013 Date of Test: April 01- October 15, 2013 Date of report issued: October 28, 2013 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE13040037401 Global United Technology Services Co., Ltd. Project No.: GTSE130400374RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 65 2 Version Version No. Date Description 00 October 28, 2013 Original Prepared By: Date: October 28, 2013 Project Engineer Check By: Date: October 28, 2013 Reviewer Report No.: GTSE13040037401 Global United Technology Services Co., Ltd. Project No.: GTSE130400374RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 65 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE........................................................................................................................................ 6 5.4 DESCRIPTION OF SUPPORT UNITS....................................................................................................... 6 5.5 TEST FACILITY.................................................................................................................................... 7 5.6 TEST LOCATION................................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA...................................................................................... 9 7.1 ANTENNA REQUIREMENT:.................................................................................................................... 9 7.2 CONDUCTED EMISSIONS................................................................................................................... 10 7.3 CONDUCTED PEAK OUTPUT POWER.................................................................................................. 13 7.4 CHANNEL BANDWIDTH...................................................................................................................... 18 7.5 POWER SPECTRAL DENSITY............................................................................................................. 23 7.6 BAND EDGES.................................................................................................................................... 23 7.6.1 Conducted Emission Method ..................................................................................................... 23 7.6.2 Radiated Emission Method ........................................................................................................23 7.7 SPURIOUS EMISSION......................................................................................................................... 23 7.7.1 Conducted Emission Method ............................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
