2AA8Z-XRPAD2802.11n 3T3R Mini PCIe Module

Standard IEEE802.11 an Chipset Atheros AR9390-AL1B Radio stream [Note1] 3T3R Antenna Type / con. 3 U.FL connectors (diversity ant) Bus Interface PCI Express Form Factor Mini PCIe Data Rate 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 23 for HT20MHz MCS 0 to 23 for HT40MHz Media Access Control CSMA/CA with ACK Spreading /Modulation Techniques 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK,QPSK,16-QAM,64-QAM) Frequency Range [Note2] 5GHz 11a/n: 5.150GHz ~ 5.825GHz Transmit Output Power (Tolerance: +/-2dBm) 802.11a: 11dBm ± 2dBm@54Mbps 802.11an HT20: 15dBm ± 2dBm@MCS0 802.11an HT20: 11dBm ± 2dBm@MCS7 802.11an HT40: 15dBm ± 2dBm@MCS0 802.11an HT40: 11dBm ± 2dBm@MCS7 Receiver Sensitivity (Tolerance: +/-2dBm) 802.11a: -78dBm ± 2dBm@54Mbps 802.11an HT20: -95dBm ± 2dBm@MCS0 802.11an HT20: -75dBm ± 2dBm@MCS7 802.11an HT40: -93dBm ± 2dBm@MCS0 802.11an HT40: -72dBm ± 2dBm@MCS7 Operating Voltage 3.3V ±10% I/O supply voltage Power Consumption TX Mode: 970mA RX Mode: 300mA Associated Idle: 50 mA Temperature Range -40~+80°C (Operating) [Note3] Humidity (non-condensing) 20~80%(Operating), 5~95%(Storing) [Note3] Security WEP / WPA / WPA2 OS supported Windows XP/Vista/Win7, Linux Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: The product comply with the US portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/CANADA This device is intended only for OEM integrators under the following conditions: 1) The transmitter module may not be co-located with any other transmitter or antenna, As long as the condition above is met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following: “Contains FCC ID: 2AA8Z-XRPAD2”. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual.

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: 2AA8Z-XRPAD2 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular has a shielding Case. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The component number is AR9330 3. The modular transmitter must have its own power supply regulation. The component number is RT8010 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. UFL antenna connector is used. And no external amplifier will be used with this modular. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This modular is tested under stand-alone configuration. Please refer to Test setup photo. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMO DEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular complies with this requirement. Please refer to user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The device complies with this requirement. Please refer to RF exposure report. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): __________________ Date: ___04 November 2015____ Signature: ___________________________

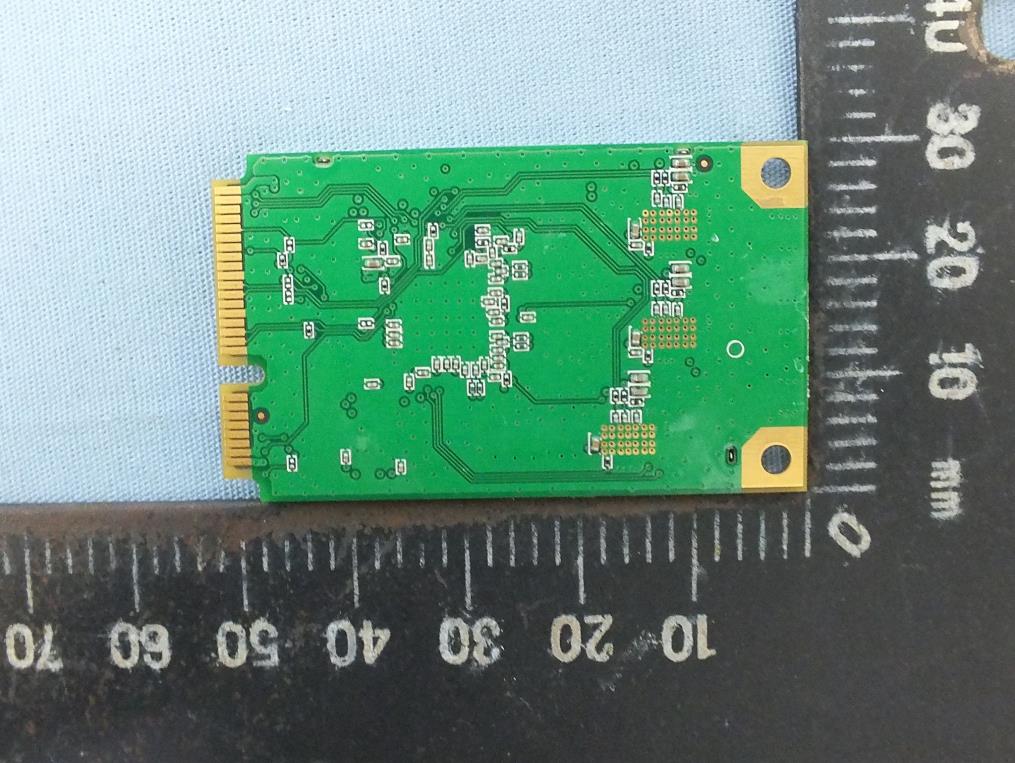

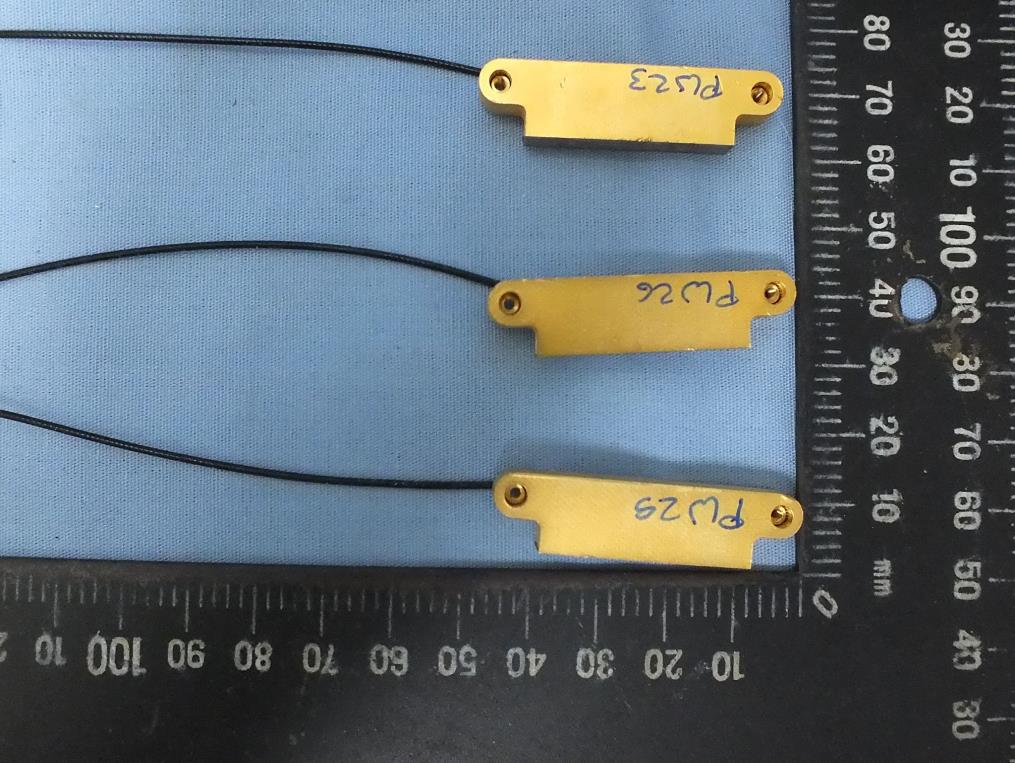

Project No.: 581901 Page No. : 1 of 5 Photographs of EUT Project No.: 581901 Page No. : 2 of 5 Project No.: 581901 Page No. : 3 of 5 Project No.: 581901 Page No. : 4 of 5

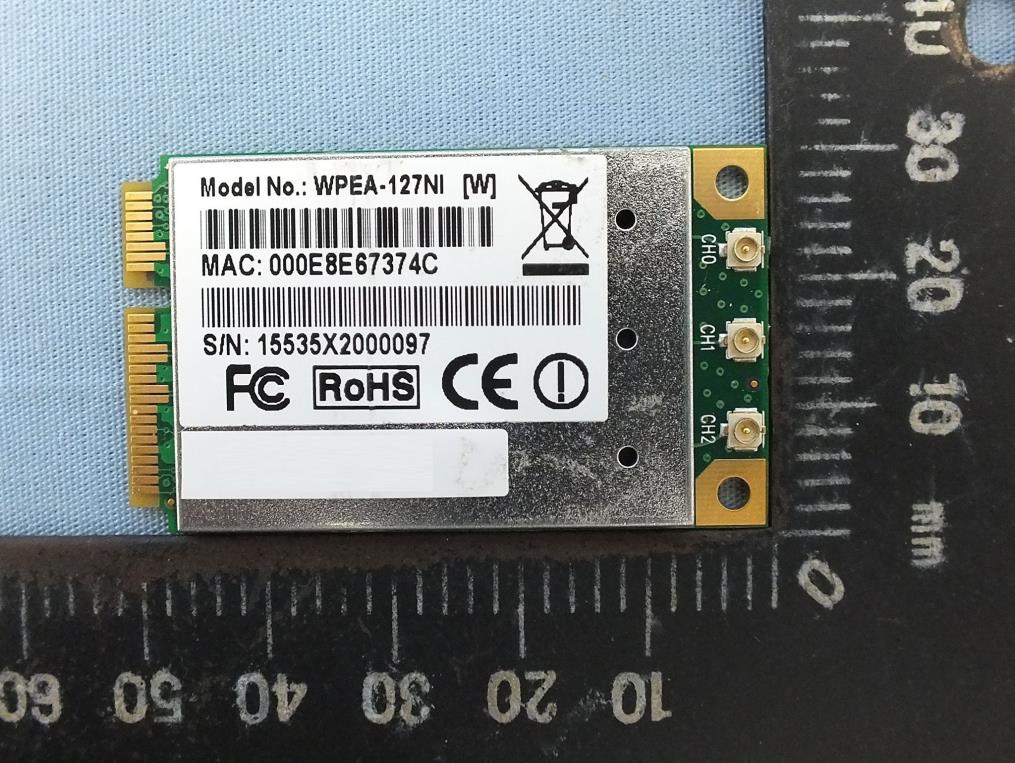

Front side of EUT Label location Antenna connector

Project No.: 581901 Page No. : 5 of 5

Report No.: FA581901 Page : 1 of 5 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : 2AA8Z-XRPAD2 Equipment : 802.11n 3T3R Mini PCIe Module Model No. : WPEA-127NI Brand Name : PerkinElmer Applicant : PerkinElmer Medical Imaging Address : In der Rehbach 22, 65396 Walluf, Germany Standard : 47 CFR FCC Part 2.1091 Received Date : Aug. 19, 2015 Tested Date : Aug. 26 ~ Oct. 06, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA581901 Page : 2 of 5 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 4 2 TEST LABORATORY INFORMATION ................................................................................................. 5 Report No.: FA581901 Page : 3 of 5 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA581901 Rev. 01 Initial issue Oct. 29, 2015 Report No.: FA581901 Page : 4 of 5 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 5180~5240 16.78 5.6 20 0.034 1 5260~5320 16.99 5.6 20 0.036 1 5500~5700 14.67 6.1 20 0.024 1 5745~5825 14.45 5.9 20 0.022 1 Report No.: FA581901 Page : 5 of 5 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR581901 Page : 1 of 107 Report Version: Rev. 01 FCC Test Report FCC ID : 2AA8Z-XRPAD2 Equipment : 802.11n 3T3R Mini PCIe Module Model No. : WPEA-127NI Brand Name : PerkinElmer Applicant : PerkinElmer Medical Imaging Address : In der Rehbach 22, 65396 Walluf, Germany Standard : 47 CFR FCC Part 15.407 Received Date : Aug. 19, 2015 Tested Date : Aug. 26 ~ Oct. 06, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR581901 Page : 2 of 107 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 9 1.3 Test Setup Chart .................................................................................................................................... 9 1.4 The Equipment List .............................................................................................................................. 10 1.5 Testing Applied Standards ................................................................................................................... 11 1.6 Measurement Uncertainty .................................................................................................................... 11 2 TEST CONFIGURATION ..................................................................................................................... 12 2.1 Testing Condition ................................................................................................................................. 12 2.2 The Worst Test Modes and Channel Details ....................................................................................... 12 3 TRANSMITTER TEST RESULTS ........................................................................................................ 14 3.1 Conducted Emissions ........................................................................................................................... 14 3.2 Emission Bandwidth ............................................................................................................................. 19 3.3 RF Output Power .................................................................................................................................. 23 3.4 Peak Power Spectral Density ............................................................................................................... 26 3.5 Transmitter Radiated and Band Edge Emissions ................................................................................ 31 3.6 Frequency Stability ............................................................................................................................. 104 4 TEST LABORATORY INFORMATION ............................................................................................. 107 Report No.: FR581901 Page : 3 of 107 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR581901 Rev. 01 Initial issue Oct. 29, 2015 Report No.: FR581901 Page : 4 of 107 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.262MHz 46.77 (Margin -14.61dB) - QP Pass 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 5725.00MHz 52.99 (Margin -1.01dB) - AV Pass 15.407(a) Emission Bandwidth Meet the requirement of limit Pass 15.407(e) 6dB bandwidth Meet the requirement of limit Pass 15.407(a) RF Output Power Max Power [dBm]: 5150~5250MHz: 16.78 5250~5350MHz: 16.99 5470~5725MHz: 14.67 5725~5850MHz: 14.45 Pass 15.407(a) Peak Power Spectral Density Meet the requirement of limit Pass 15.407(g) Frequency Stability Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR581901 Page : 5 of 107 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5150-5250 5250-5350 5470-5725 5725-5850 a 5180-5240 5260-5320 5500-5700 5745-5825 36-48 [4] 52-64 [4] 100-140 [11] 149-165 [5] 1 NOTE 3 6-54 Mbps 5150-5250 5250-5350 5470-5725 5725-5850 n (HT20) 5180-5240 5260-5320 5500-5700 5745-5825 36-48 [4] 52-64 [4] 100-140 [11] 149-165 [5] 3 MCS 0-23 5150-5250 5250-5350 5470-5725 5725-5850 n (HT40) 5190-5230 5270-5310 5510-5670 5755-5795 38-46 [2] 54-62 [2] 102-134 [5] 151-159 [2] 3 MCS 0-23 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. Note 3: 802.11a supports 1TX function only. TX diversity function is supportted for 11a function. 1.1.2 Antenna Details Ant. No. Brand Model Type Connector Operating Frequencies (MHz) / Antenna Gain (dBi) 5150~5250 5250~5350 5470~5725 5725~5850 1 Perkinelmer CBSA PCB UFL 5.6 5.6 6.1 5.9 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 3.3Vdc from host 1.1.4 Accessories N/A Report No.: FR581901 Page : 6 of 107 Report Version: Rev. 01 1.1.5 Channel List 802.11 a / HT20 802.11n HT40 Channel Frequency(MHz) Channel Frequency(MHz) 36 5180 38 5190 40 5200 46 5230 44 5220 54 5270 48 5240 62 5310 52 5260 102 5510 56 5280 1…
