2AA9B02BMD-100

u-blox AG

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Feb 08, 2015
Application Purpose: Original Equipment
Date of Application: Feb 08, 2015
Equipment Note: BMD-100
Frequency Range: 2402.00000000 - 2480.00000000
Company: u-blox AG
Country: Switzerland

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

BMD-100-DS-V0.5 PRELIMINARY Page 1 of 17 Rigado LLC 2601 25 th ST SE Suite 200 Salem, Oregon 97302 866-6-RIGADO  [email protected] www.rigado.com/modules BMD-100 Module for Bluetooth 4.1 LE The BLUMOD BMD-100 is a Bluetooth Smart master/slave network processor module targeted for low-power sensors and accessories using the ultralow power STMicroelectronics BlueNRG-MS chipset. It integrates features required for a Bluetooth Smart application, including Bluetooth radio, software stack, and GATT/ATT-based access. The external host application processor, where the application resides, connects using SPI20. This allows the best microcontroller for the application to be chosen and C based Bluetooth Low Energy profiles are available for compiling into your application. The module can be powered directly from a standard 3V coin cell battery or a pair of AAA batteries with a maximum input current of only 15 mA at the highest output power. On-module flash memory allows in the field Bluetooth low energy stack upgrades. 1. Features Bluetooth v4.1 compliant master, slave and multiple roles simultaneously Embedded Bluetooth low energy protocol stack: GAP, GATT, SM, L2CAP, LL, RF-PHY C based Bluetooth low energy profiles High performance, ultra-low power Cortex-M0 32-bit architecture core SPI application controller interface (ACI) Operating supply voltage: 1.7 to 3.6 V 8.2 mA maximum TX current (@0 dBm, 3.0 V) Down to 1.7 μA current consumption with active BLE stack Integrated linear regulator and DC-DC step- down converter Up to +8 dBm available output power Excellent RF link budget (up to 96 dB) Accurate RSSI to allow power control Full link controller and host security On-chip non-volatile Flash memory AES security co-processor Low power modes 32 MHz crystal oscillator 32 kHz ring oscillator Optional 32 kHz crystal oscillator Battery voltage monitor and temperature sensor Operating temperature range: -40 °C to 85 °C Bluetooth, FCC, IC, and CE certifications (Jan 2015) BMD-100 Module Datasheet Bluetooth 4.1 LE 1/5/2014 BMD-100-DS-V0.5 PRELIMINARY Page 2 of 17 2. Ordering Information Email [email protected] for quotes and ordering or visit www.rigado.com/bmd-100 Part Number Description BMD-100-A-R BMD-100 module, Rev A, Tape & Reel BMD-100-A-CT BMD-100 module, Rev A, Cut Tape BMD-100-NUCL BMD-100 Nucleo Shield BMD-100-EVAL BMD-100 Evaluation Kit (Nucleo Shield + Nucleo Platform) Table 1 - Ordering Part Numbers 3. Hardware Block Diagram Figure 1 – Hardware Block Diagram 4. Software Block Diagram Figure 2 – Software Block Diagram BMD-100 Module Datasheet Bluetooth 4.1 LE 1/5/2014 BMD-100-DS-V0.5 PRELIMINARY Page 3 of 17 Table of Contents 1. FEATURES .................................................................................................................................................................. 1 2. ORDERING INFORMATION ........................................................................................................................................ 2 3. HARDWARE BLOCK DIAGRAM ................................................................................................................................... 2 4. SOFTWARE BLOCK DIAGRAM .................................................................................................................................... 2 5. QUICK SPECIFICATIONS ............................................................................................................................................. 4 6. PIN DESCRIPTIONS .................................................................................................................................................... 5 7. ELECTRICAL SPECIFICATIONS ..................................................................................................................................... 6 7.1. ABSOLUTE MAXIMUM RATINGS ................................................................................................................................ 6 7.2. OPERATING CONDITIONS .......................................................................................................................................... 6 7.3. SPI INTERFACE ........................................................................................................................................................... 6 7.4. CLOCKS ....................................................................................................................................................................... 6 7.5. NOTE .......................................................................................................................................................................... 7 8. APPLICATION CONTROLLER INTERFACE ..................................................................................................................... 7 9. MECHANICAL DATA ................................................................................................................................................... 8 9.1. MODULE DIMENSIONS .............................................................................................................................................. 8 9.2. RECOMMENDED PCB LAND PAD ............................................................................................................................... 8 10. MODULE MARKING ................................................................................................................................................. 9 11. RF DESIGN NOTES.................................................................................................................................................... 9 11.1. RECOMMENDED RF LAYOUT & GROUND PLANE..................................................................................................... 9 11.2. MECHANICAL ENCLOSURE .................................................................................................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Rigado LLC 2601 25 th ST SE Suite 200 Salem, Oregon 97302 (o) 971-208-5236  (f) 503-405-7279 1/23/2015 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Rigado, LLC FCC ID: 2AA9B02 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 Rigado, LLC hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type File Name Description Block Diagram Block Diagram Operational Description Operational Description Schematics Schematics Parts / BOM Parts / BOM List Note: Any exhibit NOT granted Confidential status is viewable on the FCC website as soon as the Grant is issued. Reason why the material should be withheld from public inspection: These documents contain detailed system, equipment description and related information about the product which Rigado, LLC considers proprietary, confidential, and a custom design not otherwise available to the general public. State why the information is a “trade secret;” Since the design is a basis from which future products will evolve, Rigado, LLC considers that this information would be of significant benefit to its competitors and that disclosure would give competitors an unfair advantage in the marketplace. Trade secret” information is information which is not generally known or reasonably ascertainable, by which a business can obtain an economic advantage over competitors. The information is not normally released to any party or person outside the company. Sincerely, Signature: Name: Cam Nichols Company: Rigado, LLC Title: Engineer Date: 01/23/2015

Cover Letter(s)

Rigado LLC 2601 25 th ST SE Suite 200 Salem, Oregon 97302 866-6-RIGADO  (f) 971-208-9869 Letter of Authorization Company: Rigado, LLC Address: 2601 25 th St SE, Suite 200, Salem, OR 97302 Product Name: BMD-100 Model Number: BMD-100 We authorize MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following:  Testing  Approval applications (includes complete product documentation package, including Confidential information) and procedures  Payment of approval fees We declare that MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Cam Nichols Date: 1/23/2015 Title: Engineer Signature of applicant:

Cover Letter(s)

FCC Modular Approval Request Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Company name: Rigado, LLC FCC ID: 2AA9B02 FCC Part _15_Certification The table below contains the justification for modular approval of this equipment: Requirement per KDB 996369Explanation form grantee 1, The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes, it is fulfilled. The modular transmitter has own shielding. Shielding is show on external photos. 2, The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes, it is fulfilled. The modular have buffered modulation/data inputs. It is transmitted at 1 Mbps using GFSK modulation 3, The module must contain power supply regulation on the module. Yes, it is fulfilled. The modular transmitter have its own power supply regulation.(DC 3.3V by Jig.) 4, The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). Yes, it is fulfilled. The modular comply with antenna requirements.( chip antenna) 5, The module must demonstrate compliance in a stand-alone configuration; Yes, it is fulfilled. The modular was tested in a stand-alone configuration. Please see setup photos and test jig photo. 6, The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements). Yes, it is fulfilled. The label is shown on transmitter modular, please see the label view. 7, The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee. Yes, it is fulfilled. The operation description and user guides provide this detail. 8, The module must comply with RF exposure requirements. Yes, it is fulfilled. The modular is exempted due to its low field strength. Signature: Name: Cam Nichols Title: Engineer Company: Rigado, LLC

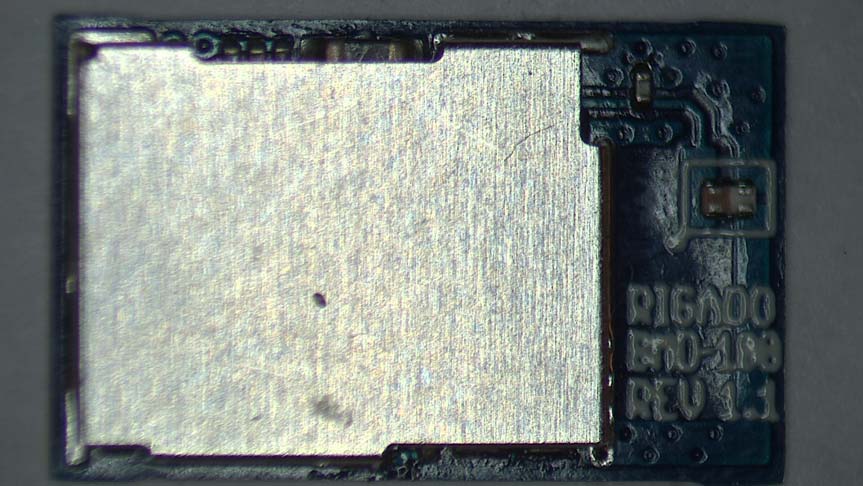

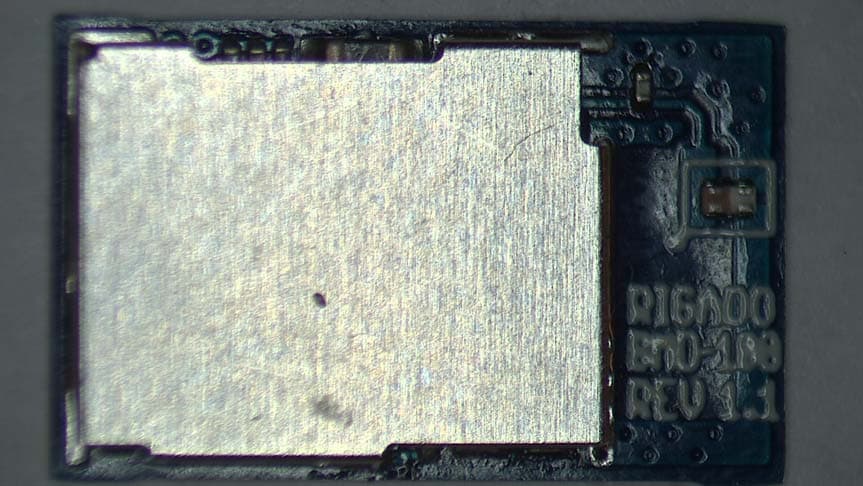

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

FCC ID:2AA9B02 IC:12208A-02 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Te l：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3141230-01482-EFI Page 1 of 2 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT BMD-100 Model BMD-100 Frequency Band (Operating) 2402.0 MHz~2480.0 MHz Device Category ■Portable (<20cm separation) □Mobile (>20cm separation) □ Others Exposure Classification □ Occupational/Controlled exposure (S = 5mW/cm2) ■ General Population/Uncontrolled exposure (S=1mW/cm2) Antenna Diversity ■ Single antenna □ Multiple antennas □ Tx diversity □ Rx diversity □ Tx/Rx diversity Max. Output Power -1.26dBm Antenna Gain (Max) Gain=1dBi (Numeric gain:1.26) Evaluation Applied ■ MPE Evaluation □ SAR Evaluation Note: 1. The maximum mix output power is -1.26dBm (0.748mW) with 1 numeric antenna gain. 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. FCC ID:2AA9B02 IC:12208A-02 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Te l：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3141230-01482-EFI Page 2 of 2 Calculation Given (Equation 1) Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=0.748mW Numeric antenna gain=1 Substituting the MPE safe distance using d=20 cm into Equation 1 : Yields The power density S = 0.748× 1.26/ (4∏×400) cm 2 =0.00019mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.)

Test Report

CENTRE OF TESTING SERVICE INTERNATIONAL OPERATE ACCORDING TO ISO/IEC 17025 FCC ID/IC TEST REPORT TEST REPORT NUMBER : CGZ3141230-01482-EFI CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China FCC ID:2AA9B02 IC:12208A-02 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3141230-01482-EFI Page 1 of 44 TEST REPORT For FCC ID/IC RSS 210:Issue 8 47 CFR PART 15 OCT, 2014 Report Reference No. .................... CGZ3141230-01482-EFI Date of issue..................................... 04 February 2015 Testing Laboratory Name .............. CENTRE OF TESTING SERVICE CO., LTD. Address............................................. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Testing location/ procedure .............. Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s name ............................Rigado, LLC Address............................................. 2601 25 th St SE, Suite 200, Salem, OR 97302 USA Test specification ........................... Standard ........................................... 47 CFR PART 15 OCT, 2014; RSS 210:Issue 8, RSS-Gen:Issue 4 Test Report Form No. ....................CTSEMC-1.0 TRF Originator.................................. CENTRE OF TESTING SERVICE CO., LTD. Master TRF .......................................Dated 2009-01 CENTRE OF TESTING SERVICE CO., LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the CENTRE OF TESTING SERVICE CO., LTD. is acknowledged as copyright owner and source of the material. CENTRE OF TESTING SERVICE CO., LTD takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description.....................:BMD-100 Trade Mark....................................... Rigado Manufacturer.................................... Rigado, LLC Model/Type reference...................... BMD-100 Ratings.............................................DC 3.3V Operating Frequency ........................ 2402~2480MHz Result ............................................... Positive Compiled by: Supervised by: Approved by: Kate zhang / Fileadministrators Duke yang / Technique principal Vincent yao / Manager FCC ID:2AA9B02 IC:12208A-02 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3141230-01482-EFI Page 2 of 44 FCC ID/IC -- T E S T R E P O R T Test Report No. : CGZ3141230-01482-EFI 04 February 2015 Date of issue Type / Model............................ BMD-100 EUT.......................................... BMD-100 Applicant........................... Rigado, LLC Address.................................... 2601 25 th St SE, Suite 200, Salem, OR 97302 USA Telephone................................ +1-971-208-9857 Fax........................................... +1-971-208-9869 Contact..................................... Cam Nichols Manufacturer...................... Rigado, LLC Address.................................... 2601 25 th St SE, Suite 200, Salem, OR 97302 USA Telephone................................ +1-971-208-9857 Fax........................................... +1-971-208-9869 Contact..................................... Cam Nichols Factory............................... Rigado, LLC Address.................................... 2601 25 th St SE, Suite 200, Salem, OR 97302 USA Telephone................................ +1-971-208-9857 Fax........................................... +1-971-208-9869 Contact..................................... Cam Nichols Test Result according to the standards on page 1:PASSED The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. FCC ID:2AA9B02 IC:12208A-02 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3141230-01482-EFI Page 3 of 44 TABLE OF CONTENTS Description Page 1.0 TEST STANDARDS .....................................................................................................................................5 2.0 SUMMARY...................................................................................................................................................5 2.1 GENERAL REMARKS .......................................................................................................................................5 2.2 FINAL ASSESSMENT........................................................................................................................................5 3.0 EQUIPMENT UNDER TEST ........................................................................................................................5 3.1 POWER SUPPLY SYSTEM UTILISED........…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Filip Kruzela(Certification Manager)

[email protected]+41 44 722 74 44Fax: +41 44 722 74 47

Technical Contact

Centre of Testing Service CO., LTDSusan Zhang

[email protected](86)2022138571

A101, No 65 Zhiji Highway, Tianhe District · Guangzhou, Guangdong · China

Test Firm

Centre of Testing service Co., LtdVincent Yao

[email protected]86-20-22138530Fax: 86-20-38780406

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	800.00 µW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Single Modular Approval. Power Output listed is Conducted. This OEM module is approved for use in products operating as portable transmitting devices. The only antenna approved for use with this module are those documented in the filing, and must be installed in the manner specified within. End users may not be provided with the module installation instructions; module installation instructions are limited to or reserved for authorized installers only.
